USER MANUAL CMCCS320 Craftsman

English (original instructions) 5

1 Trigger switch
2 Lock-off lever
3 Front hand guard
4 Guide bar
5 Saw chain
6 Bar tip guard
7 Bar tip guard extension
8 Sprocket cover
9 Bar lock nut
10 Chain tensioning screw
11 Scabbard
12 Wrench
13 Rear handle
14 Front handle

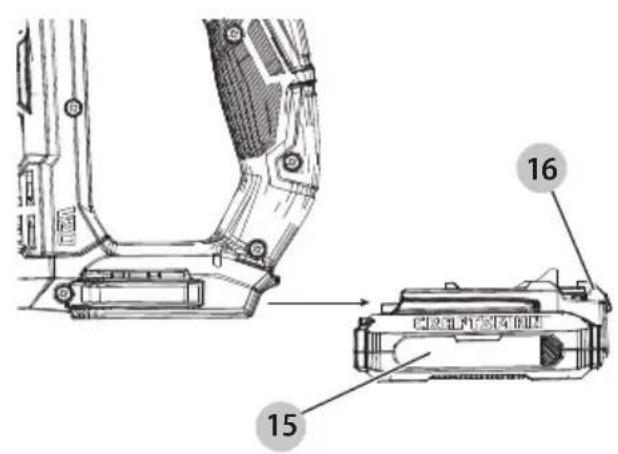

15 Battery Pack
16 Battery release button

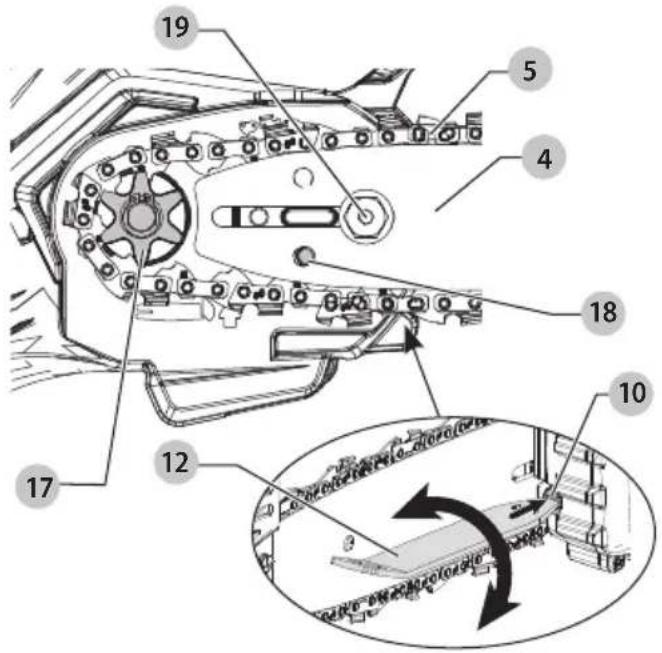

Composants

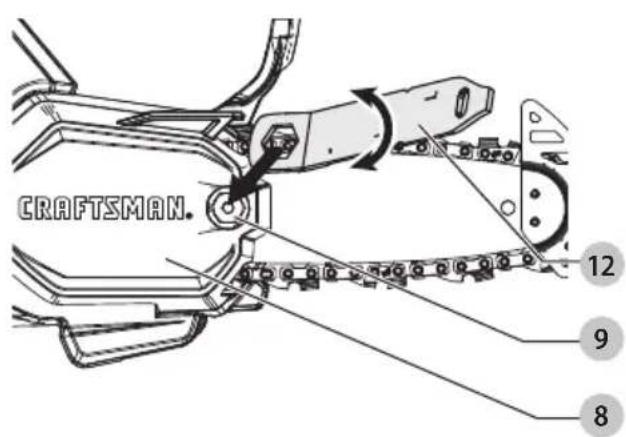

Mechanical assembly diagram showing a chain with pulleys and a circular component (no text or symbols)

Fig. F

CRAFTSMAN. 12 9 8

Fig. G

Technical diagram of a mechanical device with numbered components and an inset showing internal flow or assembly steps.

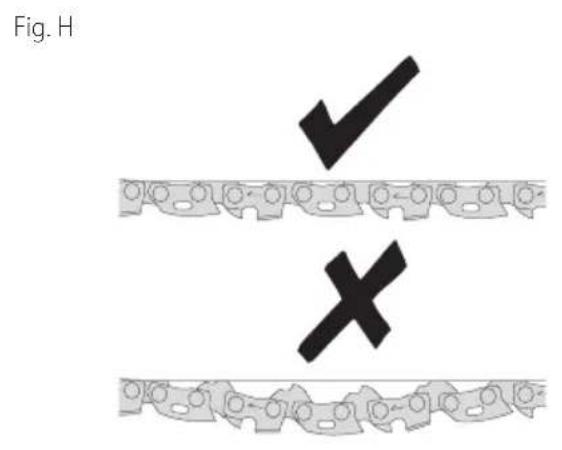

Fig. H ✓ ×

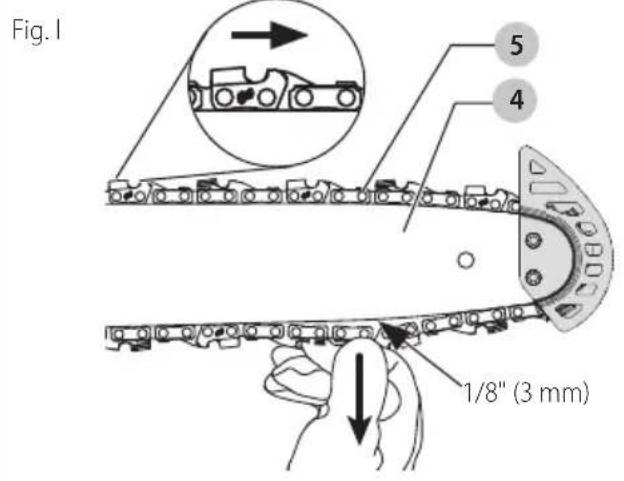

Fig. I 5 4 1/8" (3 mm)

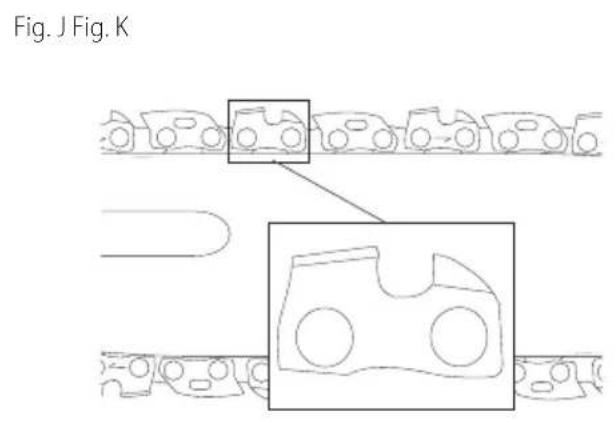

Fig. J Fig. K

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

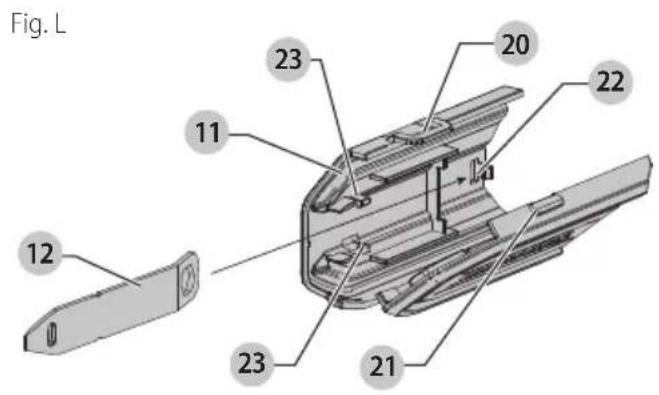

Fig. L 12 11 23 20 22 23 21

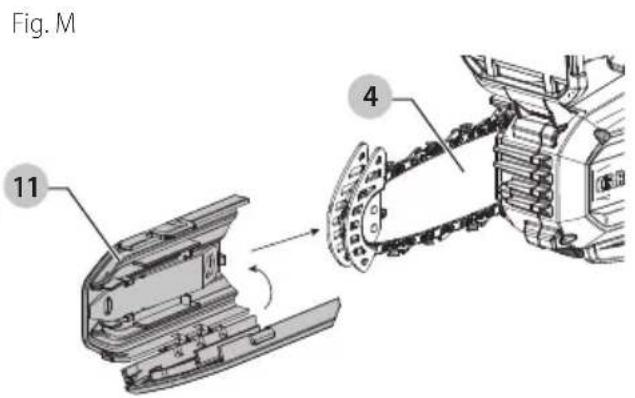

Fig. M 11 4

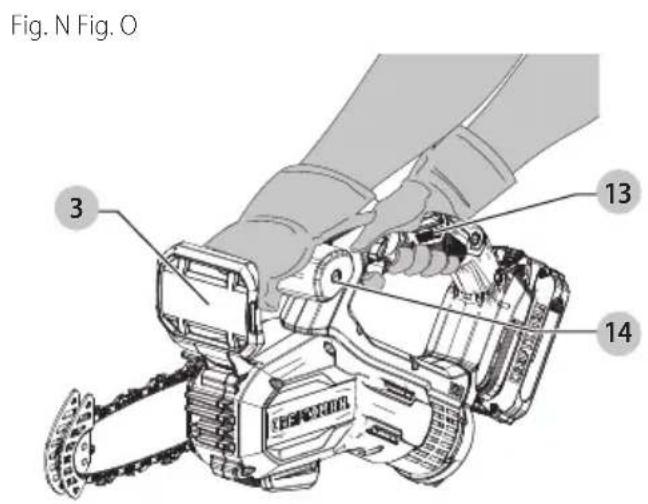

Fig. N Fig. O 3 13 14

Technical diagram of a mechanical assembly with numbered parts labeled 15 and 16

Fig. P Fig. Q

25 60°

.025" (0.635 mm)

Fig. R

A A=B B

Fig. S

Technical line drawing of a mechanical assembly with no visible text or symbols

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

Intended Use

The CMCCS320 pruner is designed for pruning applications up to 4" (102 mm) in diameter.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

This pruner is a professional power tool.

DO NOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation when, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, indications and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

ENgliSh

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.

Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Pruner Safety Warnings

a) Keep all parts of the body away from the saw chain when the pruner is operating. Before you start the pruner, make sure the saw chain is not contacting anything. A moment of inattention while operating pruners may cause entanglement of your clothing or body with the saw chain.

b) Always hold the pruner with your right hand on the rear handle and your left hand on the front handle. Holding the pruner with a reversed hand configuration increases the risk of personal injury and should never be done.

c) Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the pruner "live" and could give the operator an electric shock.

d) Wear safety glasses and hearing protection. Further protective equipment for, head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury from flying debris or accidental contact with the saw chain.

e) Do not operate a pruner in a tree. Operation of a pruner while up in a tree can result in personal injury.

f) Always keep proper footing and operate the pruner only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the pruner.

g) When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibers is released, the spring loaded limb may strike the operator and/or throw the pruner out of control.
h) Use extreme caution when cutting brush and saplings. The slender material could catch the saw chain and be whipped toward you or pull you off balance.
i) Carry the pruner by the front handle with the pruner switched off and away from your body. When transporting or storing the pruner always fit the guide bar scabbard. Proper handling of the pruner will reduce the likelihood of accidental contact with the moving saw chain.
j) Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain could break the pruner chain.
k) Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery, causing loss of control.
1) Cut wood only. Do not use pruner for purposes not intended. For example: do not use pruner for cutting plastic, masonry or non-wood building materials. Use of the pruner for operations different than intended could result in a hazardous situation.
m) Maintain a firm grip, with thumbs and fingers encircling the pruner handles, with both hands on the pruner. Maintaining control of the pruner will reduce the risk of losing control. Do not let go of the pruner.
n) Do not overreach and do not cut above shoulder height. This enables better control of the pruner in unexpected situations.
o) Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains can cause chain breakage and increase the risk of injury.
p) Follow the manufacturer's sharpening and maintenance instructions for the pruner chain. Decreasing the depth gauge height can lead to increased risk of injury.

Causes and Operator Prevention of Kickback:

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw.

As a pruner user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

a) Maintain a firm grip, with thumbs and fingers encircling the pruner handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the pruner.
b) Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the pruner in unexpected situations.
c) Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.
d) Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

The Following Precautions Should Be Followed to Minimize Kickback:

1. Grip saw firmly. Hold the pruner firmly with both hands when the motor is running. Use a firm grip with thumbs and fingers encircling the pruner handles. Pruner will pull forward when cutting on the bottom edge of the bar, and push backward when cutting along the top edge of the bar.
2. Do not over reach.
3. Keep proper footing and balance at all times.
4. Don't let the nose of the guide bar contact a log, branch, ground or other obstruction.
5. Don't cut above shoulder height.
6. Use devices such as low kickback chain and reduced kickback guide bars that reduce the risks associated with kickback.
7. Only use replacement bars and chains specified by the manufacturer or the equivalent.
8. Never let the moving chain contact any object at the tip of the guide bar.
9. Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your saw chain could hit while you are cutting through a particular log or branch.
10. Keep your saw chain sharp and properly tensioned. A loose or dull chain can increase the chance of kickback. Check tension at regular intervals with the motor stopped and tool unplugged, never with the motor running.
11. Begin and continue cutting only with the chain moving at full speed. If the chain is moving at a slower speed, there is a greater chance for kickback to occur.
12. Cut one log at a time.

ENgliSh

1. Use extreme caution when re-entering a previous cut. Engage the ribbed bumpers 21 onto the wood and allow the chain to reach full speed before proceeding with a cut.
2. Do not attempt plunge cuts or bore cuts.
3. Watch for shifting logs or other forces that could close a cut and pinch or fall into chain.

Kickback Safety Features

ING: The following features are included for saw to help reduce the hazard of kickback; other such features will not totally eliminate this serious reaction. As a pruner user do not rely on safety devices. You must follow all safety actions, instructions, and maintenance in this tool to help avoid kickback and other forces which result in serious injury.

• Reduced-Kickback Guide Bar, designed with a small radius tip which reduces the size of the kickback danger zone on bar tip. A reduced - kickback guide bar is one which has been demonstrated to significantly reduce the number and seriousness of kickbacks when tested in accordance with safety requirements for electric pruners.
• Low-Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. A low-kickback chain is a chain which has met kickback performance requirements of ANSI B175.1–2012.
• Do not operate pruner while in a tree, on a ladder, on a scaffold, or from any unstable surface.
• Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
• Do not attempt operations beyond your capacity or experience. Read thoroughly and understand completely all instructions in this manual.
• Before you start pruner, make sure saw chain is not contacting any object.
• Do not operate a pruner with one hand! Serious injury to the operator, helpers, or bystanders may result from one handed operation. A pruner is intended for two-handed use only.
• Keep the handles dry, clean, and free of oil or grease.
• Do not allow dirt, debris, or sawdust to build up on the motor or outside air vents.
• Stop the pruner before setting it down.
• Do not cut vines and/or small under brush.
• Use extreme caution when cutting small size brush and saplings because slender material may catch the saw chain and be whipped toward you or pull you off balance.

Pruner Names and Terms

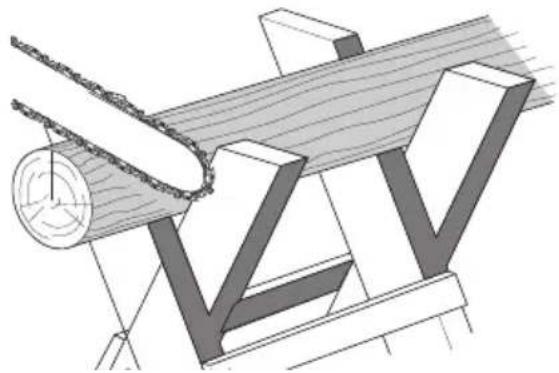

• Bucking - The process of cross cutting a felled tree or log into lengths.
• Motor Brake (if equipped) - A device used to stop the saw chain when the trigger is released.
• Pruner Powerhead - A pruner without the saw chain and guide bar.
• Drive Sprocket or Sprocket - The toothed part that drives the saw chain.
• Felling - The process of cutting down a tree.
• Felling Back Cut - The final cut in a tree felling operation made on the opposite side of the tree from the notching cut.
• Front Handle - The support handle located at or toward the front of the pruner.
• Front Hand Guard - A structural barrier between the front handle of a pruner and the guide bar, typically located close to the hand position on the front handle.
• Guide Bar - A solid railed structure that supports and guides the saw chain.
• Scabbard/Guide Bar Cover - Enclosure fitted over guide bar to help prevent tooth contact when saw is not in use.
• Kickback - The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such as a log or branch, or when the wood closes in and pinches the saw chain in the cut.
• Kickback, Pinch - The rapid pushback of the saw which can occur when the wood closes in and pinches the moving saw chain in the cut along the top of the guide bar.
• Kickback, Rotational - The rapid upward and backward motion of the saw which can occur when the moving saw chain near the upper portion of the tip of the guide bar contacts an object, such as a log or branch.

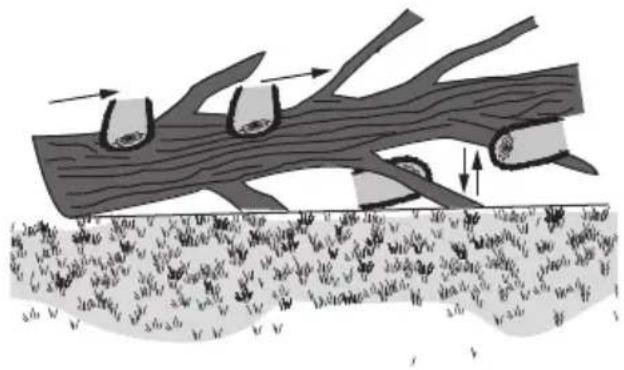

• Limbing - Removing the branches from a fallen tree.
• Low-Kickback Chain - A chain that complies with the kickback performance requirements of ANSI B175.1–2012 (when tested on a representative sample of pruners.)
• Normal Cutting Position - Those positions assumed in performing the bucking and felling cuts.
• Notching Undercut - A notch cut in a tree that directs the tree's fall.
• Rear Handle - The support handle located at or toward the rear of the saw.
• Reduced Kickback Guide Bar - A guide bar which has been demonstrated to reduce kickback significantly.
• Replacement Saw Chain - A chain that complies with kickback performance requirements of ANSI B175.1–2012 when tested with specific pruners. It may not meet the ANSI performance requirements when used with other saws.
• Saw Chain - A loop of chain having cutting teeth, that cut the wood, and that is driven by the motor and is supported by the guide bar.

• Ribbed Bumper - The ribs used when felling or bucking to pivot the saw and maintain position while sawing.

• Switch - A device that when operated will complete or interrupt an electrical power circuit to the motor of the pruner.

• Switch Linkage - The mechanism that transmits motion from a trigger to the switch.
• Switch Lockout - A movable stop that prevents the unintentional operation of the switch until manually actuated.

Additional Safety Information

WARNING: Never modify the power tool or any part of damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains chemicals known to state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its side on a durable surface where it will not cause a tripping or falling hazard. Some tools with a large battery pack will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

ClassII Construction (double insulated)

n_0 .....no load speed n .....rated speed

m/s.....meters per second

⊕ ....earthing terminal

⚠️......safety alert symbol

Visible radiation

Wearrespiratory protection

Wear eye protection

Wear hearing protection

Read all documentation

CSPM...... Cut strokes per minute

Do not leave in rain

Do not use front hand guard as a handle

Tip contact can cause the guide bar to move suddenly upward and backward, which can cause serious injury

X....Contact of the guide bar tip with any object should be avoided

Always use two hands when operating the pruner

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.

ENGLISH

• Charge the battery packs only in CRAFTSMAN chargers.
  • DO NOT splash or immerse in water or other liquids.
  • DO NOT allow water or any liquid to enter battery pack.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.
  NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.
• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
• Battery liquid may be flammable if exposed to spark or flame.
• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Storage Recommendations

The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of the charger.

Battery Pack Cleaning Instructions

Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Fuel Gauge Battery Packs (Fig. B)

Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-user application.

Transportation

WARNING: Fire hazard. Do not store, carry, or transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li-ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry-on baggage.

The RBRC® Seal

Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org or call the toll-free number in the RBRC® Seal.

RBRC ^® is a registered trademark of Call 2 Recycle, Inc.

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions, cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to work together.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock or electrocution.

- Do not expose the charger to rain or snow.

- Do not allow water or any liquid to enter charger.

- Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.

- Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heavier gauge.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120V 25 (7.6)		50 (15.2) 100	(30.5) 150 (45.7)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10	18 16 14 12
10 12	16 16 14 12
12 16	14 12	Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not operate the charger with a damaged cord or plug. Have them replaced immediately.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.
• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.
  • Always unplug the charger from the power supply when there is no battery pack in the cavity.

Charging a Battery (Fig. C)

1. Plug the charger into an appropriate outlet.
2. Insert and fully seat battery pack 15. Green charging light(s) will continuously blink while charging.
3. Charging is complete when the green charging light(s) remain(s) continuously ON. Battery pack can be left in charger or removed.

WARNING: Only charge batteries in air temperature over 40 °C (4.5 °C) and below 104 °F (+40 °C).

1. Charger will not charge a faulty battery pack, which may be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s) OFF.

NOTE: Refer to label near charging light(s) on charger for blink patterns.

NOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack may charge at a slower rate than a warm battery pack.

The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the charging procedure.

Electronic Protection System

Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to be recharged.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65 ^ - 75 ^ ( 18 ^ - 24 ^ ). DO NOT charge when the battery pack is below +40 ^ (+4.5 ^ ), or above +104 ^ (+40 ^ ). This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. You may charge a partially used pack whenever you desire with no adverse effect on the battery pack.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using

ENgliSh

a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Wall Mounting

Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

NOTE: Do not attempt to mount CMCB101 charger under a bench or table.

NOTE: Only mount CMCB101 charger with the charging lights pointed upward toward the ceiling.

VersaTrack™

WARNING: Do not charge batteries while charger is Hang on Trackwall.

CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for further information.

NOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwall compatible.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Installing the Guide Bar and Saw Chain (Fig. F - J)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

If the saw chain 5 and guide bar 4 are packed separately in the carton, the chain has to be attached to the bar, and both must be attached to the body of the tool.

1. Place the saw on a flat, firm surface.
2. Rotate the bar lock nut 9 counterclockwise with the wrench 12 provided.

3. Remove sprocket cover 8, and bar lock nut 9.

4. Wearing protective gloves, grasp the saw chain 5 and wrap it around the guide bar 4, ensuring the teeth are facing the correct direction (Fig. I).

5. Ensure the chain is properly set in the slot around the entire guide bar.
6. Place the saw chain around the sprocket 17. While lining up the slot on the guide bar with chain tensioning pin 18, and the bolt 18, on the base of the tool as shown in Fig. G.
7. Once in place, hold the bar still, replace sprocket cover 8. Install the rear of the sprocket cover first, rotate it down and make sure the bolt hole on the cover lines up with the bolt 18, on the main housing.
8. Install the bar lock nut 9 and rotate clockwise with the wrench 12 provided until snug, then loosen nut one full turn, so that the saw chain can be properly tensioned.
9. Rotate the chain tensioning screw 10 clockwise to increase tension as shown in Fig. H. Make sure the saw chain 5 is snug around the guide bar 4. Tighten the bar lock nut 9 until snug.
10. Follow the instructions in the section Adjusting Chain Tension.

Adjusting Chain Tension (Fig. H, I)

NOTE: Saw chain tension should be adjusted regularly before each use.

1. With the saw still on a firm surface check the saw chain 5 tension. The tension is correct when the saw chain snaps back after being pulled 1/8" (3 mm) away from the guide bar 4 with light force from the middle finger and thumb as shown in Fig. I. There should be no "sag" between the guide bar and the saw chain on the underside as shown in Fig. H.
2. To adjust saw chain tension, loosen bar lock nut 9.
3. Rotate the chain tension screw 10 in the front of the housing using the flat screwdriver end of the wrench 12.
4. Check saw chain tension, adjust if needed.
5. Do not over-tension the saw chain as this will lead to excessive wear and will reduce the life of the guide bar and saw chain.
6. Once saw chain tension is correct, tighten bar lock nut 9 until snug.
7. A new chain stretches slightly during the first few hours of use. It is important to check the tension frequently (after disconnecting battery remove the battery pack) during the first two hours of use.

Chain Oiling (Fig. K)

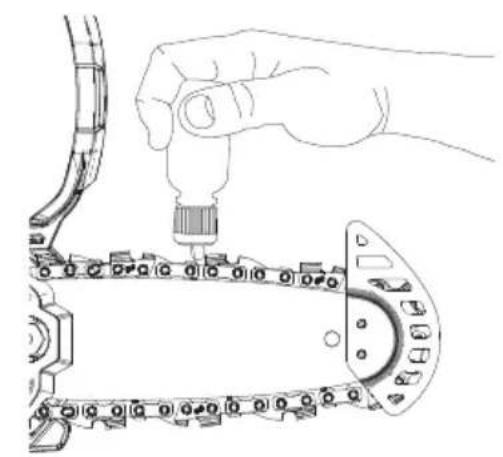

1. A high quality bar and chain oil or SAE30 weight motor oil should be used for saw chain 5 and guide bar 4 lubrication. The use of a vegetable based bar and chain oil is recommended when pruning trees. Mineral oil is not recommended because it may harm trees. Never use waste oil or very thick oil. These may damage your pole saw.

2. Lubricate the whole saw chain evenly before each use as shown in Figure K. Also lubricate the saw chain whenever replacing a fully discharged battery with a fully charged one.

Replacing the Saw Chain (Fig. F - I)

WARNING: Sharp moving chain. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

CAUTION: The chain speed of this product is 4.4 m/s. Only use chains that are rated at greater than 4.4 m/s.

1. Place the saw on a flat, firm surface.
2. Remove sprocket cover 8 as described in Installing the Guide Bar and Saw Chain section.
3. To remove the saw chain 5, rotate the chain tension screw 10 in the front of the housing using the flat screwdriver end of the wrench. Turning the screw counterclockwise allows the guide bar 4 to recede and reduces the tension on the chain so that it may be removed.
4. Wearing protective gloves, grasp the saw chain and lift the worn saw chain out of the groove in the guide bar.
5. Ensure guide bar is installed with the bar tip guard 6 positioned as shown in Fig. I.
6. Place the new chain in the slot of the guide bar, making sure the saw teeth are facing the correct direction by matching the arrow and graphic of the saw chain on the sprocket cover 8 shown in Fig. I.
7. Follow instructions for Installing the Guide Bar and Saw Chain.

Replacement chain and bar are available from your nearest authorized service center.

The CMCCS320 requires replacement 6" (152 mm) chain CMZCSC06. Replacement 6" (152 mm) bar CMZCSB06.

Scabbard and Wrench Storage (Fig. L, M)

The scabbard 11 has two functions, to cover the guide bar 4 when the tool is not in use and to store the wrench 12.

Scabbard

1. To open the scabbard, lift up on the latch 20 and pull the two halves apart.
2. To close the scabbard, close the two halves and ensure the latch is secured to the notch 21.

Wrench

1. Open the scabbard to gain access to the wrench.
2. Remove the wrench by lifting the wrench end up and away from the scabbard.
3. Store the wrench in the scabbard when finished. First install flat screwdriver end of the wrench into the retaining slot 22 and then press the wrench end down until the retaining clips 23 firmly secure the wrench in place.

Bar Tip Guard (Fig. A)

WARNING: Never operate the pruner without the bar up guard properly mounted on the guide bar to prevent rotational kickback.

The bar tip guard 6 reduces the chance of the chain 5 at the end of the guide bar 4 from coming into contact with objects which may cause the bar and chain to kickback towards the operator. In addition to reducing the chance of kickback, the bar tip guard 6 will reduce the chance of the chain from touching the ground.

Transporting Pruner (Fig. A)

- Always turn unit off, remove the battery and cover the guide bar 4 with the scabbard 10 when transporting the pruner.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Proper Hand Position (Fig. N)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown. WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires the left hand on the front handle 14, under the front hand guard 3, with the right hand on the rear handle 13.

NOTE: DO NOT hold the saw by the front hand guard 3.

Installing and Removing the Battery Pack (Fig. 0)

WARNING: Ensure the tool/appliance is in the off position before inserting the battery pack.

NOTE: For best results, make sure your battery pack is fully charged.

1. To install the battery pack 12 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.
2. To remove the battery pack from the tool, press the release button 16 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.

Operating the Pruner (Fig. A)

WARNING: Read and understand all instructions. Features to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

- Guard Against Kickback which can result in severe injury or death. See Important Safety Instructions Guard Against Kickback, to avoid the risk of kickback.

ENgliSh

• Do not overreach. Do not cut above chest height. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.
• Use a firm grip with your left hand on the front handle 14 and your right hand on the rear handle 13 so that your body is to the left of the guide bar.

WARNING: Do not hold pruner by front hand guard. Keep elbow of left arm locked so that left arm is straight to withstand a kickback.

WARNING: Never use a cross-handed grip (left hand or the rear handle and right hand on the front handle).

WARNING: Never allow any part of your body to be a line with the guide bar when operating the chain pruner.

• Never operate pruner while in a tree, in any awkward position or on a ladder or other unstable surface. You may lose control of pruner causing severe injury.
• Keep the pruner running at full speed the entire time you are cutting.
• Allow the chain to cut for you. Exert only light pressure. Do not put pressure on pruner at end of cut.

WARNING: When not in use always have the chain break (if equipped) engaged, unit turned off and remove the battery pack.

WARNING: Never operate the pruner without the lock-up guard properly mounted on the guide bar to prevent rotational kickback.

ON/OFF Switch (Fig. A)

WARNING: Never attempt to lock a switch in the position.

Always be sure of your footing and grip the pruner firmly with both hands with the thumb and fingers encircling both handles.

1. To turn the unit on, push down on the lock off lever 2, shown in Fig. A, and squeeze the trigger switch 1. Once the unit is running, you may release the lock off lever.
2. To keep the unit running you must continue to squeeze the trigger switch 1.
3. To turn the unit off, release the trigger switch 1.

NOTE: If too much force is applied while making a cut the pruner will turn off. To restart pruner, you must release the lock off lever 2 and the trigger switch 1 before the pruner will restart. Begin your cut again this time with less force. Allow the pruner to cut at its own pace.

Common Cutting Techniques

Limbing

Removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom of the branch towards the top to avoid binding the pruner as shown below. Trim limbs from opposite side keeping tree stem between you and pruner. Never make cuts with pruner between your legs or straddle the limb to be cut.

Diagram of a tree trunk with embedded soil layers and directional arrows indicating movement (no text or symbols)

Bucking

WARNING: Recommend that first time users should practice cutting on a pruner horse.

Cutting a felled tree or log into lengths. How you should cut depends on how the log is supported. Use a pruner horse whenever possible as shown below.

Technical illustration of a mechanical assembly with a pulley and wooden frame (no text or symbols)

1. Always start a cut with the pruner chain running at full speed.
2. Place the ribbed bumper 24 of the pruner behind the area of the initial cut as shown below.
3. Turn the pruner on then rotate the pruner chain and bar down into the tree, using the ribbed bumper as a hinge.
4. Once the pruner gets to a 45^ angle, level the pruner again and repeat steps until you cut fully through.
5. When the tree is supported along its entire length, make a cut from the top (overbuck), but avoid cutting the earth as this will dull your pruner quickly.

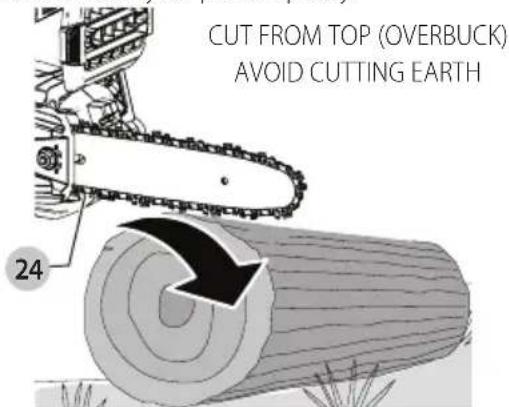

CUT FROM TOP (OVERBUCK) AVOID CUTTING EARTH 24

- When supported at one end first, cut 1/3 the diameter from the underside (underbuck). Then make the finishing cut by overbucking to meet the first cut as shown below.

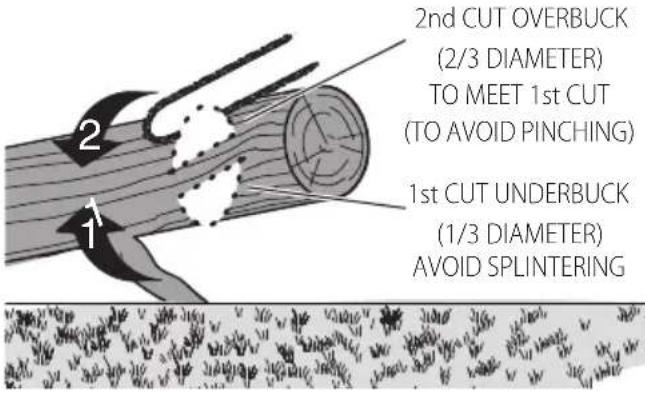

2nd CUT OVERBUCK (2/3 DIAMETER) TO MEET 1st CUT (TO AVOID PINCHING) 1st CUT UNDERBUCK (1/3 DIAMETER) AVOID SPLINTERING

- When supported at both ends. First, cut 1/3 down from the top overbuck. Then make the finished cut by underbucking the lower 2/3 to meet the first cut as shown below.

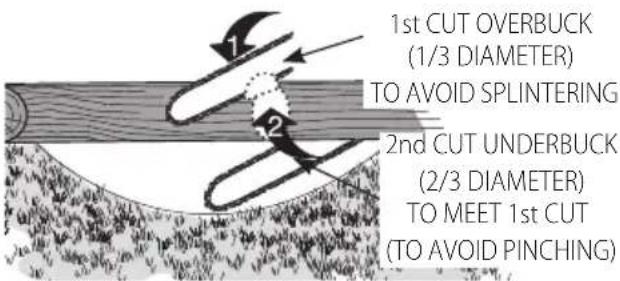

1st CUT OVERBUCK (1/3 DIAMETER) TO AVOID SPLINTERING 2nd CUT UNDERBUCK (2/3 DIAMETER) TO MEET 1st CUT (TO AVOID PINCHING)

- When on a slope always stand on the uphill side of the log. When "cutting through", to maintain complete control reduce the cutting pressure near the end of the cut without relaxing your grip on the pruner handles. Don't let the chain contact the ground. After completing the cut, wait for the pruner chain to stop before you move the pruner. Always stop the motor before moving from cut to cut.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Saw Chain and Guide Bar

After every few hours of use, remove the sprocket cover, guide bar and chain and clean thoroughly using a soft bristle brush. Ensure oiling hole on bar is clear of debris.

Sprocket and Sprocket Cover (Fig. F - I)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure the battery is removed from the tool is unplugged before performing the following operations. Failure to do this could result in serious personal injury.

1. Place the saw on a flat, firm surface.
2. Remove sprocket cover 7 as described in Installing the Guide Bar and Saw Chain section.
3. Wearing protective gloves, use a clean, soft bristle brush to wipe away any saw dust, sticks, vines or other debris that may have collected inside the sprocket cover 7 and around the chain 5 or sprocket 17.
4. Rotate the chain tension screw 9 using the flat screwdriver end of the wrench 17. Turning the screw counterclockwise allows the guide bar 4 to recede and reduces the tension on the chain so that it may be removed.
5. Wearing protective gloves, grasp the saw chain and guide bar and lift them away from the tool.
6. Wearing protective gloves, use a clean, soft bristle brush to wipe away any saw dust or other debris that may have collected on the guide bar 4 and around the chain 5.
7. Install the chain, guide bar and sprocket cover 7 as described in Installing the Guide Bar and Saw Chain, Replacing the Saw Chain sections and adjust chain tension properly before use as described in the Adjusting Chain Tension section.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

Saw Chain Sharpening (Fig. P - R)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

WARNING: Do not over file chain rakers, this will increase the risk of kickback. If the chain has been sharpened more than four times, replace it.

Each time the chain is sharpened, it loses some of the low kickback qualities and extra caution should be used.

ENgliSh

It is recommended that a saw chain be sharpened no more than four times.

NOTE: The cutters will dull immediately if they touch the ground/dirt or a nail while cutting.

To get the best possible performance from your pruner it is important to keep the teeth of the saw chain sharp. Follow these helpful tips for proper saw chain sharpening:

1. For best results use a 11/64" (4.5mm) file and a file holder or filing guide to sharpen your saw chain. This will ensure you always get the correct sharpening angles.
2. Place the file holder flat on the top plate and depth gauge of the cutter.

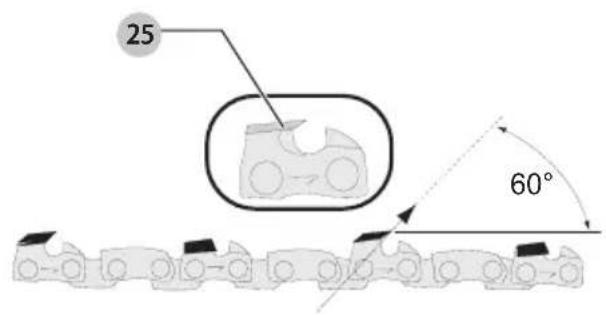

3. Keep the correct top plate 25 filing angle line of 30^ on your file guide parallel with your chain (file at 60^ from chain viewed from the side) as shown in Fig. P.
4. Sharpen cutters on one side of the chain first. File from the inside of each cutter to the outside. Then turn your saw around and repeat the processes (2, 3, 4) for cutters on the other side of the chain.
   NOTE: Use a flat file to file the tops of the rakers (portion of chain link in front of the cutter) so they are about .025" (.635 mm) below the tips of the cutters as shown in Fig. Q.
5. Keep all cutter lengths equal as shown in Fig. R.
6. If damage is present on the chrome surface of the top plates or side plates, file back until such damage is removed.

CAUTION: After filing, the cutter will be sharp, use caution during this process.

Versatrack™ (Fig. S)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-upcan cause injury.

WARNING: To reduce the risk of serious personal injury, do not use a damaged Versatrack™ integral hang hook or Versatrack™ Trackwall. A damaged Versatrack™ integral hang hook or Versatrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious personal injury, NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hang hook.

WARNING: The Versatrack™ integral hang hook is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any other surface.

WARNING: The Versatrack™ integral hang hook is not a hook.

WARNING: When hanging objects on a Versatrack™ Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

WARNING: Before using the tool make sure that the Versatrack™ integral hang hook is returned to its original position.

iIMPORTANT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.

1. Turn tool off, remove the battery pack and remove accessories.
2. Install guide bar scabbard 10 onto the guide bar 4.

CANTION: Any product with exposed cutting teeth must have them covered securely if it is to be on the Versatrack™ Trackwall.

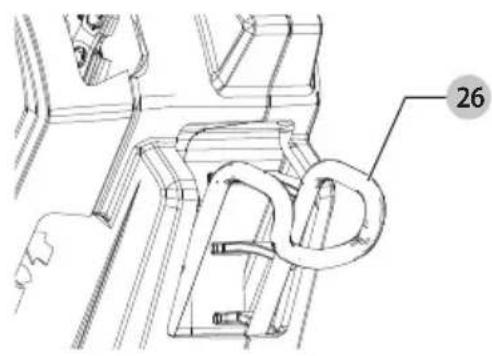

1. Flip or pull open the integral hang hook 26. It clicks when locked into position.

2. Mount the integral hang hook to the Versatrack™ Trackwall.

NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

Repairs

The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, reports, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB201, CMCB2011, CMCB2015

3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90 DAY MONEY BACK gUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

IATiN AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNiNg IABEI REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

CMCCS320 TROUBLESHOOTING

BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS

For assistance with your product, visit our website at www.craftsman.com for a list of service centers, or call CRAFTSMAN at 1-888-331-4569.

Problem Solution

Unit will not start.	Check battery installation.Check battery charging requirements.Check that lock off is fully pushed down prior to moving main trigger.
Unit shuts down in use.	Charge battery.Unit is being forced. Restart and apply less pressure.
Battery will not charge.	Insert battery into charger until red charging light illuminates.Plug charger into a working outlet.Refer to Important Charging Notes for more details.Check current at receptacle by plugging an appliance.Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.Move charger and appliance to a surrounding air temperature of above 40 °F (4.5 °C) or below 104 °F (+40 °C).
Bar / Chain overheated.	Refer to Adjusting Chain Tension section.
Chain is loose.	Refer to Adjusting Chain Tension section.
Poor cut quality.	Refer to Adjusting Chain Tension section. NOTE: Excessive tension leads to excessive wear and reduction in life of bar and chain. Lubricate before each cut. Refer to Replacing the Saw Chain and Saw Chain Sharpening section.
Unit runs but does not cut.	Chain could be installed backwards. Refer to sections for installing and removing chain.

Diagram of a tree trunk with roots and leaves, showing movement arrows and soil layers (no text or symbols)

Tronçonnage

Technical line drawing of a wooden structure with a circular component and mesh texture (no text or symbols)

Diagram illustrating fiber optic cable structure with labeled components 1 and 2

2e COUPE PAR-DESSUS

(2/3 DU DIAMÈTRE)

POUR REJOINDRE LA 1ère

COUPE (POUR ÉVITER LE PINCEMENT)

1ère COUPE PAR-DESSOUS

(1/3 DU DIAMÈTRE)

ÉVITER L'ÉCLATEMENT

Scanned text of contract clauses with handwritten annotations and red watermark

FRANÇAIS

CMCB201, CMCB2011, CMCB2015

CONTRAT D'ENTRETIEN gRATUiT DE TROiS ANS SUR IES BIOC-PiIES CRAFTSMAN

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

Diagram of a tree trunk with arrows indicating movement or force, showing grass at the base (no text or symbols present)

Derribo

Technical illustration of a wooden beam with a circular cutterhead and chain, showing structural components without any text or symbols.

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P 01210

TEL[phone]

R.F.C.BDE8106261W7

Registro en Línea

CMCB201, CMCB2011, CMCB2015

CMCB202, CMCB204, CMCB205, CMCB206, CMCB209

* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

HING: Use of any other battery packs may create a risk of injury and fire.
