USER MANUAL DWF18V3S Avanti

Interior view of a clean appliance with visible battery, wheels, and internal structure (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Help Us Help You	3
Parts and Features	4
Before Using Your Dishwasher	4
Important Safety Instructions	5
Electrical Connection	5
Water Heater Safety	6
Before Using Your Dishwasher	6
Control Panel	7
Wash Cycle Descriptions	7 - 8
How to Use Your Dishwasher	8 - 9
Overflow Protection	9
Water Cut-Off Protection	9
Using the Detergent Dispenser	9
Using the Rinse Aid Dispenser	10 – 11
How to Efficiently Load Your Dishwasher	11
Caring and Maintenance	12 - 13
Problems with your Dishwasher?	14
Troubleshooting Guide	14 - 15
Service for your Dishwasher	16
Your Avanti Products Warranty	17
Instrucciones en Español	18 – 32
Instructions en Francais	33 - 48
Registration Information / Registration Card	Last Page

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new dishwasher properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 1-800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the rear of the dishwasher.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your dishwasher.

If you received a damaged dishwasher, immediately contact the dealer (or builder) that sold you the dishwasher.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further help.

FIRST, contact the people who serviced your dishwasher. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

P.O. Box 520604 -

Miami, Florida 33152

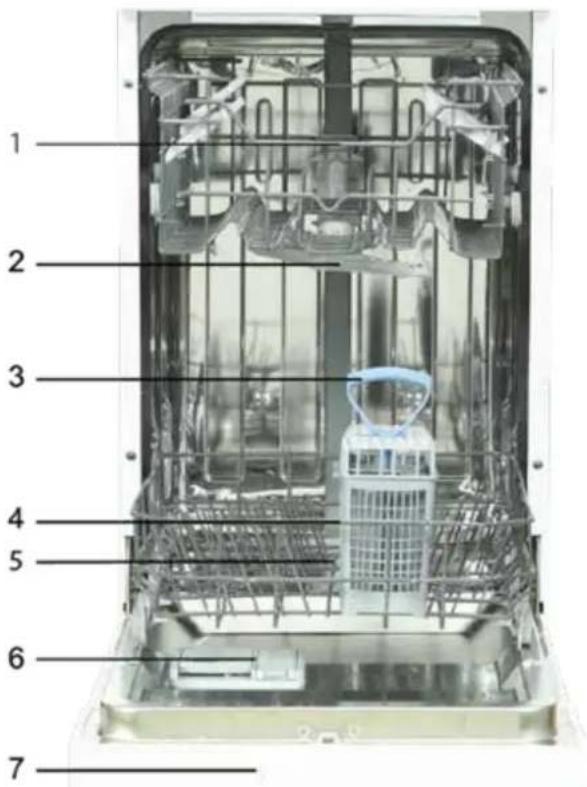

PARTS AND FEATURES

1 2 3 4 5 6 7

1	Upper Rack
2	Upper Spray Arm
3	Silverware / Cutlery Basket
4	Lower Rack
5	Lower Spray Arm / Filter Assembly
6	Detergent DispenserRinse Aid Dispenser
7	Control Panel

Before Using Your Dishwasher

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts: 2 Wash Racks (1 Upper / 1 Lower)

4 Cup Racks
1 Silverware Basket
1 Instruction Manual
1 Installation Manual

- Clean the interior surface with lukewarm water using a soft cloth.

Important Safety Instructions

~ WARNING~

To reduce the risk of fire, electrical shock, or injury when using your dishwasher, follow these basic precautions:

Read all instructions before using the dishwasher.DANGER or WARNING: Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned dishwashers are still dangerous. . . even if they will “just sit in the garage a few days.”Before you throw away your old appliance: Take off the doors. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the dishwasher.Never clean dishwasher parts with flammable fluids.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other dishwasher.Plug the dishwasher into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized Avanti Products service center-Save these instructions-

Electrical Connection

\~ Warning\~

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
• Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
  • Never use an extension cord to connect power to the unit.
  • Never use a two-prong grounding adapter.
• Where a two-prong wall receptacle is encountered, contact a qualified electrician to have it replaced with a 3-prong receptacle in accordance with applicable electrical codes.
• This dishwasher requires a standard 110/120 volts A.C.\~/60hz electrical outlet with three-prong ground.
• The cord should be secured behind the dishwasher and not left exposed or dangling to prevent accidental injury.
• Connect to a grounded metal, permanent wiring system: or run an equipment grounding terminal or lead of the appliance.
• Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
• Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
• To minimize the possibility of electric shock, disconnect this appliance form the power supply before attempting any maintenance. Note: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

Water Heater Safety

Under certain conditions hydrogen may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas is explosive.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allow them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

Use this appliance only for its intended purpose as described in this Owner's Manual.

WARNING

READ FOR PROPER USE

• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not touch the heating element during or immediately after use.
- Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer recommendations.
- Use only detergent and rinse additives designed for an automatic dishwasher. Using detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.
- Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
• The door should not be left in the open position since this could present a tripping hazard.
• During installation, the power supply must not be excessively bent or flattened.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
- Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
- When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
- When using your dishwasher, you should prevent plastic items from contacting with heating element.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.
- Please dispose of packing materials properly.
• Use the dishwasher only for its intended function.
- Remove the door when removing an old dishwasher from service or discarding it.
• Do not tamper with controls.
• Do not touch the heating element during or immediately after use.

Before Using Your Dishwasher

• Remove the exterior and interior packing.
  • Check to be sure you have all of the following parts:
  2 Wash Racks (1 Upper / 1 Lower)
  4 Cup Racks
  1 Silverware Basket
  1 Instruction Manual
  1 Installation Manual

- Clean the interior surface with lukewarm water using a soft cloth.

CONTROL PANEL

Once the program has been selected, the appropriate indicator light will flash/blink intermittently.

Pre-Programmed Wash Program

Program

Cycle Selection Information

Running time (Mins)

Option Half Load

Option Extra Dry

Option Extra Rinse

Option Sanitize

Option Hi-Temp

Regular Standard program for daily, regular or typical use to completely wash a load of normally soiled dishes.

140

Using Your Appliance:

SELECTING A WASH PROGRAM:

1) Press and hold the "ON/OFF" button to turn on your machine.
2) Refer to the Pre-Programmed Wash Cycles table on the previous page, to select a wash program suitable for your needs.
3) Press the "PROGRAM SELECTOR" button until the number of the program you selected appears in the display.
4) Press the "START / PAUSE" button to activate the wash program.
5) If you must add an item during the wash cycle, press Start/Pause button, open the door, add your item, close the door of your appliance and press Start/Pause button to continue the activated wash program.
6) It is not recommended to open the door of your machine while the activated wash program is running. Even so if the door is opened and not closed within approximately 4 seconds, the unit will not continue the wash program. In this case, you must close the door and press the "START/PAUSE" button again to continue the wash program.

CANCELLING A WASH PROGRAM:

1) Press and hold the "START/PAUSE" button for approximately 3 seconds.
2) The display will show "1" to confirm cancellation of the wash program.

Note: If the door is opened during the cancelling process, the door must be closed within 4 seconds to continue the cancelling process.

If the door is not closed during the 4 seconds, close the door and simply press the "START/PAUSE" button again to continue the cancelling process of the wash program.

SELECTING AN OPTIONAL WASH OPTION:

1) Select the desired Pre-Programmed Wash Program as directed above.
2) Before pressing the "START/PAUSE" BUTTON, press the "OPTIONS" button.
3) Continue to press until the indicator light of the option (Half-Load or Hi-Temp) you desire is illuminated.
4) Press Extra button in order to choose from Sanitize / Extra Rinse / Extra Dry options.
5) Close the door of your appliance and press the "START / PAUSE" button to activate the wash program.

Wash Options:

HALF LOAD:

This option allows you to save energy and wash a smaller load. This option should be used when washing less than a full load or in the event you do not want to load the washer and run later when completely loaded.

SANITIZE:

When the Sanitize option is selected, the water temperature will be maintained at 156^ F/ 69^ C (maximum). The maximum temperature may not be reached if the incoming water temperature is not adequate.

Residential dishwashers are not intended for licensed food establishments or Commercial applications.

HI-TEMP:

When the HI-Temp option is selected, the water temperature will be maintained at 140^ F/ 60^ C (maximum). The maximum temperature may not be reached if the incoming water temperature is not adequate.

Residential dishwashers are not intended for licensed food establishments or Commercial applications.

EXTRA DRY:

When the EXTRA DRY option is selected, the machine changes the water temperature for each program and the extra dry is performed.

EXTRA RINSE:

When the EXTRA RINSE option is selected, washing-rinsing steps will be added into the selected program so you can ensure that your dishes will be extra clean and glossier.

DELAY:

To delay the start of a selected cycle, press the Delay Start button until the desired delay time shows in the LED display. You can delay the start time for 1 to 19 hours. To cancel the delay start option before the set delay period is over, simply press and hold the DELAY button for approximately 3 seconds.

1) Select the desired Pre-Programmed Wash Program as directed above.
2) Before pressing the "START/PAUSE" BUTTON, press the "DELAY" button.
3) Set the "delay" time by pressing the "DELAY" timer button. Time will increase in increments of 1 hour with each press of the button.
4) Once the "DELAY" button is pressed the display will alternately show 1H and will also show the program number selected within 2 seconds of the delay time.
5) Close the door of your appliance and press the "START / PAUSE" button.

Note: If you open and close the door of the machine during the delay timer mode, or there has been a loss of electric power, the machine will continue in delay timer mode until the timer has run out and will start the wash program as selected.

CANCELLING A DELAY TIME SET:

To cancel the delay timer function once set.

1) Press and hold the "DELAY" button for approximately 3 seconds.
2) After 3 seconds, the display will show "0h" confirming the cancellation of the delay timer program.
3) You can now select a new wash program as previously directed above.

Note: You cannot set a delay time mode once a wash program has begun.

END OF CYCLE

At the end of the wash cycle, "0" will be shown in the display.

Open the door of the machine, press and hold the "START/PAUSE" button for approximately 3 seconds to turn the unit off.

OVERFLOW PROTECTIONS

Our Avanti dishwasher has an overfill protection device which could automatically shut off the inlet valve and start the drain pump if the water overflows. In the event of an overflow, the system display will flash "F1" and will attempt to drain the water. If the overflow stops and the system drains the water the "F1" will disappear.

If the system cannot stop the overflow condition, turn off the main water supply before calling a servicer. If there is water in the base pan because of an overfill or small leak, the water should be removed using a sponge before restarting the dishwasher.

WATER CUT OFF - WARNING

If during a wash cycle the water main is cut-off or turned off and the machine cannot take in water the display will flash "FF". As long as the condition or lack of water remains the display will continue to flash "FF", once the water is returned to the unit, it will return to normal working mode.

LOSS OF ELECTRIC POWER - WARNING

If during a wash cycle the electricity is lost or turned off or the door of the machine has been opened, the machine cannot operate normally, the machine will return to normal working mode after 8 seconds once the power has returned and if the internal temperature of the unit is above 113^ F.

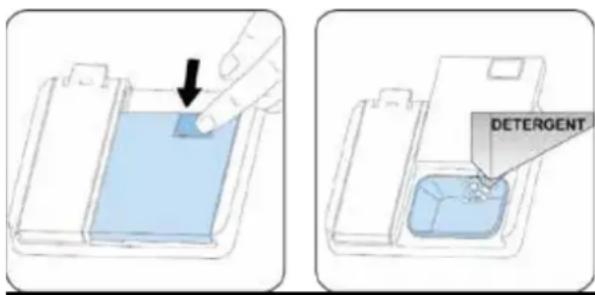

DETERGENT DISPENSER

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table". Your dishwasher uses less detergent and rinse aid than conventional dishwashers. Generally, only one teaspoon of detergent is needed for a normal wash load, heavily soiled items may need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could become damp and not dissolve properly.

Amount of Detergent to Use

IF THE WATER IN YOUR AREA IS NOT TOO HARD, YOU MAY ALSO PREVENT THE FORMATION OF DEPOSITS BY DETERGENT

The amount of detergent needed can vary due to differences in the water hardness of your area. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the correctamount.

Proper Use Of Detergent

Use only detergent specifically made for use in dishwasher. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

DETERGENT

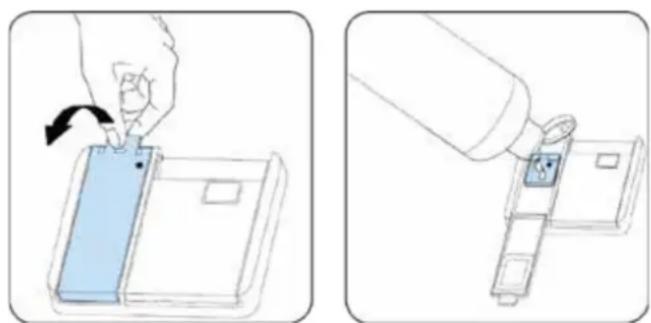

Rinse Aid Dispenser

• Your dishwasher is designed to use liquid rinse aids. The rinse-aid dispenser is located on the door next to the detergent dispenser. Fill the rinse-aid dispenser until the maximum level (approximately 150ml of liquid rinse-aid). Be sure not to overfill the dispenser as this will cause over-sudsing. Wipe away any spills with a damp cloth. Keep in mind that if you have soft water, you may not need to use a rinse-aid as it may cause a white film to develop on your dishes.
• To open the dispenser, lift up the Rinse Aid reservoir cover as shown below.
• Pour the rinse-aid into the dispenser, being careful not to overfill.
• Replace the cover after filling.
• The rinse-aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing the water to “sheet” off the dishes.

Illustration showing a hand inserting a component into a device, with no visible text or symbols.

Adjusting Rinse Aid Dispenser

A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather of foaming and cause cloudiness or streaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water.

When To Refill The Rinse Aid Dispenser

Refill the Rinse Aid reservoir when the Rinse Aid indicator light on the control panel is illuminated.

How to load your dishwasher

For best results, follow these loading guidelines.

Recommendations : Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: Always place sharp utensils with the sharp point down and open utensils with their openings down.

Diagram of a mechanical assembly with multiple components arranged in a grid-like structure (no text or labels)

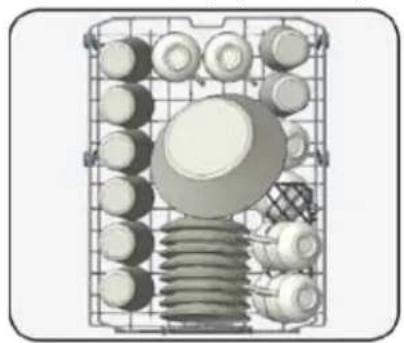

Upper Rack Loading Pattern

Cross-sectional diagram of a mechanical component with internal layered structure (no text or symbols)

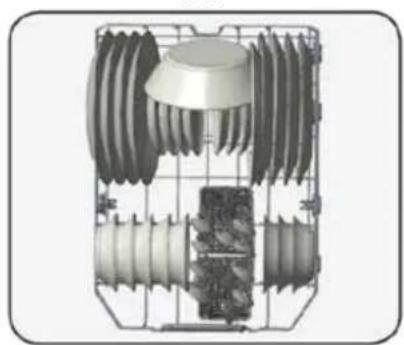

Lower Rack Loading Pattern

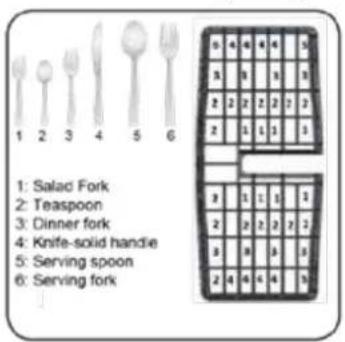

1: Salad Fork 2: Teaspoon 3: Dinner fork 4: Knife-solid handle 5: Serving spoon 6: Serving fork

Cutlery Basket Loading Pattern

How to Use the Upper Rack

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water.

The upper rack can be adjusted for height by putting wheels at different height into the rails.

Mechanical assembly diagram showing a rotating shaft and mesh structure (no text or symbols)

Mechanical assembly diagram showing a motor and conveyor system with no visible text or symbols

Mechanical assembly diagram showing a shaft and housing with no visible text or symbols

Caution: Make sure that the rack is empty. Changing the height setting while the rack contains tableware could cause the contents to dislodge, causing personal injury or damage to the tableware.

1) Release the latches on both the right and left tracks of the upper rack by turning them toward the outside (illustration A).
2) Pull out the rack completely. (illustration B).
3) Place the rack into the track again at the desired height (illustration C).
4) Push the latches back into the correct position.

How To Use The Lower Rack

We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Pots, serving bowls, etc, must always be placed top down. Deep pots should be slanted to allow water to flow out. The bottom rack features fold down tine rows so that larger or more pots and pans can be loaded.

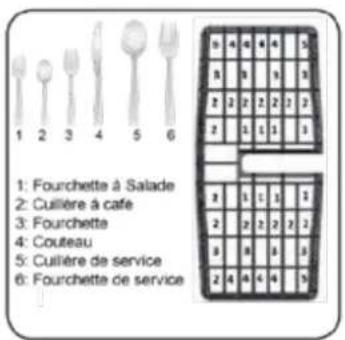

Silverware Basket

Silverware should be placed in the silverware basket with handles at the bottom: if the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper rack.

Caring And Maintenance

To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect against freezing

If your dishwasher is to be left in an unheated place during the winter, ask a service technician to:

1. Cut off electrical power to the dishwasher. Remove fuses or tip circuit breaker.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water.)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the plastic sump cover in the tub at the bottom and use a sponge to soak up water in the rubber boot.

Cleaning The Spray Arms

It is necessary to clean the spray arms regularly or hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, pull the nut out by hand in an upward direction.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Filtering System

For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the coarse filter, the fine filter, and the main filter.

1. Coarse Filter

Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently turn the top of the Coarse filter in a counter-clockwise direction and lift out.

2. Fine Filter

This filter holds soil and food residue in the sump area and prevents it from being re-deposited on the dishes during a cycle.

3. Main Filter

Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.

Cleaning The Filter assembly

Turn the Coarse filter in a counter-clockwise direction.

1. Lift the Coarse filter (b) together with the Fine Filter(a)
2. Separate the Fine filter by lifting it out from the Course Filter (b).
3. Lift out the out the Main filter (c).
   To replace the filter assembly follow the same steps in reverse. For best performance and results, the filter assembly must be cleaned.

The dishwasher must never be used without the filters.

Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

WARNING – Never run the dishwasher without the filters in place.

Diagram of a mechanical device with a gear and handle, no visible text or symbols

② b a

Diagram of a gasifier with labeled component 'c' and directional arrow indicating flow or movement

Simple line drawing of a mechanical component with a central bowl and flange (no text or symbols)

Cleaning The Door

To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. Some paper towels can also scratch or leave marks on the surface.

WARNING - Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface.

How To Keep You Dishwasher In Shape

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

No solvents or abrasive cleaning products

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

When you go on Holiday

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and them remove the plug from the AC socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

PROBLEMS WITH YOUR DISHWASHER?

You can solve many common dishwasher problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE	WHAT TO DO
Dishwasher does not operate.	The circuit breaker tripped or blown fuse.Power supply is not turned on.Water pressure is low.	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasherMake sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly connected.Check that the water supply is connected properly and the water is turned on.
Drain pump doesn't stop	Overflow	The system is designed to detect an overflow. When it doesn't it shuts off the circulation pump and turns on the drain pump. See Over Flow
Noise	Some audible sounds are normalUtensils are not secured in the baskets or something small has dropped into the basket.Motor hums.	Sound from soft food shredding action and detergent cup opening.Ensure everything is secured in the dishwasher.Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every week, which will help keep the seal moist.
Suds in the tub	Improper detergent.Spilled rinse agent.	Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then drain out the water by slowly turning the dial until a drain period is reached. Repeat if necessary.Always wipe-up rinse agent spills immediately.
Stained tub interior	Detergent with colorant was Used.	Make sure that the detergent is the one without colorant.
Dishes are not dried	Rinse agent dispenser is empty.	Make sure the rinse agent dispenser is filled.
Dishes and flatware not clean.	Improper program.Improper rack loading.	Select a stronger program.Make sure that the action for the detergent dispenser and spray arms are not blocked by large dishware.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware to get them clean.
Yellow or brown film on inside surfaces.	Tea or coffee stains.Iron deposits in water can cause an overall film.	Using a solution of 12 cup bleach and 3 cups warm water to remove the stains by hand.WarningYou have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior: otherwise, burns will happen.You have to call a water softener company for a special filter.
White film on inside surface.	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
Detergent left in dispenser cups.	Dishes block detergent cups.	Re-load the dishes properly.
Steam	Normal phenomenon	There is some steam coming through the vent by the door latch during drying and water draining.
Black or gray marks on dishes.	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Water standing in the bottom of the tub.	This is normal.	A small amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated.
Water doesn’t pump out of the tub.	Drain is clogged.	Make sure the kitchen sink is draining well. If the dishwasher drains into a disposer, run it clear.
Dishwasher leaks.	Overfill dispenser or rinse aid spills. Dishwasher isn’t level.	Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause oversudsing and lead to overflowing. Wipe away any spills with a damp cloth. Make sure the dishwasher is level.

ERROR CODE WARNINGS - DESCRIPTIONS

ERROR CODE	CONDITION	WHAT TO DO
FF	Water Inlet System Failure	Make sure the water inlet tap is open and water is flowingSeparate the inlet hose from the tap and clean the filter of the hose. Contact service if the error continues.
F5	Pressure System Failure	Contact customer service.
F3	Continuous Water Input	Close the tap and contact customer service.
F2	Inability to Discharge Water	Water discharge hose and filters may be clogged.Cancel the program, if error continues contact service.
F8	Heater Error	Contact customer service
F1	Overflow	Unplug the machine and close the tap, contact customer service.
FE	Faulty Electronic Card	Contact customer service
F7	Overheating	Contact customer service
F9	Diverter Position Error	Contact customer service
F6	Faulty Heater Sensor	Contact customer service
HI	High Voltage Failure	Contact customer service

SERVICE FOR YOUR DISHWASHER

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti dishwashers. With the purchase of your Avanti dishwasher, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home, by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your dishwasher inside and out.
YOUR AVANTI PRODUCTSWARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
THIS SECTION APPLIES TO CLOTHES WASHERS ONLYLIMITED FIVE YEAR WARRANTY ON PLASTIC TUBAfter one year and until five years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer.LIMITED SEVEN YEAR WARRANTY ON STAINLESS STEEL TUBAfter one year and until seven years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Incidental or consequential damagesParts and labor costs for the following will not be considered as warranty:Door springs, and/or frames.Inner door panels, door shelves, door rails, and/or door supports.	Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.Warranty - Washing Machines

AYUDANOS A AYUDARTE...

LEA PARA UN USO CORRECTO

DETERGENT

Illustration of a hand holding a small object with an arrow, next to a rectangular device (no text or symbols visible)

Illustration of a hand inserting a small object into a device (no text or symbols visible)

Diagram of a mechanical assembly with insulators and gears inside a grid frame (no text or labels)

Rejilla Superior

Cross-sectional diagram of a mechanical component with layered internal structure (no text or symbols)

Rejilla Inferior

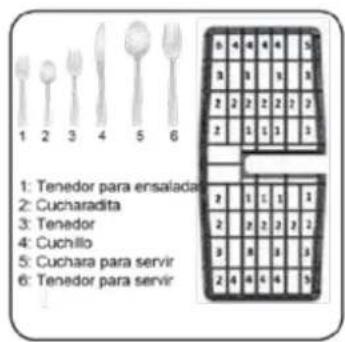

1: Tenedor para ensalada 2: Cucharadita 3: Tenedor 4: Cuchillo 5: Cuchara para servir 6: Tenedor para servir

Three technical diagrams showing mechanical assembly steps labeled A, B, and C, with no visible text or symbols.

1. Extraiga el filtro principal (c).

DETERGENT

Illustration of a hand using a tool to lift a blue rectangular object into a white container (no text or symbols)

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Cross-sectional diagram of a mechanical assembly with spherical components and a central threaded component (no text or labels)

Panier Superieure

Cross-sectional diagram of a mechanical device showing internal components and layered structure (no text or symbols)

Panier Inferieur

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Mechanical assembly diagram showing two cylindrical components mounted on a metal frame, with an arrow labeled B pointing to one component (no text or symbols present)

Mechanical assembly diagram showing a shaft and housing with no visible text or symbols

Diagram of a mechanical device with a gear and handle, no visible text or symbols

Diagram of a mechanical component with labeled parts a and b, showing directional arrows and internal structure.

Diagram of a device with labeled components and directional arrows, likely illustrating a control or fluid system.

Simple line drawing of a mechanical component with a central hub and base plate (no text or symbols)

SERVICES CLIENTS AVANTI PRODUCTS

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products LLC

P.O.Box 520604 - Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name	Model # Serial #
Address	Date Purchased Store / Dealer Name
City State Zip	E-mail Address
Area Code Phone Number	Occupation
Did You Purchase An Additional Warranty	As your Primary Residence, Do You:
Extended None	Own Rent
	Your Age:
Reason for Choosing This Avanti Product:	under 18	18-25	26-30
Please indicate the most important factors	31-35	36-50	over 50
That influenced your decision to purchase this product:	Marital Status:
	Married	Single
Price
Product Features	Is This Product Used In The:
Avanti Reputation	Home	Business
Product Quality
Salesperson Recommendation	How Did You Learn About This Product:
Other:	Advertising
Friend / Relative Recommendation	In-Store Demo
Warranty	Personal Demo
Other:

Comments:

DWF18V0W DWF18V1B DWF18V3S 02152021

PRINTED IN TURKEY
