Product Type	Clip-on chromatic tuner for musical instruments
Brand	Korg
Model	AW-LT100B
Detection Range	E0 (20.60 Hz) ~ C5 (523.3 Hz) (for bass version)
Accuracy	±0.1 cent
Reference Pitch (Calibration)	A4 = 436 ~ 445 Hz (in 1 Hz steps)
Display Modes	Traditional, strobe, semi-strobe
Backlight	Auto or light, automatic shutoff after 3 seconds without signal
Power Supply	1 AAA battery (included)
Battery Life	Approximately 100 hours (light backlight, continuous use, alkaline battery)
Dimensions (W x D x H)	60 mm x 60 mm x 55 mm
Weight	32 g (including battery)
Attachment	Clip onto instrument headstock
Screen Adjustment Range	Rotation up to 340° for optimal readability
Auto Power Off	Approximately 3 minutes without signal detection
Included Accessories	User manual, 1 AAA battery
Maintenance and Cleaning	Clean with a dry cloth, do not use liquid or flammable products
Safety	Avoid exposure to sunlight, heat, humidity, dust, vibrations; do not place liquids nearby
Settings Retention	Settings (calibration, display mode) are retained even after power off
Instrument Compatibility	Designed for string instruments (bass, guitar, etc.), picks up vibrations

Frequently Asked Questions - AWLT100B KORG

How to attach the Korg AW-LT100B tuner to my instrument?

Attach the clip to the instrument headstock. You can rotate the screen up to 340° for optimal readability. Caution: do not force the movement and remove after use to avoid scratches.

What type of battery to use and how to replace it?

Use one AAA battery (included). Open the battery compartment cover on the back by pulling in the direction of the arrow. Replace it respecting polarity. When the battery indicator lights up, replace it promptly.

How to adjust the reference pitch (calibration)?

Turn the right rotary dial (CALIB) up or down to adjust the reference pitch A4 in 1 Hz steps from 436 to 445 Hz. The setting is retained after power off.

What display modes are available and how to change them?

Three modes: traditional (centered segments), strobe (scrolling), and semi-strobe (central segment). Turn the left rotary dial (DISP) down to cycle through the modes.

How to turn the device on and off?

Turn the left rotary dial (DISP) up to turn on/off. The device automatically turns off after approximately 3 minutes without sound signal (auto power off).

Why is my tuner not detecting my note?

Make sure the tuner is securely attached and the instrument emits a clear sound. It may not detect notes if the sound contains too many harmonics or a rapid decay. Avoid ambient vibrations.

How to adjust the backlight?

After turning on the device, hold the left rotary dial turned up for about 2 seconds. You toggle between Auto (bright backlight during use, then off after 3 seconds) and Light (reduced brightness to save battery).

What are the maintenance and safety precautions?

Clean with a dry, clean cloth. Do not use liquid or flammable products. Avoid exposure to sunlight, heat, humidity, dust, and strong vibrations. Do not place containers with liquid nearby. Remove the battery if the device is not used for a long time.

What is the detection range of the AW-LT100B?

The bass version (AW-LT100B) detects notes from E0 (20.60 Hz) to C5 (523.3 Hz). Ideal for bass and other low-pitched instruments.

What to do if the tuner seems defective?

First check the battery. If the problem persists, consult the manual. Note that use in a country other than the one for which it was designed may be dangerous and void the warranty. Keep your proof of purchase.

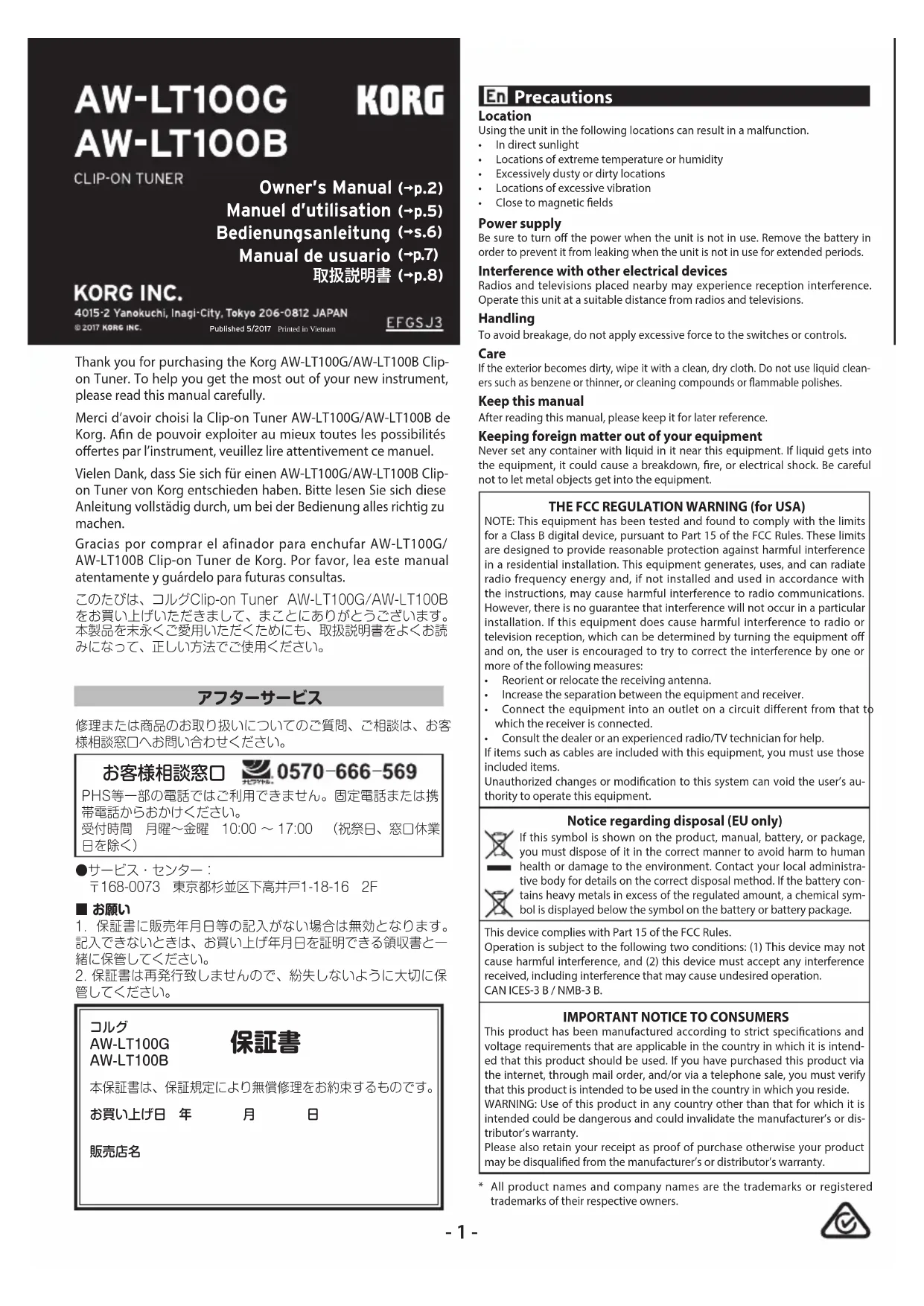

USER MANUAL AWLT100B KORG

Published 5/2017 Printed in Vietnam

EFGSJ3

Thank you for purchasing the Korg AW-LT100G/AW-LT100B Clip-on Tuner. To help you get the most out of your new instrument, please read this manual carefully.

Using the unit in the following locations can result in a malfunction.

• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
- Locations of excessive vibration
- Close to magnetic fields

Power supply

Be sure to turn off the power when the unit is not in use. Remove the battery in order to prevent it from leaking when the unit is not in use for extended periods.

Interference with other electrical devices

Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Handling

To avoid breakage, do not apply excessive force to the switches or controls.

Care

If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, or cleaning compounds or flammable polishes.

Keep this manual

After reading this manual, please keep it for later reference.

Keeping foreign matter out of your equipment

Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock. Be careful not to let metal objects get into the equipment.

THE FCC REGULATION WARNING (for USA)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

If items such as cables are included with this equipment, you must use those included items.

Unauthorized changes or modification to this system can void the user's authority to operate this equipment.

Notice regarding disposal (EU only)

If this symbol is shown on the product, manual, battery, or package, you must dispose of it in the correct manner to avoid harm to human health or damage to the environment. Contact your local administrative body for details on the correct disposal method. If the battery contains heavy metals in excess of the regulated amount, a chemical symbol is displayed below the symbol on the battery or battery package.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3 B / NMB-3 B.

IMPORTANT NOTICE TO CONSUMERS

This product has been manufactured according to strict specifications and voltage requirements that are applicable in the country in which it is intended that this product should be used. If you have purchased this product via the internet, through mail order, and/or via a telephone sale, you must verify that this product is intended to be used in the country in which you reside.

WARNING: Use of this product in any country other than that for which it is intended could be dangerous and could invalidate the manufacturer's or distributor's warranty.

Please also retain your receipt as proof of purchase otherwise your product may be disqualified from the manufacturer's or distributor's warranty.

* All product names and company names are the trademarks or registered trademarks of their respective owners.

En Parts of the AW-LT100G/AW-LT100B

Reference pitch indicator
Note name indicator

Installing the battery

When the battery becomes depleted, a battery indicator ( w ) appear on the display. Immediately replace the battery with a new one.

1. Open the battery compartment cover on the rear of the tuner in the direction of the arrow.
2. Insert the battery, making sure to observe the correct polarity, and then close the cover.

Diagram of a battery assembly with a cylindrical component and a battery with a plus sign, showing internal components and rotation arrow (no text or labels)

Attaching to the instrument and range of motion

The AW-LT100G/AW-LT100B tunes by picking up the vibrations of the instrument. Therefore, attach the AW-LT100G/AW-LT100B to the headstock of your instrument in order to tune it. Additionally, the AW-LT100G/AW-LT100B can be freely moved so that the display is easy to read.

The AW-LT100G/AW-LT100B may be damaged if you apply excessive force within its range of motion, or attempt to move it beyond its intended range of motion.

Please carefully attach the AW-LT100G/AW-LT100B to your instrument. Leaving the AW-LT100G/AW-LT100B attached for a long time may damage or mark the instrument's surface.
Depending on various factors such as age-related change or the surface finish, there is a possibility that your instrument may be damaged by attaching this product.

Tuning

Tuning procedure

1. Turn the left shuttle switch upward. Each time you turn the shuttle switch, the AW-LT100G/AW-LT100B will be turned on or off. If the power is left on for approximately 3 minutes without any user input, it will turn off automatically (Auto power-off function).
2. If necessary, change the reference pitch (calibration) and meter mode.
3. Play a single note on your instrument. The note name closest to the detected pitch appears in the note name indicator. Check that the correct note name appears in the display, and then tune your instrument while watching the meter. The tuning indications differ depending on the selected meter mode setting.
   Even if the pitch is within the range of detection, it may not be possible to detect the pitch of an instrumental sound that contains large numbers of overtones or a sound that has a rapid decay.
   The meter may respond to vibrations it picks up from the environment.

Reference pitch settings (calibration) (\*M)

Each time you turn the right shuttle switch upward (or downward), the reference pitch (calibration value) increases (or decreases) in 1 Hz steps.

Setting the meter mode (\*M)

Each time you turn the left shuttle switch downward, the meter mode changes.

switch Regular → Strobe → Half strobe → Regular ...

1: Regular meter

Tune your instrument until the meter segments up to the center (▼) light up. If the pitch is sharp, meter segments up to the right of the center light up. If the pitch is flat, meter segments to the left of the center light up.

The pitch is flat. In tune. The pitch is sharp.

2: Strobe meter

Tune your instrument until the meter segments stop running. Since the strobe meter has higher precision, it allows you to tune with greater accuracy. The illumination will flow from left to right if the note is sharp, or from right to left if the note is flat.

The pitch is flat. In tune. The pitch is sharp.

3: Half-strobe meter

Tune your instrument until the meter segment at the center (▼ lights up. If the pitch is sharp, meter segments to the right of the center light up. If the pitch is flat, meter segments to the left of the center light up.

The pitch is flat. In tune. The pitch is sharp.

Backlight

After turning the left shuttle switch upward to turn on the AW-LT100G/AW-LT100B, you can change the brightness of the display by keeping the left shuttle switch turned upward for approximately 2 seconds.

Auto : The backlight will light brightly when sound is inputted or when a shuttle switch is operated. When there has been no sound input or shuttle switch operation for approximately three seconds after the power has been turned on, the backlight will turn off in order to prevent the battery from being depleted.

Soft: The backlight will light at a lower level of brightness in order to prevent the battery from being depleted.

Specifications

Scale: 12-note equal temperament

Range (sine wave): AW-LT100G B1 (61.74 Hz)–E6 (1319 Hz) AW-LT100B E0 (20.60 Hz)–C5 (523.3 Hz)

Precision: +/-0.1 cent

Reference pitch: A4 = 436–445 Hz (1 Hz steps)

Dimensions (W x D x H):

60 mm x 60 mm x 55 mm / 2.36" x 2.36" x 2.17"

Weight: 32 g/1.13 oz. (including battery)

Power supply: One AAA Battery

Battery life: approximately 100 hours

(backlight:Soft, tuner continuously operating, A4 input, when using alkaline battery)

Included items: Owner's manual, One AAA battery

*M Settings are remembered even when the power is off.

- Specifications and appearance are subject to change without notice for improvement.

Diagram of a battery assembly with a clamping mechanism and a separate cylindrical component (no text or symbols)

Diagram of a battery assembly with a rotating mechanism and a separate cylindrical component (no text or symbols)

Diagram of a battery assembly with a cylindrical component and a battery, showing no text or symbols.

Diagram of a battery assembly with a switch and battery, showing internal components and polarity (no text or labels)
