Product Type	Wall mount for flat screen
Brand	Gembird
Model	WM37F01
Screen Compatibility	37 to 70 inches
Maximum Supported Weight	30 kg
VESA Standard	Up to 400 x 400 mm
Material	Steel
Tilt	0° to 15° forward
Rotation	Fixed
Color	Black
Support Dimensions	Approximately 400 x 250 x 50 mm
Net Weight	1.5 kg
Warranty	24 months
Package Contents	Wall mount, screws, wall plugs, user manual
Maintenance and Cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Check the wall strength before installation. Do not exceed the maximum load.
Spare Parts and Repairability	Spare parts available through customer service. Repair possible under warranty.
General Information	Wall mount designed for safe and stable attachment. Easy installation with included tools.

Frequently Asked Questions - WM37F01 Gembird

How to install the Gembird WM37F01 wall mount?

Follow the steps in the manual: locate the mounting points, drill the holes, insert the wall plugs, screw the mount to the wall, then attach the screen. Make sure the wall can support the weight.

What is the maximum supported load?

The mount can support up to 30 kg. Never exceed this limit.

Which screws to use for mounting?

Use the screws provided in the package. For the screens, check the VESA standard and use the appropriate screws (usually M4, M6 or M8).

How to clean the wall mount?

Clean with a soft dry cloth. Avoid chemical or abrasive products that could damage the finish.

What is the warranty period?

The warranty is 24 months from the date of purchase, according to the terms in the manual.

What to do in case of a defect in the mount?

Contact Gembird customer service with your proof of purchase. Under warranty, the product will be repaired or replaced free of charge.

Can I tilt the screen with this mount?

Yes, this mount allows a tilt of 0° to 15° forward to adjust the viewing angle.

Is my screen compatible?

The mount is compatible with screens from 37 to 70 inches and respects VESA standard up to 400x400 mm. Check your screen's dimensions.

What material is the mount made of?

The mount is made of robust steel, with a black finish to blend in discreetly.

How to contact Gembird customer service?

You can reach customer service by email at [e-mail] or via the website www.gembird.nl/service. Check the manual for contact details according to your country.

USER MANUAL WM37F01 Gembird

TV WALL MOUNT (FIXED), 17"-37"

LCD/PLASMA-TV WANDHALTERUNG, 17"-32" (25 KG)

TV MUURBEUGEL (VAST), 17"-37" (<25KG)

SUPPORT MURAL D'ÉCRAN

HACTEHbI KPOHsTeH dJIa KK TEJIEBn3OPA, MOHtOPA,

ПЛАЗМEHСОД ПАHEЛN, 17" - 37"(ДО 25 KГ)

HACTIHHE KPINJIENHЯ LCD / ПАЗМN , 17 "- 37" (25 KГ)

UCHWYT NASCIENNY DO TV, 17 "-37"

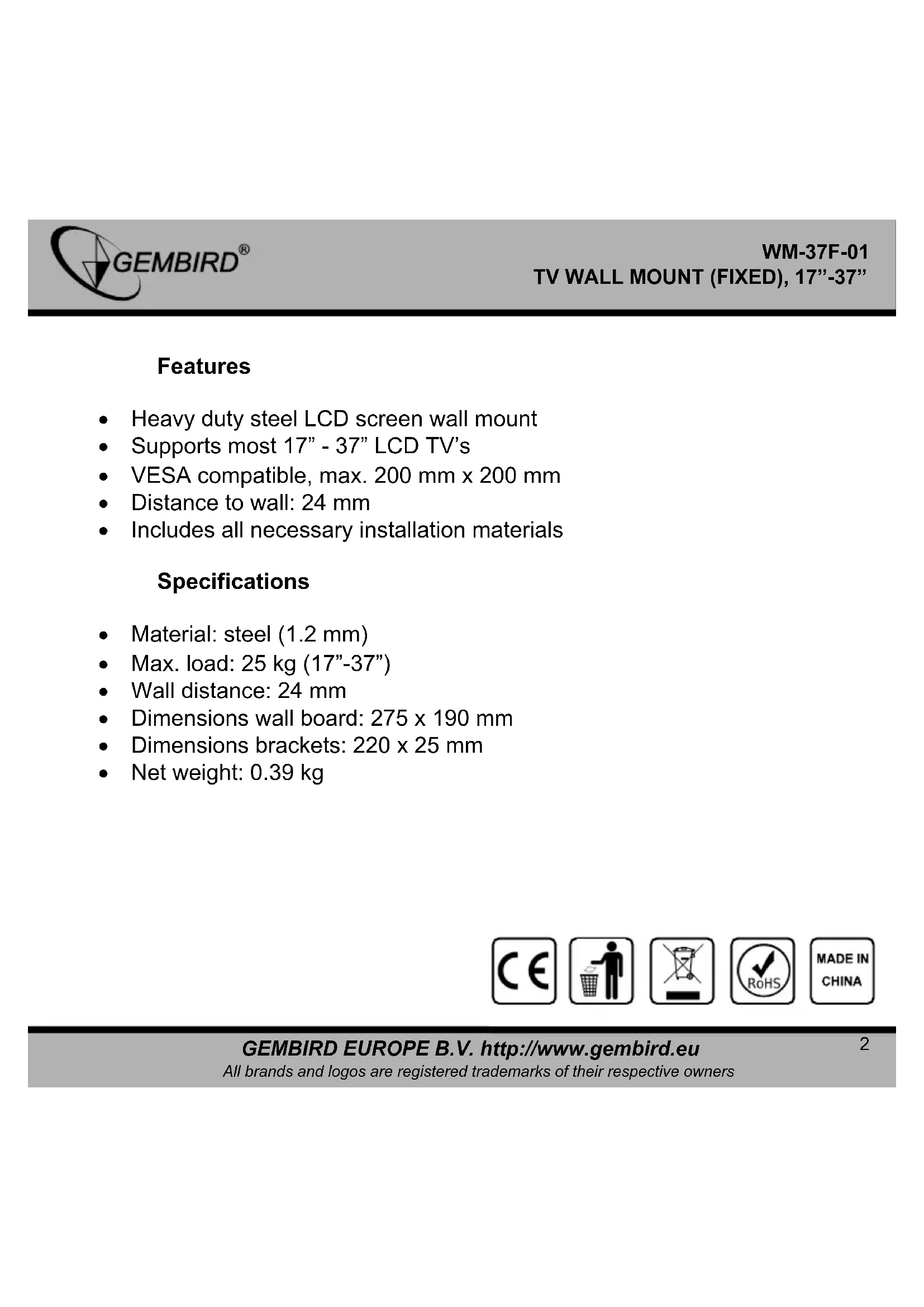

Features

• Heavy duty steel LCD screen wall mount
  Supports most 17" - 37" LCD TV's
  VESA compatible, max. 200mm× 200mm
• Distance to wall: 24 mm
• Includes all necessary installation materials

Specifications

Material: steel (1.2 mm)
Max. load: 25 kg (17"-37")
- Wall distance: 24 mm
- Dimensions wall board: 275 × 190 mm
- Dimensions brackets: 220 × 25 mm
Net weight: 0.39kg

Package M

M4×30(X4) M-A

M5×30(X4) M-B

M6×30(X4)M-C

M8×30(X4) M-D

M5×35（X2）E

D6 Washer (X4) M-F

D8 Washer (X4) M-G

Spacer (X4) M-G

Package W

ST5.5×50（X4）W-A

concrete anchor (X4) W-B

GEMBIRD

WM-37F-01

TV WALL MOUNT (FIXED), 17"-37"

7

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu	(NL/BE) Verklaring van overeenstemming Dit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot LVD(2006/95/EC), EMC(2004/108/EC). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op unsere website: www.gembird.eu
(FR/BE) Déclaration de conformité Le produit est contrôle et repli les exigences des directives nationales et de la directive LVD(2006/95/EC), EMC(2004/108/EC). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) Konformitätserklärung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2006/95/EC), EMC(2004/108/EC) überin. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodność Ten produkt zostal przytestowy i jest zgodny z zasadniczymi wymaganiAMI przyepsów ustawowych państwoczłonskich dotycznych LVD(2006/95/EC), EMC(2004/108/EC). Deklaracja CE znajduje są pod adressem www.gembird.eu

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

YMOBNI TAPAHINTINHOO OBCJNYTOBYBAHH

1. GapaTIIHe 06cnyroBvBaHH HaAaetbCn IpOTAROM TepMIHy rapaTIII, npn HauBHOCTI GapaTIIHORo TaHOy, 3AnOBHeHOro HAeXHM YINHom, Ta BINOBy B NOBHIN KOMNJIeKtaII.
   2.「apantiHe 6cnyoByaHH He niTpmyeTbca B pa3i npuyenHn npabn EKcnnyatau, 3epiranHn ao nepeBe3eHHBnpoby, 30 3a3naehi BInctpykui no eKcnnyatauBnpoby.
2. rapaHTiHe o6cnyroByBaHHcKacOByTbCay y BunaKaX: -HaBHOCTI MExaHUYnx NOUKOJxHb a6o CJIiDIB CTOPOHBoTO BTPyAHH;

3. NOUKOJKeHHB NKNIKahi CTNXIHMM NXOM a6o HeuacHMM BnnaKom, BKJIouaOHy 6NcKaBky, noTpanIaHHM y BnpiOCTOpOHHX INpeMetiB, piINH, KOMAX, TOIO;

4. NOIkoJxHeHHB NkNkaH3acTocyBaHHM a6o NiKIOueHHM HeCTaHapTHnx a6o HecnpabHnX nepupepiHn npucTpoIB, akcecyapib;

5. rapaHTi He nouHPOeTbCra Ha BnTpAHi MaTePiAn Ta daTkOBI akcecyap;
   3 rapaHTiHmM yMOBaMn 3roJeH.

Пдпс поуц:

TAPAHNTIHHI TAIOH No

ToBap/MoDJIb

CepiHn Homep

Tepmin rapahii

Дата п的对象

PpOdaBae(bHa3Ba,TeJefoH)

Peyatka Ta nipnnc npoadua

3 rapaHTiHnx nHTaHb 3BepTaITeCb Do cepBICHx ueHTpIB Gembird. Ipo aDpeCn Ta KOtAcTn Bu moKeTe diHaTncb Ha caTI www.gembird.ua a6o no TelefoHy 044-4510213.
