Product Type	Wall mount for flat screen
Brand	Gembird
Model	WM55RT03
Compatible Screen Size	Up to 55 inches
Compatible VESA Standard	75x75 mm to 400x400 mm
Maximum Weight Supported	45 kg
Material	Reinforced steel
Finish	Matte black
Tilt Angle	-5° to +15°
Rotation Angle	±90°
Distance from Wall	50 mm (close position)
Support Dimensions (WxHxD)	500 x 350 x 50 mm
Support Weight	2.5 kg
Wall Mounting	Screws and wall plugs included
Built-in Spirit Level	Yes
Maintenance and Cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Check wall strength before installation. Use wall plugs suitable for the material.
Warranty	2 years
Repairability	Spare parts available on request from the manufacturer.

Frequently Asked Questions - WM55RT03 Gembird

How to install the Gembird WM55RT03 wall mount?

Follow the steps in the included manual. First, attach the wall plate to the wall with suitable wall plugs, then hang the screen on the arms. Use the built-in spirit level to ensure levelness.

What are the compatible VESA dimensions?

The mount accepts VESA standards from 75x75 mm to 400x400 mm, covering most screens up to 55 inches.

What is the maximum weight this mount can support?

The maximum recommended weight is 45 kg. Do not exceed this limit to ensure safety.

Can the screen be tilted or rotated after installation?

Yes, this model allows tilting from -5° to +15° and rotation of ±90° for optimal viewing angle.

What type of screws should be used to attach the screen to the mount?

The appropriate screws are provided with the mount. If necessary, refer to the manual to choose the length and diameter suitable for your screen.

Is this mount compatible with a curved screen?

Yes, the mount can accommodate curved screens as long as the VESA standard and weight are respected. Ensure the mounting points are accessible.

Do I need to drill holes in the wall for installation?

Yes, the mount requires drilling holes for the wall plugs. Make sure the wall is solid (concrete, brick) before drilling.

How to clean the wall mount?

Use a soft dry cloth to dust. Avoid chemical or abrasive products that could damage the finish.

Does the mount come with a warranty?

Yes, the warranty is 2 years. Keep your receipt for any claims. Wear parts are not covered.

Where can I get spare parts for this mount?

Contact Gembird's after-sales service at the address indicated in the manual. Parts such as screws or pads can be provided upon request.

USER MANUAL WM55RT03 Gembird

Abstract logo design with a stylized arrow and 'GE' text, no readable text or symbols beyond the graphic elements.

GEMBIRD®

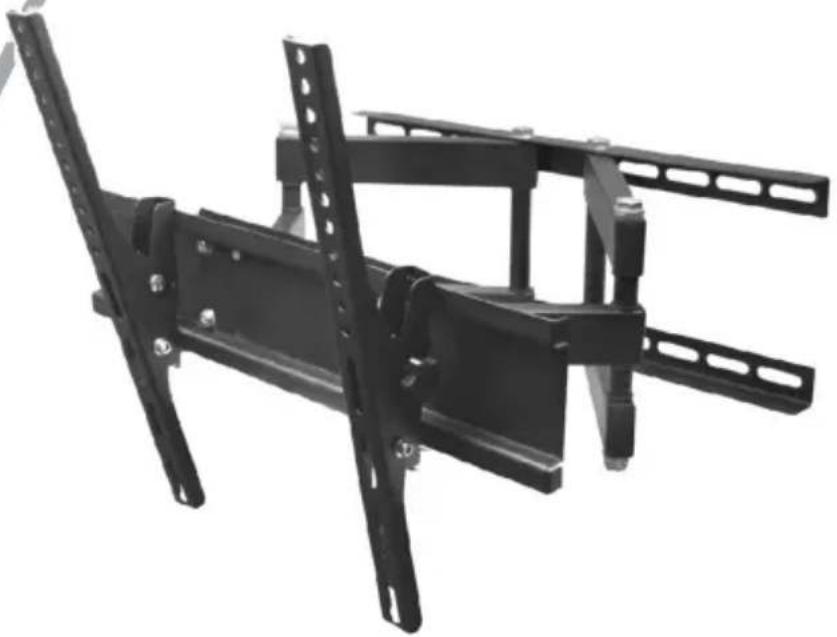

Mechanical assembly with black metal frame and mounting brackets (no text or symbols visible)

TV WALL MOUNT (TILT), 26"-55"

LCD/PLASMA-TV WANDHALTERUNG, 26"-55" (50 KG)

TV MUURBEUGEL (KANTELBAAR) 26"-55" (<50KG)

SUPPORT MURAL D'ÉCRAN

• Heavy duty steel LCD screen wall mount
• Supports most 26" - 55" LCD TV's
• VESA compatible, max. 400 mm x 400 mm
- Allows up to 90 degrees rotation and 15 degrees tilting
• Distance to wall: 125 - 470 mm
- Includes all necessary installation materials

Specifications

• Material: steel (2.0 mm)
• Max. load: 50 kg (26"-55")
• VESA: max 400 x 400 mm
• Wall distance: 125 - 470 mm
• Dimensions wall plate: 460 x 180 mm
• Dimensions brackets: 500 x 110 mm
• Net weight: 3.8 kg

CE No. 1 RoHS MADE IN CHINA

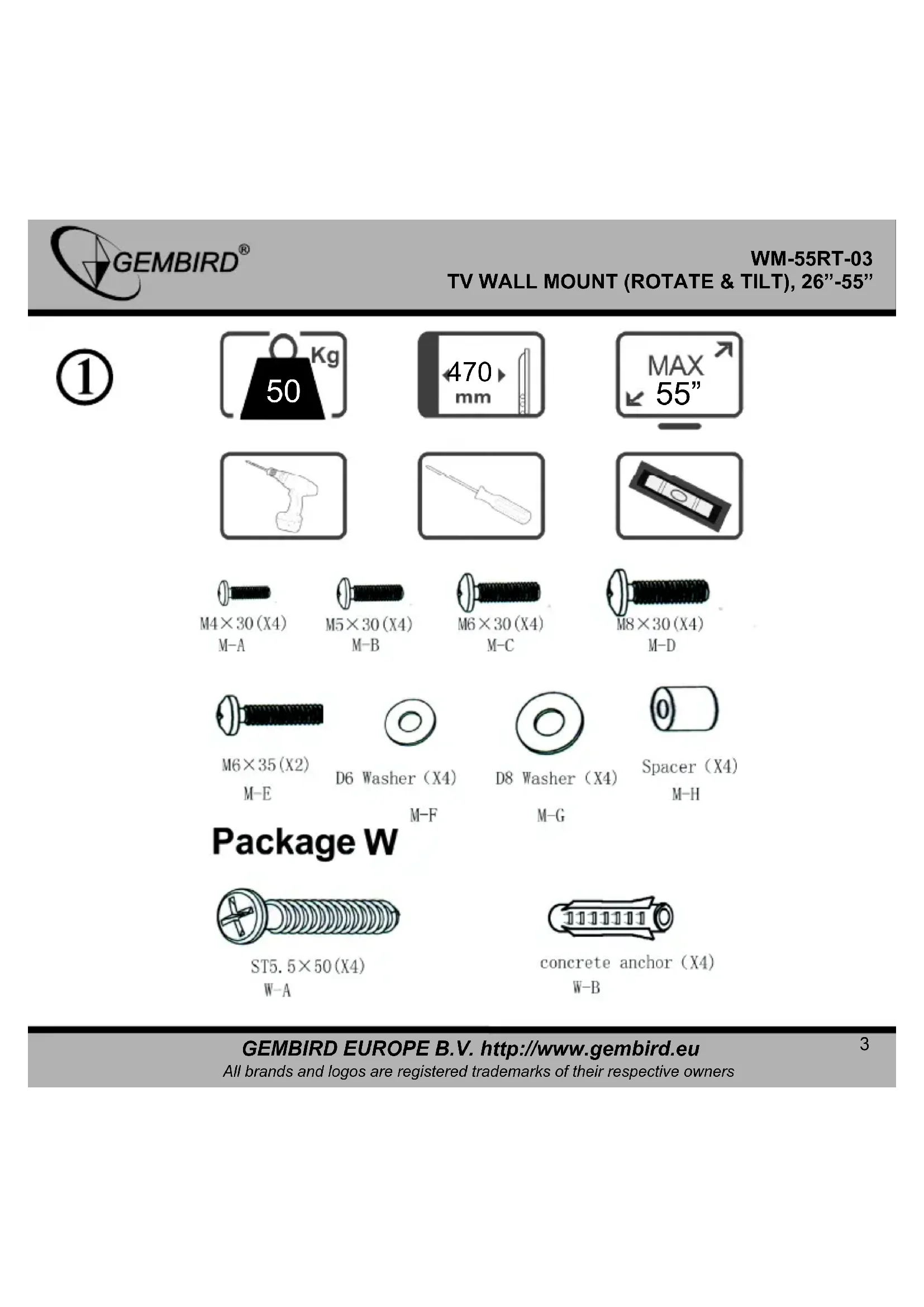

①

Kg 50

MAX 55"

Simple line drawing of a handheld electric drill bit (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple black rectangular object with a circular hole, resembling a stylized monitor or button (no text or symbols)

M4×30 (X4) M-A

M6×35 (X2) M-E

D6 Washer (X4) M-F

D8 Washer (X4) M-G

Package W

ST5. 5 × 50 (X4) W-A

concrete anchor (X4) W-B

②

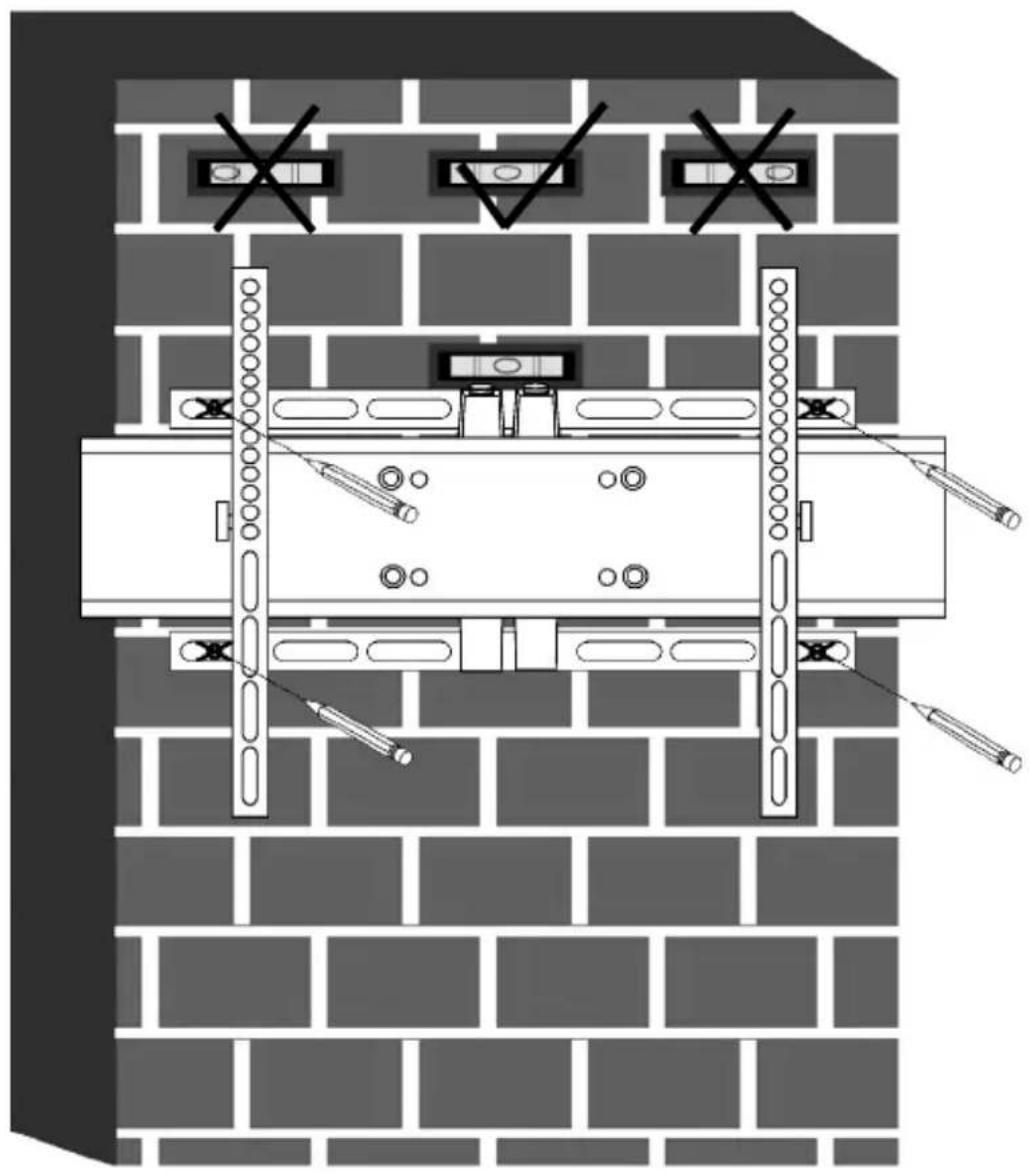

Technical diagram of a mechanical assembly with clamps and mounting brackets, mounted on a brick wall (no text or symbols)

③

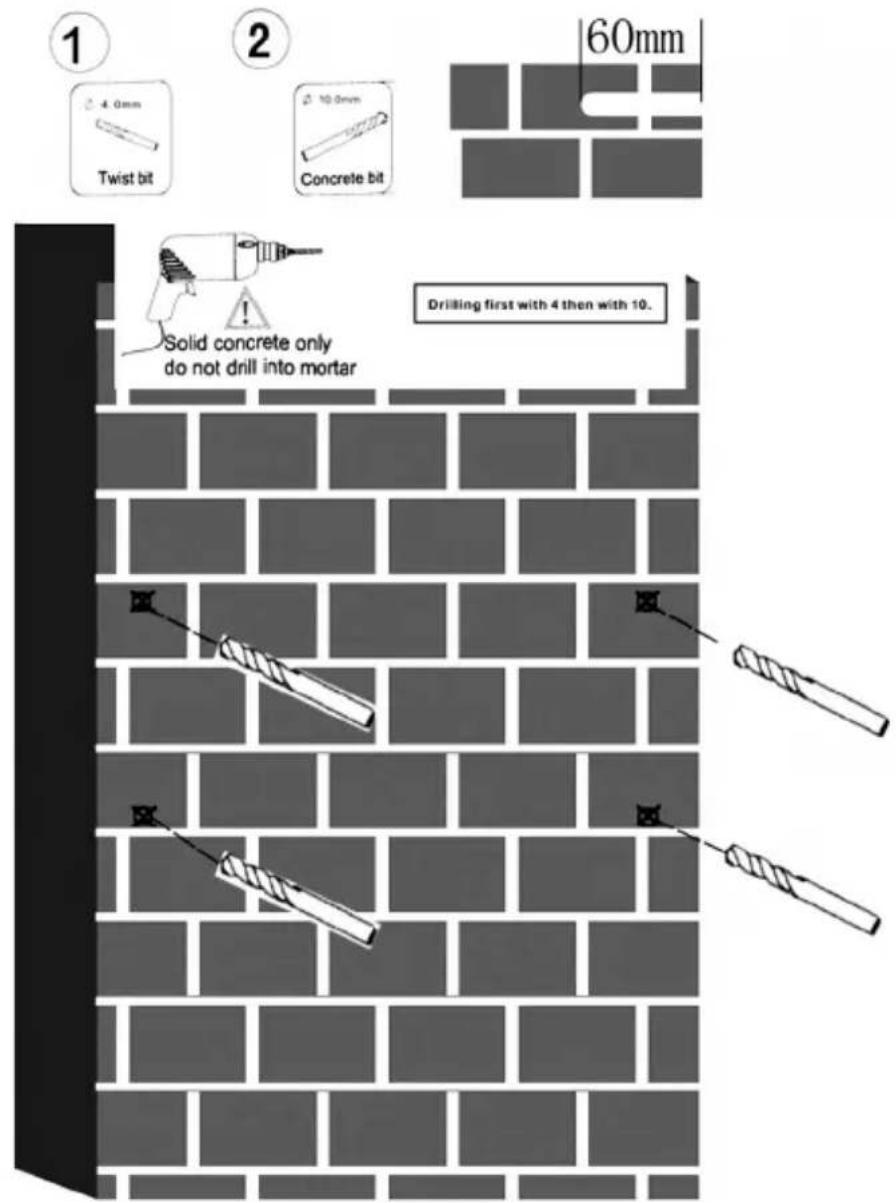

1 2 60mm 4.0mm Twist bit Concrete bit Solid concrete only do not drill into mortar Drilling first with 4 then with 10.

④

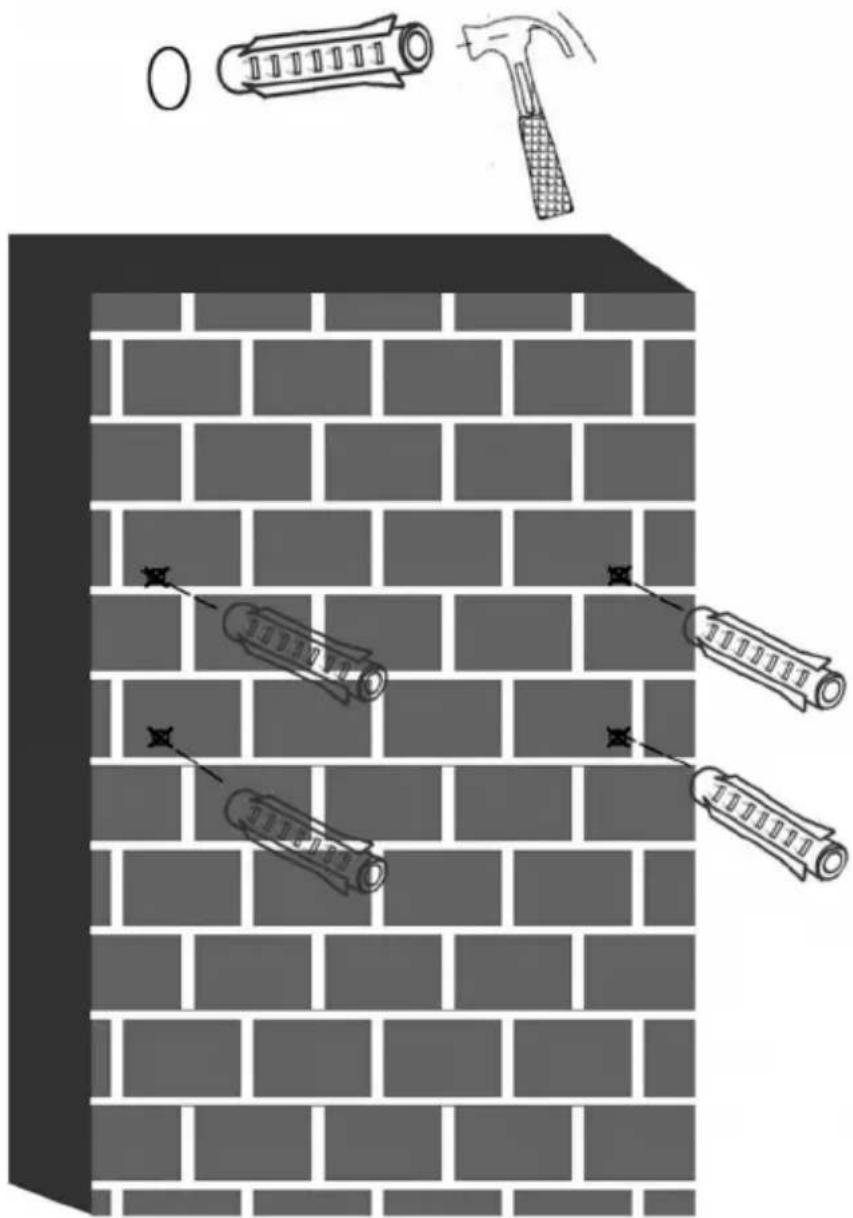

Diagram showing a hammer striking a brick wall with multiple screwdrivers and a circular object above (no text or symbols)

⑤

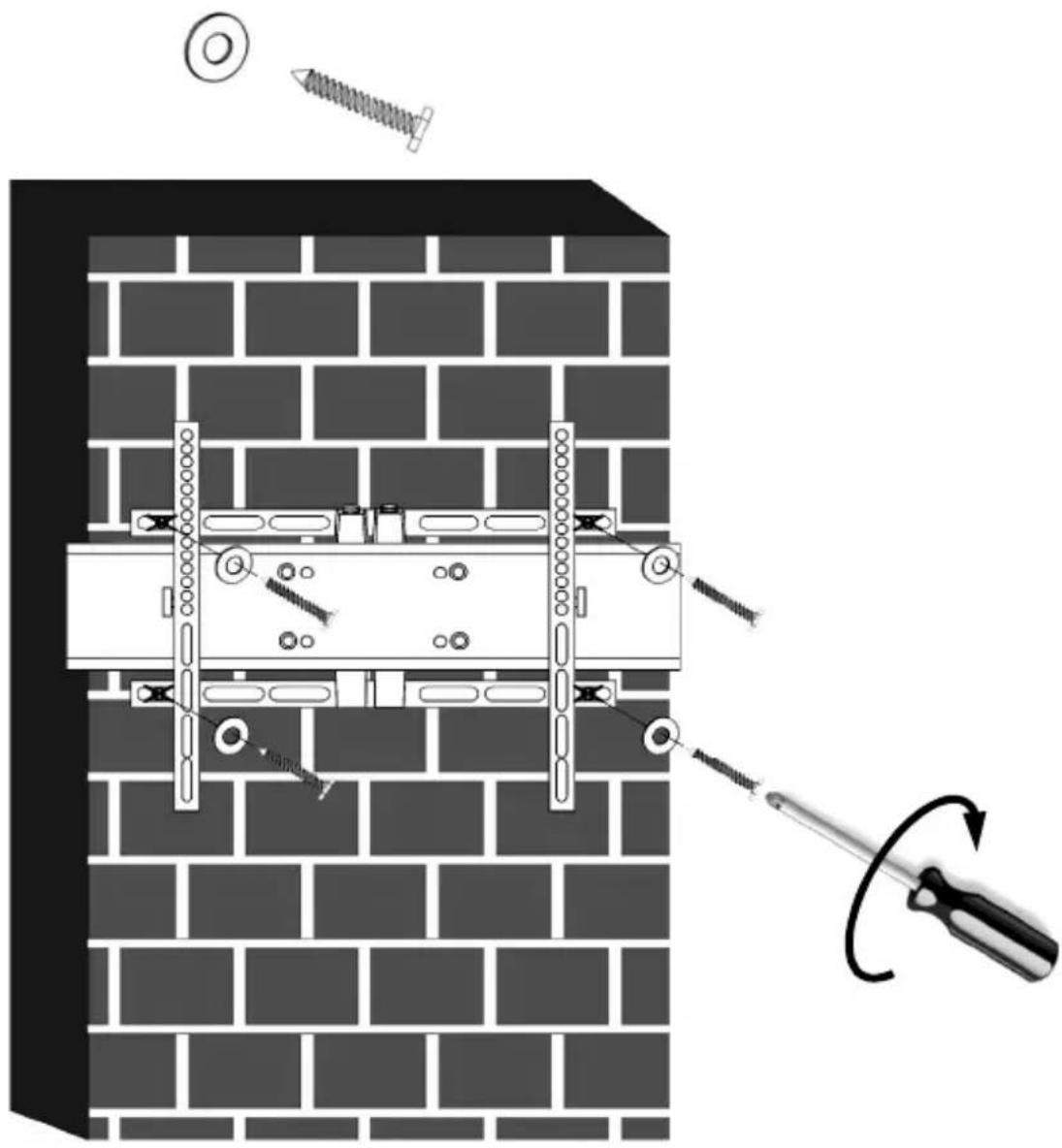

Diagram of a brick wall assembly with screw fasteners and a tool, showing mechanical components and alignment (no text or symbols)

⑥

TV D F-K Phillips Screwdriver

⑦

TV WALL

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot LVD(2006/95/EC), EMC(2004/108/EC). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive LVD(2006/95/EC), EMC(2004/108/EC). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2006/95/EC), EMC(2004/108/EC) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących LVD(2006/95/EC), EMC(2004/108/EC). Deklaracja CE znajduje się pod adresemwww.gembird.eu

Simple line drawing of a hand washing hands with water droplets (no text or symbols)

Warning sign depicting a crane hook over a load, indicating safety hazard

Diagram showing a human foot with a cube and a diagonal line crossing, indicating incorrect safety or resistance.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
