Product type	Wall mount for flat screen
Brand	Gembird
Model	WM80RT01
VESA compatibility	400 x 400 mm (max.)
Recommended screen size	32 to 65 inches
Maximum load capacity	50 kg
Material	Reinforced steel
Mounting type	Fixed wall mount (no tilt)
Distance from wall	30 mm (low profile)
Tilt	None (fixed)
Rotation	None
Adjustable height	No
Built-in spirit level	Yes
Wall mounting	Plugs and screws included
Color	Black
Net weight	2.5 kg
Installation	Requires drilling and standard tools
Maintenance	Clean with a soft, dry cloth
Warranty	2 years
Spare parts	Available from the manufacturer

Frequently Asked Questions - WM80RT01 Gembird

What is the maximum weight supported by the Gembird WM80RT01 mount?

The wall mount WM80RT01 can support up to 50 kg, suitable for screens from 32 to 65 inches.

What VESA standards are compatible with this mount?

It is compatible with VESA standards up to 400 x 400 mm. Check your screen's mounting holes.

Does the mount allow tilting the screen?

No, this model is a fixed mount without tilt or swivel. It keeps the screen flush against the wall.

How to install the WM80RT01 wall mount?

Drill holes in a solid wall (concrete, brick), insert the supplied plugs and screw the wall plate. Then attach the brackets to the screen and snap it onto the plate. Use the built-in spirit level for perfect alignment.

What tools are needed for installation?

You will need a drill with a bit suitable for the wall, a screwdriver (Phillips or flat depending on screws), and a level (although the mount includes one).

Is the mount compatible with all walls?

It is designed for solid walls (concrete, brick, block). For drywall or plasterboard, use special plugs (not included).

How to clean the wall mount?

Clean it with a soft, dry cloth. Avoid chemical or abrasive cleaners that could damage the paint.

Can I reuse the mount on another screen?

Yes, if the new screen is VESA compatible and weighs less than 50 kg. Follow the reverse disassembly procedure.

Where can I get spare parts or replacement screws?

Contact Gembird customer service or check their website. Additional screw kits are available under the appropriate reference.

How to dispose of the mount at end of life?

Do not throw the mount in household waste. Take it to a recycling center or a metal waste collection point to protect the environment.

USER MANUAL WM80RT01 Gembird

Abstract logo design with a stylized arrow and 'GE' text, no readable text or symbols beyond the graphic elements.

GEMBIRD®

Mechanical assembly of a black metal frame with mounting holes and structural brackets (no text or symbols visible)

TV WALL MOUNT (ROTATE & TILT), 32"-80"

LCD/PLASMA-TV WANDHALTERUNG, 32"-80" (55 KG)

TV MUURBEUGEL (DRAAI- EN KANTELBAAR), 32"-80" (<55KG)

SUPPORT MURAL D'ÉCRAN

• Heavy duty steel LCD screen wall mount
• Supports most 32" - 80" LCD TV's
• VESA compatible, max. 600 mm x 400 mm
- Allows up to 90 degrees rotation and 15 degrees tilting
• Distance to wall: 125 - 470 mm
- Includes all necessary installation materials

Specifications

• Material: steel (2.0 mm)
• Max. load: 50 kg (32"-80")
• Wall distance: 125 - 470 mm
• Dimensions wall plate: 623 x 180 mm
• Dimensions front plate: 672 x 203 mm
• Dimensions brackets: 430 x 32 mm
• Net weight: 5.9 kg

CE RoHS MADE IN CHINA

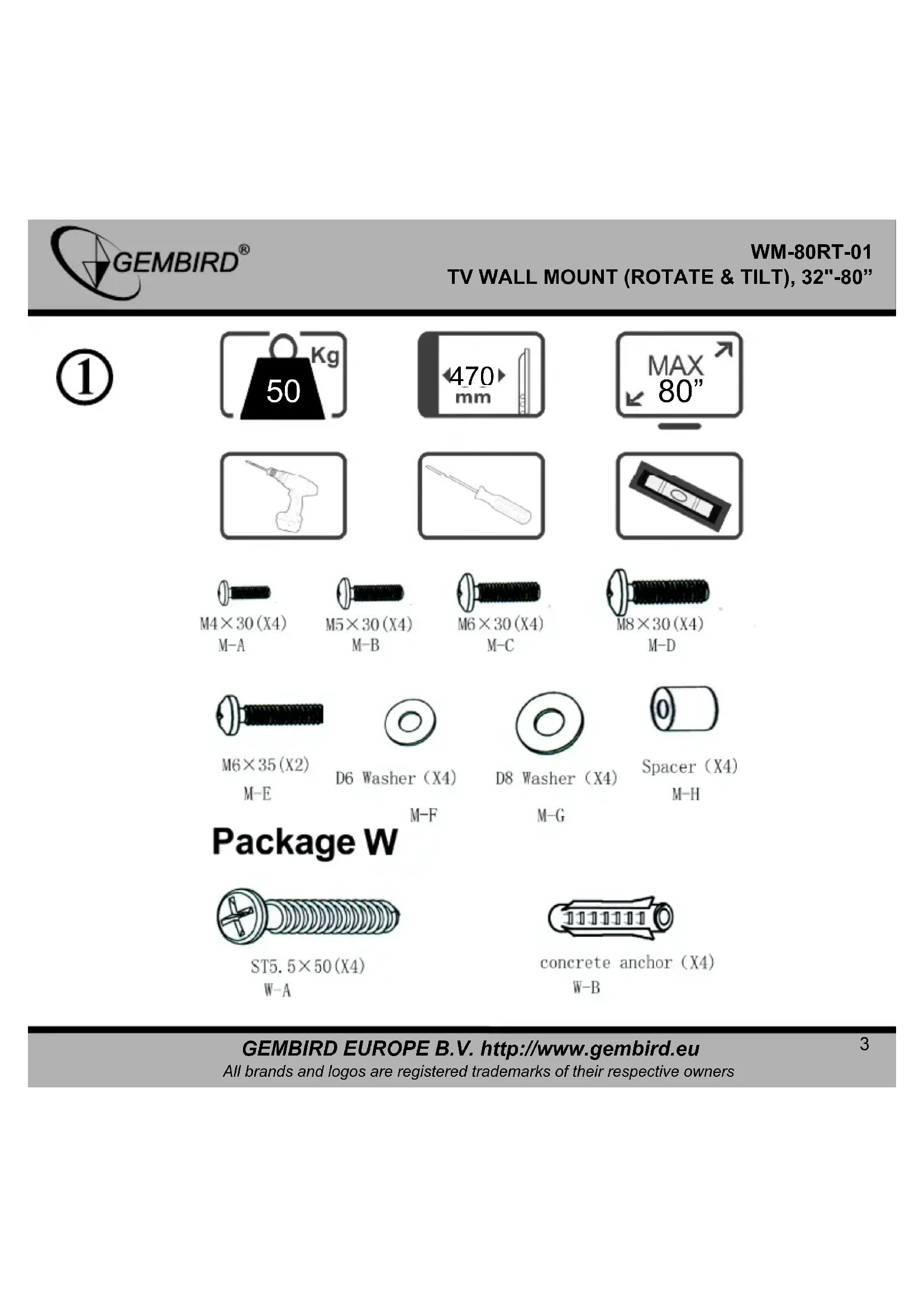

①

Kg 50

470 mm

MAX 80"

Simple line drawing of a handheld electric drill bit (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple black rectangular object with a circular cutout on the side, enclosed in a rounded square border (no text or symbols)

M4×30 (X4) M-A

M6×35 (X2) M-E

D6 Washer (X4) M-F

D8 Washer (X4) M-G

Spacer (X4) M-H

Package W

ST5. 5 × 50 (X4) W-A

concrete anchor W-B

②

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

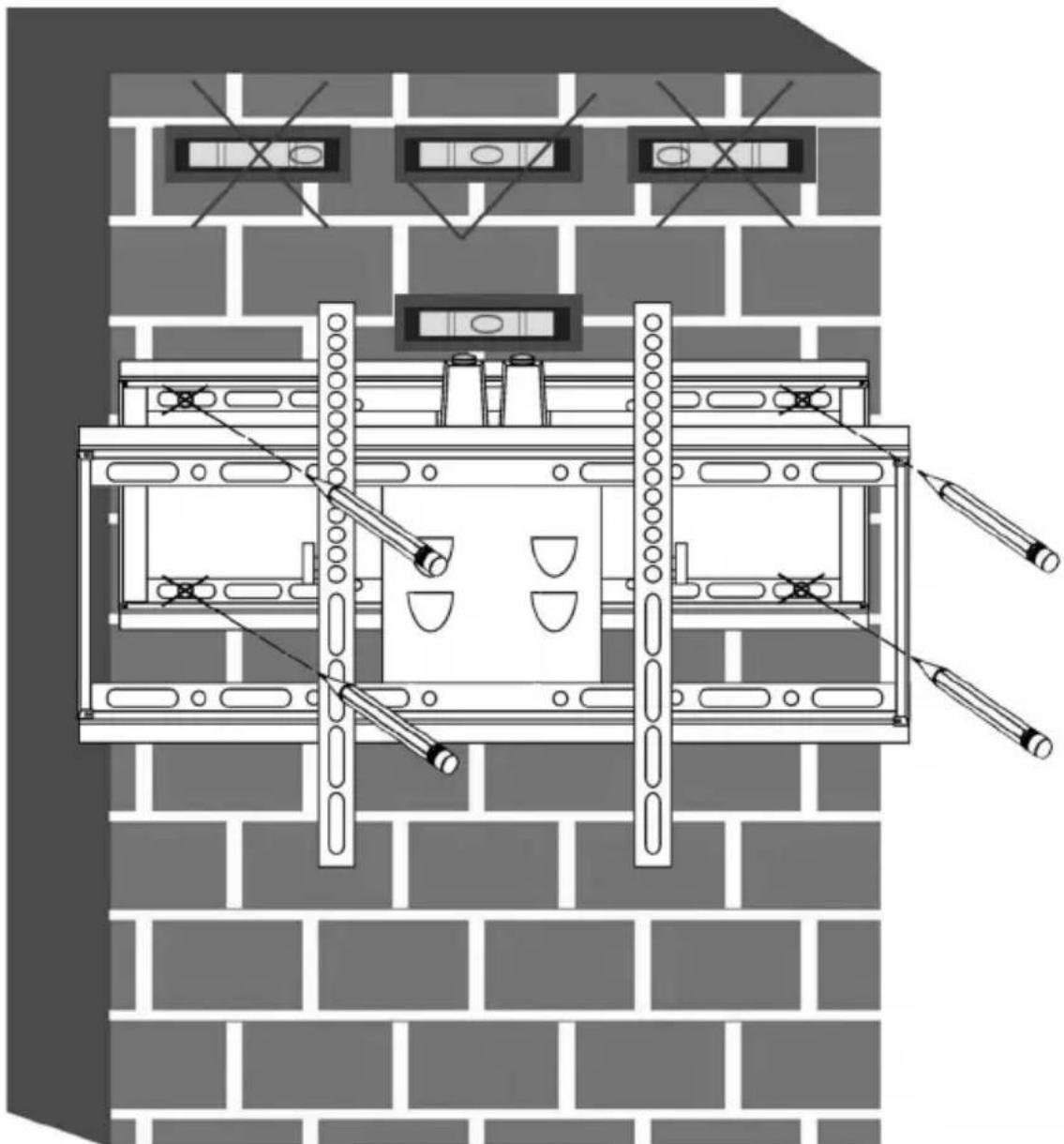

③

1 2 60mm 4.0mm Twist bit 10.0mm Concrete bit Solid concrete only do not drill into mortar Drilling first with 4 then with 10.

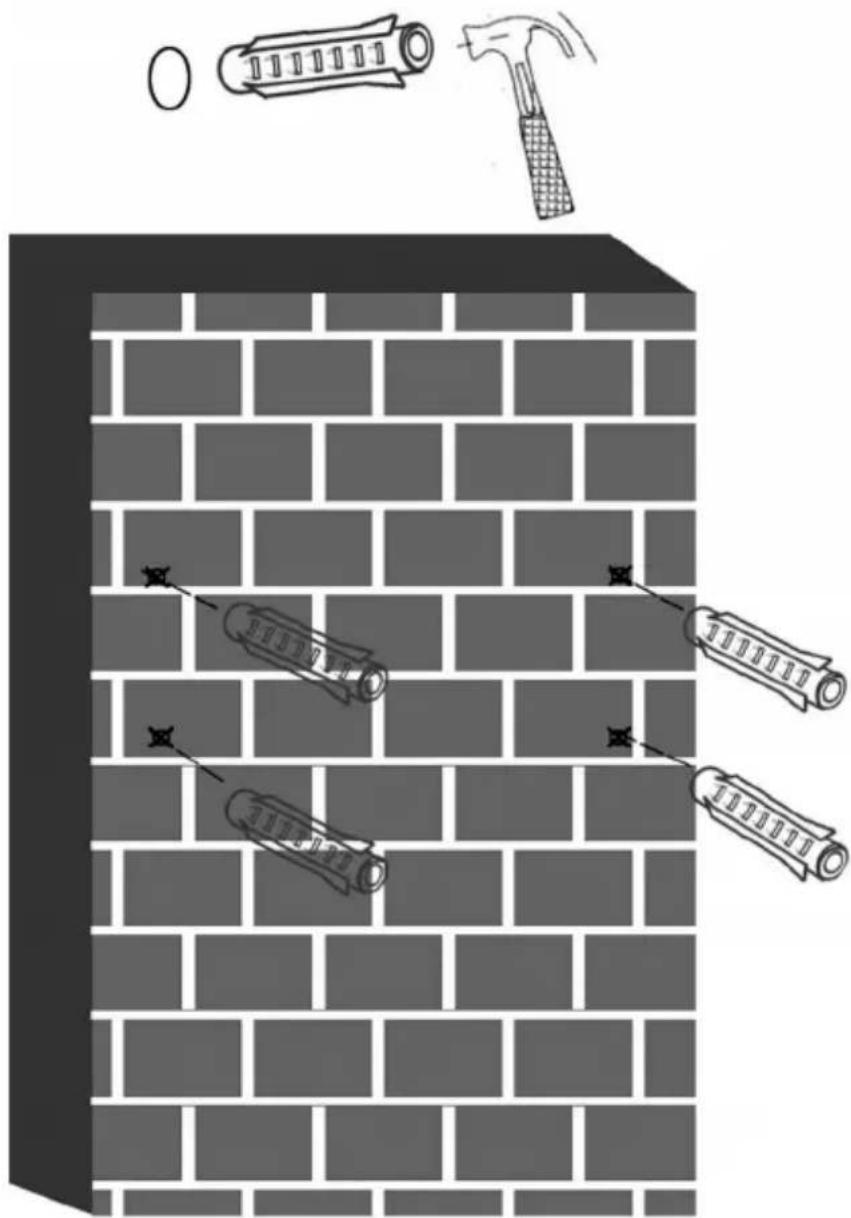

④

Diagram showing a brick wall with multiple screwdrivers and a hammer, no text or symbols present

⑤

Simple line drawing of a screw and a washer (no text or symbols)

Diagram showing a brick wall-mounted server rack with screwdriver and screwdriver, illustrating electrical repair or installation (no text or symbols present)

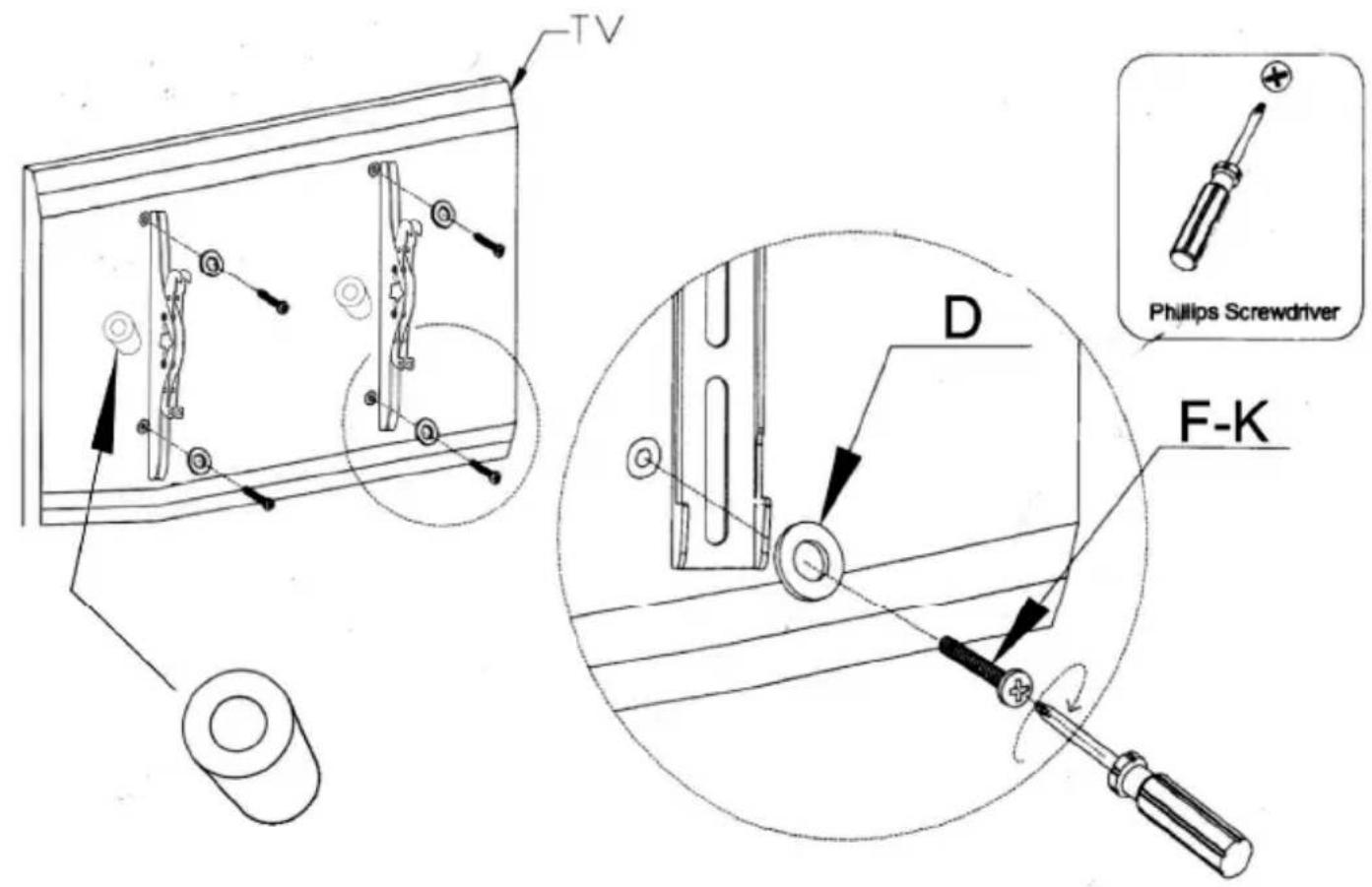

⑥

TV D F-K Phillips Screwdriver

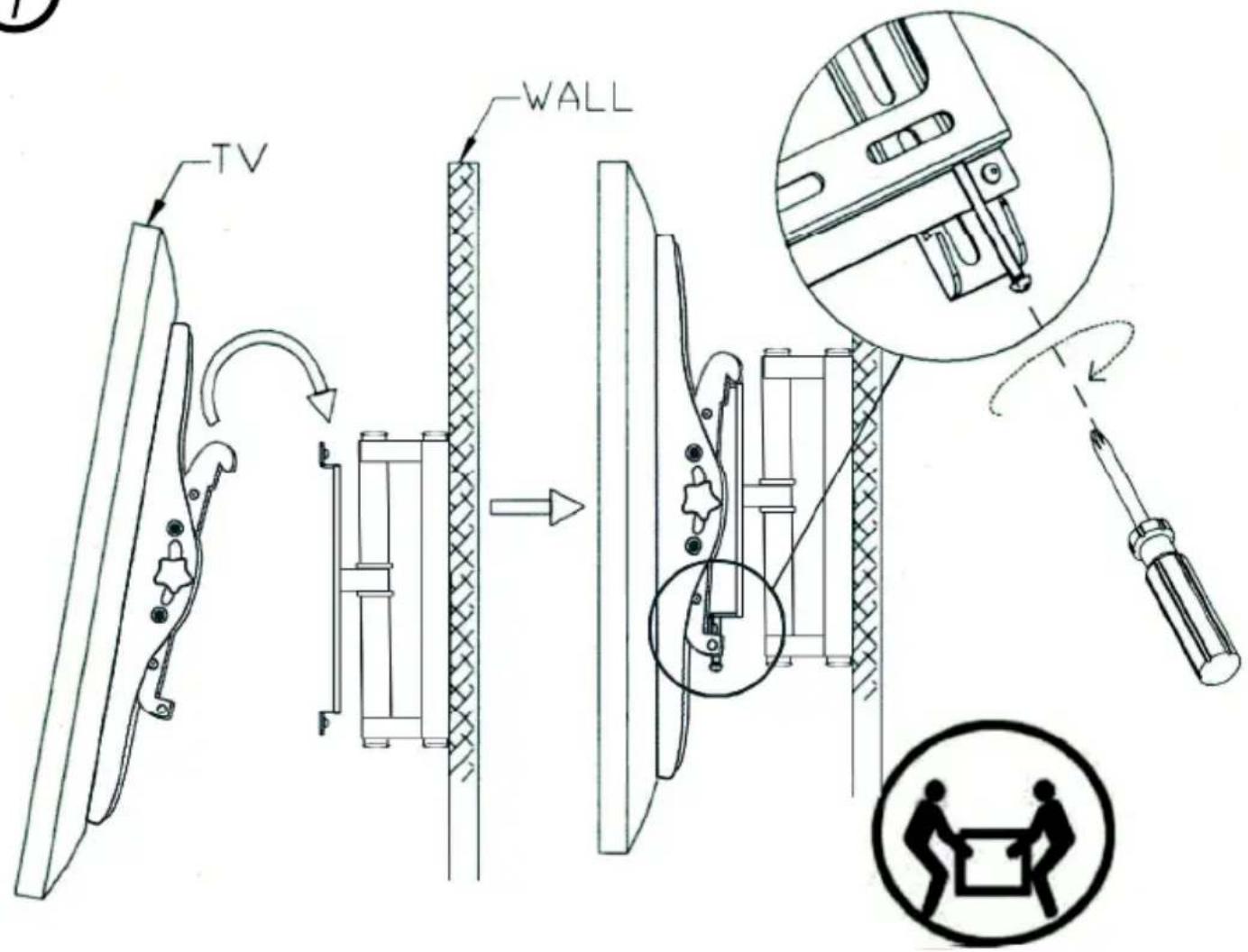

⑦

TV WALL

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu

Simple line drawing of a hand washing a box with water droplets falling (no text or symbols)

Warning sign depicting a crane hook symbol above a block, indicating possible safety or hazard warning.

Illustration of a human foot with a diagonal line crossing it, indicating no movement or force (no text or symbols present)

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
