Product Type	Universal AC-DC Power Adapter
Brand	EnerGenie
Model	EGMC008
Input Voltage	100-240 V ~ 50/60 Hz
Selectable Output Voltage	3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V
Maximum Output Current	1000 mA
Maximum Power	12 W
Supplied Connectors	8 tips of different sizes (5.5×2.1mm, 5.5×2.5mm, 3.5×1.35mm, etc.)
Polarity	Reversible via a switch (center positive by default)
Protections	Overload, short circuit, overheating
LED Indicator	Present (lights up when the adapter is powered)
Dimensions (L×W×H)	85 × 45 × 28 mm
Weight	80 g
Maintenance	Clean with a dry cloth; do not expose to moisture
Safety	CE, RoHS compliant
Spare Parts	Additional tips available separately
General Information	Indoor use only; operating temperature: 0-40°C

Frequently Asked Questions - EGMC008 EnerGenie

How to choose the correct output voltage?

Check the label of your device for its required voltage (usually between 3V and 12V). Set the EGMC008 switch to the same voltage before connecting the device. Never exceed the maximum voltage indicated by the device, as this may damage it.

How to reverse the output polarity?

The EGMC008 is equipped with a polarity switch. Slide it to the position corresponding to your device's polarity (center positive or center negative). If in doubt, check the polarity symbol on the device or its manual.

What to do if the adapter does not work?

First, check that the adapter is plugged into a working electrical outlet and that the LED is on. Ensure that the selected voltage and polarity match those of your device. If the adapter still produces no power, unplug it and contact customer service.

Can I use this adapter for a laptop?

No, the EGMC008 delivers a maximum current of 1 A, which is insufficient for most laptops. It is designed for small electronic devices such as routers, cameras, toys, etc.

How to clean the adapter?

Always unplug the adapter before cleaning. Use a soft, dry cloth to remove dust. Never use water, chemicals, or solvents, as they could damage the device or cause a short circuit.

Is it compatible with 12V devices?

Yes, the adapter can output 12V. Make sure the device requires 12V and that its current consumption does not exceed 1000 mA. The adapter is suitable for low-power 12V devices.

What to do if the adapter overheats?

The EGMC008 has built-in thermal protection. If it overheats, it will shut off automatically. Unplug the adapter, let it cool down, then check that it is not obstructed and is used in a well-ventilated area. If the problem persists, stop using it and contact support.

Where to find additional connector tips?

Tip kits are available on the manufacturer's website or from authorized retailers. Refer to the EGMC008 reference to order compatible parts.

How to recycle the adapter at end of life?

Do not dispose of the adapter with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) or return it to a participating retailer. Recycling allows recovery of materials and protects the environment.

Is the adapter under warranty?

Yes, the EGMC008 is guaranteed for 2 years against manufacturing defects. Keep your receipt as proof of purchase. The warranty does not cover damage due to improper use or unauthorized modification.

USER MANUAL EGMC008 EnerGenie

Close-up of a black industrial power adapter with terminal connectors and a cable, alongside several small black plastic components (no visible text or symbols)

EG-MC-008

UNIVERSAL AC-DC ADAPTER

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Collection of European and Russian flags arranged in a grid, including the EU, Germany, Switzerland, Austria, France, Russia, and Ukraine.

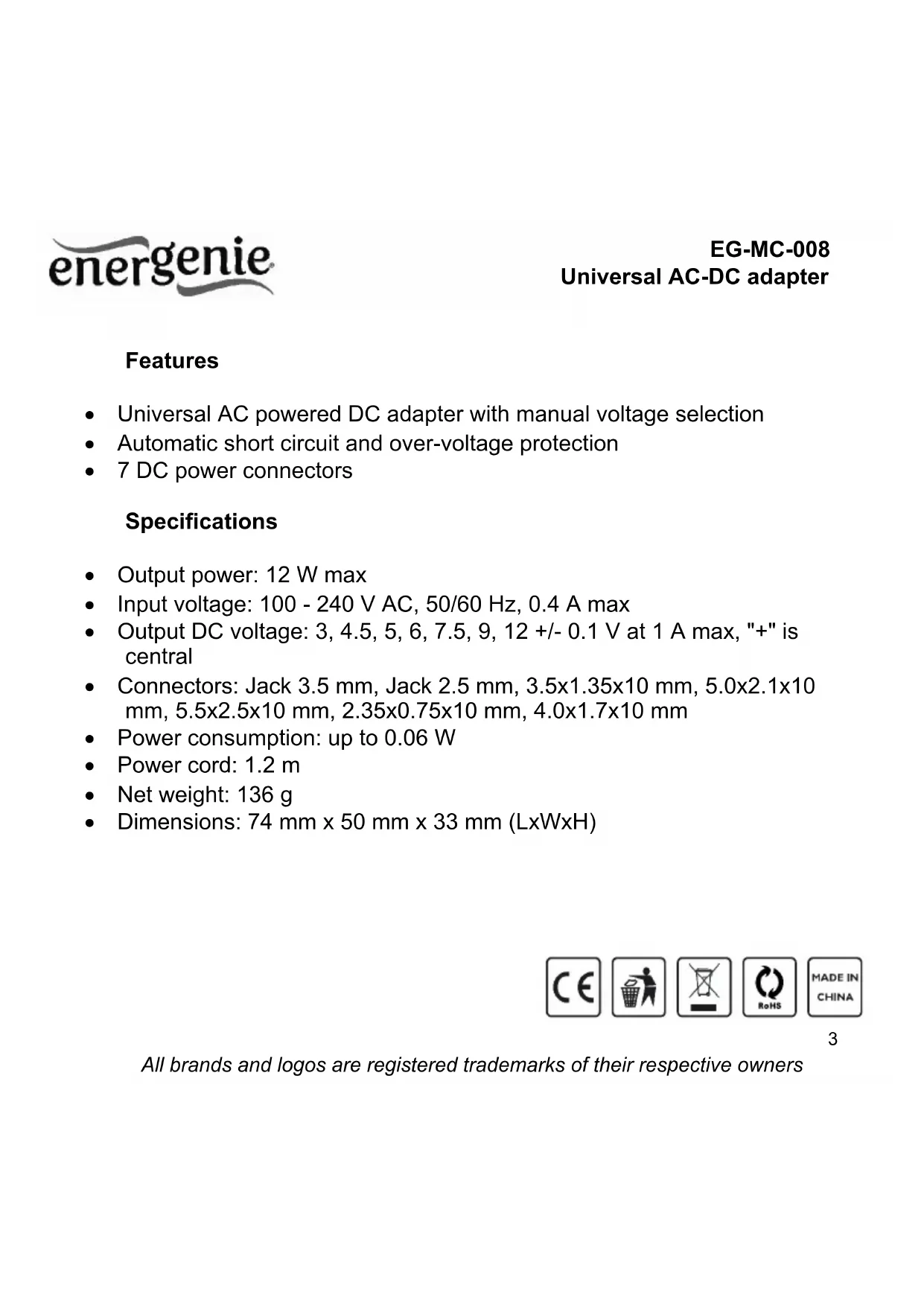

Features

• Universal AC powered DC adapter with manual voltage selection
• Automatic short circuit and over-voltage protection
• 7 DC power connectors

Specifications

• Output power: 12 W max
• Input voltage: 100 - 240 V AC, 50/60 Hz, 0.4 A max
- Output DC voltage: 3, 4.5, 5, 6, 7.5, 9, 12 +/- 0.1 V at 1 A max, "+" is central
- Connectors: Jack 3.5 mm, Jack 2.5 mm, 3.5x1.35x10 mm, 5.0x2.1x10 mm, 5.5x2.5x10 mm, 2.35x0.75x10 mm, 4.0x1.7x10 mm
• Power consumption: up to 0.06 W
• Power cord: 1.2 m
- Net weight: 136 g
• Dimensions: 74 mm x 50 mm x 33 mm (LxWxH)

CE RoHS MADE IN CHINA

energenie

EG-MC-008

Universal AC-DC adapter

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a container with water droplets falling (no text or symbols)

Safety warning sign showing sun and a person with fever, crossed by a diagonal line indicating no heat.

Simple line drawing of a hand using a tool to cut a screwdriver into a screwdriver (no text or symbols)

Simple line drawing of a container with a hand holding a flag and a crossed-out diagonal line (no text or symbols)

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners

GARANTIE VOORWAARDEN	CONDITIONS DE GARANTIE
Op de aankoopbon moeten de aankoopdatum en productomschrijving duidelijk vermeld staan. Gelieve de aankoopbon de gehele garantieperiode te bewaren, deze is ten alle tijden benodigd voor alle garantie aanspraken. Tijdens de garantieperiode zullen alle gebreken verholpen of vervangen worden door de fabrikant d.m.v. reparatie, omruiling van het defecte onderdeel of het gehele apparaat. Aanspraken tijdens de garantieperiode leiden niet tot verlenging hiervan. Garantieaanspraak vervalt bij schade of gebreken die ontstaan zijn door oneigenlijk gebruik, misbruik of invloeden van buitenaf (vallen, stoten, water, stof, vuil of breken). Slijtagegevoelige onderdelen (b.v. batterijen) zijn uitgesloten van garantie. Bij ontvangst van de RMA goederen behoudt Gembird zich het recht om te kiezen tussen vervanging van de defecte waren of het uitgeven van een kreditnota. Het bedrag van de kreditnota zal altijd gecalculeerd zijn op basis van de huidige marktprijs voor het defecte produkt.	Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil.Conservez le reçu d'achat pendant toute la durée de la garantie car elle est nécessaire pour toute réclamation.Au cours de la période de garantie tous les défauts doivent être remplacé aux frais du fabricant, soit par la réparation ou la remplacement de la pièce défectueuse ou l'ensemble du produit.Les travaux effectués sous garantie ne prolongent pas la période de garantie ni ne commencent pas une nouvelle période de garantie.Le fabricant se réserve le droit d'annuler toute demande de garantie pour les dommages ou défauts dus à une mauvaise utilisation, abus ou les effets externes (chute, choc, pénétration de l'eau, la poussière, etc..).Les pièces d'usure (par exemple les piles rechargeables) sont exclus de la garantie.Dès réception de la marchandise sous garantie, le SAV de Gembird Europe BV se réserve le droit de choisir entre le remplacement des produits défectueux ou de délivrer un avoir.Le montant d'avoir sera toujours calculée sur la base de la valeur actuelle du marché des produits défectueux.
Gembird Europe B.V.Wittevrouwen 56, 1358CD AlmereThe Netherlandswww.gembird.nl/[e-mail]. [phone]€ 0,15 p/m binnen NederlandExclusief mobiele telefoonkosten	Gembird Europe B.V.Wittevrouwen 561358CD Almere, The Netherlandswww.gembird.nl/[e-mail][phone]Prix d'appel depuis telephone fixe Pays-Bas : 0.15 euro / minPrix d'appel depuis telephone mobile / autre pays - selon operateur

ГАРАНТИЙНЫЙ ТАЛОН
