Platinum Snow Ball Machine 65042 - Ice machine WestBend - Free user manual and instructions

Product type	Ice crusher for snow cones
Brand	WestBend
Model	Platinum Snow Ball Machine 65042
Power supply	120 V ~, 60 Hz
Housing material	Plastic
Ice hopper capacity	Approximately 12 ice cubes (standard size)
Main function	Crush ice cubes into fine shaved ice (snow)
Removable parts	Lid, ice hopper, pusher, dispenser chute, drip tray
Cleaning and maintenance	Hand wash removable parts with warm soapy water; do not immerse motor housing
Safety	Sharp blades; maximum continuous operation 3 minutes; do not insert utensils into hopper
Warranty	1 year limited (parts and labor)
Intended use	Household use only
Color	White and silver (Platinum)
Dimensions (approx.)	30 x 20 x 20 cm
Weight (approx.)	2.5 kg

Frequently Asked Questions - Platinum Snow Ball Machine 65042 WestBend

How to use the WestBend Platinum snow cone machine?

Assemble the ice hopper and chute, place a bowl under the blades, fill the hopper with ice cubes, close the lid, plug in, and press the power button. Do not run for more than 3 continuous minutes.

Can I use partially melted ice cubes?

It is recommended to use well-chilled ice cubes for a snow-like texture. Partially melted ice cubes will result in heavier, wetter granitas.

How to clean the ice crusher?

Unplug the appliance. Remove the removable parts (lid, hopper, chute, drip tray) and hand wash them in warm soapy water. Rinse and dry. Wipe the exterior with a damp cloth. Never immerse the motor housing.

What to do if the machine does not work?

Check that the appliance is plugged into a 120 V outlet and that the lid is properly locked. Ensure the hopper is not overfilled. If the problem persists, contact customer service at [phone].

Is it possible to order spare parts?

Yes, spare parts can be ordered online at www.westbend.com, by email at [e-mail], or by phone at [phone].

How long can I run the machine continuously?

Do not exceed 3 minutes of continuous operation, as the motor may overheat. Allow it to cool before reuse.

Are the blades removable?

No, the blades are fixed in the blending bowl and are not removable. Do not attempt to sharpen them as this could cause injury.

Can I use the machine without ice?

No, never operate the machine without ice in the hopper as this may damage the appliance.

Is the machine under warranty?

Yes, the machine has a limited one-year warranty from the date of purchase, covering manufacturing defects (parts and labor). Keep your receipt.

What type of ice cubes to use?

Use standard size ice cubes. Do not overfill the hopper; the lid must close without force.

USER MANUAL Platinum Snow Ball Machine 65042 WestBend

Exterior view of a WestBanc coffee maker with metallic grille and control panel (no visible text or symbols beyond branding)

Register this and other Focus Products Group International products through our website: www.registerfocus.com.

Product registration is not required to activate warranty.

Important Safeguards....2

Before Using for the First Time .... 3

Using Your SnowBall Machine .... 4

Helpful Hints....4

Cleaning Your SnowBall Machine 4

Warranty....5

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

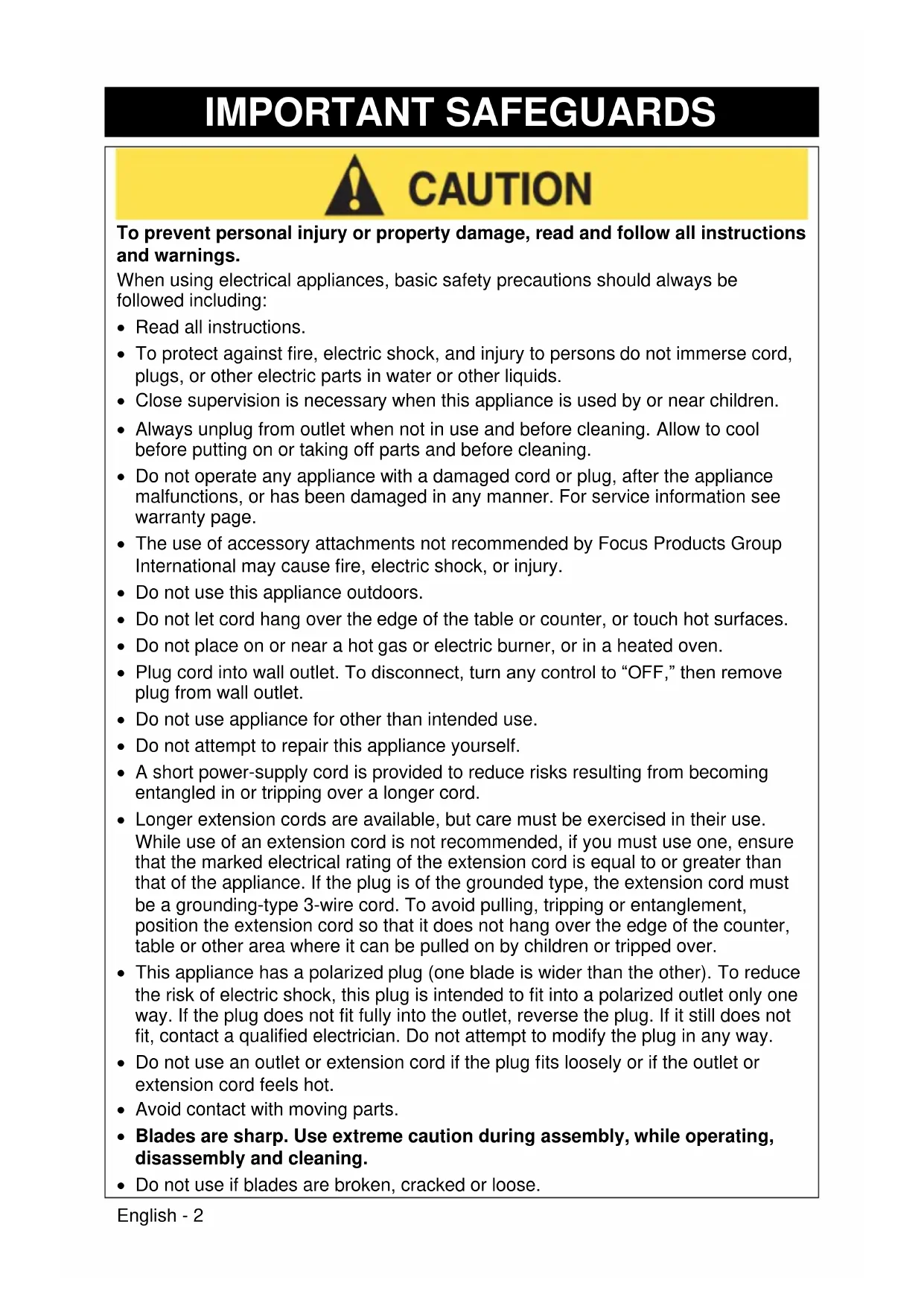

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• To protect against fire, electric shock, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments not recommended by Focus Products Group International may cause fire, electric shock, or injury.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Plug cord into wall outlet. To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Do not attempt to repair this appliance yourself.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Avoid contact with moving parts.
• Blades are sharp. Use extreme caution during assembly, while operating, disassembly and cleaning.

• Do not use if blades are broken, cracked or loose.

• Do not leave appliance unattended while it is operating.

• Do not run this appliance continuously for more than 3 minutes as overheating may occur. Allow motor to cool down before repeat usage.
• Do not run machine without ice in the auger as damage to appliance may occur.
• Never place fingers or utensils into the feed or discharge areas to reduce the risk of severe injury to persons or damage to the shaver.
• Always check ice funnel and shaving bowl for presence of foreign objects before using.
• For household use only.

SAVE THESE INSTRUCTIONS

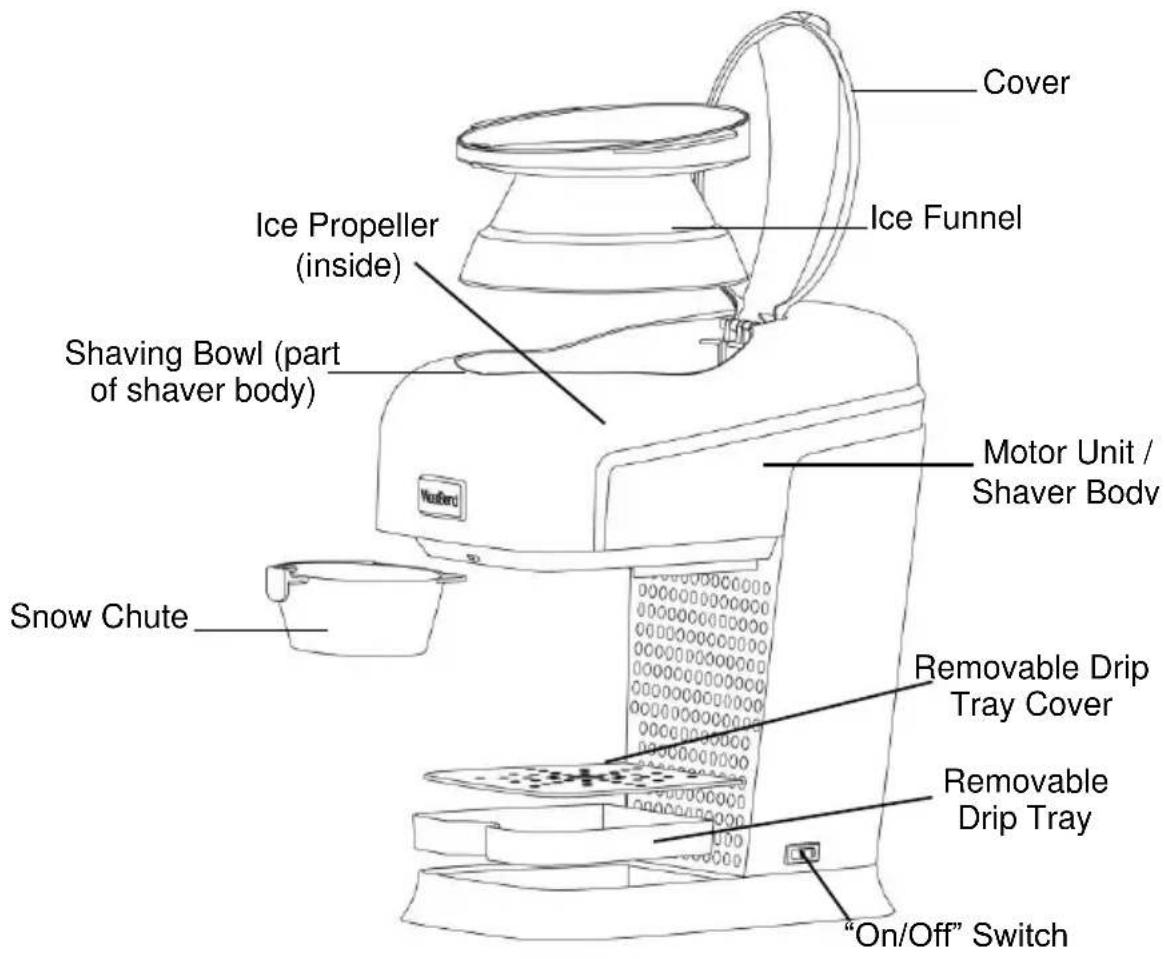

Cover Ice Funnel Ice Propeller (inside) Shaving Bowl (part of shaver body) Snow Chute Motor Unit / Shaver Body Removable Drip Tray Cover Removable Drip Tray "On/Off" Switch

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Accessory parts may be contained within the packaging material.

Hand-wash the cover, ice funnel, snow chute, and drip tray in warm, soapy water. Rinse and dry thoroughly. Do not wash any parts in a dishwasher. Carefully wipe the interior of the shaving bowl with a damp cloth. CAUTION: The shaving bowl contains sharp blades, handle with care.

NEVER IMMERSE THE MOTOR IN WATER OR ANY OTHER LIQUID.

1. Slide the ice funnel into the shaving bowl, lining the tabs on the funnel with the slots in the shaver bowl. Turn the funnel slightly clockwise to lock in place.
2. Line the snow chute into the guide rails below the shaving bowl, then push back. You will hear a click when the snow chute is fully installed. Place the drip tray into the opening in the shaver body. Place a wide bowl below the blades, on the drip tray.
3. Add ice cubes to the ice funnel. The ice funnel can be filled to the top, but the cover must be able to latch securely, remove ice if cover cannot be latched.

1. Press down on to close the lid on top of the shaving bowl. You will hear a click.

2. Plug the Ice Shaver into a 120 volt, AC electric outlet only. Press the "On/Off" switch to "ON" to begin shaving.

3. When shaving is complete, press the "On/Off" switch to "OFF."

4. Unplug from power supply immediately after use. Note: There will always be a small amount of ice remaining in the shaving bowl after shaving. Discard the remaining ice.

CAUTION: Do not run ice shaver continuously for longer than 3 minutes as overheating may occur. Allow motor to cool down before repeat usage.

• A small amount of smoke and/or odor may occur upon use due to the release of manufacturing oils – this is normal.
• Some minor expansion/contraction sounds may occur during use – this is normal.

HELPFUL HINTS

• Be sure you have an adequate supply of ice cubes.
• Colder ice produces a more snow-like shaved ice. Ice that is allowed to thaw a little will create a wetter, heavier shaved ice.
• DO NOT overfill the ice funnel; the cover should sit flush without forcing.

CLEANING YOUR SNOWBALL MACHINE

1. Always unplug appliance before cleaning.
2. Remove the snow chute from the shaver. Hand wash parts in warm, soapy water. Rinse and dry thoroughly. To remove excess ice from the shaving bowl, remove the drip tray and tip the shaver over a sink to dump out. CAUTION: Be extremely careful of blades in shaving bowl as blades are very sharp.
3. Clean exterior of the appliance with a damp, soft cloth and wipe dry. Note: Do not immerse motor housing in water or other liquid.

NEVER ATTEMPT TO SHARPEN BLADES AS INJURY MAY OCCUR.

This appliance has no user serviceable parts.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Products Group International, LLC (“the Company”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided that the appliance is operated and maintained in conformity with the Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at the Company’s discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by the Company, if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Customer Care Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from the Company several ways. Order online at www.westbend.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Products Group International, LLC.

Attn: Customer Care Dept.

P. O. Box 53

West Bend, WI 53095

To order with a check or money order, please first contact Customer Care for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the appliance, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Products Group International, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product):
