Product type	Cordless stick vacuum with handheld function
Brand	Taurus
Model	Unlimited 25.6 Lithium
Power supply	Lithium battery 25.6 V, mains charger (22 V)
Runtime	Up to 30 minutes in ECO mode, about 20 minutes in TURBO mode
Charging time	4 to 6 hours
Suction power	2 speeds: ECO (high) and TURBO (maximum)
Dust container capacity	0.5 L (transparent)
Filtration system	Washable motor filter (K) + fabric filter in container
Main brush	Removable motorized rotating brush (Turbobrush) for cleaning
Included accessories	Brush nozzle, crevice tool (tube), wall charging bracket, charger
Weight	2.6 kg
Dimensions (approx.)	260 x 330 x 1120 mm
Body material	ABS plastic
Noise level	~78 dB(A)
Special features	Folding handle for storage, parking position, detachable hand vacuum
Charge indicator	LED indicator (C): blinking while charging, solid when charged
Maintenance	Regularly empty and wash filter, removable rotating brush for cleaning
Safety	Disconnect from mains before cleaning, do not vacuum liquids or glowing objects
Spare parts available	Filters, brushes, charger, battery (replacement by authorized service)
Warranty	2 years (subject to domestic use and compliance with instructions)

Frequently Asked Questions - Unlimited 25.6 Lithium TAURUS

How to charge the battery of my Taurus Unlimited 25.6 Lithium vacuum?

Plug the charger (P) into the mains and connect it to the charging base (O) or directly to the appliance. The indicator (C) blinks during charging and becomes solid when complete. Full charging takes 4 to 6 hours. Only use the supplied charger.

What is the battery runtime?

The runtime can reach 30 minutes in ECO mode and about 20 minutes in TURBO mode, depending on use.

How to empty the dust container?

Press the hand vacuum release button (H) to detach the hand vacuum. Open the container, remove the fabric filter, and empty the contents. Clean the filter regularly.

How to clean the filter of my vacuum?

Remove the hand vacuum, open the container, take out the fabric filter and the protective part. Wash the filter with warm water and let it dry completely before reassembling. Do not use abrasive products.

How to detach the hand vacuum from the main body?

Press the release button (H) on the main body (E) and pull the hand vacuum upward. It unlocks and can be used independently.

How to use TURBO mode?

On the on/off switch (B or I), press twice to switch to TURBO mode (maximum speed). A single press activates ECO mode.

What to do if suction power decreases?

Check that the dust container is not full, the filter is not clogged, and the rotating brush is not blocked by hair or fibers. Clean the relevant parts.

Can I use the vacuum to vacuum liquids?

No, this vacuum is designed only for dry cleaning. Never vacuum water or any other liquid to avoid damaging the appliance.

How to install the wall charging base?

Assemble and fix the two parts of the base (O) to the wall using the supplied screws. Place the vacuum on the base to charge and store.

How to replace the battery at end of life?

The battery must be removed before disposal. Unplug the appliance, open the top casing with a screwdriver, cut the battery cables and insulate the ends. Take the battery to an approved recycling center. For replacement, contact technical support.

USER MANUAL Unlimited 25.6 Lithium TAURUS

Stick vacuum cleaner

Aspirateur balai

Bodenstaubsauger

Scopa elettrica

Line drawing of a vacuum cleaner with long handle and control panel (no text or symbols)

_

| _

一

1

Line drawing of a vacuum cleaner with a right-hand rule indicator (Fig.4), no text or symbols present.

Technical line drawing of a mechanical component with two views, labeled Fig.6 (no text or symbols on the diagram itself)

Technical line drawing showing hands operating a mechanical device with a tool, labeled Fig.8 (no text or symbols on the diagram itself)

Español

Aspirador escoba

Unlimited 29.0 Lithium

Unlimited 25.6 Lithium

Stick vacuum cleaner

Unlimited 29.0 Lithium

Unlimited 25.6 Lithium

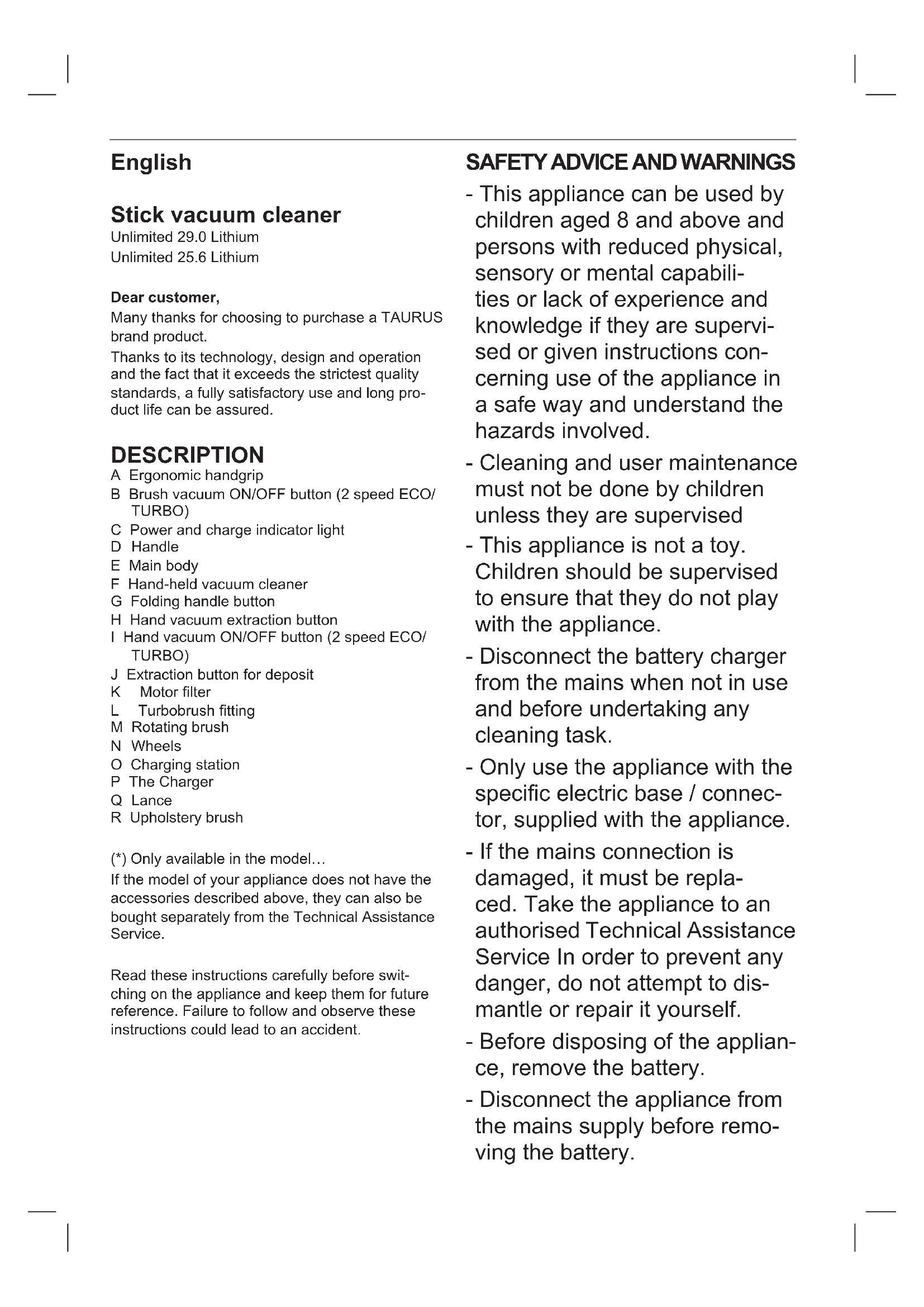

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

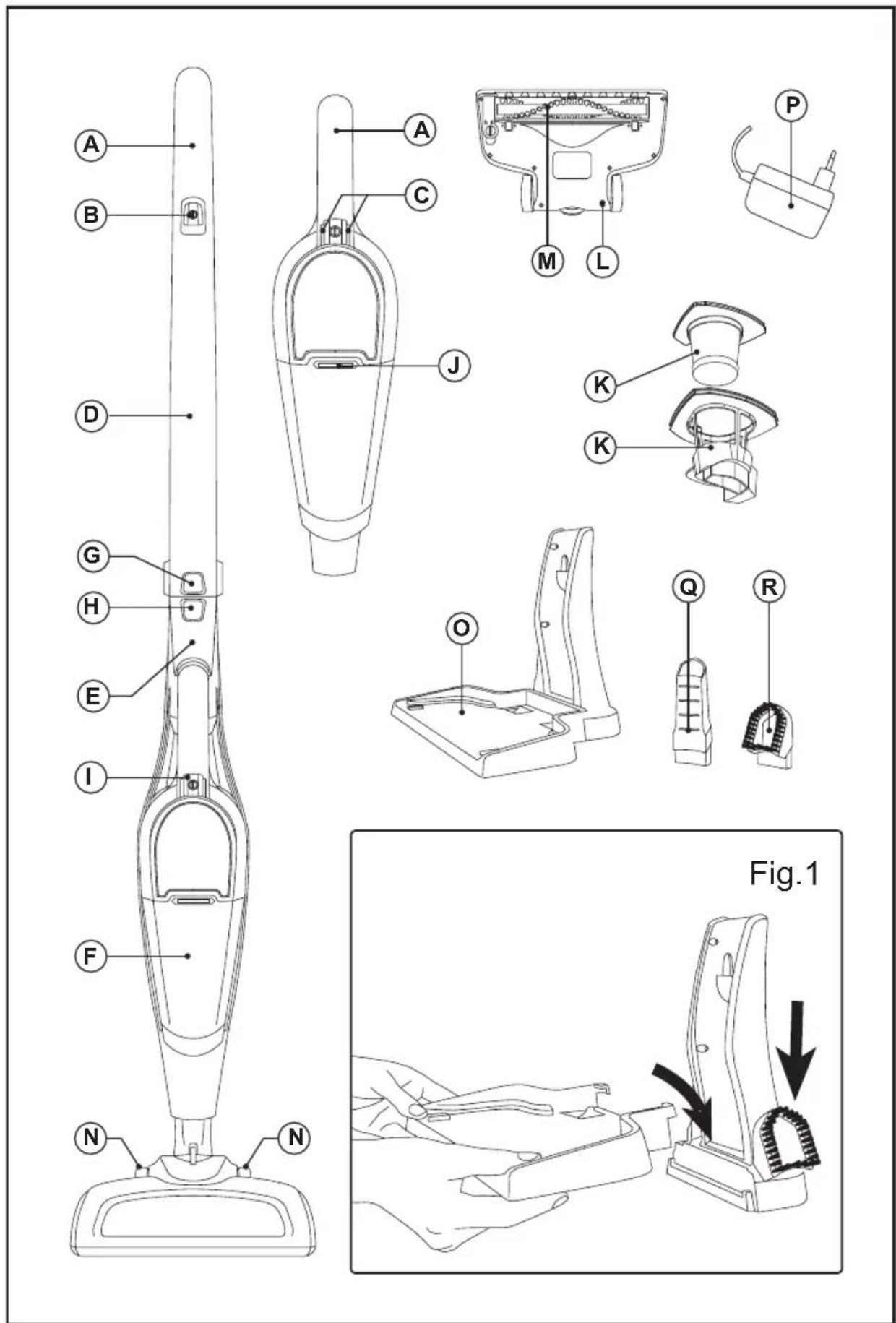

DESCRIPTION

A Ergonomic handgrip

B Brush vacuum ON/OFF button (2 speed ECO/TURBO)

C Power and charge indicator light

D Handle

E Main body

F Hand-held vacuum cleaner

G Folding handle button

H Hand vacuum extraction button

I Hand vacuum ON/OFF button (2 speed ECO/TURBO)

J Extraction button for deposit

K Motor filter

L Turbobrush fitting

M Rotating brush

N Wheels

O Charging station

P The Charger

Q Lance

R Upholstery brush

(*) Only available in the model...

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

- This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or given instructions concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance must not be done by children unless they are supervised

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Disconnect the battery charger from the mains when not in use and before undertaking any cleaning task.

- Only use the appliance with the specific electric base / connector, supplied with the appliance.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

- Before disposing of the appliance, remove the battery.

- Disconnect the appliance from the mains supply before removing the battery.

- The battery must be disposed of safely.

• Ensure that the voltage indicated on the charger rating label matches the mains voltage before plugging in the charger
• The plug on the battery charger must fit into the power outlet socket properly. Do not modify the plug. Do not use plug adaptors.
• Do not force the power cord. Do not force the power cord. Never use the power cord to lift up, carry or unplug the battery charger.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may accuse irritation or burns

USE AND CARE:

• Do not use the appliance if its filter(s) are not correctly in place.
• Do not use the appliance to vacuum up water or any other type of liquid.
• Respect the MAX level indicator
• This appliance is for household use only, not professional or industrial use.
• This appliance should be stored out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use.
• Use the appliance, its accessories and tools in accordance with these instructions. Take working conditions and job to be carried out into consideration. Using the appliance for anything other than its intended use can create hazards.
• Do not operate on areas which contain metal objects such as nails and/or screws.
• Never vacuum hot or sharp objects (cigarette butts, ash, nails, etc.).
• Do not open the battery/ies under any circumstances whatsoever.
• Do not use the appliance with pets or animals
• Recharge the battery/ies only with the charger

supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery

- Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories
• Any misuse or failure to follow the instructions for use may be dangerous, rendering the guarantee and the manufacturer's liability null and void.

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
  Assembling the charger station:
• The appliance has a charger station (O) which should be fix to a wall.

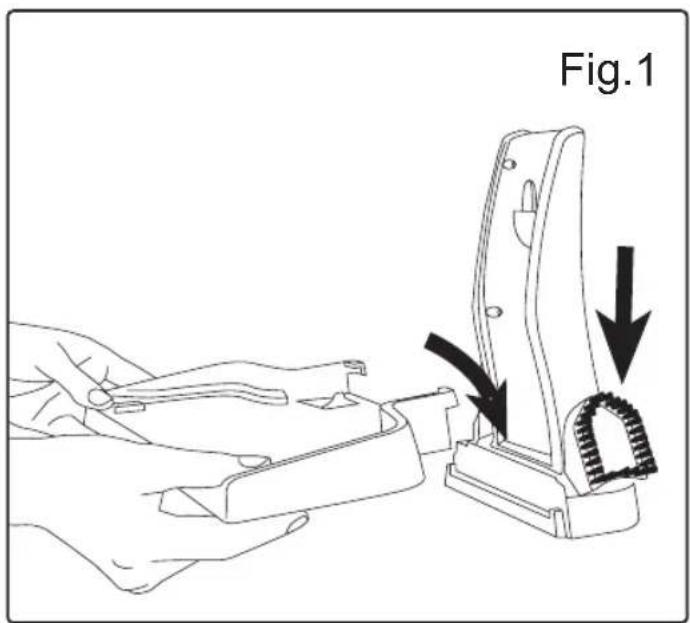

• Connect the two parts for the bottom of the charger station. (Fig.1)
• Fit the appliance into its charger station. (O)

CHARGING THE BATTERY

Caution: The new battery does not come completely charged and must be charged up to the maximum before using the appliance for the first time.

- Charge the battery at room temperature between 4 and 40°C.

- Plug the charger (P) into the mains.

- Approximately 4-6 hours are needed for a complete charge of the battery Never attempt to over-charge the batteries

- While the battery is charging, the pilot light will flash, indicating that the charger is charging the battery. (C)

- The pilot lamp will remain permanently on when the charge is complete. Disconnect the charger from the mains supply.

INSTRUCTIONS FOR USE USE:

• Remove the appliance from its charger station.
• Turn the appliance on, by using the on/off switch. (B)

• The ON indicator lamp will light up. (C)

• Select the desired power.

• Press once for ECO speed / press twice for TURBO speed.
• To use the hand vacuum:

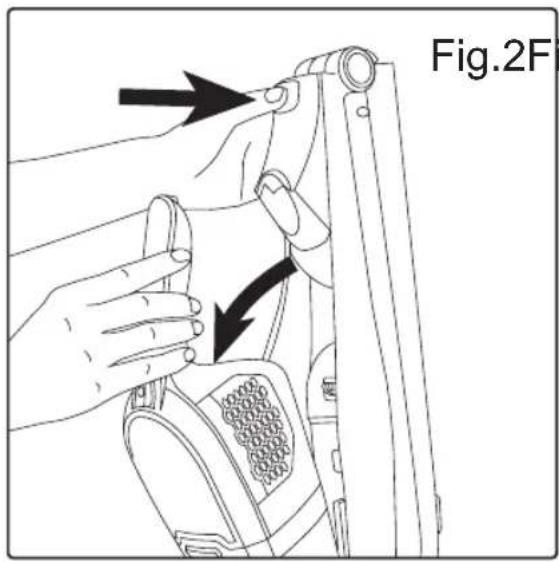

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Turn the appliance on, by using the on/off switch. (I)

FITTING AN ACCESSORY TO THE HAND VACUUM:

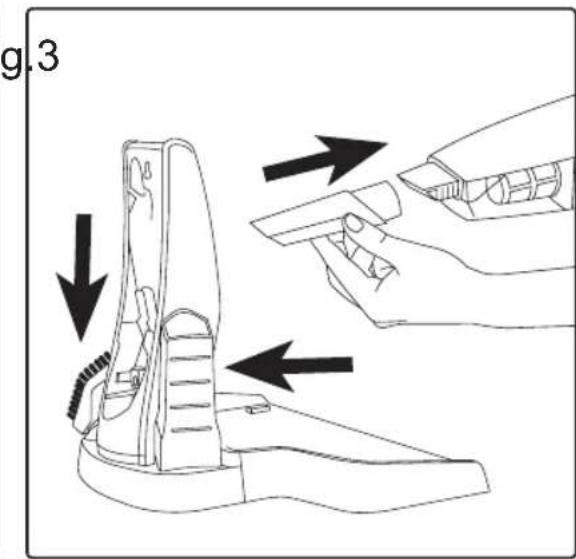

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• The hand vacuum is designed in such a way that it allows the following accessories to be fitted: (use the combination that best meets your requirements). (Fig.3)
• Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.
• Crevice nozzle: Specially designed for getting into cracks and difficult corners.

PARKING POSITION:

- This appliance has one parking position for comfortable and straightforward storage.

FOLDING HANDLE:

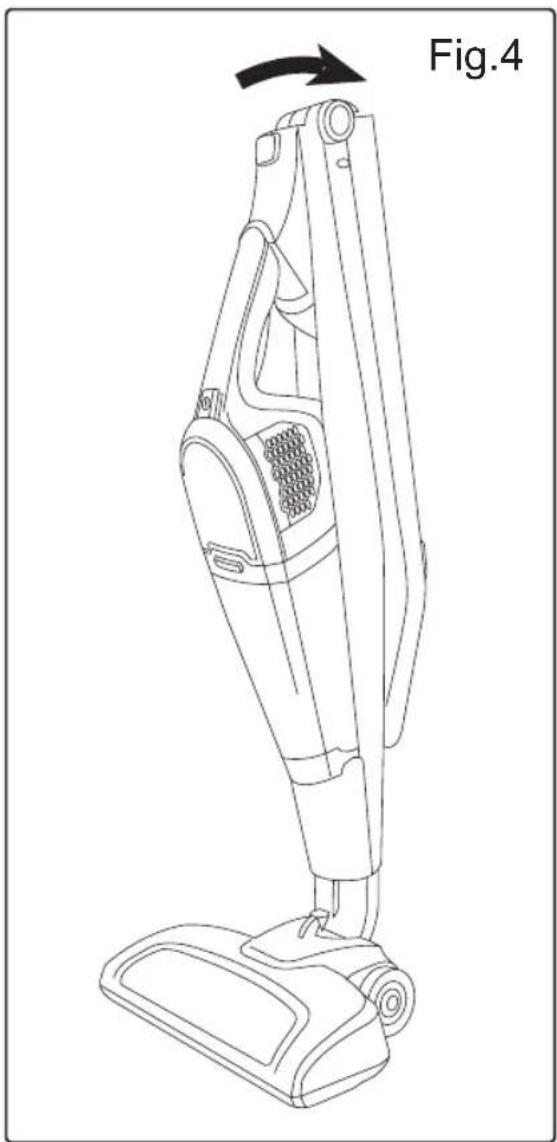

- This appliance has a folded handle position for easy storage. (Fig.4)

The provided image contains no text or OCR-able content. It displays a single, white droplet icon on a black background.

CLEANING

• Disconnect the charger from the mains and let it cool before undertaking any cleaning task.
• Clean the appliance using a damp cloth with a few drops of detergent and then dry it.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

• Empty the vacuum deposit when dust is visible though the transparent walls, when it is full, or when the vacuum cleaner does not work to its full potential.

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)

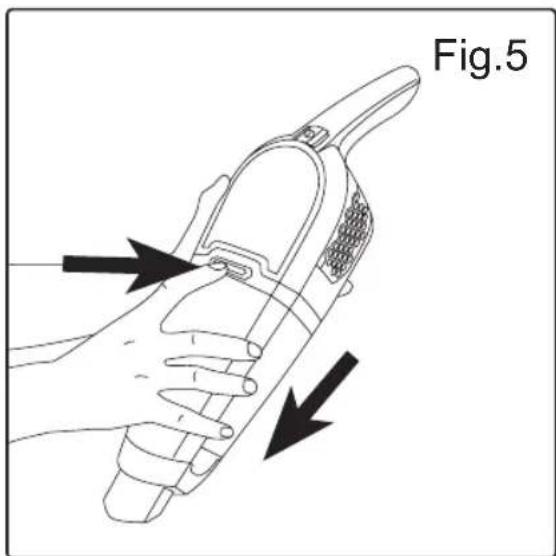

  Disconnect the dust box from the appliance. (Fig. 5)

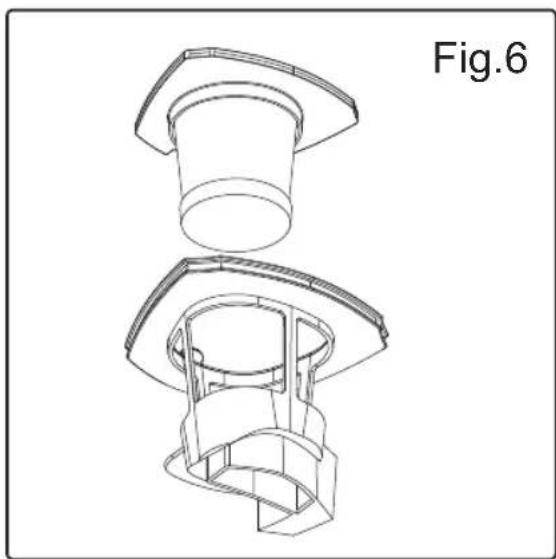

• Remove the cloth filter and its protector. (Fig. 6)

• Empty the contents into a suitable rubbish container.
• Clean the dust box filter.
• Attach the dust box to the appliance.
  To reassemble, follow the above instructions but in reverse.

CHANGING THE FILTERS:

• To remove filters:
• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Disconnect the dust box from the appliance. (Fig 5)
• Remove the cloth filter and its protector. (Fig. 6)
• To reassemble the filter, proceed with the above instructions, in reverse order.

CLEANING THE ROTARY BRUSH:

• To remove the brush:

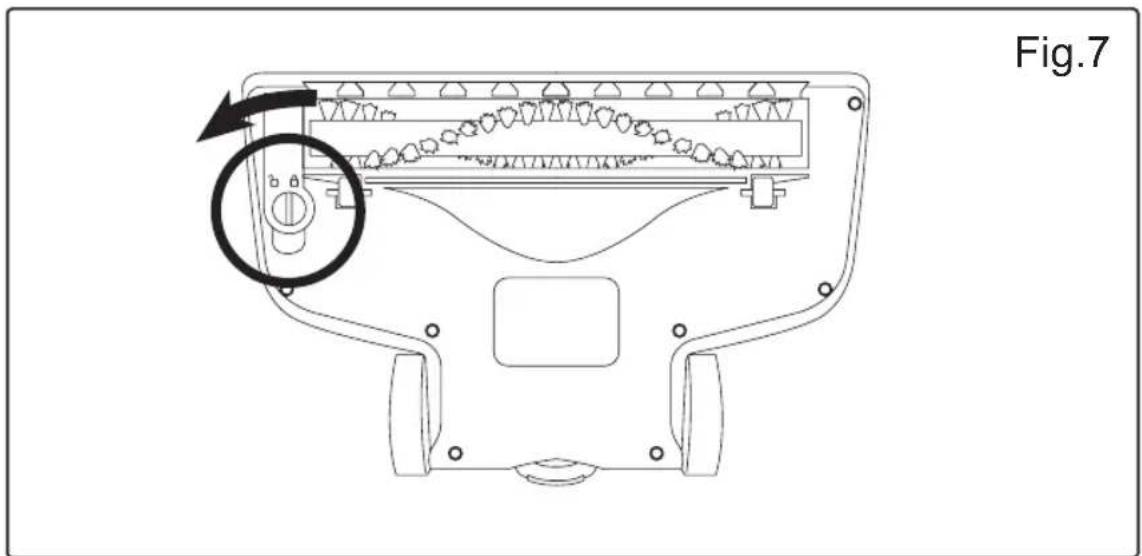

• Turn the rotating button on the bottom of the fitting to the left in order to release the brush. (Fig. 7)
• Remove the brush and clean.
• To reassemble, follow the above instructions but in reverse.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.

[NO TEXT]

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate

public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This symbol means that the product may include a battery or batteries; the user must remove them before disposing of the product. Remember that batteries

must be disposed of in duly authorised containers. Do not dispose of them in fire.

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

Caution: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

Caution: the appliance must be disconnected from the mains when removing the batteries.

TO REMOVE THE BATTERIES, ONCE THE LIFE OF THE APPLIANCE, PROCEED AS FOLLOWS:

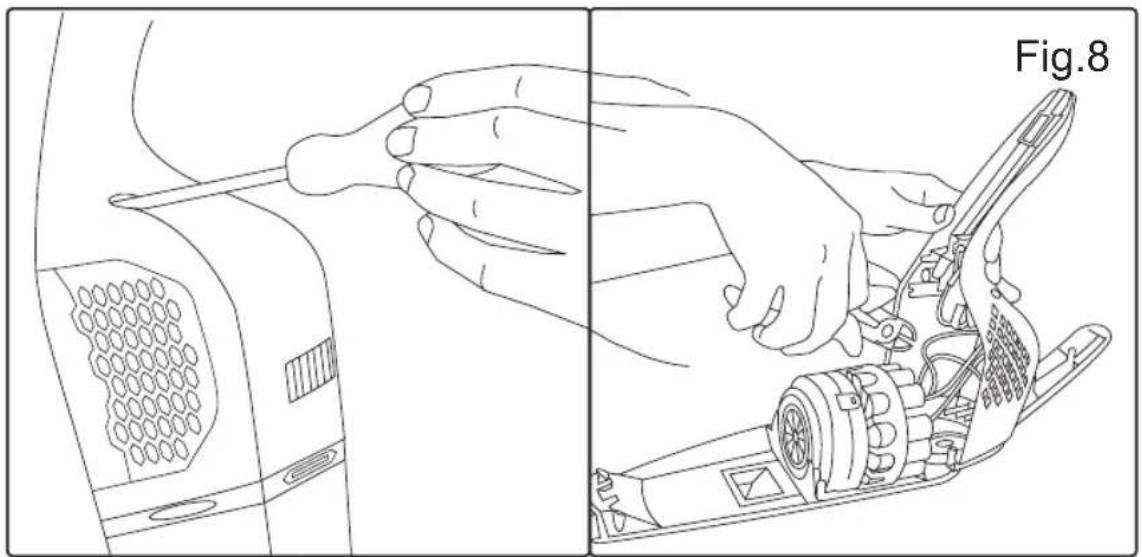

• Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws (Fig 8)
• Identify the battery wires and cut their. To prevent the risk of short-circuiting from possible residual power in the battery, after cutting each cable use insulation tape to protect the tip. (Fig 8)
• Safely remove the battery from its housing.

This appliance complies with Directive 2014/35/EC on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.
