IX101EU - Vacuum Cleaner SHARK - Free user manual and instructions

Product Type	Cordless vacuum cleaner with anti-hair wrap function
Brand	Shark
Model	IX101EU
Power Supply	Rechargeable lithium-ion battery 21.6 V (50 Wh)
Brush Power	50 W
Full Charge Time	Approximately 3 hours
Estimated Runtime	Approximately 40 minutes (depending on usage mode)
Approximate Weight	2.8 kg
Cleaning Modes	Standard (hard floors/small rugs) and Carpets, with Boost trigger
Filters	Pre-motor filter (foam and felt) and post-motor filter (washable with water)
Floor Nozzle	Motorized brush with anti-hair wrap technology
Flexology Tube	Yes, allows tube to bend for compact storage and reach under furniture
Dust Container Capacity	0.7 L (estimate)
Included Accessories	20 cm flat nozzle, 45 cm flexible nozzle, brush/flat nozzle combo, dusting brush, anti-allergen brush, upholstery nozzle, motorized pet tool (depending on model)
Manufacturer Warranty	5 years (2 years standard + 3 years upon registration)
Battery Warranty	2 years
Customer Support	0800 908874 (France, toll-free)
Use	Indoor only, household use

Frequently Asked Questions - IX101EU SHARK

How do I assemble my Shark IX101EU vacuum cleaner?

Insert the tube into the floor nozzle, then insert the handheld vacuum into the tube. Make sure each part clicks into place securely.

How do I charge the battery for the first time?

The battery is not fully charged. Before first use, charge it fully (about 3 hours). Use it until fully depleted to condition the battery.

How do I clean the vacuum filters?

Rinse the filters with clear water only (no soap). Let them dry completely in the air before reinstalling. Clean the pre-motor filter at least once a month and the post-motor filter at least once a year.

What should I do if the vacuum has no suction or weak suction?

Check if the filters are dirty and clean them. Empty the dust container if full. Check the floor nozzle and tube for any blockages. If the problem persists, contact customer service.

How do I unblock the floor nozzle if it is obstructed?

Turn off the vacuum and remove the tube. Open the three locks under the brush with a coin, remove the cover and clear any obstructions. Reassemble in reverse order.

The rotating brushes are not spinning, what should I do?

Turn off the vacuum immediately. Check for any obstruction and ensure the handheld vacuum is tilted back far enough. If the problem persists, contact customer service.

How do I use Boost mode?

Pull the trigger on the handheld vacuum to increase suction power. Release to return to normal mode.

The vacuum turns off by itself, why?

This can be due to a discharged battery, a blockage, or overheating. Empty the container, clean the filters, check for blockages, and let it cool for 45 minutes before restarting.

What is the warranty period?

The vacuum has a manufacturer's warranty of 5 years (2 years standard + 3 years upon registration). The battery is warranted for 2 years. Keep your proof of purchase.

How do I register my product for the extended warranty?

Register your product within 28 days of purchase at sharkclean.eu/register-guarantee. You will need the purchase date and serial number.

USER MANUAL IX101EU SHARK

Black and white photo of a Shark vacuum cleaner (no text or symbols visible on the device body)

TAK

Diagram of a door mechanism with an arrow indicating left motion (no text or symbols present)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating assembly steps

OPLADNING AF BATTERIET

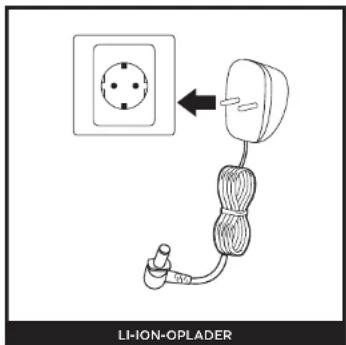

BRUG AF LI-ION-OPLADEREN

LH-ION-OPLADER

I HÄNDHOLDT STÖVSUGER

Technical line drawing of a OVER-GULV HÄNDHOLDT device with internal components and mounting bracket (no text or symbols on the diagram itself)

Technical line drawing of a medical device labeled 'OVER-GULV MED SKAFT' (no technical diagram or annotations)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Line drawing of a robotic arm positioned beside a small rectangular object (no text or symbols)

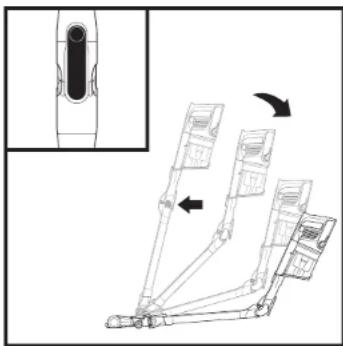

Justér skaftet til en lavere vinkel for let at rengøre under møbler.

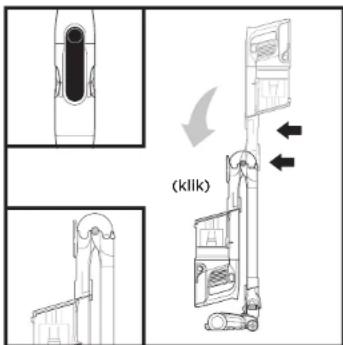

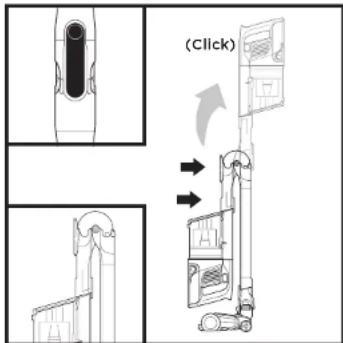

FLEXOLOGY OPBEVARING

(klik)

Technical line drawing of a handgun with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

VEDLIGEHOLDELSE AF ST∅VSUGEREN

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Kontrollér for blokeringer I skaftet:

Standard-skaft:

Technical line drawing of a mechanical device with no visible text or symbols

Kontrollér for blokeringer i gulvmundstykket:

Technical line drawing of a door mechanism with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and a close-up inset showing a circular component (no text or symbols)

AKKU AUFLADEN

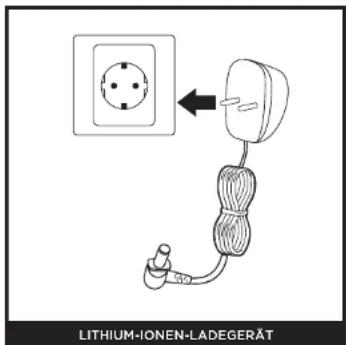

VERWENDUNG DES LITHIUM-IONEN-LADEGERÄTS

LITHIUM-IONEN-LADEGERÄT

IM HANDGERÄT

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating a feature (no text or symbols present)

Technical line drawing of a mechanical device with a side view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Line drawing of a robotic arm positioned beside a small table with legs, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with no visible text or symbols

for purchasing the Shark® Cordless Vacuum.

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.

TIP: You can locate the date code on one of the prongs of the power cord plug.

REGISTER YOUR PURCHASE

TO BENEFIT FROM YOUR PRODUCT'S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:

sharkclean.eu/register-guarantee

(0)800 862 0453

Scan QR code using mobile device

Please note, products purchased directly from Shark are automatically registered.

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION

Model Number: ____

Serial Number ____

Date Code:

Date of Purchase (Keep receipt): ____

Store of Purchase: ____

TECHNICAL SPECIFICATIONS

Voltage: 21.6V

Nozzle Watts: 50W

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Anti Hair Wrap Cordless Vacuum.

If you have any questions, please call the customer service line on [phone].

CONTENTS

Product Registration....38

Important Safety Instructions 40

Assembling your Shark® Vacuum Cleaner ....42

Using Your Lithium ION Power Pack Battery ....43

LED battery Power and Charging Indicators....43

Recycling your Lithium ION Power Pack Battery 43

Charging Your Lithium ION Power Pack Battery ....44

Settings 45

Cleaning Modes ....46

Maintaining your Vacuum Cleaner....47

Emptying the Dust Cup 47

Removing and Cleaning the Dust Cup 47

Cleaning the Filters....48

Maintaining the Floor Nozzle 49

Checking for blockages 50

Troubleshooting Guide ....51

Additional Accessories Available 52

Guarantee 53

Battery Guarantee ....54

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmental safe recycling.

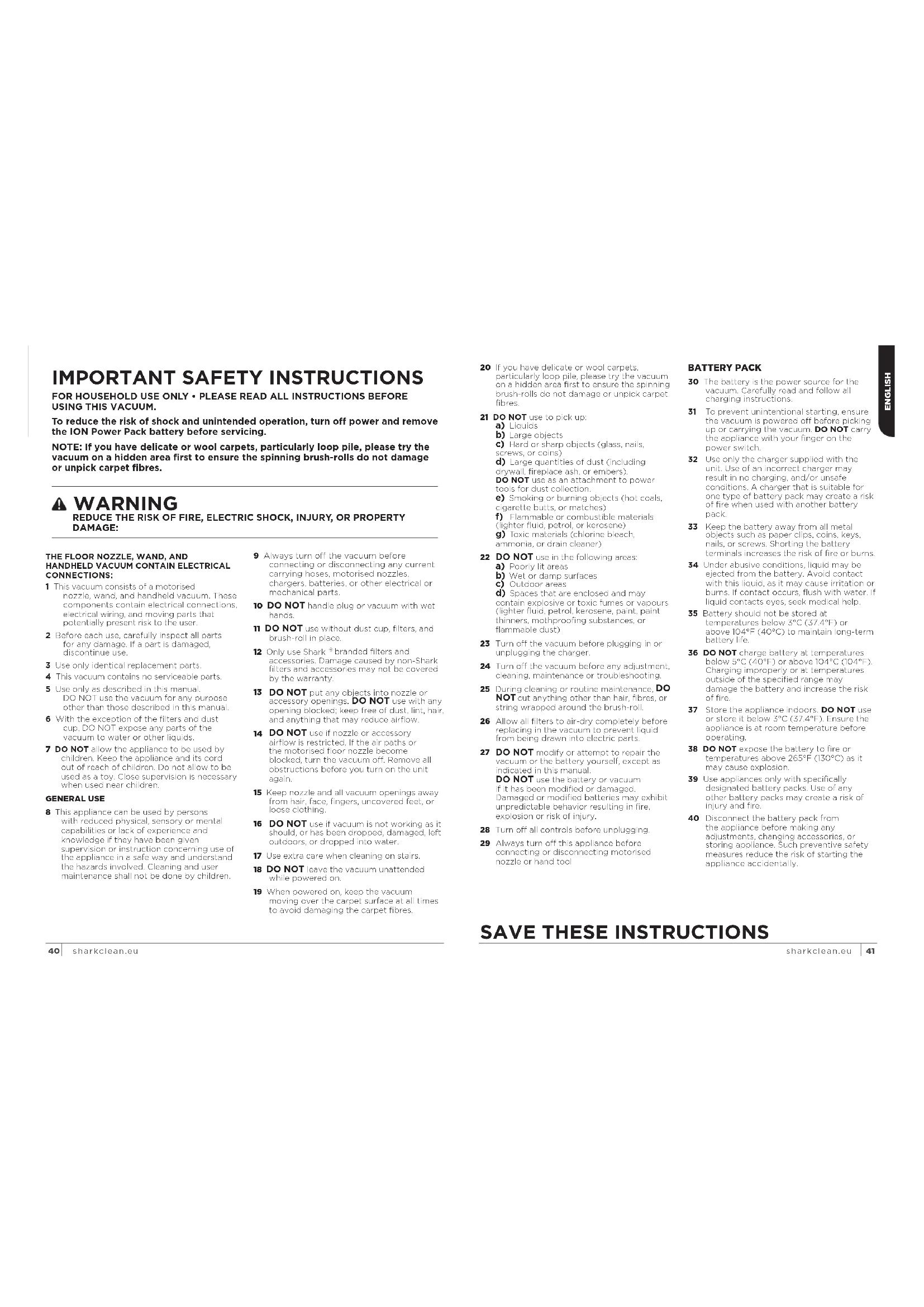

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

To reduce the risk of shock and unintended operation, turn off power and remove the ION Power Pack battery before servicing.

NOTE: If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

WARNING

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

THE FLOOR NOZZLE, WAND, AND HANDHELD VACUUM CONTAIN ELECTRICAL CONNECTIONS:

1 This vacuum consists of a motorised nozzle, wand, and handheld vacuum. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2 Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.
3 Use only identical replacement parts.
4 This vacuum contains no serviceable parts.
5 Use only as described in this manual. DO NOT use the vacuum for any purpose other than those described in this manual.
6 With the exception of the filters and dus cup, DO NOT expose any parts of the vacuum to water or other liquids.
7 DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow to be used as a toy. Close supervision is necessary when used near children.

GENERAL USE

8 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be done by children.

9 Always turn off the vacuum before connecting or disconnecting any current carrying hoses, motorised nozzles, chargers, batteries, or other electrical or mechanical parts.
10 DO NOT handle plug or vacuum with wet hands.
11 DO NOT use without dust cup, filters, and brush-roll in place.
12 Only use Shark ^® branded filters and accessories. Damage caused by non-Shark filters and accessories may not be covered by the warranty.
13 DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce airflow.
14 DO NOT use if nozzle or accessory airflow is restricted. If the air paths of the motorised floor nozzle become blocked, turn the vacuum off. Remove all obstructions before you turn on the unit again.
15 Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
16 DO NOT use if vacuum is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
17 Use extra care when cleaning on stairs.
18 DO NOT leave the vacuum unattended while powered on.
19 When powered on, keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibres.

20 If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

21 DO NOT use to pick up: a) Liquids

b) Large objects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (including drywall, fireplace ash, or embers).
DO NOT use as an attachment to power tools for dust collection
e) Smoking or burning objects (hot coals, cigarette butts, or matches)
f) Flammable or combustible materials (lighter fluid, petrol, or kerosene)
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

22 DO NOT use in the following areas: a) Poorly lit areas

b) Well as same out
b) wet or clamp s
c) Outdoor areas
d) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

23 Turn off the vacuum before plugging in or unplugging the charger.

24 Turn off the vacuum before any adjustment, cleaning, maintenance or troubleshooting.
25 During cleaning or routine maintenance, DO NOT cut anything other than hair, fibres, or string wrapped around the brush-roll.
26 Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
27 DO NOT modify or attempt to repair the vacuum or the battery yourself, except as indicated in this manual.
DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
28 Turn off all controls before unplugging.
29 Always turn off this appliance before connecting or disconnecting motorised nozzle or hand tool

BATTERY PACK

30 The battery's the power source for the vacuum. Carefully read and follow all charging instructions.
31 To prevent unintentional starting, ensure the vacuum is powered off before picking up or carrying the vacuum. DO NOT carry the appliance with your finger on the power switch.
32 Use only the charger supplied with the unit. Use of an incorrect charger may result in no charging, and/or unsafe conditions. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
33 Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals increases the risk of fire or burns.
34 Under abusive conditions, liquid may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
35 Battery should not be stored at temperatures below 3°C (37.4°F) or above 104°F (40°C) to maintain long-term battery life.
36 DO NOT charge battery at temperatures below 5°C (40°F) or above 104°C (104°F). Charging inopery or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
37 Store the appliance indoors. DO NOT use or store it below 3°C (37.4°F). Ensure the appliance is at room temperature before operating.
38 DO NOT expose the battery to fire or temperatures above 265°F (130°C) as it may cause explosion.
39 Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
40 Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

SAVE THESE INSTRUCTIONS

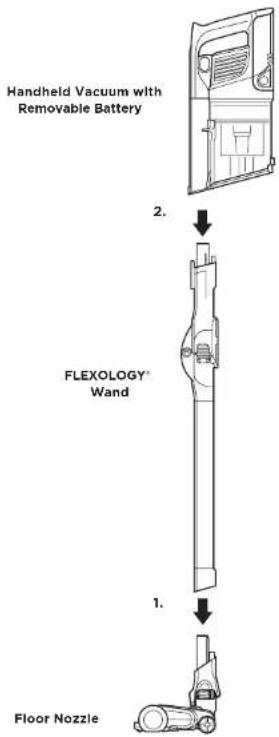

ASSEMBLY

1. Insert Wand into Floor Nozzle.
2. Insert Handheld Vacuum into wand.

For proper operation, ensure all components are completely connected and clicked into place.


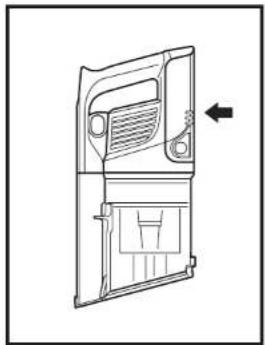

LHON BATTERY

The Lithium ION Power Pack battery does not come fully charged. Prior to first use, charge completely. During first use, run the battery down until it is completely out of power. This will condition the battery.

LED BATTERY POWER AND CHARGING INDICATORS

Technical line drawing of a door or vent with an arrow indicating direction (no text or symbols present)

Charging

NOTE: Full charge takes approximately 3 hours.

RECYCLING THE LI-ION BATTERY

This product uses a Lithium ION rechargeable and recyclable battery. When the battery no longer holds a charge, it should be removed from the vacuum and recycled. DO NOT incinerate or compost the battery.

When your Lithium ION Power Pack Battery needs to be replaced, dispose of it or recycle it in accordance with local regulations. In some areas, it is illegal to place spent Lithium ION batteries in the bin or in a municipal solid waste stream. Return spent power packs to an authorised recycling center or to retailer for recycling. Contact your local recycling center for information on where to drop off the spent power pack.

To charge, remove the handheld vacuum from the wand by pressing the Wand Release button and pulling up. Plug the charger into the charging port.

Technical diagram showing a device with internal components and a close-up view of the component's internal structure.

CHARGING THE BATTERY

USING THE LI-ION CHARGER

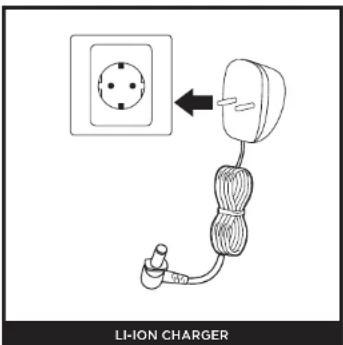

LI-ION CHARGER

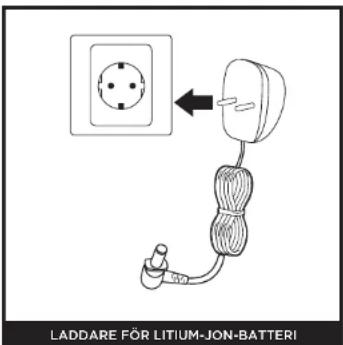

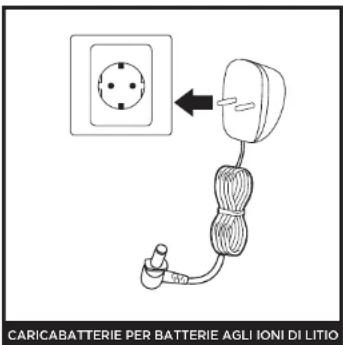

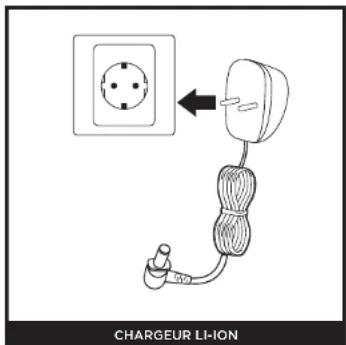

Plug the LI-Ion Charger into a wall outlet.

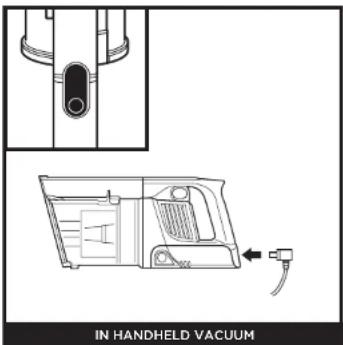

IN HANDHELD VACUUM

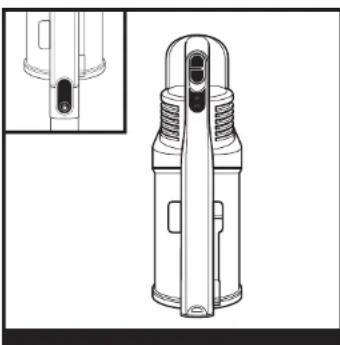

To charge simply plug the charger into the charging port while still attached to the wand.

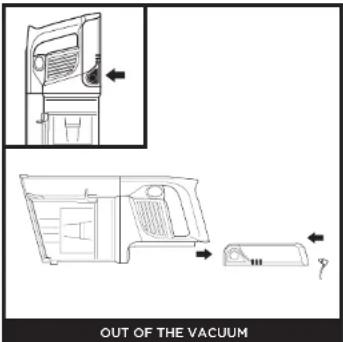

OUT OF THE VACUUM

The battery is removable, press and hold the Battery Release Button, then slide out the battery. Plug the charger into the charging port on the battery. To reinstall the battery, slide it into the slot in the back of the handheld vacuum.

Carpet
The brushroll spins faster to pick up debris below the surface of your carpets.
For an added boost in power, pull the Trigger on the handheld vacuum. Release it to return to ion power mode.

CLEANING MODES

UPRIGHT MODE

To clean floors, place foot on floor nozzle and tilt handheld vacuum back.
NOTE: Brushrolls will only engage when the handheld vacuum is tilted back.

Technical line drawing of a mechanical device with a side view showing internal components (no text or symbols)

Press the wand release button and lift the handheld vacuum off the wand. Attach an accessory for great cleaning on stairs, furniture, and other above-floor areas.

Technical line drawing of a vacuum cleaner with an inset close-up view (no text or symbols)

Stand the vacuum upright and press the nozzle release button located at the bottom of the wand, above the nozzle. Lift wand to detach. Great for cleaning skirting boards, ceiling fans, window sills, and other hard-to-access areas.
NOTE: All accessories are compatible with both the wand and the handheld vacuum.

USING THE FLEXOLOGY* WAND
FLEXOLOGY® REACH

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Press the unlock latch on the back of the wand, then adjust the angle.

Line drawing of a robotic arm positioned beside a small rectangular object (no text or symbols)

Adjust the wand to a lower angle to easily clean under furniture.

FLEXOLOGY® STORAGE

(Click)

To put the vacuum in storage mode, press the unlock latch while folding the handheld vacuum forward.

(C1Click)

To take the vacuum out of storage mode, press the unlock latch and lift up the handheld vacuum until the wand clicks and locks into place.

MAINTAINING YOUR VACUUM

CLEANING THE FILTERS

Regularly rinse and reinstall the filters to maintain your vacuum's suction power.

To clean filters, rinse them with water only. Allow all filters to air-dry completely before reinstalling to prevent liquid from being drawn into electric parts. Clean the pre-motor filters at least once a month and post-motor filter at least once a year. Tap off loose dirt between washes when needed. More frequent cleaning may sometimes be necessary with heavy use.

IMPORTANT: DO NOT use soap when cleaning the filters. Use water only. The vacuum will not have suction if the post-motor filter is not installed. Ensure that all filters are installed before using.

PRE-MOTOR FILTER

Press the dust cup release button and remove the dust cup. Pull the foam and felt filters out of the back of the dust cup.

POST-MOTOR FILTER

Remove the dust cup. Pull the post-motor filter out of the handheld vacuum.

Pre-Motor Foam and Felt Filter Kit Post-Motor Filter

MAINTAINING YOUR VACUUM

FLOOR NOZZLE

If any hair is wrapped around the brushroll, continue cleaning using the Carpet setting on a bare floor surface, a low-pilo carpet, or a small area rug. If some floors remain wrapped around the brushroll after continued use, carefully remove them, if you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages by following the steps under 'Checking for Blockages in the Floor Nozzle' on the bottom right of this page.

Technical line drawing of a mechanical component with no visible text or symbols

MAINTAINING YOUR VACUUM

CHECKING FOR BLOCKAGES

Technical line drawing of a mechanical component or housing (no text or symbols)

Checking for Blockages in the Handheld Vacuum:

1. Turn off vacuum.
2. Remove the handheld vacuum from the wand.
3. Check all intake openings on the dust cup and remove any debris or blockage.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Checking for Blockages in the Wand:

Standard Wand:

1. Turn off vacuum.
2. Remove the handheld vacuum and floor nozzle.
3. Check intake openings for blockages and debris.
4. Clear away debris and blockages.

Technical line drawing of a mechanical device with no visible text or symbols

Checking for Blockages in the Floor Nozzle:

1. Turn off vacuum.
2. Detach the wand.
3. Use the edge of a coin to open the three locks on the bottom of the floor nozzle.
4. Remove the cover and tilt back the neck of the floor nozzle.
5. Check the opening and remove any debris.
6. Replace the cover by sliding the inserts into the slots, then pressing down firmly on all sides before turning the locks clockwise to close, until they click securely into place.

TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of shock and unintended operation, turn off power and remove the Lithium ION Power Pack battery before servicing.

Vacuum is not picking up debris. No suction or light suction. Nozzle light is red.

(Refer to Checking for Blockages section for more information.)

• Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the
  filters before reinserting in the vacuum.

- Dust cup may be full; empty dust cup.

- Check floor nozzle for blockages; clear blockages if required.

- Remove any string, carpet fibres, or hair that may be wrapped around the brushroll.

- Check connection between handheld vacuum and wand for blockages; clear blockages if required. If the issue persists, please contact Customer Service.

- Check clog access in wand for any blockages and clear any debris.

Vacuum lifts area rugs.

• Make sure you are not engaging Boost mode as this can be too much suction for lighter rugs. Take care when vacuuming area rugs or rugs with delicately sewn edges.
• Turn off the unit to disengage the brushroll and restart with the power/selector switch.

Brushrolls do not spin.

• Immediately turn off the vacuum. Remove any blockages before turning the vacuum back on. Make sure the handheld vacuum is tilted back far enough for the brushrolls to engage. If the brushrolls still do not spin, please contact Customer Service.
• If the floor nozzle has headlights and they are not illuminated, there is a connection issue between the handheld vacuum, wand, and nozzle. Try disconnecting and reattaching the pieces. If the headlights still do not illuminate, please contact Customer Service.

Vacuum turns off on its own.

There are several possible reasons for the vacuum turning off on its own, including blockages, battery issues, and overheating. If vacuum turns off on its own, perform the following steps:

1. Turn on the vacuum and check the battery indicator lights located on the handheld vacuum. If recharging is needed, make sure power is turned off before connecting to the charger.
2. Empty dust cup and clean filters (see Emptying the Dust Cup and Cleaning the Filters section).
3. Check wand, accessories, and inlet openings and remove any blockages.
4. Allow unit and battery to cool for at least 45 minutes, until they return to room temperature.
5. Press power button to restart the vacuum.

NOTE: If vacuum still does not operate properly, contact Customer Service at [phone]

Battery Indicator Lights on handheld vacuum are flashing.

• Bottom LED light is flashing (Fig. A): Battery needs to be charged.
• Top and bottom LED lights are flashing (Fig. B): Battery temperature is not optimal, so charging is temporarily paused. Leave battery plugged in and charging will resume soon.
• If top 2 or bottom 2 LED lights are flashing (Fig. C, Fig. D), call Customer Service at [phone]

Hg, A Hg, C Hg, B Hg, D

ADDITIONAL ACCESSORIES AVAILABLE ON SHARKCLEAN.EU

A 8" Crevice Tool
③ 18" Flexi Crevice Tool
© Duster Crevice Tool
D Dusting Brush
E Multi-Angle Dusting Brush
Anti-Allergen Dust Brush
G Upholstery Tool
H Wide Upholstery Tool
① Pet Multi-Tool
Deep-Cleaning motorised Pet Tool
K Flexology® Under-Appliance Wand
Accessory Bag
M LI-Ion Charger
N Li-Ion Battery

A

B

C

D

E

F

G

H

|

J

K

M

NOTE: Not all accessories come with all units. For a list of the accessories included with this model, see the top inside flap of the box. To order additional accessories, visit sharkninja.co.uk

Shark NINJA

FIVE (5) YEAR LIMITED GUARANTEE

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product ('your 'statutory rights'). You can enforce these rights against your retailer. However, at Shark* we are so confident about the quality of our products that we give the original product owner an additional manufacturer's guarantee of up to five years (2 years standard plus 3 on registration). These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

The conditions below describe the prerequisites and scope of our guarantee. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

The Lithium ION power pack is not covered by the 5 year guarantee (see battery guarantee on next page)

Shark Guarantees

A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark ^® machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark ^® representative. You'll also find online support at www.sharkclean.eu

How do I register my extended Shark guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

• To register online, please visit www.Sharkclean.eu/register-guarantee. Products purchased directly from Shark ^® are automatically registered.

IMPORTANT

- Both the 2 years and the extended 3 years guarantee will only cover your product from the date of purchase.

- Please keep your receipt at all times. Should you need to use your extended guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark® vacuum and hear the latest news about new Shark® technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark® vacuum cleaner is guaranteed for a total of up to five years (2 years plus 3 years on registration).

What is covered by the free Shark guarantee?

Repair or replacement (at Shark's discretion) of your Shark® machine, including all parts and labour. A Shark® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark guarantee?

1. Blockages - for details of how to unblock your vacuum cleaner, please refer to the instructions.

2. Normal wear and tear such as brush bar, fuse, belt, batteries, hose etc.

3. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark ^1 instructions supplied with your machine.

4. Use of the vacuum cleaner for anything other than normal domestic household purposes.

5. Use of parts not assembled or installed in accordance with the operating instructions.

6. Use of parts and accessories which are not Shark® Genuine Components.

7. Faulty installation (except where installed by Shark).

8. Repairs or alterations carried out by parties other than Shark ^® or its agents.

9. The Lithium ION power pack battery. Please see next page for battery guarantee.

What happens when my guarantee runs out?

Shark ^® does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case please contact our Freephone customer service help line and ask about our out of guarantee programme, on 0900 862 0453.

Where can I buy genuine Shark ^* spares and accessories?

Shark ^ spares and accessories are developed by the same engineers who developed your Shark ^ vacuum. You'll find a full range of Shark ^ spares, replacement parts and accessories for all Shark ^ machines at www.sharkclean.eu. Please remember that damage caused by use of non-Shark ^ spares is not covered under your guarantee

Shark NINJA

TWO (2) YEAR LIMITED BATTERY GUARANTEE

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your 'statutory rights'). You can enforce these rights against your retailer. However, at Shark ^9 we are so confident about the quality of our products that we give you an additional manufacturer's guarantee of two years for the battery. These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

Every Shark ^® machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark ^® representative. You'll also find online support at www.Sharkclean.eu/uk.

IMPORTANT

- The manufacturer's guarantee covers your battery for 2 years starting on the date of delivery.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

How long are new Shark ^® batteries guaranteed for?

Our confidence in our design and quality control means that your new Shark ^™ vacuum cleaner battery is guaranteed for a total of two years.

What is covered by the free Shark® guarantee?

Repair or replacement of your Shark ^® machine (at Shark's discretion to decide whether to replace or repair) including all parts and labour. A Shark ^® guarantee is in addition to your legal rights as a consumer.

What Is not covered by the free Shark® guarantee?

1. Normal wear and tear of parts which require regular maintenance and/or replacement to ensure the proper functioning of your unit.
2. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark ^1 Instructions supplied with your machine.
3. Use of the vacuum cleaner for anything other than normal domestic household purposes.
4. Use of parts not assembled or installed in accordance with the instructions.
5. Use of parts and accessories which are not Shark* spares.
6. Faulty installation (except where installed by Shark®)

Where can I buy genuine Shark® spares and accessories?

Shark ^ spares and accessories are developed by the same engineers who developed your Shark ^ vacuum. You'll find a full range of Shark ^ spares, replacement parts and accessories for all Shark ^ machines at www.Sharkclean.eu. Please remember that using non-Shark ^ spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.

NOTES

GRACIAS

Technical line drawing of a door mechanism with an arrow indicating direction (no text or symbols)

Carga

Carga baja

Media carga

Casl cargada

Carga completa

Technical line drawing of a mechanical device with exploded view and side view (no text or symbols)

CARGA DE LA BATERÍA

Technical line drawing of a device component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a close-up inset (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a robotic arm positioned beside a small rectangular object (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

MANTENIMIENTO DE LA ASPIRADORA

BÚSQUEDA DE OBSTRUCCIONES

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a door with ventilation slots and a handle, showing no text or symbols

Technical line drawing of a washing machine with internal components and wiring (no text or symbols)

CHARGEMENT DE LA BATTERIE

UTILISATION DU CHARGEUR LI-ION

CHARGEUR LI-ION

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating a feature (no text or symbols present)

Technical line drawing of a mechanical device with a side view showing internal components (no text or symbols)

Technical line drawing of a hairpin with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a robotic arm positioned beside a small rectangular object (no text or symbols)

(Clipser)

(Clipser)

Technical line drawing of a mechanical component with no visible text or symbols

ENTRETIEN DE VOTRE ASPIRATEUR

CONTRÔLE DES OBSTRUCTIONS

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a door or vent with an arrow indicating direction (no text or symbols present)

Ricarica

Carica

Carica

Quasi

Carica
completa

Technical line drawing of a washing machine with internal components and a close-up view of the dial (no text or labels)

RICARICARE LA BATTERIA

UTILIZZO DEL CARICABATTERIE PER BATTERIE AGLI IONI DI LITIO

CARICABATTERIE PER BATTERIE AGLI IONI DI LITIO

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Moquette

Technical line drawing of a mechanical component with no visible text or symbols

MODALITÀ VERTICALE

Technical line drawing of a mechanical device with internal components and a close-up inset (no text or symbols)

Technical line drawing of a mechanical device with an inset detail view showing a circular component and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a robotic arm positioned beside a small rectangular object (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a door mechanism with an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating assembly or operation.

DE BATTERIJ OPLADEN

GEBRUIK DE LI-ION-LADER

LI-ION-LADER

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a TAPIJINSTELLING BOOST-STAN device (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with an arrow indicating a feature (no text or symbols present)

Technical line drawing of a handstopzuiger device with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Line drawing of a robotic arm positioned next to a rectangular object (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a door or vent with an arrow indicating direction (no text or symbols present)

Lading

Lavt batteri

Halvfullt batteri

Nesten fullt

Full batteri

MERK: En full opoleding tar ce 3 timer.

RESIRKULERING AV LI-ION-BATTERIET

Technical line drawing of a mechanical device with internal components and a close-up view of the component (no text or symbols)

LADING AV BATTERIET

BRUKER LI-ION-LADEREN

LI-ION-LADER

Plugg LI-lon-laderen inn i et vegguttak.

HÄNDHOLDT STÖVSUGER

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a carpet-innstilling boost motor (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with an arrow indicating a feature (no text or symbols present)

Technical line drawing of a mechanical device with a side view showing internal components (no text or symbols)

Technical line drawing of a bullet gun with internal components, shown from two orthographic angles (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Line drawing of a robotic arm positioned beside a rectangular object (no text or symbols)

VEDLIKEHOLDE ST∅VSUGEREN

RENGJ∅RE FILTRENE

ETTERMOTOR-FILTER

VEDLIKEHOLDE ST∅VSUGEREN

GULVMUNNSTYKKE

Technical line drawing of a mechanical component with no visible text or symbols

VEDLIKEHOLDE ST∅VSUGEREN

HVORDAN DU SER ETTER BLOKKERINGER

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a door mechanism with an arrow indicating direction (no text or symbols)

A carregar

Bateria fraca

Bateria a meio

Quaso cheia

Carrogamento total

Technical line drawing of a mechanical device with internal components and a close-up inset showing a circular component (no text or symbols)

CARREGAR A BATERIA

Diagram showing a wall socket connected to a cable with a plug, no text or symbols present

Technical line drawing of a mechanical device with an inset view showing a cylindrical component and a close-up of its internal structure (no text or symbols)

ASPIRADOR PORTÁTIL

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Technical line drawing of a device component with no visible text or symbols

Technical line drawing of a mechanical component labeled 'PAVIMENTO DURO' (no other text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Carpete

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with a side view showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset detail view (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a robotic arm positioned beside a small rectangular object (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with a vertical rod and base mount (no text or symbols)

Technical line drawing of a door or vent with an arrow indicating direction (no text or symbols present)

Technical line drawing of a washing machine with internal components and a close-up view of the dial (no text or labels)

AKUN LATAAMINEN

LITIUMIONILATURIN KÄYTTÖ

LITIUMIONILATURI

Technical line drawing of a refrigerator interior with a close-up view showing the front panel and side panel (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a device with an arrow indicating rotation (no text or symbols on the device itself)

Technical line drawing of a mechanical device with a side view showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset view showing a close-up detail (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Line drawing of a robotic arm positioned beside a small table with legs, no text or symbols present

MOOTTORIN ESISUODATIN

MOOTTORIN JÄLKISUODATIN

Technical line drawing of a mechanical component with no visible text or symbols

IMURIN HUOLTO

TUKOSTEN TARKASTUS

Technical line drawing of a mechanical component with internal parts (no text or symbols)

Rikkalmurin tukosten tarkastus:

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Varren tukosten tarkastus:

Vaklovarsl:

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a door or vent with an arrow indicating direction (no text or symbols present)

Technical diagram showing a mechanical device with internal components and a close-up view of the component's internal structure.

LADDA BATTERIET

ANVÄNDA LADDAREN FÖR LITIUM-JONBATTERIET

LADDARE FÖR LITIUM-JON-BATTERI

I HANDHÄLLEN DAMMSUGARE

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating a specific feature (no text or symbols present)

Technical line drawing of a mechanical device with a side view showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset view showing a close-up detail (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a cylindrical component (no text or symbols)

Line drawing of a robotic arm positioned beside a rectangular object (no text or symbols)

UTBLÁSFILTER

Technical line drawing of a mechanical component with no visible text or symbols

UNDERHÅLLA DAMMSUGAREN

KONTROLLERA EFTER BLOCKERINGAR

Technical line drawing of a mechanical component or housing (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Bld A Bld C Bld E Bld D

FLER TILLBEHÖR FINNS ATT BESTÄLLA PÅ SHARKCLEAN.EU

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This Owner's Guide is designed to help you get a complete understanding of your new Shark® vacuum.

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

© 2021 SharkNinja Operating LLC.

SHARK is a registered trademark of SharkNinja Operating LLC.

BITTE AUFMERKSAM DURCHLESEN UND ZUR INFORMATION AUFBEWAHREN.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

© 2021 SharkNinja Operating LLC.

Excellent Business Center 10
