KG370 - Cellphone LG - Free user manual and instructions
Find the device manual for free KG370 LG in PDF.
| Product Type | Mobile Phone |
| Brand | LG |
| Model | KG370 |
| Network | GSM 900 / DCS 1800 |
| Battery Type | Li-ion 750 mAh |
| Talk Time | Up to 3h30 |
| Standby Time | Up to 350 hours |
| FM Radio | Yes, with auto search and station saving |
| Main Functions | Messaging, phonebook, call log, calendar, alarm, voice memo, calculator, stopwatch, unit converter, games, world clock |
| LMT Function (Lost Phone) | Yes, automatic SMS sending in case of unauthorized use |
| Text Input | T9 mode, ABC, 123, and symbols |
| Care and Cleaning | Use a dry cloth. Do not use solvents. |
| Safety | Use only original batteries, chargers, and accessories. |
| Operating Temperature | -10°C to +55°C (charging max +45°C) |
Frequently Asked Questions - KG370 LG
User questions about KG370 LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cellphone in PDF format for free! Find your manual KG370 - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KG370 by LG.
USER MANUAL KG370 LG
This manual may differ from the phone depending on the phone software version and service provider used.
Installing the SIM Card and Charging the Battery 3
Installing the SIM Card
Illustrations
Phone Components 4
Turning Your Phone On and Off 5
Making a Call
Answering a Call
Making an international call
Menu and Options 6
Entering Text 7
T9 Mode
ABC Mode
123 Mode (Numbers Mode)
Symbol Mode
Lost Mobile Track (LMT) 8
FM Radio
9
How to set the tone 10
Ringtone
Ringtone/Keypad/Message/Call alert tones and volumes
Menu tree 11
Quick feature reference 12
Messaging
Contacts 13
Call history 14
Profiles
Tools 15
Settings 16
Guidelines for safe and efficient use 18
Technical Data 23
Installing the SIM Card and Charging the Battery
Installing the SIM Card
When you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available and many others.
Important!
The plug-in SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. Keep all SIM cards out of the reach of small children.
USIM is not supported in a phone.
Illustrations
1 2 Open battery cover

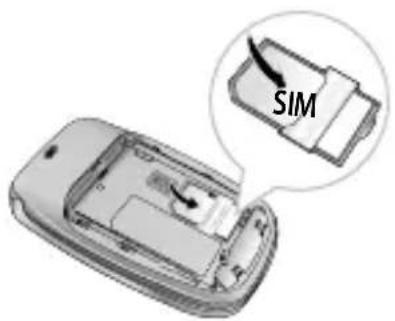

3 Insert your SIM
4 Close the battery cover
5 Charge your battery
1
4


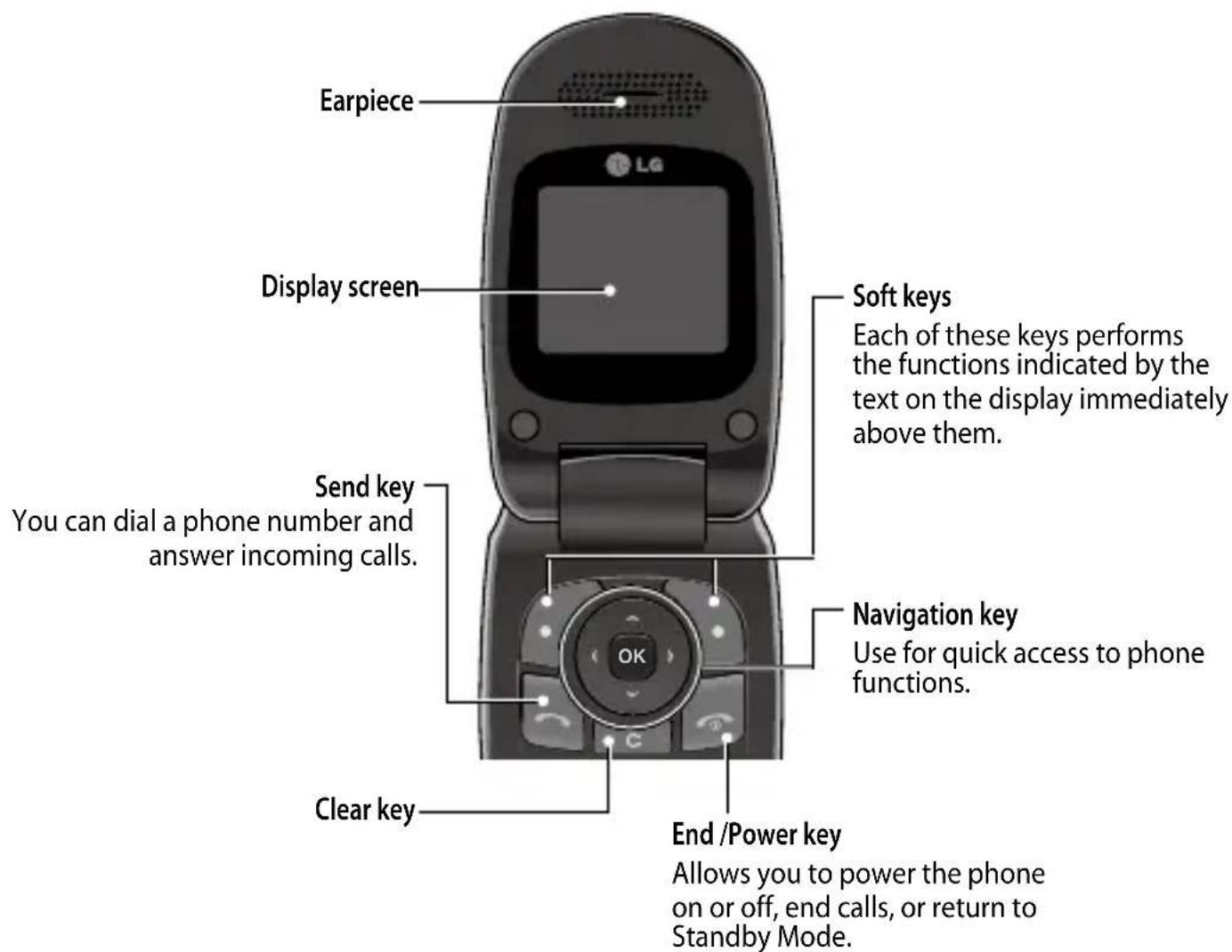

Phone Components
Turning Your Phone On and Off
- Hold down the ▶ [END] key until the phone switches on.
- To switch the phone off, hold down the [END] key until the power-off image displays.
Making a Call
- Enter a phone number including the area code.
- Press the 📄 [SEND] key to call the number.
- When finished, press the [END] key.
Answering a Call
- When the phone rings and the phone icon flashes on the screen, press the [SEND] key or the left soft key to answer.
- If the Any Key menu option (Menu 6.5.2.2), has been set, any key press will answer a call except for the [END]key or the right soft key.
- End the call by pressing the [END] key.
Note: After the call ends, the phone will go back to standby mode.
Making an international call
- Press and hold the 01 key for the international prefix. The '+' character automatically selects the international access code.
- Enter the country code, area code, and the phone number.
- Press [send] key to call the number.

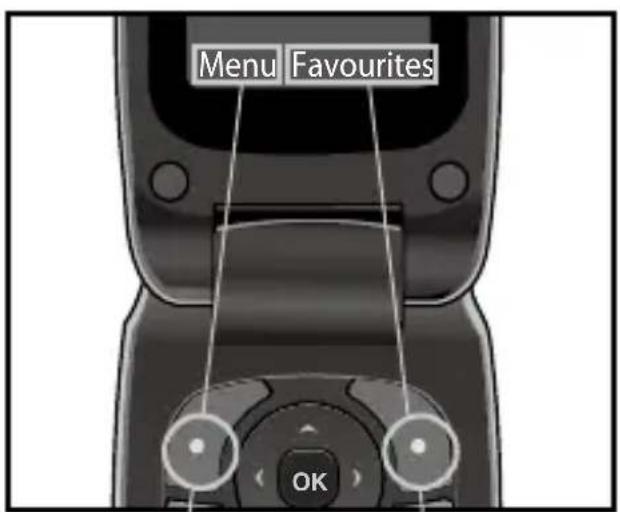

Menu and Options
Your phone offers a set of functions that allow you to customize it. These functions are arranged in menus and sub-menus, accessed via the left and right soft keys. The label on the bottom of the display screen immediately above the soft keys indicates their current function.
Press the left soft key to access the available Menu.
Press the right soft key to access the available Favourites.
Entering Text
You can enter alphanumeric characters by using the phone's keypad. To change modes, press the 🔒 key.
T9 Mode
This mode allows you to enter words with only one keystroke per letter. Each key on the keypad has more than one letter. The T9 mode automatically compares your keystrokes with an internal linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the traditional ABC mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with the required letter once, twice, three or four times until the letter is displayed.
123 Mode (Numbers Mode)
Type numbers using one keystroke per number.
Symbol Mode
This mode allows you to enter special characters by pressing (*) key.
Lost Mobile Track (LMT)
- The LMT feature of this phone provides you with the ability to have a tracking system in place for your mobile in case you lose or misplace it.
-
The moment an un-authorized user uses your phone, a SMS is triggered from your phone and the message is send to your pre-defined number.
-
Setting the LMT ON [Menu 5.*]
A List of tools are displayed.
Select Lost Mobile track
Enter Default LMT code.
Select Set LMT
Select ON, press OK
Note
In case you want to use your phone with some other SIM card, make sure to set the LMT feature OFF.
It is recommended to enter the Number for LMT with the country code (e.g. for INDIA +91 followed by mobile number)
Default LMT code is "0000".
FM Radio (This function may be different in different regions.)
- After presetting radio channels, you can listen to another channel by pressing the corresponding number key.
- You can access the following option menus by pressing the left soft key [Options].
Edit channel: You can adjust frequency and channel at a time using the Left/Right navigation keys and number keys.
Auto scan: If you turn "Auto Scan Now?" on, this automatically sets the radio channel. When "Save this Station?" message pops up and you select Yes, the selected frequency will be stored.
Reset channels: You can delete all channels you saved.
Listen via speaker: Select this to listen to the radio through the built-in speaker. To turn off the speaker, select "Listen via wired headset" in the [Options].
How to set the tone
Ringtone
- Press the left soft key [Menu] and select [Settings - Profiles] using the up/down navigation keys.
- Select [Personalise] and choose Ringtone menu.
- Press the left soft key [OK] and then you can set the desired ringtone.
Tip
If you want to change your ringer to vibrate, select Vibrate mode or press and hold the (*) key on idle screen.
Ringtone/Keypad/Message/Call alert tones and volumes
You can select Ringtone/Keypad/Message/Call alert tones and volumes.
You can change the sound that will occur when a key is pressed, or volume level.
[menu-setting-profile-
Menu tree
1. Messaging
1.1 New message
1.2 Inbox
1.3 Drafts
1.4 Outbox
1.5 Sent
1.6 Listen voice mail
1.7 Info messages
1.8 Template
1.9 Settings
2. Contacts
2.1 Search
2.2 New contact
2.3 Speed dials
2.4 Copy all
2.5 Delete all
2.6 Memory status
2.7 Information
3. Call history
3.1 All calls
3.2 Missed calls
3.3 Dialled calls
3.4 Received calls
3.5 Call duration
4. Profiles (SIM Service)
5. Tools
5.1 FM radio
5.2 Game
5.3 Calendar
5.4 Alarm
5.5 Voice memo
5.6 Memo
5.7 Calculator
5.8 Stopwatch
5.9 Unit converter
5.0 World clock
5.* Lost mobile track
6. Settings
6.1 Date & Time
6.2 Languages
6.3 Display
6.4 Call
6.5 Security
6.6 Power save
6.7 Network selection
6.8 Reset settings
6.9 Memory status
*** If SIM Service is available in SIM card, then "SIM service" will be exist in [Menu-4] and the "Profiles" option will move to [Menu-6.1] item, other items will be arranged in ascending order.
Quick feature reference
This section provides brief explanations of features on your phone.
Messaging Menu 1
This menu includes functions related to SMS (Short Message Services).
New message This menu includes functions related to SMS (Short Message Services).
Inbox You will be alerted when you have received a message.
Drafts This menu shows the message saved in temporary.
Outbox This menu allows to view the message which is about to be sent or has failed to be sent.
Sent This menu allows you to view the messages which have already been sent, including time and content.
Listen voice mail This menu provides you with a quick way of accessing your voice mailbox (if provided by your network).
Info messages Info service messages are text messages delivered by the network to your handset.
Template There are pre-defined messages in the list. You can view and edit the template messages or create new messages.
Settings This menu allows you to set features of your network service provider.
Contacts Menu 2
Search You can Search for contacts in Phonebook.
Note: Instant searching is available by inputting the initial letter of the name you want to search.
New contact You can add phonebook entries by using this menu.
Speed dials
Assign contacts to any of keys from 2 to 1.
Copy all You can copy all entries from SIM card memory to Phone memory and also from Phone memory to SIM card memory.
Delete all You can delete all entries from SIM card memory or Phone memory.
Memory status You can check free space and memory usage.
Information
Service dial numbers: Access the list of service numbers assigned by service provider safely.
Own numbers: You can save and check your own numbers in SIM card.
Business card: This option allows you to create your own business card featuring your name, mobile phone number and so on.
Call history Menu 3
You can check the record of missed, received, and dialled calls only if the network supports the Calling Line Identification (CLI) within the service area. The number and name (if available) are displayed together with the date and time at which the call was made. You can also view call durations.
All calls Displays all the lists of three types (Received/Dialled/Missed calls) by time.
Received calls This option lets you view the last 10 incoming calls.
Dialled calls This option lets you view the last 10 outgoing calls (called or attempted).
Missed calls This option lets you view the last 10 unanswered calls.
Call duration Allows you to view the duration of your incoming and outgoing calls.
Profiles Menu 4
You can adjust and customize the phone tones.
*** If SIM Service is available in the SIM card, this menu will depends on SIM and the network services.
Tools Menu 5
FM radio You can search radio stations and enjoy listening to the radio.
Game In this menu, you can manage the Game installed in your phone.
Calendar You can check/track of daily or monthly schedules.
Alarm Allows you to set one of three alarms. The current time is displayed at the top of the screen when you select an alarm to set. At the alarm time, the Alarm icon will be displayed on the LCD screen and the alarm will sound.
Voice memo You can record voice memo.
Memo You can create a list of tasks.
Calculator This contains the standard functions such as +, -, x, ÷: Addition, Subtraction, Multiplication and Division. Stopwatch Stopwatch is available just as common stopwatches we see and use in daily life.
Unit Converter This converts any measurement into a unit you want.
World clock Allows you to determine the current time in another time zone or country.
Lost mobile track The LMT feature of this phone provides you with the ability to have a tracking system in place for your mobile in case you lose or misplace it.
Settings Menu 6
You can set the following menus for your convenience and preferences.
Profiles
You can adjust and customize the phone tones.
Remark: This menu will be available depends on SIM card and the network services supported.
Date & Time You can set functions relating to the date and time.
Languages
You can change the language for the display texts in your phone. This change will also affect the Language Input mode.
Display You can change settings for the phone display.
Call You can set the menu relevant to a call.
Security This menu allows you to set the phone safely.
PIN code request : You can set the phone to ask for the PIN code of your SIM card when the phone is switched on.
Phone lock: You can use a security code to avoid unauthorized use of the phone.
Call barring: The Call barring service prevents your phone from making or receiving a certain category of calls. This function requires the call barring password.
Settings Menu 6 (Continued)
Security
Fixed dial number (SIM dependent): You can restrict your outgoing calls to selected phone numbers. The numbers are protected by your PIN2 code. The numbers you wish to allow access to once this service has been enabled, must be added to the contacts after enabling Fixed dial number.
Change codes : PIN is an abbreviation of Personal Identification Number to prevent use by unauthorized persons. You can change the access codes: Security code, PIN code, PIN2 code.
Power save If you set this to On, you can save the power.
Network selection
You can select a network that will be registered either automatically or manually. Usually, the network selection is set to Automatic.
Reset settings You can initialize all setting values as defaults. You need a Security code to activate this function.
Memory status You can check free space and memory usage of each repository.
□ Guidelines for safe and efficient use
Please read these simple guidelines. Ignoring them may be dangerous or illegal. Further detailed information is given in this manual.
Warning
For your safety, use ONLY specified ORIGINAL batteries and chargers.
Switch off the phone in any area where required by special regulations, e.g. in a hospital where it may affect medical equipment.
Batteries should be disposed off in accordance with relevant legislation.
Product care and maintenance
WARNING! Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.
Do not disassemble this unit. Take it to a qualified service technician when repair work is required.
The unit should be kept away from heat sources such as radiators or cookers.
Use a dry cloth to clean the exterior of the unit. (Do not use any solvents.)
Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.
☐ Guidelines for safe and efficient use (Continued)
Electronic devices
All mobile phones may get interference, which could affect performance.
Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over a pacemaker, i.e. in your breast pocket.
Road safety
Check the laws and regulations on the use of mobile phones in the areas when you drive.
Do not use a hand-held phone while driving.
Use a hands-free kit, if available.
Pull off the road and park before making or answering a call if driving conditions so require.
Blasting area
Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.
☐ Guidelines for safe and efficient use (Continued)
Potentially explosive atmospheres
Do not use the phone at a refueling point. Do not use near fuel or chemicals.
In aircraft
Wireless devices can cause interference in aircraft.
Turn off your mobile phone before boarding any aircraft.
Children
Keep the phone in a safe place out of children's reach. It includes small parts which if detached may cause a choking hazard.
Emergency calls
Emergency calls may not be available under all cellular networks. Therefore, you should never depend solely on the phone for emergency calls. Check with your local service provider.
☐ Guidelines for safe and efficient use (Continued)
Battery information and care
You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.
Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.
Do not disassemble or short-circuit the battery pack.
Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times before it needs to be replaced.
Do not expose the battery charger to direct sunlight or use it in high humidity, such as the bathroom.
Risk of explosion if battery is replaced by an incorrect type.
Dispose off used batteries according to the manufacturer's instructions.
☐ Guidelines for safe and efficient use (Continued)
Exposure to radio frequency energy
Radio wave exposure and Specific Absorption Rate (SAR) information
This mobile phone model KG370 has been designed to comply with applicable safety requirement for exposure to radio waves. This requirement is based on scientific guidelines that include safety margins designed to ensure safety of all persons, regardless of age and health.
The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands.
While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.
The SAR limit recommended by the international Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2W/kg averaged over ten (10) gram of tissue.
The highest SAR value for this model phone tested by DASY4 for use at the ear is 1.16 W/kg (10g) and when worn on the body is 0.363 W/kg (10g).
SAR data information for residents in countries/regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE) is 1.6 W/kg averaged over one (1) gram of tissue.
□ Technical Data
General
Product name : KG370
System : GSM 900 / DCS 1800
Ambient Temperatures
Max.: +55°C, Charging (+45°C)
Min: -10°C
Battery Specification
Type: 750mAh, Li-ion
Talk Time*: Upto 3 hrs. 30 min (PL:7)
Standby Time*: Upto 350 hrs. (PG:9)
Note!
Variation in operation time may occur depending on SIM card, network condition, usage style, usage setting and environment.
Declaration of Conformity
LG Electronics
Suppliers Details
Name
LG Electronics Inc
Address
: LG Tth Tower 20.Yeoulle-dong.Yeongdeungpo-gu Seoul,Korea 150-721
Product Details
Product Name
GSM 900 / DCS 1800 Dual Band Terminal Equipment
Model Name
102376/102375
Trade Name
L9
CE 0168
Applicable Standards Data
R&TTD Directive 1998/5/20
■N 301 489-01 v1.8.1 / ■N 301 489-07 v1.3.1
EN 606501:2001
503607N 50361:2001
EN 301 511 V9.0.2
Supplementary Information
The conformity to above standards is verified by BABT.
Declaration
I hereby declare under our sole responsibility that the product mentioned above to which the declaration relates complex with the above mentioned standards and Objectives
LG Electronics Logistics and Services B.V. Volkswagen 15, 1327 AG, Amare, The Netherlands Tel: +61-38-547-8940, e-mail: seokm@ge.com
Nama
Bauand Duze
Jin Seag, Kim / Director
- Aug 2017
Signature of representatives
IKG370 | Manual do Utilizador


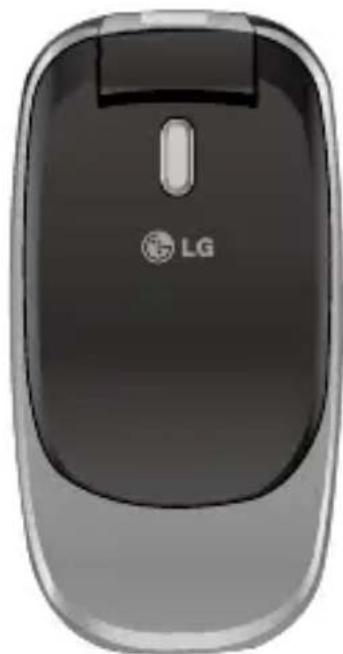

Front view of a black LG flip computer mouse (no visible text or symbols on body)Índice
4
LG Electronics
Supplars Delphi
Name
La Electronics Inc
Address
: LG Twh Tower 20, YeouBio-dong, Yeongdeungpo-gu Seoul Korea 160-721
Product Details
Product Name
GSM 900/DCS 1800 Dual Band Terminal Equipment
Mode|Name
K0370/K0375
Trade Name
LG
CE 0168
Applicable Standards Data
RATTLOfacie 199957EC
N 301 489-01 v1.8.1 / N 301 489-07 v1.3.1
EN 00950:2001
N50360N50381:2001
EN301511V902
Supplementary Information
The conformity to above standards is verified by BABT.
Declaration
I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complex with the above mentioned standards and Directities
LG Electronics Logistics and Services B.V.
Valveszoom 15, 1327 AG Ajmors, The Netherlands
Tel: +31-36-547-8940. e-mail: www.jm@ps.com
Name
Issued Date
Jin Seog, Km/Director
23.Jul 2007
Signature of representative
4
R&TE Directive 1999/5/EC
EN 301 489-01 v1.6.1 / EN 301 489-07 v1.3.1
N 60850-1:2001
EN 50360/EN 50381:2001
EN 301 511 V9.0.2
