UM1000 - Freezer BRANDT - Free user manual and instructions

Brand	BRANDT
Model	UM1000
Product type	Freezer
Dimensions (H × W × D)	845 × 545 × 570 mm
Power supply	220-230 V with earth connection
Freezing capacity	4 kg / 24 h maximum
Defrosting	Manual, at least once a year or if ice layer > 4 mm
Main functions	Storage of frozen food, freezing of fresh food, making ice cubes
Cleaning and maintenance	Warm water with bicarbonate; do not use abrasive detergent or steam
Door opening direction	Reversible (right or left)
Normal sounds	Gas bubbling, compressor hum, cracking due to expansion
Minimum installation distance	10 cm above, 2.5 cm on sides
Stabilization period before use	2 hours after connection
Spare parts	Use only certified original parts
After-sales service	Contact an approved center; do not repair yourself

Frequently Asked Questions - UM1000 BRANDT

How to correctly install my BRANDT UM1000 freezer?

Place the appliance in a dry, well-ventilated room, away from heat sources. Leave at least 10 cm of space above and 2.5 cm on the sides. Ensure ventilation openings are not obstructed. Plug into a 220-230 V socket with earth and wait 2 hours before starting.

How to defrost the UM1000 freezer?

Unplug the appliance and remove the ice with a plastic scraper. To speed up, place containers of hot water inside and close the door. Never use metal tools or electrical devices. After defrosting, clean the interior.

What to do if the freezer is not cooling enough?

Check the thermostat setting. Make sure the door closes properly and is not left open too long. Also check that the appliance is well ventilated and away from heat sources.

Is it normal for the motor to run continuously?

Continuous operation may be due to poor ventilation, high ambient temperature, too much fresh food introduced, or a poorly closed door. Check these points. If the problem persists, contact technical service.

Can beverages in bottles or cans be frozen?

No, never place bottles or cans in the freezer: they could burst. Carbonated drinks (lemonade, beer, champagne) may even explode. Only use suitable containers.

How to reverse the door opening direction?

Unplug the appliance. Remove the top cover, unscrew the top hinge and take out the door. Move the bottom pin to the other side, reinstall the door, then fix the top hinge on the opposite side. Reinstall the cover.

What are the normal noises of the freezer?

The following noises are normal: bubbling (gas circulation), humming (compressor, especially at start-up), and cracking (expansion of materials). No concern if these sounds are moderate.

How to clean the interior of the freezer?

First unplug the appliance. Clean with a sponge soaked in warm water with baking soda. Rinse and dry. Never use abrasive detergents, solvents, or steam cleaners.

Where to find spare parts for the UM1000?

When servicing, always ask for certified original spare parts. Contact an authorized Brandt after-sales service to order parts.

What to do in case of breakdown or persistent malfunction?

Check the simple points (connection, thermostat, door closure). If the problem persists, do not attempt to repair yourself. Call the nearest Brandt Technical Assistance Service, mentioning the full reference of the appliance (model, type, serial number).

USER MANUAL UM1000 BRANDT

You have just purchased a BRANDT freezer, for which we thank you.

Our research teams have designed a new generation of appliances to make your life easier.

With its dedicated areas for optimum, flexible storage, clean and fluid lines allied with appreciable performance, the new Brandt fridges have everything you need to conserve your food and provide the answers to your everyday consumption needs.

The Brandt range of products also includes a wide choice of dishwashers, washing machines and clothes driers, fridges, cookers and ovens, hot-plates and extractor hoods, that you can combine with your new BRANDT freezer.

At the innovative cutting edge, BRANDT thus helps to improve the quality of life on a daily basis, by offering you simple but high-performance products that are respectful of the environment, good-looking and reliable.

BRANDT

INDEX

Page

Safety standards / Recommendations 4
Installation 5
Reversing the door opening direction 6
General description 6
Using the freezer 7
De-icing 7
Cleaning and maintenance 7
Operating problems / Specifications 8

This appliance is designed ONLY for domestic conservation of foodstuffs.

Installation must be as instructed in this guide. Incorrect installation could damage the appliance.

For any operating problems, always and only contact authorised After Sales Service centres, or qualified personnel.

Before carrying out any maintenance, disconnect the appliance, but not by pulling on the power supply cable.

If this freezer replaces another, which had a latching, spring-mounted, locking or other closure system, do not forget to destroy the closure device or better yet remove the door of your old freezer, so that no-one could become trapped inside (children playing, animals, etc.).

RECOMMENDATIONS

After unpacking the appliance, make sure that it is undamaged. If it is, the reseller should be notified of any damage within 24 hours of delivery. The packaging materials used are entirely recyclable (cardboard, PE bubble wrap, EPS, etc.). Keep these materials out of the reach of children.

For optimum operation of the appliance, install it away from sources of heat and make sure that air can circulate freely around it (see appliance installation).

The appliance's cooling circuit contains a coolant called isobutane, a relatively clean natural gas which is nonetheless flammable. During transport and installation of the appliance, make sure that none of the components of the cooling circuit is damaged. In the event of damage, keep away from flames and ignition sources, and ventilate the room well.

INSTALLATION

Before installing, carefully read the Recommendations and Safety standards in order to avoid a certain number of problems.

If you want to move your freezer, hold it by the sides or by the base. You should never lift it by its top.

Install the appliance in a dry, well-ventilated room, away from all sources of heat. Leave a minimum gap of 10cm between the top of the freezer and any wall-mounted kitchen units. If this is impossible, leave 5cm above the appliance and 2.5cm on each side of the appliance.

Make sure that the air vents on your freezer are not covered or blocked.

The climate class of your freezer is marked on its ID plate. It determines the range of ambient temperatures for which the cooling unit is designed, and within which correct operation of the appliance is guaranteed.

Class

N

ST

T

Ambient temperatures

16^ to 32^

18^ to 38^

18^ to 43^

Electrical connection

• Connector characteristics: 220-230V with earth.
• Avoid using adapters or extension leads.
• Avoid the cable coming into contact with the compressor.
• Avoid trapping the cable under the appliance.

The appliance's electrical installation is earthed. For your safety, connect the appliance to a power outlet with effective earthing (in conformity with current electrical installation safety standards).

The manufacture declines all liability for damage caused by the absence of an earth connection.

CAUTION - BEFORE CONNECTING

1. Clean the inside of the freezer with warm water containing bicarbonate of soda. Rinse and dry thoroughly.
2. Wait for 2 hours before switching on, to ensure that the lubricants in the motor compressor have stabilised.

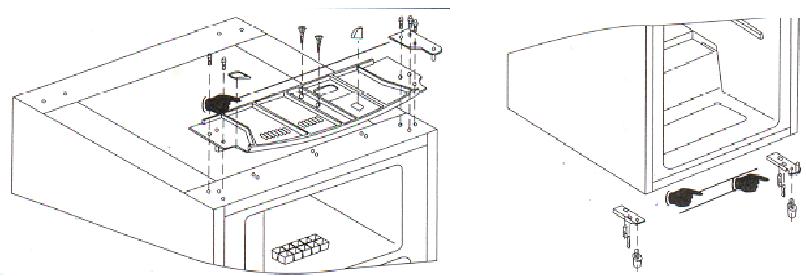

REVERSING THE DOOR OPENING DIRECTION

You can reverse the direction of opening of the door (left instead of right):

The appliance must always be disconnected when you change the door opening direction.

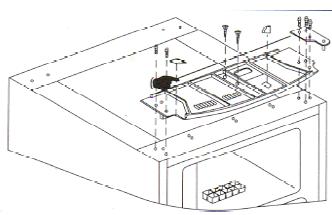

1. Remove the top of the fridge: remove the 2 screw covers on the top, remove the 2 screws and slide the top forwards.
2. Slightly tilt the appliance towards the rear and wedge it in this position.
3. Unscrew the screws from the door upper hinge and remove the hinge support and pin.

4. Slightly open the door and extract it from its lower hinge.

5. Unscrew the lower pin and screw it in on the opposite side. Insert the door in the pin and close it.

6. Firmly screw the upper hinge to the opposite side and the door pin. Fit the fridge top (carry out point 1 in reverse).

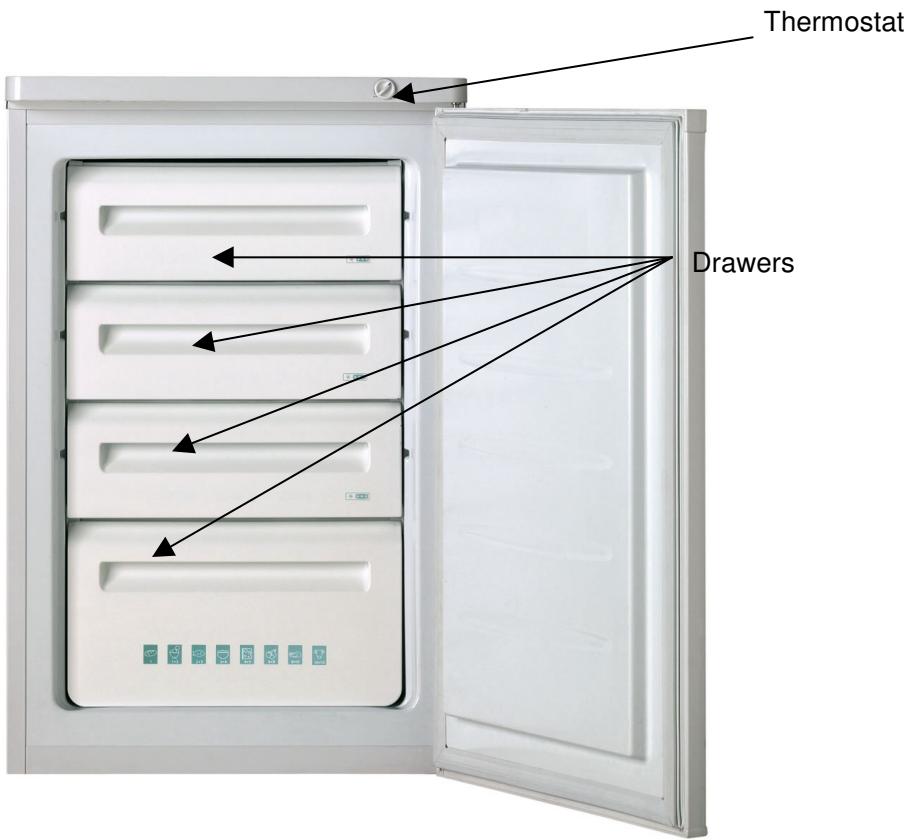

GENERAL DESCRIPTION

Note: your freezer may differ slightly from this picture.

USING THE FREEZER

This appliance is designed to conserve frozen foods, to freeze fresh food and to make ice-cubes.

Do not freeze a large quantity of food at any one time (maximum of 4kg / 24h ), as the faster an item is frozen, the more it will keep its qualities. Similarly, make sure that you wrap your foodstuffs before freezing, so that they retain their full flavour and do not spoil the other products.

The conservation time for frozen foods depends on the type of food. Refer to the instructions on the packaging.

Never place hot foods in your freezer. Never place bottles or drinks cans in it either, as they can burst when their contents freeze.

Highly carbonated drinks can even explode! NEVER keep lemonade, fruit juice, beer, wine, champagne, etc... in the freezer compartment.

DE-ICING

The freezer de-icing system is manual. You can from time to time remove the layer of ice that forms, using a scraper or other plastic instrument.

NEVER USE A METAL INSTRUMENT OR ELECTRICAL DEVICE TO DE-ICE THE FREEZER.

The freezer must always be de-iced when the layer of frost reaches a thickness of about 4 mm. In any case, this compartment should be de-iced at least once a year:

1. Switch off and disconnect the freezer.
2. Remove the ice with a plastic scraper. De-icing can be made quicker by placing bowls of hot water in the freezer and closing the door.
3. Once de-icing is completed, you can then clean your appliance.

CLEANING AND MAINTENANCE

Disconnect the freezer before cleaning it.

Clean the inside with water plus bicarbonate of soda, using a sponge or cloth. This will prevent the build-up of unpleasant odours.

Never use a steam cleaner, solvent or abrasive detergent, as they could damage the interior of your appliance. Never wash the interior accessories in the dishwasher.

We recommend that you wipe the back of the appliance once a year with a cloth over the back of the appliance once a year, as if it is dirty, its efficiency drops and its energy consumption rises.

OPERATING PROBLEMS

The freezer creates a number of noises that are perfectly normal:

• The coolant gas can create a gurgling sound as it circulates through the system.
  The compressor can rumble, a sound which can be more intense when it starts up.
• Sharp cracking sounds produced by expansion and contraction of the materials used.

PROBLEM	SOLUTION
The freezer does not operate	Check that it is properly plugged in, that the fuse has not blown or that the circuit-breaker has not tripped.
The freezer is too warm	Check the thermostat and make sure that the door stays open as little as possible. Also check that the door closes properly.
The motor runs continuously	Make sure that the freezer is well ventilated, leaving gaps as mentioned in the "Installation" chapter. Also check that your appliance is not exposed to a direct source of heat. You may also have placed too much food inside or the door may not close properly.

TECHNICAL ASSISTANCE SERVICE

If you have carried out the above checks, and your problem persists, ATTEMPT NO REPAIRS YOURSELF. Contact the nearest Technical Assistance Service.

SPECIFICATIONS

Dimensions in mm (HxWxD) 845x545x570

THIS APPLIANCE IS IN CONFORMITY WITH EC DIRECTIVES 73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Ybaxaemblnokynatelb!

CyuectByet BO3MOXHOCTb N3MeHNTb HAppaBJIeHne OTKpbITnA DBepn (JeBOCTOPOHHe BmecTo npaBOCTOPOHHero):

AnnapaT Bcerda HuyKHO OTKIouaTb OT 3JIeKTpocetn nepeD n3MeHeHem HappaBneHnA OTKpbITn IDbepN.

1. ChIMnTe Bepx MOpO3nIbHnka: cHaayaJa BO3bMnTEcB 3a 2 K3u-BnHTa, paCnoJIoXeHHbIe CBepxY, BbITaUNTe INX, 3aTeM NOTAHnTe Bepx MOpO3nIbHnKa, YTO6bl OH BblJeN BnpeEiD.
2. HaKJIOHInTe aannapat HEMHOrO Ha3aI N 3aΦNkCnpyIe Te B 3TOM NOJIOXKeHN, NOJKNHINB eRo.
3. OTBnHTnte BnHTbI BepXHeRo IapHnpa IBepn I ChmMnte C HeRo ONOpy N Ocb.
4. ПпnotкpoInte Девь; Нжно, Утоби Oна ВьшлЯ n3 Нжнero Шарнира.
5. OTBnHTnte HIXHIO OcB n 3aBnHTnte ee c npOTNBONOJXHOCTOPHObl. NocTaBbTe DBepb Ha Ocb n 3akpoIte ee.
6. Hadejxho 3aBHTte BepxHn IapHnp Ha npOTIBOIOJXHO CTOpOHe DBepn. NocTaBbTe Ha MeCTo Bepx (pepeBepHnTE B TOUke 1 o6paTHoCtOpHO).

ИСПОЛьЗOBAHNE MOPOЗИЛьнИKA

3TOT annapaT npedHa3NaueH dIy XpaHeHn 3amOpOKeHHbIX npOdyKTOB, 3amopaxnBaHnCBexnx npOdyKTOB, a TAKKe npNroTOBJIeHn JbDa B Ky6nKaX.

He 3amopaxnBaIte OndHOBpeMeHHO CnIshKOM 60JIbIoo KoJIuYeCTBO npOdyKTob (MaKcIMyM 4 Kr / cyTKn). Yem 6bIcTpee 3amopaxnBaETcra npOdyKT, TeM DoJIbIe OH COxpaHare T CBOI KaueCTBa. CtapaItecB TaKxe NepeD 3amopaxnBaHneM XopoIIO yNAKOBAbTb npOdyKTbl, UTO6bl OHI NOJIHOCTbIO COxpaHnIJN CBOI BKUC N He IcNOpTNJIN DpyrIX npOdyKTOB.

Cpok xpaHEnn 6bICTpo3AmOpOxeHHbIX npOdyKTOB 3aBnCnT OT Tnna npOdykTa. YnapOBka npOdyKTOB OnPcAna B INCTpyKcIyX.

HnKoIa He nOmeuAte B MOpO3nIbHnK rOpAue NpOdyKTbl. He nOmeuaTe 6yTbIKN nn IINBhIe 6aHKn, pRn 3aMopaxNBAHn INx CoDePxIMoe MoKeT pa3pyuNTb EMKOCTb.

Moryt B3OpBaTbCЯJaHe NaHITKn C cnIbHbIM CoJepXaHHeM yrJIeKNCJToB! HIKOΓA He xpaHnte JIMMOHaD, ΦpyKTOBbI COK, PINBO, BInHO, ⅢaMNaHCKOE, N T.D. B XOJIoNJIbHOM MOpO3NJIbHnke KaMepe.

PA3MOPAXINBAHNE

CnCTema pa3MopaxNBaHna MOpO3nIbHnka pyHna. Bpemr ot BpeMeHn Bbl moKeTe ydaTb obpa3OBaBmncs cNoi Pbda C nOMoUcKpe6Ka nn dpyrOro pnaCTNKOBoro INHCTpymeHa.

HNKOГДA HE ПОЛь3уИTEСь METAJIINUECKIM INHCTPYMEHTOM IJI N 3JIЕКТРИЧЕСКIM ППИБОРМ ПП RA3MOPAXKIBAHIN.

TTO, T06bl MOpO3nIbHnk npaBnIbHO pa6oTaI, Heo6xOdmo BblOnHraTb pa3MopaxnBaHne He pexe 1 pa3a B roD, IIO BO KOrDa TOJUHa CLOA Nbda PpeBbICNT 4 MM:

1. OTKJIIOUHTe MOpO3INbHnK.
2. Chmnte lec nomoubno pnaactnkoBoro ckpe6ka.Дя yckopeHnpa3MopaxnBaHn Bbl MOxTe NOMECTNTb BMOpO3nBnK UaShky C TeNIOB BOoN I 3aKpbITb DBePb.
3. После разморожиразни пистуни Кочистк морозиьниka.

OuNTKA N YXOD 3A MOPO3nJIbHNKOM

Ipejde Yem npicTynb K Ounchke Mopo3nblHnka, OTknouhnte ero.

OuHCTIte BHyTpeHHIO IOBepxHOCTb BODo C Do6aBHeHem 6nKap6oHaTa, NOJb3yAcB r6ko nn MoaJIKO. 3TO nOMoXeT N36ExaTb 6pa30BaHnra 3anaxOB.

HnKoIM 6bpa3OM He nCnoJIb3yIe rOpAyn Nap, paCTBOpNTel bIa 6pa3NBHe MOUcE CpeDCTBO, NocKoJIbky OHI MoYr IOBpeDITb BHyTpeHHIO NOBepXHOCTb aIInapaTa. He MoIte TaKke BHyTpeHHne PrINHaIeJxHOCTN B NOCyDOMoeHOn MaUNHe.

Pekomehdyetc8 Odn Hpa3 B roD ouNtA b TpIKNo OBaTHyO CTOpOHy aannapata, TaK KaK npHakONJIeHn Ipr3N eRTO pOn3BOIDNTeJbHOCTb UMeHbShaETc, a Notpe6JIeHne 3JIeKTPo3Heprn yBelenuBaETc.

YCTPAHEHNE HENCINPABHOCTE

I Bo Bpempa60tB MOpO3nIbHnke cyuceCTbYIO T yMbI, YTO ABJareTc HOpMaJIbHbIM:

XoIOnIbHbI aReHT npu cIpylaunB KOHTypax MOKeT BCKnPaTb
Komnpecccop MOKeT Bbl3bBaTb ryeHne, ycJIINBaIOUeEe npn Nyske
Moxet Bo3nkaTb "NtpecknBaHne", Bbl3bIbAeMOe paCUnpeHnMa N COKpaUeHnMa NcNoJIb3yEmbIX MaTePnaJIOB

TEXHnueCKNE XAPAKTEPNCK

Pa3MepeI npBedeHb B MM (BxDxT) 845x545x570

C E

DAHHbI AIIAPAT COOTBETCTBYET TPEBOAHNIM MEXdYHAPODHOJ KOMnCCnI PO PA3PABOTKE TEXHnueCKNX HOPM I CTAndAPTOB HA 3JIeKTPOOBOPUOBAHne

73/23. 93/68. 89/336. 96/57. 92/31. 94/62

Beste Klant,

DIT TOESTEL IS CONFORM DE EEG RICHTLIJNEN 73/23, 93/68, 89/336, 96/57, 92/31, 94/62

16^ εως 32°

18^ 38^

18^ 43^

Hλεκτρική σύνδεση

73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Service après vente
