Product Type	Professional Conveyor Toaster
Brand	Hatco
Model	ToastQwik TQ32000 (TQ3-2000 Series)
Dimensions (W x D x H)	475 x 536 x 435 mm
Weight	27 kg
Power Supply	208-240 V, 50/60 Hz
Power	4020 W (at 208 V)
Capacity	Up to 30 slices per minute (3 simultaneous slices)
Maximum Bread Thickness	44 mm
Maximum Bread Width	348 mm
Control Panel	Touchscreen with 12 programmable menu items
Energy Saving Mode	PowerSave: Automatic heat reduction after inactivity
ColorGuard System	Automatic toast color detection and regulation
USB Port	For firmware update

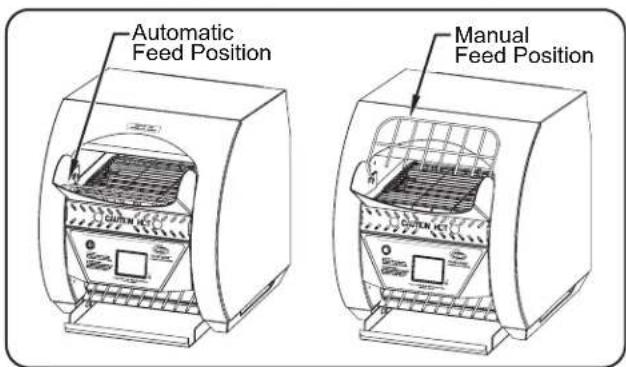

Discharge Ramp	Adjustable position: automatic or manual
Crumb Tray	Removable for easy cleaning
Safety	High temperature safety switch, automatic shut-off in case of overheating, hot surfaces
Maintenance	Daily cleaning of surfaces, monthly cleanable fan filter, touchscreen compatible
Heating Element Warranty	2 years against breakage and electrical failure

Frequently Asked Questions - ToastQwik TQ32000 Hatco

How to clean the Hatco ToastQwik TQ32000 toaster?

Before cleaning, put the appliance in standby, let it cool, turn off the switch and unplug the cord. Clean the exterior surfaces daily with a non-abrasive damp cloth. Remove the crumb tray and the toast pan (model TQ3-400) and wash them with warm water and mild detergent. For the fan filter, clean it once a month with warm water and let it dry completely before reinstalling. Use a non-aggressive degreaser for the touchscreen. Never immerse the appliance or use a pressure jet.

How to activate PowerSave mode?

PowerSave mode can be activated manually by touching the energy saving icon ( ) on the control panel touchscreen. The conveyor stops and the heat decreases to a settable percentage. You can also activate automatic mode via the Service screen (password 248): set the idle time before activation and the reduced heat level. To exit the mode, touch the icon again: the ColorGuard system adjusts the conveyor speed for uniform color during recovery (about 10 minutes).

What to do if the bread is too light or too dark?

First check that the correct menu item is selected on the touchscreen. If the color is not correct, use the Lighter/Darker icon ( ) during operation: touch it up to five times to lighten or darken the result. Also ensure that the power supply voltage matches the specifications (see label). If the problem persists, consult the Troubleshooting Guide in the manual.

How to program a custom menu item?

From the Menu screen, press and hold (3 seconds) the icon of the item to modify. The programming menu appears with settings: Top Heat and Bottom Heat from 1 to 100%, Belt Time. Use the + and - arrows to adjust. You can also change the name and image of the item by pressing on it. Confirm by touching the return icon. All 12 menu items are customizable.

How to update the toaster firmware?

Download the latest firmware version from the Hatco website onto a USB drive. Power on the appliance, touch the Service icon ( ) on the Menu screen, enter password 248, then press FIRMWARE. Insert the USB drive into the port under the touchscreen (slide the cover). Press UPDATE: the update takes about 30 seconds. Do not remove the USB drive or turn off the appliance during the update. Once completed, the appliance restarts and displays the new version.

What to do if the toaster overheats or the warning light comes on?

If the warning light (models TQ3-500, TQ3-900, TQ3-2000) lights up on the control panel, this may indicate overheating due to fan failure or obstruction. Stop the appliance immediately, turn the switch to OFF and unplug it. Let it cool. Check that the fan filter is not obstructed and that the unit is not placed in an area restricting airflow. Contact a Hatco authorized service agent if the problem persists.

What is the warranty on heating elements?

The metal tubular heating elements are warranted for two years against breakage and electrical failure. This warranty is in addition to Hatco's standard limited warranty. For parts and labor, coverage is one year plus an additional year for parts (elements) under the general conditions. See the manual for full details.

How to install the toaster correctly?

Place the appliance on a level, solid countertop, indoors (ambient temperature between 21°C and 29°C). Leave a minimum of 25 mm free space on the sides and back, and 305 mm at the front (measured from the opening). Do not place the appliance under a shelf or less than 305 mm from the ceiling. Plug into a dedicated grounded outlet with correct voltage and configuration. For TQ3-400 models, install the removable toast pan under the discharge area.

Can you toast buttered or coated bread (garlic bread, cheese toast)?

It is not recommended to toast coated or buttered products such as garlic bread, cheese toast or brioches. Residues can reduce toaster performance, cause fire and void the warranty. Use the appliance only for unbuttered products, such as regular bread, bagels or dry rolls.

How to access the Service screen and what settings can be made?

From the Menu screen, touch the Service icon ( ) and enter the 3-digit password: 248. The Service screen provides access to: setting automatic PowerSave mode, modifying control parameters (password activation for menu items, disabling ColorGuard, logo setting), firmware update, and diagnostic information. Use the EXIT keys to return to the main menu.

USER MANUAL ToastQwik TQ32000 Hatco

Register Online! (see page 2)

Line drawing of a portable industrial machine with control panel and ventilation slots (no text or symbols)

Line drawing of a laboratory heating device with control panel and display (no text or symbols)

Line drawing of a HiFi HHT industrial microwave oven with cooling fan and control panel (no text or symbols)

WARNING

Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you're unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.

English = p 2

ADVERTENCIA

Important Owner Information....2

Introduction......2

Important Safety Information....3

Model Descriptions 4

Model Designation 5

Specifications 5

Plug Configurations 5

Electrical Rating Charts....5

Dimensions....6

Installation....7

General....7

Operation....8

General 8

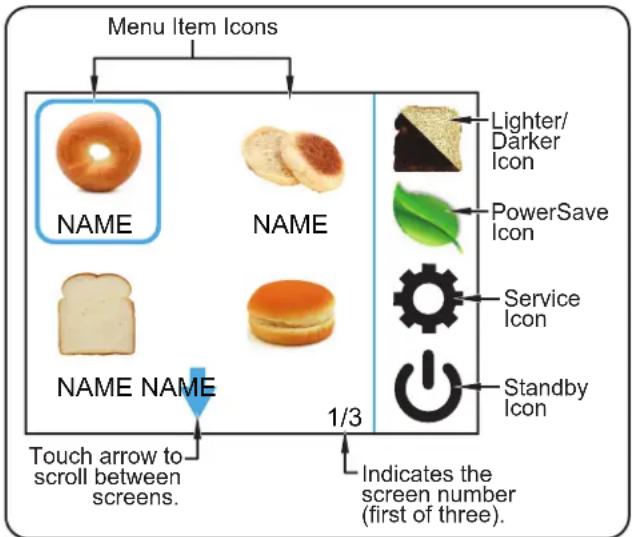

Touchscreen Control....8

Operating the Toaster....9

Programming Menu Items....10

PowerSave Mode 10

Updating Firmware 10

Adjusting Automatic PowerSave 11

Changing Control Settings 11

Maintenance....12

General....12

Daily Cleaning 12

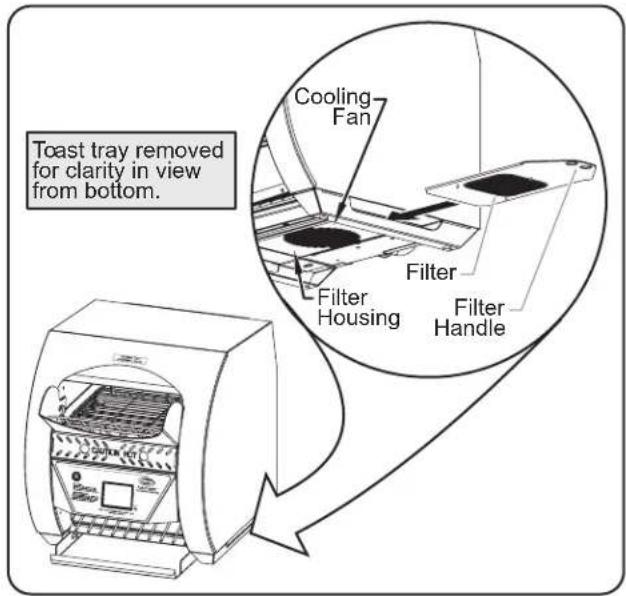

Cleaning the Fan Filter....13

Cleaning the Bottom Element Reflector....13

Cleaning the Touchscreen Control 13

Options and Accessories 13

Troubleshooting Guide....14

Error Message Guide 14

Limited Warranty 15

Authorized Parts Distributors ....Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the back of the unit). Please have this information available when calling Hatco for service assistance.

Model No. ____

Serial No.

Voltage

Date of Purchase

Register your unit!

Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Warranty".

Business

Hours: 7:00 AM to 5:00 PM Monday–Friday, Central Time (CT)

(Summer Hours — June to September:

7:00 AM to 5:00 PM Monday–Thursday

7:00 AM to 4:00 PM Friday)

Telephone: [phone]

E-mail: [e-mail]

24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 800-558-0607.

Additional information can be found by visiting our web site at www.hatcocorp.com.

INTRODUCTION

Hatco TQ3 Series Toast-Qwik® Conveyor Toasters are specially-designed to automate, accelerate, and enhance the toasting operation. The touchscreen control provides quick, easy access to menu item presets for the desired product and toasting color. Product then passes through a heating chamber for rapid and thorough toasting. Conveyor speed and temperature determine the toasting color.

Hatco toasters are built with quality to meet the demands of foodservice operations and provide years of trouble-free performance. The metal-sheathed tubular heating elements are guaranteed against breakage and burnout for two years.

Hatco TQ3 Series Toast-Qwik Conveyor Toasters are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance and optimum performance. Every unit is thoroughly inspected and tested prior to shipment.

This manual provides the installation, safety, and operating instructions for TQ3 Series Toast-Qwik Conveyor Toasters. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit.

Safety information that appears in this manual is identified by the following signal word panels:

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.

WARNING

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.
• Put unit in standby, allow to cool, turn OFF power switch, and unplug power cord before performing cleaning, adjustments, maintenance, or attempting to clear a jam.
• Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70°F (21°C) and a maximum of 85°F (29°C).
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.

- Do not steam clean or use excessive water on unit.

- This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.

- Do not clean unit when it is energized or hot.

- Do not allow liquids to spill into unit.

- Do not pull unit by power cord.

- Discontinue use if power cord is frayed or worn.

- Do not attempt to repair or replace a damaged power cord. Cord must be replaced by Hatco, an Authorized Hatco Service Agent, or a person with similar qualifications.

- Never insert a knife, fork, or similar object into toasting chamber.

- Do not pick up the toaster by inserting fingers into the toaster feed opening.

- This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

- Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some after-market or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

If toaster overheats or cooling fan inside unit stops working, the safety high-limit switch will shut off toaster. Contact Authorized Service Agent or Hatco for assistance.

Make sure all operators have been instructed on the safe and proper use of the unit.

This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from the unit.

WARNING

FIRE HAZARD:

• Allow a minimum clearance of 1" (25 mm) along the sides and rear of unit. Allow a minimum clearance of 12" (305 mm) in the front, measured from cha opening on toaster body. If safe distances are not maintained, discoloration or combustion could occur.
• Do not locate toaster under shelving or closer than 12" (305 mm) from the ceiling.
• Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to the toaster.
• In case of fire, disconnect toaster from power source immediately. This allows unit to cool, making it easier and safer to put out fire.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350.

CAUTION

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.
• Do not remove feed ramp, crumb tray, or toast tray for cleaning until toaster is cool.

Locate unit at the proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

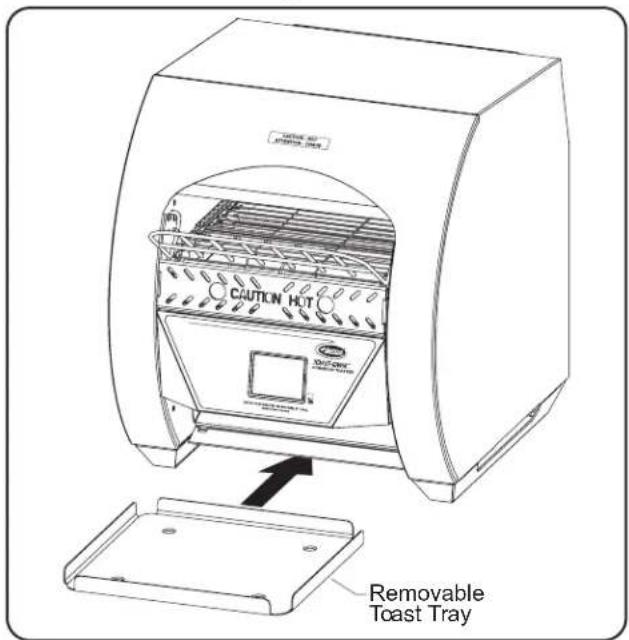

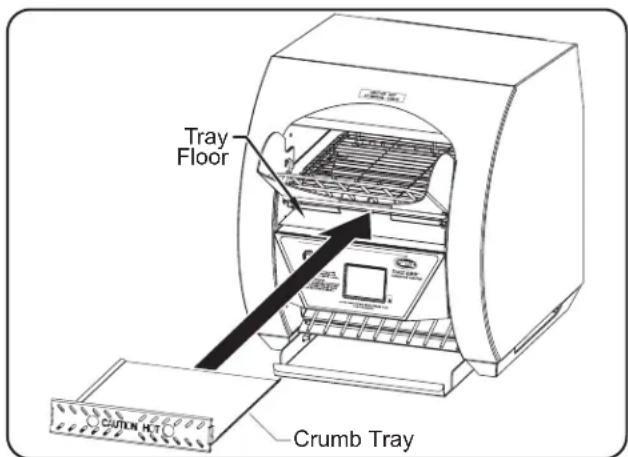

Always operate toaster with crumb tray installed.

If Warning light comes on, unit is malfunctioning. Turn off or disconnect unit from power supply and have unit serviced by a qualified technician.

Toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside toaster. Using toaster with food products listed above will void unit warranty.

NOTICE

Plug unit into a dedicated circuit. Do not use multiple appliances on same circuit.

Do not locate unit in an area subject to temperatures above 85^ F ( 29^ C) or grease from grills, fryers, etc. Excessive temperatures and grease could cause damage to unit.

Do not locate toaster in an area that restricts air flow around front or rear of unit. Do not locate toaster in direct discharge path of air conditioning vent or makeup air vent.

Damage to any countertop material caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Contact manufacturer of countertop material for application information.

NOTICE

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

NOTICE

This unit is intended for commercial use only — NOT for household use.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

MODEL DESCRIPTIONS

All Models

All TQ3 Series Toast-Qwik® Conveyor Toasters are fast, reliable, and versatile. The touchscreen control allows pre-programming of 12 custom menu items for quick and easy selection during operation. All TQ3 Series conveyor toasters include a toast feed ramp, a removable crumb tray, a removable fan filter, a USB port, and a factory attached 6' (1829 mm) power cord and plug.

PowerSave Mode

TQ3 Series Conveyor Toasters feature an energy-saving PowerSave mode that reduces heat levels to a specified percentage of full power. The toaster enters PowerSave mode automatically after a specified period of inactivity or when the PowerSave ( ) icon on the touchscreen control is touched. Full power to the toaster is restored immediately by touching the icon, and toasting can resume.

During recovery from PowerSave mode, the ColorGuard system will slow down the conveyor speed for consistent toast color. Full conveyor speed will be achieved in approximately 10 minutes, depending on how much the heat output level of the elements was reduced during PowerSave mode.

ColorGuard System

All TQ3 series Conveyor Toasters use a patented ColorGuard sensing system. The ColorGuard sensing system monitors and adjusts conveyor speed and chamber temperature automatically during high usage periods and recovery from PowerSave mode for consistent toast color.

Model TQ3-400

Model TQ3-400 is a two-slice toaster that allows for toasting of bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide. It has a maximum capacity of approximately 6 bread products per minute. Model-specific features include a removable toast tray.

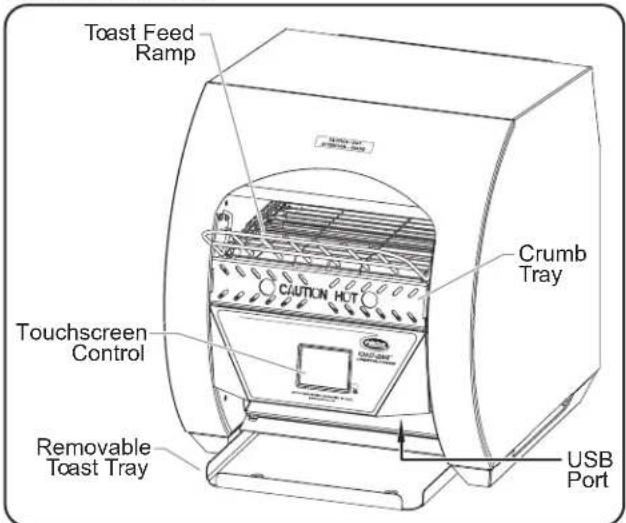

Toast Feed Ramp Crumb Tray Touchscreen Control Removable Toast Tray USB Port

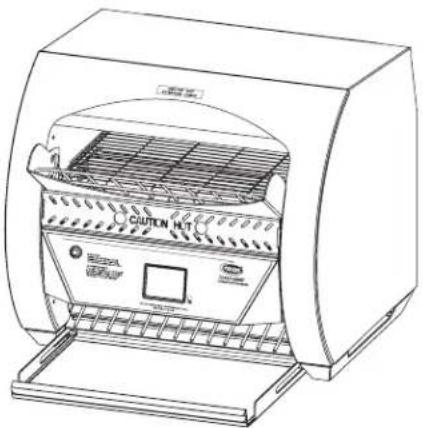

Model TQ3-400 Conveyor Toaster

Model TQ3-500

Model TQ3-500 is a two-slice toaster that allows for toasting of bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide. It has a maximum capacity of approximately 8 bread products per minute. Model-specific features include a removable toast slide, an expandable toast tray, and a over-temperature warning light.

Model TQ3-500H

Model TQ3-500H includes the same features as model TQ3-500, but has a 3" (76 mm) high opening allowing for the toasting of food items up to 2-3/4" (70 mm) thick.

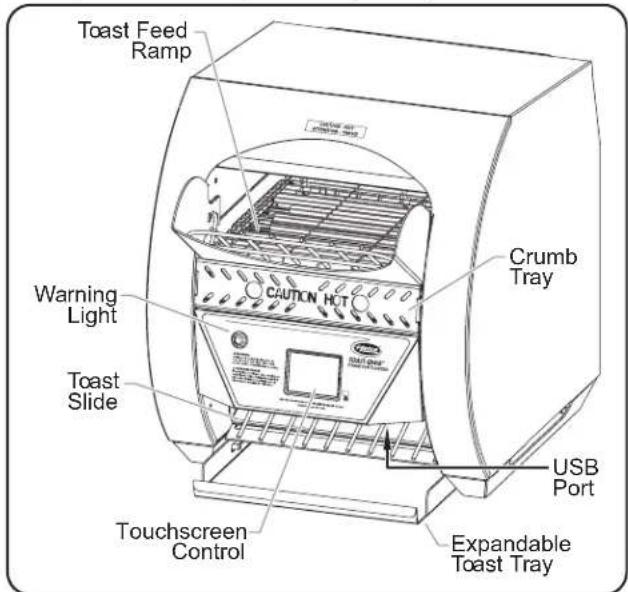

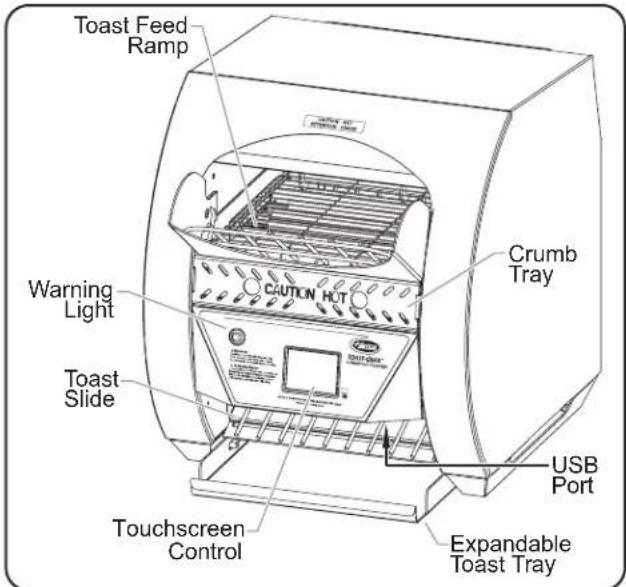

Toast Feed Ramp Warning Light Toast Slide Touchscreen Control Crumb Tray USB Port Expandable Toast Tray

Model TQ3-500 Conveyor Toaster

Model TQ3-900

Model TQ3-900 is a two-slice toaster that allows for toasting of bread products up to 1-3/4" (44 mm) thick and 9-5/8" (244 mm) wide. It has a maximum capacity of approximately 15 bread products per minute. Model-specific features include a removable toast slide, an expandable toast tray, and an over-temperature warning light.

Model TQ3-900H

Model TQ3-900H includes the same features as model TQ3-900, but has a 3" (76 mm) high opening allowing for the toasting of food items up to 2-3/4" (70 mm) thick.

Model TQ3-2000

Model TQ3-2000 is a three-slice toaster that allows for toasting of bread products up to 1-3/4" (44 mm) thick and 13-3/4" (348 mm) wide. It has a maximum capacity of approximately 30 bread products per minute. Model-specific features include a removable toast slide, an expandable toast tray, and an over-temperature warning light.

Model TQ3-2000H

Model TQ3-2000H includes the same features as model TQ3-2000, but has a 3" (76 mm) high opening allowing for the toasting of food items up to 2-3/4" (70 mm) thick.

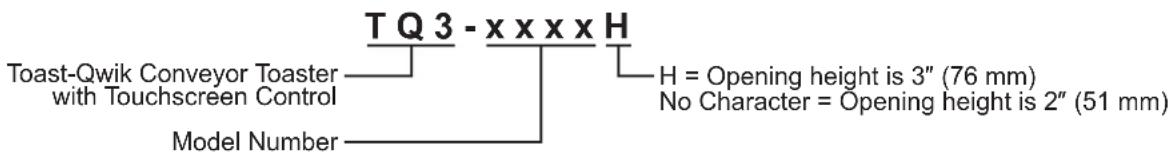

MODEL DESIGNATION

T Q 3 - x x x x H Toast-Qwik Conveyor Toaster with Touchscreen Control Model Number H = Opening height is 3" (76 mm) No Character = Opening height is 2" (51 mm)

SPECIFICATIONS

Plug Configurations

Units are supplied from the factory with an electrical cord and plug. Plugs are supplied according to the application.

WARNING

ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.

NOTE: Receptacles are not supplied by Hatco, but are available as accessories.

NOTE: Specification label located on the back of the unit. See label for serial number and verification of unit electrical information.

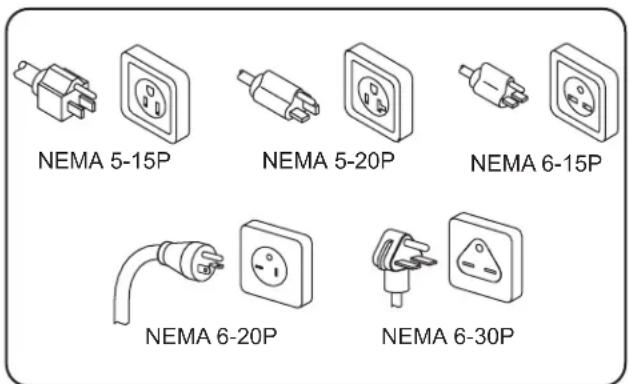

NEMA 5-15P NEMA 5-20P NEMA 6-15P NEMA 6-20P NEMA 6-30P

Plug Configurations

Electrical Rating Chart

Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
TQ3-400 120	50/60 1780 14.8	NEMA 5-15P * 46 lbs. (21 kg)
TQ3-500 TQ3-500H	208	50/60 2220		10.7	NEMA 6-15P †	54 lbs. (25 kg)
	240 9.3
TQ3-900 TQ3-900H	208	50/60 3020		14.5	NEMA 6-20P †	50 lbs. (23 kg)
	240 12.6 55 lbs. (25 kg)
TQ3-2000 TQ3-2000H	208	50/60 4020		19.3	NEMA 6-30P 60 lbs. (27 kg)
	240 16.8

* NEMA 5-20P plug required for Canada.
† Optional NEMA 6-30P plug available.
NOTE: Shipping weight includes packaging.

Dimensions

Model	Width (A)	Depth (B)	Height (C)	Footprint Width (D)	Footprint Depth (E)	Opening Height (F)	Opening Width (G)
TQ3-400	14-3/4" (373 mm)	20-5/8" (524 mm)	17-3/16" (435 mm)	13-1/8" (333 mm)	11-1/16" (281 mm)	2" (51 mm)	10-1/16" (256 mm)
TQ3-500	14-3/4" (373 mm)	20-5/8" (524 mm)	17-3/16" (435 mm)	13-1/8" (333 mm)	11-1/16" (281 mm)	2" (51 mm)	10-1/16" (256 mm)
						3" (76 mm)
TQ3-900	14-3/4" (373 mm)	20-5/8" (524 mm)	17-3/16" (435 mm)	13-1/8" (333 mm)	11-1/16" (281 mm)	2" (51 mm)	10-1/16" (256 mm)
						3" (76 mm)
TQ3-900H
TQ3-2000	18-3/4" (475 mm)	21-1/8" (536 mm)	17-3/16" (435 mm)	16-9/16" (520 mm)	11-1/16" (281 mm)	2" (51 mm)	14-1/8" (359 mm)
TQ3-2000H						3" (76 mm)

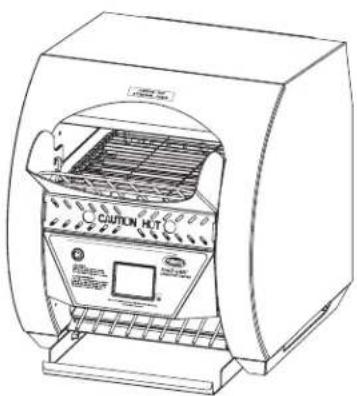

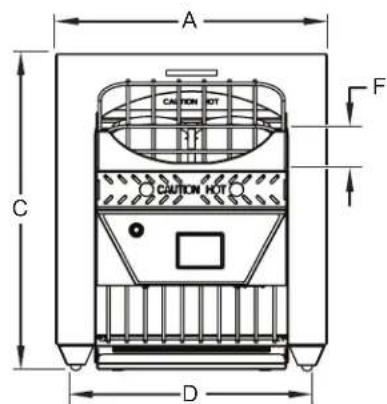

Model TQ3-500 shown.

A CAUTION KTT F C CAUTION KTT D

Front View

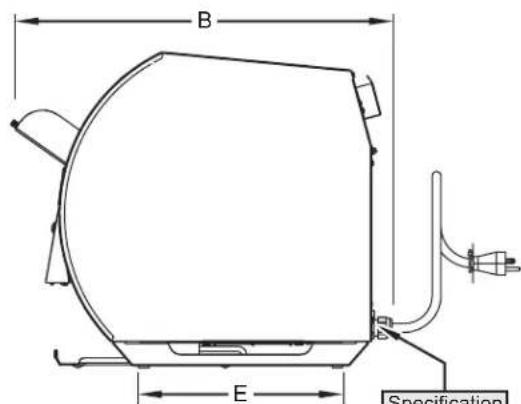

B E Specification

Side View

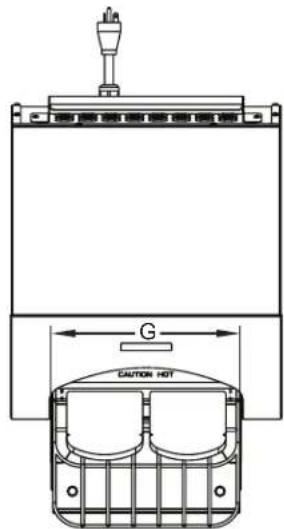

G CAUTION HOT

Top View

General

Hatco Toast-Qwik® Conveyor Toasters are shipped with most components pre-assembled. Care should be taken when unpacking the shipping carton to avoid damage to the unit and the components enclosed.

WARNING

ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70^ F ( 21^ C) and a maximum of 85^ F ( 29^ C).

EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

FIRE HAZARD:

• Allow a minimum clearance of 1" (25 mm) along the sides and rear of unit. Allow a minimum clearance of 12" (305 mm) in the front, measured from opening on toaster body. If safe distances are not maintained, discoloration or combustion could occur.
• Do not locate toaster under shelving or closer than 12" (305 mm) from the ceiling.
• Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to the toaster.
• In case of fire, disconnect toaster from power source immediately. This allows unit to cool, making it easier and safer to put out fire.

CAUTION

Locate unit at the proper counter height in an area that is convenient for use. Location should be level and strong enough to support weight of unit and contents.

NOTICE

Plug unit into a dedicated circuit. Do not use multiple appliances on same circuit.

Do not locate unit in an area subject to temperatures above 85^ F ( 29^ C) or grease from grills, fryers, etc. Excessive temperatures and grease could cause damage to unit.

Do not locate toaster in an area that restricts air flow around front or rear of unit. Do not locate toaster in direct discharge path of air conditioning vent or makeup air vent.

1. Remove the unit from the carton.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

1. Remove tape and protective packaging from all surfaces of the unit.
2. Place the unit in the desired location.

- Locate the unit in an area where the ambient air temperature is constant and between 70^ (21°C) and 85^ (29°C). Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/ hoods, air conditioning ducts, and exterior doors).

• Make sure the unit is at the proper counter height in an area convenient for use.
• Make sure the countertop is level, made of non-chamberbustible material, and strong enough to support the weight of the unit and its contents.
  • Make sure all the feet on the bottom of the unit are positioned securely on the countertop.

CAUTION

Always operate toaster with crumb tray installed.

1. For TQ3-400 models: Install the removable toast tray underneath the discharge area.

CAUTIKIN HUT Removable Toast Tray

Installing the Toast Tray (Model TQ3-400 only)

General

Toast-Qwik® Conveyor Toasters are designed for ease of operation. To operate the toaster, perform the appropriate procedure in this section.

Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.

BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.
• Do not remove crumb tray for cleaning until toaster is cool.

Always operate toaster with crumb tray installed.

Toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside toaster. Using toaster with food products listed above will void unit warranty.

Touchscreen Control

The following are descriptions of the controls used to operate TQ3 Series Toast-Qwik Conveyor Toasters. All controls are located on the touchscreen control at the front of the unit.

Menu Item Icons NAME NAME Lighter/ Darker Icon PowerSave Icon Service Icon Standby Icon NAME NAME 1/3 Touch arrow to scroll between screens. Indicates the screen number (first of three).

Touchscreen Control (showing the Menu screen)

Menu Item Icons

Each menu item icon stores the toast settings for a custom menu item. Touching one of the menu item icons will adjust the element and conveyor belt settings to the selected menu item. There are 12 customizable menu item icons available on the touchscreen control. Refer to "Programming a Menu Item" in this section to change or create custom menu items.

NOTE: When programming menu items, set up the most used menu items on the first Menu screen (screen 1/3).

Lighter/Darker Icon

The Lighter/Darker (icon) allows the toasting shade to be changed from the current menu item setting at any time during operation.

To use the icon:

a. Place the item on the conveyor, and touch the desired menu item icon.
b. Touch the second on the touchscreen. The Toast Shade screen will appear.
c. Touch either the or icon to five times to produce toasting shades lighter or darker than the current menu item setting.

PowerSave Icon

Touching the PowerSave ( ) icon puts the toaster into PowerSave mode. In PowerSave mode, the toaster remains activated but the conveyor stops and the heat level drops to a reduced percentage of the current heat settings.

NOTE: During recovery from PowerSave mode, the ColorGuard system will slow down the conveyor speed for consistent toast color. Full conveyor speed will be achieved in approximately 10 minutes, depending on how much the heat output level of the elements was reduced during PowerSave mode.

Service Icon

The Service (icon provides access to the password-protected Service screen. The Service screen allows management and service technicians to access specific toaster settings, diagnostic/service information, and software update functions.

Standby Icon

The Standby (Union) ton toggles the toaster between operation and standby. In standby, the conveyor and elements are off and the touchscreen control display is dark, but the toaster remains energized.

• From standby, touch and hold the ⏻ icon for three seconds to activate the toaster. The toaster will be ready for operation in approximately ten minutes.

- From operation, touch and hold the ⏻ icon for three seconds to shut down operation and put the toaster into standby.

Operating the Toaster

Startup

1. Plug the unit into a properly grounded electrical receptacle. Make sure the electrical receptacle matches the plug on the unit and the supply voltage matches the unit specification label.

2. Move the toast feed ramp to the desired position.

3. For automatic feeding, move the toast feed ramp to the automatic feed position. Bread products enter the toaster by placing them on the toast feed ramp and releasing.

4. For manual feeding, rotate the toast feed ramp up until it rests on top of the unit. Bread products can be loaded manually by placing directly on the conveyor belt.

Automatic Feed Position Manual Feed Position

Toast Feed Ramp

1. Move the Power I/O switch located on the back of the unit to the "I" (on) position.

- Logo and software version information will appear on the touchscreen, followed by the Standby screen.

Power I/O Switch

NOTE: If the touchscreen goes dark after turning on the power, touch anywhere on the touchscreen to "wake up" the display.

1. Touch and hold the icon on the touchscreen for three seconds to activate the toaster.

- The preheating cycle will begin and last approximately 10 minutes. When preheating is complete, the conveyor belt will start moving, and the Menu screen the available menu items.

1. Touch the desired menu item icon on the touchscreen.

2. A blue square will outline the selected menu item.

3. The elements and conveyor belt will adjust settings to the selected menu item.

- Use the blue arrow keys to scroll between screens of available menu items.

Toast Feed Ramp Caution Hot Warning Light Toast Slide Crumb Tray USB Port Touchscreen Control Expandable Toast Tray

Model TQ3-500 Conveyor Toaster

1. Place bread product onto the toast feed ramp.
2. Change the toasting shade at any time during toasting. To change:

a. Touch the 📁 icon. The Toast Shade screen will appear.
b. Touch the 📄 or 🌐 icon up to five times to produce a shade lighter or darker than the current

1. Change the selected menu item at any time by touching the desired menu item icon on the touchscreen.

- Use the blue arrow keys to scroll between screens of available menu items.

NOTE: For TQ3-500, TQ3-900, and TQ3-2000 models: If the Warning light on the control panel comes on, the unit may be overheating due to fan failure/blockage. Turn off and unplug the unit. Contact an Authorized Service Agent or Hatco for assistance.

Standby Shutdown

Use standby shutdown to put the toaster in standby during extended periods of non-use.

1. Touch and hold the icon on the touchscreen for one second to shut down operation and put the toaster into standby.

• The heating elements and conveyor will shut down.

• The cooling fans will run until the unit is cool.

Shutdown

1. Touch and hold the icon on the touchscreen for one second to shut down operation and put the toaster into standby.
2. After the cooling fans stop, move the Power I/O switch located on the back of the unit to the "O" (off) position to turn off the toaster. NOTICE: Do not turn off unit while cooling fans are running. Damage to unit may occur.

Programming Menu Items

Use the following procedure to change or create custom menu item settings.

1. Touch and hold the desired menu item on the Menu Screen for three seconds.

• The Programming screen will appear showing a list of programmable settings.

Top Heat: Heat output level from top elements. Setting range is 1–100%. 1 = lowest heat/lightest toast. 100 = highest heat/darkest toast.

Btm Heat: Heat output level from bottom elements. Setting range is 1–100%. 1 = lowest heat/lightest toast. 100 = highest heat/darkest toast.

Time: Total time product is in toasting chamber. Increasing belt time will slow down conveyor and create darker product. Decreasing belt time will speed up conveyor and create lighter product.

1. Touch the or arrow next to the desired setting to change the setting.

2. To change the menu item picture, touch the picture. A screen will appear with the available pictures

a. Touch the desired picture. The touchscreen will return to the Programming screen and show the new picture.

1. To change or edit the menu item name, touch the name. A keypad screen will appear.

a. Touch the ✗ key to delete the current name.

b. Use the keypad to change or update the menu item name.

c. Touch the ← key to save the name and return to the Programming screen.

1. When all programming is done, touch the 🔊 icon to return to the Menu screen.

PowerSave Mode

All TQ3 series toasters have a built-in PowerSave mode. This feature significantly reduces heat levels and energy consumption when the toaster has not been used for a specified period of time or when activated by the operator.

To start PowerSave mode manually during operation:

1. Touch the icon on the Menu screen.

- The conveyor belt will speed up temporarily to clear product from toaster.

- The PowerSave screen will show on the touchscreen.

To exit PowerSave mode:

1. Touch the icon on the PowerSave screen. The unit will be ready to toast immediately

NOTE: During recovery from PowerSave mode, the ColorGuard system will slow down the conveyor speed for consistent toast color. Full conveyor speed will be achieved in approximately 10 minutes, depending on how much the heat output level of the elements was reduced during PowerSave mode.

Updating Firmware

Use the following procedure to upload firmware updates to the toaster from an external USB drive.

1. Follow the "Startup" procedure listed previously in this section.
2. Touch the icon on the Menu Screen. A password screen will appear.

- Enter the 3-digit password "248". The Service screen will appear.

Touchscreen Control Cover USB Port

1. Touch FIRMWARE on the Service screen. The Update Select screen will appear.

2. Touch FIRMWARE on the Update Select screen. The Firmware Update screen will appear.

3. Slide the cover to the side, and insert the USB drive into the USB port.

- The USB port is on the front of the unit, underneath and to the right of the touchscreen.

1. Touch UPDATE.

• The firmware up will begin and last approximately 30 seconds (a progress bar will appear). NOTICE: Do not remove the USB drive or turn off the unit during a software update.

• When the update is complete, the unit will restart and the Logo screen will appear for a few seconds showing the new firmware version.
• Remove the USB drive from the USB port, and slide the cover back to cover the port.

Adjusting Automatic PowerSave

Use the following procedure to enable/disable the automatic PowerSave feature as well as make adjustments to its settings.

1. Touch the icon on the Menu Screen. A password screen will appear.

- Enter the 3-digit password "248". The Service screen will appear.

1. Touch POWERSAVE on the Service screen. The Automatic PowerSave screen will appear.

2. Make the desired adjustments on the Automatic PowerSave screen.

- Touch ON to enable automatic PowerSave. Touch OFF to disable automatic PowerSave.

- Heat: Touch the ↑ or ↓ arrow next to the Heat percentage to change the heat output level of the elements during PowerSave mode.

- Time: Touch the ↑ or ↓ arrow next to the Time value to change the number of minutes of inactivity required before automatic PowerSave is activated.

1. When all adjustments are done, touch EXIT to return to the Service screen, then EXIT again to return to the Menu Screen.

Changing Control Settings

Use the following procedure to make changes to control access privileges and toaster operation.

1. Touch the icon on the Menu Screen. A password screen will appear.

- Enter the 3-digit password "248". The Service screen will appear.

1. Touch CONTROL on the Service screen. The Control Settings screen will appear.

2. Make the desired adjustments on the Control Settings screen.

- Touch ON or OFF to enable or disable each of the operational settings shown on this screen.

• Passcode: Enable this setting to require a password to make changes to menu item settings.

- ColorGuard: Disable this setting to turn off the ColorGuard System, as described in the MODEL DESCRIPTIONS section of this manual.

- Logo: Enable this setting to put the toaster into a single setting, "always on" mode.

1. When all changes are done, touch EXIT to return to the Service screen, then EXIT again to return to the Menu Screen.

General

Hatco Toast-Qwik ^® Conveyor Toasters are designed for maximum durability and performance with minimum maintenance.

WARNING

ELECTRIC SHOCK HAZARD:

• Put unit in standby, allow to cool, turn OFF power switch, and unplug power cord before performing cleaning, adjustments, maintenance, or attempting to clear a jam.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on unit.
• This unit is not "jet-proof" construction. Do not use jet-clean spray to clean this unit.
• Do not clean unit when it is energized or hot.
• Do not allow liquids to spill into unit.
• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some after-market or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.

This unit has no "user-serviceable" parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350.

Daily Cleaning

To preserve the finish of the unit, it is recommended that the metal surfaces be wiped daily with a damp cloth.

WARNING

Submerging or saturating unit with water will damage the unit and void unit warranty.

NOTICE

Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation.

Clean unit daily to avoid malfunctions and maintain sanitary operation.

1. Perform the "Daily Shutdown" procedure in the OPERATION section, and unplug the power cord.

CAUTION

BURN HAZARD: Do not remove feed ramp, crumb tray, or toast tray for cleaning until toaster is cool.

1. Remove and clean the crumb tray, removable toast tray (TQ3-400 only), and toast tray insert (if equipped).

a. Wash the crumb tray and toast trays with warm water and a mild detergent. Rinse with water.

b. Allow the crumb tray and toast trays to air dry.

1. Wipe the exterior surfaces of the toaster with a non-abrasive, damp cloth.

- Stubborn stains may be removed with a good stainless steel cleaner or a non-abrasive cleaner. Hard to reach areas should be cleaned with a small brush and mild soap.

1. Clear all crumbs from the expandable toast tray and wipe clean.

2. Wipe dry the entire unit using a soft, non-abrasive cloth.

3. Reinstall the crumb tray, removable toast tray (TQ3-400 only), and toast tray insert (if equipped).

a. Position the crumb tray directly below the conveyor belt on the tray floor at the front of the toaster.
b. Slide the crumb tray into the toaster until it stops.

Tray Floor Crumb Tray

Installing the Crumb Tray

Cleaning the Fan Filter

A cooling fan filter is located on the bottom of the unit. This filter should be checked/cleaned weekly and anytime "Routine Maintenance; Clean Fan Filter" appears on the touchscreen. Use the following procedure to clean the filter.

1. Perform the "Shutdown" procedure in the OPERATION section, and unplug the power cord.
2. Using the filter handle, slide the filter out of the filter housing.
3. Tilt the unit up and wipe the filter housing clean using a damp non-abrasive cloth.

4. Rinse the filter using hot water. Allow the filter to dry completely.

5. Slide the filter back into the filter housing.

NOTE: The filter can be installed from either side of the toaster.

Toast tray removed for clarity in view from bottom. Cooling Fan Filter Filter Housing Filter Handle

Cleaning the Filter

Cleaning the Bottom Element Reflector

The bottom heating element reflector inside the toasting chamber has slots that allow bread crumbs to drop through to the crumb tray. Over an extended period of use, bread crumbs may build up on the reflector and not drop through onto the tray.

1. Turn off the unit, unplug the power cord, and allow the unit to cool.
2. Wipe the crumbs onto the crumb tray using a bristle brush.
3. To wipe the reflector, place the bristle brush through the conveyor belt and wipe to each side.
4. Perform the "Daily Cleaning" procedure in this section.

Cleaning the Touchscreen Control

Dirt and grease will build up on the touchscreen control over an extended period of use. Use the following procedure to clean the touchscreen control and maintain performance.

1. Perform the "Shutdown" procedure in the OPERATION section, and unplug the power cord.
2. Spray a mild degreaser onto a soft, damp non-abrasive cloth, and wipe the entire touchscreen until clean. Repeat, if necessary.
3. Allow the touchscreen to dry completely.
4. Wipe away any hazy residue that remains on the touchscreen using a clean, dry non-abrasive cloth.

OPTIONS AND ACCESSORIES

Extended Toast Feed Ramp

An extended toast feed ramp is available as a factory-installed option for TQ3-500, TQ3-900, and TQ3-2000 models. The extended toast feed ramp is a longer feed ramp that allows more or longer bread products to be loaded onto the toast feed ramp.

Toast Tray Insert

A removable, stainless steel toast tray insert is available as a factory-installed option for TQ3-500, TQ3-900, and TQ3-2000 models. The toast tray insert fits inside the toast tray and is easily removable for cleaning.

Simple line drawing of a rectangular object with horizontal lines, resembling a stylized book or document (no text or symbols)

WARNING

This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.

WARNING

ELECTRIC SHOCK HAZARD: Turn OFF power switch, unplug power cord, and allow unit to cool before performing any cleaning, setup, or maintenance.

Symptom Probable	Cause Corrective Action
Toast too light. Wrong menu item	item selected on touchscreen control.	Select the correct menu item for desired toasting results.
	Supply voltage to unit is low. Verify the supply	voltage to the toaster matches the unit specifications.
Toast too dark. Wrong menu item	item selected on touchscreen control.	Select the correct menu item for desired toasting results.
	Supply voltage to unit is high. Verify the supply	voltage to the toaster matches the unit specifications.
Unit toasts on one side only. Wrong menu item selected on touchscreen control.		Select the correct menu item for desired toasting results.
		Heating element defective. Visually check the heating element inside the toaster during operation. The heating element should glow red. If the element does not glow, Contact Authorized Service Agent or Hatco for assistance.
Toaster trips the circuit breaker or GFCI.	Circuit breaker is not sized properly for the toaster.	Check circuit breaker for proper sizing.
	Wiring fault inside toaster. Contact Authorized Service Agent or Hatco for assistance.
Toaster conveyor doesn't move.	Bread slices or buns jammed in conveyor track.	Turn off unit, wait for unit to cool, and remove bread product jamming the conveyor.

Error Message Guide

Error Message Troubleshooting		Corrective Action(if Troubleshooting fails to fix)
Temperature Probe Error Verify wire connections on RTD temperature probe. Check resistance across probe.		Replace temperature probe.
Control Board Overtemp Check fan for physical blockage that would prevent fan from turning. Verify voltage to fan. Make sure unit is on legs and filter area is clear.		Replace cooling fan.
Heating Error	Verify all wire connections on relay and element. Check resistance across failing heating element.	Replace heating element.
Communication Error	Update software—download from Hatco website to USB drive. Follow the “Updating Firmware” procedure in OPERATION section of manual.	Replace electronic control.
Touch Panel Error	Check touchpad for grease and dirt buildup. Perform “Cleaning the Touchscreen Control” procedure in MAINTENANCE section on manual.	Replace electronic control.

Troubleshooting Questions?

If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on "Find A Service Agent"; or contact the Hatco Parts and Service Team at:

Telephone: [phone] or 414-671-6350

e-mail: [e-mail]

WARRANTY, EXCLUSIVE REMEDY:

Hatco Corporation (Seller) warrants that the products it manufactures (Products) will be free from defects in materials and workmanship under normal use and service and when stored, maintained, and installed in strict accordance with factory recommendations. Seller's sole obligation to the person or entity buying the Products directly from Seller (Customer) under this warranty is the repair or replacement by Seller or a Seller-authorized service agency, at Seller's option, of any Product or any part thereof deemed defective upon Seller's examination, for a period of: (i) the Warranty Duration from the date of shipment by Seller or (ii) the Warranty Duration from the date of Product registration in accordance with Seller's written instructions, whichever is later. The "Warranty Duration" shall mean the specific periods set forth below for specific Product components, or, to the extent not listed below, eighteen (18) months. Credit for Products or parts returned with the prior written permission of Seller will be subject to the terms shown on Seller's material return authorization form. PRODUCTS OR PARTS RETURNED WITHOUT PRIOR WRITTEN PERMISSION OF SELLER WILL NOT BE ACCEPTED FOR CREDIT. Expenses incurred by Customer in returning, replacing, or removing the Products will not be reimbursed by Seller. If the defect comes under the terms of the limited warranty, the Products will be repaired or replaced and returned to the Customer and the cost of return freight will be paid by Seller. The remedy of repair or replacement provided for herein is Customer's exclusive remedy. Any improper use, alteration, repairs, tampering, misapplication, improper installation, application of improper voltage, or any other action or inaction by Customer or others (including the use of any unauthorized service agency) that in Seller's sole judgment adversely affects the Product shall void this warranty. The warranty expressly provided herein may only be asserted by Customer and may not be asserted by Customer's customers or other users of the Products; provided, however, that if Customer is an authorized equipment dealer of Seller, Customer may assign the warranty herein to Customer's customers, subject to all of the limitations of these Terms, and in such case, the warranty shall be exclusively controlled by Seller in accordance with these Terms. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED.

One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty:

Conveyor Toaster Elements (metal sheathed)

Drawer Warmer Elements (metal sheathed)

Drawer Warmer Drawer Rollers and Slides

Food Warmer Elements (metal sheathed)

Display Warmer Elements (metal sheathed air heating)

Holding Cabinet Elements (metal sheathed air heating)

Heated Well Elements — HW, HWB, and HWBI Series (metal sheathed)

Two (2) Year Parts and Labor Warranty:

Induction Ranges

Induction Warmers

One (1) Year Replacement Warranty:

TPT Pop-Up Toasters

One (1) Year Parts and Labor PLUS Four (4) Years

Parts-Only Warranty:

3CS and FR Tanks

One (1) Year Parts and Labor PLUS Nine (9) Years

Parts-Only Warranty:

Electric Booster Heater Tanks

Gas Booster Heater Tanks

Ninety (90) Day Parts-Only Warranty:

Replacement Parts

Notwithstanding anything herein to the contrary, the limited warranty herein will not cover components in Seller's sole discretion such as, but not limited to, the following: coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing.

WARRANTY REGISTRATION INSTRUCTIONS:

Product registration must be submitted within 90 days from the date of shipment from our factory to qualify for additional coverage. Registration may be submitted through the form on Seller's website, through the form accessible through the QR code on the Product (where available), or by calling Customer Service with the required information at: 800-558-0607 or 414-671-6350.

LIMITATION OF LIABILITY:

SELLER WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LOST PROFITS, COSTS OF SUBSTITUTE PRODUCTS, OR LABOR COSTS ARISING FROM THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, FROM THE PRODUCTS BEING INCORPORATED INTO OR BECOMING A COMPONENT OF ANOTHER PRODUCT, OR FROM ANY OTHER CAUSE WHATSOEVER, WHETHER BASED ON WARRANTY (EXPRESSED OR IMPLIED) OR OTHERWISE BASED ON CONTRACT, TORT, OR ANY OTHER THEORY OF LIABILITY, AND REGARDLESS OF ANY ADVICE OR REPRESENTATIONS THAT MAY HAVE BEEN RENDERED BY SELLER CONCERNING THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, EVEN IF SELLER IS AWARE OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL SELLER'S AGGREGATE LIABILITY ARISING OUT OF OR RELATED TO THIS AGREEMENT EXCEED THE TOTAL AMOUNTS PAID TO SELLER BY CUSTOMER FOR THE PRODUCTS WITHIN THE THREE (3) MONTH PERIOD IMMEDIATELY PRECEDING THE EVENT GIVING RISE TO CUSTOMER'S CLAIM. THE LIMITATIONS SET FORTH HEREIN REGARDING SELLER'S LIABILITY SHALL BE VALID AND ENFORCEABLE NOTWITHSTANDING A FAILURE OF ESSENTIAL PURPOSE OF THE LIMITED REMEDY SPECIFIED IN THESE TERMS.

Seller reserves the right to update these Terms at any time, at its sole discretion, which become binding upon the date of publishing. For the most current version of our full Terms of Sale, see our website at: https://www.hatcocorp.com/terms-of-sale

NEMA 5-15P NEMA 5-20P NEMA 6-15P NEMA 6-20P NEMA 6-30P

Simple line drawing of a rectangular frame with horizontal lines, no text or symbols present.

GARANTIE, RECOURS EXCLUSIF :

Byassee Equipment Co. Phoenix 602-252-0402

CALIFORNIA

Industrial Electric Commercial Parts & Service, Inc. Huntington Beach 714-379-7100

Chapman Appl. Service San Diego 619-298-7106

P & D Appliance Commercial Parts & Service, Inc. S. San Francisco 650-635-1900

COLORADO

Hawkins Commercial Appliance Englewood 303-781-5548

FLORIDA

Whaley Foodservice Repair Jacksonville 904-725-7800

Whaley Foodservice Repair Orlando 407-757-0851

B.G.S.I./Heritage Pompano Beach 954-971-0456

Comm. Appliance Service Tampa 813-663-0313

GEORGIA

Heritage Service Group Norcross 866-388-9837

HAWAJ

Burney's Comm. Service, Inc. Honolulu 808-848-1466

Food Equip Parts & Service Honolulu 808-847-4871

ILLINOIS

Parts Town Addison 708-865-7278

Eichenauer Elec. Service Decatur 217-429-4229

Midwest Elec. Appl. Service Elmhurst 630-279-8000

Cone's Repair Service Moline 309-797-5323

IOWA

Goodwin Tucker Group Des Moines 515-262-9308

KENTUCKY

Tech 24 Lexington 859-254-8854

Tech 24 Louisville 502-451-5411

LOUISIANA

Chandlers Parts & Service Baton Rouge 225-272-6620

MARYLAND

Electric Motor Service Baltimore 410-467-8080

MASSACHUSETTS

Ace Service Co., Inc. Needham 781-449-4220

MICHIGAN

Bildons Appliance Service Detroit 248-478-3320

Commercial Kitchen Service Bay City 989-893-4561

Midwest Food Equip. Service Grandville 616-261-2000

MISSOURI

General Parts Kansas City 816-421-5400

Commercial Kitchen Services St. Louis 314-890-0700

Kaemmerlen Parts & Service St. Louis 314-535-2222

NEBRASKA

Anderson Electric Omaha 402-341-1414

NEVADA

Burney's Commercial Las Vegas 702-736-0006 Hi. Tech Commercial Service N. Las Vegas 702-649-4616

NEW JERSEY

Jay Hill Repair Fairfield 973-575-9145 Service Plus Flanders 973-691-6300

NEW YORK

Alpro Service Co. Maspeth 718-386-2515 Duffy's - AIS Buffalo 716-884-7425

3Wire Plattsburgh 800-634-5005

Duffy's - AIS Sauquoit 800-836-1014

J.B. Brady, Inc. Syracuse 315-422-9271

NORTH CAROLINA

Authorized Appliance Charlotte 704-377-4501

OHIO

Akron/Canton Comm. Svc. Inc. Akron 330-753-6634

Tech 24 Cincinnati 513-772-6600

Commercial Parts and Service Columbus 614-221-0057

Electrical Appl. Repair Service Brooklyn Heights 216-459-8700

E. A. Wichman Co. Toledo 419-385-9121

OKLAHOMA

Hagar Rest. Service, Inc. Oklahoma City 405-235-2184

OREGON

General Parts Group Portland 503-624-0890

PENNSYLVANIA

Elmer Schultz Services Philadelphia 215-627-5401

FAST Comm. Appl. Service Philadelphia 215-288-4800

AIS Commercial Parts and Service Pittsburgh 412-809-0244

K & D Service Co. Harrisburg 717-236-9039

Electric Repair Co. Reading 610-376-5444

RHODE ISLAND

Marshall Electric Co. Providence 401-331-1163

SOUTH CAROLINA

Whaley Foodservice Repair Lexington 803-996-9900

TENNESSEE

Camp Electric Memphis 901-527-7543

TEXAS

Armstrong Repair Service Houston 713-666-7100

Cooking Equipment Specialist Mesquite 972-686-6666

Commercial Kitchen Repair Co. San Antonio 210-735-2811

UTAH

La Monica's Rest. Equip. Service Murray 801-263-3221

VIRGINIA

Daubers Norfolk 757-855-4097

Daubers Springfield 703-866-3600

WASHINGTON

3Wire Seattle 800-207-3146

WISCONSIN

A.S.C., Inc. Madison 608-246-3160

A.S.C., Inc. Milwaukee 414-543-6460

CANADA

ALBERTA

Key Food Equipment Service Edmonton 780-438-1690

BRITISH COLUMBIA

Key Food Equipment Service Vancouver 604-433-4484

Key Food Equipment Service Victoria 250-920-4888

MANITOBA

Air Rite, Inc. Winnipeg 204-895-2300

NEW BRUNSWICK

EMR Services, Ltd. Moncton 506-855-4228

ONTARIO

R.G. Henderson Ltd. Toronto 416-422-5580

Choquette - CKS, Inc. Ottawa 613-739-8458

QUÉBEC

Choquette - CKS, Inc. Montreal 514-722-2000

Choquette - CKS, Inc. Québec City 418-681-3944

UNITED KINGDOM

Marren Group Northants [phone]

HATCO CORPORATION

P.O. Box 340500

Milwaukee, WI 53234-0500 U.S.A.

800-558-0607 414-671-6350

[e-mail]

www.hatcocorp.com

Register your unit online!

See IMPORTANT OWNER INFORMATION section for details.
