RAZORACT G30049 - Beard trimmer G3 Ferrari - Free user manual and instructions

Product Type	Beard and Hair Trimmer
Brand	G3 Ferrari
Model	RAZORACT G30049
Power Supply	DC 5V - 1000 mA
Battery	Lithium, 3.7 V, 2000 mAh
Charging Time	Approximately 2.5 hours (first use: 1.5 h or 2.5 h according to manual)
Estimated Battery Life	Approximately 60 minutes (not officially specified)
Cutting Lengths	0.8 - 12 mm (without comb: 0.8 - 2 mm; with combs: 3, 6, 9, 12 mm)
Blade Type	Movable ceramic blade, titanium-coated fixed blade
Speeds	2 adjustable speeds
Usage	Cordless (battery) or mains (USB cable plugged in)
Included Accessories	4 cutting combs, USB cable, lubricating oil, cleaning brush
Maintenance	Cleaning with brush and/or blowing; periodic lubrication with the provided oil
Cleaning	Do not immerse in water; use a damp cloth
Safety	Do not use in bath or shower; do not retrieve appliance if it falls into water; unplug before cleaning
Warnings	Do not leave unattended; do not use on wigs or sensitive skin; stop after 10 minutes of continuous use
Recommended Age	Suitable for children over 8 years old under supervision
Use	Domestic and similar (offices, hotels, etc.)
Original Parts	Use only original accessories and parts
Repairability	Any repair must be carried out by an authorized service center

Frequently Asked Questions - RAZORACT G30049 G3 Ferrari

How long does it take to charge the G3 Ferrari RAZORACT G30049 trimmer?

Charging time is approximately 2.5 hours. On first use, it is recommended to fully charge the battery before use.

Can I use the trimmer while it is plugged into the mains?

Yes, the trimmer can operate with the USB cable plugged in (mains) or on battery if it is pre-charged.

How do I adjust the cutting length?

You can use one of the 4 combs provided (3, 6, 9, 12 mm) or, for a shorter cut (0.8 to 2 mm), use the trimmer without a comb and adjust the length with the adjuster located on the device.

How do I clean and maintain the trimmer?

After each use, clean the combs and trimmer with the provided brush or by blowing. For periodic maintenance, open the blade unit, remove hair, then apply 1 to 2 drops of lubricating oil on the ceramic blade and the locking point.

What should I do if the trimmer does not turn on even when charged?

Check that the switch is set to ON. If the problem persists, plug the USB cable into a power source, wait one minute, then turn on again. If it only works when plugged in, the battery may be worn out; contact an authorized service center.

Can I use the trimmer in the shower or bathtub?

No, never use the appliance in the bath or shower. It must not be immersed in water or exposed to water jets. If the appliance falls into water, unplug it immediately without touching it with your hands.

Can the blades be replaced?

The blade unit is removable for cleaning, but it is not specified if they are replaceable. In case of damage, contact an authorized service center to obtain original parts.

What is the battery life?

The exact battery life is not given, but with a 2000 mAh lithium battery, it generally allows about 60 minutes of continuous use.

Can I trim my child's hair with this appliance?

Yes, under adult supervision. The appliance can be used by children over 8 years old if they have received instructions on safe use. Children must not play with the appliance.

What should I do if the USB cable is damaged?

Do not use the appliance if the cable or plug is damaged. Have it replaced by an authorized service center. Do not attempt to repair the cable yourself.

USER MANUAL RAZORACT G30049 G3 Ferrari

Taglia barba e capelli ricaricabile Rechargeable hair and beard clipper

RAZOR-ACT

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 7

General information.... p. 9

G30049.... p. 10

Operating.... p. 10

Charging.... p. 10

Maintenance and cleaning....p. 10

Technical features.... p. 11

Waste of electric and electronic equipment (WEEE

Directive)....p. 25

PORTUGUES:....p. 11

ESPAÑOL......p. 15

FRANCAIS...... p. 20

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

7 3mm 6mm 9mm 12mm 9 10 8

Technical diagram illustrating a hairpin tool application process with labeled steps A and B, including magnified views and mechanical assembly.

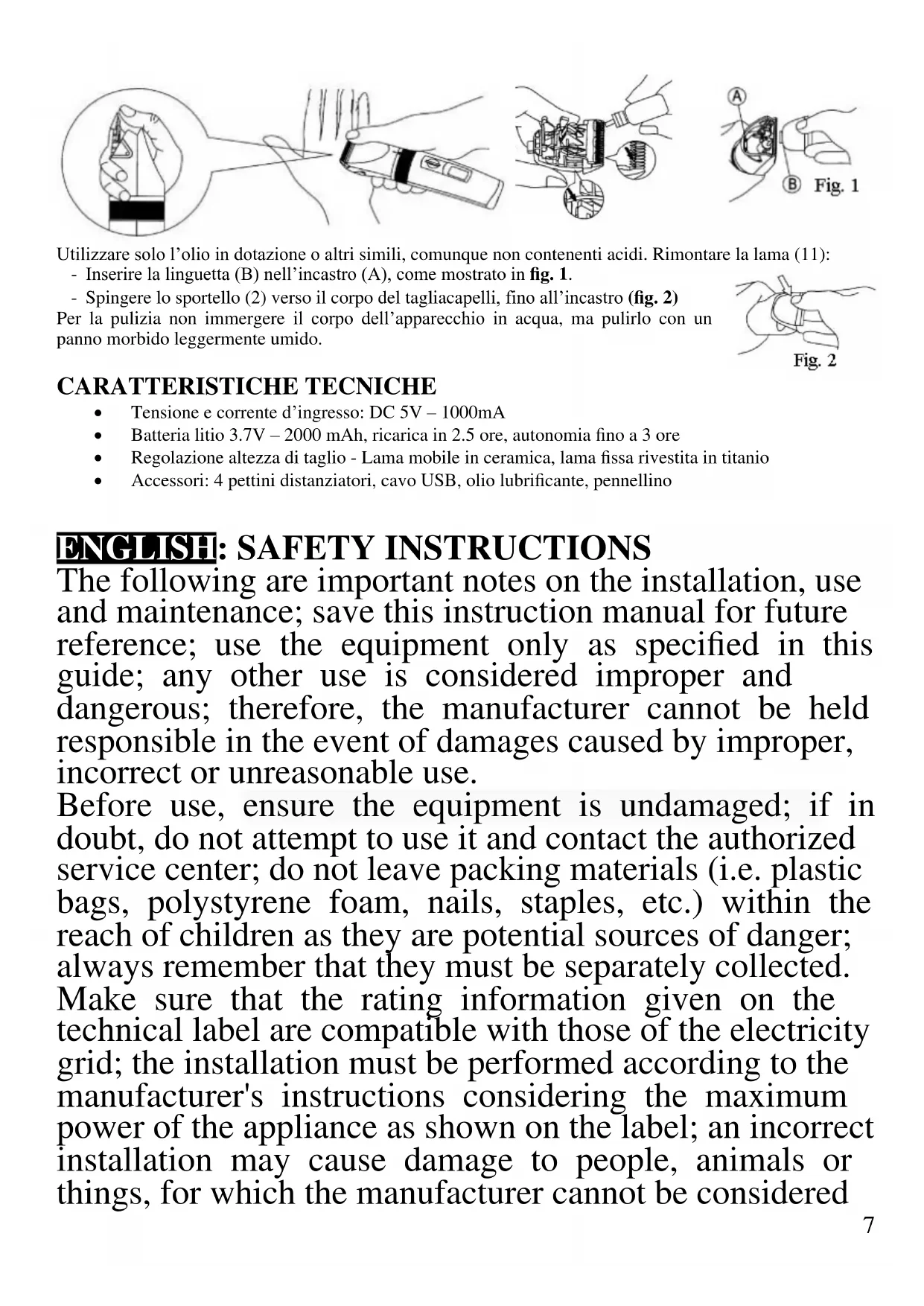

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered

responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use.

Always disconnect unit from power supply if you leave it unattended, or before mounting and dismounting.

Cleaning operations should be carried out after unplugging the unit.

- Not for commercial use. Household use only

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

In case of failure and / or malfunction do not tamper with the unit; to repair the appliance, always contact the service center authorized by the manufacturer and request the use of original spare parts; failure to comply with the above may compromise safety and invalidate warranty.

• This appliance is intended to be used in household an similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• Before every use, unroll the power cord.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

WARNING: do not use the hair dryer inside the bathtub, under the shower or inside the shower

box. If it falls in water, do not pick it up and immediately disconnect the power plug. Avoid splashing of water. If you face one of these problem, before operating it any further, bring the device to the authorized service center; it must be checked by qualified personnel.

• Before using, fully charge the hair-clipper, leaving it connected to the charger for about 2.5 hours.
• Do not immerse the appliance in water or other liquids.
• Use extreme caution when using: do not use in a state of sleepiness and perform delicate movements. Do not use on wigs or irritated skin.
• Do not use the clipper for more than 10 minutes

continuously and allow to completely cool down for at least 5 minutes.

• Power off the device while changing attachment.
• Clean and lubricate the clipper regularly to ensure better performance and longer life.
• Never leave unattended while it is running.
• Do not wrap the power cord around the unit during use. Pay attention to the power supply. An incorrect voltage may damage the motor and jeopardize the functionality of the device.

DESCRIPTION G30049

1. Blade

2. Display

3. Cutting regulator

4. On/off button

5. Charge level

6. Charging input

7.4 combs set

1. USB cable

2. Small brush

3. Lubricating oil

4. Removable blade set

OPERATING

The hair clipper can be used both weather it is connected with the USB cable or not.

WARNING: if during battery working the appliance stop working, put switch (4) in OFF position, connect USB cable (8) to a proper USB charger and to connector (6). Wait one minute before starting again operation. HOW TO USE

• Keeping off the unit, mount one of the supplied combs (7). Choose the attachment depending on the length you wish to obtain (3, 6, 9, 12 mm).
• If you want to obtain a shorter cut, between 0.8mm and 2mm, use the clipper without any comb (7). If so, set the cutting height using the regulator (3).
• Turn on the clipper by setting one of the 2 speeds with the ON/OFF button (4) and start cutting.
• Once finished cutting operation, turn off the device using the power button (4), remove any comb and store the clipper and its accessories out of the reach of children.

RECHARGING

When you first use the product fully charge it, leaving it connected for at least 2.5 hours.

To recharge, connect the USB cable (8) to a suitable USB socket (PC, USB charger, power bank....) and into the connector on the rear of product (6). During charging, the charge indicator (5) indicates the current level, and the battery symbol flashes. At the end, the level is 100 and the battery symbol remains on steady.

The following measures will preserve the battery life.

At first use the product fully charge the product, leaving it connected for at least 2.5 hours. Before you recharge, completely discharge the battery.

When the unit is not in use for a long period (2 months), it is recommended to let it charge for about 2.5 hours before using. In any case it is advisable to fully discharged the battery before recharging. If the appliance, even after a recharge, works only if it is connected to the cable, it is possible that the battery is no longer capable of delivering enough power to the unit. In this case, please contact an authorized service center.

MAINTENANCE AND CLEANING

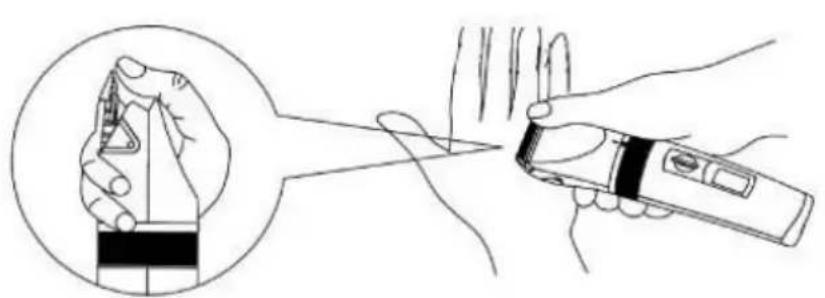

After each cut, always clean used comb (7) and cutting blade (1) by blowing over them or using the small brush (9). Periodically lubricate the blade by following the steps below. Open the blade set (11), pushing the blade as shown in figure below. Remove remaining hair by blowing or using the small brush (9).

Line drawing showing a hand holding a tool with a magnified inset of the grip (no text or symbols)

Mechanical assembly diagram showing hands assembling components with a tool and magnified detail (no text or labels)

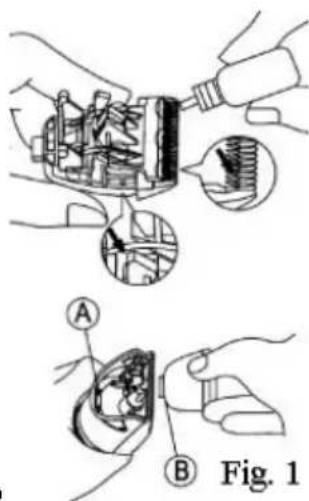

Use lubricating oil (10) for the blade. 2 or 3 drops are enough if this operation is carried out frequently.

As shown in the figure, two points must be lubricated with oil:

Put 1-2 drops on the blade (white ceramic). Put 1-2 drops on the driveshaft joint.

Use only the provided oil or similar oil without acids.

Replace the blade set (11) by following the next steps:

- Insert the tab (B) in the joint (A), as shown in fig. 1.

- Push the door (2) towards the clipper body until it clicks in position (fig. 2)

Clean the main body by using a soft damp cloth, never immerse the unit in water or other liquids.

A B Fig. 1

TECHNICAL FEATURES

- Input DC 5V - 1000mA

• Cutting height adjustment - Ceramic cutting blade, titanium fixed blade

• Litium battery, 3.7V - 2000mAh, charging 2.5 hours, lasting 3 hours

• Accessories: 4 combs, USB cable, lubricating oil, small brush

Fig. 2

PORTUGUÊS: ADVERTÊNCIAS

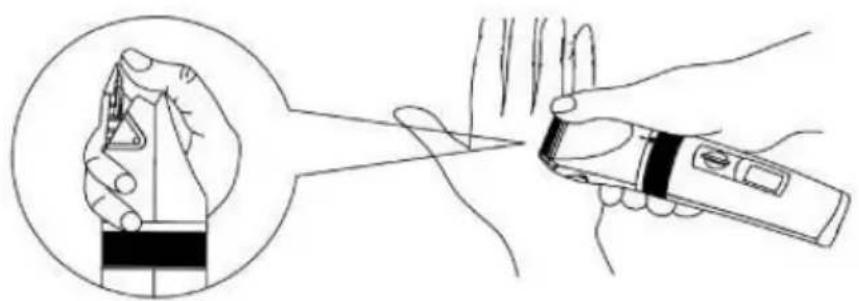

Illustration of a hand holding a pen and a handheld device, with no visible text or symbols

Technical diagram showing mechanical assembly steps with labeled parts A and B, including a magnified inset view of internal components.

Illustration of hands assembling mechanical components with magnified insets (no text or symbols)

Illustration of a hand holding a handheld device with a magnified inset showing a close-up of the hand's face (no text or symbols present)

A B Fig. 1

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Fig. 2

CARACTERISTICAS TECNICAS

- DC 5V - 1000mA

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.
