Product type	Multifunction food processor
Brand	Tefal
Model	Store'Inn DO303E
Number of speeds	2 speeds + Pulse (intermittent operation)
Main functions	Knead, mix, chop, blend, slice, grate, french fry cutter, emulsify, citrus press, grind
Kneading capacity (heavy dough)	Up to 1 kg
Kneading capacity (special dough)	Up to 800 g
Mixing capacity (light dough)	Up to 1.2 kg
Chopping capacity	Up to 600 g
Blending capacity	Up to 1 liter
Citrus press capacity	Up to 1.2 liters
Included accessories	Multifunction knife, emulsifier disc, 4 vegetable cutting cartridges (fine grating, fine slicing, coarse grating, thick slicing, reibekuchen/Parmesan, french fry cutter), citrus press, blender bowl, grinder
Bowl material	Stainless steel (main bowl), plastic (blender bowl)
Safety	Bowl and lid locking, sharp knife handle with care
Cleaning	Dishwasher-safe accessories; motor unit wiped with damp sponge
Storage	Integrated drawer for multifunction knife and cartridges
Motor outlet types	Slow outlet and fast outlet

Frequently Asked Questions - Store'Inn DO303E TEFAL

How to lock the bowl and lid?

Place the bowl on the motor unit and turn it to the right to lock it. Place the lid on the bowl and push it to the right into the handle to lock it. The bowl must be locked before the lid.

Which speed to use for kneading?

For kneading, use speed 2 (continuous operation). You can knead up to 1 kg of heavy dough (white bread) in 60 seconds, or 800 g of special dough.

How to chop meat?

Use the multifunction knife at speed 2 or Pulse position for better control. You can chop up to 600 g of raw or cooked meat, boneless and diced.

How to use the citrus press?

Assemble the citrus press set: bowl, driver, basket and cone. Use speed 1. Rinse the basket every 0.2 L. You can get up to 1.2 L of juice without emptying the bowl.

The food processor does not start, what to do?

First check the power connection of the appliance. Make sure each accessory is properly locked (bowl and lid). If the problem persists, contact an authorized service center.

How to clean the blades?

Unplug the appliance. Handle the blades with care as they are very sharp. Rinse the accessories quickly after use, then wash them by hand or in the dishwasher. For the blender bowl, pour warm soapy water and give a few pulses.

Can I put the accessories in the dishwasher?

Yes, all accessories (bowls, lids, knife, cartridges, etc.) are dishwasher safe. The motor unit must not be immersed, clean it with a damp sponge.

What is the maximum capacity of the blender bowl?

Do not exceed the indicated maximum level: 1 L for thick mixtures, 0.8 L for liquids. Never pour boiling liquid and do not use the blender bowl for dry products.

How to store the accessories?

Use the integrated storage drawer located in the motor unit to store the multifunction knife and up to 4 vegetable cutting cartridges. Do not store the appliance in a humid environment.

Where to find spare parts?

You can purchase accessories (vegetable cutting cartridges, blender bowl, grinder, etc.) from your usual retailer or an authorized service center (list in the service booklet).

USER MANUAL Store'Inn DO303E TEFAL

Line drawing of two kitchen food appliances with side blades and control knobs (no text or symbols)

Diagram of a blender with labeled parts and directional arrows indicating process flow

3 4

fig.1afig.1b

1 2

fig.2afig.2bfig.2c

3 4

Diagram of a blender with crossed-out black lines indicating no text or symbols (no readable text or labels)

1 2 3 4 5

fig.3fig.4a

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

1 2 3 4 5

fig.4b

Diagram of a mechanical device with a central rotating shaft and two circular components, showing no text or symbols.

fig.5afig.5c

Diagram of a mechanical gear assembly with a central shaft and crossbar, enclosed in a circle (no text or symbols)

fig.5b

1 2 3 4 5

1 max 2

1 2 3 4 5 6

fig.7fig.6

Diagram of a robotic device with a hand operating the base, showing mechanical components and a circular outline (no text or symbols)

fig.8

b Ensemble bol hachoir

g Support cartouches

h Bol mixer

• Ensemble presse-agrumes (i).
• Bol (b3).

The accessories contained in the model that you have purchased are shown on the label on the sid packaging.

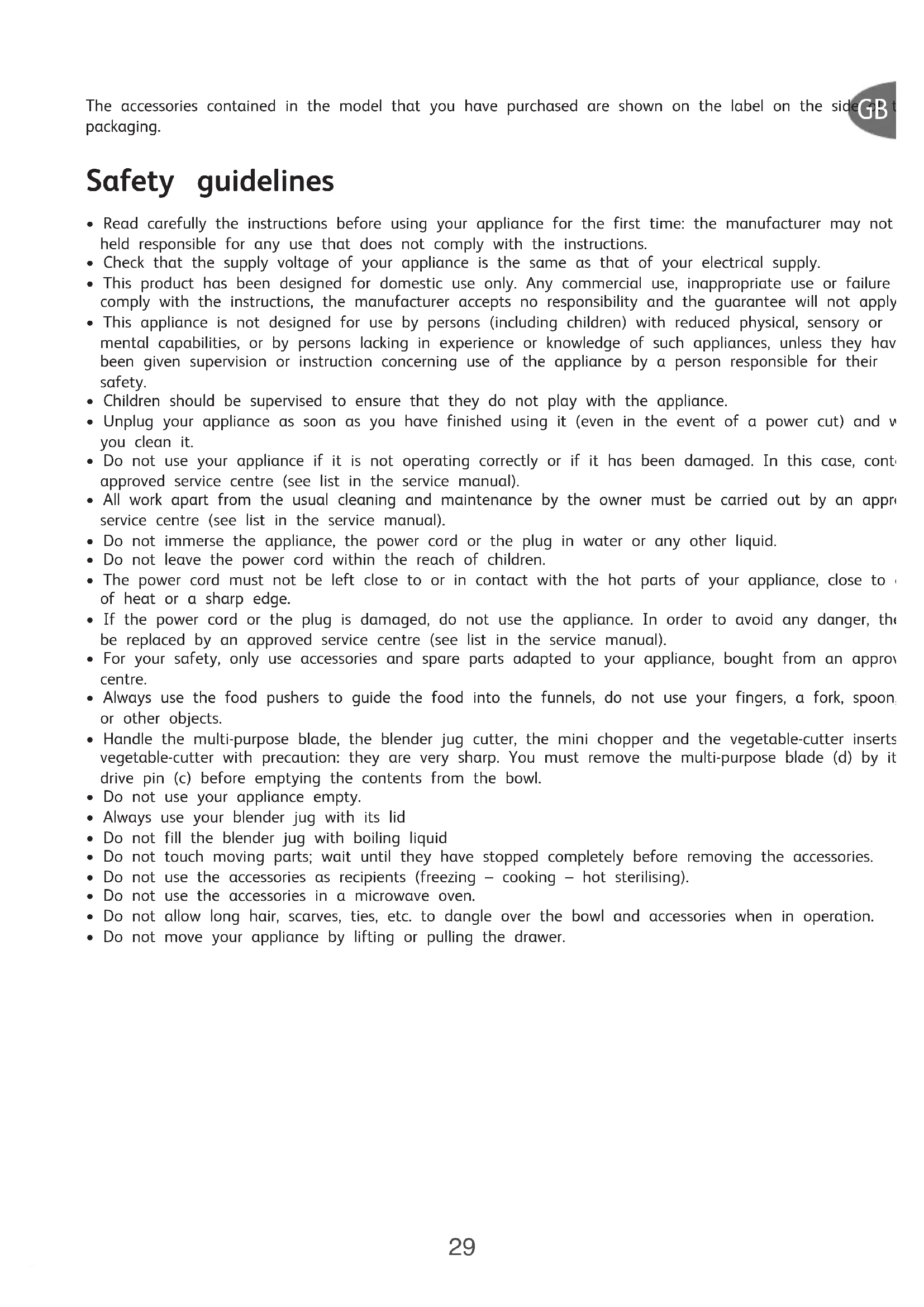

Safety guidelines

- Read carefully the instructions before using your appliance for the first time: the manufacturer may not hold responsible for any use that does not comply with the instructions.

- Check that the supply voltage of your appliance is the same as that of your electrical supply.

- This product has been designed for domestic use only. Any commercial use, inappropriate use or failure comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply

- This appliance is not designed for use by persons (including children) with reduced physical, sensory or mental capabilities, or by persons lacking in experience or knowledge of such appliances, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Unplug your appliance as soon as you have finished using it (even in the event of a power cut) and v you clean it.

- Do not use your appliance if it is not operating correctly or if it has been damaged. In this case, cont approved service centre (see list in the service manual).

- All work apart from the usual cleaning and maintenance by the owner must be carried out by an appr service centre (see list in the service manual).

- Do not immerse the appliance, the power cord or the plug in water or any other liquid.

- Do not leave the power cord within the reach of children.

- The power cord must not be left close to or in contact with the hot parts of your appliance, close to of heat or a sharp edge.

- If the power cord or the plug is damaged, do not use the appliance. In order to avoid any danger, there be replaced by an approved service centre (see list in the service manual).

- For your safety, only use accessories and spare parts adapted to your appliance, bought from an approv centre.

- Always use the food pushers to guide the food into the funnels, do not use your fingers, a fork, spoon or other objects.

- Handle the multi-purpose blade, the blender jug cutter, the mini chopper and the vegetable-cutter inserts vegetable-cutter with precaution: they are very sharp. You must remove the multi-purpose blade (d) by it drive pin (c) before emptying the contents from the bowl.

- Do not use your appliance empty.

• Always use your blender jug with its lid

- Do not fill the blender jug with boiling liquid

- Do not touch moving parts; wait until they have stopped completely before removing the accessories.

- Do not use the accessories as recipients (freezing – cooking – hot sterilising).

- Do not use the accessories in a microwave oven.

- Do not allow long hair, scarves, ties, etc. to dangle over the bowl and accessories when in operation.

- Do not move your appliance by lifting or pulling the drawer.

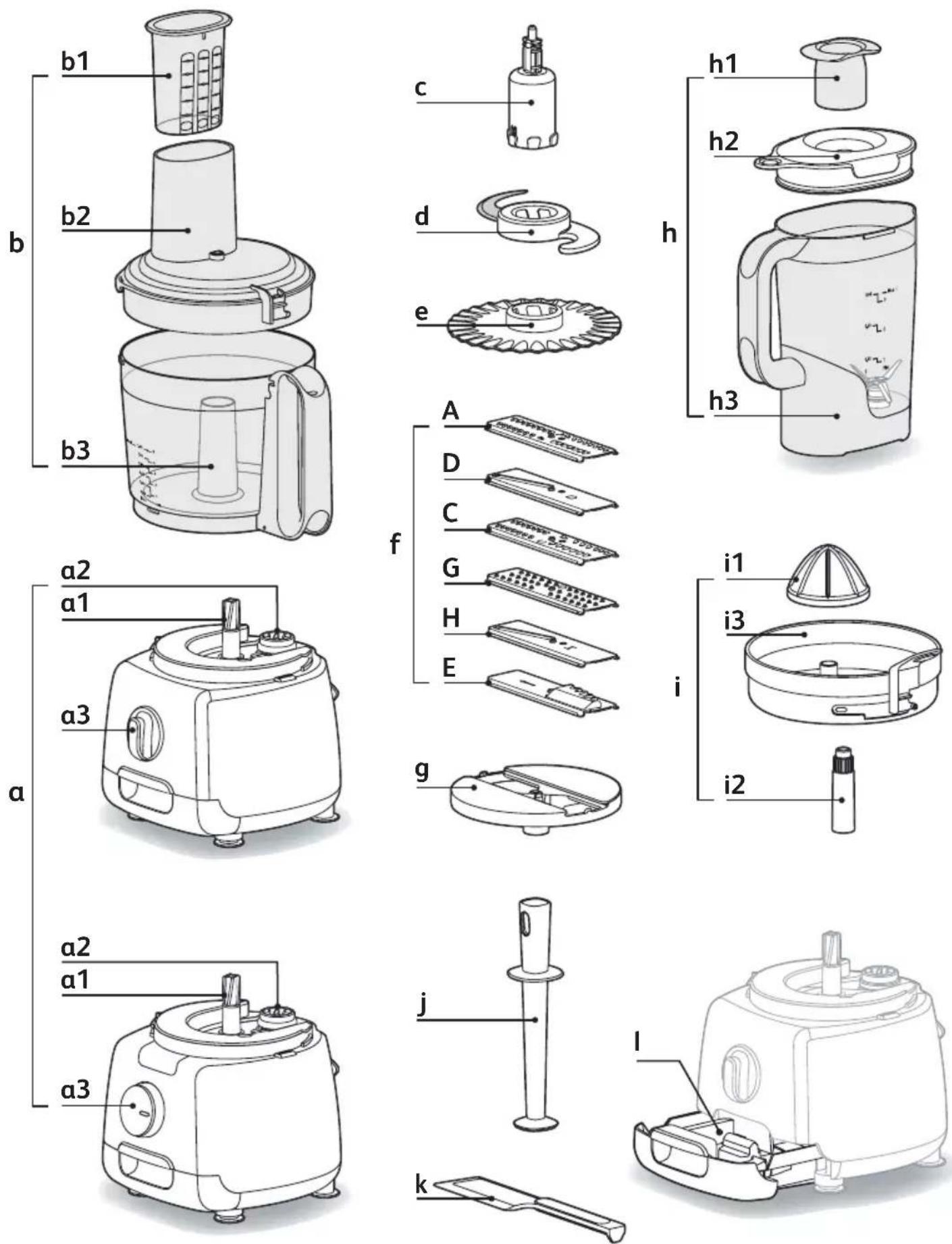

a Motor unit

a1 : Motor unit slow speed
a2 : Motor unit fast speed
a3 : Speed selector: Pulse position (intermittent operation) -0-1-2

b Chopping bowl assembly

b1 : Food pusher with measuring guide
b2 : Funnel lid
b3 : Bowl

C Drive pin

ACCESSORIES DEPENDING ON MODEL:

d Multi-purpose blade

e Emulsifying disk

f Vegetable cutter inserts

g Insert supports for vegetable cutter inserts

h Blender jug

• Before using for the first time, wash all parts of the accessories in hot soapy water (see cleaning parag Rinse and dry.
• Place the motor unit (a) on a flat, clean and dry surface.
• Plug in your appliance.
• Pulse (intermittent operation): turn the kash to the pulse position, pressing successively for better control of certain preparations.
• Continuous operation: turn the kn(03) to position 1 or 2.
• Stop: turn the knob (a3) to position 0.
  The paragraphs are numbered to match the numbering of the illustrations.

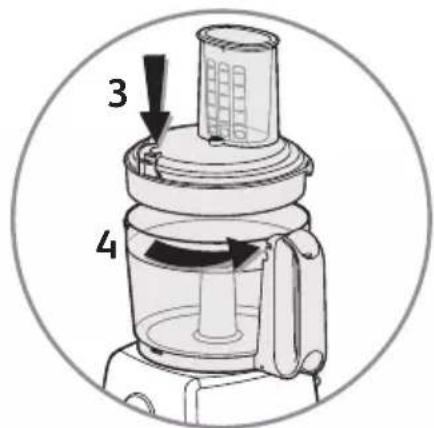

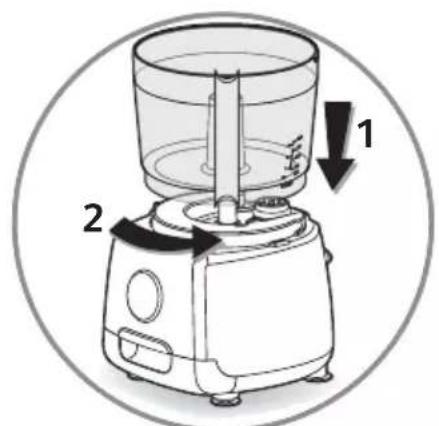

1 : Fitting the chopping bowl and the lid

ACCESSORIES USED:

- Bowl assembly(b).

FITTING THE ACCESSORIES:

• Fit the bow(b3) onto the motor unit (a), with the bowl handle aligned with the corner on the front right hand side.
• Lock the bow(b3) by turning it towards the right.
• Fit the lid (b2) onto the bowl (b3). Lock the lid in place by pushing it towards the right of the bowl handle.
  The bowl must be locked onto the motor unit (a) before locking (b) to the bowl (b3).

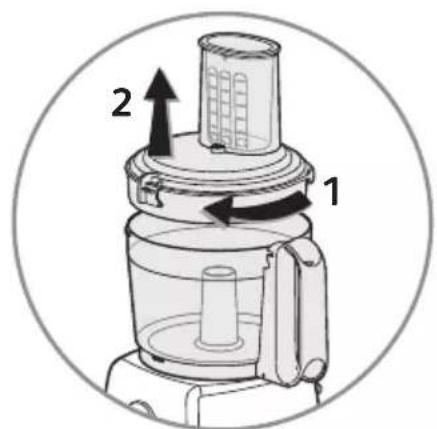

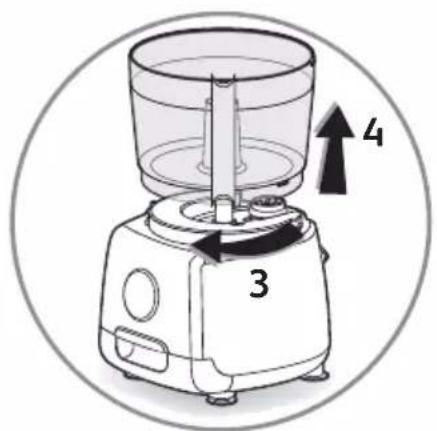

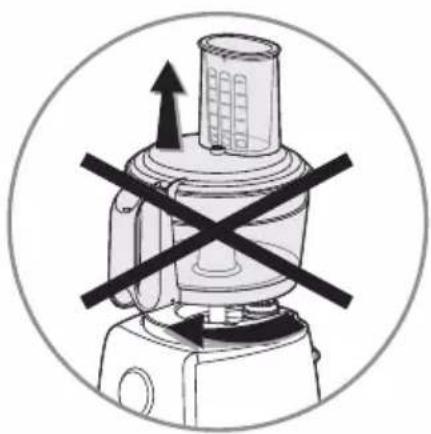

2 : Removing the chopping bowl and the

• Release the lid by turning it in a clockwise direction to free it from the bowl handle. You can then lift remove it.
• Release the bowl by turning it in a clockwise direction.

- It is only now that you can lift and remove the bowl from the motor unit.

3 : Mixing/chopping/kneading-

ACCESSORIES USED:

• Bowl assembly (b).
• Drive pin (c).
• Multi-purpose bladed).

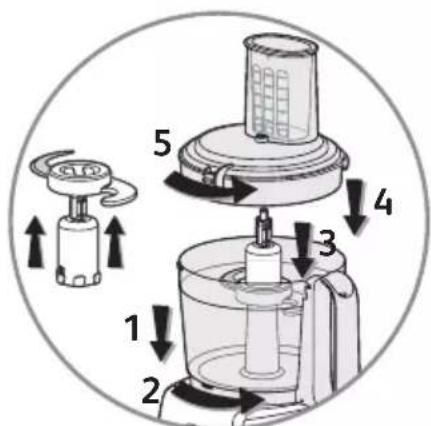

FITTING THE ACCESSORIES:

• Fit the bow(103) onto the motor unit (a) and lock it in place.
• Slide the multi-purpose blade) onto the drive pin (c), and position this assembly on the motor unit drive (a1).
• Place the ingredients in the bowl.
• Fit the lid (b2) and lock it onto the bowl (b3).
• To remove the bowl-lid assembly: release the lid then release the bowl.

KNEADING/MIXING:

- Turn the speed selector(3) to position 2 to start.

You can knead up to:

• 1 kg of heavy pastry, such as: white bread dough, short crust pastry, etc. in 60 seconds.
• 800 g of special bread dough such as: rye bread, wholemeal bread, multi-grain bread, etc. in 60 sec You can mix up to:
• 1.2 kg of light mixture, such as: biscuits, sponge cake, etc. in 1 min 30 to approximately 3 minutes. You can also mix up to 1 litre of pancake or waffle batter etc. in 1 min to 1 min 30.

CHOPPING:

- Turn the speed selector3) to position 2 to start, or for better chopping control, choose the pulse positio. You can mince up to 600g of food such as:

. raw or cooked meat (boned, gristle removed and cut into cubes).
. raw and cooked fish (without skin or bones).
. hard foods: cheese, dried fruits, certain vegetables (carrots, celery, etc.).
. soft foods: certain vegetables (onions, spinach...).

BLENDING:

- Turn the speed selector(3) to position 2 to start. You can mix up to 1 litre of broth, soup or stewed fruit in 45 seconds.

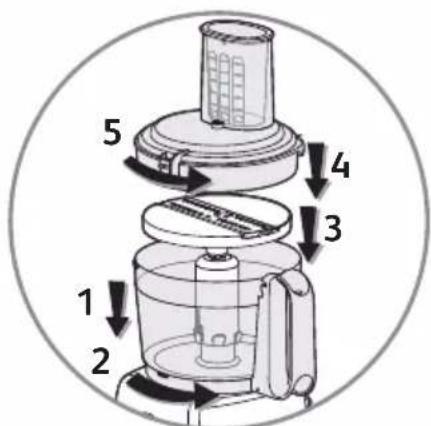

4 : Grating/slicing

ACCESSORIES USED:

• Bowl assembly(b).
• Drive pin (c).
• Appropriate insert (f) (depending on model).
• Insert support (g).

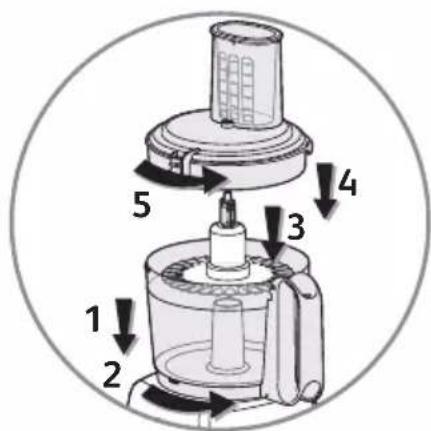

FITTING THE ACCESSORIES:

• Fit the bow(13) onto the motor unit (a) and lock it in place.

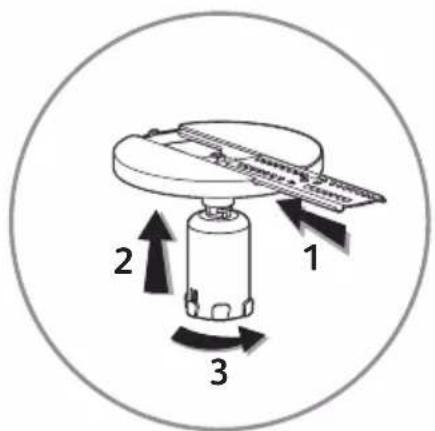

• Fit the chosen insert(f) into the insert support (g), push the drive pin (c) as far as possible through the insert (f), and lock the assembly, then fit it onto motor (a1).
• Fit the l(d2) and lock it onto the bowl (b3).
• To remove the bowl-lid assembly: release the lid, then release the bowl.

Ensure that the metal drive pin (c) is inserted into the centre of the lid (b2).

GB

STARTING AND TIPS:

• Insert the food into the lid funnel and guide it with the food pusher
• Turn the speed selector (a3) to position 1 to slice or position 2 to grate.

You can prepare with the inserts (depending on model):

. coarse grating(C)/fine grating (A): celeriac, potatoes, carrots, cheese...
. thick slicing (H)/fine slicing (D): potatoes, onions, cucumbers, beetroot, apples, carrots, cabbage...
. chip cutter (E): French fries...
. reibekuchen / Parmesan disk (G): parmesan, coconut...

5 : Emulsifying/beating/whisking

ACCESSORIES USED:

• Bowl assembly (b).
• Drive pin (c).
• Emulsifying diske).

FITTING THE ACCESSORIES:

• Fit the bow(b3) onto the motor unit (a) and lock it in place.
• Slide and lock the emulsifying disk (e) the right way up onto the drive pin (c), and fit the assembly onto the motor unit drive.
• Place the ingredients in the bowl.
• Fit the lid (b2) and lock it onto the bowl (b3).
• To remove the bowl-lid assembly: release the lid then release the bowl.

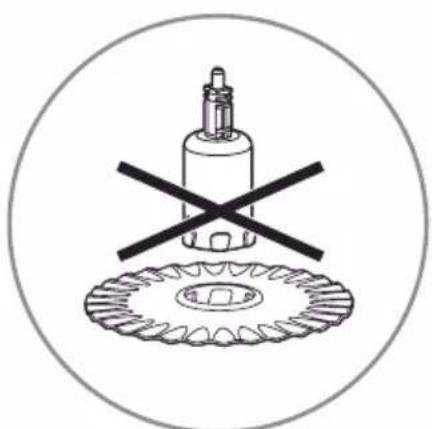

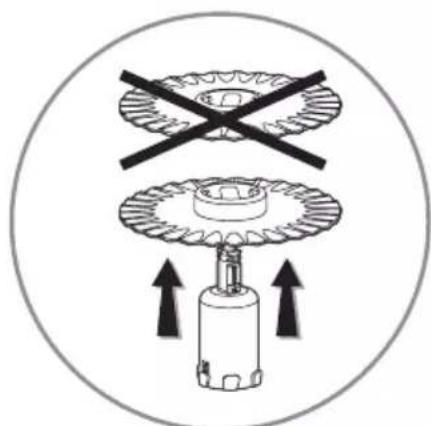

Fit the emulsifying

disk the right

way up:

see illustration 5.

STARTING AND TIPS:

• Turn the speed selector ^3 to position 2 to start.
• Do not use this accessory to knead heavy pastry or mix light pastry.

You can prepare: mayonnaise, aioli, sauces, egg whites (1 to 6), whipped cream, Chantilly cream (up to 0. litres).

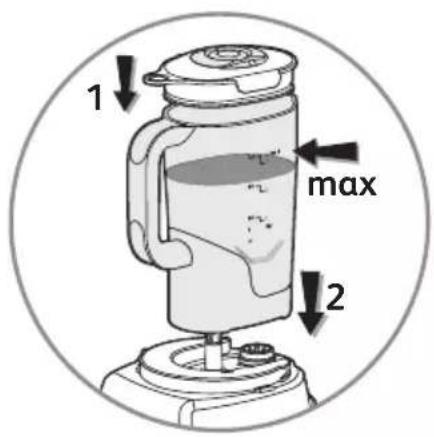

6 : Homogenising/mixing/fine blending (depending on model)

ACCESSORIES USED:

• Assembled blender jugh.
• Blender stick (j) (depending on model)

FITTING THE ACCESSORIES:

• Place the ingredients inside the blender(jug) below the maximum level line on the jug.
• Fit the lid (h2), equipped with the measuring cap (h1), and lock it in place on the jug.
• Place the jug assembly (h) onto the motor unit drive (a2), with the blender jug handle facing you.
• Wait until the food processor has stopped completely before removing the blender jug from the motor

STARTING AND TIPS:

• Turn the speed selector(3) to position 1 or 2 to start.
  You can use the pulse position, for better control of the mixture.
• Do not fill the blender jug with boiling liquid.
• Do not use the blender jug to grind dry foods (walnuts, almonds, peanuts...).
  • Always use your mixer bowl with its lid.
• Always pour liquid ingredients first into the jug before adding the solid ingredients, below the maximum capacity:

- 1 l for thick mixtures.

- 0.8 l for liquid mixtures.

- To add ingredients when blending, remove the measuring (bap) from the lid and pour the ingredients

through the filling hole, and do not fill above the maximum filling line on the jug. Maximum operating time: 3 min.

Tips:

• When blending, if some ingredients stick to the sides of the jug, stop the appliance and unplug it. Rem blender jug assembly from the appliance. Using the spatula, push the preparation onto the blade. Do no your hands or fingers inside the bowl or close to the blade.
• The blender stick) allows you to homogenise and process your preparations (especially thicker ones) inside the blender jug. Insert the stick through the centre hole of the blender jug lid (h2). When operating, push the food towards the blades using the stick.
• Do not use the stick (j) without the lid otherwise it will touch the blades.

You can:

• prepare finely blended broths, veloutés, soups, stewed fruit, milk-shakes, smoothies, cocktails.
• mix all kinds of batters (pancakes, doughnuts, clafoutis).

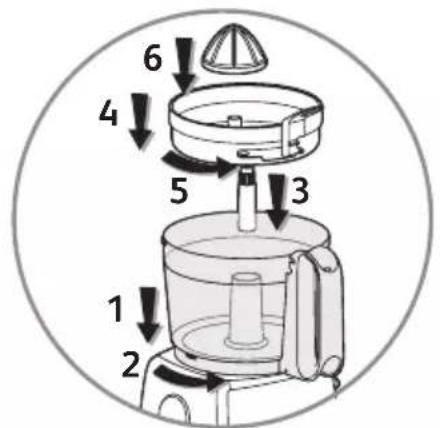

7 : Juice fruits (depending on mod

ACCESSORIES USED:

• Fruit juicer assembly (I).
• Bowl(b3).

FITTING THE ACCESSORIES:

• Fit the bow(b3) onto the motor unit (a) and lock it in place.
• Slide the drive p(in2) onto the motor unit drive (a1).
• Place the basket (i3) onto the bowl and lock it in place.
• Fit the cone (i1) onto the basket funnel (i3).
• To remove the fruit juicer assembly: release the basket (i3) then the bowl and you can then remove the assembly from the motor unit.

STARTING AND TIPS:

• Cut the fruit in half and hold in place on the cone (i1).
• Turn the speed selector (a3) to position 1 to start.
  You can get up to 1.2l of fruit juice without emptying the bowl.
• Caution: you must rinse the basket every 0.2l.

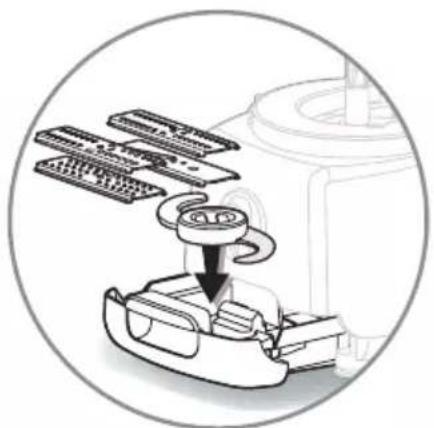

8 : Storage of the accessories

• Your food processor has a built-in storage drawer (l) where you can place the multi-purpose blade (d), and the 4 vegetable cutter inserts (f).
• After putting the accessories inside, slide the storage drawer (l) inside the motor unit (a).

9 : Finely chopping small quantitie (depending on model)

ACCESSORIES USED:

• Chopping assembly.
  With the chopping, you can :
• Finely chop in seconds: dry apricots, dry figs, cored prunes:
  quantity/maximum time: 50g/6 seconds.

Cleaning

• Unplug the appliance.
• To make cleaning easier, rinse the accessories each time after use.

GB

• Wash and dry the accessories: they are dishwasher proof.
• Pour hot water with a few drops of washing up liquid into the blender, Julge the lid (h2), with the measuring cap (h1) fitted. Press the pulse button a few times. Unplug the appliance. Rinse the jug.
• Do not immerse the motor unit (a) in water, or place it under running water. Wipe it with a damp sponge.
• The blades of the accessories are very sharp. Handle them with precaution.

Tip: If your accessories are stained by food (carrots, oranges...), wipe them with a cloth soaked with cook then clean as usual.

Storage

• Do not store your food processor in a damp place.
• Use the storage drawer to store the multi-purpose blade (d) and up to 4 vegetable-cutter inserts (f).

If your appliance will not operate, what should you do?

- If your appliance will not operate, check:

• that your appliance is plugged in correctly.
• that each accessory is locked in place correctly.

- If your appliance will still not operate, contact an approved centre service (see list in the Service manual)

Disposal of packaging materials and the appliance

- The packaging only contains materials that are harmless to the environment that may be disposed of according to recycling standards.

To scrap off your appliance, contact the appropriate department of your local council.

Disposal of electronic or electrical products

Help protect the environment!

Your appliance contains many materials that may be recycled or recovered.

Take it to a local civic waste collection centre to be processed.

Accessories

- You can customise your appliance with the following accessories, which may be purchased from an appr service centre:

- Vegetable cutter inserts

A: fine grater
D: fine slicer
C: Coarse grater
H: Thick slicer
G: Reibekuchen / Parmesan disk
E: Chip cutter

• Mini chopper
• Blender jug
• Blender stick
• Fruit juicer

A few basic recipes

GB

White bread dough

500 g white bread making flour - 300 g warm water - 2 sachets of baker's yeast - 10 g salt.

In the food processor bowl equipped with the multi-purpose blade, add the flour, salt and yeast.

Operate at speed 2, and in the first few seconds, add the warm water through the lid funnel. As s the dough forms a ball (after about 60 secs), stop the food processor. Leave the dough to rise in place, until it has doubled in volume. Then work the dough to shape it, and then place it on your and floured baking tray. Leave it to rise again. Preheat French Electric oven to Th.8 (240°). As soon bread has doubled in volume, place it in the oven, and lower the temperature to Th.6 (180°). Leave for 30 to 40 min. At the same time, in the oven, add a glass of water to help form the crust on For the UK only

Use strong bread flour. Substitute 1 sachet of bakers yeast with 1 teaspoon of Easy Bake or Fast A dried yeast and add to the bowl with the flour, before adding the water. After processing, shape the dough into a ball and then leave to rise for about 1 hour in a warm place until doubled in size. S cook as directed above. Cook using UK gas mark 9 and then reduce to UK gas mark 4.

Pizza dough

150 g white bread making flour - 90 ml warm water - 2 tablespoons of olive oil - 12 sachet of b salt.

In the food processor bowl equipped with the multi-purpose blade, add the flour, salt and yeast.

Operate at speed 2, and in the first few seconds, add the warm water and olive oil through the lid. As soon as the dough forms a ball (after about 15 to 20secs), stop the food processor. Leave the to rise in a warm place, until it has doubled in volume. Preheat French Electric oven to Th.8 (240°). the dough and add the garnish: tomato purée and onions, mushrooms, ham, mozzarella, etc. Add a anchovies and black olives if you wish, sprinkle with a little oregano and grated cheese, and pour a drops of olive oil over it. Place the pizza on your buttered and floured baking tray. Put in the oven to 20 min, watching as it cooks.

For the UK only

Use strong bread flour. Substitute half sachet of bakers yeast with half teaspoon of Easy Bake or F Action dried yeast and add to the bowl with the flour, before adding the water. After processing, p and cook as directed above or using UK gas mark 9.

Short crust pastry

280 g flour - 140 g pieces of softened butter r - 70 ml water - a pinch of salt

In the food processor bowl equipped with the multi-purpose blade add the flour, salt and the butter. Operate at speed 2 for a few seconds, then add the water through the lid funnel. Let it run until it has formed a ball (25 to 30 secs). Leave it to rest in a cool place for at least 1 hour, before rolling and cooking it with the ingredients of your choice.

Pancake batter

(in food processor bowl equipped with the multi-purpose blade, or in the blender jug)

160 g flour - 1/3l milk - 2 eggs - ½ teaspoon fine salt - 2 tablespoons oil - 15 g sugar (option) (depending on your taste)

In the food processor bowl equipped with the multi-purpose blade, add all of the ingredients:

Operate at speed 1 for 20 secs, then switch to speed 2 for 25 secs.

In the blender jug, add all of the ingredients except the flour. Operate at speed 2, and after a few progressively add the flour, through the centre hole of the blender jug lid, then mix for 45 secs.

200 g plain flour - 1 sachet of baking powder - 200 g pieces of softened butter - 200 g caster s 4 whole eggs - ½ sachet or 1½ tsp baking powder - 1 pinch of salt

In the food processor bowl equipped with the multi-purpose blade, add all of the ingredients. Opera at speed 2 for 2 12 min. Preheat the oven to French Electric oven Th.6 (180°). Place the preparation in a cake tin, then cook for about 1 hour.

Spice cake

200 g plain flour – 100 g pieces of softened butter – 100 g caster sugar – 4 eggs – 60 ml milk – of liquid honey – 1 packet baking powder – 1 teaspoon ground cinnamon – 1 teaspoon ground ginger – 1 teaspoon grated nutmeg – 1 grated orange rind – 1 pinch of pepper.

In the food processor bowl equipped with the multi-purpose blade, add all of the ingredients. Select 2 and operate for 2 mins. Place in a buttered and floured baking tin, and cook for about 50 min Electric oven Th 6 (180°C).

Serve warm or cold with stewed fruit or marmalade.

Moist chocolate cake

5 eggs, 200 g caster sugar, 3 tablespoons plain flour, 200 g melted butter, 200 g chocolate, 3 levels baking powder, 100 ml milk.

Melt the chocolate in a bain-marie, or in a bowl over a pan of simmering water, with 2 tablespoons water. Add the butter and stir until the mixture is thoroughly mixed.

In the food processor bowl equipped with the multi-purpose blade, add the sugar and the eggs and operate at speed 2 for 45 secs so that the mixture becomes frothy. Without stopping the food pro through the funnel in the lid, add the melted chocolate, flour, baking powder and milk. Operate for Pour into a buttered tin and cook for around 1 hour, at French electric oven Th5/6 (160°C).

Chantilly Cream

200 ml of very cold, fresh liquid UHT cream, 30 g icing sugar.

The bowl must be very cold, place it in the refrigerator for a few minutes.

In the bowl equipped with the emulsifying disk, add the fresh cream and the icing sugar. Select spots operate for 40 secs.

Mayonnaise

1 egg yolk, 1 tablespoon of mustard, 1 tablespoon of vinegar, 14 litre of oil, salt, pepper.

In the bowl equipped with the emulsifying disk, add all the ingredients except the oil. Select speed operate for 5 secs, then stop the food processor, pour the oil in very slowly through the lid funnel. the mayonnaise is stiff, it becomes pale in colour.

Attention: to make good mayonnaise, the ingredients must be at room temperature.

Note: keep in the refrigerator and eat within 24 hours.

بتق payable الخضار (f).
