Product type	LED TV
Brand	Continental Edison
Model	CELED2363
Screen Size	24 inches (61 cm)
Dimensions with stand (WxHxD)	563 x 381 x 135 mm
Dimensions without stand (WxHxD)	563 x 344 x 35 mm
Weight with stand	4.10 kg
Weight without stand	3.90 kg
Power Supply	220-240 V AC, 50 Hz
TV Reception	DVB-T (Terrestrial), DVB-C (Cable)
Connectivity	HDMI, VGA, SCART, USB, SPDIF, headphone
Supported USB Formats	MPEG, AVI, MKV, MP4, MP3, JPEG, BMP, SRT
Main Functions	USB recording, time shift, EPG, teletext, parental lock, energy saving mode
Maintenance and Cleaning	Clean with a soft, dry cloth after unplugging the device
Safety	Minimum 10 cm ventilation space around the TV, do not block vents
Spare parts and repairability	Any repairs should be carried out by a qualified technician. Contact the retailer.
General Information	User manual included, remote control provided, AAA batteries not included

Frequently Asked Questions - CELED2363 CONTINENTAL EDISON

How do I install my Continental Edison CELED2363 TV for the first time?

Connect the antenna and power cord. Turn on the TV, select language and country. Follow on-screen instructions to launch automatic channel search. If you are in France, set a 4-digit PIN (default code: 4725).

Why is my remote control not working?

Check that the batteries are inserted correctly (respect + and - polarity). If batteries are discharged, replace them with new AAA batteries. Also try using the buttons on the TV itself.

How do I record a TV program on this TV?

Connect a USB hard drive or USB flash drive (capacity >= 1 GB, speed 2.0) to the USB port of the TV. Turn the TV off and on again to activate the recording function. Use the EPG guide to select the program and press the record button on the remote. The disk format must be FAT32.

The screen displays 'USB too slow', what should I do?

This message indicates that your USB device is not fast enough for recording. Try reformatting the disk to FAT32 via the TV's 'Format disk' menu. If the problem persists, use a faster USB disk (speed 2.0 recommended).

How do I clean my TV screen?

First unplug the TV. Use a soft, dry cloth to gently wipe the screen. Never use liquid or aerosol products, as they could damage the screen.

Can I mount this TV on the wall?

Yes, the TV is compatible with a wall mount (not provided). Make sure to securely attach the TV to the wall according to the mount instructions. It is recommended to connect all cables before mounting.

How can I reduce the energy consumption of my TV?

Enable Energy Saving mode in the Picture menu (set to 'Eco'). This reduces brightness and consumption. Turn off the TV completely (unplug it) when not used for a long period.

Is there a parental lock?

Yes, go to Settings > Parental. You will need to enter your PIN (set during first installation). You can then block certain channels or inputs.

What should I do if the picture quality is poor or ghosting?

Check the orientation of your antenna. Move the TV away from other electronic devices (neon lights, unshielded speakers). Perform a new channel search via the Installation menu. If the problem persists, contact your antenna provider.

How do I update the software of my TV?

Go to Other settings > Software update. Select 'Check for updates'. If an update is available, download it and restart the TV. Do not unplug the device during the update.

USER MANUAL CELED2363 CONTINENTAL EDISON

Safety Precautions 1

Premiere installation 8

Lecture de media via entrée USB. 10

Remarque: While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.

PAL/SECAM B/G D/K K' I/I' L/L

RECEPTION NUMERIQUE

DVB-T MPEG2

DVB-T MPEG4 HD

German + Nicam Stereó

PUISSANCE DE SORTIE AUDIO (WRMS.) (10% THD)

2x2.5

CONSOMMATION ÉLECTRIQUE (W)

50 W (max)

PANNEAU

Safety Precautions 20

Environmental Information 21

Accessories included 22

TV-Features 22

Viewing the TV 22

TV Control buttons & Operation 22

Installing the Batteries to the Remote. 23

Connect Power & Antenna/Cable 23

Viewing remote control 24

Switching On/Off. 26

First Time Installation 26

MediaPlayback via USB Input 28

Changing Image Size: Picture Formats 28

Using the Channel List 28

Menu Features and Functions 29

Menu Features and Functions 30

Menu Features and Functions 31

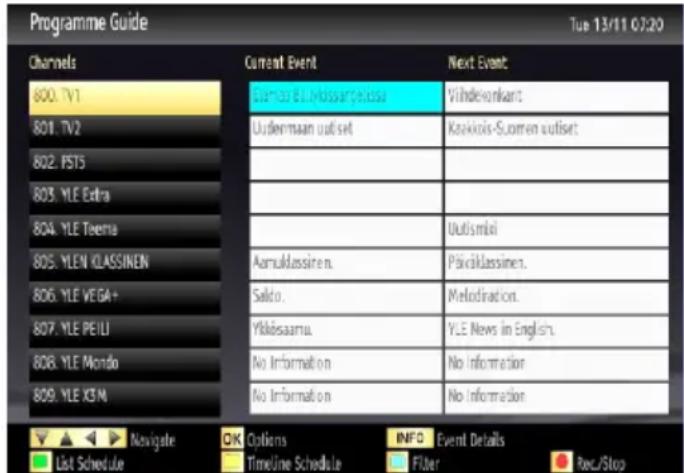

ElectronicProgramme Guide (EPG) 32

Recording a Programme 32

Timeshift Recording 33

Instant Recording 33

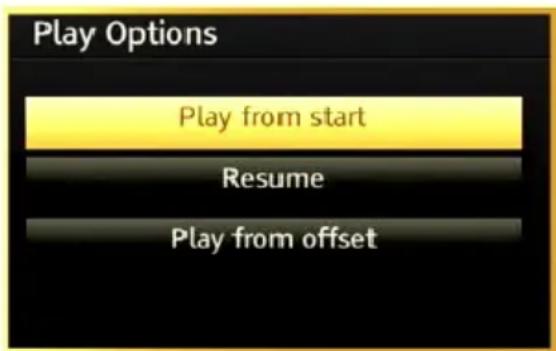

Watching Recorded Programmes 33

Recording Configuration 33

Teletext 33

Software Upgrade 34

Troubleshooting & Tips 34

PC Typical Display Modes 35

Specifications. 36

Supported File Formats for USB Mode 36

Safety Precautions

Please read these instructions fully before installing or operating.

Preparation

Place the device on a solid even surface. For ventilation, leave a free space of at least 10~cm all around the set. To prevent any fault and unsafe situations, do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 5^ up to 45^ , 85% rel. humidity max. (not blocking ventilation openings).

Intended Use

This device is used to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (various external devices). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LED TV in extreme ambient conditions may cause the damage of the device.

WARNING: Never let people (including children) with physical, sensory or mental abilities or lack of experience and/or knowledge unsupervised use electrical device!

Children may not recognize dangers right! The swallowing of batteries can be fatal. Keep batteries always out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging films out of reach of children. Risk of suffocation.

Power source

The TV should be operated only from a 220-240 V AC, 50Hz outlet.
- Warning: Do not leave your TV in standby or operating mode when you leave your house.

Positioning the TV

• For ventilation, please leave a clear space of at least 10cm all around the TV.
• Do not block the ventilation openings.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• To prevent damage to the TV, do not place any objects on top of the TV.
• Only use the TV in moderate climates.

Power cord and plug

• The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.
• The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.
• Do not place the TV, furniture, etc. on the power cord or pinch the cord.
• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with other cords.
• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Moisture and Water

• Do not use this TV in a humid or damp place (avoid bathrooms, the sink in the kitchen, and near the washing machine).
• Do not expose this TV to rain or water, as this may be dangerous.
• Do not place objects filled with liquids, such as flower vases, on top of the TV. Avoid from dripping or splashing.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be blocked or covered in anyway.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.
• The TV should not be placed near to open flames and sources of intense heat such as an electric heater.
• Ensure that no open flame sources, such as lighted candles, are placed on top of the TV.

Headphone Volume

• Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

• To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

LCD Screen

• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
• Take care not to scratch the screen with fingernails or other hard objects.

Cleaning

• Before cleaning, unplug the TV from the wall socket.
• Do not use liquid or aerosol cleaners. Only use a soft, dry cloth.

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture menu. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time. It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use. Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

Accessories included

Remote Control
- Batteries not included.
- Instruction Book

TV - Features

• Fully integrated digital/cableTV (DVB-T/C).
• HDMI connectors for digital video and audio.
• USB input.
  10000 programmes.
• OSD menu system.
• Scart socket for external devices.
• Stereo sound system.
• Teletext, fastext, TOP text.
• Headphone connection.
  Automatic programming system.
• Forward or backward manual tuning.
  Automatic power down after up to six hours.
• Sleep timer.
• Child lock.
  Automatic sound mute when no transmission.
• NTSC playback.
  AVL (Automatic Volume Limiting).
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
  Game Mode (optional).
• Picture off function.

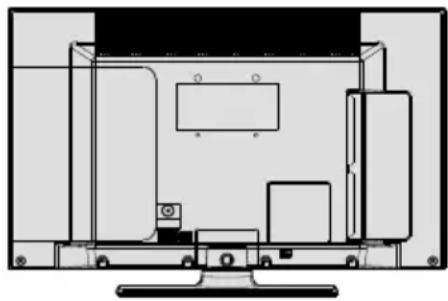

Viewing the TV

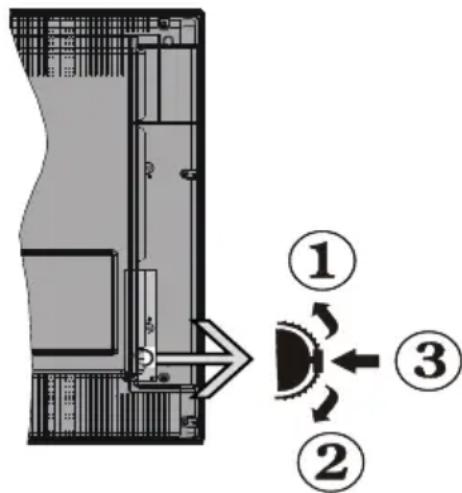

TV Control buttons & Operation

1. Up direction
2. Down direction
3. Programme/Volume/AV/Standby-On selection switch

You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. To select desired source, move the switch upward or downward and release. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via the control button.

Operation with the Remote Control

Press MENU button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right / Up / Down to select or set an item. Press RETURN or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press SOURCE button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the V^ / v and CH^ / v buttons on the remote.

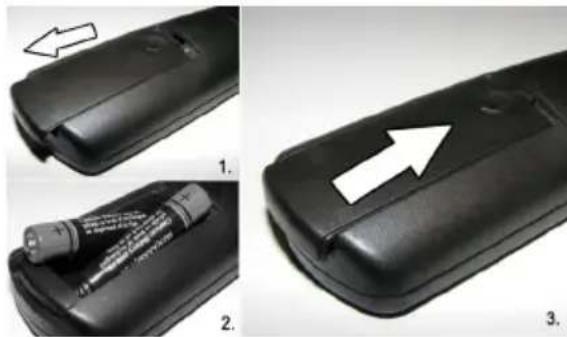

Installing the Batteries to the Remote

1. Lift the cover on the back of the remote upward gently.
2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity.
3. Replace the cover.

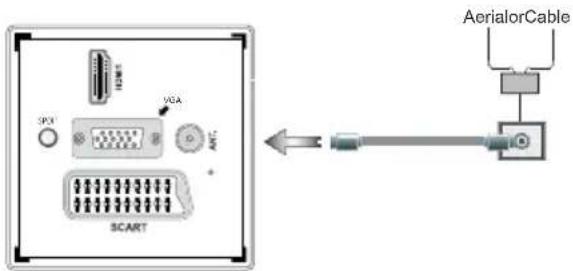

Connect Power & Antenna/Cable

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

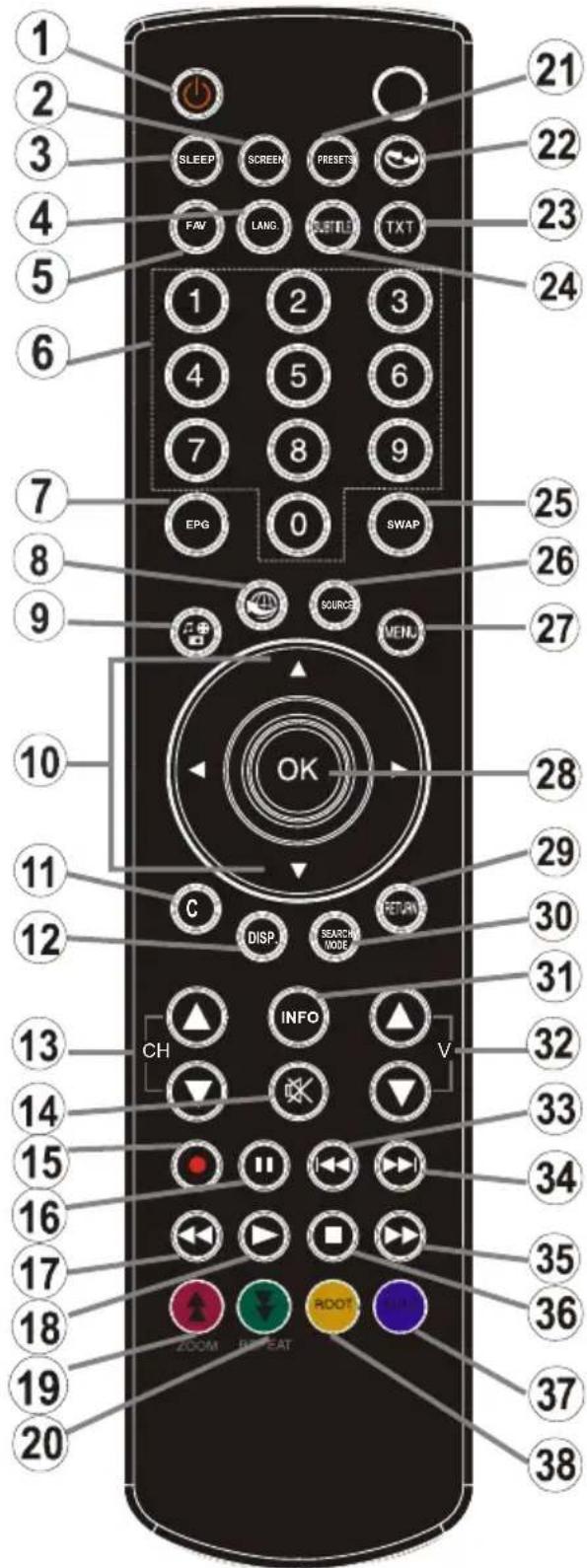

Viewing remote control

1. Standby
2. Image size
3. Sleep Timer
4. Mono/Stereo - Dual I-II / Current Language (*) (in DVB channels)
5. Favourite channels
6. Numeric buttons
7. Electronic programme guide(in DVB channels)
8. No function
9. Media Browser
10. Navigation buttons (Up/Down/Left/Right)
11. No function
12. No function
13. Programme Down / Page up - Programme Up / Page down
14. Mute
15. Programme recording
16. Pause (in Media Browser mode) / Timeshift recording
17. Rapid reverse (in Media Browser mode)
18. Play (in Media Browser mode)
19. Red button
20. Green button
21. Picture mode selection
22. No function
23. Teletext / Mix (in TXT mode)
24. Subtitle on-off (in DVB channels)
25. Previous programme
26. AV / Source selection
27. Menu on-off
28. Okay (Confirm) / Hold (in TXT mode)/ Channel List
29. Exit / Return / Index page (in TXT mode)
30. No function
31. Info / Reveal (in TXT mode)
32. Volume Up / Down
33. No function
34. No function
35. Rapid advance (in Media Browser mode)
36. Stop (in Media Browser mode)
37. Blue button
38. Yellow button

Viewing the Connections

ConnectorTypeCablesDevice
SCart Connection (back)	(not supplied)
VGA Connection (back)	(not supplied)
PC/YPbPrAudio Connection (side)	PCAudioCable (notsupplied)
HDMI Connection (back)	(not supplied)
SPDIFF Connection (back)	(not supplied)
SideAV Connection (side)	AVCable (notsupplied)
Headphone Connection (side)	(not supplied)
USB Connection (side)
CI Connection (side)

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable

connection. See the illustrations above. | To enable PC audio, you will need to use the supplied SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. You can use the VGA input for connecting a YPbPr device. To do this, you need a YPbPr to PC cable (Not supplied).

Switching On/Off

Switching the TV On

With power cord plug connected to the mains power socket, the TV is in 'Standby' mode.

To switch the TV on from standby mode:

Press the " button and the TV will switch to standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:

a. Press the " button,CH /v or a numeric button on the remote control.
b. Press the middle of the " button on the TV. By either method the TV will switch on.

Switching the TV Off

Press the " button on the remote control or press the standby " button, so the TV will switch to standby mode.

To turn off the TV completely, remove the power cord plug from the mains power socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

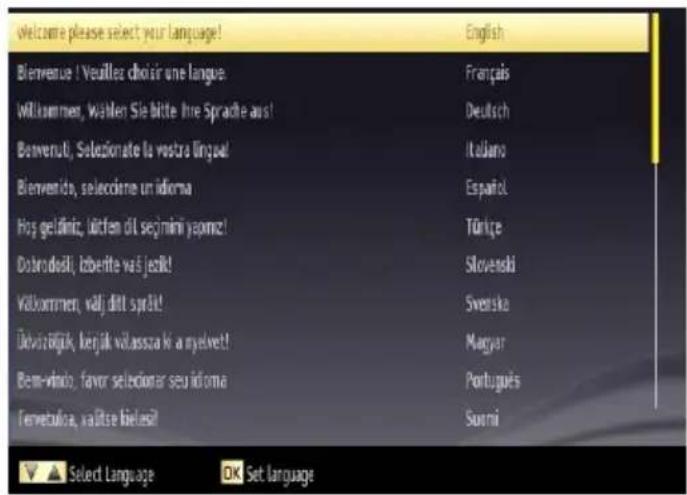

When turned on for the first time, the "language selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

Press the "or" button to highlight the required language, press OK button to select. "First Time Installation" appears. Use or button to set the required country, and press button to select Search Type.

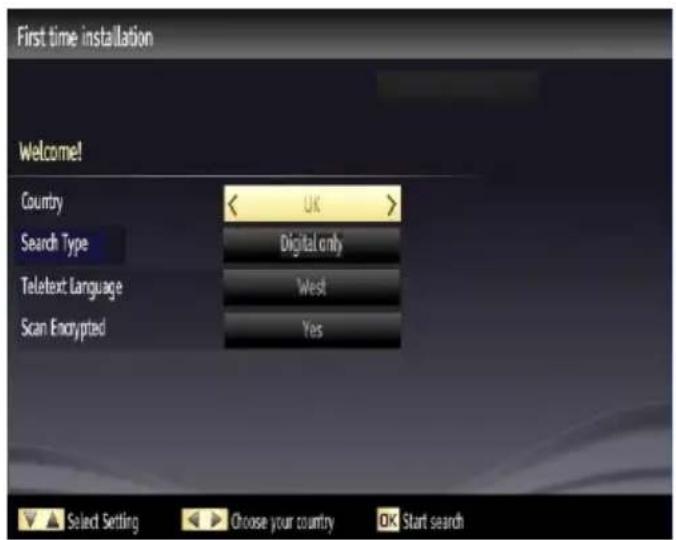

Use "or" to set the desired search type. Available search types are Digital and analog, digital only and analog only.

When set, press "to select Teletext Language. Use "or " to select the desired Teletext Language.

Next, select Scan Encrypted and set as Yes if you want to scan coded stations.

(*) IMPORTANT: When you select Country option as France or Italy, you will be asked to set and confirm a PIN number. Selected PIN number cannot be 0000. Enter a PIN number and confirm it by entering once more. Press OK button to continue. If the two PIN numbers match, your master PIN number will be set.

WARNING: When you are required to enter a PIN number for any menu operation you should use the PIN that you have previously defined during the first time installation. If you have forgotten the PIN number you have set during the first time installation, you should use the master PIN code, 4725.

Press OK button on the remote control to continue and the following message will be displayed on the screen.

You can activate Store mode option by using or button. If Store Mode is selected, Store mode option will be available in other settings menu and your TV's features will be illustrated on the top of the screen. A confirmation screen will be displayed after selecting the Store Mode. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button on the remote control to continue and the following message will be displayed on the screen..

You must select a search type to search and store broadcasts from the desired source.

Aerial Installation

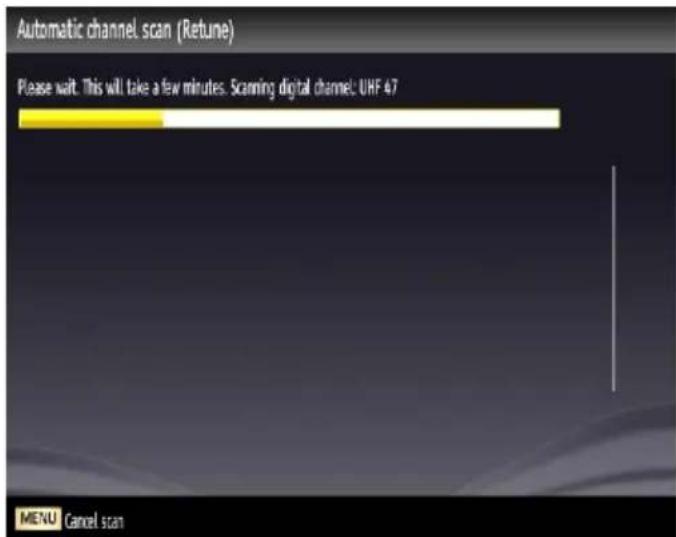

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

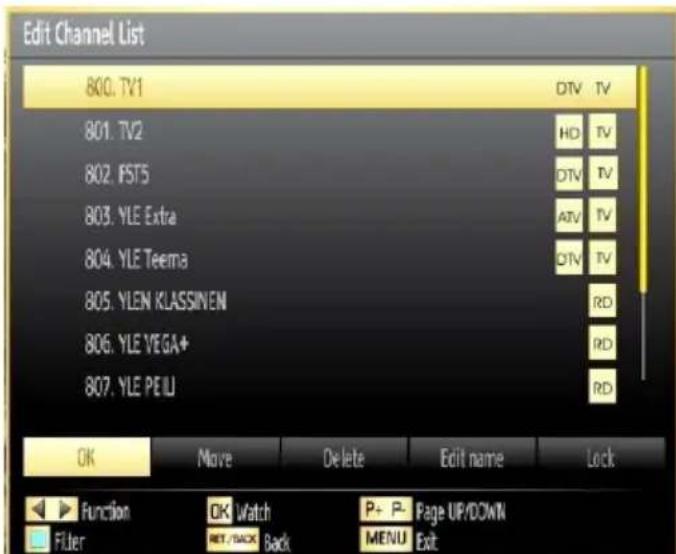

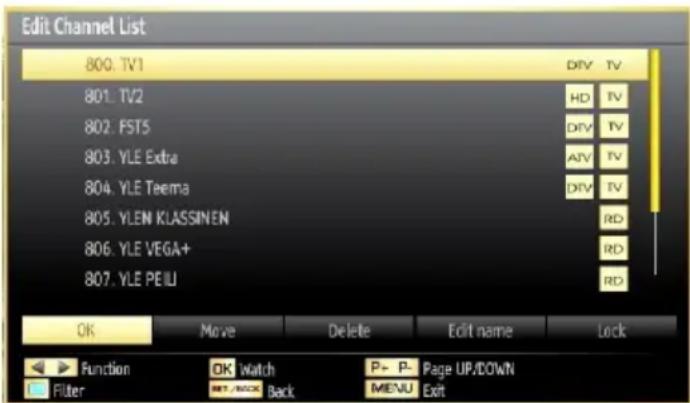

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN (^*) , please select "Yes" and then press OK.

Press OK button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

To continue please select YES and press OK. To cancel operation, select NO and press OK.

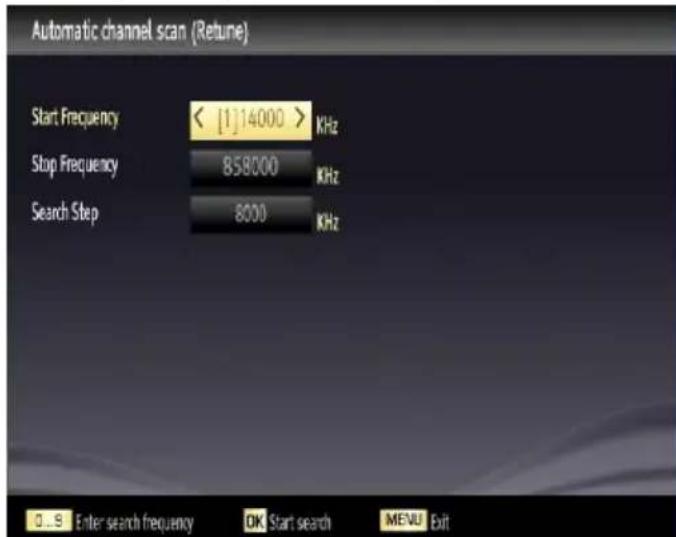

You can select frequency ranges from this screen. For highlighting lines you see, use "▼or" button.

You can enter the frequency range manually by using the numeric buttons on the remote control.

Set Start and Stop Frequency as desired by using numeric buttons on the remote control.

After this operation, you can set Search Step as 8000 KHz or 1000 KHz.

If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

Media Playback via USB Input

You can connect a USB hard disk drive or US memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Connect a USB disk to one of the USB input located on the side of the TV.

Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

You can set your Media Browser preferences by using the Settings dialog.

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press SCREEN button repeatedly to change the image size. You can shift the screen up or down by using "▼" or "▲" buttons while in 14:9 Zoom, Cinema or Subtitle.

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using "or" button. Press OK button to continue. You can select a network type option from the list by using "or" and OK buttons.

Menu Features and Functions

Picture Menu Contents
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast Sets the brightness	lightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, "Environmental Information" in this manual for further information on Power Save Mode.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp Sets	the desired colour tone.
Picture Zoom	Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.
HDMI True Black	While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Adjust	the desired skin tone.
Colour Shift Adjust	the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset Resets the	picture settings to factory default settings.
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Menu Features and Functions

Sound Menu Contents
Volume Adjusts volume level.
Equalizer:	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets headphone volume.
Sound Mode	You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Dynamic Bass (optional)	Enables or disables the Dynamic Bass.
Digital Out Sets digital out audio type.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions in the Initial Installation section for more information on this process.

Menu Features and Functions

Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language Configures	language settings.
Parental Configures	parental settings.
Timers Sets timers for	selected programmes.
Recording Configuration	Displays recording configuration menu.
Date/Time Sets date and time.
Sources Enables or d	sables selected source options.
Other Settings: Displays other setting options of the TV set:
Menu Timeout Changes	timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version	Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off	You can set the timeout value of auto off feature. After the timeout value is reached and the TV is not operated for selected time, the TV will go off.
Store Mode	If you are displaying the TV in a store, you can activate this mode. While Store Mode is enabled, some items in the TV menu may not be available to be set. Your TV's features will be illustrated on the top of the screen.
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the GUIDE button to view the EPG menu.

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INFO: Displays, in detail information on programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: displays filtering options.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Note: Switching to a different broadcast or source is not available during the recording.

Programme Options

In EPG menu, press the OK button to enter the Event

Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record/Delete Record Timer

After you have selected a programme in EPG menu, press the OK button and Options screen will be displayed. Select "Record" option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option "Delete Rec. Timer". The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in EPG menu, press the OK button and Options screen will be

displayed. Select "Set Timer on Event" option and press OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record or set timer for two or more individual events at the same time interval.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.

For using recording function, you should connect a USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is not supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not sufficient, recording may fail and timeshifting feature may not be available.

Recordings of HD programmes can occupy bigger size on the USB disk depending on the broadcast's resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.

Do not plug out the USB/HDD during the recording. This may harm the connected USB/HDD.

Multiparition support is available. Maximum two different partitions are supported. If the disk have more than two partitions, crash may occur. First partition of the usb disk is used for PVR ready features. It also must be formatted as primary partition to be used for PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.

Record, Play, Pause, Display (for PlayDialog) keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.

Timeshift Recording

Press PAUSE) button while watching a broadcast for switching to timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to watch the paused programme from the stopped moment. You will see the timeshift gap between the real and the timeshifted programme in the info bar.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording. Press STOP) button to cancel instant recording. Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.

Note: While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.

Watching Recorded Programmes

In the main menu, use "▶" or "▶" buttons to select Media Browser. Highlight Recordings Library item by using "▶" or "▶" button and press OK button to enter. Recordings Library will then be displayed Select a recorded item from the list (if previously recorded) by using "▼"/"▲" button. Press OK button to view Play Options. Select an option by using "▼/ "or OK buttons.

Available playback options:

• Play from start: Plays the recording from the beginning.
• Resume: Recommences the recordings.
• Play from offset: Specifies a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

If you press PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use button to slow forward. Pressing button consecutively will change slow forwarding speed.

Recordings Library

To view the list of recordings, select "Recordings Library" and press the OK button. Recordings Library will then be displayed with available recordings. All the recordings are kept in a list in the recordings library.

(Resume): Recommences the recordings.

RED button (Delete) :Erases the selected recording.

GREEN button (Edit): Makes changes on the selected recording.

BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.

OK button: Activates play options menu:

INFO (Details): Displays the short extended programmes in detail.

Recording Configuration

Select Recording Configuration item in the Settings menu to configure recording settings.

Format Disk: You can use Format Disk feature for formatting the connected USB disk. IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

Note: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Teletext

"TXT" Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

"BACK" Index: Selects the teletext index page.

"INFO" Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

"Subcode Pages: Selects subroutine pages if available when the teletext is activated.

P + / P-and numbers (0-9):Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing "Vor" commands will request the next or previous page respec tively.

Digital Teletext (for UK only)

• Press the "TXT" button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the "TXT" button is pressed again, the TV returns to television broadcasting.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) Background search and upgrade mode

• While TV is connected to Internet, in background it searches for critical software upgrades. If a critical software upgrade is found it downloads the upgrade silently. When download completes with success a message is displayed for reboot operation to activate new software. Press OK to continue with the reboot operation.

3) 3 AM search and upgrade mode

• If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.
  Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.
• If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re Plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TV's image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plug is connect to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthy audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

2. Is the aerial connected properly?

3. Are the plugs connected tightly to the aerial socket?
4. Is the aerial cable damaged?
5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the "D button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.

Recording Unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off.

USB Is too Slow

If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index	Resolution Freq	Frequency
1 640x350p 60 Hz
2	640x400p 60	Hz
3 1024x768 60 Hz
4	1280x768 60	Hz
5	1360x768 60	Hz
6 720x400 60 Hz
7	800x600 56	Hz
8 800x600 60 Hz
9 1024x768 60 Hz
10	1024x768 66	Hz
11 1230x768 60 Hz
12	1360x768 60	Hz
13 1280x1024		60 Hz
14	1280x960 60	Hz
15	1280x1024	60 Hz
16 1400x1050		60 Hz
17	1920x1080	60 Hz
18 1600x1200		60 Hz

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (for UK only)

DVB-C MPEG2

DVB-C MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W) (10% THD)

2x2.5

POWER CONSUMPTION (W)

50 W (max)

PANEL

16:9 display, 24" Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 135 x 563 x 381

Weight (Kg): 4,10

DxLxH (Without foot): 35 × 563 × 344

Weight (Kg): 3,90

Supported File Formats for USB Mode

Media	File Extension	Format		Remarks
		Video Audio (M	Maximum reso	ution/Bit rate etc.)
Movie	.mpg .mpeg MPEG1,2		MPEG Layer 1/2/3	MAX 1920x1080 @ 30P 20Mbit/sec
	.dat MPEG1,2		MPEG2
	.vob MPEG2
	.mkv H.264, MPEG1,2,4 EAC3/ AC3
	.mp4	MPEG4 Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM/MP3
	.avi	MPEG2, MPEG4
		Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM
Music	.mp3 -		MPEG 1 Layer 1 / 2 (MP3)	32Kbps ~ 320Kbps(Bit rate) 32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg Baseline JPEG - max WxH = 15360x8640 4147200bytes
	. Progressive JPEG - max WxH = 9600x6400 3840000bytes
	.bmp -- max WxH = 9600x6400 3840000bytes
Subtitle	.sub .srt	-	-	-

Continental Edison
