TBN7802DX - Blender BEKO - Free user manual and instructions

Product type	Household blender
Brand	Beko
Model	TBN7802DX
Color	Gray and transparent
Bowl material	Glass
Maximum bowl capacity	1 L (for milk and fruit mixtures)
Power	800 W
Voltage / Frequency	220-240 V~, 50/60 Hz
Insulation class	II
Speeds	Variable with Pulse function
Approximate dimensions (W x D x H)	18 x 18 x 38 cm
Approximate weight	3.5 kg
Cable length	Approximately 1 m (can be wound under the appliance)
Included spare parts	Glass bowl, lid with graduated cap, cutting system (stainless steel blades), silicone ring, motor unit
Maximum food temperature	40°C
Cleaning	Bowl and lids dishwasher safe; motor unit wipe with a damp cloth
Safety	Automatic stop in OFF position; do not immerse motor unit; sharp blades
Intended use	Grind small amounts of solid foods and fruits (onions, potatoes, carrots, strawberries, bananas, etc.)
Compliance	WEEE Directive (2012/19/EU), RoHS Directive (2011/65/EU)

Frequently Asked Questions - TBN7802DX BEKO

What is the maximum bowl capacity?

The maximum capacity is 1 L for milk and fruit mixtures. For other preparations, do not exceed the maximum graduation indicated.

Can I blend hot foods?

No, the maximum food temperature is 40°C. Do not blend hot foods to avoid burns and damage.

How to clean the blender?

The glass bowl and lids can be washed in the dishwasher. The motor unit must be wiped with a damp cloth. Never immerse the motor unit in water.

Can I blend solid ingredients like ice cubes?

The blender is designed for soft or moderately hard foods (onions, carrots, fruits). It is not recommended for ice cubes or very hard foods.

How to use the Pulse function?

Turn the speed adjustment knob to the P position and hold it for 1-2 seconds. Release to stop. This function allows short bursts at high speed.

What to do if the blender does not start?

Check that the appliance is plugged in, the bowl and lid are correctly installed, and the knob is in a position other than OFF. If the problem persists, contact an authorized service.

Are the blades removable?

Yes, the cutting system (blades) can be removed for cleaning. Caution: the blades are very sharp; use the plastic part to handle them.

Can I use the blender without the lid?

No, never use the appliance without the lid. The lid must be tightly closed to avoid splashes and injuries.

Where to find spare parts?

Use only original parts or those recommended by the manufacturer. Contact Beko after-sales service to obtain spare parts.

How to store the blender?

Unplug the appliance, clean and dry it. Store it in a cool, dry place, out of reach of children. Wind the cable under the appliance.

USER MANUAL TBN7802DX BEKO

Line drawing of a blender with handle and spout (no text or symbols)

TBN 7802 DX

EN DE FR TR PL RO IT SR

01M-8816073200-2619-01

beko

CONTENTS

ENGLISH 9-15

DEUTSCH 16-26

FRANÇAIS 27-36

TÜRKÇE 37-45

POLSKI 46-55

ROMANIAN 56-66

ITALIANO 67-76

СРПСКИ 77-85

Labeled diagram of a blender with numbered parts for identification

Illustration of a blender with an open box and a red arrow indicating rotation (no text or symbols)

1 2 3

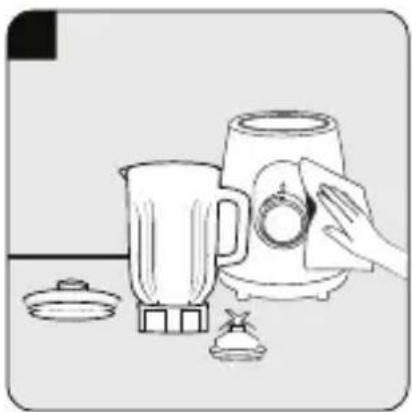

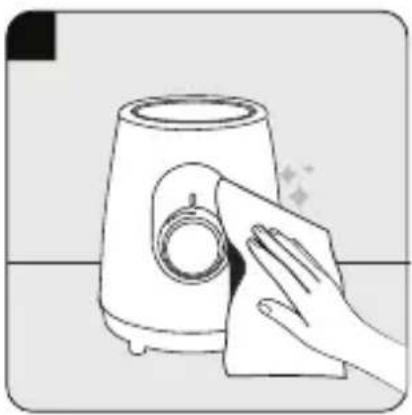

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Illustration of a blender with a water drop, a cooking pan, and a lid (no text or symbols)

Line drawing of a kitchen blender with lid, lid, and handle (no text or symbols)

2 ↓1

Illustration of a blender with rotating leaves and a lid, no text or symbols present

Illustration of a blender with leafy contents inside, showing liquid and lid (no text or symbols)

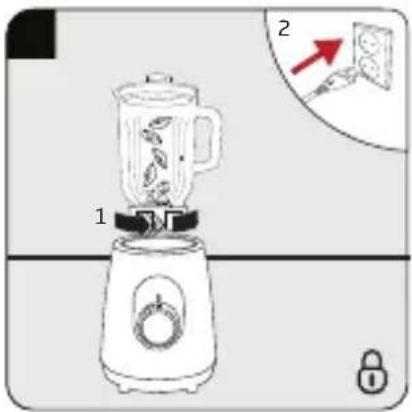

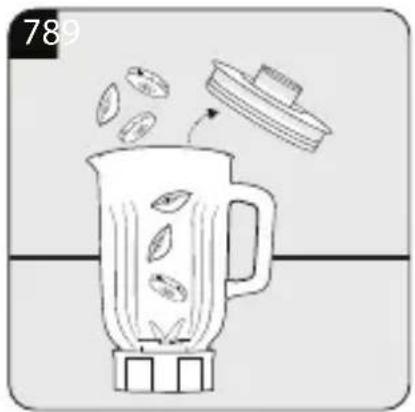

Diagram showing a blender with leafy contents being placed on top, labeled with step 1 and step 2, and an inset image showing a close-up of the lid.

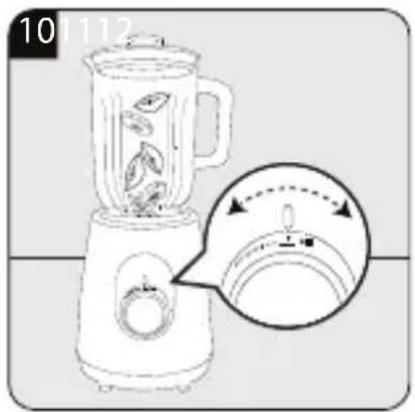

10 11 12

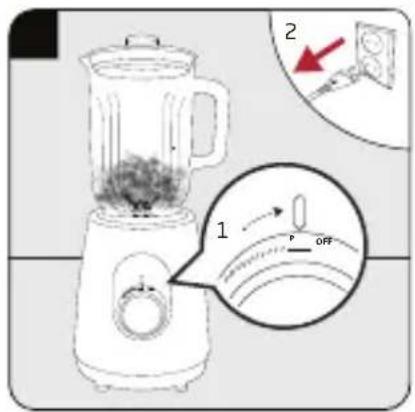

Diagram showing a blender with food being opened, labeled with step 1 and 'OFF' indicating action

1 2

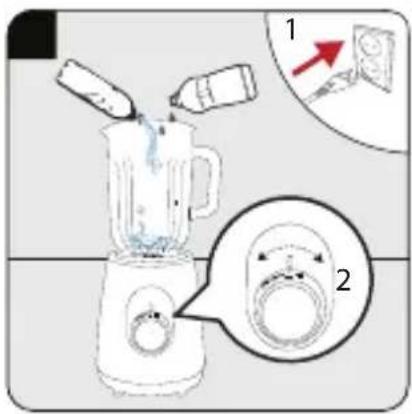

Illustration of a blender with a tool and lid pouring liquid into it (no text or symbols)

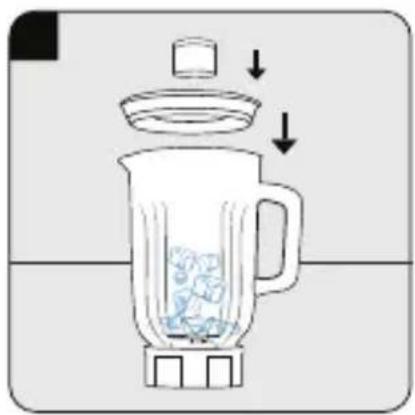

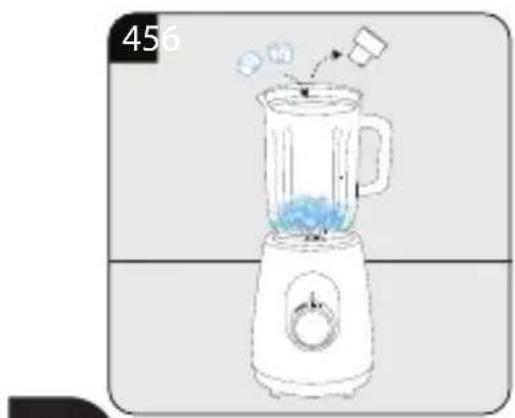

Illustration of a blender with ice cubes inside, showing liquid and lid (no text or symbols)

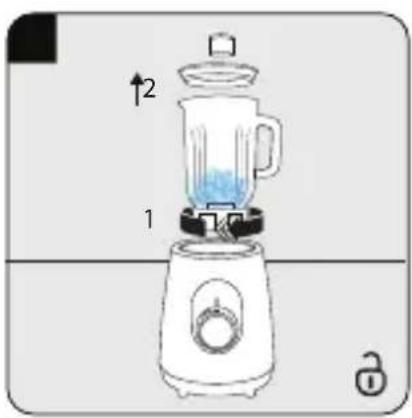

Diagram showing a blender with three labeled parts and an inset showing a close-up of the lid mechanism.

Illustration of a blender with liquid being poured into it, no text or symbols present

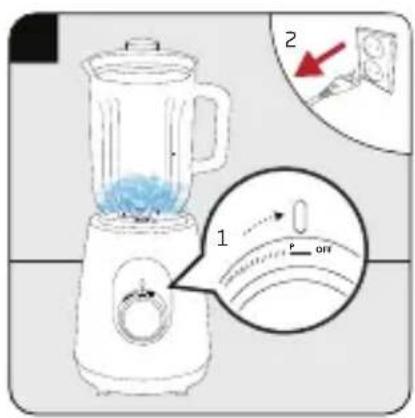

1 2 1 off

Diagram of a blender with labeled parts and directional arrow indicating flow or movement

Line drawing of a blender with a magnified inset showing a small object (no text or symbols)

1 2 x2

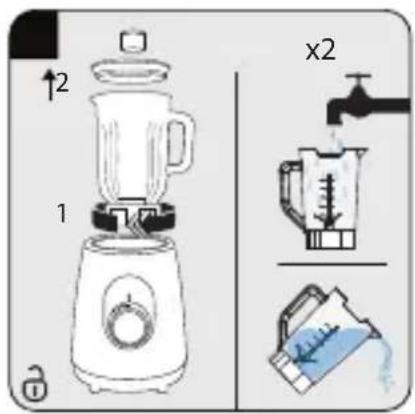

Diagram showing a blender being washed with water, with labeled steps 1 and 2 indicating the process.

456 ↑2 3 1

Illustration of a blender with a cooking pan and steam rising from it, no text or symbols present

Line drawing of kitchen utensils including a blender, lid, and blender with a hand holding the lid (no text or symbols)

EN	OPERATION CLEANING	AND CARE
DE	BETRIEB REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
TR	KULLANIM TEMIZLEME	VE BAKIM
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
IT	UTILIZZO PULIZIA E CURA
RO	UTILIZARE CURĂ AREA	ŞI ÎNGRIJIREA
SR	RUKOVANJE ČIŠĆENJE I ODRŽAVANJE
AR

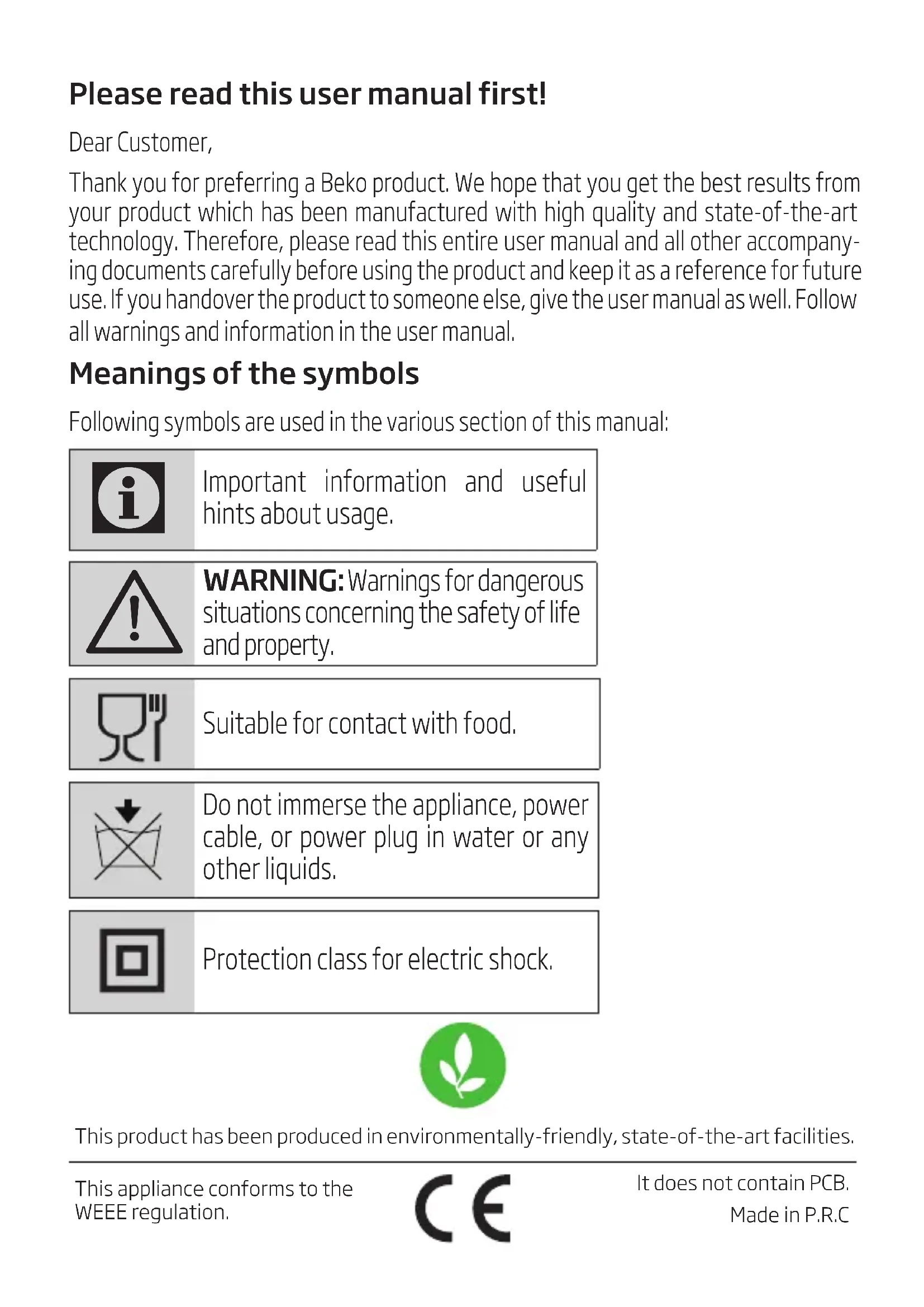

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appliance, power cable, or power plug in water or any other liquids.

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

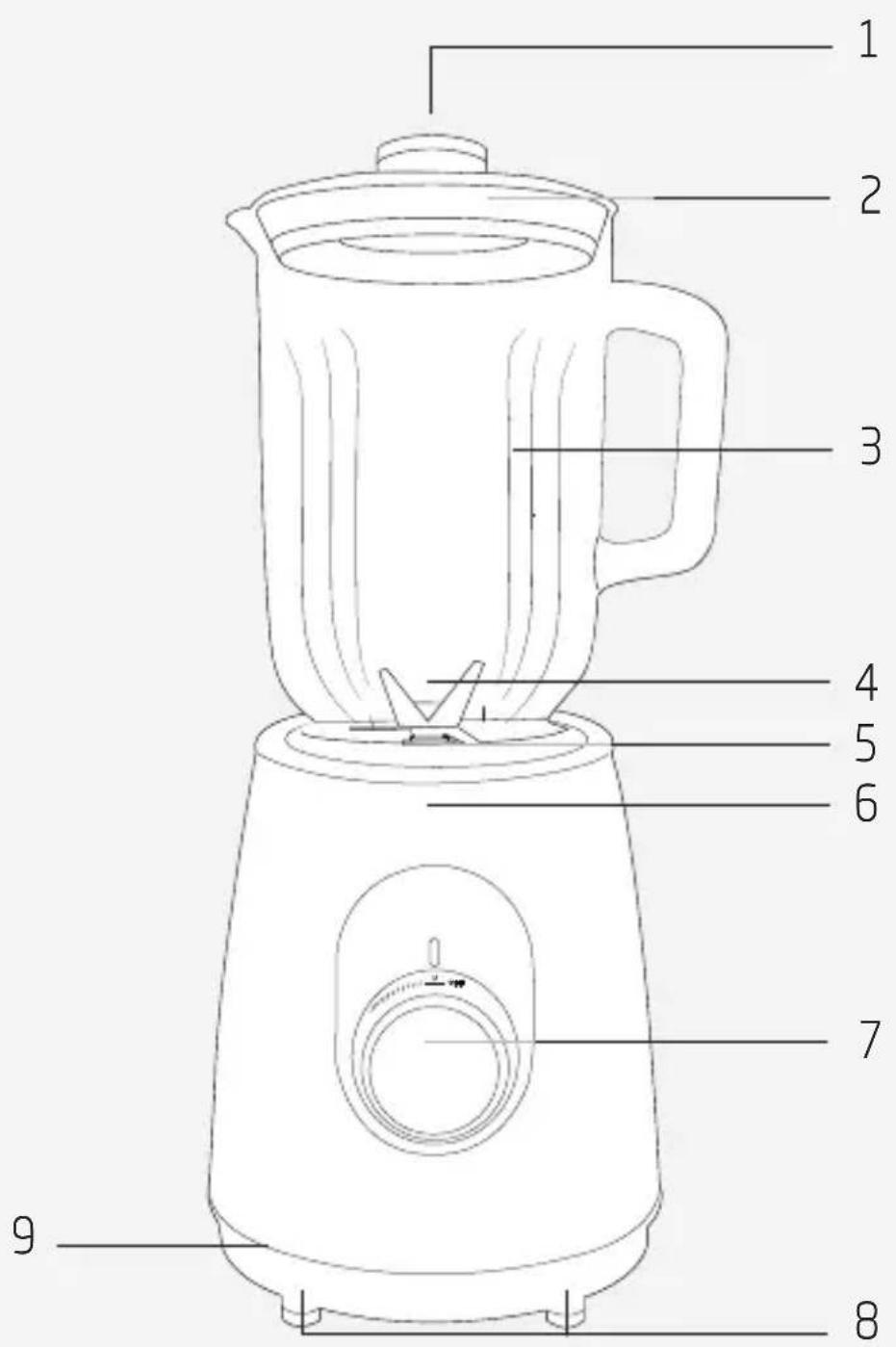

1. Measuringcap
2. Cover
3. Glass container
4. Cutter blade
5. Silicone ring
6. Motor unit
7. Speed adjustment button
8. Non-slip feet
9. Cable winding bay (under the appliance)

Technical data

Voltage: 220-240 V\~, 50/60 Hz

Power: 800 W

Insulation class: ||

Technical and design modifications reserved

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.

1 Important safety and environmental instructions

• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• Do not use the device for hot food.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cord.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning, disassembly, accessory replacement and wait for it to stop completely.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use the plastic section trying to hold the chopping blade.
• Never touch blades while using the appliance. There is the possibility of injury due to incorrect usage.

1 Important safety and environmental instructions

• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
- Do not immerse the appliance, power cable, or power plug in water or any other liquids.
- If you keep the packaging materials, store them out of the reach of children.
- Children shall not use the appliance. Keep the appliance out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1 Important safety and environmental instructions

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Things to do for energy saving

Cut the solid food into small pieces before placing them in the appliance as stated in the user manual. Follow the other instructions and times specified in the manual. Select low speed levels if suitable for the food to be prepared. Switch off and unplug the appliance after using it.

2 Operation

2.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use. It is designed to chop small amounts of solid foods (onions, potatoes, carrots, etc.) and fruit (strawberries, bananas, etc.).

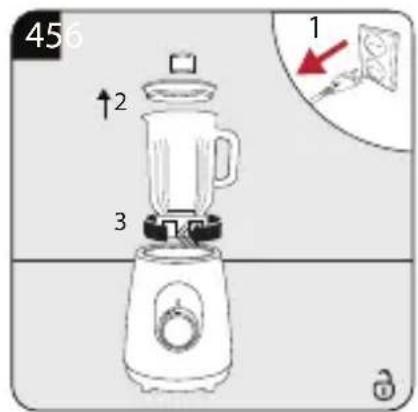

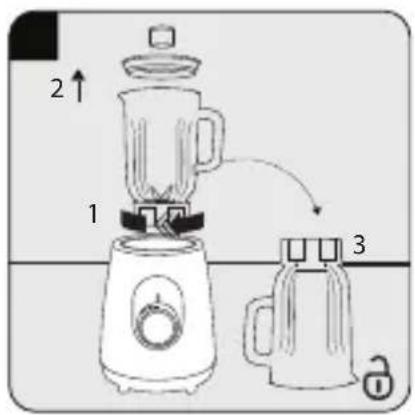

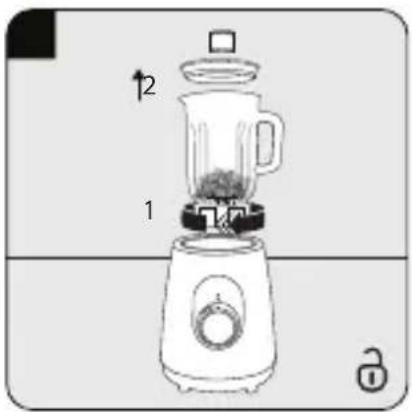

2.2 Removing the chopping blade

WARNING: Do not touch the blades with your bare hands.

2.3 Operation

WARNING:

• Fill the container with milk up to 1000 ml when you make fruit milk mixes (strawberry, banana, etc.) Otherwise, overflowing or leaks may occur during the process.
• Do not use the appliance to chop dry fruits such as almonds or hazelnuts.
• You can process food with maximum 40°C of temperature in your appliance.
• Do not insert any foreign objects into the glass container (3) when the appliance is in use.
• Do not remove ingredients from the glass container (3) before chopping blade (9) has completely stopped.

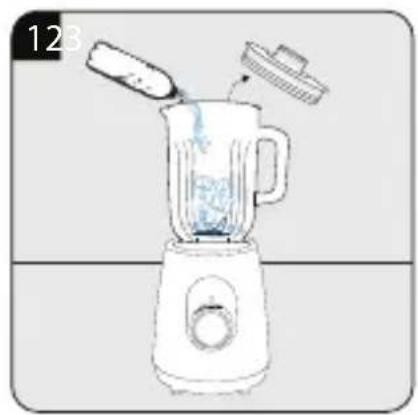

During the mixing process, use measuring cap (1) hole to put ingredients in glass container.

2 Operation

2.4 Position "P"

Operating the appliance with the speed adjustment button in (7) position "P" for 1-2 seconds is called "PULSE".

Hold speed adjustment button (7) in position "P" for mixing with high speed short pulses. When you release the button, speed adjustment button (7) returns to "OFF" position automatically and the appliance starts stopping.

3 Cleaning and care

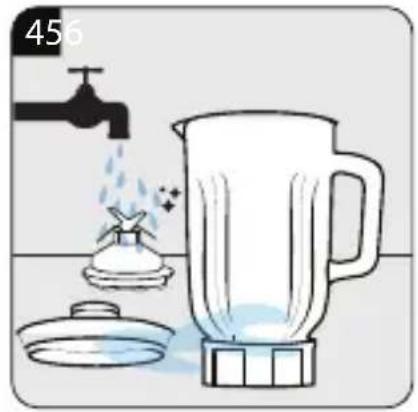

3.1 Cleaning

Glass container (3) and covers can be washed in the dish-washer.

WARNING:

• Do not immerse the body (4) in water. You can wipe it with a damp cloth.
• Chopping blade (9) is sharp. Do not hold the sharp edge or immerse in water while cleaning.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
  • Unplug the appliance before lifting it.
• Store the appliance in a cool and dry place.
• Keep the appliance and cable out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Prohibition sign with crossed-out trash bin and no text or symbols

Prohibition sign with crossed-out trash bin and no text or symbols

Symbol of a crossed-out refrigerator with no text or numbers present

Warning symbol for a trash bin with crossed and uncorrected lines indicating no waste or hazard

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Prohibition sign with crossed-out recycling bin and blank rectangular base

Ovaj proizvod je proizveden korišćenjem visokokvalitetnih delova i materijala koji se mogu ponovo iskoristiti i koji su pogodni za reciklažu. Ne odlăžite ovaj otpad zajedno sa normalnim kućnim i drugim otpadom na kraju radnog veka. Odnesite ga u centar za prikupljanje za reciklažu električne i elektronske opreme. Konsultujte se sa svojim lokalnim vlastima da biste saznali o ovim centrima za sakupljanje otpada.

3.3 Prenos i transport

• Tokom prenosa i transporta, nosite aparat u njegovom originalnom pakovanju. Pakovanje aparata ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na aparat ili njegovo pakovanje. Aparat se može oštetiti.
• Ako vam aparat ispadne, to može izazvati trajno oštećenje, odnosno aparat može postati nefunkcionalan.
