USER MANUAL HQSM10003 HQ Power

HQSM10003 / HQSM10004

SMOKE MACHINE

ROOKMACHINE

MACHINE À FUMÉE

MÁQUINA DE HUMO

NEBELMASCHINE

WYTWORNICA DYMU

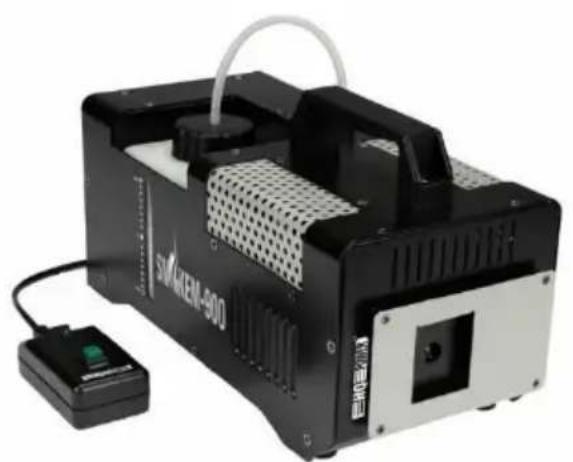

Black and white industrial machine labeled 'SIMEM-900' with a small electronic device attached (no visible text or symbols on the device body)

HQSM10003

Black SIMI-KEM-120D optical instrument with visible components and a small electronic device (no text or symbols on the device body)

HQSM10004

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 15

Technical diagram of two electronic devices with numbered components, likely a power supply or rack system.

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

• This device falls under protection class 1. It is therefore essential that the device be earthed. Have a qualified person carry out the electric connection.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
• Use an appropriate safety cable to fix the device (e.g. VDLSC7N or VDLSC8N).
• The maximum ambient temperature is 45 °C. Do not operate the device at higher temperatures.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures. Make sure the ventilation openings are clear at all times. For sufficient air circulation, leave at least 6" (± 15 cm) in front of the openings.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified people. Any damage that may occur will most probably be due to unprofessional use of the device
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Mechanical wear and LEDs are not covered by warranty.
• A qualified technician should install and service this device.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• This device is designed for professional use on stage, in discos, theatres, etc.
• Use the appropriate power supply (see Technical Specifications below).
• There may be some smoke or a particular smell when the device is activated for the first time. This is normal and any smoke or smell will gradually disappear.
• Use the original packaging if the device is to be transported.
• Keep this manual for future reference.

4. Features

• smoke machine with removable wired remote controller
• removable fluid tank

HQSM10003

• quick warm-up time: ± 3 minutes
  • good smoke output for 23 seconds
• fluid sensor: device shuts off automatically when the fluid is low
• 3 LEDs on the back indicate the machine working status

HQSM10004

• timer remote controller optional
• no DMX
• no fluid sensor

5. Overview

Refer to the illustrations on page 2 of this manual.

1	power input + fuse holder
2	on-off switch
3	remote control
4	stand-by LED
5	warm-up LED

6	power LED
7	carrying handle
8	fluid tank
9	output nozzle

6. Installation

• Only install and use the device on a flat and stable surface. The device may not be tilted.
  • Install the device in a location where you can easily access the power cord.
  • Install the device in a well-ventilated area.
• The carrying construction must be able to support 10 times the weight of the device for 1 hour without deforming.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
  • Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
  • Make sure there is no flammable material within a 0.5 m radius of the device.

7. Operation

1. Make sure to fill the tank with smoke liquid.
2. Switch on the device and wait for the machine to warm up.
3. Press the button on the remote control to trigger the fog output. The device will continue to output fog as long as the button is pressed.
4. Switch off the device after use.

Never operate the device without smoke liquid at any time.

8. Troubleshooting

There is no power.

Check the mains power supply.

Check the fuse.

There is no fog output.

Check the fluid level.

Check the remote control.

The remote control does not work.

Make sure the remote control is well connected.

The fluid tank is filled but the sensor indicates it is not.

Try resetting the smoke machine by switching it off and on again.

Contact your dealer if the problem persists.

The smoke machine is not heating up.

Contact your dealer.

9. Cleaning and Maintenance

Before starting any cleaning or maintenance activities:

1. Unplug the device's power cord from the outlet.
2. Let the device cool down.

Cleaning

• Make sure to empty the tank before cleaning.
• Use normal glass cleaner and a soft cloth to wipe off the outside casing.
• Clean the external optics with glass cleaner and a soft cloth every 20 days.
  • Always be sure to dry all parts completely before plugging the unit back in.
• Cleaning frequency depends on the environment in which the unit operates (i.e. smoke, fog residue, dust, dew).
• Do not immerse the device in any liquid.

HQSM10003/HQSM10004

Maintenance

• All screws should be tightened and free of corrosion.
• The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections...
• Mechanically moving parts must not show any signs of wear and tear.
• The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
  • There are no user-serviceable parts, apart from the fuse and the lamp.
• Refer to an authorized dealer for service and/or spare parts.

9.2 Replacing the fuse

1. Unplug the device's power cord from the outlet.
2. Let the device cool down.
3. Remove the rear cover with a flat-head screwdriver.
4. Open the fuse holder.
5. Replace with an appropriate fuse.
6. Insert the fuse holder back in its place, replace the rear cover and reconnect power.

10. Technical Specifications

power supply....220-240 V\~, 50/60 Hz

IP rating IP20

remote controller wire length.... 3.5 m

options

standard smoke liquid (5 L)......VDLSL5

high-density smoke liquid (5 L)......VDLSLH5

pro high-density smoke liquid (5 L) ......VDLSLHT5

HQSM10003

power consumption 1000 W

fuse F6A

heating time....3 min.

output ...... ca. 424 m ^3 , 15000 ft ^3 /min.

tank capacity 0.8 L

fluid consumption 60-80 ml/min.

dimensions.... 315 x 150 x 140 mm

HQSM10004

power consumption 1200 W

fuse F7A

heating time....6 min.

output ...... ca. 849 m ^3 , 30000 ft ^3 /min.

tank capacity 1.8 L

fluid consumption 100-120 ml/min.

dimensions.... 385 x 205 x 175 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
