USER MANUAL Julie One Lionelo

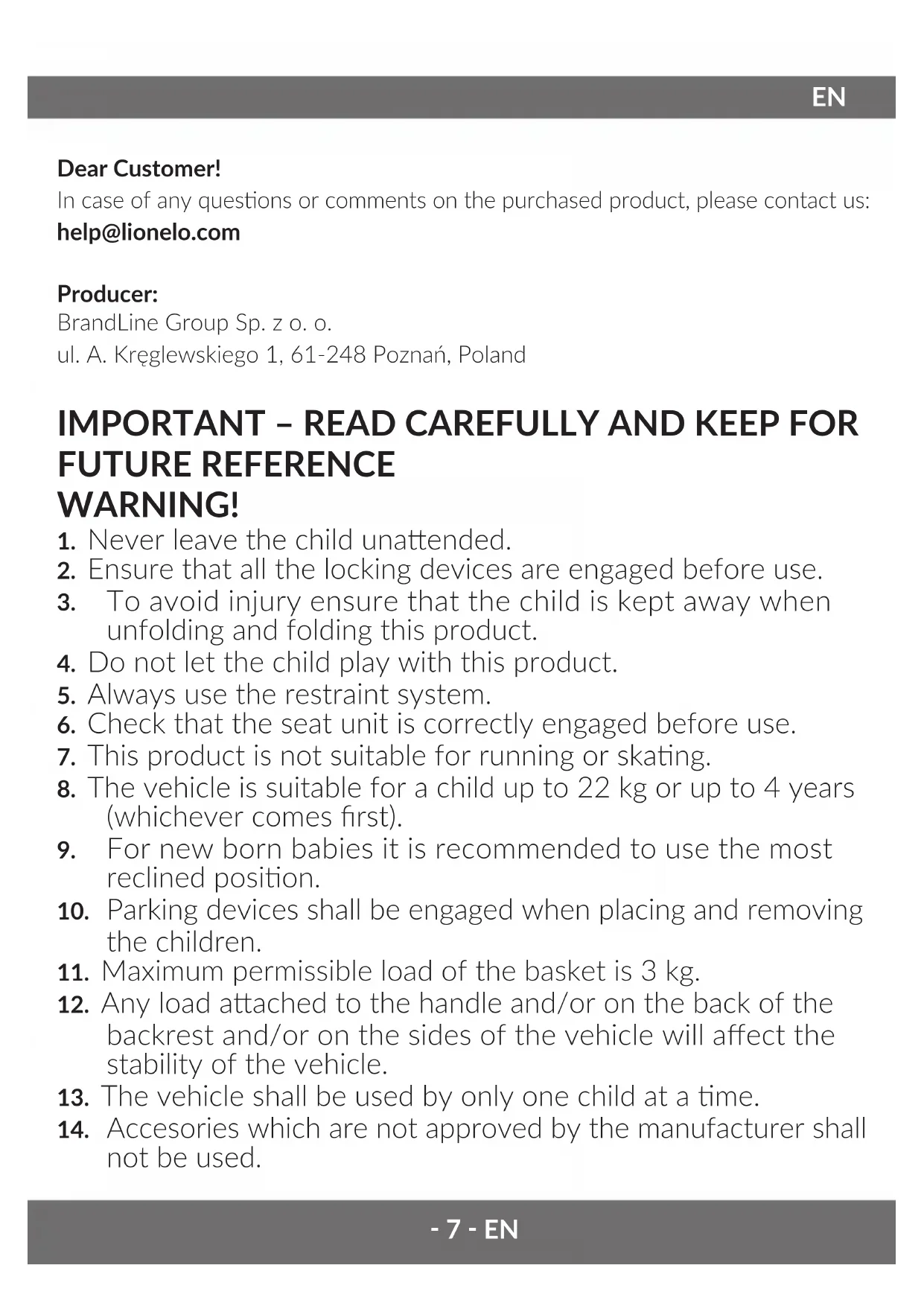

IMPORTANT – READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE WARNING!

1. Never leave the child unaended.

2. Ensure that all the locking devices are engaged before use.

To avoid injury ensure that the child is kept away when unfolding and folding this product.

4. Do not let the child play with this product.

5. Always use the restraint system.

6. Check that the seat unit is correctly engaged before use.

7. This product is not suitable for running or skang.

8. The vehicle is suitable for a child up to 22 kg or up to 4 years

(whichever comes rst).

For new born babies it is recommended to use the most reclined posion.

Parking devices shall be engaged when placing and removing the children.

11. Maximum permissible load of the basket is 3 kg.

12. Any load aached to the handle and/or on the back of the

backrest and/or on the sides of the vehicle will aect the stability of the vehicle.

13. The vehicle shall be used by only one child at a me.

Accesories which are not approved by the manufacturer shall not be used. EN‑ 8 ‑EN

Only replacement parts supplied or recommended by the manufacturer shall be used.

16. Do not use the product on stairs.

How to assemble the pram

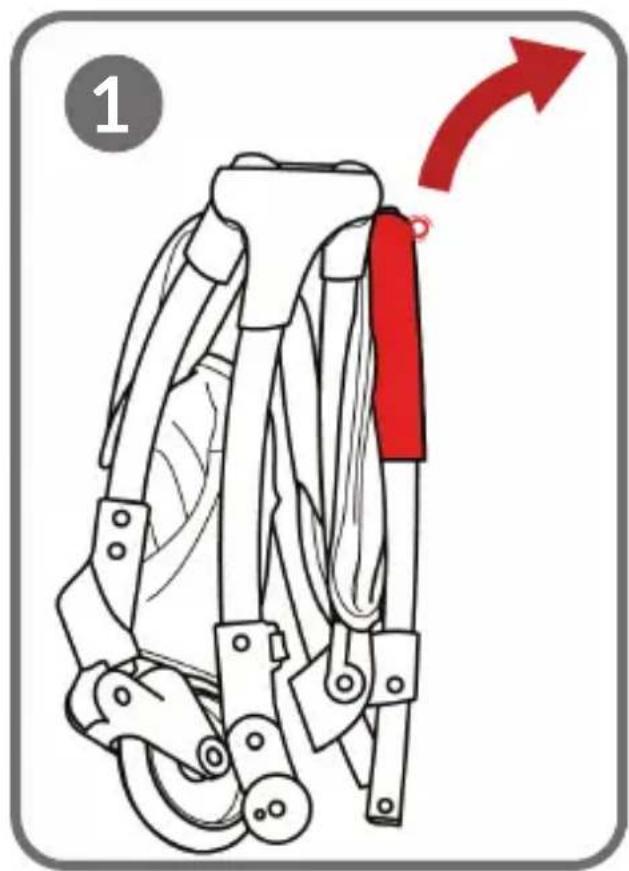

1. Unlock the locking hook. Grab the handle and li it to unfold the trolley (1).

Warning! Be careful when unfolding the truck. Risk of being trapped!

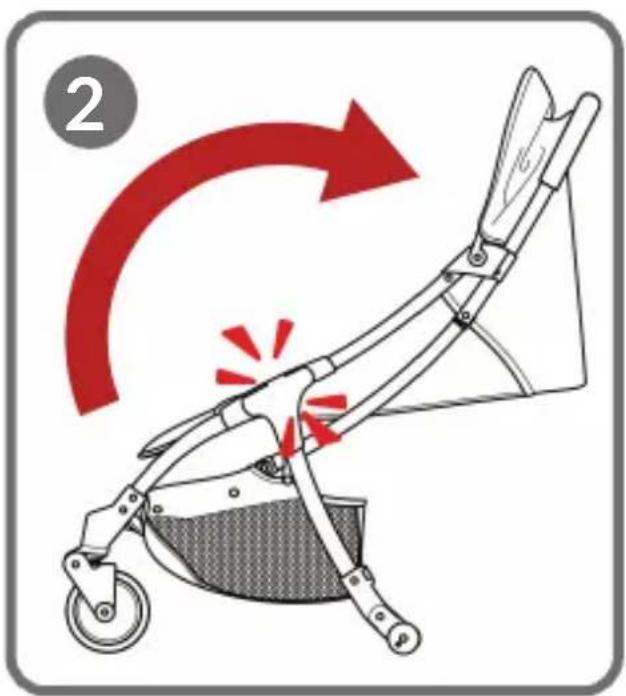

2. Straighten the frame unl you can hear a disncve click (2).

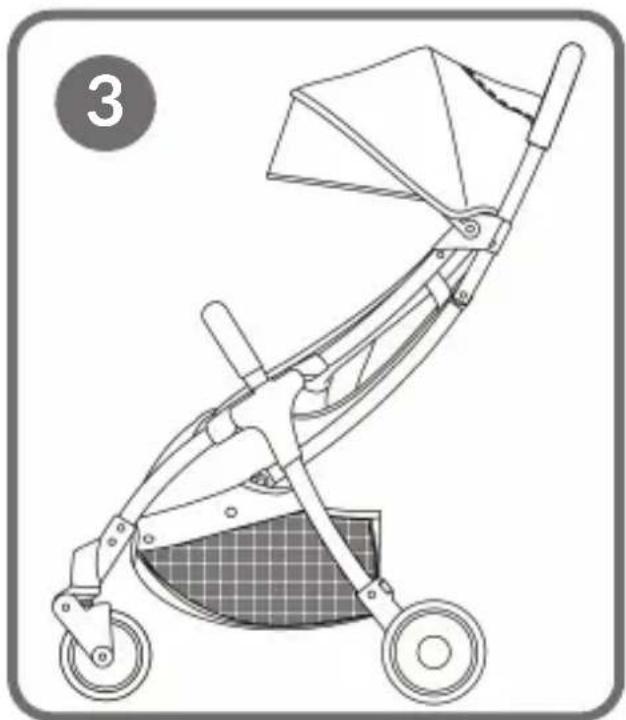

Li with both hands and unfold the pram unl frames lock. Check if the pram has been unfolded properly and cannot fold on its own (3).

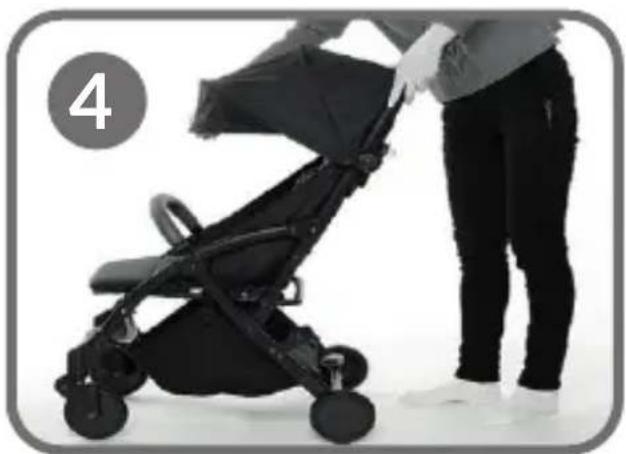

4. Unfold the canopy (4).

5. Slide the wheels into the frame of the cart.

Rear wheels assembly and disassembly

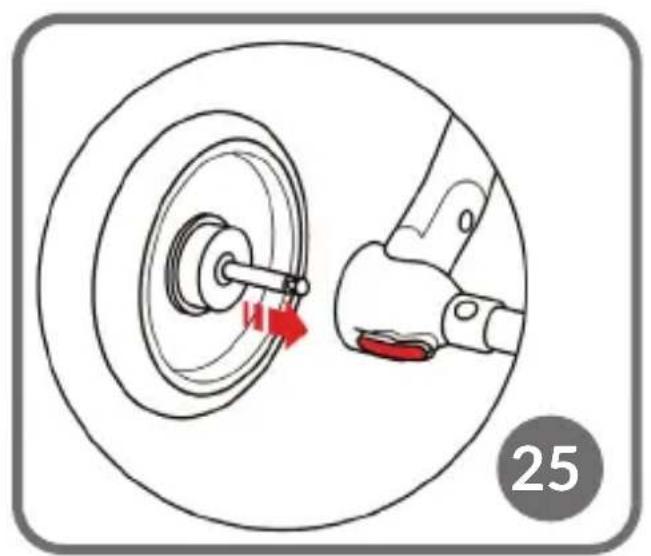

• To install the rear wheels, slide the pin into place (25).

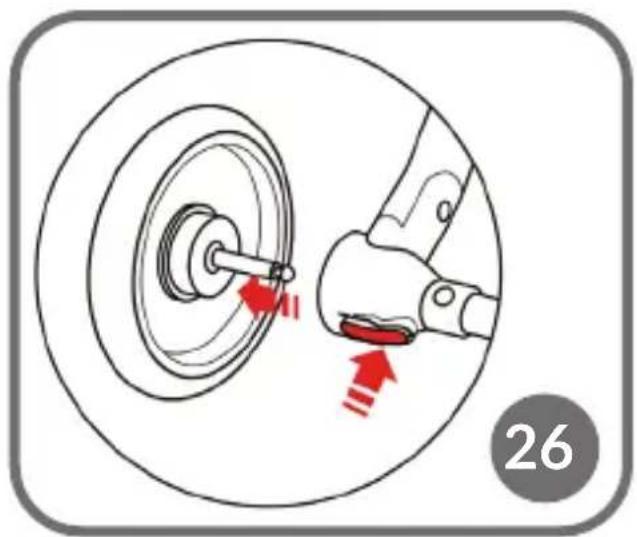

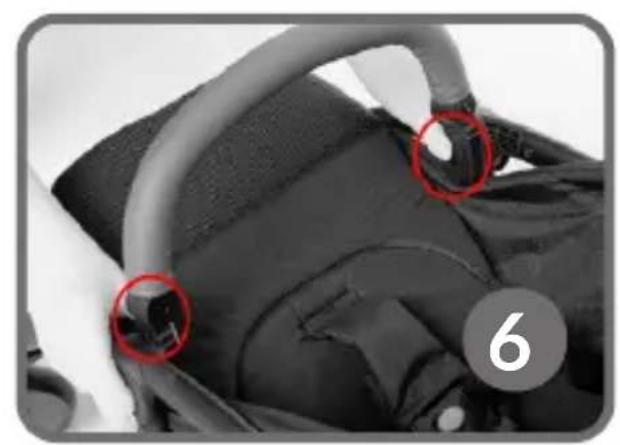

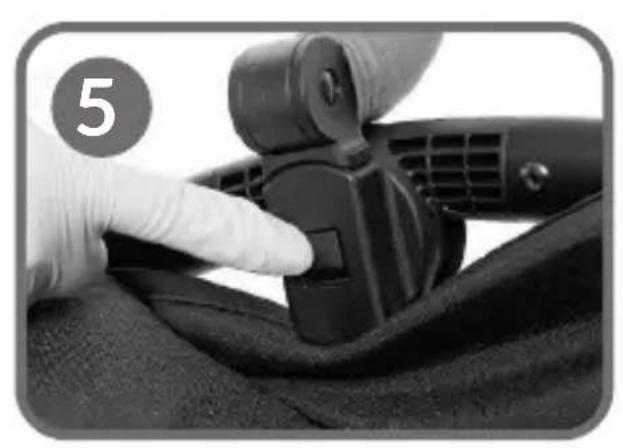

• To remove the rear wheels, press the red buon located under the wheel and then slide them out (26). Front wheels disassembly Press the buon on the front wheels and slide them out of the frame. Handle (5) (6)

• To disassemble the child’s handle, press buons on its sides and take it out.

• To x the handle, insert it unl it locks.

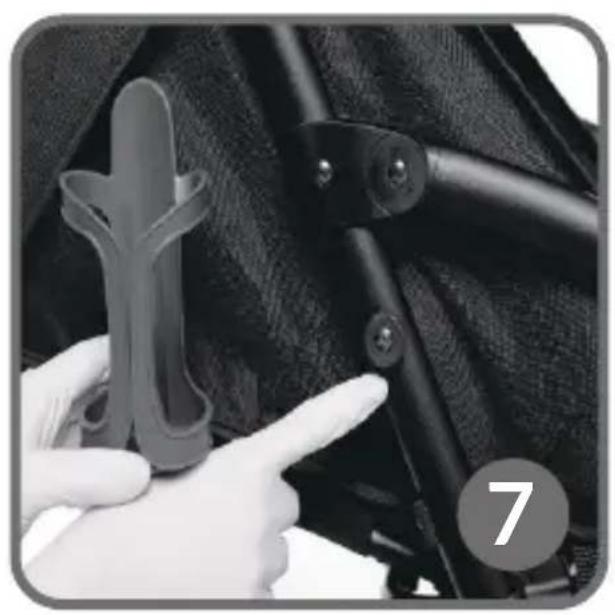

• You can also take the handle out on one side and lt as this makes placing and taking the child out easier. Bole holder (7)

• A bole holder is xed on a hook. To dismantle it, rotate the handle upside down and press it unl it unlocks.

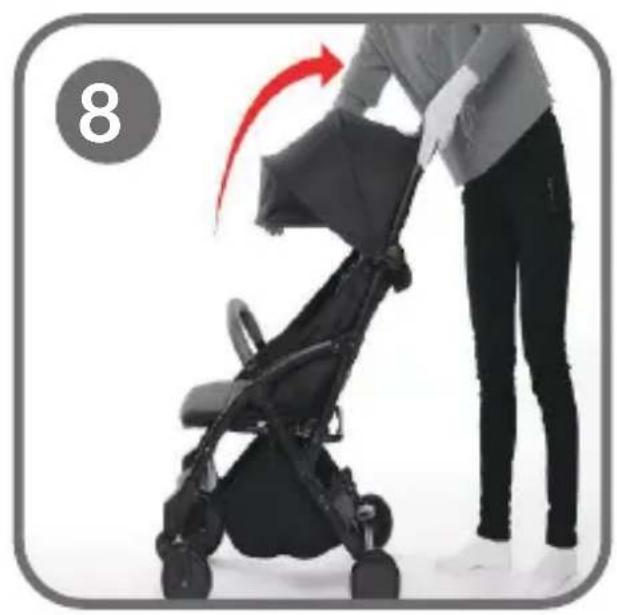

• To x the bole holder, put it on the hook unl it locks. Canopy (8) To fold the canopy, pull it gently unl it locks.‑ 9 ‑ EN How to adjust backrest angle

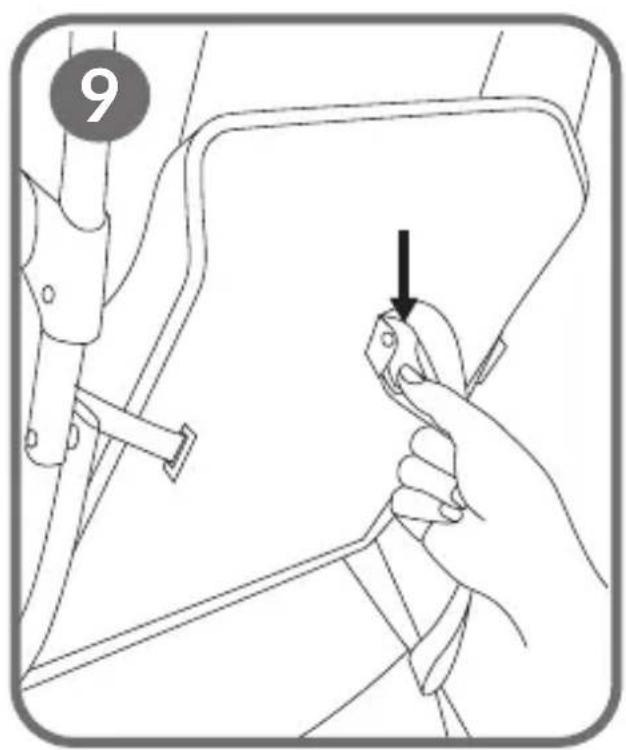

• To lower the backrest, press the buon on the back of the seat (9).

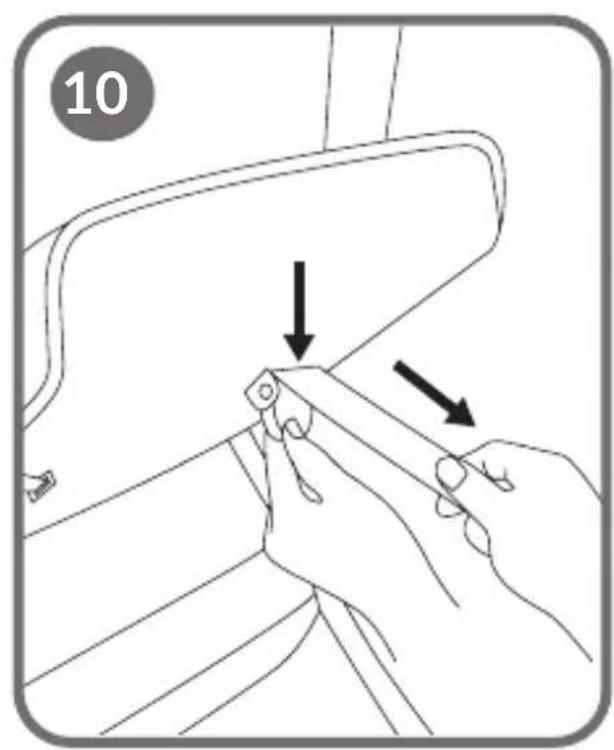

• To raise the backrest, press the buon on the back of the seat and pull the belt (10).

WARNING: If the child cannot sit on its own, the backrest must be as low as

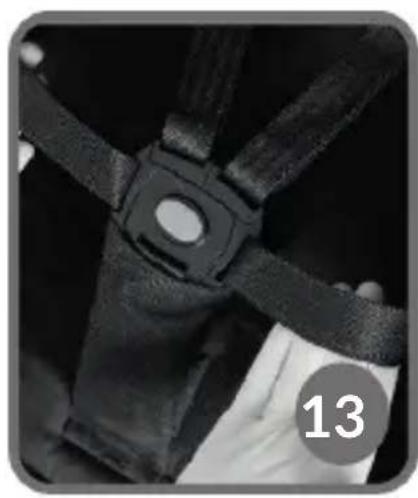

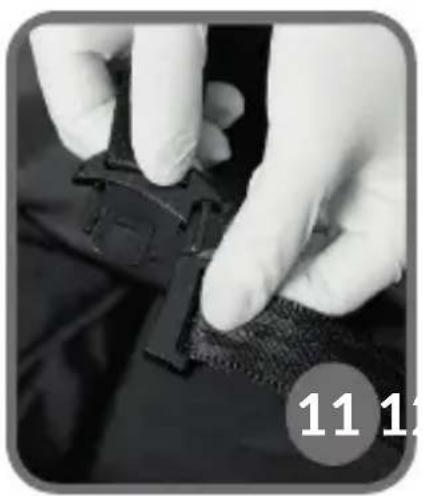

possible so that child can lie, as much as possible. Safety belts (11) (12) (13)

To fasten ve-point safety belts, put the p of upper belts on a le and right, and then insert them into the buckle unl you can hear a disncve click.

2. Adjust the belts to the child.

3. To undo the belts, press the red buon on the buckle.

WARNING: Always fasten safety belts.

Safety belts adjustment, assembling and disassembling

• To adjust the safety belts, slide the belts through the openings in the seat that correspond to the child’s height.

To disassemble safety belts, slide the buckle through the opening in the seat. To assemble, put the safety belts back again. Footrest adjustment

• Raise the footrest to change its posion.

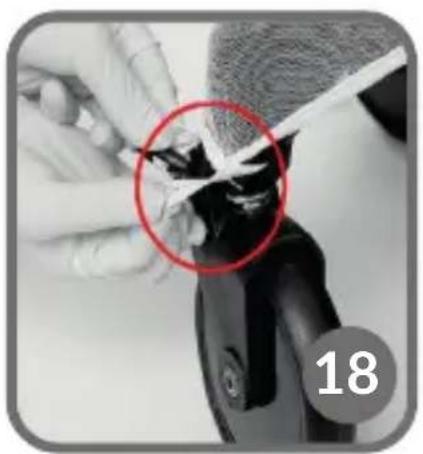

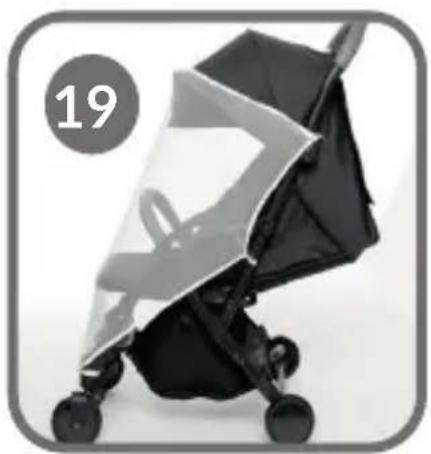

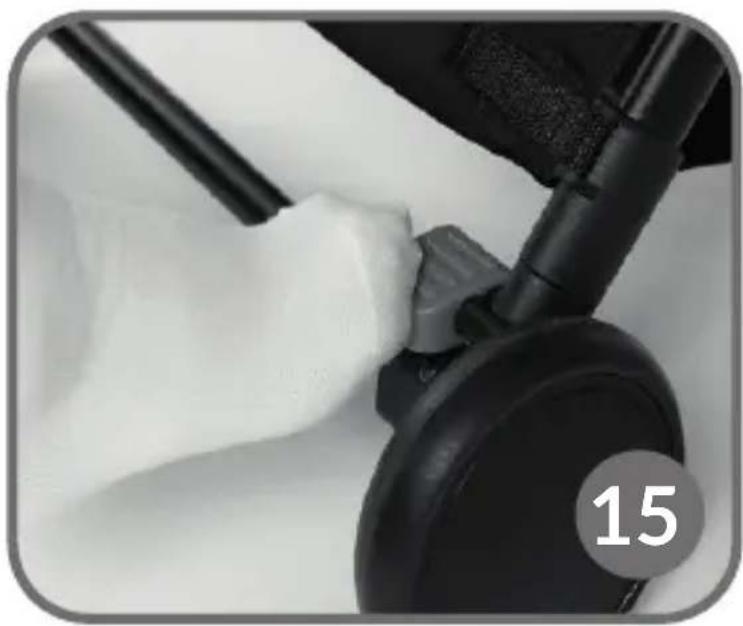

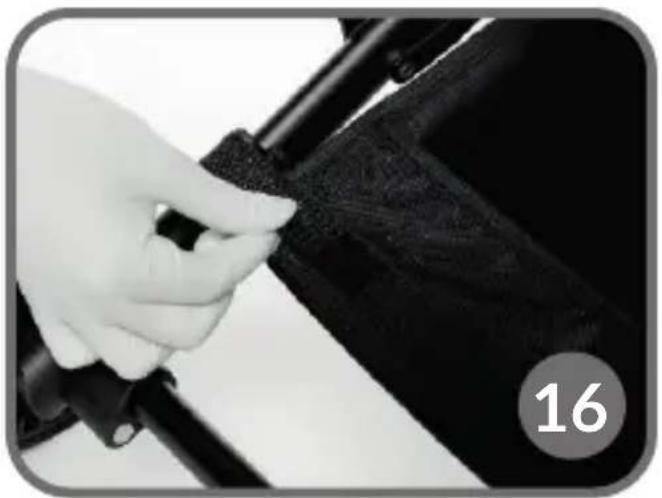

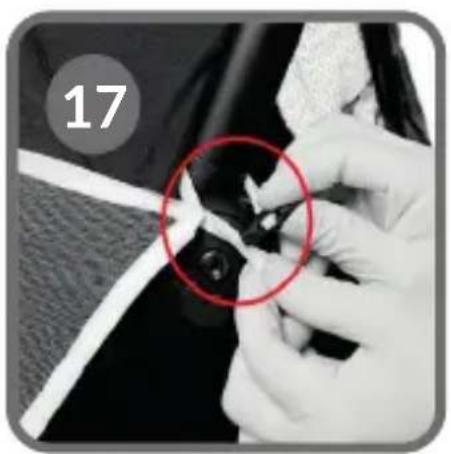

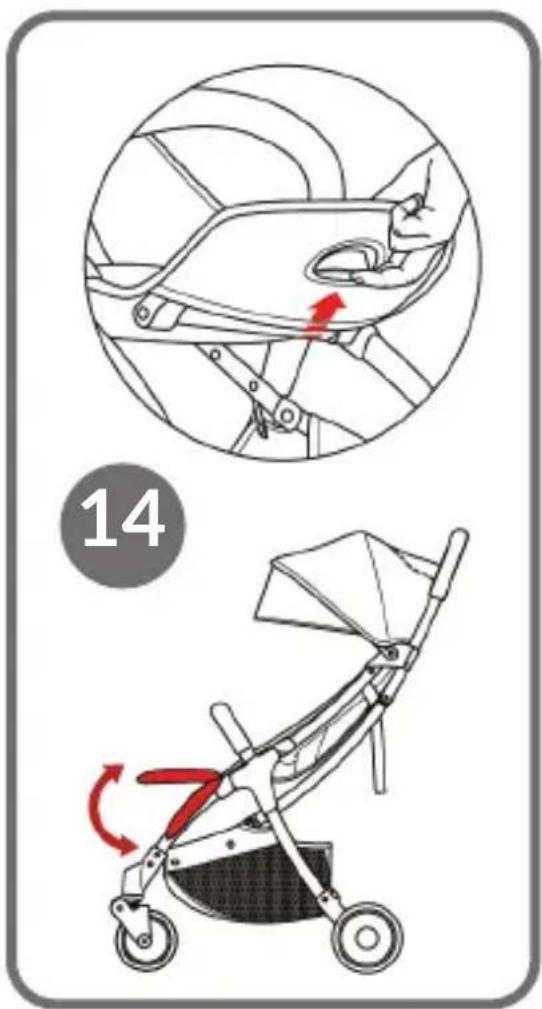

• To lower, hold the lever on the boom (14). Parking device (15) If you want to take the child out of the stroller, or put it in, make sure the parking device is locked up. Press to lock the stroller. Li to unlock it. Storage basket (16) Maximum basket load, located under the pram, is 3 kg. Mosquito net (17) (18) (19) To aach the mosquito net, unfold the canopy, put the mosquito net on and hook it over the pram frames, as presented in the pictures below.‑ 10 ‑EN How to fold up the pram

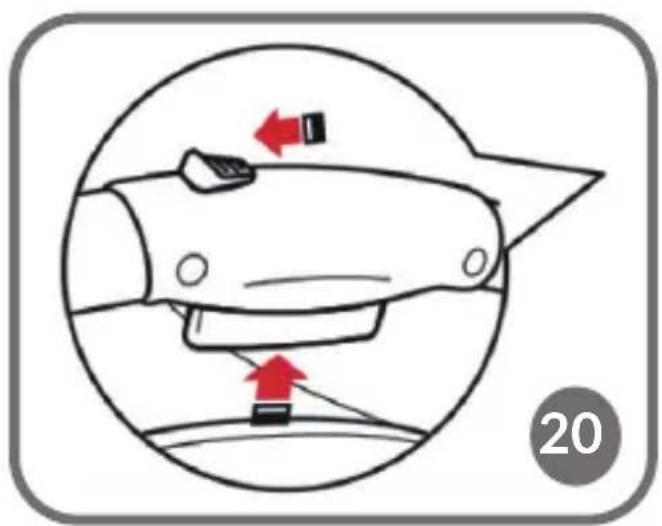

1. Fold the visor. Slide the buon on the handle to the le and squeeze it (20).

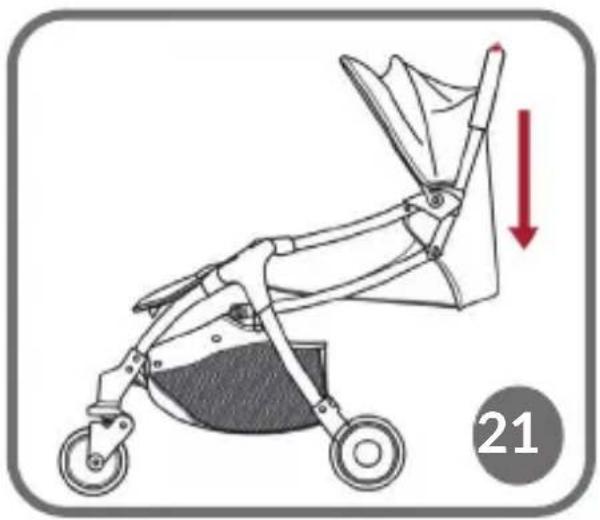

2. The trolley frame will fold itself (21).

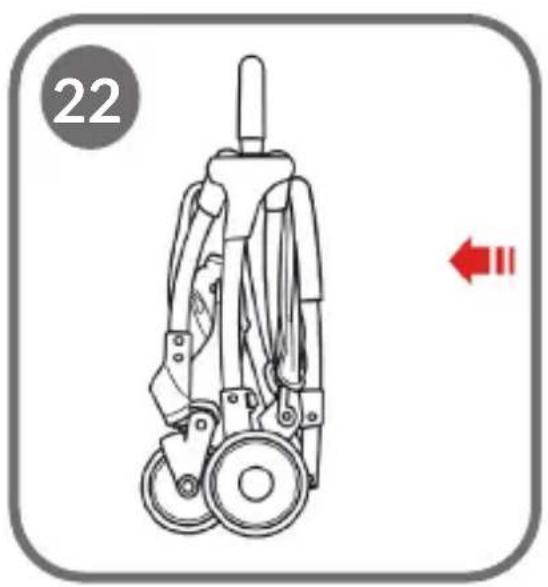

3. Push the cart down to make sure it is folded in correctly (22).

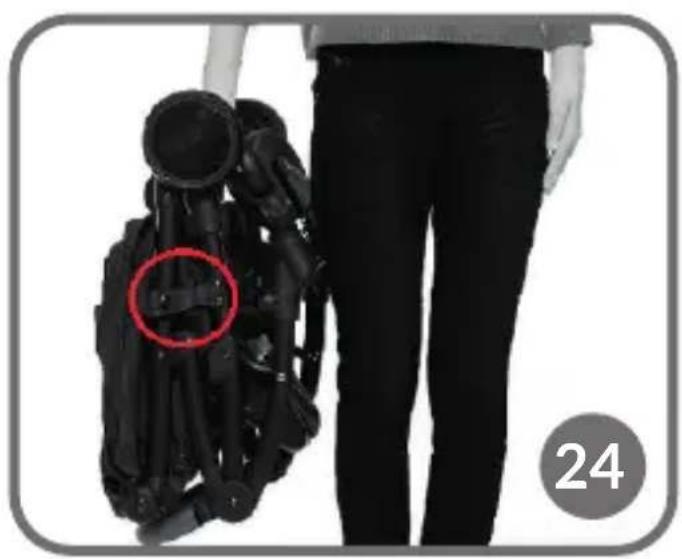

4. If the truck has not self-secured, secure it with the special fastener (24).

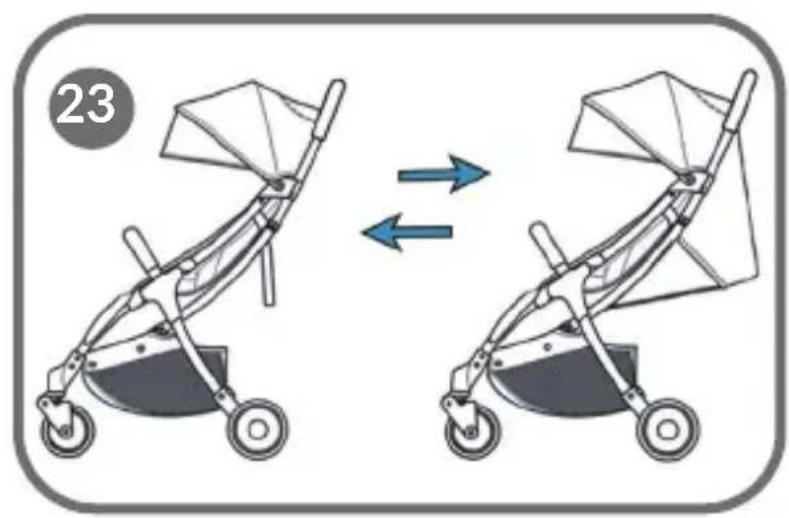

Warning! Whether the stroller secures itself depends on the posion of the backrest. In the case of maximum lowered, the safety hook should automacally snap into place (23). Maintenance and cleaning

1. Daily maintenance:

• Check the condion of the pram on a regular basis.

• Do not place heavy items on the pram.

• Do not use accessories which have not been supplied with original set.

2. How to clean a fabric:

• Use a wet cloth to remove dust and mild dirt.

You can wash the fabric manually with a soft detergent in water of a temperature of up to 30°C.

• You must not wash the fabric in the washing machine. Do not chlorinate, iron, clean with chemicals and dry in the dryer.

• Before another use, the fabric must be dry.

3. How to clean a frame:

• Clean the frame with a wet cloth and a so detergent.
