LR63XXL - Washing machine AEG - Free user manual and instructions

Product Type	Front-loading washing machine
Brand	AEG
Model	LR63XXL
Dimensions (W x H x D)	59.7 cm x 84.7 cm x 66.0 cm
Maximum wash capacity	10 kg (cotton)
Power supply	230 V, 2200 W, 10 A, 50 Hz
Moisture protection	IPX4
Water pressure	0.5 bar (min) - 10 bar (max)
Maximum spin speed	1400 rpm
Wash programs	MixLoad 69min, Eco 40-60, Cotton, Synthetics, Delicates, Wool, 20 min - 3 kg, Outdoor, Hygiene, Drum Clean
Options	Adjustable temperature, Variable spin speed, Rinse hold, Extra Silence, Stains/Prewash, Extra Rinse, Easy Iron, Time Save, Delay Start, Child Lock
Load detection technology	ProSense (adjusts program duration)
Energy consumption (Eco 40-60, full load)	0.860 kWh
Water consumption (Eco 40-60, full load)	70 L
Noise level (spin)	Not specified, estimated ~75 dB
Periodic maintenance	Descaling 2x/year, maintenance wash 1x/month, clean door seal and drum every 2 months, pump filter 2x/year
Safety	Child lock, door lock, anti-flood, auto stop
Spare parts available	Yes, for at least 10 years after model discontinuation
Repairability	Authorized after-sales service, original parts
Warranty	Not specified, standard per country

Frequently Asked Questions - LR63XXL AEG

How to clean the drain pump filter?

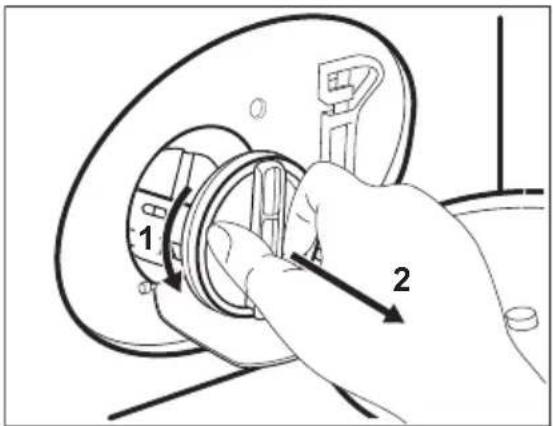

Unplug the appliance and wait for the water to cool. Open the pump cover, place a container underneath, turn the filter 180° to drain, then remove it completely. Clean it under the tap and replace it by turning it to the right. Make sure it is tightened properly to avoid leaks.

What to do if error code E20 appears?

Error code E20 indicates a drainage problem. Check that the drain hose is not kinked or blocked, clean the drain pump filter, and ensure the siphon is not clogged. If the problem persists, contact authorized after-sales service.

How to activate child lock?

Press and hold the Stains/Prewash button until the child lock indicator lights up on the display. You can activate it before or after starting the program. Once activated, all buttons (except On/Off) are locked.

What is the maximum wash capacity?

The maximum capacity is 10 kg for the Cotton program. For other programs, the maximum load varies (e.g., 5 kg for MixLoad, 4 kg for Synthetics, 2 kg for Delicates). Do not exceed the specified load for each program.

How to use delay start?

Press the Delay Start button repeatedly to select the desired delay (from 30 minutes to 20 hours in steps). Then press Start/Pause. The appliance locks the door and starts the countdown. The program starts automatically at the end of the delay.

How to start a drum cleaning program?

Select the Machine clean program on the selector. Remove all laundry from the drum. Pour a cup of bleach or washing machine cleaner into the wash compartment of the dispenser. Start the program. After the cycle, run an extra empty rinse to remove residues.

What to do if the appliance does not turn on?

Check that the plug is properly inserted and the power outlet works. Make sure the fuse has not blown. If the appliance remains off, press and hold the On/Off button for a few seconds. If nothing happens, contact after-sales service.

How to disable audible signals?

Press simultaneously the Stains/Prewash and Easy Iron buttons for about 3 seconds. The end-of-program audible signals will be disabled. Alarm signals remain active.

Why does my laundry come out wet after spinning?

Check that the selected spin speed is sufficient (default 1400 rpm for cotton). If you have selected the Rinse Hold or Extra Silence option, the water is not drained. Press Start/Pause to start draining and spinning.

How to maintain the door seal?

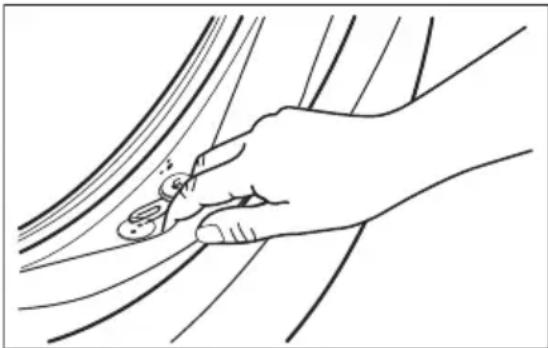

After each cycle, wipe the seal with a damp cloth to remove water and residues. Every two months, deep clean it with a non-abrasive ammonia-based product. Regularly check that no foreign objects (coins, buttons) have lodged in the folds of the seal.

USER MANUAL LR63XXL AEG

3. PRODUCTBESCHRIJVING

Diagram of a washing machine with numbered parts for identification and assembly reference.

Diagram illustrating a washing machine operation with labeled parts and instructions for cleaning or recycling.

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

LET OP!

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

WAARSCHUWING!

Diagram showing a washing machine with mechanical components and directional arrows indicating motion or assembly.

Diagram illustrating washing machine operation with three circular insets showing hand positioning and cleaning steps

3/4" 3/4" A i A ✓ A ✓ ↓

WAARSCHUWING!

Simple line drawing of an electric plug connected to a power outlet (no text or symbols)

8:88 kg MAX 88° dB 1888

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

Medical warning diagram showing a catheter connected to an eye with a warning symbol and a cross mark indicating no need.

LET OP!

Technical diagram of a refrigerator interior with labeled parts and decorative symbols

Diagram showing two hands operating a device with labeled parts, including a component being inserted into a tray.

Line drawing of a hand inserting a device into a drawer with an icon indicating the process (no text or symbols present)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing motion.

Met de klep in de stand OMLAAG:

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand holding a small object near a curved surface (no text or symbols)

Diagram showing two hands operating a device with labeled parts, indicating process steps 1 and 2.

Technical line drawing of a device interior with a mounted device and internal components (no text or symbols)

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand inserting a component into a car wheel, with no text or symbols present.

Illustration of a medical procedure involving a tool, magnified view of a circular component with arrows indicating rotation or movement (no text or symbols present)

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including numbered annotations 1 and 2.

Illustration showing three-step instructions for using a tool to adjust a faucet, with numbered steps and magnified views.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to filter or clean material inside (no text or symbols)

Line drawing of a hand holding a tool near a curved surface (no text or symbols)

13.3 Programma's

Diagram showing a hand holding a car interior with labeled parts 1 and 2, indicating a switch or adjustment mechanism.

Illustration of a faucet pouring water into a container (no text or symbols)

Welcome to AEG! Thank you for choosing our appliance.

In our drive to be sustainable, we are reducing paper assets and provide full user manuals online. Access your full user manual at aeg.com/manuals

Get usage advice, brochures, troubleshooting, service and repair information at aeg.com/support

Buy accessories, consumables, and original spare parts for your appliance at aeg.com/shop

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......37
2. SAFETY INSTRUCTIONS.... 39
3. PRODUCT DESCRIPTION....41
4. TECHNICAL INFORMATION......42
5. INSTALLATION......42
6. CONTROL PANEL......46
7. DIAL AND BUTTONS....47
8. PROGRAMMES....50
9. SETTINGS....54
10. DAILY USE....55
11. CARE AND CLEANING.... 58
12. CONSUMPTION VALUES......63
13. QUICK GUIDE......64
14. ALARM CODES AND POSSIBLE FAILURES.... 68
15. ENVIRONMENTAL CONCERNS....69

1. ⚠SAFETY INFORMATION

Before beginning the installation and use of this appliance, carefully read the supplied instructions.

The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

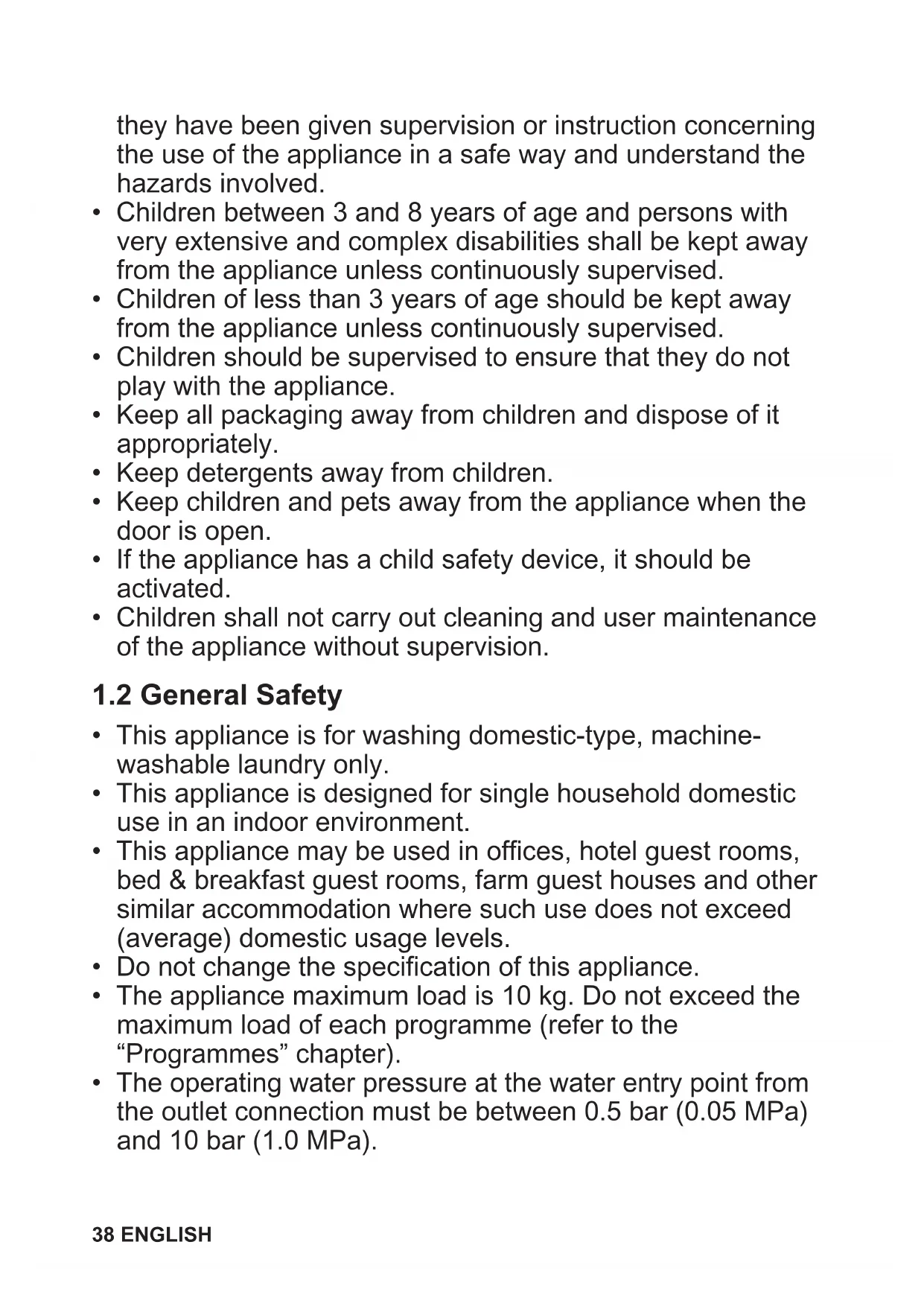

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for washing domestic-type, machine-washable laundry only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.
• The appliance maximum load is 10 kg. Do not exceed the maximum load of each programme (refer to the “Programmes” chapter).

• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).

• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If a tumble dryer is stacked on the top of the washing machine, make sure to use the correct stacking kit approved by AEG (see more details in chapter "Accessories - Stacking kit").

2. SAFETY INSTRUCTIONS

2.1 Installation

i

The installation must comply with relevant national regulations.

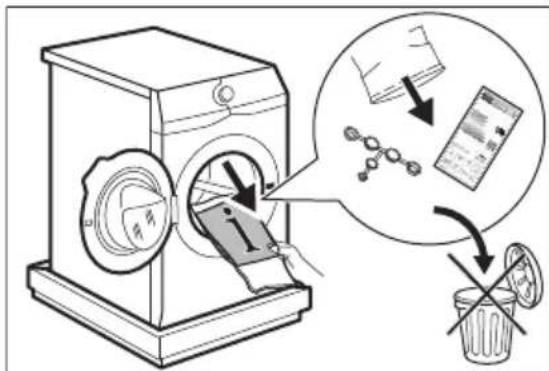

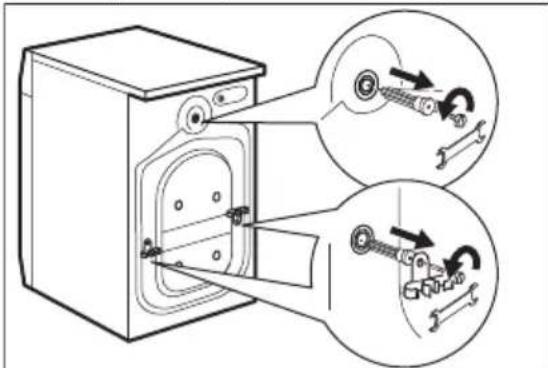

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Follow the installation instructions supplied with the appliance.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature can be less than 0°C or where it is exposed to the weather.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
  • Make sure that there is air circulation between the appliance and the floor.
• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
• Do not install the appliance directly above a floor drain.
• Do not spray water on the appliance and do not expose it to excessive humidity.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a closed container to collect possible water leakage under the

appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• WARNING: This appliance is designed to be installed / connected to a grounding connection in the building.
  • Always use a correctly installed shockproof socket.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not touch the mains cable or the mains plug with wet hands.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Water connection

• The inlet water shall not exceed 25^ .
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.
• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the

appliance with the use of water in the factory.

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.
• Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the appliance. Prewash such fabrics by hand before loading them into the appliance.
• Do not use laundry fragrances to avoid the risk of damaging plastic and rubber parts of the appliance.
• Do not touch the glass door while a programme operates. The glass can get hot.
• Make sure that all metal objects are removed from the laundry.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts are available for at least 10 years after the model has been discontinued: motor and motor brushes, transmission between motor and drum, pumps, shock absorbers and springs, washing drum, drum spider and related ball bearings, heaters and heating elements, including heat pumps, piping and related equipment including hoses, valves, filters and aquastops, printed

circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software, door, door hinge and seals, other seals, door locking assembly, plastic peripherals such as detergent dispensers. The duration may be longer in your country. For further information, please visit our website.

• Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not

intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Appliance overview

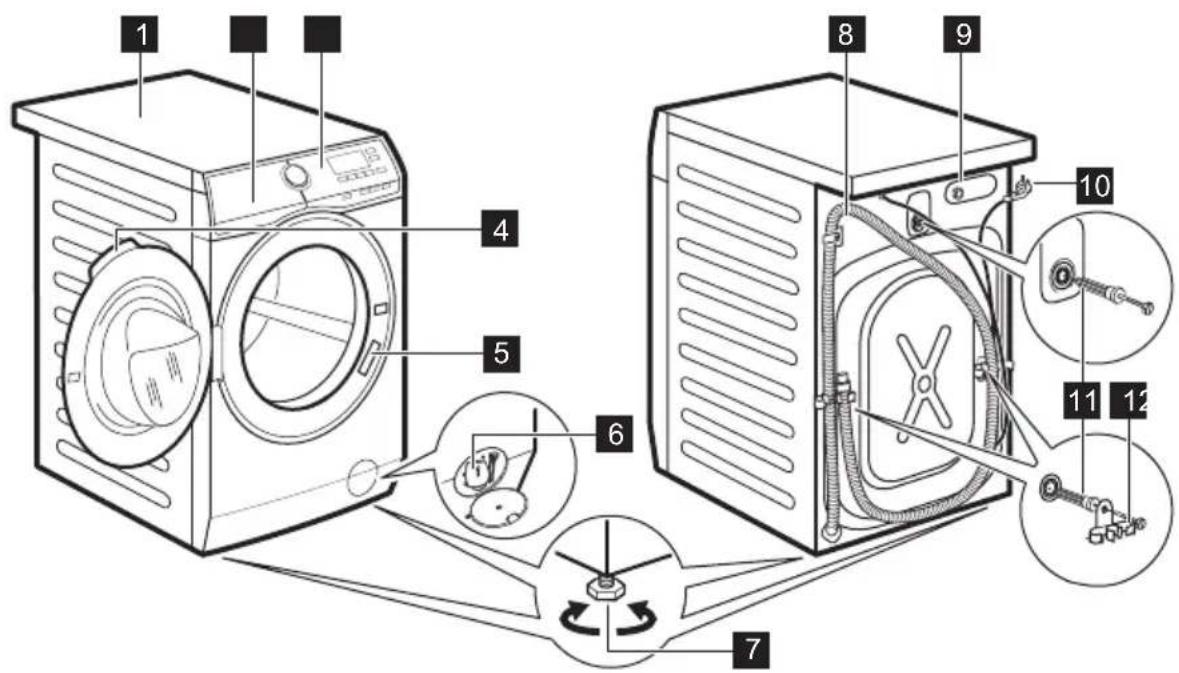

Diagram of a washing machine with numbered parts and labeled parts for assembly or maintenance reference.

1 Worktop
2 Detergent dispenser
3 Control panel
4 Door handle

5 Rating plate
6 Drain pump filter
7 Feet for levelling the appliance
8 Drain hose

9 Inlet hose connection
10 Mains cable
11 Transit bolts

12 Hose support

Mod. xxxxxxxxxxx Prod.No. 910000000 00 000V ~ 00Hz 0000 W 00A Ser No. 00000000 B C D EA

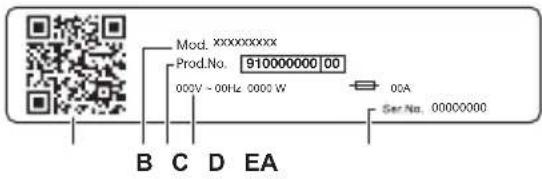

The rating plate reports:

A. QR code
B. Model name
C. Product number
D. Electrical ratings
E. Serial number

Scan the QR code on the appliance to register your product and get the most out of it.

• Access your appliance details, documentation and articles on how to use the best features (User Manual also available at aeg.com/manuals)
  • Get usage advice, troubleshooting, service and repair information (also available at aeg.com/support)
  • Buy accessories, Consumable and Original Spare parts for your appliance (also available at aeg.com/shop)

4. TECHNICAL INFORMATION

Dimension Width/ Height/ Total depth 59,7 cm /84,7 cm /66,0 cm
Electrical connection Voltage		230 V
	Overall power	2200 W
	Fuse	10 A
	Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure Minimum		0.5 bar (0.05 MPa)
	Maximum	10 bar (1.0 MPa)
Water supply 1)		Cold water
Maximum Load Cotton 10 kg

1) Connect the water inlet hose to a water tap with a 3/4" thread.

5. INSTALLATION

WARNING!

Refer to Safety chapters.

5.1 Unpacking

1. Open the door. Remove all the items from the drum.

Diagram illustrating a washing machine operation with labeled components and process steps including recycling, cleaning, and waste disposal.

i

Accessories delivered with the appliance may vary depending on the model.

1. Put the packaging element on the floor behind the appliance and carefully put it down onto its rear side. Remove the protection from the bottom.

1 2

!

CAUTION!

Do not lay washing machine on its front.

1. Put the appliance back into an upright position. Remove the power supply cable and the drain hose from the hose holders.

Illustration of a washing machine being adjusted for a bolt, with magnified view showing the component (no text or symbols present)

WARNING!

It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

1. Remove the three transit bolts and pull out the plastic spacers.

Diagram showing washing machine operation with close-ups of screw and wrench components, illustrating mechanical assembly steps.

i

We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

1. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating the process of hairpin cutting into a washing machine, with magnified insets showing the steps and component details.

5.2 Information for installation

Positioning and levelling

Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates.

1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance.
2. Loosen or tighten the feet to adjust the level. All feet must rest firmly on the floor.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

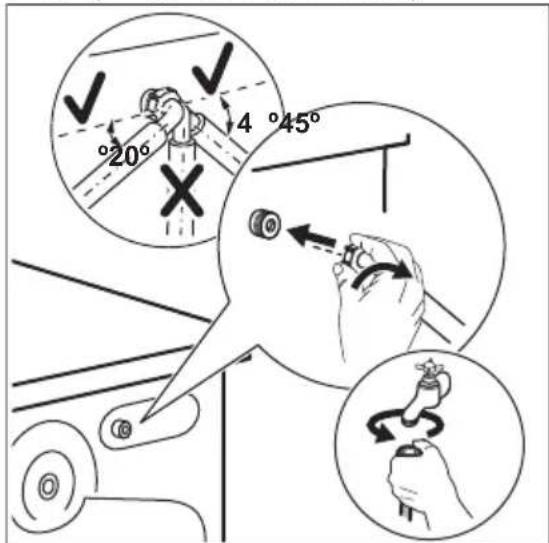

The inlet hose

CAUTION!

Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for information on inlet hose replacement.

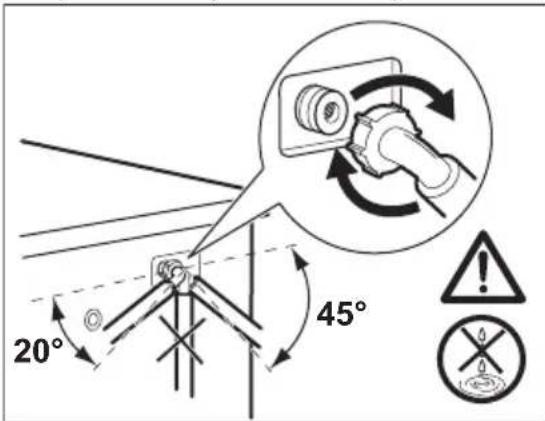

1. Connect the water inlet hose to the back of the appliance if needs. Usually, it is already installed at the factory.

20° 4° 45°

1. Position it toward left or right depending on the position of the water tap. Make sure that the inlet hose is not in vertical position.
2. If necessary, loosen the ring nut to set it in the correct position.
3. Connect the water inlet hose to the cold water tap with 3/4" thread.
4. Some models can contain inlet hose with water stop device. It prevents any leaks in the hose because of its natural ageing. The sector in the window shows this fault A. If this occurs, close the water tap and contact the authorized service centre for information to replace the hose.

3/4" 3/4" A i A ✓ A ✓

WARNING!

The inlet water shall not exceed 25 °C.

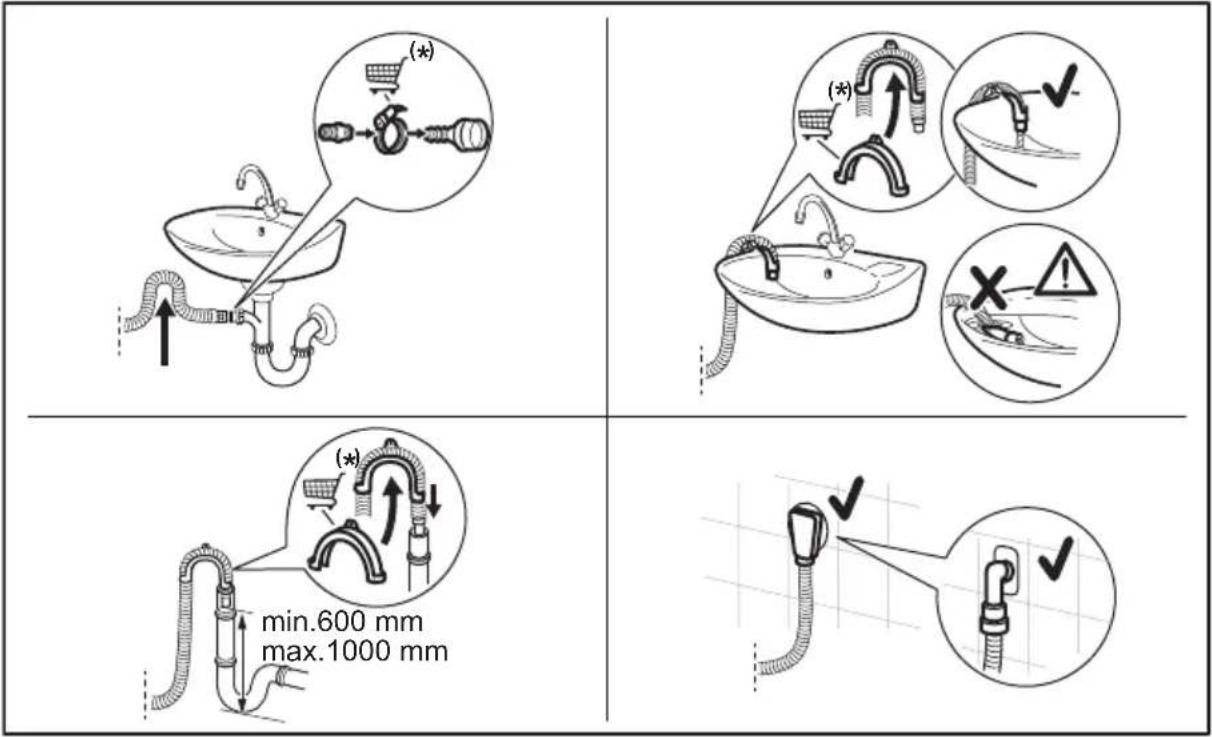

Water drainage

The drain hose should stay at a height of no less than 60 cm and not more than 100 cm.

You can extend the drain hose to maximum 400 cm. Contact the authorised service centre to buy the other drain hose and the extension.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Connect the drain hose to the spigot and tighten it with a clamp. Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

Without the plastic hose guide, to a sink spigot- Put the drain hose in the spigot and tighten it with a clamp.

The drain hose can be bent into U shape and put around the plastic guide. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance. Buy accessories from authorised supplier.

To a stand pipe with vent hole - Insert the drain hose directly into a drain pipe or stand pipe

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

It is possible to connect the drain hose in different ways:

(*) (*) (*) ✓ × ⚠ min.600 mm max.1000 mm

(*) Subject to change without notice.

5.3 Electrical connection

At the end of installation you can connect the mains plug to the mains socket.

The rating plate and the 'Technical Data' chapter indicate the necessary electrical ratings. Make sure that they are compatible with the mains power supply.

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances may also be in use.

Connect the appliance to an earthed socket.

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

The power supply cable must be easily accessible after installing the appliance.

For any electrical work required to install this appliance, contact our Authorised Service Centre.

The manufacturer does not accept any responsibility for damage or injury through

failure to comply with the above safety precaution.

6. CONTROL PANEL

6.1 Control panel description

1 2 3 4 5 6 7 8 9 10 12

1 Programme dial
2 Display
3 Tijd besparen - Gain de temps touch button
4 Startuitstel - Départ Différé touch button
5 Extra skipping touch button

- Alleen spoelen - Rinçage option

- Centrif./Pompen - Essorage/Vidange option

6 Start/Pauze - Départ/Pause touch button

7 Vlekken/Voorw. - Taches/Prélav. skipping touch button
8 Makkelijk strijken - Repassage Facile touch button
9 Extra spoelen - Rinçage Plus touch button
10 Centrifugeren - Essorage reduction touch button
11 Temp. touch button
12 Aan/Uit - Marche/Arrêt push button

6.2 Display

8:88 kg MAX 88° dB 1888

	Door locked indicator.
	Washing phase indicator. It flashes during prewash and wash phase.
	Rinsing phase indicator. It flashes during rinse phase.
	Spinning and draining phase indicator. It flashes during spin and drain phase.
	The digital indicator can show:Programme duration (e.g.)Delay time (e.g.)Cycle end()Warning code()Indication of total operating hours of the appliance. Refer to the 'Operating hours counter' section in the 'Settings' paragraph for more details.
[HSTH]	The indicator flashes during the laundry load estimation.Maximum laundry indicator. It flashes when the laundry load exceeds the maximum declared load of the selected programme.

7. DIAL AND BUTTONS

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance to decrease the

	Time saving indicator.
	Delay start indicator.
	Drum clean indicator. Refer to the 'Cleaning the drum' section in the 'Care and cleaning' paragraph for more details.
	The Temperature area:Temperature indicatorCold water indicator
	Extra silent indicator.
	Rinse hold indicator.
	The spin area:Spin speed indicatorNo Spin indicator. Spin phase is off.
	Pre-wash indicator.
	Stain indicator.
	Child safety lock indicator.

energy consumption in a few cases, you may need to activate the appliance again.

i

The default selected programme, at machine switch on, is always the Eco 40-60 programme, also after wake up from standby.

For more details, refer to Stand-by paragraph in Daily Use chapter.

7.2 Introduction

i

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

7.3 Temp.

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators - - and ✕ the appliance does not heat the water.

7.4 Centrifugeren - Essorage

When you set a programme, the appliance automatically sets the default spin speed.

Touch repeatedly this button to:

• Decrease the spin speed.

i

The display shows only the spin speeds available for the set programme.

- Activate the Rinse Hold option.

The final spin is not performed. The water of the last rinse is not drained out to prevent the fabrics from creasing. The

washing programme ends with water in the drum.

The display shows the indicator □ The door stays locked and the drum turns regularly to reduce creasing. You must drain the water to unlock the door. If you touch the Start/Pauze - Départ/ Pause button, the appliance performs the spinning phase and drains the water.

i

The appliance empties the water out automatically after 18 hours approximately.

- Activate the Extra Silent option.

The intermediate and the final spinning phases are suppressed and the programme ends with water in the drum. This helps to reduce creasing.

The display shows the indicator dB The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water. If you touch the Start/Pauze - Départ/ Pause button, the appliance performs the only draining phase.

i

The appliance empties the water out automatically after 18 hours approximately.

7.5 Vlekken/Voorw. - Taches/Prélav.

Press this button repeatedly to activate one of the two options.

The relevant indicator goes on in the display.

• Vlekken - Taches

Select this option to add an anti-stain phase to a programme in order to treat heavily soiled or stained laundry with stain remover.

Pour the stain remover into compartment. The stain remover will be added in

the appropriate phase of the washing programme.

This option is not available with a temperature lower than 40 °C.

Use this option to add a pre-wash phase at 30 °C before the washing phase. This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

The options can increase the programme duration.

7.6 Extra

With this button you can select one of the following options:

- Skipping wash phase - Alleen spoelen - Rinçage option

The appliance performs only the rinsing phase, the spinning and the draining phases of the selected programme. When this option is set the washing phase is not performed.

- Centrif./Pompen - Essorage/Vidange option

The appliance performs only final spinning or only draining phase of selected

programme. By selecting No Spin - - - option via Centrifugeren - Essorage button only Drain cycle can be configured.

The corresponding indicator above the touch button illuminates.

7.7 Extra spoelen - Rinçage Plus

With this option you can add a few rinses according to the selected washing programme.

Use this option for people with allergies to detergent residues and with sensitive skin.

This option increases the programme duration.

The related indicator comes on.

The appliance carefully washes and spins the laundry to prevent the creases.

The appliance decreases the spin speed, uses more water and adapts the programme duration to the type of laundry.

The related indicator comes on.

7.9 Start/Pauze - Départ/Pause

Touch the Start/Pauze - Départ/Pause button to start, pause the appliance or interrupt a running programme.

With this option you can delay the start of a programme in a more convenient time.

Touch the button repeatedly to set the required delay. The time increases by steps of 30 minutes up to 90' and from 2 hours up to 20 h.

After touching the Start/Pauze - Départ/Pause button, the display shows the indicator

😊 and the selected delay time and the appliance begins the countdown.

With this option you can decrease the programme duration.

- If your laundry is normally or lightly soiled, it may be advisable to shorten the washing programme. Touch this button once to decrease the duration.

- In case of smaller load, touch this button twice to set an extra quick programme.

The display shows the indicator ➕

8. PROGRAMMES

8.1 Programme Chart

Washing programmes

Programme Programme description
MixLoad 69min	Cotton and mixed synthetic fabrics. Ideal to wash your daily load in a short time, for a better clothes care and good cleaning already at 30°C.
Eco 40-60 Low energy cycle for cottons. Decreases temperature and extends time to reach good washing results.
Katoen - Coton	White and coloured cotton fabrics. Ideal for normal and heavy soil.
Synthetica - Synthétiques	Synthetic items or mixed fabric items. Normal soil.
Fijne was - Délicats	Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wol - Laine	Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol1).
20 min. - 3 kg	Cotton and synthetic items lightly soiled or worn only once.
Outdoor^[W3X6]	Do not use fabric softener and make sure that there is no softener residue in the detergent dispenser.Outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets with a removable fleece or inner insulation. The recommended laundry load is 2,5 kg.This programme can also be used as water-repellent restoring cycle, specifically tailored for treating clothes with a hydrophobic coating. To perform the water-repellent restoring cycle, proceed as follows:Pour the washing detergent in the compartment.Pour a special water-repellent restorer for fabric in the drawer compartmentfor fabric softenerReduce the laundry load to 1 kg.
	To further improve the water-repellent restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
Hygiene	White cotton items. This high-performance wash programme combined with steam vapour, removes more than 99,99% of bacteria and viruses2) keeping the temperature above 60°C throughout the washing phase; with an additional action on the fibers thanks to a vapour phase, an enhanced rinsing phase ensures a proper removal of detergent and micro-organism residues. This programme ensures also a proper reduction of pollens/allergenic items.

• Pour a special water-repellent restorer for fabric in the drawer compartment

• Pour the washing detergent in the compartment

Programme Programme description

Machine clean

Maintenance cycle with hot water to clean and freshen the drum and to remove residue that may cause odour. Before running this cycle, remove all items from the drum. In the washing phase compartment of the detergent dispenser, put the flap of the compartment in upward position. Pour a cup of chlorine bleach or a washing machine cleaner in the washing phase compartment of the detergent dispenser. DO NOT use both together3).

1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
2) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).
3) After the drum cleaning, run a further rinse cycle with empty drum and no detergent to remove any residue of bleach.

Programme temperature, maximum spin speed and maximum load

Programme Default temperature	Temperature range	Reference spin speed Spin speed range	Maximum load
MixLoad 69min	30 °C	1400 rpm	5 kg
	60 °C - 30 °C	1400 rpm - 400 rpm
Eco 40-60	40 °C 1)	1400 rpm	10 kg
		1400 rpm - 400 rpm
Katoen - Coton	40 °C	1400 rpm	10 kg
	95 °C - Cold	1400 rpm - 400 rpm
Synthetica - Synthétiques	30 °C	1200 rpm	4 kg
	60 °C - Cold	1200 rpm - 400 rpm
Fijne was - Délicats	30 °C	1200 rpm	2 kg
	40 °C - Cold	1200 rpm - 400 rpm
Wol - Laine	40 °C	1200 rpm	1,5 kg
	40 °C - Cold	1200 rpm - 400 rpm
20 min. - 3 kg	30 °C	1200 rpm	3 kg
	40 °C - 30 °C	1200 rpm - 400 rpm
Outdoor	30 °C	1200 rpm	2,5 kg 2)
	40 °C - Cold	1200 rpm - 400 rpm	1 kg 3)
Hygiene	60 °C	1400 rpm	10 kg
		1400 rpm - 400 rpm
Programme Default temperature Temperature range		Reference spin speed Spin speed range	Maximum load
Machine clean	60 °C	1200 rpm1200 rpm - 400 rpm	-

1) According to Commission Regulation EU 2019/2023, this programme at 40^ is able to clean normally soiled cotton laundry declared to be washable at 40^ or 60^ , together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

2) Washing programme.
3) Washing programme and water repellent phase.

1) This option is not available with temperature lower than 40 °C.
2) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory.
Programme options compatibility

Options	Programme	MixLoad 69min	Eco 40-60	Katoen - Coton	Synthetica - Synthétiques	Fijne was - Délicats	Wol - Laine	20 min. - 3 kg	Outdoor	Hygiene	Machine clean
Centrifugeren - Essorage		■	■	■	■	■
Rinse Hold		■	■	■	■	■
dB		■	■
Vlekken - Taches 1)		■	■	■
Voorwas - Prélavage		■	■	■
Alleen spoelen - Rinçage		■	■	■	■	■
Centrif./Pompen - Essorage/Vidange		■	■	■	■	■
Extra spoelen - Rinçage Plus		■	■	■	■
Makkelijk strijken - Repassage Facile		■	■
Tijd besparen - Gain de temps2)		■	■	■
Startuitstel - Départ Dif-féré		■	■	■	■	■	■

Suitable detergents for washing programmes

Programme	Universal pow-der1)	Liquid Uni-versal	Liquid for coloureds	Delicates woollens	Special
MixLoad 69min	--	▲	▲	--	--
Eco 40-60	▲	▲	▲	--	--
Katoen - Coton	▲	▲	▲	--	--
Synthetica - Synthétiques	▲	▲	▲	--	--
Fijne was - Délicats	--	--	--	▲	▲
Wol - Laine	--	--	--	▲	▲
20 min. - 3 kg	--	▲	▲	--	--
Outdoor	--	--	--	▲	▲
Hygiene	▲	▲	--	--	▲

1) At temperature higher than 60 °C the use of powder detergent is recommended.
-- = Not recommended ▲ = Recommended

WOOL HAND WASH SAFE WOOLMARK WOOL CARE

The wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M1512

9. SETTINGS

9.1 Child Lock

With this option you can prevent children from playing with the control panel.

• To activate/deactivate this option, touch the Vlekken/Voorw. - Taches/Prélav.

button until the indicator ☐ comes on/ goes off on the display.

You can activate this option:

• After you touch the Start/Pauze - Départ/Pause button: all the buttons and the programme dial are deactivated (except Aan/Uit - Marche/Arrêt button).
- Before you touch the Start/Pauze - Départ/Pause button: the appliance cannot start. The appliance keeps the selection of this option after you switch it off.

9.2 Acoustic signals

To deactivate the acoustic signals when the programme is completed touch the Vlekken/Voorw. - Taches/Prélav. and the Makkelijk strijken - Repassage Facile buttons simultaneously for about 3 seconds.

The acoustic signals, they continue operate when the appliance has a malfunction.

9.3 Operating Hours Counter

It is possible to visualise the total operating time of the appliance in hours, starting from the first switching on. This value will count

operating time of the cycles (does not include pauses, delayed start time). To visualise this value, proceed as follows:

1. Switch the appliance on by pressing Aan/Uit - Marche/Arrêt button.
2. Turn the programme knob to the first programme.
3. Press and hold the Vlekken/Voorw. - Taches/Prélav. and Makkelijk strijken - Repassage Facile buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).
4. After 3 seconds the total hours operated by the appliance are shown in the display: e.g. 1276 hours, the display shows the text Hr for 2 seconds, 12 (thousands and hundreds) for 2 seconds and 76 (tens and units).

If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

9.4 Factory Reset

This function allows to restore the factory default options. To activate this option follow steps below:

1. Switch the appliance on by pressing Aan/Uit - Marche/Arrêt button.

2. Turn the programme knob to the third programme.

3. Press and hold the Vlekken/Voorw. - Taches/Prélav. and Makkelijk strijken - Repassage Facile buttons for some seconds (within 10 seconds after the switching on. After these 10 seconds, the key combination activates and deactivates the acoustic signals).
4. The display will show for about 5 seconds.

If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning.

10. DAILY USE

WARNING!

Refer to Safety chapters.

10.1 Activating the appliance

1. Connect the mains plug to the mains socket.
2. Open the water tap.
3. Press the Aan/Uit - Marche/Arrêt button for a few seconds to activate the appliance.

A short tune sounds. The appliance automatically proposes a default programme. The relevant indicator illuminates.

The display shows the default programme, Eco 40-60, cycle duration, the maximum load, the default spin speed and the indicators of the phases making up the programme.

10.2 Loading the laundry

• Open the appliance door.
• Shake the items before you put them in the appliance.
• Put the laundry in the drum, one item at a time.

Make sure not to put too much laundry in the drum.

- Close the door firmly.

Medical warning diagram showing a warning symbol with an exclamation mark and a magnified view of a patient inside a device.

CAUTION!

• Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.
• Washing heavily oiled, greasy stains or using fragrances perfume could cause damage rubber parts of the appliance.

10.3 Filling the detergent and additives

Technical diagram of a device interior with labeled parts and symbols, including a fan icon and E-E symbol.

Compartment for prewash phase, soak programme or stain remover.

Compartment for washing phase.

Compartment for liquid additives (fabric conditioner, starch).

Maximum level for quantity of liquid additives.

Flap for powder or liquid detergent.

Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level

(MAX) is quantity will however guarantee the best washing results.

After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

10.4 Check the position of the detergent flap

1. Pull out the detergent dispenser until it stops.

Diagram showing two hands operating a device with labeled parts, indicating process steps 1 and 2.

1. Press the lever down to remove the dispenser.

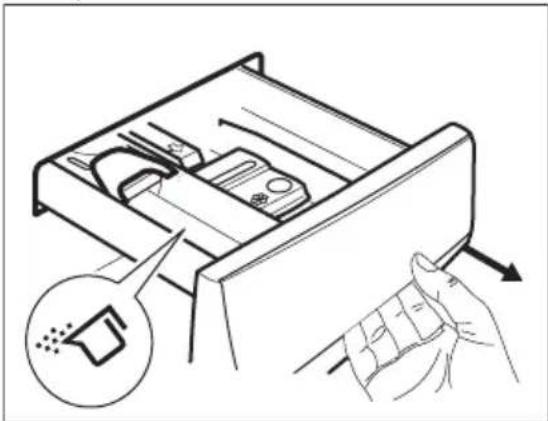

2. To use powder detergent, turn the flap up.

Line drawing of a hand inserting a device into a drawer with a magnified inset showing sound waves (no text or symbols)

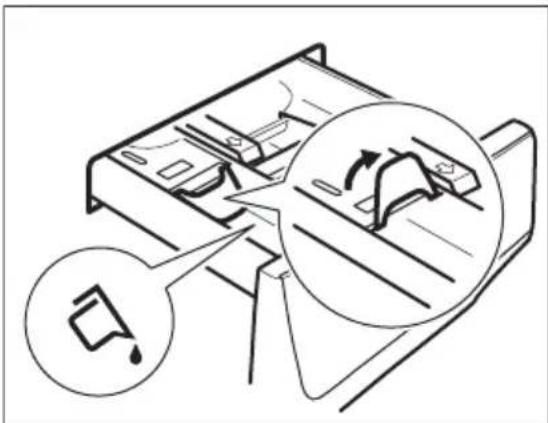

1. To use liquid detergent, turn the flap down.

Diagram of a mechanical device with internal components and a magnified inset showing motion or movement (no text or symbols)

With the flap in the position DOWN:

• Do not use gelatinous or thick liquid detergents.
• Do not exceed to liquid detergent dose indicated on the flap.
• Do not set the prewash phase.

• Do not set the delay start function.

• Measure out the detergent and the fabric conditioner.

• Carefully close the detergent dispenser.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Make sure that the flap does not cause a blockage when you close the drawer.

10.5 Setting a programme

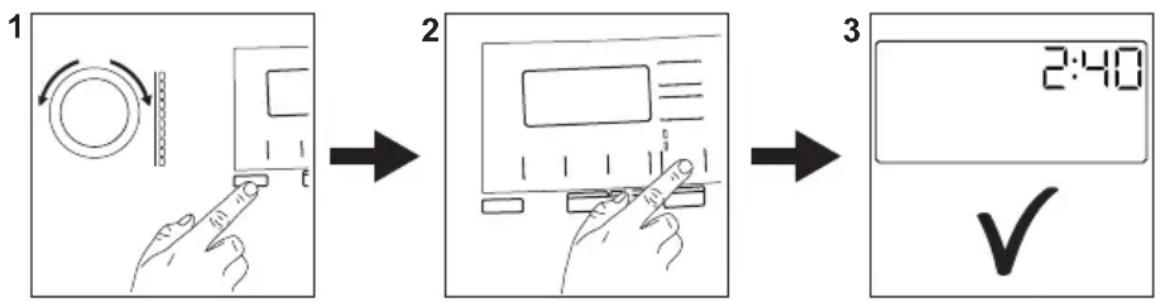

1. Turn the programme dial to select the desired washing programme. The related programme indicator comes on.

The indicator of the Start/Pauze - Départ/Pause button flashes.

The display shows the maximum declared load for the programme, the default temperature, the default spin speed, the washing phase indicators (when available) and an indicative programme duration.

1. To change the temperature and/or the spin speed, touch the related buttons.

2. If desired, set one or more options by touching the related buttons. The related indicators come on in the display and the given information changes accordingly.

i

In case a selection is not possible, no indicator comes on and an acoustic signal sounds.

10.6 Additional information about daily use

The ProSense load detection

The appliance detects the load in the first 30 seconds, during detection the indicator flashes. The indicator stop flashing at the end of load detection. In case of drum overload,

the indicator is flashing in the display: It is possible to pause the appliance and remove the exceeding garments. If the laundry amount will not be reduced, the washing programme starts anyway. About 20 minutes after the programme start, the

programme duration could be adjusted again depending on the capacity of water absorption of the fabrics. The ProSense Technology is not available in programmes with short cycles.

Starting a programme

Touch the Start/Pauze - Départ/Pause button to start the programme. The related indicator stops flashing and stays on. The programme starts, the door is locked. The display shows the indicator

Starting a programme with delay start

1. Touch the Startuitstel - Départ Différé button repeatedly until the display shows the desired delay time.

2. Touch the Start/Pauze - Départ/Pause button. The appliance door locks and starts the countdown of the delay start. When the countdown is completed, the programme starts automatically.

Interrupting a programme and changing the options.

1. When the programme is running, you can change only some options. Touch the Start/Pauze - Départ/Pause button.

2. Change the options. The given information in the display changes accordingly.

3. Touch the Start/Pauze - Départ/Pause again. The washing programme continues.

Cancelling a running programme

1. Press the button Aan/Uit - Marche/Arrêt button to cancel the programme and to deactivate the appliance

2. Now, you can set a new washing programme. Press again to activate the appliance.

Opening the door - adding garments

While a programme or the delay start operates, the appliance door is locked.

1. Touch the Start/Pauze - Départ/Pause button

2. Open the appliance door. If necessary, add or remove the items.

3. Close the door and touch the Start/Pauze - Départ/Pause again. The programme or the delay start continues.

End of the programme

1. The appliance stops automatically. The acoustic signals operate (if they are active).
2. The indicator of the Start/Pauze - Départ/Pause button goes off. The door unlocks and the indicator goes off.
3. Press the Aan/Uit - Marche/Arrêt button to deactivate the appliance. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse you must remember to drain the water to open the door.

1. Touch button Start/Pauze - Départ/Pause.

2. If you have set the appliance drains the water and spins.

3. If you have set ,the appliance only drains the water.

4. Touch button Centrifugeren - Essorage to decrease the spin speed proposed by the appliance When the programme is completed and the door locked indicator → goes off, you can open the door.

5. Press the Aan/Uit - Marche/Arrêt to deactivate the appliance.

Stand-by function

The Stand-by function automatically deactivates the appliance to reduce the energy consumption.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Periodic cleaning schedule

Periodic cleaning helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly open to get air circulation and dry the humidity inside the appliance.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Indicative periodic cleaning schedule:

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispens- Every two months er

Clean drain pump filter Twice a year

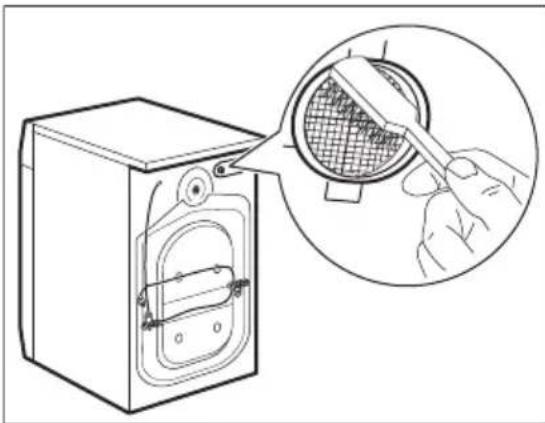

Clean the inlet hose and Twice a year the valve filter

11.2 Removing foreign objects

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. Refer to "Door seal with double lip trap", "Cleaning the drum", "Cleaning the drain pump" and "Cleaning the inlet hose and the valve filter" paragraphs. Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase. If necessary, please contact the Authorised Service Centre.

11.3 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces. Do not use a scouring pads or any scratching material.

CAUTION!

Do not use alcohol, solvents or chemical products.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

11.4 Descaling

If the water in your area is hard or medium hard, we recommend that you use a water softener for washing machines (descaling occasionally).

Regularly examine the drum to check for limescale.

Always follow the instructions that you find on the packaging of the product.

11.5 Maintenance wash

The repeated and prolonged use of low temperature programmes can cause detergent deposits, fluff residues, bacterial growth inside the drum and the tub. This could generate bad odours and mildew. To eliminate these deposits and clean the inner part of the appliance, run a maintenance wash regularly (at least once a month).

Refer to "Cleaning the drum" paragraph.

11.6 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits.

Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel wool.

For a thorough clean:

1. Remove all laundry from the drum.
2. Run the Machine clean programme. For more details, refer to washing programme table.
3. Add a small quantity of powder detergent into the empty drum, in order to rinse out any left residues.

Occasionally, at the end of a cycle the display may show the icon this is a recommendation to perform the “drum cleaning”. Once the drum cleaning has been performed, the icon disappears.

11.7 Door seal

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car seatbelt, no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

Always obey the instructions that you find on the packaging of the product.

11.8 Cleaning the detergent dispenser

To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, every two months carry out the following cleaning procedure how explained in the following diagrams:

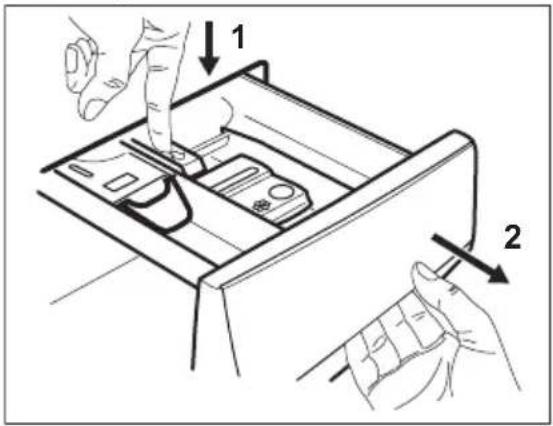

1. Open the drawer. Press the catch downwards as indicated in the picture and pull it out.

Diagram showing hand positioning of a device into a drawer with labeled parts and directional arrows

1. Remove the top part of the additive compartment to aid cleaning and flush it out under running warm water, to remove any traces of accumulated detergent. After cleaning, put the top part back into position.

Technical line drawing of a device interior with a mounted device and internal components (no text or symbols)

1. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

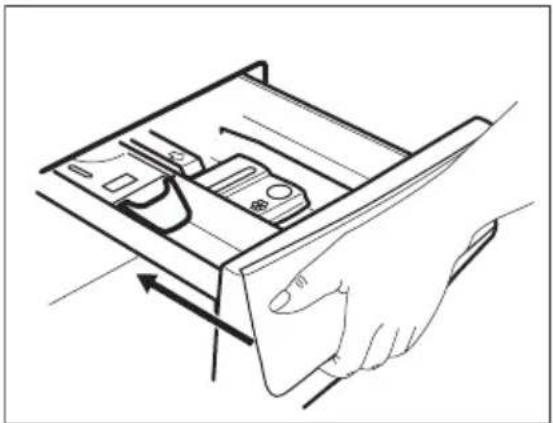

1. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

11.9 Cleaning the drain pump filter

i

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump filter if:

• The appliance does not drain the water.

- The appliance makes an unusual noise because of the blockage of the drain pump.

• The drum does not turn.

• The display shows the alarm code

E20

!

WARNING!

• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down

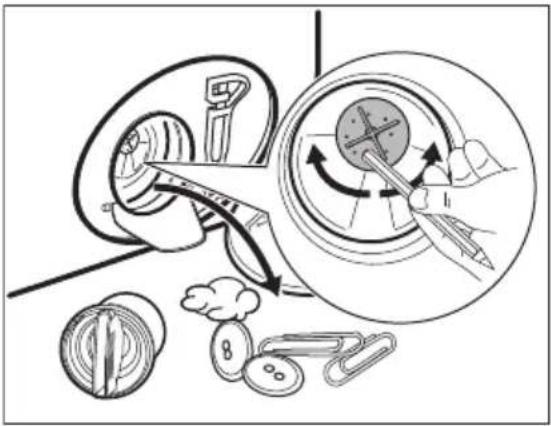

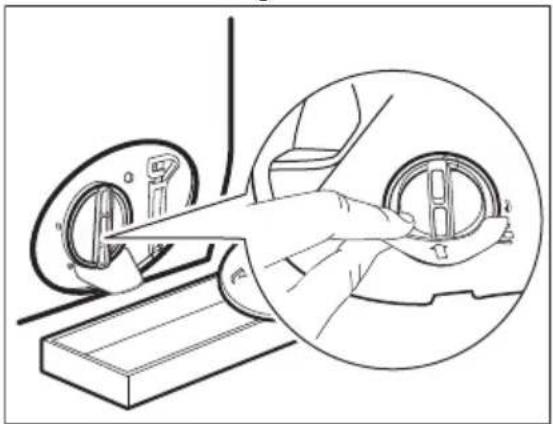

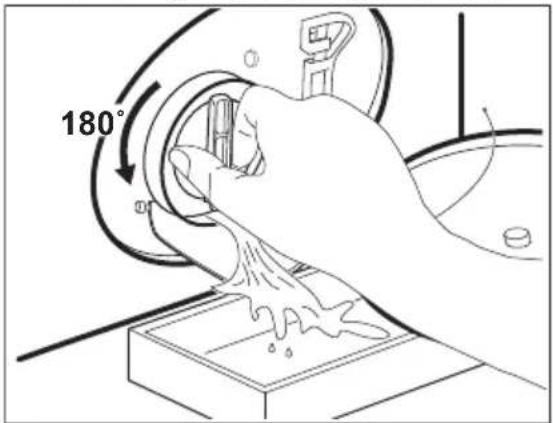

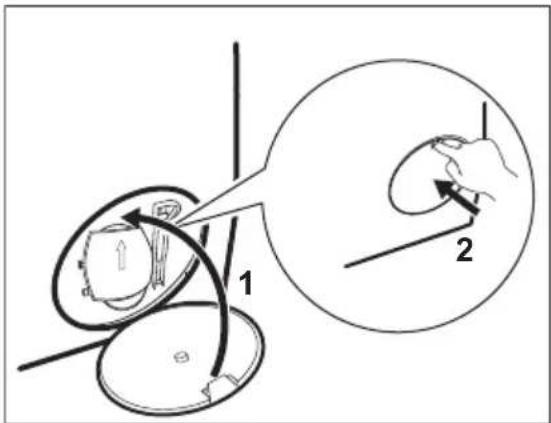

Proceed as follows to clean the pump:

Always keep a rag nearby to dry up any water spillages when removing the filter.

1. Open the pump cover.

1 2

1. Place a suitable bowl below the drain pump access to collect the water that flows out.
2. Open the chute downwards. Always keep a rag nearby to dry up any water spillages when removing the filter.

Diagram showing a hand operating a mechanical component with circular components, no text or symbols present

1. Turn the filter 180 degrees in anti-clockwise direction to open it, without removing. Let the water flow out.

180°

1. When the bowl is full of water, turn the filter back and empty the container.
2. Repeat the steps 4 and 5 until the water stops to flow out.
3. Turn the filter anti-clockwise to remove it.

Diagram showing a hand turning a component with labeled parts 1 and 2, indicating a step in the process.

1. If it is necessary, remove fluff and objects from the filter recess.

2. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

Illustration of a medical or surgical procedure with tool, arrows, and tools (no text or symbols)

1. Clean the filter under the water tap.

Line drawing of a faucet with water flowing out, creating splashes from the drain (no text or symbols)

1. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

2 1

1. Close the pump cover.

Diagram illustrating a hand operating a device with labeled parts and directional arrows, including a magnified inset showing the component.

11.10 Cleaning the inlet hose and the valve filter

It is recommended to clean both the filters of the inlet hose and valve twice a year to remove any deposit, collected over the time. Proceed as described in following diagrams to clean filters:

1. Remove the inlet hose from the tap and clean the filter.

Illustration showing three-step instructions for using a tool to adjust a valve, with numbered steps and magnified views.

1. Remove the inlet hose from the appliance by loosening the ring nut.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows and a magnified view (no text or symbols)

1. Clean the valve filter on the back of the appliance with a toothbrush.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to filter or clean the interior (no text or symbols present)

1. When you reconnect the hose to the back of the appliance, turn it left or right (not in vertical position) depending on the position of your water tap.

20° 45° 警告 ×

11.11 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

11.12 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0^ C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.
4. Empty the drain pump. Refer to the emergency drain procedure.
5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

12. CONSUMPTION VALUES

12.1 Comment

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

According to Commission Regulation Eu 2019/2023

Eco 40-60 pro-gramme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Full load 10 0.860 70.0 3:50 53.00 34 1351
Half load 5 0.465 55.0 2:55 53.00 27 1351
Quarter load 2,5 0.305 40.0 2:35 54.00 25 1351

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Maximum spin speed.

Common programmes

These values are indicative only.

Programme	kg kWh Litres hh:mm		%1)	°C	rpm2)
Katoen - Coton3)95°C	10 2.90 85.0	4:05 52.00 85 1400

Programme	kg kWh Litres hh:mm	%1)	°C	rpm2)
Katoen - Coton60°C	10 1.80 80.0 3:40 52.00 55 1400
Katoen - Coton4)20°C	10 0.40 80.0 3:15 52.00 20 1400
Synthetica - Synthétiques40°C	4 0.85 75.0 2:30 35.00 40 1200
Fijne was - Délicats5)30°C	2 0.35 60.0 1:25 35.00 30 1200
Wol - Laine30°C	1,5 0.30 70.0 1:05 30.00 30 1200

1) Remaining moisture at the end of the spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture.
2) Reference indicator of the spin speed.
3) Suitable for washing heavily soiled textiles.
4) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
5) It also performs as quick washing cycle for lightly soiled laundry.

Power consumption in different modes

Off (W) Stand-by (W) Delay start (W)

0.50 0.50 4.00

Time to Off/Standby mode is 15 minutes maximum.

13. QUICK GUIDE

13.1 Daily use

• Connect the mains plug to the mains socket.
• Open the water tap.
• Load the laundry.

• Pour the detergent and other treatment in the proper compartment of the detergent dispenser.

• Push the Aan/Uit - Marche/Arrêt button to turn the appliance on. Turn the programme dial to set the desired programme.

• Set the desired options by means of the corresponding touch buttons. To start the

programme, touch the Start/Pauze -

Départ/Pause button.

1. The appliance starts.

2. At the end of the programme, remove the laundry.

3. Push the Aan/Uit - Marche/Arrêt button to turn the appliance off.

13.2 Care and cleaning

Periodic cleaning schedule will helps to extend the life of your appliance.

After each cycle, keep the door and the detergent dispenser slightly ajar to get air circulation and dry the humidity inside the appliance: this will prevent mildew and odours.

If the appliance is not used for a long time: close the water tap and unplug the appliance.

Descaling Twice a year

Maintenance wash Once a month

Clean door seal Every two months

Clean drum Every two months

Clean detergent dispenser Every two months

Clean drain pump filter Twice a year

Clean the inlet hose and twice a yearthe valve filter

Keep clear the plastic parts, especially near the detergent drawer area, remove excess spillage.

The following paragraphs explain how you should clean some part.

Door seal with double lip trap

This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water. Regularly examine the seal and if necessary clean as described in the following diagram. Coins, buttons, other small items can be recovered at the end of the cycle.

Line drawing of a hand holding a car tire, with no text or symbols present

Clean it when needed, using ammonia cream cleanser agent without scratching the seal surface.

i

Always obey the instructions that you find on the packaging of the product.

Check and remove objects (if there are any) that could be trapped in the fold.

Make sure that no laundry remains between the seal and the door.

Use a moist cloth to wipe off any dirt or water residue left behind in the door seal after completion of program cycle.

Removing foreign objects

i

Make sure that pockets are empty and all loose elements are tied up before running your cycle.

Remove any foreign objects (such as metal clip, buttons, coins, etc) that you may find in the door seal, the filters and the drum. If necessary, please contact the Authorised Service Centre.

Cleaning the drain pump filter

Clean the filter regularly and, especially, if the alarm code E20 appears on the display.

13.3 Programmes

Programmes Load Product description
MixLoad 69min	5 kg	Cotton and synthetic items. This programme ensures a good washing performance in a short time.
Eco 40-60	10 kg 1)	White and coloured cottons. Normally soiled garments.
Katoen - Coton	10 kg White cotton and coloured cotton.
Synthetica - Synthétiques	4 kg Synthetic items or mixed fabric items.
Fijne was - Délicats	2 kg Delicate fabrics such as acrylics, viscose, polyester items.
Wol - Laine	1,5 kg Machine washable wool, hand washable wool and delicates.
20 min. - 3 kg	3 kg Cotton and synthetic lightly soiled items or once worn items.
Outdoor	2,5 kg 2)1 kg 3)	Modern outdoor sporting garments.
Hygiene	10 kg	White cotton items. This program removes more than 99,99% of bacteria and viruses 4). It also ensure a proper reduction of allergens.
Machine clean	- Maintenance cycle for drum cleaning.

180° π

1 2

Illustration of a faucet pouring water into a circular container (no text or symbols)

Programmes Load Product description

Loading the appliance to the maximum capacity indicated for each programmes helps to reduce energy and water consumption.

1) According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.

For the reached temperature in the laundry, the programme duration and other data, please refer to 'Consumption Values' chapter. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

2) Washing programme.
3) Washing programme and water repellent phase.
4) Tested for Staphylococcus aureus, Enterococcus faecium, Candida albicans, Pseudomonas aeruginosa and MS2 Bacteriophage in external test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 202120117).

Suitable detergents for washing programmes

Programme	Universal pow-der1)	Liquid Uni-versal	Liquid for coloureds	Delicates woollens	Special
MixLoad 69min	-- ▲ ▲ -- --
Eco 40-60 ▲ ▲ ▲ -- --
Katoen - Coton	▲ ▲ ▲ -- --
Synthetica - Synthétiques	▲ ▲ ▲ -- --
Fijne was - Délicats	-- -- -- ▲ ▲
Wol - Laine	-- -- -- ▲ ▲
20 min. - 3 kg	-- ▲ ▲ -- --
Outdoor [KE5W]	-- -- -- ▲ ▲
Hygiene [AHW7]	▲ ▲ -- -- ▲

1) At temperature higher than 60 °C the use of powder detergent is recommended.

-- = Not recommended ▲ = Recommended

13.4 Detergent type and quantity.

- Use only detergents and other treatments specially made for washing machines. First, follow these generic rules: - powder detergents (also tablets and single-dose detergents) for all types of fabric, excluding delicate. Prefer

powder detergents containing bleach for whites and laundry sanitization, – liquid detergents (also single-dose detergents), preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

• Do not mix different types of detergents.

• Use less detergent if:

• you are washing a small load,
  – the laundry is lightly soiled,

– there is large amounts of foam during washing.

- When using detergent tabs or pods, always put them inside the drum, not in the detergent dispenser and follow the manufacturer's recommendations.

Insufficient detergent may cause:

• unsatisfactory washing results,
• the wash load to turn grey,

• greasy clothes,
• mould in the appliance.

Excessive detergent may cause:

• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.

14. ALARM CODES AND POSSIBLE FAILURES

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables).

WARNING!

Deactivate the appliance before carrying out any check.

Problem Possible solution
E10The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the filter of the inlet hose and the filter of the valve are not clogged.
E20The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary.Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
E40The appliance door is open or not closed correctly.	Make sure that the door is properly closed.
E91Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early.Switch the appliance off and on again.If the alarm code appears again, contact the Authorised Service Centre.
EHOThe mains supply is unstable.	Wait until mains supply is stable.
EFOThe anti-flood device is on.	Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.

If the problem persists, contact the Authorised Service Centre. The necessary data for the service centre are on the rating plate

*Some alarm codes may not occur. Subject to change without notice.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

Diagram of a washing machine with numbered parts for identification and assembly reference.

Diagram illustrating a washing machine operation with labeled parts and instructions for cleaning or recycling.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

AVERTISSEMENT!

Diagram showing a washing machine with two close-up insets illustrating the mechanism of fastening or locking.

Diagram illustrating washing machine operation with three circular insets showing tool positioning and cleaning steps

3/4" 3/4" A i A ✓ A ✓ ↓

⚠ AVERTISSEMENT!

8:88 kg MAX 88° dB 1888

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

Medical warning diagram showing a catheter with an exclamation mark and a cross symbol, likely indicating a medical or diagnostic hazard.

ATTENTION!

Technical diagram of a refrigerator interior with labeled parts and icons

Diagram showing two hands operating a device with labeled parts, indicating process steps 1 and 2.

Line drawing of a hand inserting a device into a drawer with an icon indicating sound or vibration (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or movement.

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand holding a car tire, no text or symbols present

Diagram showing two hands operating a device with labeled parts, indicating process steps 1 and 2.

Technical line drawing of a device interior with a mounted device and internal components (no text or symbols)

Line drawing of a hand using a tool to clean or store items inside a rectangular appliance (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Diagram showing a hand inserting a component into a circular housing, with no visible text or symbols.

Diagram showing a hand using a switch to adjust the internal component, labeled with parts 1 and 2.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating rotation or movement.

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram illustrating a medical procedure with labeled steps 1 and 2, showing anatomical structures and directional arrows.

Diagram illustrating three-step cleaning or repair procedure steps for a faucet, showing hand positioning and tool application.

Illustration of a hand using a tool to adjust a mechanical component, showing rotational arrows (no text or symbols)

Line drawing of a washing machine with a magnified inset showing the meshing process (no text or symbols)

Line drawing of a hand holding a small object near a curved surface (no text or symbols)

13.3 Programmes

Illustration of a faucet pouring water into a circular container (no text or symbols)

-- = non recommandé ▲ = recommandé

Diagram of a washing machine with numbered parts and labeled components for assembly or maintenance reference.

Diagram illustrating a washing machine operation with labeled components and process steps including recycling, cleaning, and waste disposal.

i

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

WARNUNG!

Diagram showing a washing machine with two close-up insets illustrating the internal components of the device.

i

Diagram illustrating a washing machine operation with three steps showing tool application and cleaning process

3/4" 3/4" A i A ✓ A ✓ ↓

WARNUNG!

Diagram illustrating a kitchen sink with tubing and a shopping cart icon, showing a close-up of the product's handle.

(*)

min.600 mm max.1000 mm

Diagram showing a hose with a connector and a magnified view highlighting the connector's detail.

Simple line drawing of an electrical plug connected to a power outlet (no text or symbols)

8:88 kg MAX 88° dB 1888

WOOL MARK WOOL CARE WOOL HAND WASH SAFE

Medical warning diagram showing a mouse inside a catheter with an exclamation mark and warning symbol

VORSICHT!

Technical diagram of a device casing with labeled components and symbols

Diagram showing two hands operating a device with labeled parts, including a directional arrow and numbered callouts.

Line drawing of a hand inserting a device into a drawer with a magnified inset showing a speaker icon (no text or symbols)

Diagram of a mechanical device with internal components and a magnified view showing motion or movement (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Line drawing of a hand holding a car tire, no text or symbols present

Diagram showing two hands operating a device with labeled parts, including a directional arrow and numbered callouts.

Technical line drawing of a device interior with a mounted device and internal components (no text or symbols)

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

Line drawing of a hand inserting a device into a drawer (no text or symbols)

Diagram showing a hand inserting a component into a car's wheel, with no visible text or symbols.

Diagram showing a hand using a switch to adjust the internal component, labeled with parts 1 and 2.

Diagram illustrating a medical procedure involving needle insertion, surgical tools, and tool positioning with labeled parts.

Line drawing of a faucet releasing water into a circular pipe (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing a hand holding a component.

Diagram illustrating three-step hairpin tool application: rotation, folding, and cutting steps

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or filter material (no text or symbols present)

Line drawing of a hand holding a small object, no text or symbols present

13.3 Programme

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the stylistic line, it complies with Rule 2. Therefore, the OCR result is consistent with the Ground Truth.

[Non-Text]

[EMPTY]

......

[Non-Text]

[Non-Text]

......

[Non-Text]

[Non-Text]

[Non-Text]

[EMPTY]

[EMPTY]

[Non-Text]

......

......

[Non-Text]

[Non-Text]

[EMPTY]

......

......

......

[Non-Text]

[EMPTY]

[EMPTY]

[Non-Text]

[Non-Text]

aeg.com
