Product type	Stroller
Brand	Lionelo
Model	Elia Oslo
Recommended age	6 to 36 months
Maximum child weight	15 kg
Number of backrest positions	5 positions
Number of footrest positions	2 positions
Canopy type	Foldable and unfoldable canopy
Front wheels	Swivel and lockable
Parking brake	Yes, stop mechanism
Safety harness	5-point, adjustable length
Storage basket capacity	Max 1 kg
Folding	Manual, with locking hook
Frame cleaning	Damp cloth
Cover cleaning	Hand wash up to 30 °C, do not machine wash
Not recommended for	Jogging, rollerblading
Warranty	Detailed on manufacturer's website

Frequently Asked Questions - Elia Oslo Lionelo

How to unfold the Elia Oslo stroller?

Unlock the locking hook, lift the handles and pull the stroller backward. Then push the rear safety device down with your foot. Unfold the canopy.

What is the maximum age and weight for using the stroller?

The stroller is designed for children from 6 to 36 months and supports a maximum weight of 15 kg.

How to install the front wheels?

Insert the front wheel stem into the front guide and press until it locks. Check that the wheel is securely attached by gently pulling on it.

How to lock the front wheels to go straight?

Use the front wheel locking button (fig. 9). When locked, the wheels no longer swivel and the stroller moves in a straight line.

How to adjust the stroller backrest?

Press the backrest adjustment button (fig. 12) and tilt the backrest to the desired angle. The stroller offers 5 positions of recline.

How to properly fasten the safety harness?

Insert the left and right tabs into the central buckle until you hear a click. Adjust the strap length by moving the loops on the sides.

Can I machine wash the stroller cover?

No, the cover must not be machine washed. Clean it with a soft brush and hand wash at a maximum temperature of 30 °C.

How to fold the stroller?

Fold the canopy, straighten the backrest, lift the rear lock with your foot, then push the additional safety device down. Grasp the handles, push the stroller forward and secure it with the locking hook.

Can the stroller be used for jogging?

No, this product is not suitable for jogging or rollerblading.

Where to find spare parts for the stroller?

Use only spare parts supplied or recommended by the manufacturer. Contact customer service at [e-mail] or visit the official website.

USER MANUAL Elia Oslo Lionelo

Black and white baby stroller with geometric pattern cover, no visible text or symbols

Line drawing of a baby stroller with wheels and handle (no text or symbols)

Diagram of a mechanical component with red arrows indicating motion direction (no text or symbols)

Illustration of a foot wearing a high leg with a red arrow indicating a point of interest (no text or symbols present)

Illustration of a hand using a tool to lift a mechanical structure with a red arrow indicating the motion direction (no text or symbols present)

Diagram of a mechanical assembly with a red highlighted section, no visible text or symbols

Three-step diagram showing a stroller, hand positioning, and wheel assembly (no text or symbols)

Line drawing of a stroller with wheels and a red arrow indicating motion (no text or symbols)

Line drawing of a wheeled vehicle chassis with four wheels and a red arrow pointing to the wheel (no text or symbols)

Line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with a red arrow pointing to a specific component (no text or symbols present)

Line drawing of a stroller with a red arrow pointing to the wheel (no text or symbols)

Dear Customer!

In case of any questions or comments on the purchased product, please contact

us: [e-mail]

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Note: The assembly of the product must be performed by an adult. Failure to comply with this provision and the assembly instructions could result in serious injury or even death.

Producer:

BrandLine Group Sp. z o. o.

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. This seat unit is not suitable for children under 6 months.
6. Always use the restraint system.
7. Check that the seat unit is correctly engaged before use.
8. This product is not suitable for running or skating.
9. The suitable age range is from 6 months to 36 months and the maximum loading weight is 15 kgs.
10. When placing / removing a child into / from the stroller, the parking device must be pulled.

11. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

12. The stroller is designed for use by one child.

13. Accessories which are not approved by the manufacturer shall not be used

14. Only the spare parts supplied by the manufacturer can be used with this stroller.

15. The maximum load of the shopping basket is 1 kg.

16. All the components of the stroller should be regularly checked to ensure they operate properly.

17. Do not use the product on stairs.

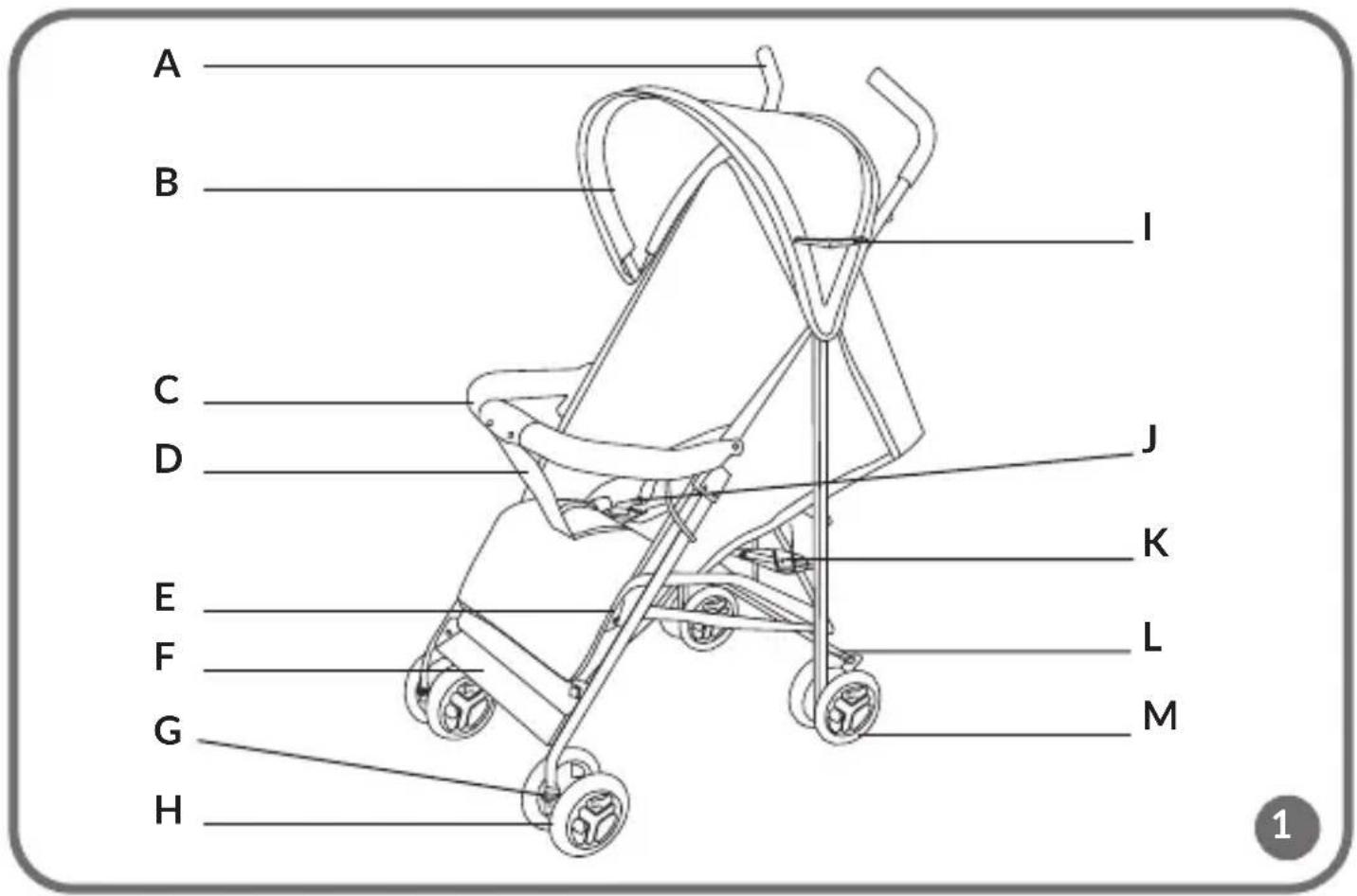

Description (fig. 1):

A. Handle
B. Canopy
C. Front rail
D. Strap connector
E. Footrest adjustment button
F. Footrest
G. Wheels lock button
H. Front wheels
I. Canopy lock
J. Safety belts
K. Backrest adjustment
L. Parking device
M. Rear wheels

Unfolding:

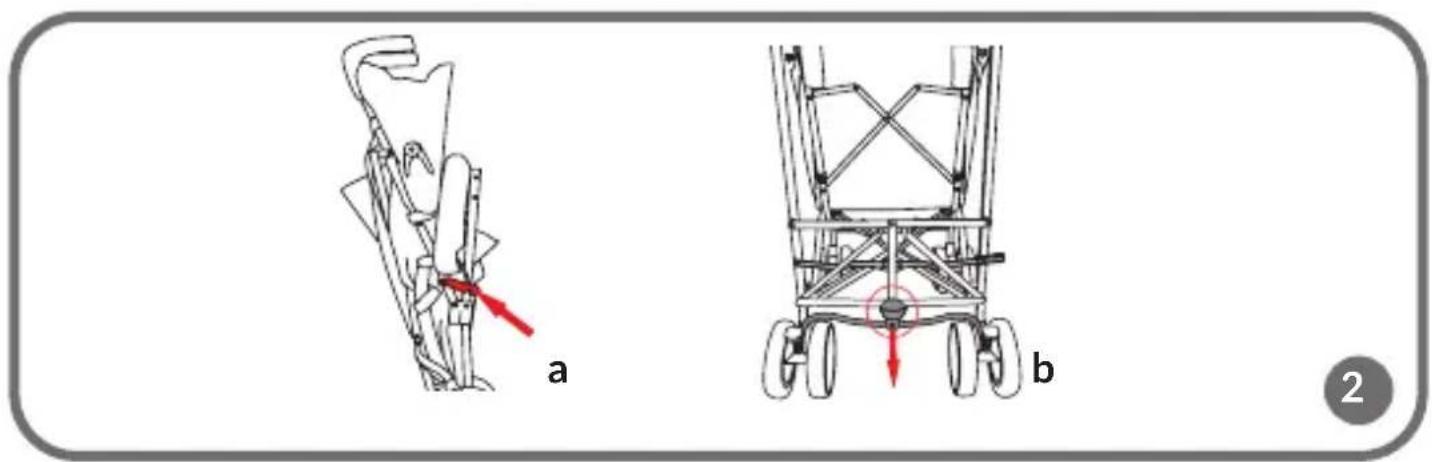

• Release the locking latch (fig. 2a).
  ● Unfold the stroller by lifting handles and pulling backwards.
• Push down the rear protection with your foot (fig. 2b).

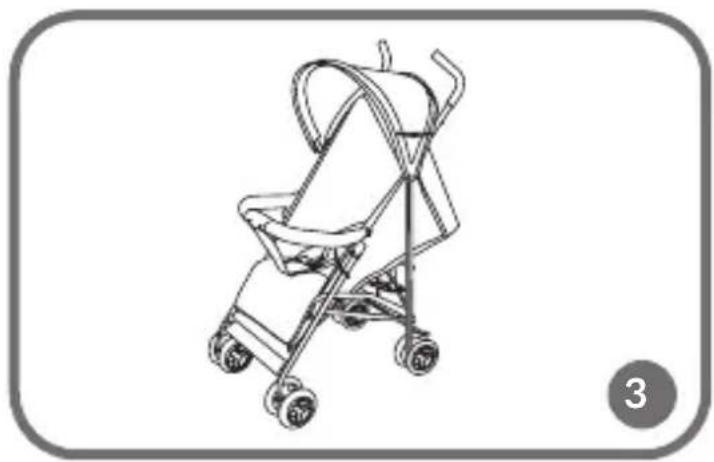

  • Unfold the canopy (fig. 3).

Folding:

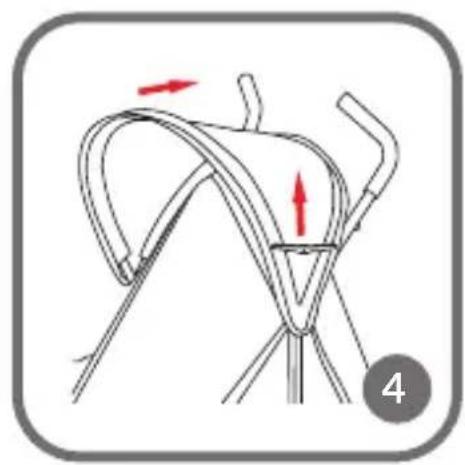

• Fold the canopy, set the seat backrest in vertical position (fig. 4).

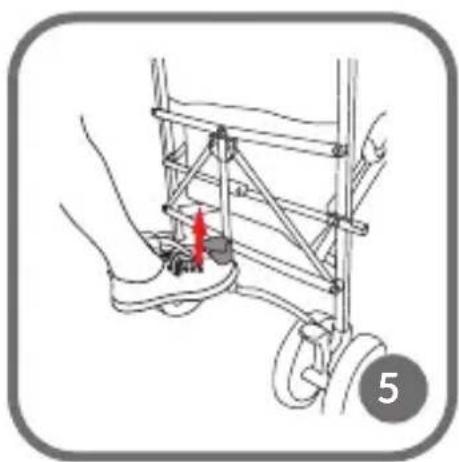

• Lift the rear lock with a foot (fig. 5).

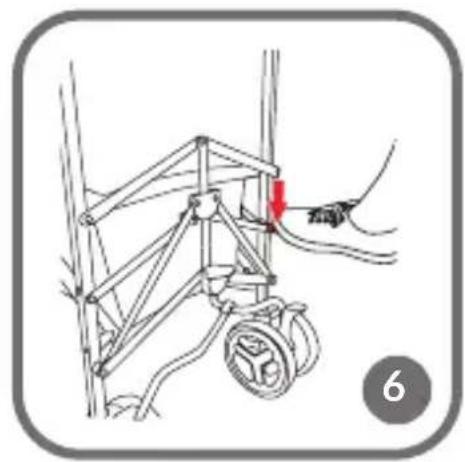

• Push down the additional protection (fig. 6).

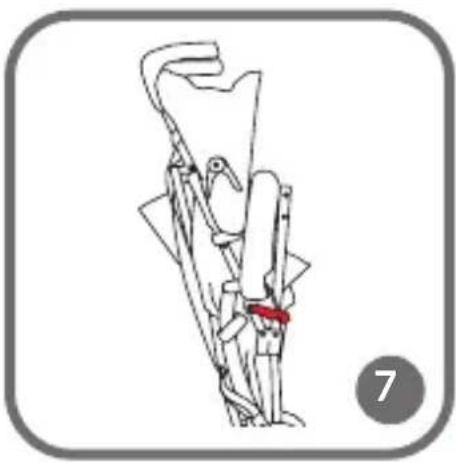

• Grab handles, push the stroller forward, secure the frame with the locking latch (fig. 7).

Wheels installation:

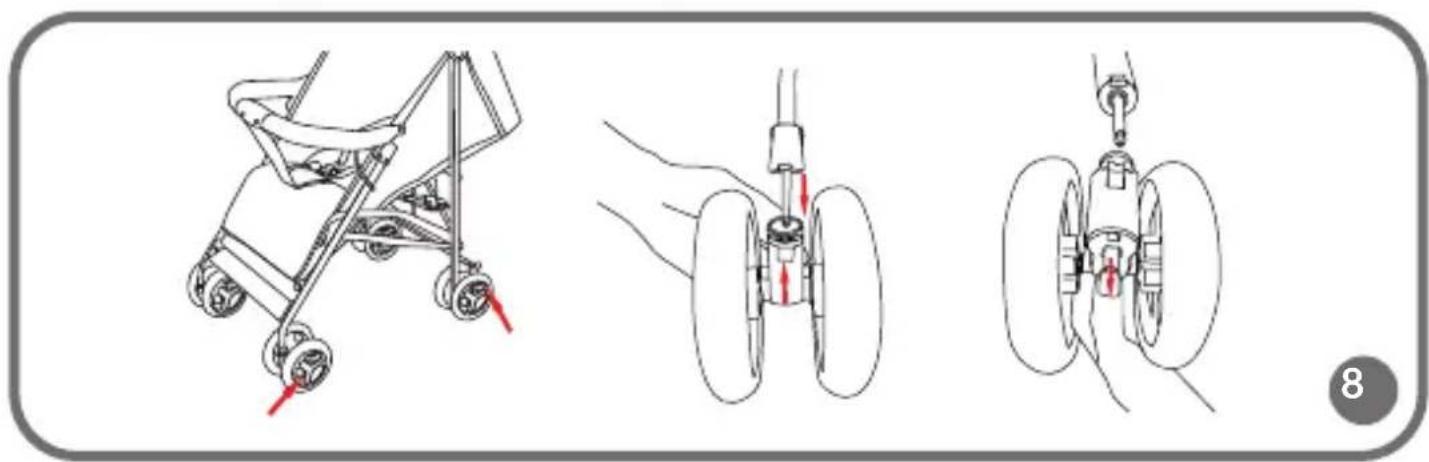

Insert the front wheel's stem into the front guide and push the wheel's stem until

the lock snaps into place (fig. 8).

Please ensure that the wheel has been properly installed and locked in the guide.

Using:

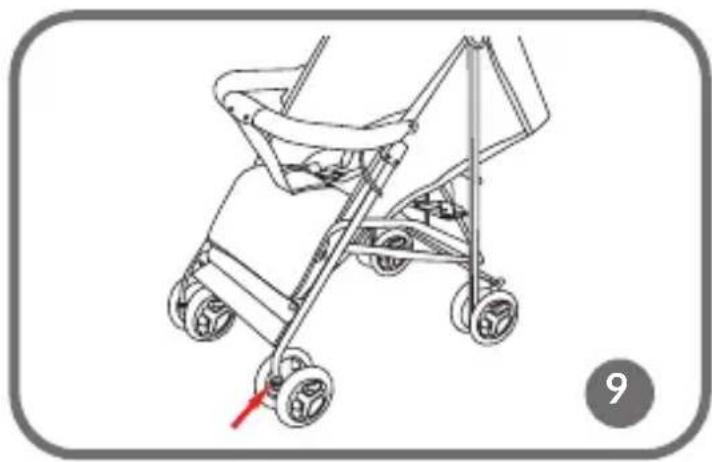

• Front wheel lock (fig. 9).

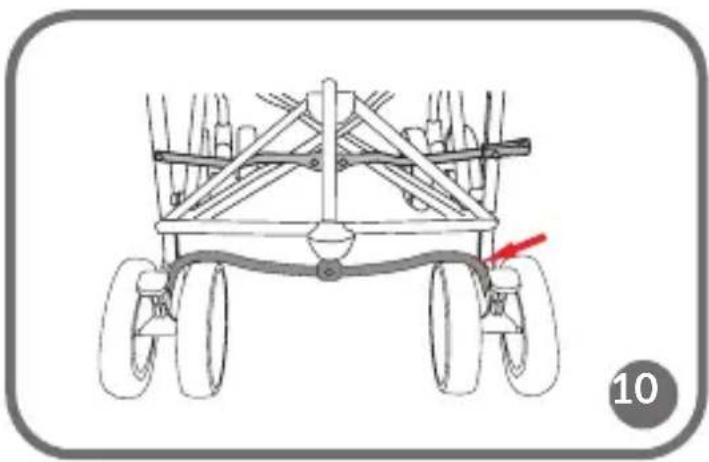

• Rear wheel lock (fig. 10).

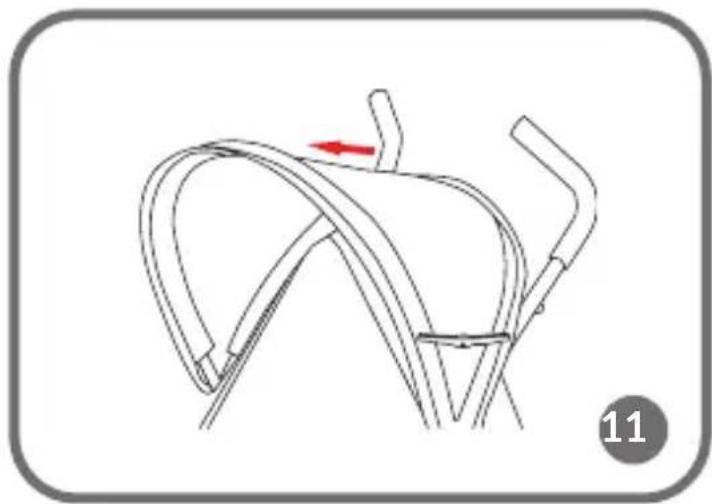

• Unfolding the canopy (fig. 11).

• The front wheels rotate around their axis, but it is also possible to lock them so that the stroller can be pushed straight ahead.

• Parking device: press to lock the stroller. Lift to unlock it.

• Press the side latches to fold or unfold the canopy.

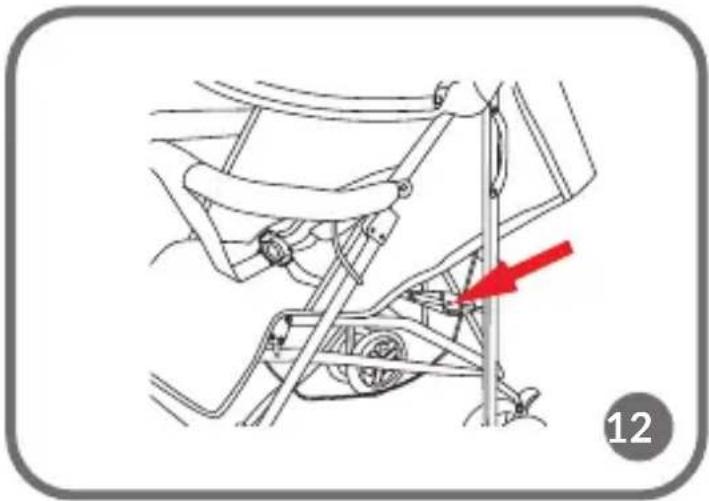

• Backrest adjustment button (fig. 12).

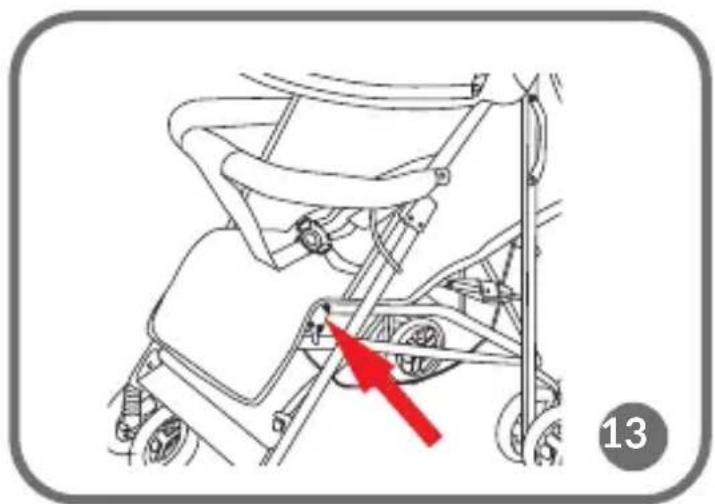

• Footrest adjustment button (fig. 13).
• LO-Elia's backrest can be adjusted to 5 different positions. To adjust the backrest angle, press the backrest adjustment button.
• The stroller's footrest can be adjusted to 2 different positions. In order to do so, press the footrest adjustment button.

Safety belts:

Note: Make sure that the position of the safety belts is correct and they are not twisted.

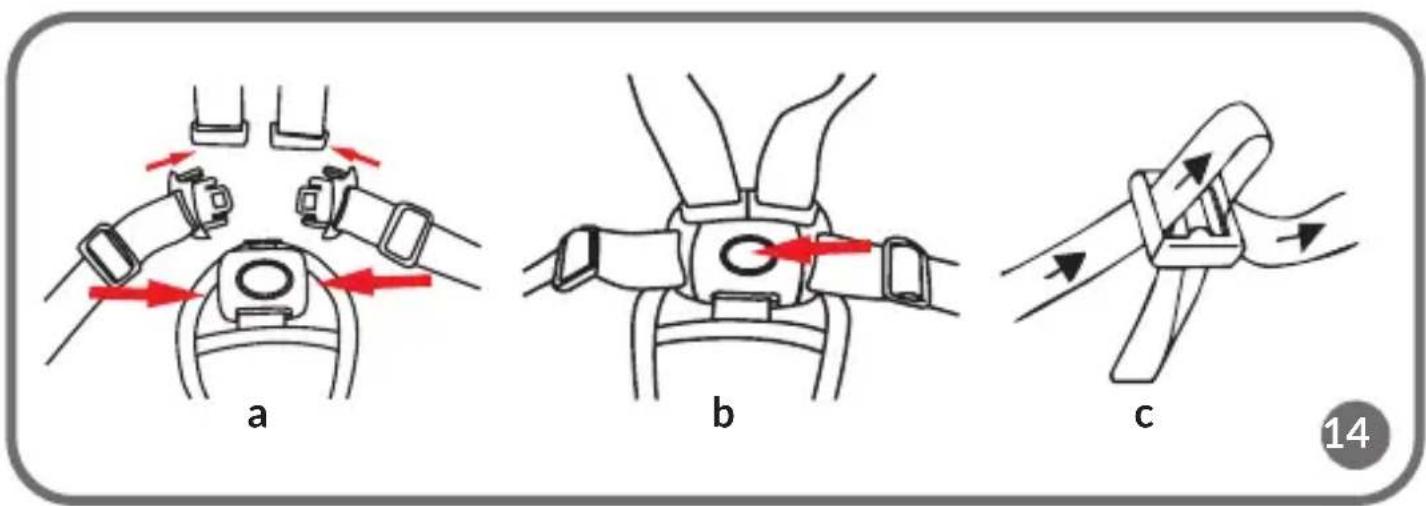

Insert the left and right clasp into the main buckle. You should hear a “click sound” indicating that the belts have been properly fastened (fig. 14a).

In order to unfasten the safety belts, press the button on the middle of the buckle and pull the clasps out (fig. 14b).

Belts length adjustment: Move the clasps on the right and left belt to adjust the length (fig. 14c).

Maintenance:

The stroller's frame can be cleaned with a damp cloth. Clean the padding with a soft brush. Do not wash in a washing machine. The padding can be washed by hand at temperatures up to 30 degrees.

Before each use, check that all parts and accessories are in good condition and that they are properly attached.

The product has been tested and complies with EN 1888-1:2018 standard.

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.

PL

Drogi Kliencie!

BrandLine Group Sp. z o.o.

BrandLine Group Sp. z o.o.

BrandLine Group Sp. z o.o.

Detailed warranty conditions are available on the website:
