Product Type	Microwave
Brand	LG
Model	MSCN1590G
Dimensions (W x H x D)	54.4 x 30.8 x 43.2 cm
Cavity Dimensions (W x H x D)	39.5 x 26.2 x 40.6 cm
Capacity	1.5 cu ft (0.04 m³)
Power Supply	120 V AC, 60 Hz
Power Consumption	1250 W
Microwave Power	1200 W (max)
Frequency	2450 MHz
Rated Current	10.4 A
Control Panel Type	Touch
Main Functions	Sensor Cooking, Auto Reheat, Defrost, Popcorn, Timer, Clock, Child Lock
Power Levels	10 (P-HI to P-00)
Included Accessories	Glass Tray, Rotating Ring, Shaft
Safety System	Door Lock, Child Lock, Automatic Overheat Shut-off
Care and Cleaning	Clean with damp cloth and mild soap; glass tray and ring are dishwasher safe
Warranty	1 year parts and labor, 5 years magnetron, 10 years inverter
Serial Number Location	On the back of the appliance

Frequently Asked Questions - MSCN1590G LG

Can I use metal containers in the microwave?

No, metal containers or those with metal trim can cause arcing and damage the oven. Use only microwave-safe accessories (glass, porcelain, special plastic).

Why won't the oven light turn on?

It may be due to a burned out bulb or an electrical circuit issue. Check the bulb and, if necessary, contact an authorized repairer.

How do I set the microwave clock?

Open the door, press START/Enter, choose 12h or 24h cycle with the + key, then set hours and minutes with + or - keys, and confirm with START/Enter.

Why aren't my foods cooking evenly?

Make sure you use suitable containers, stir or turn food halfway through cooking, and follow standing times. Also check that the turntable is in place.

Can I cook eggs in their shells?

No, never cook eggs in their shells in the microwave: pressure can cause them to explode. Prick the yolk before cooking if cooking shell-less eggs.

How do I clean the inside of the oven?

Use a damp cloth with soapy water. For stubborn dirt, boil a cup of water for 2-3 minutes. Avoid abrasive cleaners and metal pads.

What should I do if the oven won't turn on?

Check that the cord is plugged in, the door is securely closed, and the cooking time is set. If the problem persists, check the fuse/circuit breaker and the GFCI.

Is it normal for the fan to keep running after cooking?

Yes, the fan may run to cool the oven after cooking. The display may show 'Cool' or the remaining time. This is normal.

How do I use the auto defrost function?

Press Defrost, choose the food type (dEF1 for meat, dEF2 for poultry, etc.), set the weight with +/- keys, then press START/Enter. Turn food when the beep sounds.

Can I use aluminum foil in the oven?

You can use small pieces of aluminum foil to shield certain parts of food, but ensure they do not touch the oven walls (keep at least 1 inch away). Avoid large sheets.

USER MANUAL MSCN1590G LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

LMC0975** LMC1575** MSCN1590**

2

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE

3 W A R N I N G

6 INSTALLATION

6 Product Overview

7 Installation Requirements

8 OPERATION

8 Control Panel

10 Before Use

11 Quick Start and Stop

11 Manual Cooking

12 Cooking Mode

15 Cookware Guide

16 Cooking Guide

19 SMART FUNCTIONS

19 LG ThinQ Application

19 Smart Diagnosis ^TM Feature

20 MAINTENANCE

20 Cleaning

21 TROUBLESHOOTING

21 FAQs

22 Before Calling for Service

23 LIMITED WARRANTY

23 CANADA

Pure geometric diagram with intersecting lines and circles, no text or symbols present

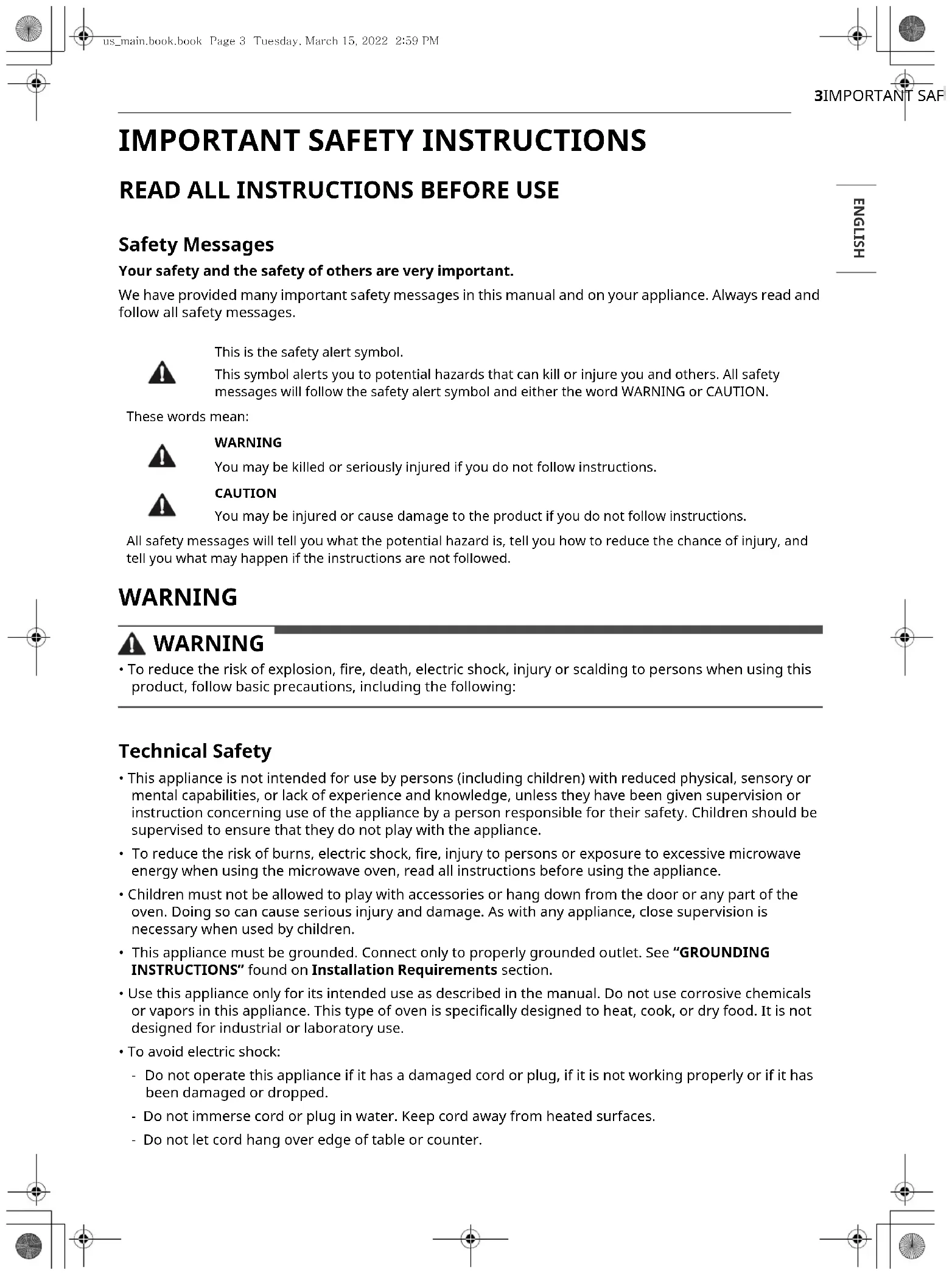

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING

WARNING

• To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Technical Safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy when using the microwave oven, read all instructions before using the appliance.
• Children must not be allowed to play with accessories or hang down from the door or any part of the oven. Doing so can cause serious injury and damage. As with any appliance, close supervision is necessary when used by children.
• This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on Installation Requirements section.

• Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
  • To avoid electric shock:

• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

• Do not immerse cord or plug in water. Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.

4 IMPORTANT SAFETY INSTRUCTIONS

• To reduce the risk of fire in the oven cavity:

• Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
• Remove wire twist-ties from paper or plastic bags before placing bag in oven.
• If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

• Install or locate this appliance only in accordance with the provided installation instructions.
- Some products such as whole eggs and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven.
- Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.
- THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

• Do not overheat the liquid. Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks. Use extreme care when inserting a spoon or other utensil into the container.

• After heating, allow the container to stand in the microwave oven for a short time before removing the container.

• Do not cover or block any openings on the appliance.

• Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
• This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.
• When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.

Operation

• Do not use this oven for commercial purposes. It is made for household use only.
• Do not run the oven while it is empty.

• If your oven is dropped or damaged, have it thoroughly checked by a qualified service technician before using it again.
  • Take care when the door is opened to avoid injury.
  • To avoid improperly cooking some foods:

• Do not heat any type of baby bottle or baby food. Uneven heating may occur and possibly cause personal injury.

• Do not heat small-necked containers, such as syrup bottles.
• Do not deep-fat fry in the microwave oven.

• Do not attempt home canning in the microwave oven.

• Do not use the oven for the purpose of dehumidification (for example, operating the microwave oven with wet newspapers, clothes, toys, electric devices, plants, soil, pets or any other living matter inside it). The oven must only be used for heating or cooking food. The results of misuse can include safety risks such as fire, burns, or death due to electric shock.

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements inside the oven. Children must be kept away unless continuously supervised.

• Do not use recycled paper products. They may contain impurities which may cause sparks and/or fires when used in cooking.
  • The door or the outer surface may get hot when the appliance is operating.
• Liquids heated in certain shaped containers (especially cylindrical-shaped containers) may become overheated. The liquid may splash out with a loud noise during or after heating or when adding ingredients (instant coffee, etc.), resulting in harm to the oven and possible injury. In all containers, for best results, stir the liquid several times before heating. Always stir liquid several times between reheatings.

Maintenance

• If the door or door seals are damaged, the oven must not be operated until it has been repaired by an authorized service person.
• The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Do not rinse trays and racks by placing them in water immediately after cooking. This may cause breakage or damage. Improper use could result in damage to the oven.
• Oversized food or oversized metal utensils should not be inserted in a microwave oven as they may create a fire or risk of electric shock.
• Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not cover racks or any other part of the oven with metal foil. This will cause overheating of the oven.

Radio/TV/Wireless Equipment Interference

• Operating the microwave oven near equipment-such as a radio, TV, wireless LAN, Bluetooth devices, medical equipment, or wireless equipment which uses the same frequency, may cause interference. This interference is not an indication of a defect in the product or its operation. The product is safe to use.
• Do not use medical equipment near the microwave oven, as the interference could affect the medical equipment's operation.

• When there is interference, it may be reduced or eliminated by taking the following measures:

• Clean the door and the sealing surfaces of the oven.

• Reorient the receiving antenna of the radio, TV, Bluetooth, or other equipment.
• Relocate the microwave oven in relation to the radio, TV, Bluetooth, or other equipment.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that the microwave oven and receiver are on different branch circuits

SAVE THESE INSTRUCTIONS

6 INSTALLATION

INSTALLATION

Product Overview

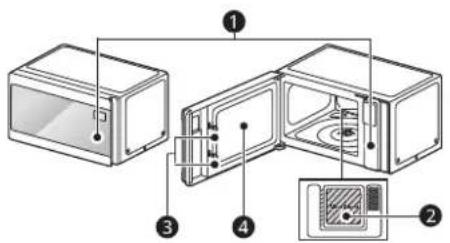

Front View

①Control Panel
②Mica Sheet
③Safety Door Lock System
④ Window

NOTE

- Do not remove the mica sheet from the inside cavity of the oven. It is there to protect the microwave components from food spatters.

Back View

Line drawing of a rectangular electronic device with internal compartments and a labeled component (no text or symbols present)

① Location of Model Number

Accessories

Accessories will vary depending on the model purchased.

Three hand-drawn diagrams: a circular plate with 'w' at center, a polygonal shape with vertices, and a small figure (no text or symbols)

①Glass Tray
②Rotating Ring
③Shaft

WARNING

- Do not operate the oven when it is empty or without the glass tray. It is best to leave a glass of water in the oven when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.

CAUTION

• To avoid risk of personal injury or property damage, do not use stoneware, metal cookware, or metal rimmed cookware in the oven.

NOTE

• This microwave oven is designed for household use only. It is not recommended for commercial use.
• Do not cook food for too long. The microwave oven can be damaged.
  • A beep sounds each time you press a key. A melody signals the end of a timer or a cooking cycle.

Specifications

LMC0975\*\* Model

• Power Supply: 120 V AC, 60 Hz
• Rated Power Consumption: 1040 W
• Microwave Output: Max. 1000 W ^†
• Frequency: 2450 MHz
• Rated Current: 8.7 A
- Dimensions (W x H x D): 18 3/4" x 10 11/16" x 14 3/16" (47.6 x 27.2 x 36.1 cm)
- Oven Cavity Dimensions (W x H x D): 12 11/16" x 8 15/16" x 13 3/16" (32.2 x 22.8 x 33.5 cm)
• Capacity of Oven Cavity: 0.9 cu.ft. (0.02 m ^3 )

LMC1575\*\*, MSCN1590\*\* Model

• Power Supply: 120 V AC, 60 Hz
• Rated Power Consumption: 1250 W
• Microwave Output: Max. 1200 W ^†
• Frequency: 2450 MHz
• Rated Current: 10.4 A

• Dimensions (W x H x D): 21 7/16" x 12 1/8" x 17" (54.4 x 30.8 x 43.2 cm)
• Oven Cavity Dimensions (W x H x D): 15 9/16" x 10 5/16" x 16" (39.5 x 26.2 x 40.6 cm)
  • Capacity of Oven Cavity: 1.5 cu.ft. (0.04 m ^-3 )

† IEC 60705 RATING STANDARD. Specifications are subject to change without prior notice.

Installation Requirements

Installation Location

Place the microwave oven on a flat surface. Free airflow around the oven is important. Allow at least 4 inches of clearance around the top, sides, and back of the oven for proper ventilation.

- Do not place oven above a gas or electric range.

Electrical Requirements

The oven is designed to operate on a Standard 120 V/60 Hz household outlet. Be sure the circuit is at least 15 A or 20 A and the microwave oven is the only appliance on the circuit. It is not designed for 50 Hz or any circuit other than a 120 V/60 Hz circuit. No other electrical appliances or lighting circuits should be on this line. If in doubt, consult a licensed electrician.

Voltage Warning

The voltage used at the wall socket must be the same as specified on the oven name plate located on the back or on the side of the control panel of the oven. Using a higher voltage is dangerous and may result in a fire or other type of accident causing oven damage. Low voltage will cause slow cooking. If the microwave oven does not perform normally in spite of proper voltage, unplug and reconnect the power cord.

Do Not Block Air Vents

All air vents should be kept clear during cooking. If air vents are covered during oven operation the oven may overheat. To prevent damage to the oven, a sensitive safety device detects overheating and automatically turns the oven off. The oven cannot be used until it has cooled sufficiently.

Grounding Instructions

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

- Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

• Use of an extension cord is not recommended. If the power supply cord is too short, have a qualified electrician or service person install an outlet near the appliance.
• If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot socket that will accept the plug on the appliance. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

- Ensure proper ground exists before use.

- Keep the electrical power cord dry and do not pinch or crush it in any way.

WARNING

- Improper use of grounding can result in a risk of electric shock.

NOTE

• A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
• Longer cord sets or extension cords are available and may be used if care is exercised in their use.
• If a long cord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord must be at least as great as the electrical rating of the appliance, (2) the extension cord must be a grounding-type 3-wire cord, and (3) the longer cord should not be draped over a counter or table where children could pull on it, or located where it could present a trip hazard.

8 OPERATION

OPERATION

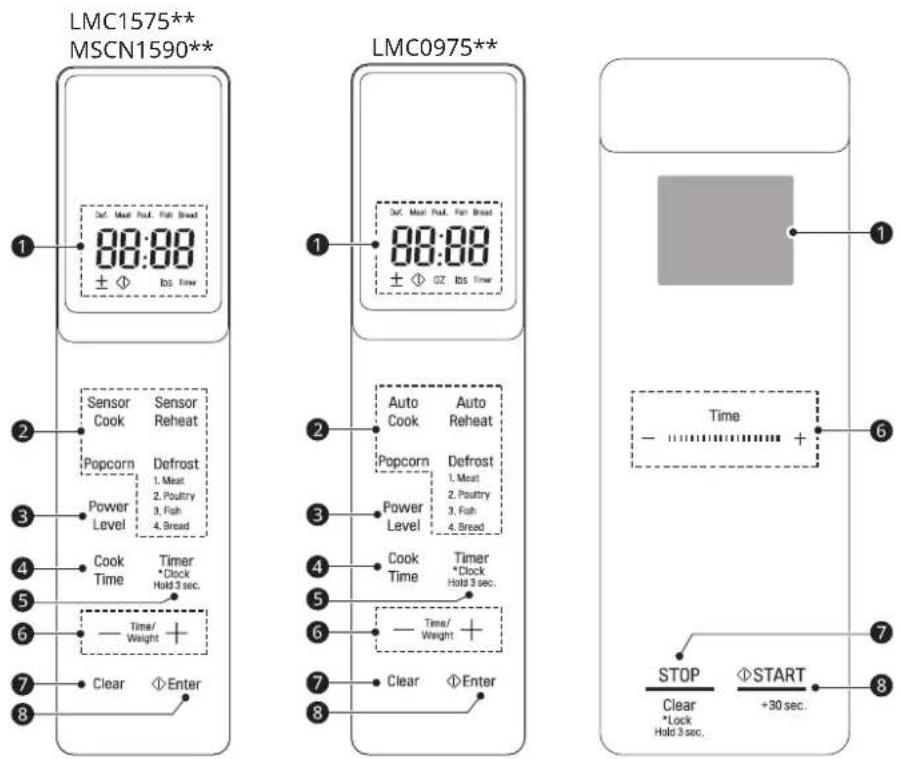

Control Panel

The actual control panel may differ from model to model.

Control Panel Features

①Display

Shows the time of day, cooking time settings, and selected cooking functions.

②Sensor Operations

Press the buttons to select preprogrammed cook and defrost settings for popular food items.

③Power Level

Press Power Level to set a cooking power.

④Cook Time

Press Cook Time to manually set a desired cook time.

⑤Timer

Press Timer to use your microwave oven as a kitchen timer.

⑥More/Less

Press the + or - button to set cooking time, power level, quantity, or weight.

⑦ STOP/Clear/Lock

• Press STOP/Clear to stop the oven or clear all entries.
• Press and hold STOP/Clear for 3 seconds to lock the control panel.

8START/Enter

• Press START/Enter to start the oven or enter amounts.
• Press START/Enter to cook at 100% cook power for 30 seconds.
• Press START/Enter during cooking to increase cook time by 30 seconds. (Add up to 99 minutes and 59 seconds)

Using the Control Panel

Touch Buttons

To use the this buttons, press inside the text area.

Slide Touch

Use the this button to adjust the cooking time or defrost weight.

• To increase the cooking time

Press and slowly slide from left to right. Or, press button.

• To decrease the cooking time

Press and slowly slide from right to left. Or, press button.

NOTE

• Do not use rubber gloves or disposable gloves when using the touch button.
• When wiping the control panel with a wet towel, dry off any remaining moisture from the control panel.
• If the setting does not increase or decrease when you press the More/Less buttons remove your finger and try again.

- Adjusting the time

• 0 - 3 minutes: Set time will increase or decrease by 10 seconds.
• 3 - 20 minutes: Set time will increase or decrease by 30 seconds.
• 20 - 90 minutes: Set time will increase or decrease by 1 minute.
• While oven is running: Remaining time will increase or decrease by 10 seconds.

- Defrost weight: Weight will increase or decrease by 0.1 kg.

Pure geometric lines and shapes without any text, numbers, or symbols

10 OPERATION

Before Use

Setting the Clock

Set the current time to operate the microwave oven.

1 Open the oven door.
2 Press START/Enter to confirm the 12H clock display.
• To switch between the 12-hour and 24-hour clock modes, press +.
3 Press + or - repeatedly to set the desired hour, and press START/Enter.
4 Press + or - repeatedly to set the desired minutes, and press START/Enter.

NOTE

• To reset the clock mode, unplug and reconnect the power cord.
  • To keep the time of day from appearing in the display, press Stop/Clear after plugging in the oven.
• When the oven is not in use, the display turns off to save energy, unless the time of day is set to show in the display.

Child Lock

Use this safety feature to lock the control panel before cleaning the oven or to prevent children from unsupervised use of the oven.

Setting Child Lock to ON

1 Press STOP/Clear.
2 Press and hold STOP/Clear until Loc appears in the display (approximately 3 seconds).

Canceling Child Lock

Press and hold STOP/Clear until Loc disappears in the display (approximately 3 seconds).

NOTE

- If set, the time of day reappears in the display after 1 second.

• If the oven is locked, Loc appears in the display when any key is pressed.
• Unlock the oven to resume normal use.

Kitchen Timer

The Timer function serves as an extra kitchen timer. It chimes when the set time runs out. It does not start or stop cooking.

Setting Timer

1 Open the oven door. Press Timer.
2 Set the desired time by pressing + or - repeatedly until the time appears in the display.

- Or close the oven door and use the slide touch button to rapidly increase the time.

3 Close the oven door. Press START/Enter.

• The oven starts immediately and the time counts down in the display.

Canceling the Timer

Press Timer.

• The display returns to the time of day.

NOTE

- When the time is over a melody sounds and End displays. Press STOP/Clear.

Weight Conversion

Most food weights are given in pounds and ounces. If using pounds, food weights must be entered into auto defrost in pounds and tenths of pounds (decimals). Use the following equivalent weight in if necessary to convert food weights to decimals.

• 1.6 oz. = 0.1 lb
• 9.6 oz. = 0.6 lb
• 3.2 oz. = 0.2 lb
• 11.2 oz. = 0.7 lb
• 4.8 oz. = 0.3 lb
• 12.8 oz. = 0.8 lb
• 6.4 oz. = 0.4 lb
• 14.4 oz. = 0.9 lb
• 8.0 oz. = 0.5 lb One- Half Pound
• 16.0 oz. = 1.0 lb One Pound

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Microwave Power Levels

This microwave oven is equipped with 10 power levels to give you maximum flexibility and control over cooking.

- When operating at 100 - 80 % power levels for prolonged periods, the output power will be reduced gradually to help prevent the unit from electrically overheating.

Power Level	Use
P-HI (100 %)	·Boiling water.·Browning ground beef.·Making candy.·Cooking whole poultry, poultry pieces, fish & vegetables.·Cooking tender cuts of meat.
P-90 (90%)	·Reheating rice, pasta & vegetables.
P-80 (80%)	·Reheating prepared foods quickly.·Reheating sandwiches.
P-70	·Cooking egg, milk and cheese dishes.·Cooking cakes and breads.·Melting chocolate.
P-60	·C o o k i n g v e a l.·Cooking whole fish.·Cooking puddings and custard.
P-50	·Cooking ham, whole poultry and lamb.·Cooking rib roast and sirloin tip.
P-40	·Thawing meat, poultry and seafood.
P-30	·Cooking less tender cuts of meat.
P-20	·Taking chill out of fruit.·Softening butter.
P-10	·Keeping casseroles and main dishes warm.·Softening butter and cream cheese.
P-00	·Standing time.

Quick Start and Stop

Using Quick Start

The Quick Start feature allows you to set 30-second intervals of High power cooking with each press of the Start/Enter button.

Cooking for 2 Minutes on High Power

1 Close the oven door. Press STOP/Clear.

2 Press START/Enter four times.

• The oven starts immediately and the time counts down in the display.
- Press START/Enter repeatedly to extend the cook time by 30 seconds every time the button is pressed.

Interrupting Cooking

• To stop the oven during a cycle, open the door.
• To restart cooking, close the door and press START/Enter.
• To stop cooking and clear the remaining cook time, open the door and press STOP/Clear.

Manual Cooking

Using Manual Cooking

When not using the auto cooking functions, the cooking time and power level are set manually.

Cooking for 5 Minutes, 30 Seconds at 80% Power

1 Open the oven door. Press STOP/Clear.
2 Press Cook Time, and press + or - repeatedly until the desired cooking time appears in the display (5:30).
3 Press Power Level, and press - repeatedly until the desired power level appears in the display (P-80).

• The power decreases in 10-percent increments.

4 Close the oven door. Press START/Enter.

- When cooking is complete, a chime sounds and End appears in the display window. End

12 OPERATION

remains in the display and the chime repeats every minute until the door is opened, or any button is pressed.

NOTE

- If a power level is not selected, the oven defaults to 100% power.

Cooking Mode

Cook your favorite foods without having to select cooking times and power levels.

Sensor/Auto Cook Mode

Sensor Cooking Bacon

This feature is only available on some models.

The Sensor system works by detecting built up steam. The oven automatically adjusts cooking times, the amount of food, and power levels.

1 Open the oven door. Press STOP/Clear.

2 Press Sensor Cook repeatedly until Sc-6 appears in the display.

• C o d e : Sc-1 to Sc-7

3 Close the oven door. Press START/Enter.

NOTE

• Opening the door or pressing the STOP/Clear button before the steam is detected will stop the process and the oven.

• Appropriate containers and coverings help assure good sensor cooking results.

• Always use microwavable containers and cover them with lids or vented plastic wrap.

• Never use tight-sealing plastic covers. They can prevent steam from escaping and cause food to overcook.
• Match the amount to the size of the container.
• Fill containers at least half full.
• Be sure the outside of the cooking container and the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning into steam can mislead the sensor.

Auto Cook has preprogrammed settings to automatically cook certain foods. Select the desired food item, and enter the amount. The oven automatically cooks the item.

1 Open the oven door. Press STOP/Clear.
2 Press Auto Cook repeatedly until Ac-1 appears in the display.

• C o d e : Ac-1 to Ac-7

3 Press + until the correct amount appears in the display.
4 Close the oven door. Press START/Enter.

Sensor/Auto Cook Menu

Refer to the below to set the desired code and weight.

Sc-1 or Ac-1 Bacon (2 - 4 slices)

- Place bacon slices on a microwave bacon rack. Or use a dinner plate lined with paper towels.

Sc-2 or Ac-2 Fresh Vegetable (1 - 4 cups)

- Place in a microwaveable bowl or casserole. Add water and cover with vented plastic wrap.

• 1-2 cups: add 2 tbsp water.
• 3-4 cups: add 4 tbsp water.

• Standing time: 3 minutes

Sc-3 or Ac-3 Frozen Entree (10 - 40 oz.)

• Remove from outer display package. Slit cover. If not in microwave-safe container, place on a microwaveable plate and cover with vented plastic wrap.
  • Standing time: 3 minutes

Sc-4 or Ac-4 Frozen Vegetable (1 - 4 cups)

- Place in a microwaveable bowl or casserole. Add water and cover with vented plastic wrap.

• 1-2 cups: add 2 tbsp water.
• 3-4 cups: add 4 tbsp water.

• Standing time: 3 minutes

Auto Cooking Bacon

This feature is only available on some models.

Sc-5 or Ac-5 Oatmeal (1 - 2 servings)

• Combine water or milk, salt and oats in large microwave-safe bowl. Cover with vented plastic wrap.
• 1 serving: 0.5 cup (40 g) oats, 1 cup (230 g) water or milk, dash of salt.
• 2 servings: 1 cup (80 g) oats, 1.5 cup (345 g) water or milk, 1/8 tsp salt.
  • Standing time: 3 minutes

Sc-6 or Ac-6 Potato (1 - 4 ea)

• Pierce skin with a fork and place on paper towel. Do not cover.
  • Standing time: 5 minutes

Sc-7 or Ac-7 Rice (0.5 - 2 cups, 96 g - 384g)

• Use a large, deep microwave-safe bowl (3 qt./3 L).
• Combine 1 part rice to 2 parts water. Cover with vented plastic wrap.
  • Standing time: 5 - 10 minutes.

Sensor/Auto Reheat Mode

This feature reheats single servings of previously cooked foods or a plate of leftovers.

Sensor Reheating a Beverage

1 Open the oven door. Press STOP/Clear.
2 Press Sensor Reheat once to select Sr-1.
• C o d e : Sr-1 to Sr-5
3 Close the oven door. Press START/Enter.

Auto Reheating a Beverage

1 Open the oven door. Press STOP/Clear.
2 Press Auto Reheat once to select Ar-1.
• C o d e : Ar-1 to Ar-5
3 Press + until the correct amount appears in the display.
4 Close the oven door. Press START/Enter.

NOTE

- Do not use recycled paper products in the microwave oven. They sometimes contain impurities that cause arcing and sparking.

Sensor Reheat Menu

Refer to the below to set the desired code and weight.

Sr-1 or Ar-1 Beverage (1 - 2 cups, 240 ml per cup)

• Use a mug or microwave-safe cup. Do not cover.
• Stir after reheating. (Be careful! The beverage will be very hot. Sometimes liquids heated in cylindrical containers will splash out unexpectedly when the cup is moved.)

Sr-2 or Ar-2 Casserole (10 - 20 oz)

• Place food in a bowl or casserole or on a plate. Cover with vented plastic wrap.
  • Standing time: 3 minutes

Sr-3 or Ar-3 Dinner Plate (1 serving)

• Place food in a bowl or casserole or on a plate. Cover with vented plastic wrap.
  • Standing time: 3 minutes

Sr-4 or Ar-4 Pie (10 - 20 oz)

- Cut leftover pie into pieces. Place food on a microwave-safe dish.

Sr-5 or Ar-5 Pizza (1 - 3 slices)

• Place on paper towel on a microwave safe plate.
  • This is a reheat function for leftover pizza. Do not use to cook pizza.

Popcorn Mode

Prepare microwave popcorn simply and easily, one bag at a time.

• Sensor Popcorn only uses HI (100%) power.
  • The popping time counts down in the display.
• When the countdown ends, a melody sounds and End appears in the display. The oven turns off automatically.
• Place one bag only (50 - 100g) of prepackaged microwave popcorn on a microwave-safe / oven-safe dish on the turntable. The package should be at room temperature.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

14 OPERATION

1 Open the oven door. Press STOP/Clear.
2 Press Popcorn once.
3 Close the oven door. Press START/Enter.

CAUTION

• Never use a brown paper bag for popping corn or attempt to pop leftover kernels.
• Do not pop popcorn, except in a microwave-safe container or commercial packages designed for microwave ovens.
• Never try to pop popcorn in a paper bag that is not microwave-approved.
  • Overcooking may result in the popcorn being burnt and smoking badly.
• Do not repop unpopped kernels in the microwave.
• Do not reuse popcorn bags.
• Listen while corn pops. Stop oven when popping slows to 2-3 seconds between pops.
• Do not leave microwave unattended while popping corn.
• Follow directions on bag.

NOTE

• When popping prepackaged popcorn, place the bag carefully in the oven so it does not touch the walls as it rotates. Fold the ends of the bag up and toward the center of the bag.
• If popcorn bag size is not known, follow manufacturer's instructions and do not use this feature.
• Do not use Popcorn button in combination with any other feature buttons.
• Do not attempt to reheat or cook any unpopped kernels.
• Do not reuse bag. Overcooking can result in an oven fire.
  • Prepare only one bag at a time.
• Do not use popcorn popping devices in microwave oven with this feature.
• Do not leave microwave unattended while cooking popcorn.

Popcorn Menu

Refer to the below to set the desired code and weight.

Pop Popcorn (3.5 oz.)

- Pop only one package at a time. For best results, use a fresh bag of popcorn. Place a bag of prepackaged microwave popcorn on the center of the glass tray.

Defrost Mode

The oven has 4 preset defrost cycles. The Defrost Menu shows the suggested defrost cycle for various foods. This defrost function conveniently chimes during the cycle to remind you to check, turn over, separate, or rearrange the food.

Cooking 1.2 Lb of Ground Beef

1 Open the oven door. Press STOP/Clear.
2 Press Defrost once to select dEF1.
3 Press + until display shows 1.2 lbs.
4 Close the oven door. Press START/Enter.

- At the chime, open the oven door and turn the food over. Remove any food that has thawed. Return the items which are still frozen to the oven and press Start/Enter to complete the defrost cycle.

NOTE

• The countdown appears in the display after Start/Enter is pressed. The oven chimes once during the defrost cycle.
- When using this defrost function, the weight to be entered is the net weight in pounds and tenths of pounds (the weight of the food minus the container).

Defrost Menu

Refer to the below to set the desired code and weight.

dEF1 Meat (0.1 - 6.0 lbs)

• Beef: Ground beef, round steak, stew cubes, tenderloin steak, pot roast, rib roast, rump roast, chuck roast, hamburger patties
  • Lamb: Chops, rolled roast
• Pork: Chops, hot dogs, spareribs, country-style ribs, rolled roast, sausage
  • Veal: Cutlets (1 lb., ½ inch thick)

• Turn food over at beep.
  • Standing time: 5-15 minutes

dEF2 Poultry (0.1 - 6.0 lbs)

• Poultry: Whole, cut-up, breast (boneless)
• Cornish Hens: Whole
• Turkey: Breast
- Rinse chicken with tap water and let stand for 60 minutes after cooking for better results.
- Turn food over at beep.
• Standing time: 60 minutes

dEF3 Fish (0.1 - 4.0 lbs)

• Fish: Fillets, whole steaks
- Shellfish: Crab meat, lobster tails, shrimp, scallops
- Turn food over at beep.
• Standing time: 5-10 minutes

dEF4 Bread (0.1 - 2.0 lbs)

• Sliced bread, buns, baguettes, etc.
• Separate slices and place between paper towels or on flat plate. Turn food over at beep.
  • Standing time: 1-2 minutes

Cookware Guide

Microwave-Safe Cookware

Use microwavable cookware.

- Ovenproof Glass

• Ovenproof glassware that is treated for high intensity heat so it is heat-resistant is microwave-safe.
• Use utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles and bowls without metal rims.
• Do not use delicate glassware, such as tumblers or wine glasses, as these might shatter when heated.

• China

- Use bowls, cups, serving plates, pottery, stoneware, ceramic, and platters without metal rims or handles. Many containers made of these materials are microwave-safe, but test them before use.

- Plastic

- Plastic Storage Containers: Use plastic dishes, cups, semi-rigid freezer containers and

plastic bags only for short cooking times. Do not use them when cooking food for long periods or at high power levels, as the hot food will eventually warp or melt the plastic.

• Plastic wrap (as a cover): Lay the plastic wrap loosely over the dish and press it to the sides. Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. As the food heats it may melt the plastic wrap wherever the wrap touches the food.
• Plastic Cooking Bags: Provided they are specially made for cooking, cooking bags are microwave safe. Remember to make a slit in the bag so that steam can escape. Never use ordinary plastic bags for cooking in the microwave oven, as they will melt and rupture.
• Plastic Microwave Cookware: A variety of shapes and sizes of microwave cookware are available. You may be able to use items you already have on hand rather than investing in new kitchen equipment.

• Paper

• Use paper towels, waxed paper, paper napkins, and paper plates with no metal rims or design. Look for the manufacturer's label for use in the microwave oven.
• Paper plates and containers are convenient and safe to use in the microwave oven, provided that the cooking time is short and the foods to be cooked are low in fat and moisture. Paper towels are also very useful for wrapping foods and for lining baking trays in which greasy foods such as bacon are cooked.
• Avoid colored paper products as the color may run. Do not use recycled paper products in the microwave oven. They may contain impurities which could cause arcing or fires when used in the microwave.

- Tableware

• Many containers made of pottery, stoneware and ceramic are also microwave-safe. If in doubt consult the manufacturer's literature or perform the microwave test.
• Do not put plates with painted decoration in the oven, as the paint may contain metal and cause arcing.

Microwave-Unsafe Cookware

• Metal Containers/Metal Decoration

- Never use metal or metal-rimmed cookware in the microwave oven.

Pure geometric lines and shapes without any text, numbers, or symbols

16 OPERATION

• Microwaves cannot penetrate metal. They will bounce off any metal object in the oven and cause arcing, an alarming phenomenon that resembles lightning.
• Metal shields the food from microwave energy and produces uneven cooking. Also avoid metal skewers, thermometers, foil trays, metal-rimmed or metal-banded dinnerware, casserole dishes, etc. The metal rim interferes with normal cooking and may damage the oven.

- Aluminum Foil

• Avoid large sheets of aluminum foil because they hinder cooking and may cause harmful arcing.
• Use small pieces of foil to shield poultry legs and wings.
• Keep ALL aluminum foil at least 1 inch from the side walls and door of the oven.

• Wood

• Wood bowls and boards will dry out and may split or crack when you use them in the microwave oven.
• Baskets react in the same way.

• Tightly Covered Cookware

• Be sure to leave openings for steam to escape from covered containers.
• Pierce plastic pouches of vegetables or other food items before cooking.
• Tightly closed pouches could explode.

- Brown Paper

• Avoid using brown paper bags.
• They absorb too much heat and could burn.

- Flawed or Chipped Cookware

- Any container that is cracked, flawed, or chipped may break in the oven.

- Metal Twist Ties

• Remove metal twist ties from plastic or paper bags.
• They become hot and could cause a fire.

Testing Cookware before Use

Most heat resistant and non-metallic cookware is safe for use in your oven. However, some cookware may contain materials that are not suitable for microwave use. Follow the steps below to find out if cookware can be used in the microwave.

1 Place the container in question and a glass measuring cup filled with water next to each other inside the oven.

2 Heat the container and glass measuring cup for 1 minute at HIGH power.

• If the water heats up but the container remains cool to the touch, the container is microwave-safe.
• If the temperature of the water does not change but the container becomes warm, it is not safe for use in the microwave oven.

CAUTION

• Some items with high lead or iron content are not suitable for microwave cooking.
• Cookware should be checked to ensure that it is suitable for use in the microwave.
  • Always be careful when taking cookware out of the oven. Some dishes absorb heat from the cooked food and may be hot.

Cooking Guide

Cooking Tips

Carefully monitor the food in the microwave oven while it is cooking. Directions given in recipes to elevate, stir, etc., are the minimum steps recommended. If food is overcooked (dry), undercooked, or unevenly cooked, make adjustments before or during cooking to correct the problem.

• Overcooked or Dry Food

• Sprinkling: Sprinkle low-moisture foods such as roasts and vegetables with water before cooking, or cover them to retain moisture.
• Density: Light, porous food such as cakes and breads cook more quickly than heavy, dense foods such as roasts and casseroles.
• Shielding: Cover the corners of square dishes with small strips of aluminum foil to prevent overcooking. Don't use too much foil, and secure the foil to the dish. Foil can cause arcing if it gets too close to the oven walls during cooking.
• Bones and Fat: Bones conduct heat, and fat cooks more quickly than meat. Take care with bony or fatty cuts of meat.

• Undercooked Food

- Covering: Cover food with a microwave-safe lid, parchment paper (not waxed paper), or

plastic wrap to trap heat and steam and cook food more quickly.

• Standing Time: Let food stand for several minutes after being removed from the oven to allow it to finish cooking and help flavors blend and develop.
• Quantity: The more food you place in the oven, the longer the required cooking time.
• Temperature: Ice-cold ingredients take much longer to cook than room temperature ingredients.

- Unevenly Cooked Food

• Stirring: Stir food from the outside toward the center during cooking, as food at the outside of the dish heats more quickly.
• Arranging: Turn food over several times during cooking. The upper portion of thick foods cooks more quickly than the lower portion.
• Shaping: Place the thickest portions of foods like meat, poultry or fish toward the outside of the cookware to help them cook more evenly. If possible, shape foods into thin rounds or rings.

• Foods with Skin, Shell or Membrane

• Skin or Membrane: Pierce the outsides of foods like potatoes, sausages, or egg whites or yolks before cooking.
• Shell: Pierce or remove the shells from eggs, clams, oysters, or other shelled foods before cooking.

- Defrosting Tips

• Remove fish, shellfish, meat, and poultry from its original wrapping paper or plastic package. Otherwise, the wrap close to the foods will hold steam and heat, which can cause the outer surface of the foods to be cooked.
• Remove any metal twist ties.
• Always slit or pierce plastic pouches or packaging.
• Open containers such as cartons before they are placed in the oven.
• If food is foil wrapped, remove foil and place the food in a suitable container.
• The length of defrosting time varies depending on the shape of the food and on how solidly the food is frozen.
• As food begins to defrost, separate the food into pieces so that they can defrost more easily.

• Turn over food during defrosting or standing time. Separate into pieces and remove food as required.

• Let food stand after defrosting. Food should still be somewhat icy in the center when removed from the oven.

• When using Defrost, the weight to be entered is the net weight in pounds and tenths of pounds (the weight of the food minus the container).
• Slit the skins of frozen food such as sausage.
• Bend plastic pouches of food to ensure even defrosting.
• Place food in a shallow container or in a microwave roasting dish to catch the drippings.
• Always underestimate defrosting time. Food should still be somewhat icy in the center when removed from the oven. If defrosted food is still frozen solid in the center, return it to the microwave oven for more defrosting.
• Depending on the shape of the food, some areas may defrost more quickly than others.
• The shape of the package affects how quickly food will defrost. Shallow packages will defrost more quickly than a deep block.
• For best results, shape ground meat into the form of a doughnut before freezing. When defrosting, scrape off thawed meat when the beep sounds and continue defrosting.
• Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips, fish tails, or areas that start to get warm. Make sure the foil does not touch the sides, top, or bottom of the oven. The foil can damage the oven lining.

Precautions

WARNING

• Do not use your microwave oven to cook eggs in the shell. Pressure can build up inside the shell, causing it to burst.

• Never operate the oven when it is empty. Food or water should always be in the oven during operation to absorb the microwave energy.

• Place the front surface of the door three inches or more from the edge of a countertop to avoid accidental tipping of the microwave oven during normal use.
  • To program the oven, press the center of each button firmly. When a button is pressed correctly, a beep sounds and the oven is activated. Do not press several buttons at once.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

18 OPERATION

• Do not strike the control panel with silverware, utensils, etc. It may be damaged or broken.
  • Always be careful when taking cookware out of the oven. Some dishes absorb heat from the cooked food and may be hot. See the Cookware Guide section for more information.
  • To avoid breakage, allow cookware to cool before rinsing or submerging in water. Always allow the turntable to cool before removing it from the oven.
• Do not use the oven to dry newspapers or clothes. They may catch fire.
• Use thermometers that have been approved for microwave oven cooking.
  • The turntable must always be in place when you operate the oven.

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with the Ⓧ or Ⓤ logo.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Smart Diagnosis™

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

NOTE

- This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

Smart Diagnosis™ Feature

This feature is only available on models with the 🎨 or 📞 logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
  • The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis™ feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Hold the mouthpiece of your phone over the Smart Diagnosis™ icon. Do not touch any other buttons.

2 Press and hold the STOP/Clear button for 8 seconds until 5 appears in the display.
3 After you hear three beeps, release the STOP/ Clear button.
4 Keep the phone in place until the tone transmission has finished. The display will count down the time. Once the countdown is over and the tones have stopped, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

20 MAINTENANCE

MAINTENANCE

Cleaning

Cleaning the Interior

1 Use a damp cloth to clean the surfaces of the door and wipe out crumbs between the door and the frame.
2 Remove greasy spatters with a soapy cloth and then rinse and dry.

• Wipe spatters immediately with a wet paper towel, especially after cooking chicken or bacon.
• If steam accumulates inside or outside of the oven door, wipe the panels with a soft cloth.
• For stubborn soil, boil a cup of water in the oven for 2 to 3 minutes. Steam will soften the soil. To get rid of odors inside the oven, boil a cup of water with some lemon juice or vinegar in it.

Cleaning the Exterior

1 Clean the outside of the oven with soap and water.
2 Rinse with clean water and dry with a soft cloth or paper towel.

• To prevent damage to the internal working parts of the oven, do not allow water to seep into the ventilation openings.
• The door and door seals should be kept clean. Use warm, soapy water to clean. Rinse off soap residue and dry thoroughly.
- Frequently wipe metal parts with a damp cloth.

Cleaning the Control Panel

1 Open the door to prevent the oven from accidentally starting.
2 Wipe with a damp cloth followed immediately by a dry cloth.
3 Press STOP after cleaning.

Cleaning the Accessories

Wash the glass tray and rotating ring in mild, sudsy water. For heavily soiled areas, use a mild cleanser and scouring sponge. Dry completely before use.

- The glass tray and rotating ring are dishwasher safe.

NOTE

- Abrasive cleansers, steel wool pads, gritty wash cloths, some paper towels, etc., can damage the control panel and the interior and exterior oven surfaces.

TROUBLESHOOTING

FAQs

Frequently Asked Questions

Q What's wrong when the oven light will not glow?
A	There may be several reasons why the oven light will not glow. Either the light bulb has blown or the electric circuit has failed.
Q Does microwave energy pass through the viewing screen in the door?
A	No. The holes, or ports, are made to allow light to pass; they do not let microwave energy through.
Q	Why does the beep tone sound when a button on the control panel is touched?
A	The beep tone sounds to assure that the setting is being properly entered.
Q Will the microwave function be damaged if it operates empty?
A Yes. Never run it empty.
Q Why do eggs sometimes pop?
A	When baking, frying, or poaching eggs, the yolk may pop due to steam build up inside the yolk membrane. To prevent this, simply pierce the yolk before cooking. Never microwave eggs in the shell.
Q Why is standing time recommended after microwave cooking is over?
A	After microwave cooking is finished, food keeps on cooking during standing time. This standing time finishes cooking evenly throughout the food. the amount of standing time depends on the density of the food.
Q Why doesn't my oven always cook as fast as the cooking guide says?
A	Check your cooking guide again to make sure you have followed directions correctly, and to see what might cause variations in cooking time.Cooking guide times and heat settings are suggestions, chosen to help prevent overcooking, the most common problem in getting used to this oven.Variations in the size, shape, weight and dimensions of the food require longer cooking time.Use your own judgment along with the cooking guide suggestions to test food conditions, just as you would do with a conventional cooker.
Q	Why does the word 'cool' or remaining cooking time appear in the display with fan noise after microwave cooking is over?
A	After cooking is complete, the fan may operate to cool the oven. The display will show Cool. If you open the door or press once STOP before the cooking time is complete, the remaining cooking time will show on the display. This is not a malfunction.

22 TROUBLESHOOTING

Before Calling for Service

Operation

Problem Possible Cause & Solution
Microwave oven does not start	Power cord is unplugged, door is open, or cooking time has not been set.• Plug in power cord.• Close oven door.• Set cooking time.
	A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.• Check the main electrical box and replace the fuse or reset the circuit breaker.Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.• Reset the circuit breaker on the GFCI. If the problem persists, contact an electrician.
Arcing or Sparking Cookware is not microwave safe, or the oven is being operated while it is empty.• Use microwave-safe utensils. When in doubt, test utensils before use.• Do not operate oven while it is empty.
Incorrect Time of Day	Power is interruption.• Reset the time. See Setting the Clock section to reset time of day.
Unevenly Cooked Foods	Cookware is not microwave safe, or cook settings were wrong.• Test cookware to make sure it is microwave safe.• Do not cook without the glass tray.• Turn or stir food while cooking.• Defrost food completely before cooking.• Use correct cook time and power level.
Overcooked Foods Cooking settings and methods are wrong.• Change cook time or power level.
Undercooked Foods Cookware is not microwave safe, or cook settings were wrong.• Test that cookware is microwave safe.• Defrost food completely before cooking.• Change cook time or power level.• Make sure that ventilation ports are not blocked.
Improper Defrosting Cookware is not microwave safe, or cook settings were wrong.• Test that cookware is microwave safe.• Change defrost time or weight.• Turn or stir food during defrost cycle.

LIMITED WARRANTY

CANADA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Microwave ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI.

WARRANTY PERIOD: (Note: If the original date of purchase cannot be verified, the warranty will begin sixty (60) days from the date of manufacture).
Over-the-Range / All Convection / Microwaves in Built-in application / All other Microwave Oven	Extended Component Warranty (Parts Only)
One (1) year from the date of original retail purchase	Five (5) years from the date of original retail purchase	Ten (10) years from the date of original retail purchase
Parts and Labor (In-Home; OTR & Convection) (internal/functional parts only)	Magnetron Only Inverter Magnetron Only

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

LGECI'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

24 LIMITED WARRANTY

THIS LIMITED WARRANTY DOES NOT COVER:

- Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring; or iii) correct unauthorized repairs or installations of the Product;

- Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;

- Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;

- Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;

- Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;.

- Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;

- Damage or failure caused by incorrect electrical current, voltage or ventilation codes;

- Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;

- Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products;

- Damage or missing items to any display, open box, refurbished or discounted Product;

• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;

- Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;

- Increases in utility costs and additional utility expenses in any way associated with the Product;

- Any noises associated with normal operation of the Product;

- Replacement of light bulbs, filters, fuses or any other consumable parts;

- Replacement of any part that was not originally included with the Product;

• Costs associated with removal and/or reinstallation of the Product for repairs; and

- Shelves, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

- Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE: Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.com

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as

26 LIMITED WARRANTY

otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/support/repair-service/schedule-repair and clicking on "Find My Model & Serial Number").

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EULA") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

MANUEL D'UTILISATION

FOUR À MICRO-ONDES

Pure geometric diagram with intersecting lines and circles, no text or symbols present

IMPORTANTES INSTRUCTIONS DE SÉCURITÉ LISEZ TOUTES LES CONSIGNES AVANT L'UTILISATION

Line drawing of a microwave oven with labeled component (no text or symbols)

Three abstract geometric shapes: a circular plate, a polygonal outline, and a small figure (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 INSTALLATION

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 FONCTIONNEMENT

Avant l'utilisation

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

14 FONCTIONNEMENT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

16 FONCTIONNEMENT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

dEF4 Bread (0.1 à 2.0 lbs)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

fc_main.book.book Page 30 Tuesday, March 15, 2022 3:14 PM

30 GARANTIE LIMITÉE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

fc_main.book.book Page 32 Tuesday, March 15, 2022 3:14 PM

32 AIDE-MÉMOIRE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

LG

Life's Good

LG Customer Information Center

For inquiries or comments, visit www.lg.com or call:

1-800-243-0000

U.S.A.

1-888-542-2623

CANADA

Register your product Online!

www.lg.com
