W7X 91I OX - Fridge WHIRLPOOL - Free user manual and instructions

Brand	Whirlpool
Model	W7X 91I OX
Product type	Refrigerator with freezer compartment
Lighting	LED, energy efficiency class F or G depending on model
Defrosting	Automatic in the refrigerator compartment
Door reversibility	Yes, possible (recommended by two people)
Freezing capacity	Quantity of fresh food that can be frozen in 24 hours indicated on the rating plate
Recommended storage temperature	Refrigerator: 0-8°C depending on zones; Freezer: -18°C (maintained)
Typical storage duration (freezer -18°C)	Meat: 2-12 months; Fruits/vegetables: 8-12 months; Fish: 1-3 months
Power supply	220-240 V, 50 Hz (check rating plate)
Energy consumption	See energy label (class not specified)
Noise level	Normal noises: whistling, gurgling, rumbling, humming, cracking, clicking
Routine maintenance	Clean with a soft cloth and warm water + mild detergent; vacuum the rear condenser
Cleaning the defrost drain	Tool provided for regular cleaning of the drain
Cleaning the control panel	Dry cloth only, no alcohol
Safety instructions	Unplug before cleaning; do not use steam cleaner or flammable liquids
Spare parts	Available for 7 to 10 years depending on regulations
After-sales service	Contact authorized after-sales service; provide model, serial number, problem description
Removable accessories	Shelves, door bins, drawers, sliding baskets (quantity depends on model)
First use	Wait 2 hours after installation before plugging in; reach temperature in 4-6 hours

Frequently Asked Questions - W7X 91I OX WHIRLPOOL

How to adjust the refrigerator temperature?

The ideal temperature settings are preset at the factory. If necessary, adjust via the control panel. The internal temperature depends on the ambient temperature, frequency of door opening, and location.

Why are there water droplets on the back wall?

It's normal: the refrigerator compartment defrosts automatically. The defrost water flows to the drain and then evaporates.

How to reverse the door opening direction?

The door is reversible. The operation is recommended for two people. Follow the installation guide instructions. Caution: if performed by after-sales service, it is not covered by the warranty.

What to do in case of a power outage?

Keep the doors closed to maintain cold. Do not refreeze partially thawed food. If the outage is prolonged, an alarm may sound on some models.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a soft cloth moistened with warm water and mild detergent. Never use abrasive products, alcohol, or steam cleaners. Wipe with a dry cloth.

What to do if the LED lighting stops working?

Contact after-sales service to replace it. The bulb turns off automatically after 8 minutes with the door open.

How to freeze fresh food?

Wrap food in aluminum foil, cling film, or vacuum bags. Place them in the freezing area without contact with already frozen food. Label and date. Do not refreeze after thawing.

Why is my appliance making noise?

Noises are normal: whistling (startup), gurgling (fluid), rumbling (compressor), humming (fan), cracking (startup), clicking (thermostat). To reduce, level the appliance and avoid contact with furniture.

Where is the serial number located?

The serial number is on the appliance's rating plate, as well as in the warranty booklet. It is necessary to contact after-sales service.

Can I use the appliance without the freezer drawers?

Yes, to optimize freezing speed and save space, you can remove the drawers. Follow instructions for disassembling the upper drawer.

USER MANUAL W7X 91I OX WHIRLPOOL

Light systems (depending on the model) 2

Shelves and door balconies 2

Door 2

How to use the appliance 3

First time use 3

Refrigerator compartment and food storage 3

How to store fresh food and beverages 3

Freezer compartment and food storage 3

Removing the freezer drawer container 3

Tips for freezing and storing fresh food 3

4

Food shelf life at different tempertures 4

Functional sounds 4

Recommendation in case of no use of the appliance 5

Cleaning and maintenance 6

Gasket replacement 7

After-sales service 8

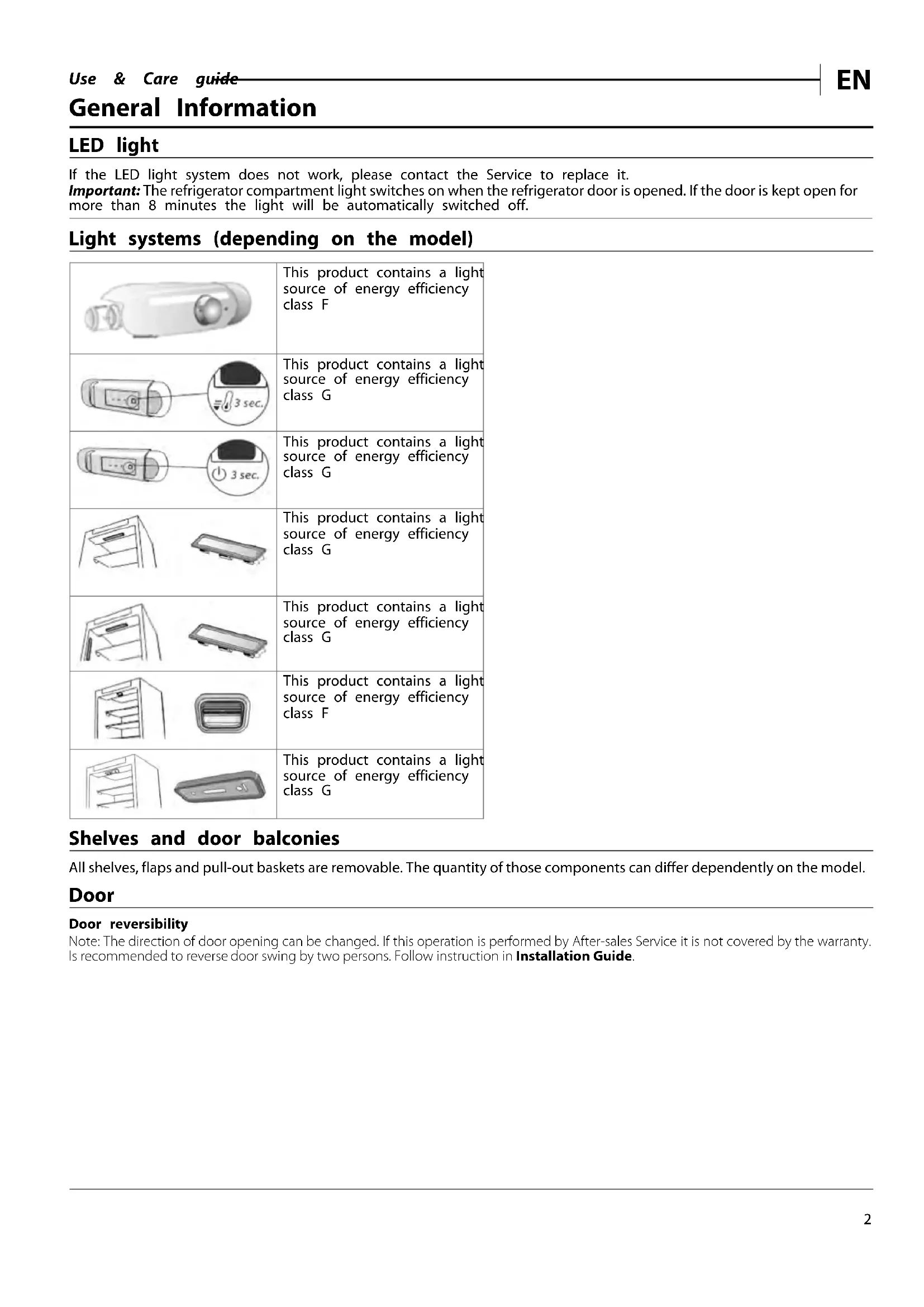

General Information

LED light

If the LED light system does not work, please contact the Service to replace it.

Important: The refrigerator compartment light switches on when the refrigerator door is opened. If the door is kept open for more than 8 minutes the light will be automatically switched off.

Light systems (depending on the model)

This product contains a light source of energy efficiency class F

This product contains a light source of energy efficiency class G

This product contains a light source of energy efficiency class G

This product contains a light source of energy efficiency class G

This product contains a light source of energy efficiency class G

This product contains a light source of energy efficiency class G

Shelves and door balconies

All shelves, flaps and pull-out baskets are removable. The quantity of those components can differ dependently on the model.

Door

Door reversibility

Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty. Is recommended to reverse door swing by two persons. Follow instruction in Installation Guide.

How to use the appliance

First time use

After installation, wait at least two hours before connecting the appliance to the power supply. Once connected, it will start working automatically. The ideal temperature settings are preset from the factory. After turning the appliance on, wait 4-6 hours for it to reach the correct food storage temperature.

Refrigerator compartment and food storage

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

Air ventilation

The natural circulation of air in the refrigerator compartment results in zones with different temperatures. Insufficient ventilation results in an increase in energy consumption and reduction of the refrigerating performance.

How to store fresh food and beverages

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

Freezer compartment and food storage

The freezer compartment allows for the storage of frozen food and the freezing of fresh food. The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around it to allow air to circulate freely. Avoid fresh food to come into direct contact with frozen food. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading. To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

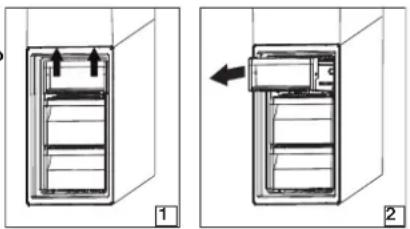

Removing the freezer drawer container

• Open the freezer door.
• Pull the upper container upwards by the right and left corners (1).
• Remove the drawer (2).
• Install the upper container in the reverse order.

Tips for freezing and storing fresh food

We recommend to label and date all your frozen food. Adding a label will help you to identify foods and to know they should be used before their quality deteriorates. Do not re-freeze defrosted food.
Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
- Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.
- Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavor. Some meat, especially game, should be hung before it is frozen.
- Always leave hot food to cool before placing in the freezer.
Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.
- Do not freeze bottles with liquid.

Frozen food: shopping tips

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have begun.
• When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the freezer.
• If food has defrosted even partially, do not refreeze it. Consume within 24 hours.
• Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package.
• Always observe the storage information on the package.

Food shelf life at different tempertures

FROZEN COMPARTMENT
Product Storage period (-12°C) Recommended Storage			Storage period (-24°C)
		period (-18°C)
Butter or margarine 1 month	6 months	9 months
Fish 1 month	months
Fruits (except citrus) & Vegetables	1 month	8-12 months	12 months
Meat-Ham-sausage Roasts (beef-pork-lamb) Steaks or chops (beef-lamb-pork)	1 month	2 months	8-12 months 4 months
Milk, Fresh fluid, Cheese, Ice cream or sherbet	1 month	1-3 months	5 months (not recommended for ice cream)
Poultry (chicken-turkey)	month	5-7 months	9 months

UNFROZEN COMPARTMENT
Product	Storage period 0-3°C	Storage period (3-6°C)	Storage period 6-8°C
Cans, drinks, eggs, sauces, pickles, butter, jam	3-4 weeks	3-4 weeks	3-4 weeks
Tropical fruit	Not recommended 2-4 weeks	3-4 weeks
Cheese, milk, dairy food, deli food, yoghurt	i2-5 days	2-5 days	2-5 days
Cold cuts, desserts, meat and fish and home-cooked food	B-5 days	1-2 days	Not recommended
Store vegetables and fruits (excluding tropical fruits and citrus)	15 days	10-12 days	4-7 days

Functional sounds

Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.

Some of the functional sounds can be reduced through:

• Leveling the appliance and installing it on an even surface.
• Separating and avoiding contact between the appliance and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contact with each other.

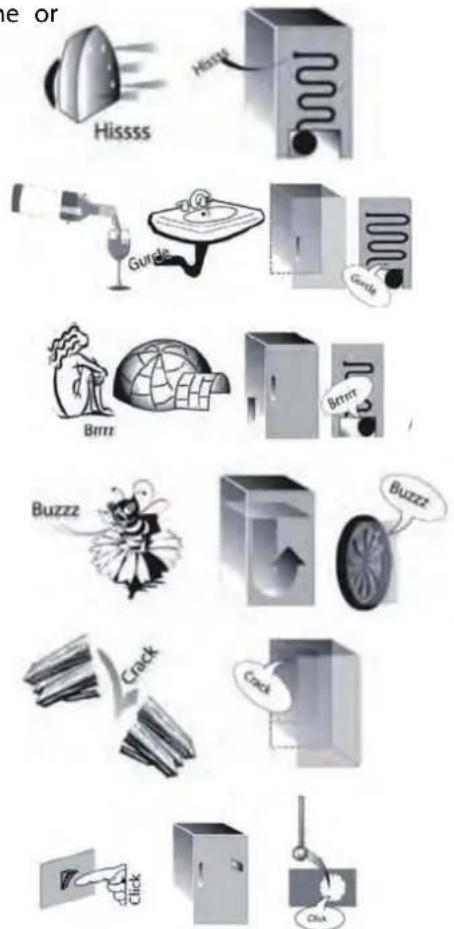

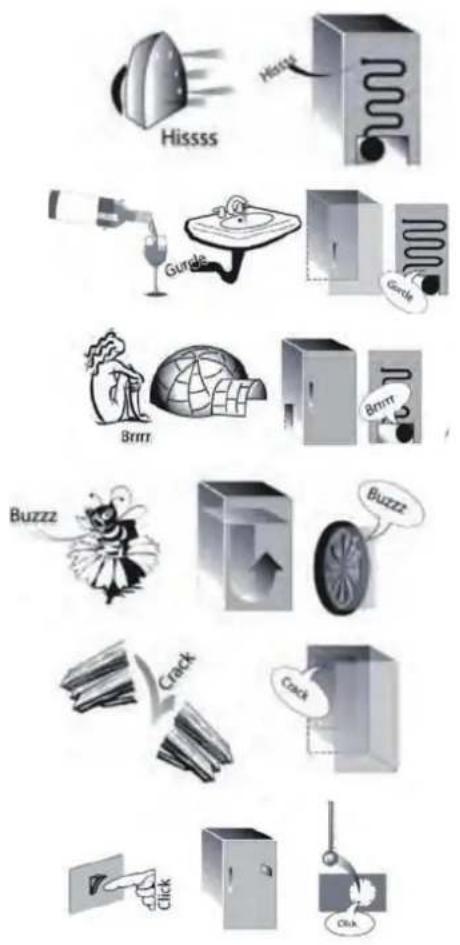

Some of the functional sounds you might hear

1. A hissing sound when switching on the appliance for the first time or after a long pause.

1. A gurgling sound when refrigerant fluid enters into the pipes.
2. BRRR sound is from the compressor running.
3. Buzzing sound when water valve or fan start working.
4. A cracking sound when compressor starts.
5. The Click is from the thermostat which adjusts how often the compressor is running.

Recommendation in case of no use of the appliance

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it.

Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

Cleaning and maintenance

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the elect power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but cloth.

Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors.
Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth.
- Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.

Important:

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.
The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.

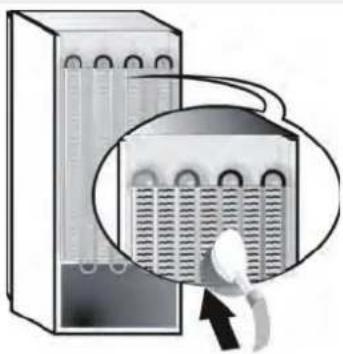

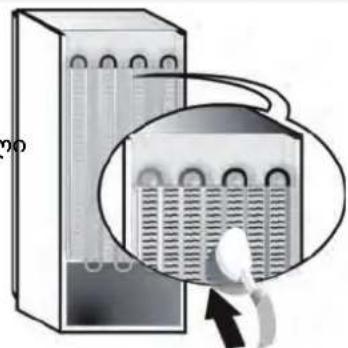

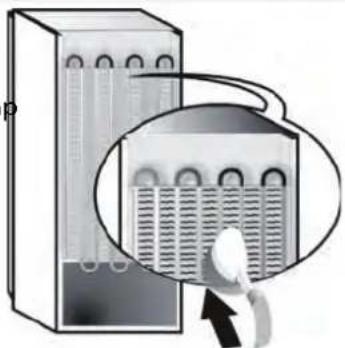

To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided *.

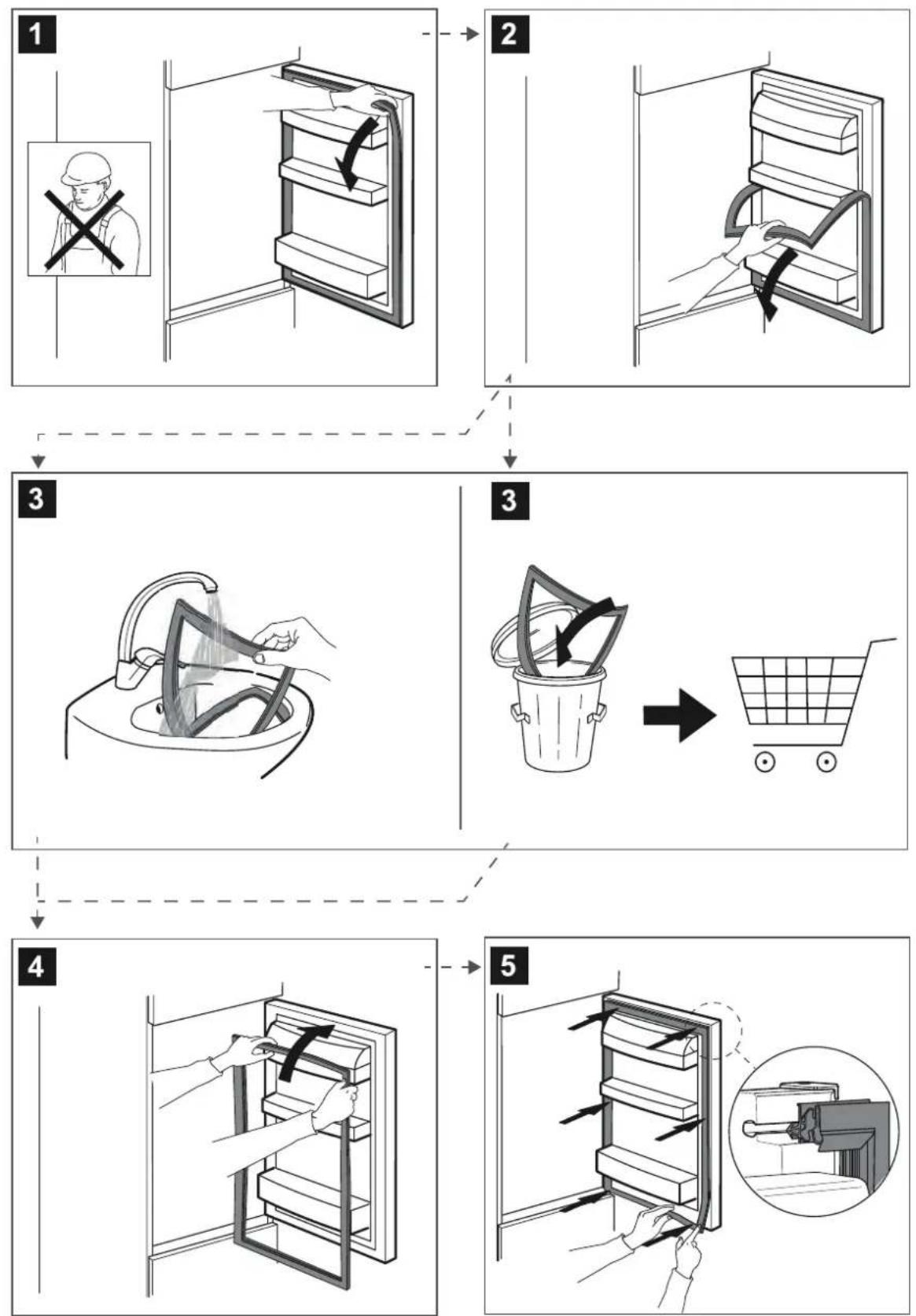

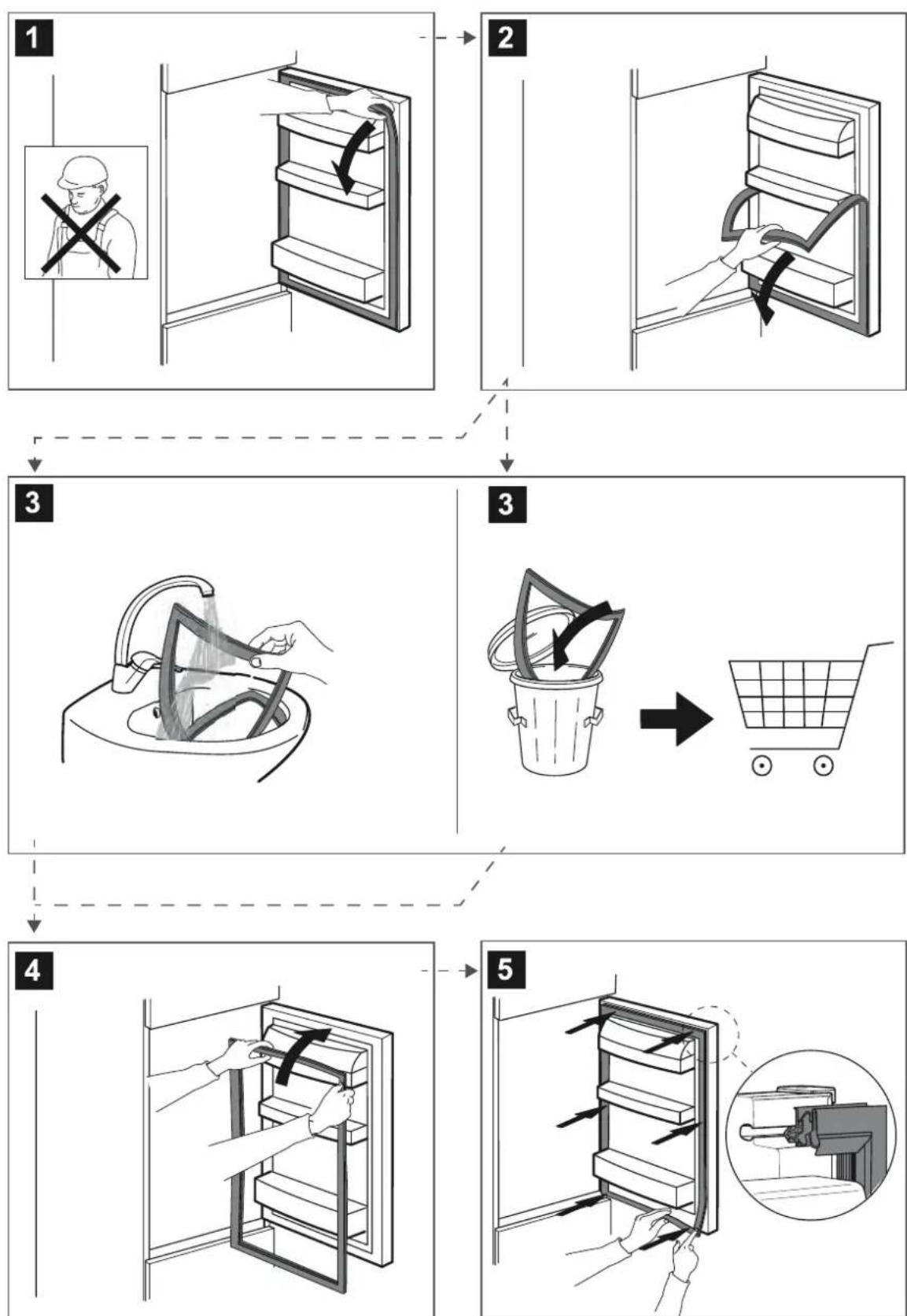

Gasket replacement

After-sales service

BEFORE CALLING THE AFTER-SALES SERVICE

1. See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING.
2. Switch the appliance off and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SE

To receive assistance, call the number shown on the warranty booklet.

When contacting our Client After sales service, always specify:

a brief description of the fault;
- the type and exact model of the appliance;

• the service number (number after the word Service on the rating

plate). The service number is also indicated on the guarantee booklet.

• your full address;
• your telephone number.

If any repairs are required, please contact an authorised aftersales service (to guarantee that original spare parts will be used and repairs carried out correctly).

Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

Bedienungsanleitung

PRE NGO STO POZOVETE POSTPRODAJNI SERVIS

1. Proverite da li mozte de resite problem sami uz pomoć saveta datih u odeljku VODIC ZA REŠAVANJE PROBLEMA.
2. Ukljucite pa iskljucite uredj i proverite da li je kvar i dalje prisutan.

UKOLIKO I NAKON GORENAVEDENIH PROVERA KVAR I DALJE POSTOJI, OBRATITE SE NAJBLIZEM POSTPRODAJN SERVISU

Da biste dobili pomoc, pozovite broj navenen u garantnoj knjižici. Prilikom kontaktiranja naşeg postprodajnog servisa za kupce potrebno je da navedete:

• kratak opis problema;
• tip i tacan model uredaja;

SERVICE

• servisni broj (broj iza reci Service na ploci si podacima). Servisni broj je takode naveden u garantnoj knjižici;
• svju punu adresu;
  Uvek ispustite vodu pre otvaranja vrata.

Ako su potrebne bilo kakve popravke,kontaktirajte ovlasecni postprodajni servis (kako biste bilisigurni da ce se koristiti originalni rezervni delovi i da ce popravke biti ispravno obavljene).

Návod na používanie

NAVOD NA POUZIVANIE

OBSAH

Police in predali v vratih 2

Vrata 2

Uporaba aparata 3

Prva uporaba 3

Hladilni prostor in shranjevanje zivil 3

Police in predali v vrathi

Akuo npua He BnKOpncTOByETbcra

Biiknouitb npnad BiéneKtpomepeki, BntarHtib i3 Hboro Bci npodykTu, 3a notpe6n po3mop03te Ta ouncTiB niOg Tpmaite DBePcTa TPOXN BiuHHeHmU, 0o6 3a6e3neHTu cnpkyraio nobITpy y BiDJIeHHx. TaKIM YHOM Bu yH BUNKHeHHy Cbili Ta HeppnemHnx 3anaxiB.

y BnnaKny nepe6oIB HanpyrB eNeektpomepexi

TpmaTe DBePraTa 3aunHeHmN, 0o6 kOMora DOBwe 36epeTn npOyKTn OxOnOxKeHmN. He 3amopoxyte noBtopi qactKoBO pOzMOpOxeni npOyKTN. Kaio eJeKtpoeHepriio BiDknUoyeho Ha Tpmbaln Yac, MoKe BBIMKHyTncr HnI 3HeCTpyMlENHH (y MOnenX, OChauEHNx eNeKTPoHIOIO).

Доглд i TexhiuHe obcnyroByBaHHa

Iepw HIX BnKohyBaTn YuueHnA 6o TexHicHe OcNryroByBaHHa, Bi'edHaTe npuaB iD eEeKtpomepeXi a6o BuTARHITb BNkY 3 po3ETKn.

Hikon He BnKOpNCTOByTe a6pa3uBHX MuHHx 3ac06iB. Hikon He BnKOpNCTOByTe 3aMnuctx piHN dIa MNT XoNoDnJIbHnka.

3a60pOHaETbca 3actOCOByBaTu napooUCHnKn.

Khonk Ta ducnne naheni KepybaHH He moXHa npotnpaPiuHAMn, aKi MCTaTb cnpT, a nuwe cyxoO raHc

• Perioquho MnTe npnla3a donomoro raHupkn Ta po3uHy TeNoBn 3 HeTpalbHM MnHm 3ac06om (oc6nBO, kkuo MOBa Ipe BHytpiHi qactnH XOnOdnbHnka).
  30BHIHIO NOBEPXHIO npnady u yuihbiOBaU dna DBepaT OCH3a DonomoroIO BOIoroI raHupKn, a NOTIM BntpItb cyxio.
• IotpiioHO peryIapno qnCTHTKoHdEHCATOp, po3TaObaHn Ha 3aHi CTINi npNAdy, BkOpNCTOByUOn nnococ.

Baxlueo:

KHOKN Ta dncnne nane He moXHa npotnpaTpiHnAmn, kmiMiCTb cnpT, a IInwe cyxo raHupkoio.
Tpy6n ciCTeMn OxonoJKeHH po3TaWobAHi no6Iu3y niDOnHy dIa 36OpY po3MopOKeHOro IbOdy Ta MoKybHarpiBaTncr. NepioNuHNo uHCTicB zu Tpy6n 3a donomoroIO nnococa.

Дя 3a6e3neueHH 6e3nepeKoHOrO Ta npabNlbHOrO CTiKaHHraTanoI BOJn peYnApHO OuNHyTe DpeHaxHn OTBip, PO3aUOBaHn Ha 3aHi nCTIHcXoJIoNbHOrO BiDIneHH 6iJa KOHTeHepa Iry φpykTiB i OBOyIB, 3a DonOMorHO npnlaDn, 10 NOCTaHaETbC B KOMnEKeT*.

3anachi yactHH 6ydyb DoctynH BiPOnOBK TepmiHy do 7 a6o do 10 pokIB, BiNObiHO do KOHKpeTHnx HopMaTHBHX

3amHa yuilbHOBaIbHOi npoklaKn

PicnnpoJxHe 06cnyroByBaHn

NEPIHIX TEJIFOHOYBATU YCEHTP NICJNPOADXHORO OBCNYROBYAHHH

1. Ipebeipte, uMozha BpiuHn np6neMy camocTiHo 3a donomoroI npad, HabeheHx y po3diI NOCiBHK I3 UCYHEHHA HECnPABHOCTEi.
2. BvmkhHtbpnpnaad i 3HOBy yBimKhHtbnoro, o6 nepeBipnT, nn HecnpaBHicTB 3aIIuAeTbcra.

JAKUO NICJBAUNIEBKA3AHOI NEPEBIPK INHCPABHICTb HE 3HUKHE, 3BEPHITbC DO HAIJIINXQTO CEHTPY NICJNPODAHXHO OBCNYROBYBAHH

Дя OTPIMAHн ДОПOMOrn 3BepHiTbCЯ HOMePOM, lo Bka3aHn y rapaHTiINHomy TaIOnHi.

Плд ус 3B'ЯЗку 3 Нашим Сербicomnicяпраджного obcnyroByBaHHa 3aBXДи yTOUHIOIte:

KOPOTKIN ONIC HecnpaBHOCTI;
TnPi ToUHy MoDJIb npJnaIaIy;

• cepBicHn Homep (Homep nicna CnoBa Service Ha nacnopTHi
  Ta6nui).CepBicHm Homep TaKoB Bka3aHO B rapaHTiHOMy TaHO7 SERVICE 0000 000 00000
• NOBHy aDpecy CBOrO Micr npoxnBaHHr;
• Nepw HIX BiIDKPNBn DBePcra Ta 3aBXn 3NBAIte BODy.

KIO noTpi6eH peMOHT, 3BepHiTbCra do ABTOPn3OBAHOro ceHTpy nicIaPdoaXHOro o6cnyroByBaHHra (io6 rapaHTyBaTH npabunbHicThpeMOHTy Ta BkOpncTaHHaOpriHaJIbHNx 3anuactnH).

lstifadacinin telimat kitabcasi

GÖSTÖRICI

Istismar v qulluq ür & rhbrlik 2

Umumi mlumat 2

LEDisig 2

Isiqlanma systemlri (modeldn asili olaraq) 2

Rflr v qapi rflri 2

Qapi 2

6m8m 3o5680mmn amSymdmdoom

306370mo 85dmy67ds

amymommool oam50gol a2aog, 0oommooan 060dga mno lssno, u55a hnoos30 aul amjohm gumno. hno3nol ago8 no onyouu yadmsu s3mdsnyo. 0o3ooyo n ooyomno 36odqdo
syogomno j6b5ymo. amymommmol nuon30u ado8, 0o0mgo 4-6 lssno, u55a an doom

a03mol 3076 cos u33.80u 2563

0306 306 5303606 666 153306u 153306u 256566. 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82036 82

850835: 86204u 823266766 800000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

32604 326000800

0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836 0836

6mamn 3056mo 6o mo 3300 cos uodmo

U330n, mdoomg ooo amymmmon gdmu6du yommy5nu 8s/u (3a2mo, a1mgo, uubmo, sdo, 3m3oom,
m030, fmo30, dm30, 6JU30, mmom) co mdoomg a6d5mdosu 8s6ou adofo, mmgmoosb
bmu6ymo oUs mo, y32mo30u y6o ayu aamymcoo 56 agmmymo, moos sm 82bohcou 86563u
3c0; 48mo0o, 6920656m 3mdocmo 30al bo mo5 c yadmoa muo 600o. 6920656m
U330n dmo5 6mmu 6mo56mo5, 6mo5 2uusdmo 0yul 3smaolu 8oohyms. asdmoy520
goadydsoson 3msu4suol, moom5ou, smydo5ou cos do5ou fynjmo cos us330o 3mmoyfou 4uog
gno. my 4o3o 2gws6o 8j3o agnoa amymmndu w330o 3mmoyjfo, 2ooh2o, asdmoy5m
osmoa bnol os uMgl6ymoal m5g056nlu jdmn, 6w85 lu y3cm56o 8o3o 6mss 3d2dso. ymgmoanl
odmo5o 6mo56mo 100bdool co u330doanm 6moa mgo aadmuo 56 8jndmo
883ycou Uy6ou 58 aodmu gcoovdo, 58 cossbchoon oo. bmoagol 366ofu o3005 slsbomqdo
daedmoaaa maoy6moa oomnnnol coa7n (bnmoaoluaaamoe hvmmae

Usy06mnn 3000600533800u 8756638

Luyo5ymo 3026 odmo 330ou 2563u 8o 5u 330ou yyo53ou 4uusdmmosu. 5bmo 3300 36mo yol u 6mo 26mo, 6mo 2mo 2mo 2mo yml ayoy6ymo 3030yno 6mo 563mmos 2000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Usyogmou ygonu ambu6s

Lsyo5ymgu 3660 8dmbu5oo.
amjohoo 8000 3m5005060 60300 4x3350 00 06b65
·ambug6oo yyoo (2).
·hco800 6000 3m5g05g6n ydy-d0afooymo8oo.

36m0yj8oU 8syob3oU 0s 0563oU 03m260080

36m0y00000000000000000000000000000000000000000000000000000000000000
ayn530u 605 a9y0000 0000 yj0000 abmo 36moyfj: smy05ol 30008, u3308 m588o, 30ydygmo 00 yysmaogyfo 3msluoalou 3308, 3mmooomol 3m56206o o3ubymoo 5 8uoyo5 3m562068o, mdoomg 4dmuwco8o sbmo 36moyj8o uluyo5o.
36moyj0 y6o oymu sbmo, amyomoo os yosmofo bsholbou 600s 000mo 3630mo qm50u
abmo 0u6ymyo os bomo ufo ms ayoy5mo 08m30oloo530, 0ss 206y6y6mo aoo bny
bmyo 330n goymo, 35luo360s, 39no o adm. .Mgogmo bmgo, 55uoyoo
600ou, y6os hdm30cmn ayoy63dog.
Lsyo5yymjoo 00800g 6000 L3300 8886mgo.
a0530 0000300 uynmgo 56 56yommo3 8amg3mmo 36mcjyo. 66 ayo6mo 85dymoo, 36do 66 aod8c0oymo 8amg3mou 2008. am86o0o1u 8008 80056no 3m6oyjo 80
- 6y5mo0 Uo0b0sfo amoogdo.

8syo5ymo 1s330:603m260s000000000

6mogus yocymdo goyoym 36mogjU:

8888888888 8888888888 8888888888 8888888888 8888888888 8888888888 88

sulugu gmooy6mo oohoymo ausmgo. hulugu gfo5cmoaog360 6fomdo ooos

66 gdoomoy5mon mnojmou wogag6goo.

m003g0 00 u366mm m 0u3mo 66 y5co 80605cmu U3n600 66 U3n600u 806300

50300060000, 8uueofo5oo oo amoyofo oo anmo jumso.

30hommyo 80f0600 amymdmss Gommno 00
0005000000000000000000000000000000000000000000
a000000000000000000000000000000000000000000000000
amymommonu y36s abn 8503uymo m6g6uymo, cmm co m 6000

050357mm35605

m0030000000030000000000000000000000000000000000000000000
880000u uuuuoo 8o00 850034yymos yomgmdou 6560005 8aLudmss a8bcooo. 36omommo 5ugg00300 ouluo 3syydno uqdo

5605mo yymol 4y030 5 Ummn 80620u
667630mUsymo30, 68ymymno 8606000 8603mol
3305300000 85003uoymo 85003bomol
8mu6yymol yxholo5, 8ouo30u 85ymon3bmo 8ymonol
aodmy6doo .

Uusosnoagm 6foomjoo bomolus3como o5g7 5 10 3000, 68m050u 356ymo
amobm3alu agusdoaluo.

U0630U 8050

amdu6y6oU 6560u aodmd680u 606

1. 566008000000000000000000000000000000000000000000000000000
2. aamnnoa amymaommo os ouo hokoo, oosd yamdoom gysdoonsm

m 5085 m 8088 8088 8088 8088 8088 8088 8088 8088 8088

osbsaouo 000000000000000000000000000000000000000000000000

3350 amalusbmy60nlu 3056005 6030anogoou ym30mo3oU

b03060b am3mo 2
- amymdommo 030 co yufo amcoymo;

SERVICE

amalusbmyo 5mgo (6moa Service uoy30u 2008
f666yom. aadusbmyo 5mgo 80030
ooogymos uasfoom ygdo;
03350 uynmo aolaaa
03350 Gmogm5ol 5mgo.

Oy Uofoa 300000, Oofoa000 amaloooyou (ooos oohoeonjyo m65u moogosmoogm 60000000000000

山

1

2 1
2 1ole lalge
2 LED
2 (Jgall) 1
2 1
2
3 1
3 1
3 1abll jssj
3 1
3 1
3 1
3 2 jlll plll jssy
4 1
4 1
4 1
5 jiei 1
6 1
7 1
8 1

L 8 a 13

（）

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

a jlll l g aab 1

a a a a a a a a a a a a a a a a a a a a a a a a

1. gall iigall jiaill lglao lai glj

a 1

a a a a a a a a a a a a a a a a a a a a a a a a

:J 1

sinae 1i jzgl elgdu

j j 1

J 1

1

.2

.3

Jall gagall jolal plaoi lioic jj C.4

JaaI g yssll lae 5

J 6

jlll puiu

jglal pslil 10aill

a 1

y

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

(ajgjsl)oljglc alaiiall caiiall g) jll ljj

y

Jauuuiu uuljus jus

Jy

a 2

jellll jno jgog jalas aabjdy jall aaiy aibio cui jia gpc

Jdall jia lii Juaia Jdaia liang

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

Ays 85 Aaie aiee iie eae eee

P 个

aaii aiee iie eae 1

*oossgaleolglalldydydallydallncllglzdlll

a a a a a a a a a a a a a a a a a a a a a a a a a a a

Jaaalll

aalal jlll (nall alg Service aalal ydlal)

jaiai

JdSll il jic

1

(201 1

400011498903
