Product type	Refrigerator-freezer
Brand	Bertazzoni
Model	REF36FDFIXNV
Height	91.1 cm (35 7/8 in)
Width	61.9 cm (24 3/8 in)
Depth	163.5 cm (64 3/8 in)
Power supply	115 V - 60 Hz
Climate class	SN, N, ST, T
Main functions	Super-refrigeration, Super-freezing, Ice maker, Lock, Temperature adjustment
Lighting	LED (professional replacement)
Defrost	Automatic
Refrigerant	Flammable (type not specified)
Weight (estimated)	Approximately 100 kg
Warranty	2 years (limited)
Maintenance and cleaning	Regular cleaning with soft cloth and mild detergent; do not use abrasive products
Safety	Child lock, warning symbols, disconnect before maintenance
Spare parts and repairability	Repairs by authorized service center; LED bulb not replaceable by user
Water line installation	Kit available as accessory; connection to cold water
Serial number	On the box and at the back of the appliance

Frequently Asked Questions - REF36FDFIXNV BERTAZZONI

How to adjust the refrigerator temperature?

Press the temperature adjustment button of the refrigerator compartment to decrease in steps of 1 °F, from 44 °F to 34 °F. The setting takes effect once the panel is locked.

What to do in case of power outage?

Limit door opening. Food stays cold for several hours. Do not add fresh food.

How to clean the interior of the refrigerator?

Use a soft cloth or sponge with water and a non-corrosive mild detergent. Do not use metal brushes or solvents. Unplug the appliance before cleaning.

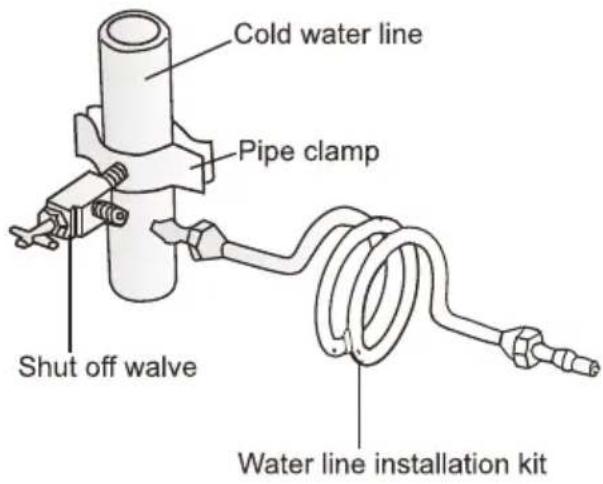

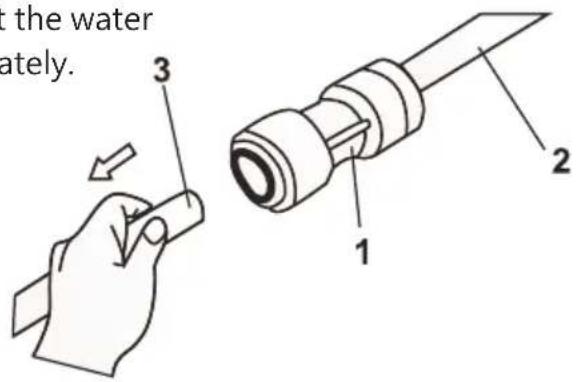

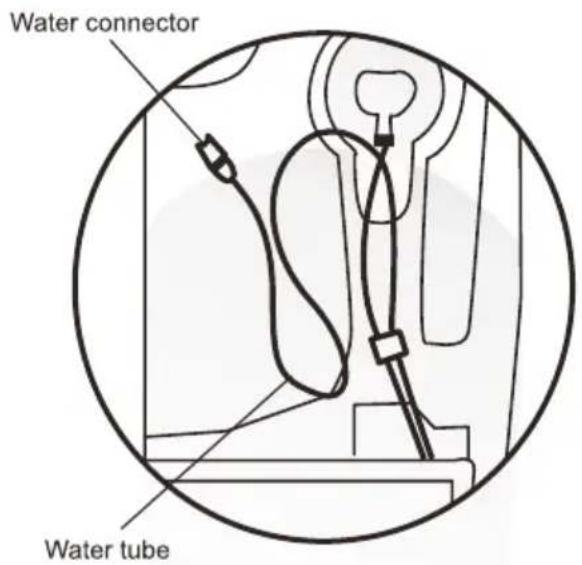

How to install the water line for the ice maker?

The installation kit is sold separately. Connect the supplied water hose to a cold water line, then to the refrigerator. Run several gallons of water to clean the line.

What do the error codes displayed mean?

E1: refrigerator sensor anomaly; E2: freezer sensor anomaly; E5: defrost sensor anomaly; E6: communication error; E7: ambient temperature anomaly; EH: humidity; E0: ice maker. Contact customer service.

How to defrost the refrigerator?

The appliance has automatic defrost. In case of excessive frost, unplug it and wipe with a dry cloth.

How to lock the control panel?

Press the lock/unlock button for 3 seconds. The panel locks automatically after 30 seconds of inactivity.

What foods can be stored in the freezer compartment?

The freezer is suitable for long-term storage of meat, fish, ice cream, etc. Do not freeze carbonated drinks in sealed bottles.

How to adjust the leveling feet?

Turn the feet clockwise to lift the appliance, counterclockwise to lower it. Adjust both feet to level.

How to replace the light bulb?

The lighting is LED. Any replacement must be done by the manufacturer, its service, or a qualified technician. Do not attempt to do it yourself.

USER MANUAL REF36FDFIXNV BERTAZZONI

INSTALLATION AND USER MANUAL

REFRIGERATORS

BERTAZZONI

INSTRUCTIONS D'INSTALLATION ET D'UTILISATION

REFRIGERATEURS

BERTAZZONI

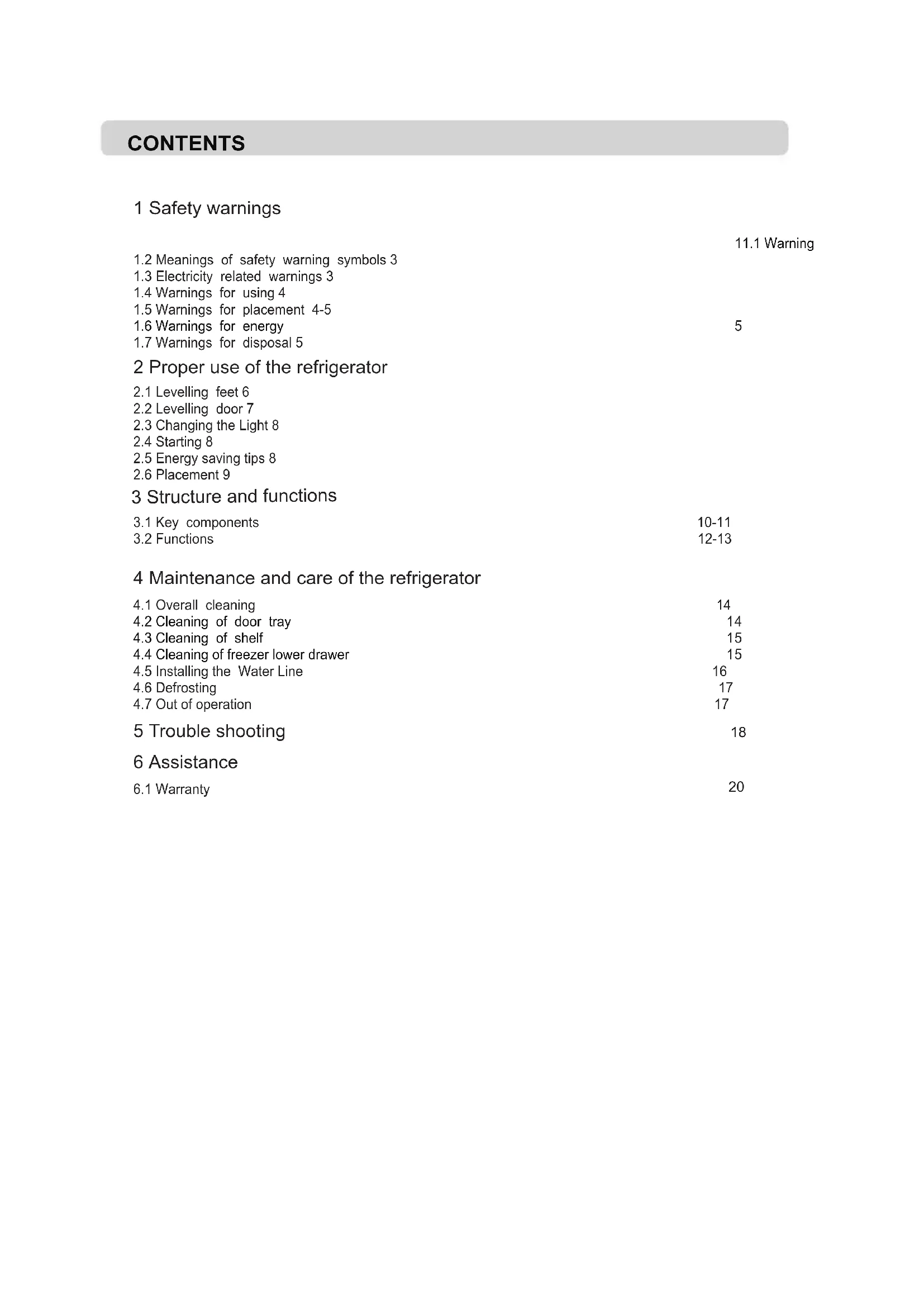

1.2 Meanings of safety warning symbols 3
1.3 Electricity related warnings 3
1.4 Warnings for using 4
1.5 Warnings for placement 4-5
1.6 Warnings for energy 5
1.7 Warnings for disposal 5

2 Proper use of the refrigerator

2.1 Levelling feet 6
2.2 Levelling door 7
2.3 Changing the Light 8
2.4 Starting 8
2.5 Energy saving tips 8
2.6 Placement 9

3 Structure and functions

3.1 Key components 10-11
3.2 Functions 12-13

4 Maintenance and care of the refrigerator

4.1 Overall cleaning 14
4.2 Cleaning of door tray 14
4.3 Cleaning of shelf 15
4.4 Cleaning of freezer lower drawer 15
4.5 Installing the Water Line 16
4.6 Defrosting 17
4.7 Out of operation 17

5 Trouble shooting 18

6 Assistance

6.1 Warranty 20

1 Safety warnings

1.1 Warning

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Warning: risk of fire / flammable materials

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please dispose of the refrigerator according to local regulations for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

DANGER Risk of child entrapment Before you throw away your old refrigerator or freezer:

-Take off the doors.

Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT and cyclopentane foaming material used for the appliance are

flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than disposal by combustion, so as to prevent damage to the environment or any other harm.

CHILDREN should be supervised to ensure that they do not play with the appliance.

FOR EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

TO avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drips onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)

- One *, two ** -and three-star *** compartments are not suitable for the freezing of fresh food. (note 3)

- If the refrigeration appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3: Please confirm whether it is applicable according to your product compartment type.

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING Connect to potable water supply only. (Suitable for ice making machine)

TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator).Suitable for products with locks)

1.2 Meaning of safety warning symbols

Prohibition symbol	This is a prohibition symbol.Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
Warning symbol	This is a warning symbol.It is required to operate in strict obser vance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.
Note symbol	This is a cautioning symbol.Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Diagram showing hand holding a pen and checkmark, next to a cartoon character waving, with a checkmark symbol above the hand.

Simple line drawing of a plug with a cable and a warning symbol (no text or labels)

Simple line drawing of a cabinet with an open door and a warning symbol (no text or labels)

Simple line drawing of a refrigerator with a box on top and a prohibition symbol below (no text or labels)

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

- Please use a dedicated non GFCI or ARC Fault protected power outlet and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the outlet or else fire may result.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator, drawer, and tool (no text or symbols)

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by a qualified service provider, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect (no text or symbols)

- The gaps between refrigerator doors and between doors and refrigerator body are small, do not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.

- Do not place foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a child climbing inside a refrigerator (no text or symbols)

- Do not allow any child to get into or climb onto the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a trash can with a face, warning symbol (no text or labels)

• Do not place heavy objects on the top of the refrigerator considering that objects may fall when closing or opening the door, and accidental injuries might be caused.
• Please unplug the refrigerator in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement of it ems

Illustration showing hands holding a tray with a bottle, a jar, and a cross symbol, alongside a warning icon.

- Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

- Do not place flammable items near the refrigerator to avoid fires.

Blood Drugs Non-drugs

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber Beer

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezer chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing and cause damage.

1.6 Warnings for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when set for an extended period of time at the lower end of the range of temperatures for which the refrigerating appliance is designed.

2)Carbonated drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold:

3) Do not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;

4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of protective wrap.

5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a specialized company with

corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product :

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerators

2.1 Leveling feet

1) Precautions before operation Information in the Instruction Manual is only for reference. Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power. Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury.

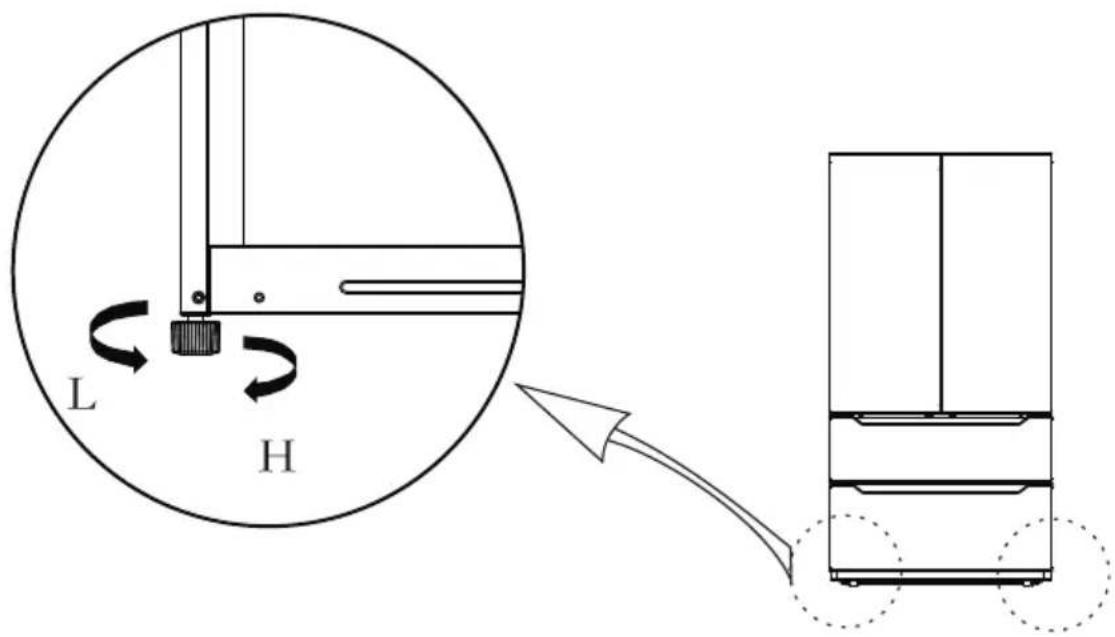

2) Schematic diagram of the levelling feet

L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

3) Adjusting procedures:
a. Turn the feet clockwise to the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2.2 Leveling door

1 Precautions before operation:

Information in the operation is only for reference.

Before operation of accessories, it shall be ensured that the refrigerator is disconnected from power.

Before adjusting the , precautions shall be taken to prevent any personal injury.

2 Schematic diagram of leveling the door

List of tools to be provided by the user plier Not level Hinge grommet Pliers Fastener-ring Lower hinge

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

1) Raise the lower door up to the level of the higher door.

2) Insert the supplied fastener-ring by using plier in the gap between the hinge-grommet and the lower hinge.

The number of fasten-rings you will need to insert depends on the gap.

2.3 Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2.4 Starting

Simple line drawing of a smiling refrigerator with eyes closed, connected to an electrical outlet (no text or symbols)

• Before initial start, keep the refrigerator still for two hours before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

35" 7/8 24" 3/8 135° 64" 3/8 39" 7/16

- Make sure there is adequate space for the installation of the appliance, otherwise the doors and drawers may not open fully.

2.5 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

2.6 Placement

Simple line drawing of a person pushing a cardboard box (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; remove the protective film on the e doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, a potted plant, and sun symbols (no text or labels)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in damp or wet locations to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not locate the refrigerator in places where it might easily be splashed with water so the electrical insulating properties of the refrigerator may be compromised.

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

- The refrigerator should be placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the adjustable leg for levelling if unstable).

Simple line drawing of a refrigerator with a smiling face (no text or symbols)

- For proper air circulation and electric connections, allow a 3/4" clearance on each side and behind the refrigerator. Allow a 3/8" clearance at top of the refrigerator.

Precautions before installation:

Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

Handle kits are provided separately. The installer must ensure handles are properly screwed in and fixed tightly using threadlocker.

3 Structure and functions

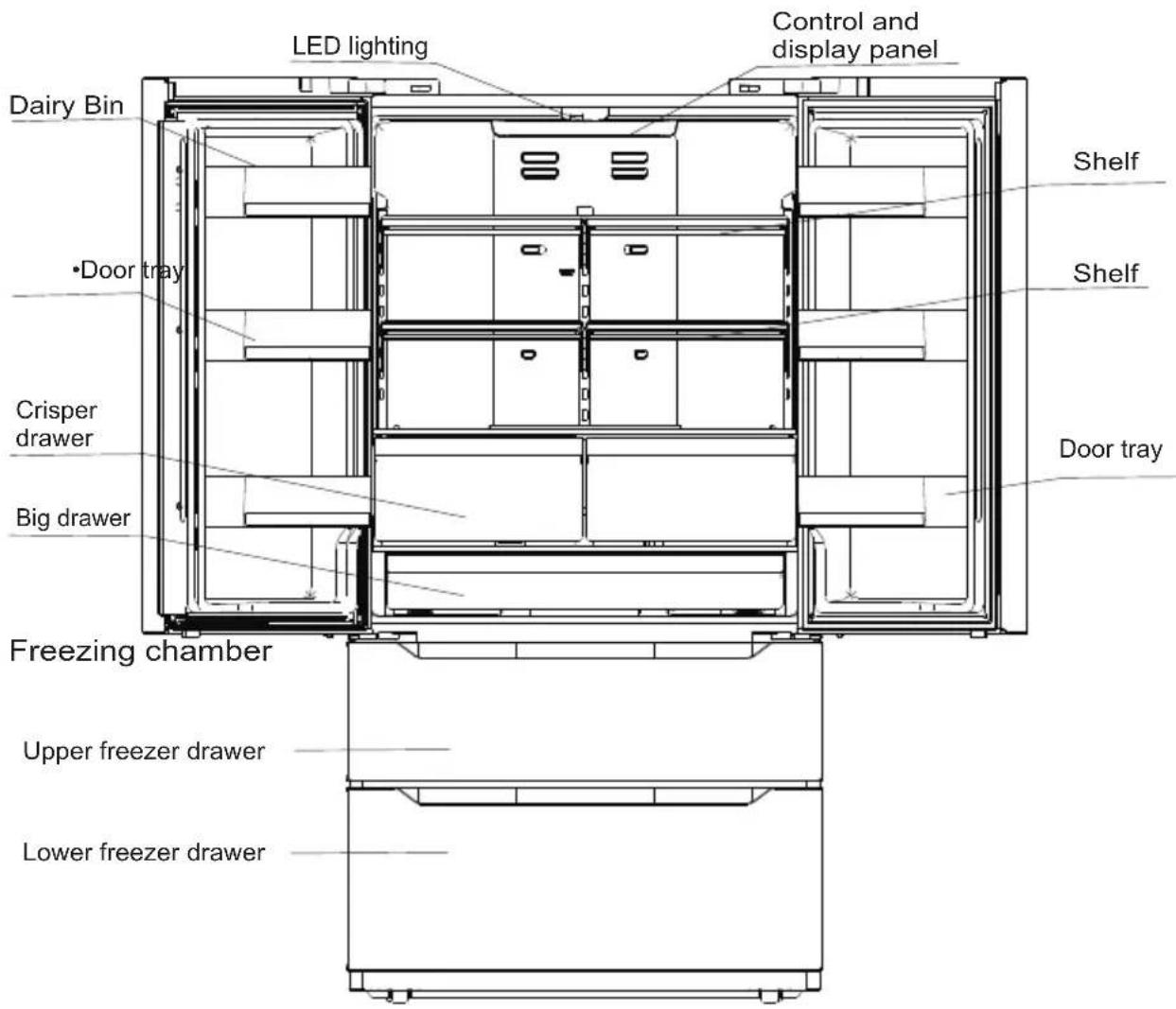

3.1 Key components

Refrigerating chamber

LED lighting Control and display panel Dairy Bin •Door tray Crisper drawer Big drawer Freezing chamber Upper freezer drawer Lower freezer drawer Shelf Shelf Door tray

(The manufacturer reserves the right to apply changes to the configuration)

The serial number can be found in the carton box and the upper part of the compressor compartment of the refrigerator back panel.

Refrigerator body Ice storage bin Upper freezer drawer Lower freezer drawer

(The manufacturer reserves the right to apply changes to the configuration)

Fresh food compartment

• The fresh food compartment is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
  • cooked foods shall not be put in the fresh food compartment until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezer compartment

• The low temperature freezer compartment may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezer compartment is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Meats should be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf life.

Note: Storage of too much food during operation after the initial connection to power may negatively impact the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

3.2 Functions

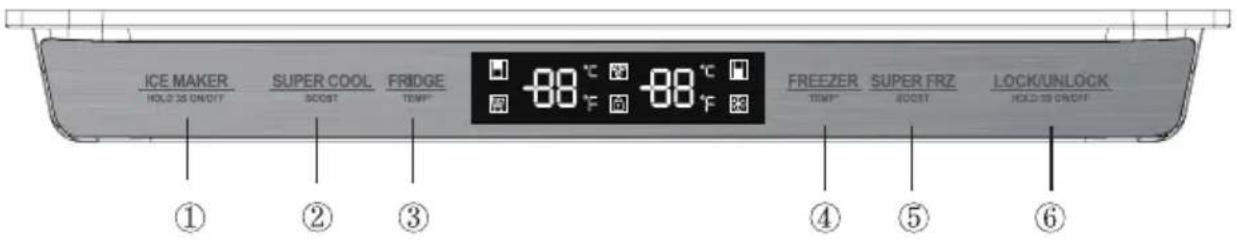

ICE MAKER HOLD 25 ON/OFF SUPER COOL BOOST FRIDGE TEMP -88 °C -88 °C -88 °C -88 °C FREEZER TEMP SUPER FRZ BOOST LOCK/UNLOCK HOLD 25 ON/OFF ① ② ③ ④ ⑤ ⑥

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

1. Buttons

① Ice-making button
③ Temperature adjusting button of refrigerator compartment
⑤ Super freeze button

② Super cool button
④ Temperature adjusting button of freezer compartment
⑥ Lock/unlock button

2. Display

a) On initial powering up of the refrigerator, the display screen completely illuminate for 3 seconds, meanwhile the starting up bell rings, then the display screen enters the normal display of operation. (if powered on for first time, the default set temperature of the refrigerator room and the freezer room is 41^ / 0^ ). b) It will display the set temperature of both refrigerator and freezer rooms when there is no fault. c) Under normal circumstances, the display light will go out after 30 seconds in the locked state, touching any button on the control panel will activate the display. The display will go out immediately upon closing the door/s. If a "fault code" appears on the display, the screen will illuminate and will go out after 30 seconds has passed.

3.Lock/Unlock

a) In the unlock state, press and hold the lock/unlock button for 3 seconds to enter the lock state, and the buzzer sound rings.
b) In the lock state, press and hold the lock button for 3 seconds to enter the unlock state and the chime tone rings.
c) It will enter the lock state if there is no opening door action or any buttons operation within 30 seconds.
d) The alarm sound can be stopped by pressing any one button in lock state, but all other button operations need to be performed in unlock state. If you operate in the lock state, an error tone will be given.

4. Fresh food compartment setting

Press the temperature adjusting button of fresh food compartment to change the set temperature of refrigerator compartment, Each time the button is pressed, the set temperature will drop1°F. when the set temperature reaches 34°F, press the button again, the set temperature will switch to 44°F. The temperature setting will take effect after the display panel is locked.

5.Freezer compartment setting

press the temperature adjusting button of freezer compartment to change the set temperature of freezer compartment. Each time the button is pressed, the set temperature will drop1°F. when the set temperature reaches -7°F, press the button again, the set temperature will switch to 7°F. The temperature setting will take effect after the display panel is locked.

6. Mode setting

1) Press the SUPER COOL button to start the super cool function. The fresh food compartment is set at 34 °F automatically, and the shines. Upon exiting super cool mode, the set temperature of refrigerator room will go back to the set temperature before super cool mode.

2) Press the SUPER FRZ button to start the super freeze function. The freezer compartment is set at -7°F automatically, and the SUPER FRZ icon shines. Upon exiting the super freeze mode, the set temperature of freezer room will go back to the set temperature before super freeze mode.

3) Press the button, the ice-making function could be switched between on/off. When the

icon is on, it indicates that the ice-making function is activated.

7. Error code

When the following codes appear on the display screen, it indicates a problem with the refrigerator. Although the refrigerator in the following fault case can still provide cool/freeze functions, The user should contact the Customer Service to, ensure the normal use of refrigerator.

Error code	Error description
E 1	Temperature sensor failureof refrigerator room
E 2	Temperature sensor failureof freezer room
E 5	Defrost error of freezer roomsensor
E 6	Communication error
E 7	Ambient temperature sensor error
E H	Humidity sensor error
E 0	Ice maker error

4. Maintenance and care of the appliance

4.1 Overall cleaning

- Dust on the condensor coil, behind the refrigerator and on the ground below the refrigerator shall be cleaned periodically to improve the cooling efficiency shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before

the power is turned on.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

- Do not rinse with water so that the electrical insulation properties are affected.

Gas Alcohol Watercolor

⚠️ Please unplug the refrigerator for defrost and cleaning.

4.2 Cleaning of door tray

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

- According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then remove.

• After washing the removed tray, you can adjust its installing height in accordance with your needs.

4.3 Cleaning of shelf

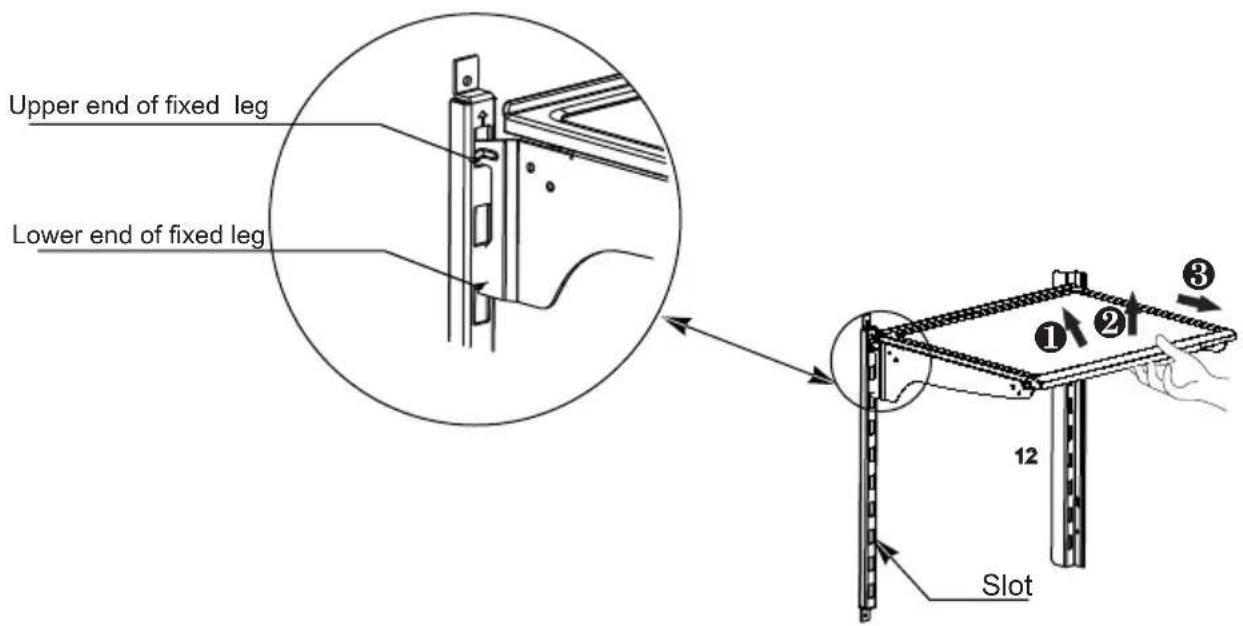

Upper end of fixed leg Lower end of fixed leg Slot 12 ① ② ③

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

- Please dismantle the cantilever shelf in the direction of the arrows shown as above :

①please hold the front edge of shelf, and tilt the shelf upwards until the lower end of fixed leg is separated from the slot of supporting bracket;
② Lift the whole shelf until it stops ;
③take out the shelf by pulling it forward.

- When installing a shelf, put the upper end of the shelf into one of the upper slots of the support bracket first and then put the lower end of the shelf into the third slot lower of the support bracket.

4.4 Cleaning of freezer lower drawer

button

• Pull out the lower freezer drawer to the proper position.
• As shown in the Fig., press the buttons in both slots respectively(must press both sides at the same time), pull out the freezer drawer until it stops.
  • Take out the lower drawer as directed by the arrows.
• After cleaning, put back the drawer to original position, then close the lower drawer, the button will lock the drawer automatically.
  Note: Don't remove the lower freezer drawer if not necessary.

4.5 Installing the Water Line

Installing the Water Line

Water line installation kits are available as an additional accessory from your dealer or at a local hardware store.

Connecting To The Water Supply Line

1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold water supply valve.
3. After connecting the water supply to the water valve, turn your main water supply back on and flush several gallons of water to clear the water supply line.

Cold water line Pipe clamp Shut off valve Water line installation kit

Connecting the Water Line to The Refrigerator

The following items are required to connect the water line to the refrigerator which are sold separately.

at the water ately. 1 2 3

1. First, water tubes (supplied) insert into corresponding hole of water connector (supplied).
   2.Second. water line installation kit (not included) inserts into another hole of water connector (supplied).
2. Turn water valve on and check for any leakage

Connecting the Water Line to A Drinkable Water Source

If your water line is NOT drinkable, please add an external water filter.

Turn off the water supply switch before repairing, installing or removing the refrigerator.

Water connector Water tube

46 Defrosting.

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4 7 Out of operation.

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, limit the number of times doors are opened and do not place new flesh food into the appliance in order to help maintain temperatures, and no more fresh food shall be put into the appliance.
• Long term nonuse: The appliance shall be unplugged and then cleaned; then the doors left open to prevent odor.
• Moving: Before the refrigerator is moved, remove all items, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the levelling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

5 Trouble shooting

You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales service department.

Failed operation	Check whether the appliance is connected to power or whether the plug is inserted completely into the outlet.Check whether the voltage is too low.Check whether there is a power failure or partial circuits have tripped.
Odor	Odorous foods shall be tightly wrapped.Check whether there is any rotten food.Clean the inside of the refrigerator.
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is high.It is not recommended having too much food in the appliance at the same time.Cooked foods shall be cooled before being put into the appliance.The doors are opened too frequently.
Light fails to light	Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged.
Doors cannot be properly closed	The door is stuck by food packages.The refrigerator is tilted.
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably.Check whether accessories are placed at proper locations.
Door seal fails to be tight	Remove foreign matters on the door seal.Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating).
Condensate pan overflows	There is too much food in the chamber or food stored contains too much water,resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting.
Hot refrigerator cabinet	Heat dissipation of the built-in condenser via the refrigerator cabinet is normal.When the refrigerator cabinet becomes hot due to high ambient temperature and storage of too much food,it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1 Climate classes

Class Symbol Ambient temperature range	°F
Extended temperate SN	+ 50 to + 89.6
Temperate N	+ 60.8 to + 89.6
Subtropical ST	+ 60.8 to + 100.4
Tropical T	+ 60.8 to + 109.4

6 Assistance

6.1 Warranty

Please kindly register on our web site www.bertazzoni.com to validate your new product warranty and help us to assist you better in case of any inconvenience.

TWO YEAR LIMITED WARRANTY

The warranties provided by Bertazzoni Spa in this statement apply exclusively to Bertazzoni appliances and accessories sold as new products to the original owner by a Bertazzoni authorized distributor, retailer, dealer or service center and installed in the United States and Canada. The warranties provided in this statement are not transferable and have validity from the date of installation.

COVERAGE INFORMATION

Bertazzoni SpA will repair or replace any component part which fails or proves defective due to materials and/or workmanship within 2 years from the date of installation and under conditions of normal residential use. Repair or replacement will be free of charge, including labor at standard rates and shipping expenses. Repair service must be performed by a Bertazzoni Authorized Service

Center during normal working hours.

COSMETIC WARRANTY

Bertazzoni will cover parts showing cosmetic defects in material and workmanship for a period of thirty (30) days from date of installation of the unit. This coverage will include scratches, stains, surface imperfections on stainless steel, paint and porcelain, with the exclusion of slight differences in color due to materials and painting/enamelling technologies.

Exclusions are labor costs, B stock items, out - of - box appliances and display units.

HOW TO OBTAIN SERVICE

To obtain service please contact Bertazzoni Customer Service at the numbers below and make sure to have model number, serial number, and date of purchase ready. This information will be requested by our team and is crucial to speeding up resolution.

UNITED STATES https://us.bertazzoni.com/more/support

Phone: [phone]

CANADA https://ca.bertazzoni.com/more/support

Save proof of original purchase or of original installation to establish warranty period. Copy of the product serial tag is affixed to the back cover of the instruction manual.

WHAT IS NOT COVERED

1. The product used in any commercial/business application
2. Repair service provided by other than a Bertazzoni authorized service agent.
3. Damage or repair service to correct service provided by an unauthorized agency or the use of unauthorized parts.
4. Installation not in accordance with local electrical codes or plumbing codes.
5. Defects or damage due to improper storage of the product.
6. Defects or damage or missing parts on products sold out of the original factory packaging or from displays.
7. Service calls or repairs to correct the installation of the product and/or related accessories.
8. Service calls to connect, convert or otherwise repair the electrical wiring / gas line / water line to properly use the product.
9. Service calls to provide instructions on the use of a Bertazzoni product.
10. Repair service due to product usage in manner other than what is normal and customary for home use.
11. Replacement of wear and tear parts
12. Replacement of glasses and light bulbs if they are claimed to have failed later than 30 days after installation and in no case later than 4 months after date of purchase
13. Defects and damages arising from accident, alteration, misuse, abuse, improper installation.
14. Defects and damages arising from transportation of the product to the home of the owner.
15. Defects and damage arising from external forces beyond the control of Bertazzoni SpA such as fire, flood, earthquakes and other acts of God.

In case the product will be installed in a remote area, where certified trained technicians are not reasonably available, the customer will be responsible for the transportation costs for the delivery of the product to the nearest authorized service center or for the displacement costs of a certified trained technician.

Bertazzoni does not assume any responsibility for incidental or consequential damages.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state or province to province.

TABLE DES MATIÈRES

Diagram showing hand holding a checkmark next to a hand holding a magnifying glass, with a second hand pointing at a wall-mounted device.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a cabinet and door (no text or symbols)

Simple line drawing of a cabinet with an open lid and a prohibition symbol (no text or labels)

Simple line drawing of a refrigerator, refrigerator with handle, and door panel (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect (no text or symbols)

Simple line drawing of a child sitting inside a refrigerator with no text or symbols

Hand-drawn sketch of a trash can with warning symbols including an 'X' and a warning triangle with an exclamation mark.

Illustration of a hand holding a tray with a bottle, a jar, and a cross symbol (no text or labels)

Bened Bened Permeate

Simple line drawing of a refrigerator with eyes closed and inside, connected to an electrical outlet (no text or symbols)

Simple line drawing of a person pushing a cardboard box (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun in the background (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a cartoon refrigerator with a smiling face (no text or symbols)

Illustration of various household items including a bottle, spray bottle, jar, kettle, and lamp (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

INFORMATIONS SUR LA GARANTIE

ÉTATS-UNIS https://us.bertazzoni.com/more/support

Télé phone : [phone]

CANADA https://ca.bertazzoni.com/more/support

Télé phone : [phone]

Warning sign depicting a flame symbol in a yellow triangle with black border

Simple line drawing of a hand holding a pencil and a small circle above, next to a camera on a door (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room interior with a window and furniture (no text or symbols)

Simple line drawing of a refrigerator with a door and front panel, no text or symbols present

Line drawing of a refrigerator with a door, drawer, and handle (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect (no text or symbols)

Simple line drawing of a child sitting inside a refrigerator (no text or symbols)

- No permita que ningú n niñ o entre o suba al refrigerador; de lo contrario, se puede causar asfixia o caí da del niñ o.

Simple line drawing of a cylindrical object with a cross symbol and an exclamation mark (no text or labels)

Illustration of a hand holding a tray with a bottle and a box, no text or symbols present

Technical diagram showing a mechanical assembly with labeled components L and H, including a detailed circular inset view.

Simple line drawing of a refrigerator with a wall and electrical outlet (no text or symbols)

Simple line drawing of a person lifting a large box next to an refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbols (no text or labels)

Simple line drawing of a refrigerator and a door (no text or symbols)

Illustration of various household items including a glass, toilet, spray bottle, and kettle (no text or symbols)

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Medical illustration showing a catheter inserted into a device within a circular frame (no text or labels)

Tubo de agua

4.6 Descongelació n

ESTADOS UNIDOS https://us.bertazzoni.com/more/support

CANADÁ https://ca.bertazzoni.com/more/support
