Product type	Coffee machine
Brand	Schneider
Model	SCESC2206B
Power supply	220-240 V~, 50/60 Hz
Power	1450 W
Pump pressure	19 bars
Water tank capacity	0.6 L
Compatible capsule types	Universal capsules (capsule holder A and B), paper pods, ground coffee
Functions	Small and large cup brewing, brew volume adjustment (10-90 s), standby mode, cleaning mode
Heating time	Approximately 45 seconds
Standby mode	15 minutes of inactivity (adjustable)
Maintenance	Descaling recommended after 300-400 cups
Safety	Automatic shut-off, burn protection, do not immerse, unplug before cleaning
WEEE code	Directive 2012/19/EU
Importer	SCHNEIDER CONSUMER GROUP, 12 rue Jules Ferry, 93110 ROSNY-SOUS-BOIS, FRANCE

Frequently Asked Questions - SCESC2206B SCHNEIDER

How to use different types of capsules or coffee?

The machine comes with multiple capsule holders. Use the capsule holder A for universal capsules, the capsule holder B for other capsules, and a dedicated filter holder for ground coffee or paper pods. Insert the appropriate capsule holder, close the handle, place a cup and press the desired brew button.

How to adjust the brewed coffee volume?

To set the volume for a small cup, hold down the small cup button during brewing and release it when the desired amount is reached (min 10 s, max 90 s). Similarly, for a large cup, hold down the large cup button. The settings are saved until the next change.

What to do if the coffee is not hot enough?

Several possible causes: cups are cold (preheat them), scale has built up (descaling the machine), or the machine is cold (run a cup of hot water to warm the circuit). If the problem persists, check that the water tank is properly in place and that the machine has heated sufficiently.

How to descale the machine?

Use a commercial descaling product following the doses. Pour the solution into the water tank (without capsule), place a bowl under the spout, then run several brew cycles to empty the tank. Repeat with a second tank of solution, then rinse with fresh water. Never use vinegar, as it would damage the machine.

How to clean the machine?

Always unplug the machine before cleaning. Clean the exterior with a damp cloth and dry. The capsule holders and drip tray can be washed with soapy water. Never immerse the machine and do not use abrasive products or sharp objects.

Why is water leaking from the machine?

Check that the water tank is properly inserted and that its valve is not blocked. The drip tray may be full: empty it. If the leak persists, contact customer service.

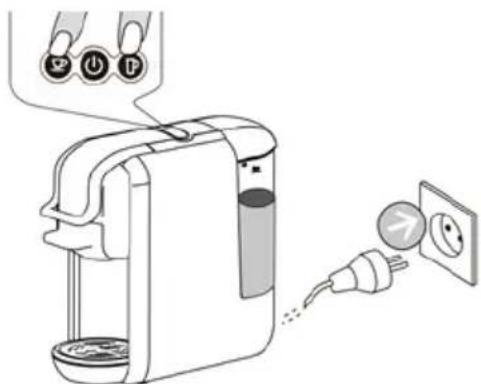

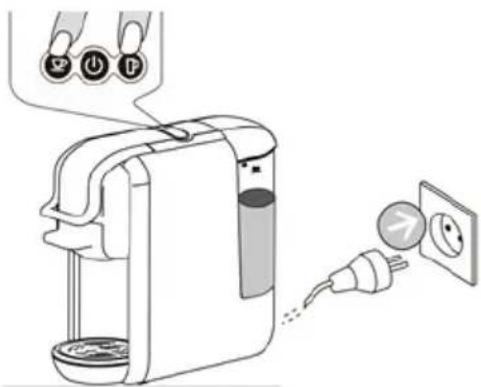

How to activate standby mode?

By default, the machine goes into standby after 15 minutes of inactivity. To change this setting, hold down the small and large cup buttons while plugging in the appliance. Then, press the small cup button to activate (indicator on) or deactivate (indicator off) standby mode.

What to do if the handle does not close?

Make sure the capsule holder or filter holder is correctly inserted and pushed all the way in. If necessary, remove it and reinsert it by pressing firmly. Do not force the handle.

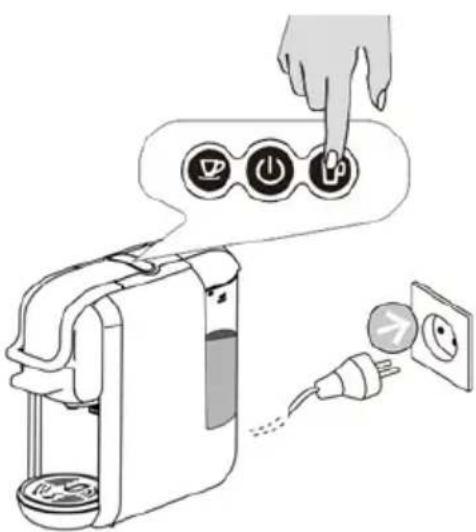

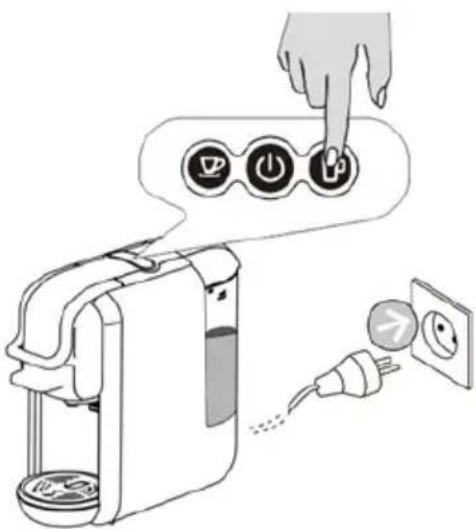

How to reset to default settings?

Press the large cup button and plug in the power cord. The indicators flash twice, indicating that factory settings are restored.

Can I use vinegar for descaling?

No, never use vinegar. This can damage the machine and alter the taste of coffee. Use only a commercial descaling product suitable for coffee machines.

USER MANUAL SCESC2206B SCHNEIDER

Black and white photo of a black coffee maker with no visible text or symbols on the device body

MANUEL D'INSTRUCTIONS • INSTRUCTION MANUAL BEDIENUNGSANLEITUNG • HANDLEIDING • MANUAL DE INSTRUCCIONES

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ LISEZ ATTENTIVEMENT ET CONSERVEZ CES INSTRUCTIONS POUR TOUTE FUTURE RÉFÉRENCE.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE FOR FUTURE REFERENCE. WICHTIGE SICHERHEITSHINWEISE LESEN UND FÜR ZUKÜNFTIGE VERWEISE SPEICHERN.

BELANGRIJKE VEILIGHEIDSINSTRUCTIES LEES EN BEWAAR VOOR TOEKOMSTIG GEBRUIK.

Technical line drawing of a mechanical component with a cylindrical pin and base, labeled '1' (no text or symbols on the diagram itself)

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Line drawing of a hand holding a cylindrical object with a handle, mounted on a base (no text or symbols)

Diagram showing a hand pouring liquid into a water heater with labeled parts and directional arrows

Diagram showing a water heater with labeled components and a glass of liquid being poured into it, marked with arrows and numbered parts.

Three circular icons with coffee cup, power button, and mug symbols (no text or numbers)

Illustration of an electrical plug connected to a wall-mounted socket with an eye symbol (no text or labels)

Diagram showing a coffee maker with three icons (press, power button, phone) interacting with a hand pointing to it, accompanied by a speech bubble containing icons.

Diagram of a coffee maker with labeled parts and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Diagram of a portable device with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating a coffee maker's menu control with icons for parking, navigation, and sharing, alongside a cup.

Diagram of a portable water heater with labeled parts and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical component with a cup and housing (no text or symbols)

Diagram of a coffee maker with labeled parts and directional arrows indicating parts 1, 2, and directional indicators.

Diagram illustrating coffee maker setup with icons and a hand interacting with the device, showing menu, coffee cup, and coffee tray.

Technical illustration of a mechanical device with two views showing internal components and a handle (no text or symbols)

Diagram of a coffee maker with labeled parts and directional arrows indicating assembly steps

Diagram of a coffee maker with labeled parts and directional arrows indicating steps 1, 2, and directional indicators.

Diagram illustrating coffee maker's menu control with icons and a hand interacting with the screen, next to a cup.

Diagram of a coffee maker with labeled parts and directional arrows indicating components

Technical line drawing of a mechanical assembly with a fan and housing (no text or symbols)

Illustration of a mechanical device with a dial and base, no visible text or symbols

Diagram of a coffee maker with labeled parts and directional arrows indicating steps 1, 2, and directional indicators.

Diagram showing a coffee maker with three icons (press, power, and coffee cup) interacting with a hand, indicating a menu or app interface.

Simple analog clock face showing 3 o'clock with no text or symbols (pure graphical design)

15 min

Diagram showing a hand interacting with a device labeled with three icons: battery, switch, and power button.

Diagram illustrating coffee maker setup with icons for coffee cup, power button, and outlet, showing a hand pointing to the printer.

Diagram illustrating a coffee maker's electrical switch operation with labeled buttons and power connections

Icon showing three circular buttons with icons: coffee cup, power button, and mug, connected by a finger to indicate action.

Diagram showing a hand inserting a power button into a device with an electrical outlet, illustrating the process of switching to a power outlet.

NETTOYAGE ET ENTRETIEN

RISQUE D'ÉLECTROCUTION MORTELLE ET D'INCENDIE.

Illustration showing two different cleaning or cleaning methods: a mechanical device with a drop and a manual drain with a conical tip (no text or symbols present)

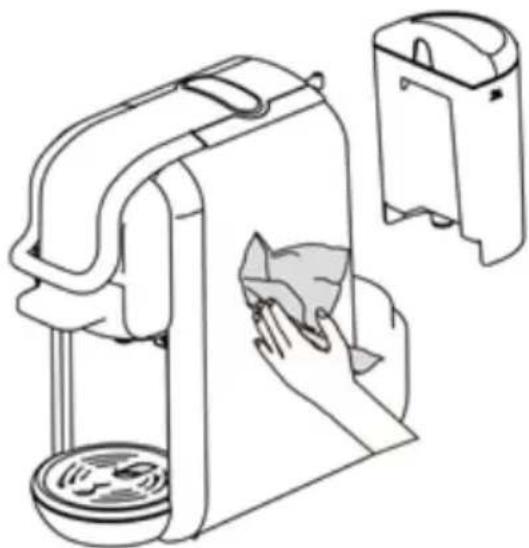

Nettoyage extérieur

Line drawing of a washing machine with cleaning cloth and lid, showing hand cleaning process (no text or symbols)

FR-20

Line drawing of a mechanical device with a cylindrical base and cross-shaped component (no text or symbols)

Diagram of a coffee maker with a cup and a magnified view showing the interior mechanism (no text or symbols)

Diagram illustrating a hand operating a blender with three labeled buttons and a checkmark indicating the beverage.

Diagram showing a hand washing machine with warning sign and safety warning symbol

Illustration of a hand using a tool to press or install a mechanical component with steam rising (no text or symbols)

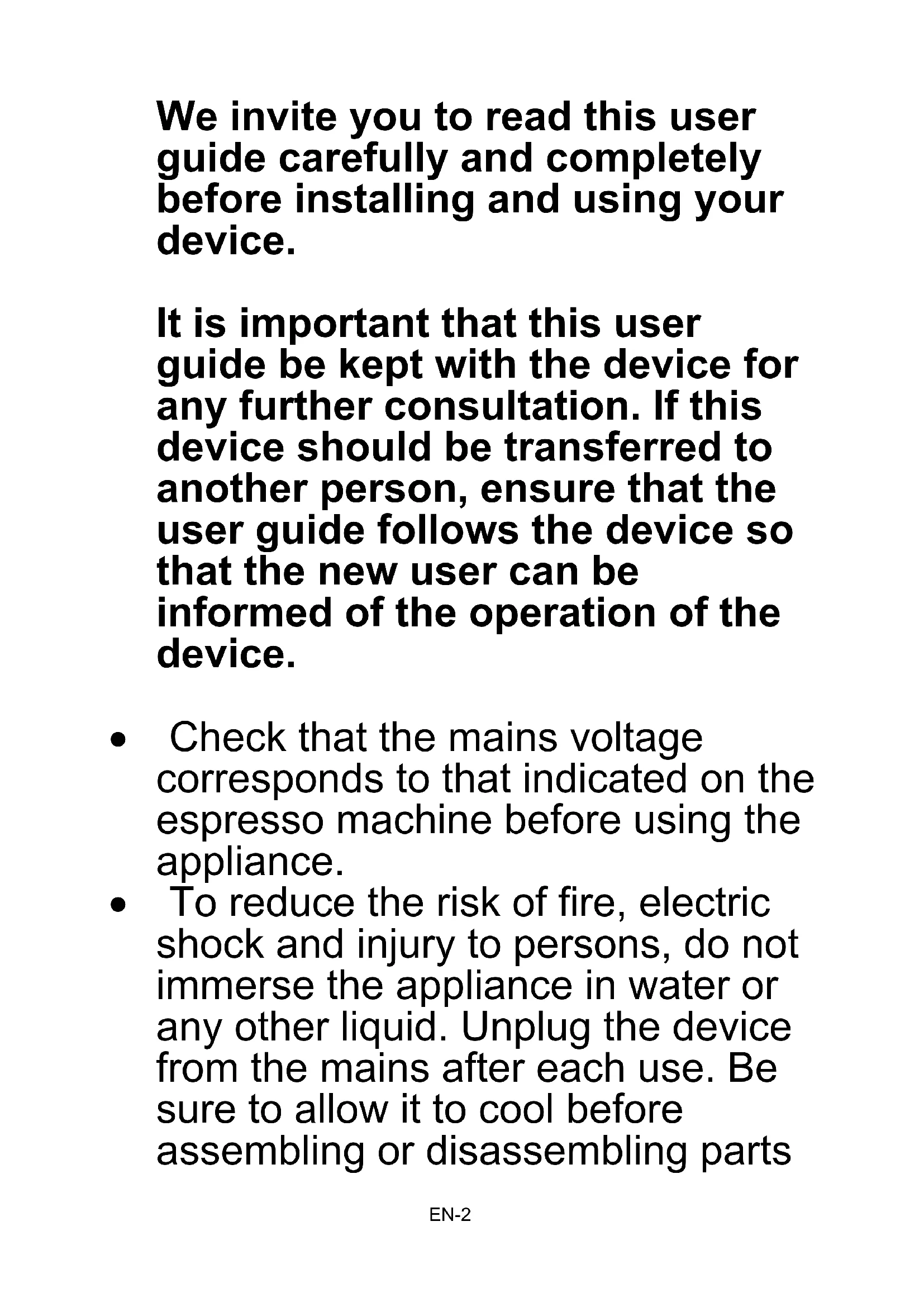

We invite you to read this user guide carefully and completely before installing and using your device.

It is important that this user guide be kept with the device for any further consultation. If this device should be transferred to another person, ensure that the user guide follows the device so that the new user can be informed of the operation of the device.

• Check that the mains voltage corresponds to that indicated on the espresso machine before using the appliance.
• To reduce the risk of fire, electric shock and injury to persons, do not immerse the appliance in water or any other liquid. Unplug the device from the mains after each use. Be sure to allow it to cool before assembling or disassembling parts

and before cleaning.

- Do not use attachments not recommended by the manufacturer to avoid the risk of fire, electric shock and injury.

- If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.

- This device is intended for use in household and similar applications such as:

–staff kitchen areas in shops, offices and other work environments;
-on farms;
-use by hotel guests,
-motels and other residential type environments;
-bed and breakfast type environments.

- CAUTION: Avoid overflow on the connector.

- CAUTION: Improper use may result in injury.

• Do not let the power cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place the appliance near a hot gas or electric burner, or in a hot oven.
• Disconnect the appliance from the mains, then remove the mains plug from the wall socket, holding the plug. Never pull on the power cord to disconnect the plug.
• Be careful not to burn yourself.
  • Some parts of the appliance become hot during operation.
• This appliance is intended for household and indoor use only. The product must be installed in compliance with national installation rules.
• The socket of the installation must always be equipped with an earth connection. If the power supply is not connected to earth, you should not connect the device.
• This appliance can be used by people with reduced physical,

sensory or mental capacities or whose experience or knowledge is not sufficient, provided that they are supervised or have received instructions as to safe use of the device and fully understand the potential dangers.

- Children should not use the device as a toy.

- This appliance can be used by children aged 8 and over, provided that they are supervised or have received instructions on the safe use of the appliance and that they fully understand the dangers involved. Cleaning and user maintenance shall not be made by children, unless they are over the age of 8 and under adult supervision. Keep the device and its cable out of the reach of children under 8 years of age.

- Do not operate the device without water.

- If you do not use the product for a long time, please empty the water

tank and unplug it.

- CAUTION: To avoid a hazard due to a thermal cutout override, this device must not be powered by an external interrupting system, such as a timer, or connected to a circuit that is regularly turned on and off by its usefulness.

• CAUTION: Do not open the fill port during use.

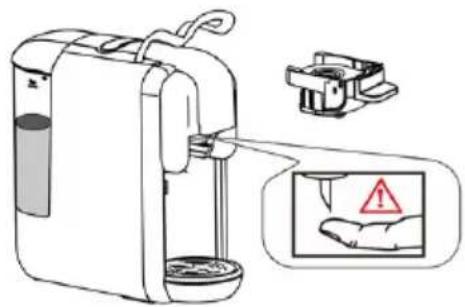

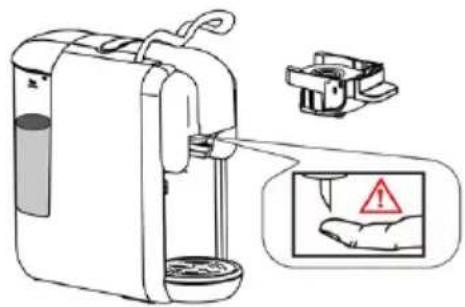

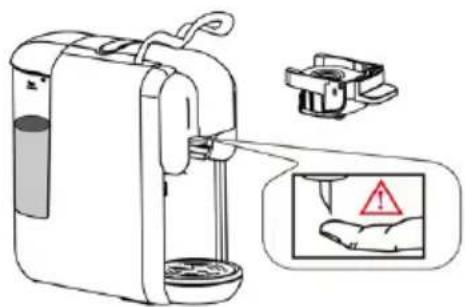

• RISK OF BURN!! Do not remove the adapter when espresso is working.

Designed for use in contact with food

IMPORTANT

It is absolutely forbidden to replace the power cable yourself. If this is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid a hazard.

If your device is dropped, have it examined by a professional before turning it back on. Internal damage can pose an accident hazard.

Any complaint about your product must be made to your retailer or its after-sales service.

All repairs must be made by the manufacturer's after-sales service. The after-sales service of your retailer or a similarly qualified person in order to avoid a danger

Disposal and environmental responsibility

In order to be respectful of the environment, we encourage you to dispose of the device correctly. You can contact local authorities or recycling centers for more information.

Read the instructions carefully before use.

This product complies with the requirements of Directive 2014/35/EU (which replaces Directive 73/23/EEC amended by Directive 93/68/EEC) and 2014/30/EU (replaces Directive 89/336/EEC).

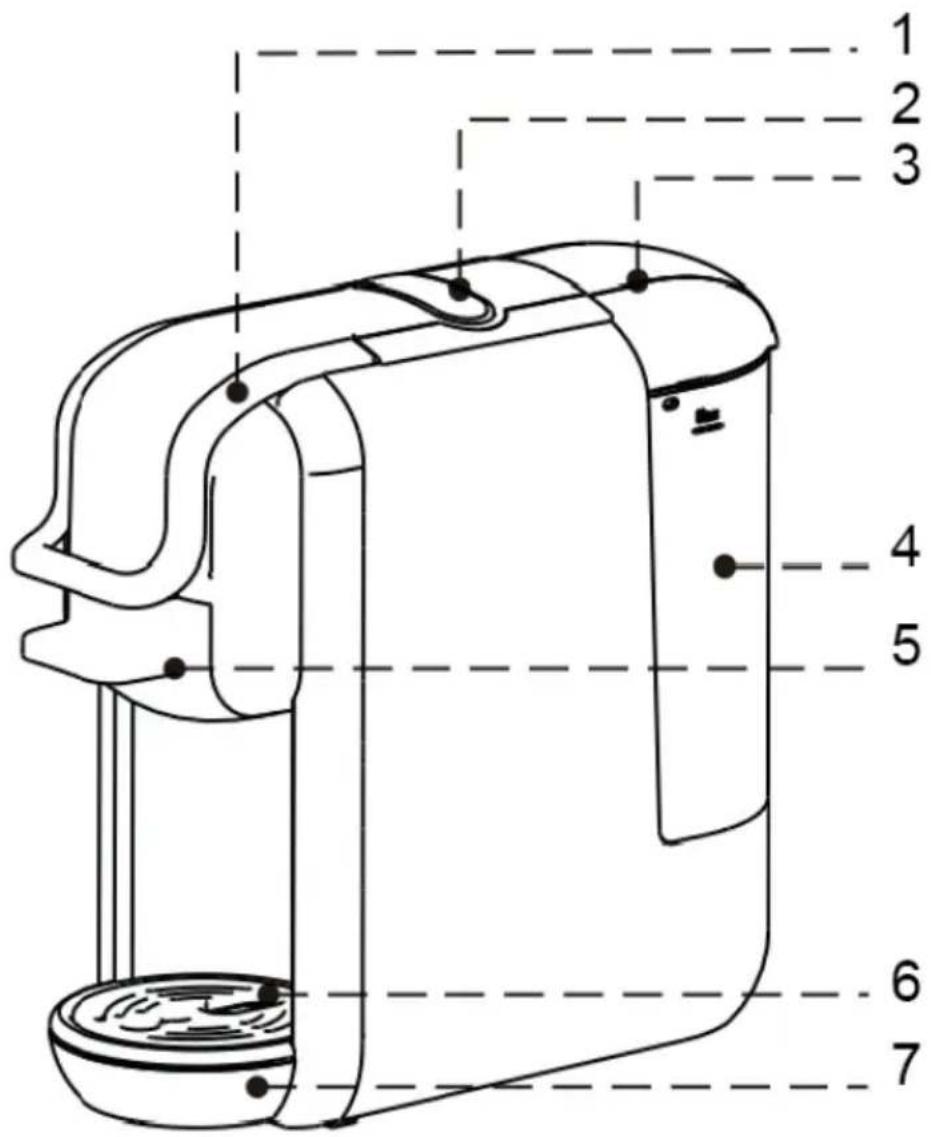

1 2 3 4 5 6 7

1. Handle
2. Buttons
3. Water tank cover
4. Water reservoir
5. Capsule holder
6. Drip tray grid
7. Drip tray (removable)

USING YOUR DEVICE FOR THE FIRST TIME

Remove the espresso capsule machine from its packaging.

Remark :

• Check that the voltage of the power supply corresponds to that indicated on the current rating label of the machine.
  • There may be a small amount of water left in the machine.

To ensure that the machine works perfectly, it has been tested with water beforehand.

- Please refer to the short procedure below, using the hose to manually fill the water circuit before turning on the machine for the first water addition, this action helps the pump to have a self-function priming.

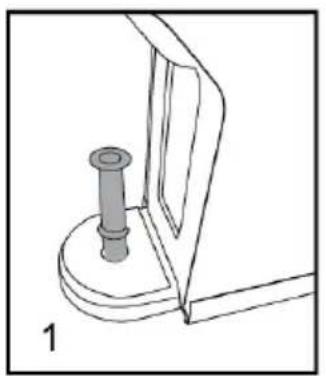

Step 1. Insert the hose into the water inlet.

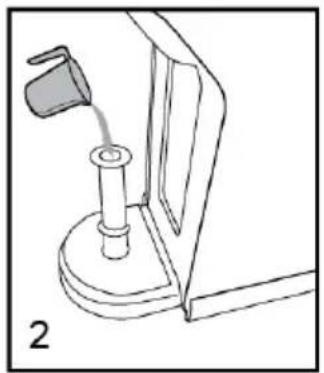

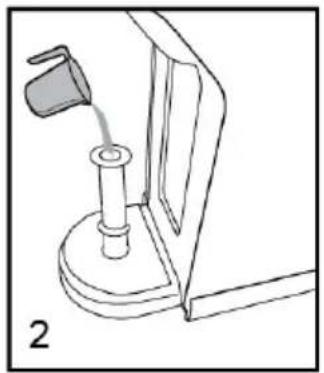

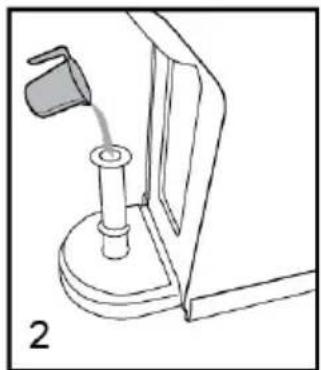

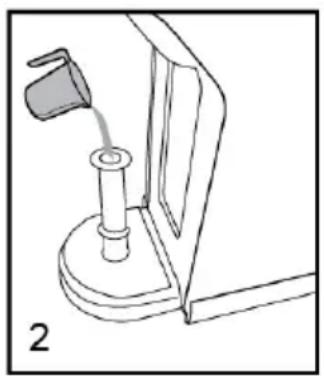

Step 2. Fill the water pipe.

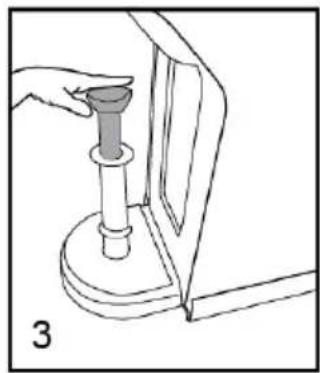

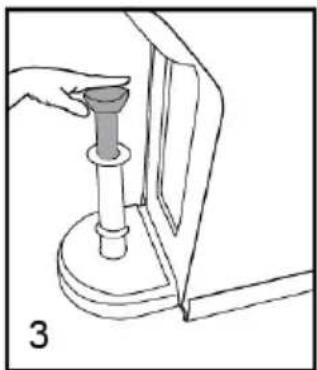

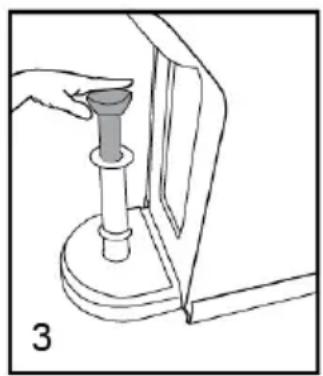

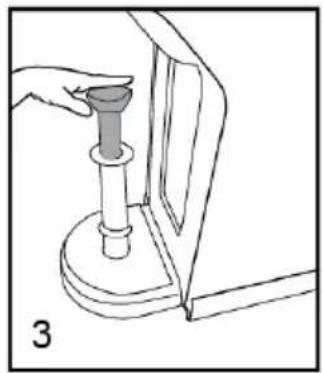

Step 3. Inject the water from the pipe into the machine so that the internal circuit is filled with water.

Technical line drawing of a mechanical component with a cylindrical pin inserted into a base (no text or symbols)

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Line drawing of a hand holding a cylindrical object inserted into a mechanical component (no text or symbols)

After performing the above steps, the machine will be able to pump water normally.

Notes: You can repeat the steps 2 or more times if necessary.

WARNING : Improper handling of electrical equipment is dangerous, and can even be fatal. Observe the safety precautions indicated in this manual, and in particular the following points:

SCALD HAZARD: BEWARE OF HOT WATER!

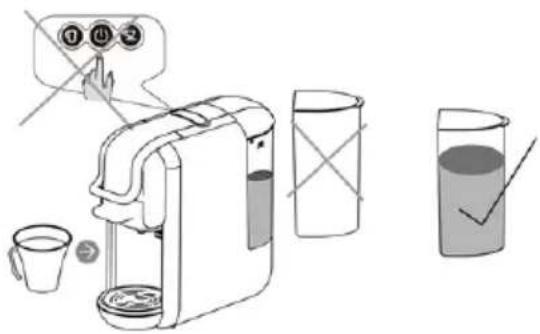

• Do not operate the machine if the water tank is empty or the water level is below the MINIMUM.

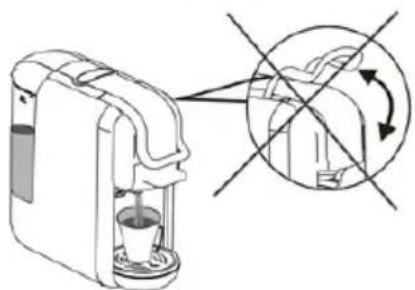

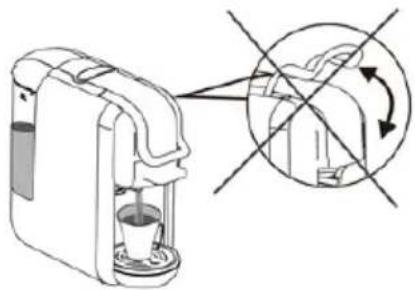

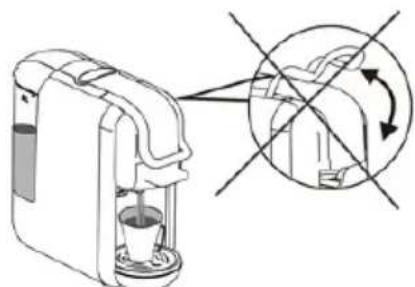

• Do not open the handle while the machine is brewing.
  • Always unplug the power plug before cleaning the machine.
  • Use the machine only in a dry room.
• Thoroughly rinse the water tank with clean water before using it for the first time. Clean the coffee machine with a damp cloth only.

Before the first use or after a long period of non-use of the latter, this quick procedure can purge and clean the internal circuits correctly.

You can fill the water tank in two ways:

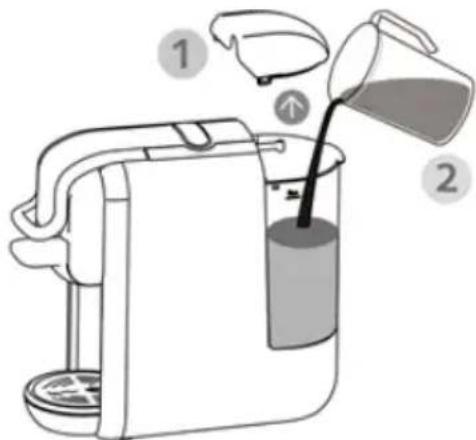

1. Fill without removing the tank

• Open the water tank cover. (1)
• Fill the tank with clear water (the maximum water temperature is 35^ C ). (2)
  • The maximum capacity is 0.6 liters.
• Put the tank cover back in place.

Diagram showing a hand pouring liquid into a blender with labeled parts 1 and 2

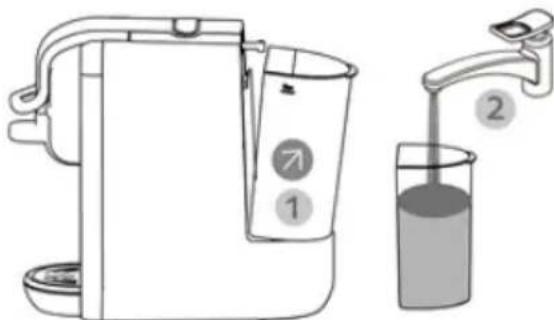

2. Fill by removing the tank

• Hold the water tank handle at the angle shown and pull in the direction shown to remove the water tank from the machine. (1)
• Fill the water tank with cold water up to the "MAX" marking (the maximum capacity is 0.6 liters). (2)
• Slide the water tank gently onto the base. When the water tank outlet is inserted into the supply receptacle, firmly push the tank handle in the direction shown to lock it.

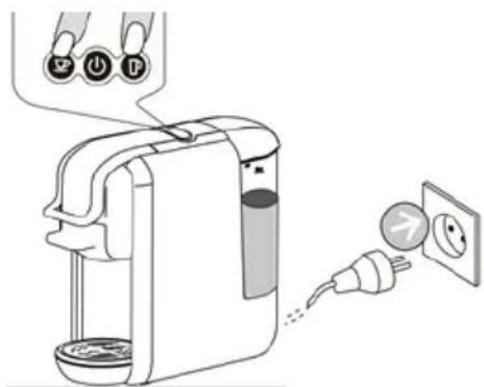

• Connect the power source.

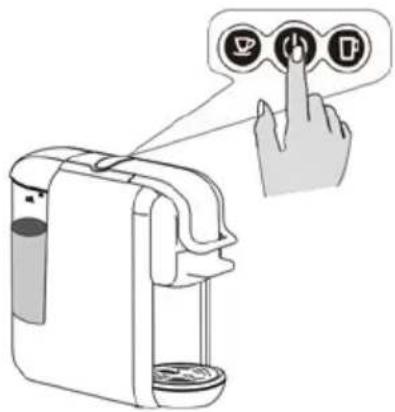

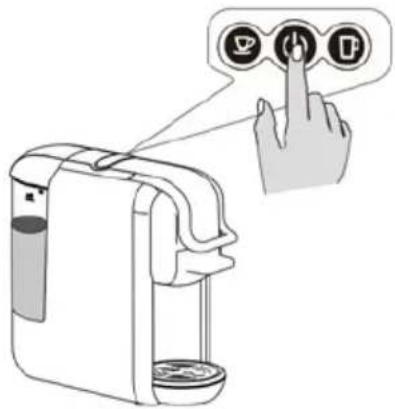

• Press the switch.

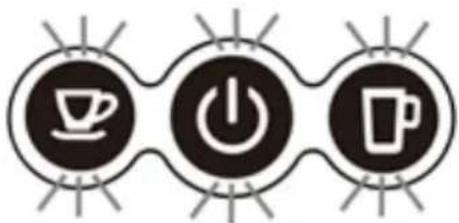

  • The lights come on as the machine heats up. It takes 45 seconds.

Diagram showing a handwashing machine with labeled components and a clear glass of liquid, likely illustrating a cooking or cleaning procedure.

Illustration of a plug connecting to an electrical outlet (no text or symbols)

Three circular icons with coffee cup, power button, and beer mug symbols (no text)

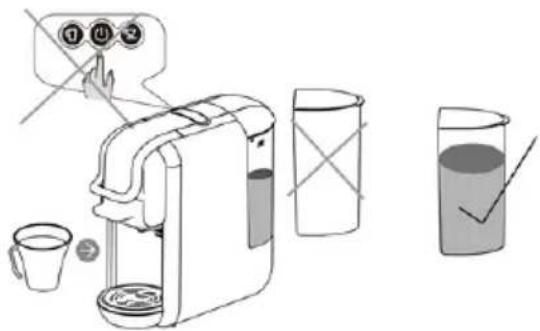

1. Press the brew button, and wait for the machine to drain all the water.

Before pressing the button, check that:

- The handle is closed with no capsule present.

• The water tank is full.

- The water tank is firmly inserted, otherwise water may leak.

- A large cup (250 ml or more) is placed under the spout.

- Press the brew button to start the flow.

- Open the handle when the flow process ends automatically.

- Empty the bowl.

• The purge cycle is complete.

Diagram showing a coffee maker with three icons (press, power button, flip) interacting with a hand pointing to it, illustrating a coffee machine operation.

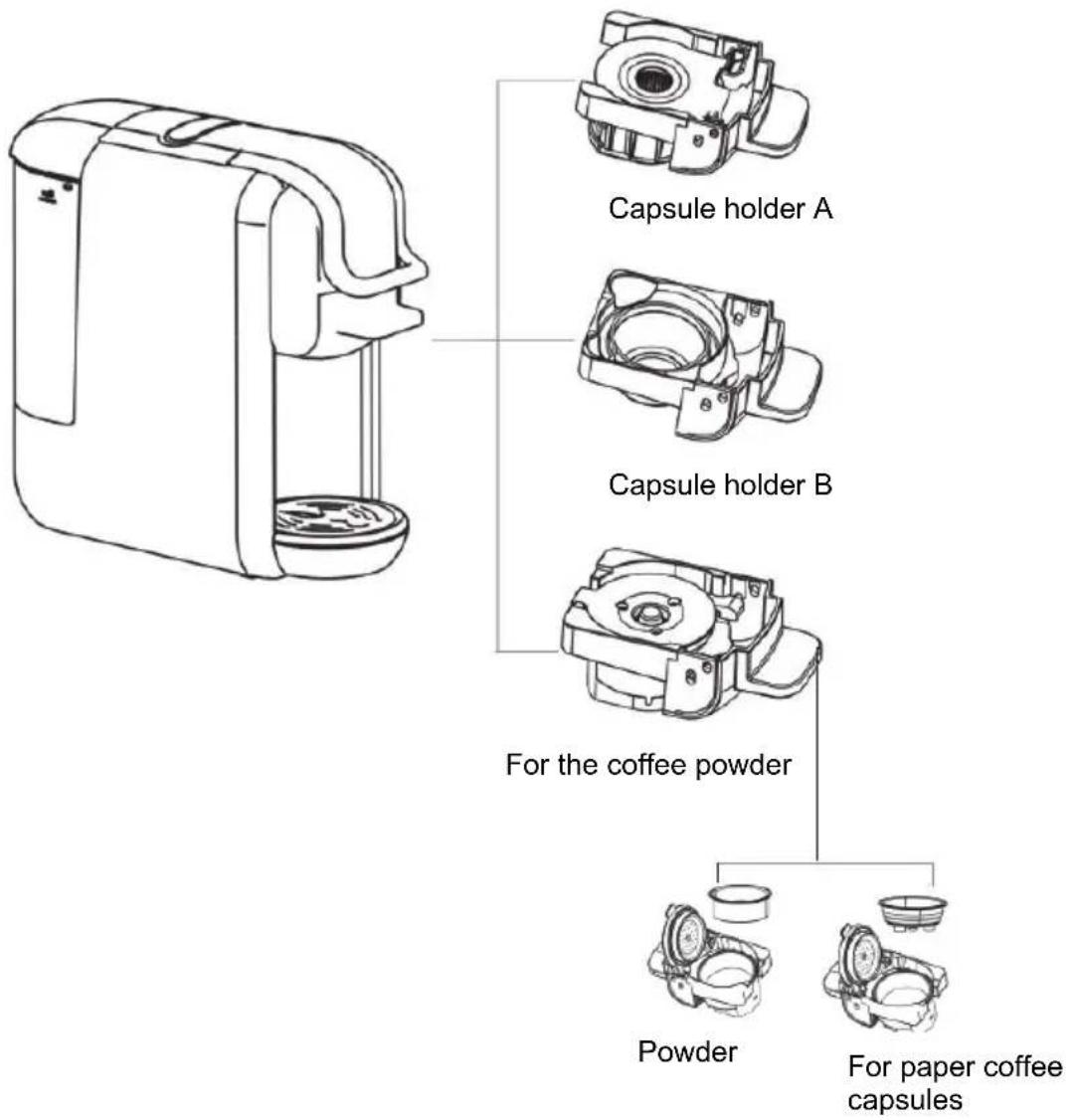

Tips: The machine uses different adapters for different capsules.

Capsule holder A Capsule holder B For the coffee powder Powder For paper coffee capsules

For capsule holder A

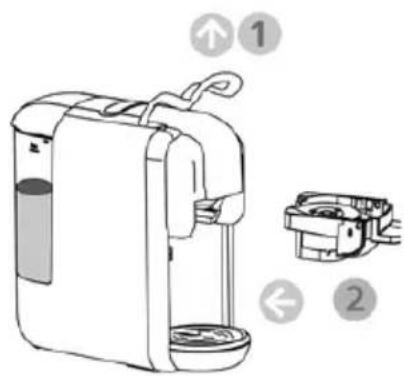

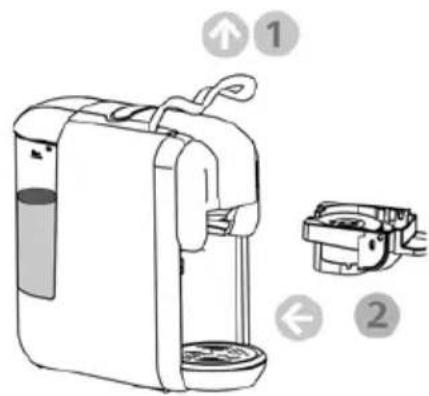

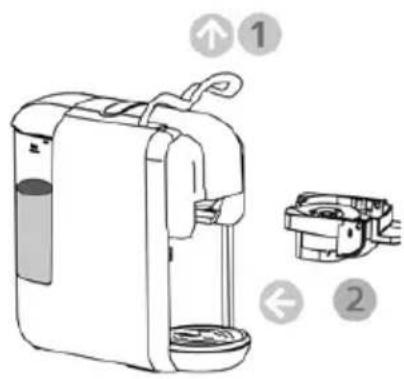

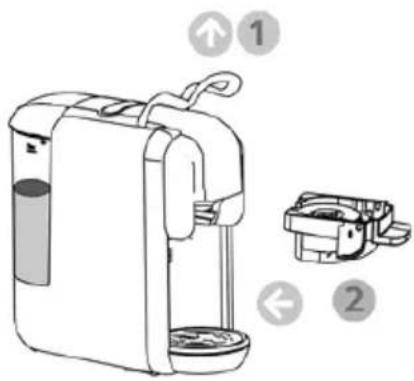

1. Open the handle. (1)
2. Pull capsule holder A. (2)

Diagram of a coffee maker with labeled parts and directional arrows indicating assembly or movement.

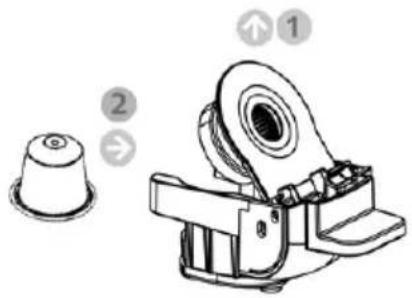

1. Press on the cover of the capsule holder cover (1)

2. Insert a compatible capsule into the capsule holder. (2)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

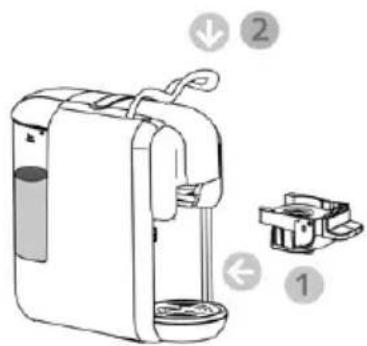

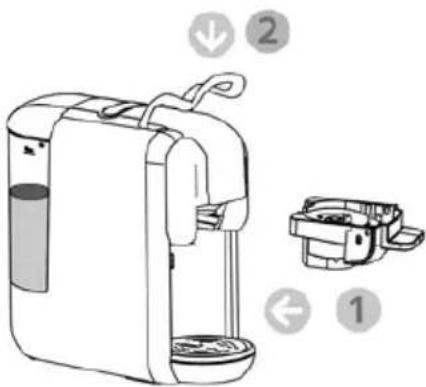

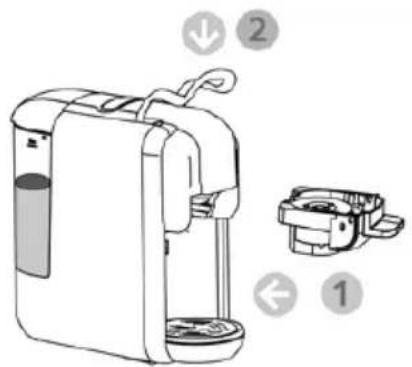

1. Push the capsule holder containing the capsule to insert it. (1)

2. Close the handle. (2)

Diagram of a portable device with labeled parts and directional arrows indicating movement or assembly.

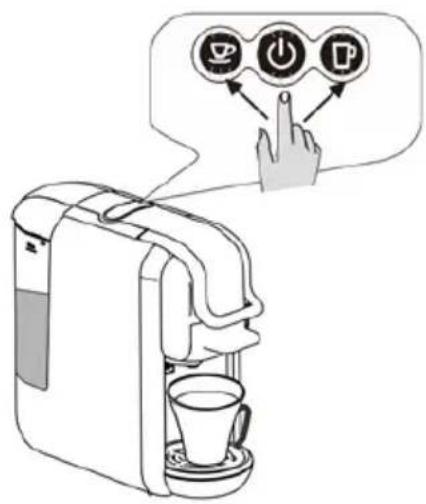

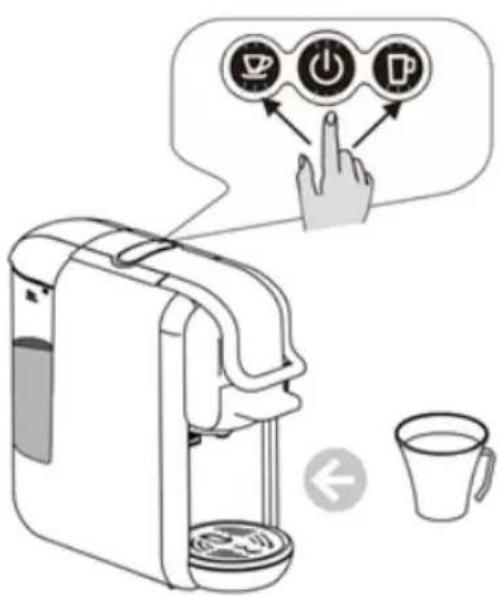

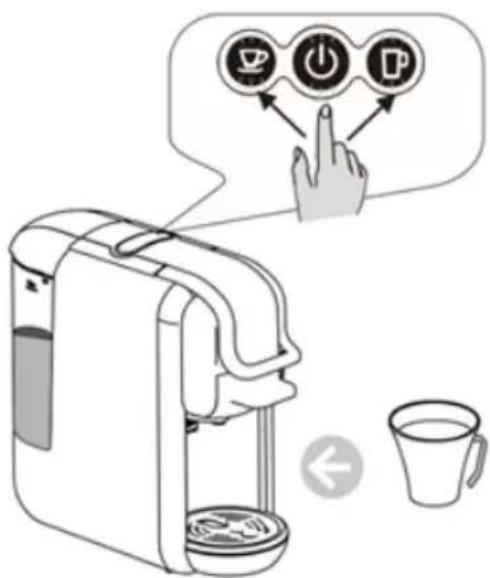

1. Place a cup under the spout.
2. Press the desired brew button once only.

3. The selected button will flash and the machine will start the brewing process and stop automatically when the default brewing time has elapsed (16s for a short espresso, and 25s for a coffee). The default setting can be programmed, see the instructions "how to program the brewing time".

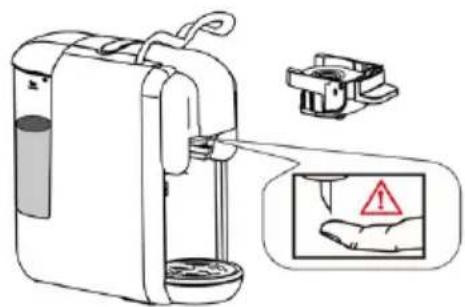

4. Lift the handle and pull the capsule holder to remove the used capsule.

Tips: When you press the desired button, the LED light will flash for a few seconds first, then brewing begins. The flashing indicates the heating time, and this is normal.

Diagram illustrating a coffee maker's usage with icons for parking, navigation, and sharing, alongside a cup.

For capsule holder B

1. Open the handle. (1)
2. Pull capsule holder B. (2)

Diagram of a portable water heater with labeled parts and directional arrows indicating assembly or movement.

1. Ins ert a capsule into the capsule holder.

Technical line drawing of a mechanical component with a cup and housing (no text or symbols)

1. Push the capsule holder containing the capsule to insert it. (1)
2. Close the handle. (2)

Diagram of a coffee maker with labeled parts and directional arrows indicating parts 1, 2, and directional indicators.

1. PI ace a cup under the spout.
2. Press the desired brew button once only
3. The selected button will flash and the machine will start the brewing process and stop automatically when the default brewing time has elapsed (16s for a short espresso, and 25s for a coffee). The default setting can be programmed, see the instructions “how to program the brewing time”.
4. Lift the handle and pull the capsule holder to remove the used capsule Tips: When you press the desired button, the LED light will flash for a few seconds first, then brewing begins. The flashing indicates the heating time, and this is normal.

Diagram illustrating a coffee maker's usage process with icons for coffee, tea, and coffee cup, showing hand interaction and directional arrows.

For the coffee powder

1. Open the handle, (1) Pull out the filter holder dedicated to coffee powder. (2)
2. Fill with coffee powder and squeeze everything. (3)

Technical illustration of a mechanical device with two views: one showing internal flow and the other showing a lever mechanism (no text or symbols)

Diagram of a portable electric water heater with labeled parts and directional arrows indicating assembly steps.

1. Push the filter holder containing the coffee powder. (1) Close the handle. (2)

Diagram of a coffee maker with labeled parts and directional arrows indicating steps 1, 2, and directional indicators.

1. PI ace a cup under the spout,
2. Press the desired brew button once only.
3. The selected button will flash and the machine will start the brewing process and stop automatically when the default brewing time has elapsed (25s for a short espresso, and 47s for a coffee). The default setting can be programmed, see the instructions "how to program the brewing time".
   Lift the handle and pull the capsule holder to remove the used capsule Tips: when you press the desired button, the LED light will flash for a few seconds first, then the infusion begins. The flashing indicates the heating time, and this is normal.

Diagram illustrating a coffee maker's usage mechanism with icons for power, battery, and coffee cup, showing hand interaction and directional arrows.

For paper coffee pods

1. Open the handle, (1) Pull the capsule holder from the paper pods. (2)
2. Fill with coffee powder and press it. (3)

Diagram of a coffee maker with labeled parts and directional arrows indicating parts 1 and 2

Technical line drawing of a mechanical device with a fan and housing (no text or symbols)

Change the coffee powder filter to the paper pod filter.

Illustration of a mechanical device with a dial and housing (no text or symbols)

Place the paper pod in the adapter.

1. Push the paper pod capsule holder (1) Close the handle. (2)

Diagram of a coffee maker with labeled parts and directional arrows indicating movement or assembly.

1. Place a cup under the spout,
2. Press the desired brew button once only.

3. The selected button will flash and the machine will start the brewing process and stop automatically when the default brewing time has elapsed (25s for a short espresso, and 47s for a coffee). The default setting can be programmed, see the instructions "how to program the brewing time".

4. Lift the handle and pull the capsule holder to remove the used capsule.

Tips: When you press the desired button, the LED light will flash for a few seconds first, then

brewing begins. The flashing indicates the heating time, and this is normal.

Diagram illustrating a coffee maker's menu control with icons and a finger pointing to the menu, alongside a cup.

Standby

Default settings: 15 min sleep mode

1. The machine will turn off after 15 minutes, and all indicator lights will turn off.
2. Press the switch to turn the machine back on if it is in sleep mode.

Simple analog clock face showing 3 o'clock with no text or symbols (pure graphical design)

15 min

Diagram showing a hand interacting with a device labeled with three icons: battery, switch, and power button.

Standby mode setting:

1. Hold the small or large cup selector buttons pressed and insert the plug into the socket.
2. The power button lights up.
3. Press the small cup button, its light goes out and sleep mode is deactivated.
4. Press the small cup button, its indicator lights up and standby mode is activated.

Hand icon pointing at three circular icons with coffee cup, power button, and phone symbols, suggesting a notification or navigation interface.

Diagram of a hand washing a blender with an electrical outlet, showing plug and socket (no text or symbols)

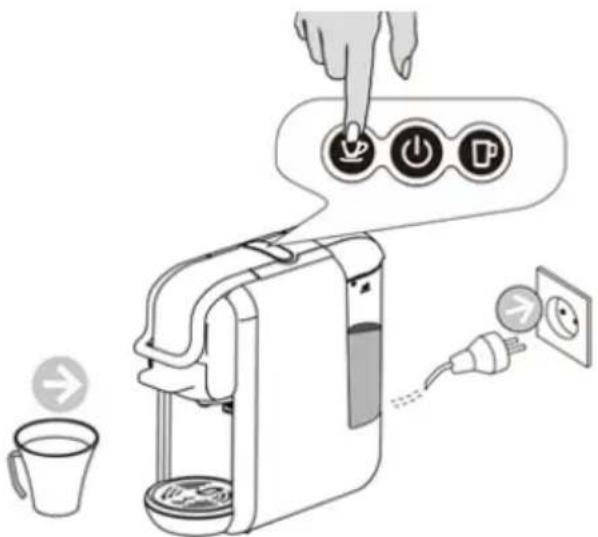

Cleaning mode function

1. Place a cup in front of the machine.
2. Pour de water with a little detergent in the tank.
3. Press and hold the small cup button and simultaneously plug in the power plug.
4. The switch and the small cup button light up. Press the small cup button to start cleaning. The process takes 120 s. Press the small cup button to stop it.

Diagram illustrating a coffee maker's electrical switch operation with labeled buttons and power connections

Coffee volume settings

Small cup volume adjustment

1. Place the coffee cup under the spout.
2. The machine is in normal operating mode. Press and hold the small cup button and release it when the desired amount of coffee has been dispensed (min: 10 sec, max: 90 sec).

Adjusting the volume of a large cup

1. Place the coffee cup under the spout.
2. The machine is in normal operating mode. Press and hold the large cup button and release it when the desired amount of coffee has been dispensed (min: 10 sec, max: 90 sec).

Default settings

Press the big cup as shown, and plug in the power plug. The button indicator lights will flash twice. This indicates that the machine's default settings have been restored.

Diagram showing three circular icons with icons: a hand pressing down, a power button, and a mug, likely representing a process or control interface.

Diagram showing a hand inserting a power button into a device with an electrical outlet, illustrating the process of switching to a power outlet.

RISK OF FATAL ELECTROCUTION AND FIRE.

Never immerse the machine in whole or in part in water. Always be sure to unplug the machine before cleaning.

Do not use harsh cleaning agents or solvents.

Do not use sharp objects, brushes or abrasive utensils.

Do not put the machine in the dishwasher.

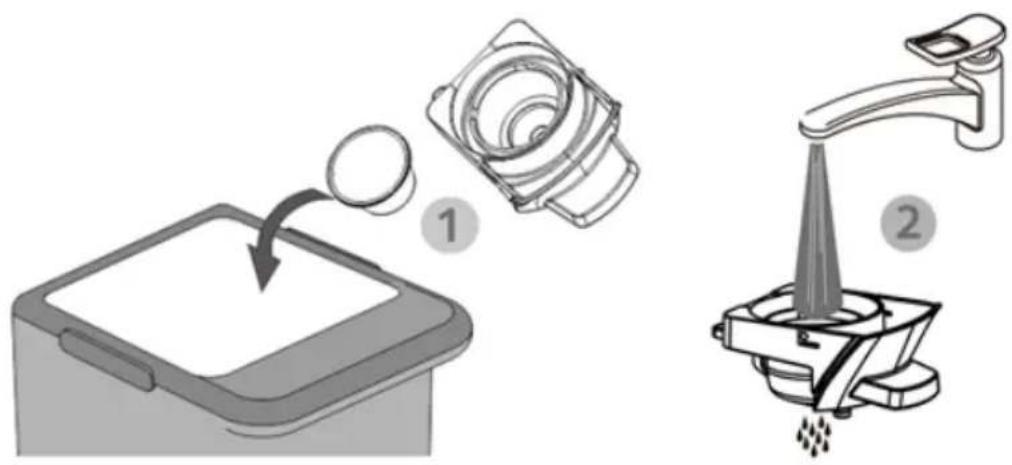

Cleaning the capsule holder

Illustration showing two steps of a kitchen tool: adding a lid to a tray and pouring liquid into a drain, with no visible text or symbols.

Exterior cleaning

Clean the machine with a clean, dry cloth, tissue or piece of paper towel, then reassemble all the parts. Clean the spout and the inside of the machine regularly with a damp cloth.

Line drawing of a hand cleaning a washing machine with a cloth, next to a separate outlet (no text or symbols)

WARNING INSTRUCTIONS

• Its forbidden to pour water on the machine
• Its forbidden to open the handle during the infusion.
• Before brewing, make sure the water reservoir contains more than 20ml of water.
• A sarp needle is present above the capsule adapter. It is forbidden to place the hand or fingers near the needle when the adapter is removed.

RISK OF INJURY!

• To adapter remains very hot after brewing.

BURN HAZARD!

Line drawing of a mechanical device with a cylindrical base and attached housing (no text or symbols)

Diagram of a coffee maker with a cup and a side view showing a circular arrow indicating rotation (no text or symbols present)

Diagram illustrating a hand gesture interacting with a blender, accompanied by a diagram showing cup, glass, and checkmark.

Diagram showing a hand washing machine with warning sign and safety symbol, including a magnified inset of the device.

Illustration of a hand using a tool to press or install a mechanical component with steam rising (no text or symbols)

Power saving mode

The machine enters power saving mode automatically after 15 minutes of inactivity. The LEDs of both buttons and the power indicator will then be off. To activate the power saving mode, please press the power button. The device begins to heat up and the lights flash. When they illuminate continuously, the machine is ready to brew coffee.

Descaling/ Maintenance

Water quality varies by region. Limestone particles in mineral-rich water settle as residue in the machine, which can clog pipes and cause damage. To avoid this, be sure to descale the machine after at least 300-400 cups of coffee, or if you notice the amount of coffee being produced drastically reduced, after a month or two.

Descaling must be done correctly to avoid damage. It is therefore essential to follow these instructions.

REMARKS :

• Never clean the machine with vinegar. This can damage the machine and give the coffee a bad taste.
  – Damage caused by improper descaling or lack of descaling is not covered by the warranty.

CAUTION: BE CAREFUL OF HOT WATER!

1. Recommendations: buy a commercially available descaler.
   (descaling liquid), diluted according to the manufacturer's instructions.
   Pour the mixture into the water tank.
2. Make sure there are no capsules in the machine.
3. Place a bowl under the spout to collect the descaling liquid, with the scale residues.
4. Fill the water tank to the maximum level with the descaling solution, making sure the solution is completely dissolved.
5. Press the button to dispense the descaling water as you normally would for a coffee, and repeat the operation several times to empty the water tank completely.
6. Repeat the process with another tank of water mixed with the descaling liquid.
7. Repeat the process to flush the internal circuit with a tank of clean water (without descaling solution) to completely clean the pipes.

TROUBLESHOOTING

Symptom	cause	Fixes
The coffee is not brewed.	The water tank is empty.	Fill the water tank.
The coffee is not hot enough.	The cups/mug are cold.Scale has built up in the machine.The machine is cold.	Preheat the cup/mug.Descale the machine.If the machine is cold, run a cup of water through it to warm the circuit.
Water is leaking from the machine.	The water tank is leaking.The drip tray is full.	Check that the water tank valve is not clogged.Empty the drip tray.
The handle cannot be closed.	The brew basket is not properly installed.	Push the brew basket into the correct position.

TECHNICAL DESCRIPTION

Voltage: 220-240V\~

Frequency: 50/60Hz

Power: 1450 W

Pump pressure: 19 bar Water

tank capacity: 0.6L

Defects due to improper use of the device and damage due to intervention or repair by a third party or due to the installation of non-original parts are not covered by the responsibility of the provider.

This logo affixed to the product means that it is a device whose treatment as waste falls within the scope of Directive 2012/19/EC of July 4, 2012, relating to waste electrical and electronic equipment. (WEEE).

The presence of hazardous substances in electrical and electronic

equipment can have potential effects on the environment and human health in the reprocessing cycle of this product.

Thus, at the end of the life of this device, it must not be disposed of with unsorted municipal waste.

As the end consumer, your role is essential in the cycle of reuse, recycling and other forms of recovery of this electrical and electronic equipment. Recovery and collection systems are made available to you by local authorities (waste centres) and distributors.

You have the obligation to use the selective collection systems made available to you.

The warranty does not cover wear parts of the product, or problems or damage resulting from:

(1) surface damage due to normal wear of the product;
(2) defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, unauthorized modification, disassembly or repair;
(4) any improper maintenance, use not in accordance with the product instructions or connection to an incorrect voltage;
(5) any use of accessories not supplied or approved by the manufacturer.

The warranty will be void if the nameplate and/or serial number of the product is removed.

Technical line drawing of a mechanical component with a cylindrical pin inserted into a base (no text or symbols)

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Line drawing of a hand pressing a cylindrical component into a mechanical device (no text or symbols)

Diagram showing a handwashing machine with labeled parts including a mask, container, and pouring liquid.

Diagram showing a water heater and a glass of liquid being poured into it, with labeled parts 1 and 2.

Three circular icons with coffee cup, power button, and mug symbols (no text or numbers)

Illustration of a plug connecting to an electrical outlet with a circular component (no text or symbols)

Diagram showing a coffee maker with three icons (press, power button, flip) interacting with a hand pointing to it, illustrating a coffee machine operation.

Diagram of a coffee maker with labeled parts and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Diagram of a portable device with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating a coffee maker's menu control with icons for parking, navigation, and sharing, alongside a cup.

Für Kapselhalter B

Diagram of a portable water heater with labeled parts and exploded view

Technical line drawing of a mechanical device with a cup and housing (no text or symbols)

Diagram of a coffee maker with labeled parts and directional arrows indicating parts 1, 2, and directional indicators.

Diagram illustrating coffee maker setup with icons and a finger pointing to the counter, alongside a cup and a coffee mug.

Technical illustration of a mechanical device with two views showing internal components and a handle (no text or symbols)

Diagram of a portable water heater with labeled parts and directional arrows indicating assembly steps.

Diagram of a coffee maker with labeled parts and directional arrows indicating steps 1, 2, and directional indicators.

Diagram illustrating a coffee maker's usage mechanism with icons for power, battery, and coffee cup, showing hand interaction and directional arrows.

Diagram of a coffee maker with labeled parts and directional arrows indicating steps 1 and 2

Technical line drawing of a gas stove with fan and lid components (no text or symbols)

Technical line drawing of a mechanical assembly with a dial and housing (no text or symbols)

Diagram of a coffee maker with labeled parts and directional arrows indicating movement or assembly.

Diagram showing a coffee maker with three icons and a finger pointing to it, alongside a cup and a coffee cup.

Simple analog clock face showing 3 o'clock with no text or symbols (pure graphical design)

15 min

Diagram showing a hand interacting with a device labeled with three icons: battery, switch, and power button.

Hand icon pointing at three circular icons with coffee cup, power button, and phone symbols, suggesting a process or function.

Diagram showing a hand inserting a plug into a wall-mounted appliance with power switches and buttons, illustrating the process.

Diagram illustrating a hand using a blender to press three power button icons, with a cup and power outlet nearby.

Icon showing a finger pressing three circular buttons with icons: coffee cup, power button, and mug.

Diagram showing a hand inserting a power switch into an electric heater, with a power outlet and plug being inserted.

Illustration of two different cleaning or cleaning tools: a circular tool and a square tool, both with arrows indicating process flow (no text or symbols present)

Außenreinigung

Line drawing of a hand cleaning a clean appliance inside a device, with no text or symbols present.

WARNHINWEISE

Line drawing of a mechanical device with a cylindrical base and cross-marked internal components (no text or symbols)

Diagram of a coffee maker with a cup and a magnified view showing the interior mechanism (no text or symbols)

Diagram illustrating a hand operating a blender with three control buttons and a clear checkmark indicating completion or rejection.

Diagram showing a hand washing a water dispenser with warning symbol and magnified view of the device's handle.

Illustration of a hand using a tool to press or install a mechanical component with steam rising (no text or symbols)

Energiesparmodus

Technical line drawing of a mechanical component with a cylindrical pin and base (no text or symbols)

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, no text or symbols present

UW APPARAAT BEDIENEN

Diagram showing a hand pouring liquid into a container with labeled parts, likely illustrating a chemical or industrial process.

Diagram showing a handwashing device with labeled parts and liquid being poured into it

Illustration of a plug connecting to an electrical outlet (no text or symbols)

Three circular icons with coffee cup, power button, and mug symbols (no text or numbers)

Diagram showing a coffee maker with three icons (press, power, and tap) interacting with a hand, illustrating the process of using the coffee machine.

Diagram of a coffee maker with labeled parts and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Diagram of a portable device with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating a coffee maker's menu control with icons for parking, navigation, and sharing, plus a cup.

Diagram of a portable kitchen appliance with labeled parts and directional arrows indicating assembly or labeling.

Technical line drawing of a mechanical component with a top view showing a bowl and a side view of a housing (no text or symbols)

Diagram of a portable water heater with labeled parts and directional arrows indicating flow or movement.

Diagram illustrating a coffee maker's usage with icons for coffee, power, and coffee cup, showing a hand interacting with the device.

Technical illustration of a mechanical device with two views showing internal components and a labeled component (no text or symbols present)

Diagram of a portable electric water heater with labeled parts and directional arrows indicating assembly steps.

Diagram of a coffee maker with labeled parts and directional arrows indicating steps 1, 2, and directional indicators.

Diagram illustrating coffee maker setup with icons for coffee, power, and coffee cup, showing a hand interacting with the machine.

Diagram of a coffee maker with labeled parts and directional arrows indicating components

Technical line drawing of a mechanical device with a dial and housing (no text or symbols)

Illustration of a mechanical device with a dial and housing (no text or symbols)

Diagram of a coffee maker with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating a coffee maker's menu control with icons and a finger pointing to the menu, alongside a cup.

Stand-by

Standaardinstellingen: 15 min slaapstand

Simple analog clock face showing 3 o'clock with no text or symbols (pure graphical design)

15 min

Diagram showing a hand interacting with a device labeled with three icons: battery, switch, and power button.

Standby-modus instelling:

Hand icon pointing at three circular icons with coffee cup, power button, and phone symbols, suggesting a process or function.

Diagram showing a hand inserting a power plug into a wall-mounted appliance, with icons indicating control buttons.

Diagram illustrating a coffee maker's electrical switch operation with labeled buttons and power connections

Instellingen koffievolume

Icon showing three circular buttons with icons: coffee cup, power button, and mug, connected by a finger to indicate action.

Diagram showing a hand inserting a power button into a coffee machine, with an outlet plug and power switch nearby.

Illustration showing two different cleaning or cleaning methods: a mechanical device with a drop and a manual drain with a conical tip (no text or symbols present)

Exterieur reiniging

Line drawing of a hand cleaning a washing machine with a cloth, next to an open door (no text or symbols)

WAARSCHUWING INSTRUCTIES:

Line drawing of a mechanical device with a cylindrical base and attached clamped components (no text or symbols)

Diagram of a coffee maker with a cup and lid, showing a circular arrow indicating rotation (no text or symbols present)

Diagram illustrating a hand using a blender to test water quality, with labeled steps and corresponding cleaning instructions.

Diagram showing a hand washing a coffee maker with warning symbols indicating hazard and safety.

Illustration of a hand using a tool to press or install a mechanical component with steam rising (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical pin and base, labeled '1' (no text or symbols on the diagram itself)

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Line drawing of a hand holding a cylindrical object with a base, next to a mechanical component (no text or symbols)

Diagram showing a hand pouring liquid into a container with labeled parts, likely illustrating a cooking or cleaning process.

Diagram showing a water heater and a glass of liquid being poured into it, with numbered labels indicating components.

Three circular icons with coffee cup, power button, and mug symbols (no text or numbers)

Illustration of an electrical plug connecting a wall to an open socket (no text or symbols)

Diagram showing a coffee maker with three icons (press, power button, flip) interacting with a hand pointing to it, illustrating a coffee machine's operation.

Diagram of a coffee maker with labeled parts and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Diagram of a portable device with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating a coffee maker's menu control with icons for parking, navigation, and sharing, plus a cup.

Para porta cápsulas B

Diagram of a portable coffee maker with labeled parts and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical component with a cup and housing (no text or symbols)

Diagram of a coffee maker with labeled parts and directional arrows indicating parts 1, 2, and directional indicators.

Diagram illustrating coffee maker setup with icons and a hand interacting with the device, showing menu, coffee cup, and coffee tray.

Technical illustration of a mechanical device with two views: one showing internal flow and the other showing a lever mechanism (no text or symbols)

Diagram of a portable electric water heater with labeled parts and directional arrows indicating components.

Diagram of a coffee maker with labeled parts and directional arrows indicating steps 1, 2, and directional indicators.

Diagram illustrating coffee maker setup with icons for menu, power button, and hand gesture interacting with a cup

Diagram of a coffee maker with labeled parts and directional arrows indicating components

Technical line drawing of a mechanical device with a fan and housing (no text or symbols)

Illustration of a mechanical device with a dial and housing (no text or symbols)

Diagram of a coffee maker with labeled parts and directional arrows indicating assembly or movement.

Diagram illustrating a coffee maker with three icons and a finger pointing to the menu, alongside a cup and a coffee cup.

Simple analog clock face showing 3 o'clock with no text or symbols (pure diagram)

15 min

Diagram showing a hand interacting with a device labeled with three icons (press, switch, and document) to interact with a screen.

Hand icon pointing at three circular buttons with icons: check, power, and download symbols

Diagram showing a hand holding switches labeled V, P, and I connected to an appliance with a power outlet, illustrating electrical or appliance wiring connections.

Diagram illustrating a coffee maker's electrical switch operation with labeled buttons and power connections

Icon showing three circular buttons with icons: a coffee cup, a power button, and a mug, connected by a finger to indicate action.

Diagram showing a hand inserting a power switch into an electric machine, with a close-up of the switch being inserted.

Illustration of two different cleaning or cleaning tools: a circular tool and a square tool, both with no visible text or symbols.

Line drawing of a washing machine with cleaning cloth and hand, next to a door (no text or symbols)

Line drawing of a mechanical device with a cylindrical base and cross-marked components (no text or symbols)

Diagram of a coffee maker with a cup and a side view showing a circular arrow indicating rotation (no text or symbols present)

Diagram illustrating a hand using a blender to interact with a cup, a glass of juice, and a checkmark indicating the process.

Diagram showing a hand washing machine with warning symbol and safety instructions

Illustration of a hand using a tool to press or install a mechanical component with steam rising (no text or symbols)
