USER MANUAL CJB5103W BEKO

Simple line drawing of a glass with lemon slice and water, no text or symbols present

CJB 5103 W

EN - DE - FR - TR - ES - PL - HR - RO - SR - IT - NL - AR

CONTENTS

ENGLISH 6-10
DEUTSCH	11-18
FRANÇAIS 19-24
TÜRKÇE	25-33
ESPAÑOL 34-43
POLSKI 44-50
HRVATSKI 51-55
ROMANIAN 56-64
СРПСКИ 65-69
ITALIANO 70-77
NEDERLANDS	77-82

Illustration of a blender and an open box with a red upward arrow (no text or symbols)

2

Illustration of a kitchen sink with water spray and a measuring cup pouring liquid, accompanied by cleaning debris (no text or symbols)

Illustration of kitchen utensils including a kettle, cloth, and dish (no text or symbols)

5 ↓ 3 ↓ 2 ↓ 1

6 ↓2 1 →

7

8 ↑ 1 ↑ 2 ↑ 3

9 74 lit — 200 — 150 — 100 — 50 — 250 8 → 2 ✓

1 ↑ ↑ ↑ ↑ 1

2

Illustration of a water tap spraying water with a measuring cup and bubbles rising (no text or symbols)

Illustration of a hand using a water dispenser to press down a surface, with other kitchen utensils and domes nearby (no text or symbols)

Line drawing of a hand cleaning a surface next to a rectangular object (no text or symbols)

EN OPERATION CLEANING AND CARE
DE BETRIEB REINIGUNG UND PFLEGE
FR FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
TR KULLANIM TEMİZLEME VE BAKIM
ES FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
PL OBSŁUGA CZYSZCZENIE I KONSERWACJA
RO UTILIZARE CURÄTAREA ŞI İNGRIJIREA
IT FUNZIONAMENTO PULIZIA E MANUTENZIONE
NL WERKING REINIGING EN ONDERHOUD
AR	التشغيل	التنظيف والعناية

التنظيف والحنابة

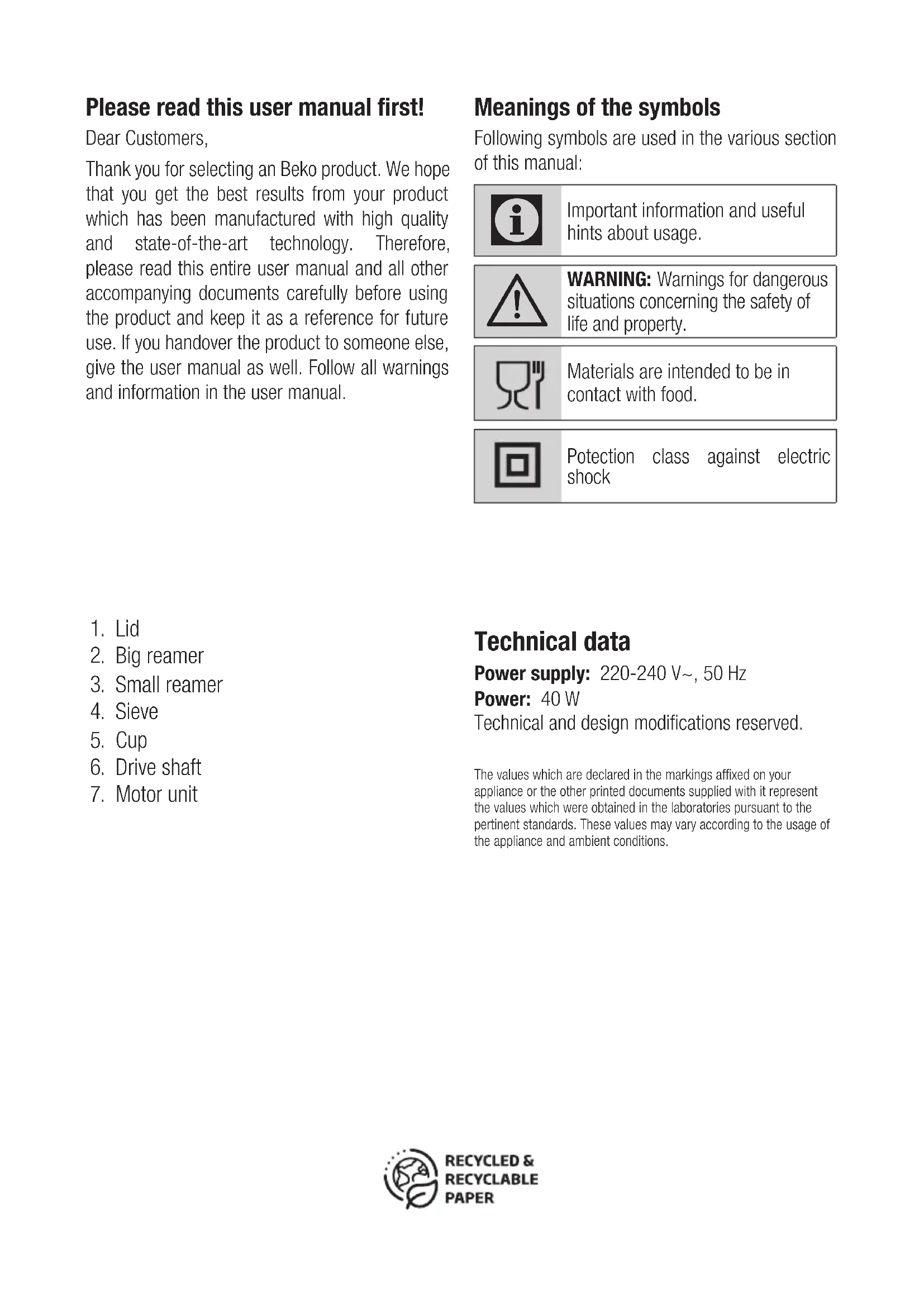

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Materials are intended to be in contact with food.

Potection class against electric shock

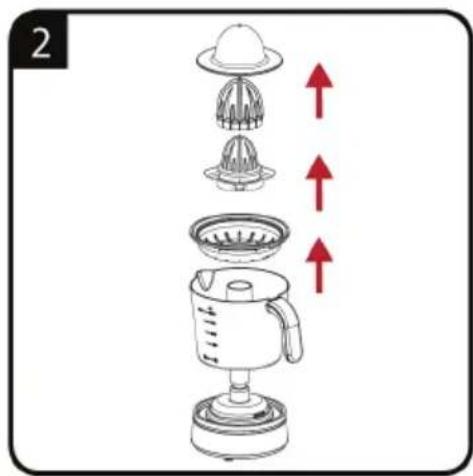

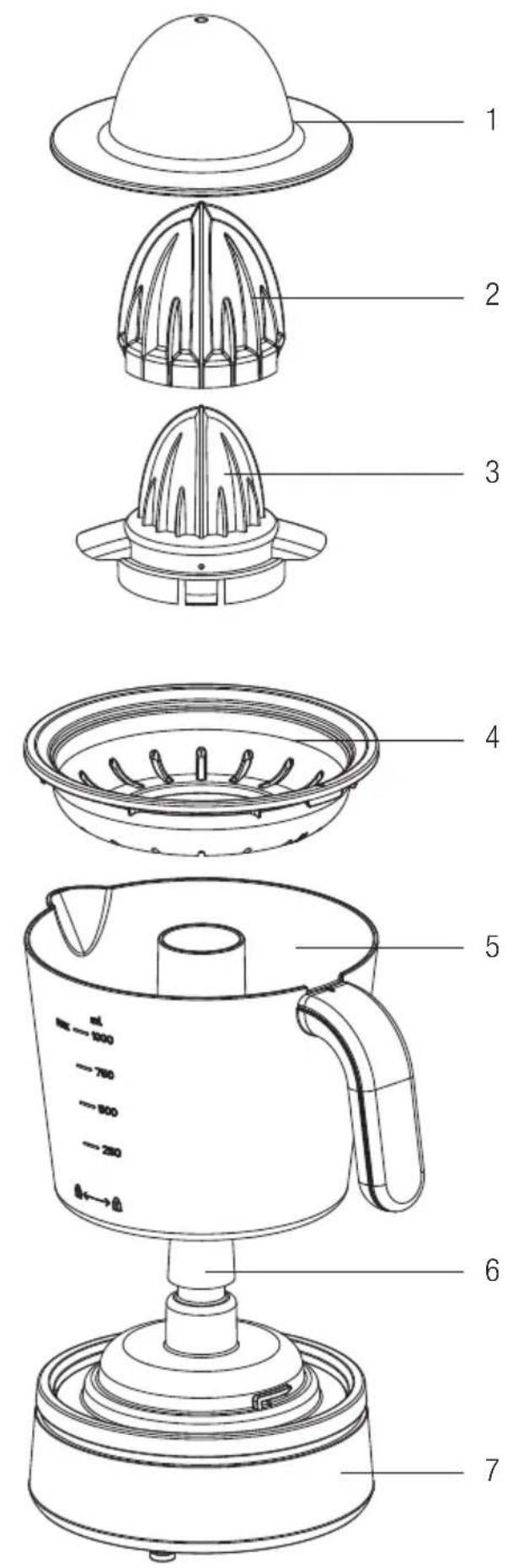

1. Lid
2. Big reamer
3. Small reamer
4. Sieve
5. Cup
6. Drive shaft
7. Motor unit

Technical data

Power supply: 220-240 V\~, 50 Hz

Power: 40 W

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

1 Important instructions for safety and environment

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

1.1 General safety

• This appliance is intended for private domestic use only. It should not be used for commercial purposes.
• Do not touch any moving parts of the appliance. Do not attach or remove the parts until the device comes to a complete stop.
• Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

• For additional protection, this appliance should be connected to a redisual current protection switch with no more than 30 mA. Please contact an electrician for advice.

• Do not immerse the appliance, power cord or power plug in water or in other liquids.

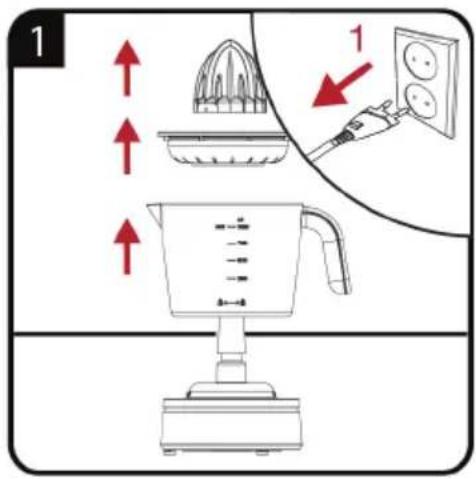

• Always disconnect the power plug after using the appliance, before assembling/ disassembling or cleaning the product, if you are leaving the room or if a fault occurs. Do not disconnect the plug by pulling on the cord.
• Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.
• Do not use an extension cord with the appliance.
• Never use the appliance if the power cord or the appliance is damaged.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

1 Important instructions for safety and environment

• Our BEKO Household Appliances meet applicable safety standards; if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any danger. Faulty or unqualified repair work may cause danger and risks to the user.
• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
  • Always keep the appliance out of the reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning utilisation of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Do not leave the appliance unattended when it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.

- Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the “Cleaning and care” section.

1 Important instructions for safety and environment

• Do not press the citrus more than three minutes continuously.
• Never operate or place any part of this appliance on or near hot surfaces such as a gas burner, electric burner or heated oven.
• Never use the appliance with damp or wet hands.
• Operate the appliance with supplied parts only.
  • Always use the appliance on a stable, flat, clean and dry surface.
• Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
• The appliance has to be positioned in such a way that the plug is always accessible.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Operation

2.1 Preparation

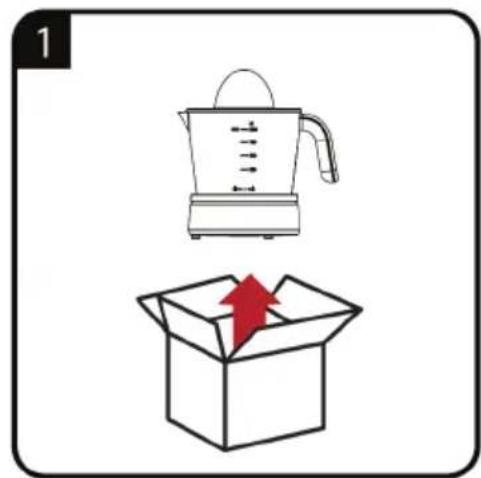

1. Remove all packaging and sticker materials and dispose of them according to the applicable legal regulations.
2. Before using the appliance for the first time, clean all parts which come into contact with food (see the “Cleaning and Care” section).
3. Before using the appliance, cut the fruits into halves.

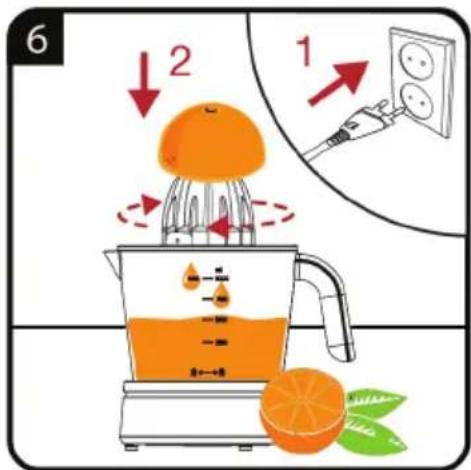

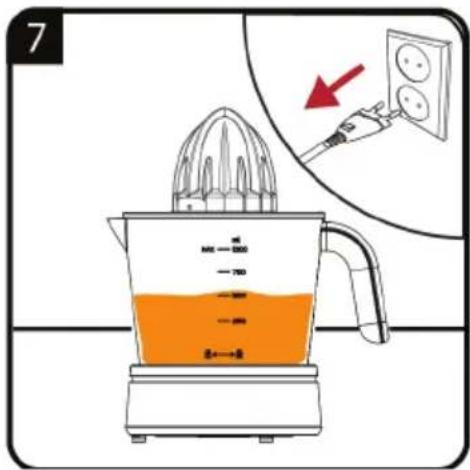

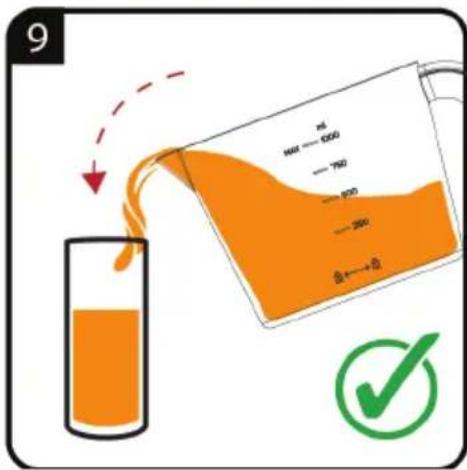

2.2 Operation

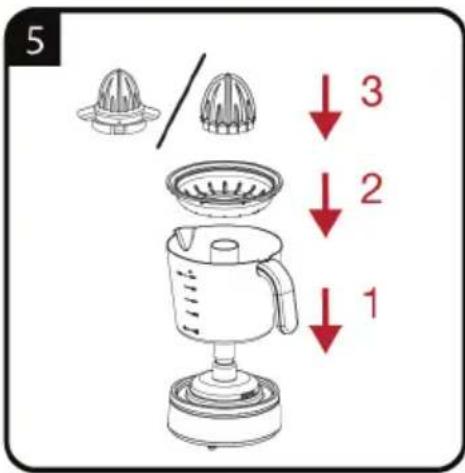

The big reamer (2) can be snapped onto the small reamer (3) for serving large fruit.

2.2.1 Hints and tips

• Do not put excessive pressure on the juicing heads: if the motor starts getting louder or the speed of the motor decreases significantly, there is too much pressure being exerted on the head.
• After each three minutes pressing, let the motor cool down to room temperature.
• Do not touch the juice container during operation. Always hold the lower part of the motor unit when squeezing the fruit.

3 Information

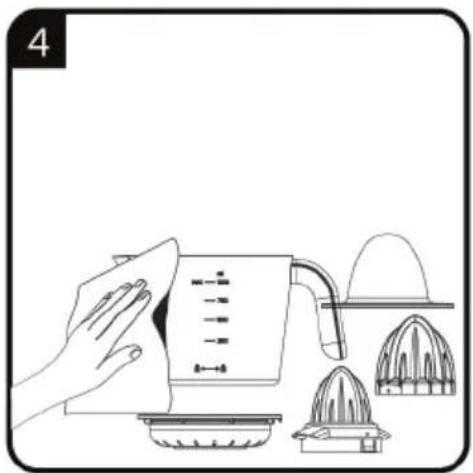

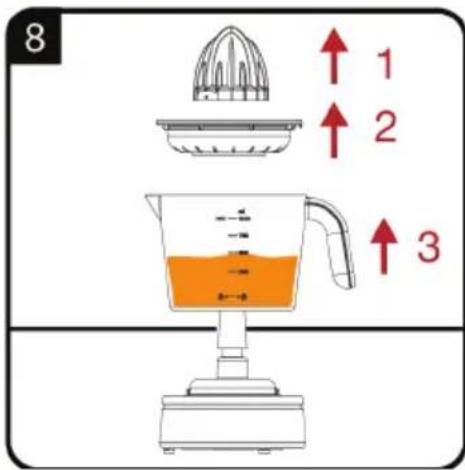

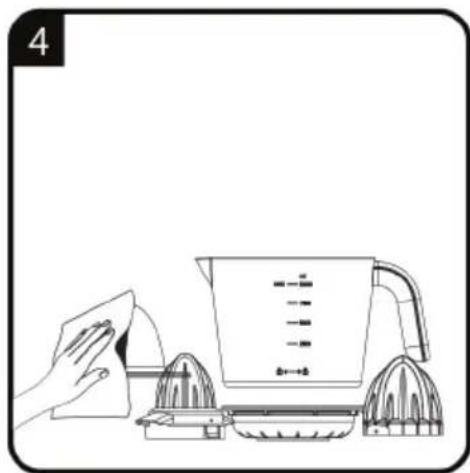

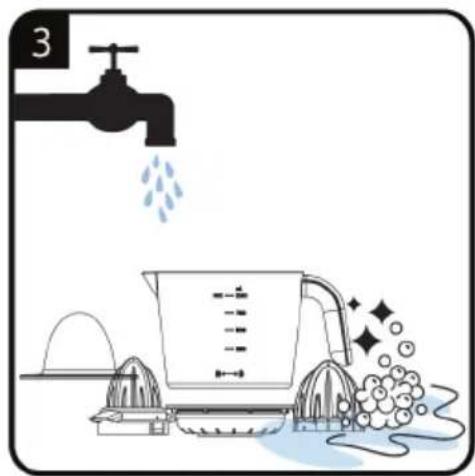

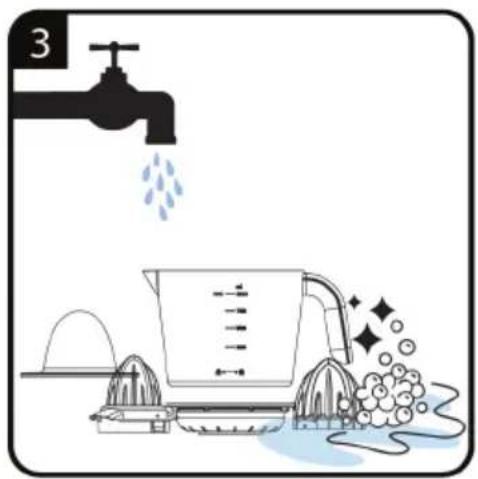

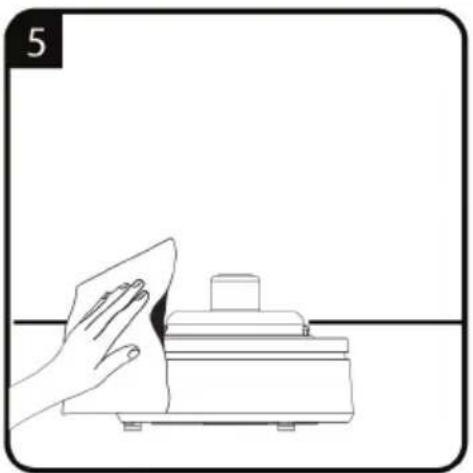

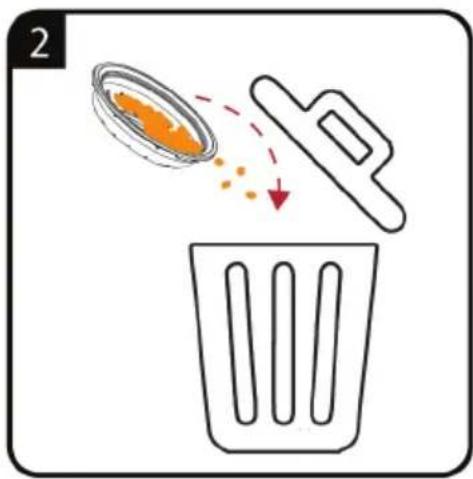

3.1 Cleaning and care

WARNING: Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Never put the appliance or power cord in water or any other liquids and never hold them under running water.

Before using the appliance after cleaning, dry all parts carefully using a soft towel.

Cleaning is easier right after the usage.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.

3.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure that the appliance is unplugged and completely dry.
• Do not wrap the power cord around the appliance.
• Store it in a cool, dry place.
• Make sure the appliance is always kept out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.
