USER MANUAL SINE DX Audeze
© 2016 Audeze LLC. All rights reserved.
SINE
BY AUDEZE
USER GUIDE

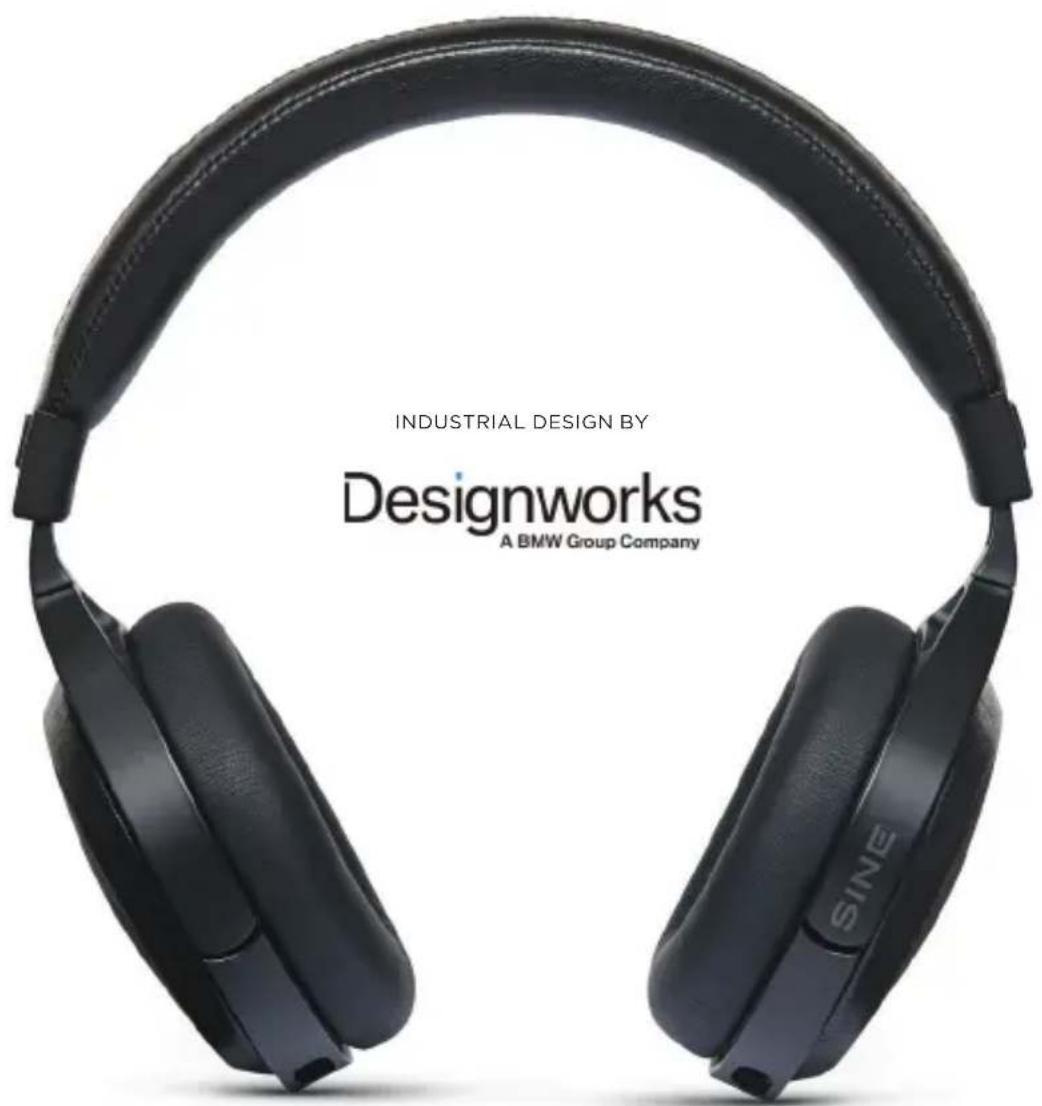

INDUSTRIAL DESIGN BY
Designworks A BMW Group Company
AUDEZE™
SINE ON-EAR PLANAR MAGNETIC HEADPHONE
Thank you for purchasing the Audeze SINE on-ear headphone. It combines leading-edge planar magnetic technology and innovative acoustic design to create light, comfortable-to-wear on-ear headphone with astounding sound.
To get the most out of your purchase, please take the time to carefully read through this user guide and warranty.
Safety Guide
Volume level is subjective and everyone perceives it differently. Listening to music for long periods of time at excessive levels can cause irreparable damage to your ears. Reduce the volume levels of the amplifier and/or audio device before listening to your headphones. Gradually increase the volume until desired levels are reached. Enjoy your headphones with safe listening habits.
Always maintain a distance of at least 8 inches (20cm) between the headphones and a cardiac pacemaker, implanted defibrillator, or other medical devices as the SINE has permanent magnets.
Keep the product, accessories and packaging out of reach of children. This product is not intended for children under the age of 12 years old.
Product Registration
Register your Audeze headphone at audeze.com for information, updates and news.
Sound Technology
Pushing sound technology to the limits, the SINE is designed with the world's most advanced on-ear planar magnetic technology including Fazor™ elements, revolutionary Fluxor™ magnetic array and Uniforce™ diaphragms.
The result is sound quality unheard of at this price. It's flexible, portable and lightweight; a true statement of exclusive elegance inside and out.
Specifications
Transducer type ...... Planar magnetic with Fazor and Uniforce
Magnetic structure ...... Single-sided Fluxor array
Magnet type ...... Neodymium
Driver size 80 x 70mm
Sensitivity 100dB, 1mW*
Maximum power handling ..... 6W
Maximum SPL >120dB
Frequency response 10Hz-50KHz
Total harmonic distortion .... <1%, full spectrum @ 100dB
Impedance 20 ohms
Optimal power requirement ..... 500mW - 1W
Weight 230g
Connecting Your Headphones

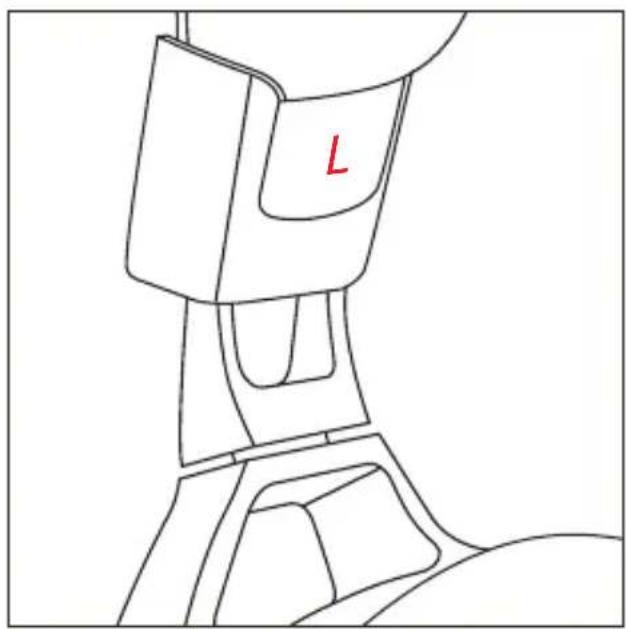

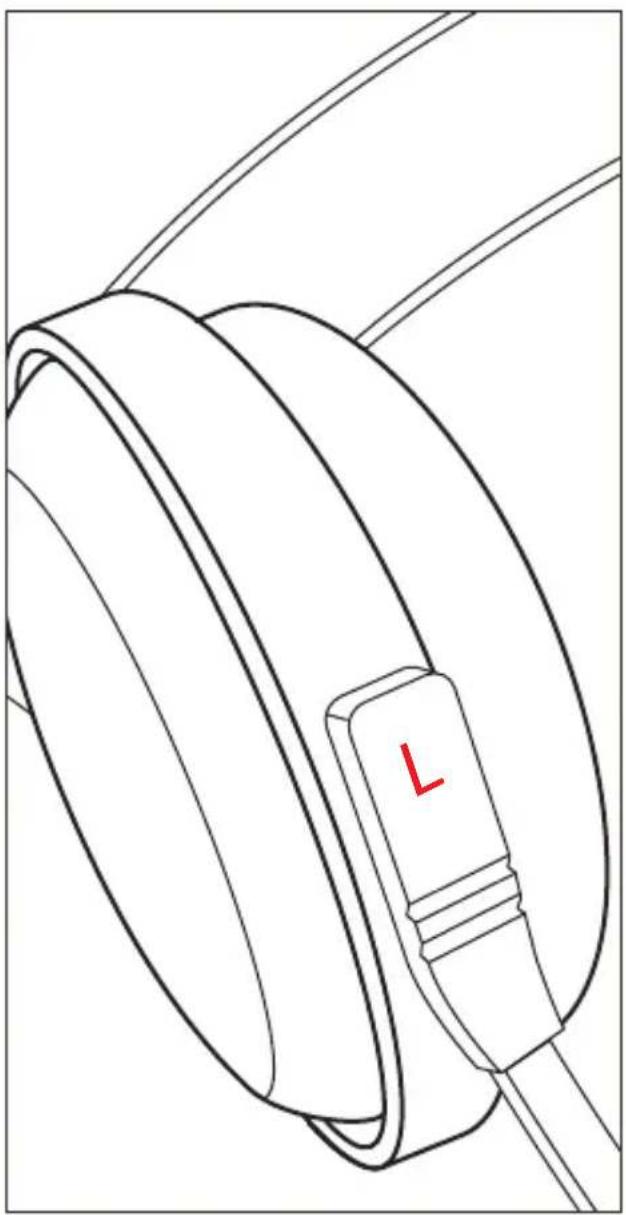

Look for the (L)eft and (R)ight indicators on the two cable ends and match them to the headphone's (L)eft and (R)ight indicators on the inside of the headband to connect them.
Amplification
The SINE On-Ear works beautifully with smartphones, tablets and portable players. You can dramatically improve the sound using an external headphone amp or our own Audeze Deckard™ DAC/Headphone Amplifier. Enjoy total musical satisfaction on the road or at your desktop - the best of both worlds.
Care and Maintenance
Regular maintenance is not required, but an occasional wipe with a clean, dry, lint-free cloth is recommended.
SINE COMFORT
Take a moment to read our comfort guide before using your new SINE headphone.
Visit audeze.com/comfort for more information.
The Audeze product comprising the SINE headphone (an “Audeze Product”) is under warranty as indicated by the original date of purchase (the “Warranty Period”).
Components (applicable to each Audeze Product) SINE Planar Drivers .... 3 years Earpads/Headband .... 1 year Cable(s) .... 1 year
What's covered: Audeze warrants to the original purchaser that the Audeze Product will be free of defects related to manufacturing, parts, materials, and workmanship under normal and accepted use in accordance with Audeze's published guidelines. Audeze's guidelines include, but are not limited to, information contained in technical specifications, user manuals and service communications.
What's not covered: This warranty does not cover defects resulting from improper or unreasonable use or maintenance; cosmetic damage, including but not limited to scratches, dents and broken parts; failure to follow operating instructions; accident; excess moisture; excess temperature; power surges; connections to improper voltage supply; unauthorized alteration or modification of original condition; damage caused by use with non-Audeze products; products purchased from unauthorized dealers; or defects incurred during transportation for which claims must be presented to the carrier.
Because we use natural woods and leather in some Audeze Products, variations in grain and color are the inherent and natural characteristics of the wood. These variations are natural and are considered by Audeze as acceptable. Additionally, as wood ages, the finished color may change. These changes in color and finish are natural wood characteristics and are not covered under this warranty.
What we will do: We will, at our sole discretion and to the extent permitted by law, repair or replace (using new or refurbished Audeze Products) Audeze Products that are under warranty for the period listed, from the date of original retail purchase.
What we will not do: Except as stated below, pay shipping, insurance or transportation charges from you to us, or any import fees, duties and taxes. If the Audeze Product is covered by this warranty and is provided to us within the first 30 days of the Warranty Period, then we will reimburse you for shipping charges.
If the Audeze Product you send to us is not covered by this warranty, you will be charged the shipping costs. If you are outside the USA and purchased this product directly from Audeze you must claim your warranty service from Audeze, not from a foreign dealer or distributor.
Warranty eligibility statement: To be eligible for service under this warranty you must include with the repair item(s) a valid bill of sale from an authorized Audeze retailer detailing the following information:
Retailer's name
Original date and proof of purchase
Model or SKU number of the product purchased
Serial Number
Additional product information and limitations
Warranty replacements: Audeze strives to improve the performance of our products, and therefore reserves the right to make changes to our design/specifications/materials at any time without notification. Audeze may, at its discretion, choose to replace the Audeze Product completely with a new or remanufactured product. In the event of product obsolescence, a suitable replacement will be chosen based upon the features, the intended use (as determined by Audeze) and the retail price of the original Audeze Product.
Product: All warranty replacements are guaranteed for 90 days or until the conclusion of the Warranty Period of the original Audeze Product, whichever period is greater. Audeze does not provide advance replacements for Audeze Products.
Determining authority: Audeze will be the final determining authority for all potential warranty claims for service and/or replacement.
How to claim warranty service
A) If you reside in the United States and purchased direct from Audeze.com email Support@audeze.com.
B) If you reside in the United States and purchased from an authorized Audeze dealer contact your dealer or Support@audeze.com.
C) If you are an international customer who has purchased through your local dealer contact your local dealer or distributor for warranty service.
D) If you are an international customer who purchased direct from Audeze.com you must contact Audeze at Support@audeze.com for service and support. Any shipment back to Audeze for repair will be at the expense of the customer.
You will need your serial number and proof of purchase to complete any RMA process.
Other conditions/rights: EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, AUDEZE IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS; LOSS OF GOODWILL; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY.
THE FOREGOING LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS. SOME STATES IN THE USA OR OTHER COUNTRIES. DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL, WRITTEN, STATUTORY, EXPRESS OR IMPLIED. AUDEZE DISCLAIMS ALL STATUTORY AND IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS, TO THE EXTENT PERMITTED BY LAW. IN SO FAR AS SUCH WARRANTIES CANNOT BE DISCLAIMED, AUDEZE LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF THIS EXPRESS WARRANTY AND, AT AUDEZE'S OPTION, THE REPAIR OR REPLACEMENT SERVICES DESCRIBED HEREIN. SOME STATES (INCLUDING COUNTRIES AND PROVINCES) DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY (OR CONDITION) MAY LAST, SO THE LIMITATION DESCRIBED ABOVE MAY NOT APPLY TO YOU.
Audeze LLC
http://support.audeze.com
Certifications
The aim of EU's Waste Electrical and Electronic Equipment (WEEE) directives 2002/96/EC and the RoHs directive is to reduce waste from electric and electronic products and to recycle as much of the materials as possible. Any remaining waste should be virtually risk-free to handle and the risk of hazardous emissions should be minimal.
Recycling
This product must either be sent for repairs and reused or sent for treatment and recycling through an approved disposal system. For recycling and waste disposal agents for Audeze products, contact us at support@audeze.com.
| Toxic or Hazardous Substances and Elements 有毒或有害物质和元素 | ||||||
| Part Name部件名称 | Lead铅(Pb) | Mercury汞(Hg) | Cadmium镉(Cd) | Hexavalent Chromium六价铬(Cr6) | Polybrominated Biphenyls多溴联苯(PBB) | Polybrominated Diphenyl Ethers多溴联苯醚(PBDE) |
| SINE | ○ | ○ | ○ | ○ | ○ | ○ |
| ○: Indicates that this toxic or hazardous substance isbelowthe specified limits as decribed in SJ/T11363-2006.○: 表示该有毒物质或元素在SJ/ T 11363-2006 标准规定的限量要求以下。×: Indicates that this toxic or hazardous substance isabovethe specified limits as decribed in SJ/T11363-2006.×: 表示该有毒物质或元素超出SJ/ T 11363-2006 标准规定的限量要求。 | ||||||

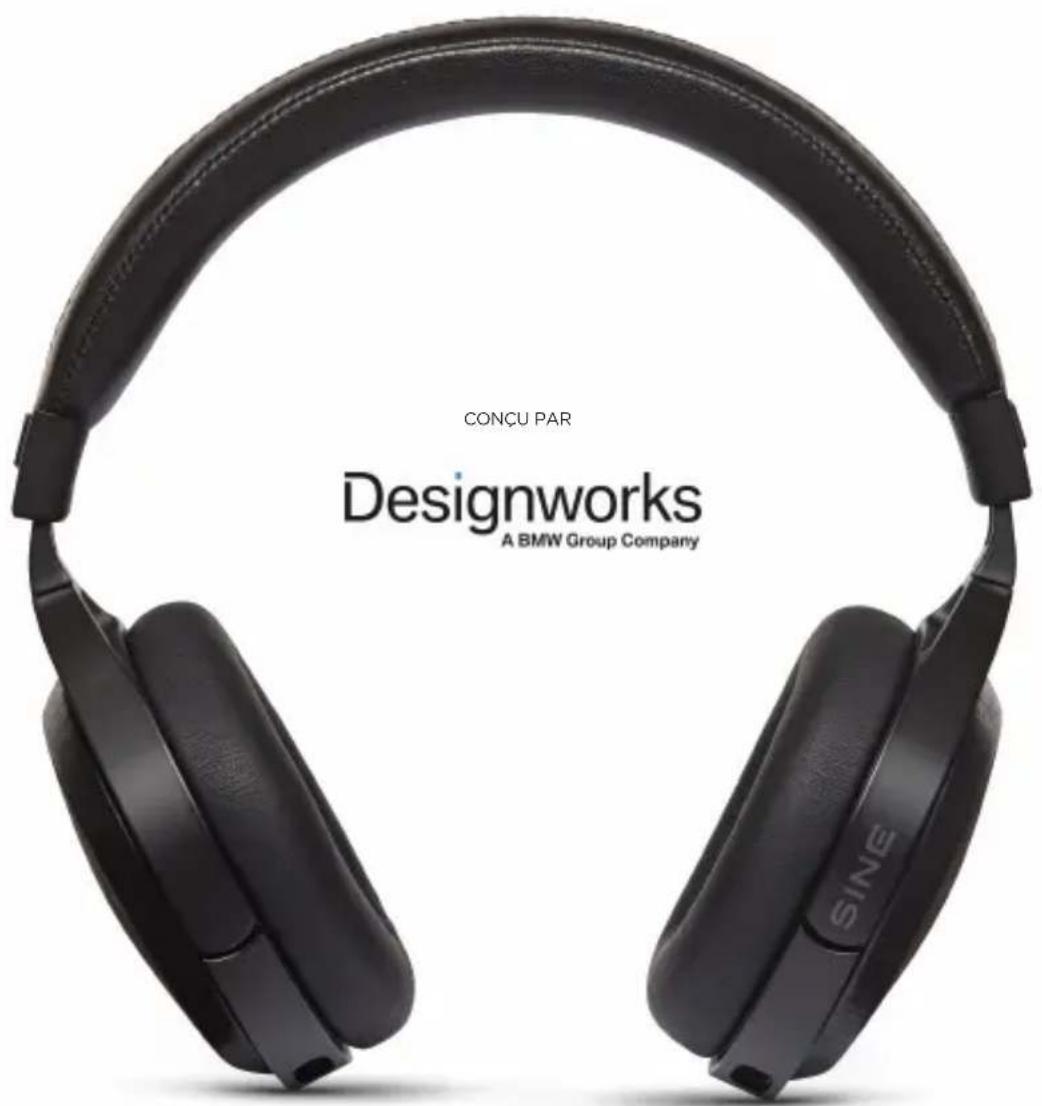

CONÇU PAR
Designworks A BMW Group Company
AUDEZE™
CASQUE MAGNÉTIQUE PLANAIRE SUPRA-AURAL
Designworks A BMW Group Company
AUDEZE™
AURICULARES CIRCUMAURALES MAGNÉTICOS PLANARES
Technical line drawing of a mechanical component with a red L-shaped feature (no text or symbols)Garantía
DESENHADOS POR
Designworks A BMW Group Company
AUDEZE™
AUSCULTADORES MAGNÉTICOS PLANARES
DISEGNO
Designworks A BMW Group Company
AUDEZE™
CUFFIE MAGNETICHE PLANARI ON-EAR
DESIGN VON
Designworks A BMW Group Company
