Product Type	Monobloc portable air conditioner
Brand	Comfee
Model	CP05S3WBA1RCM
Cooling Capacity	Approximately 5000 BTU/h (SACC)
Temperature Range	17 to 30 °C (cooling)
Operating Modes	Cooling, Fan, Dehumidification, Heating (on some models)
Fan Speed	3 speeds + Auto
Thermostat	Electronic with LED display

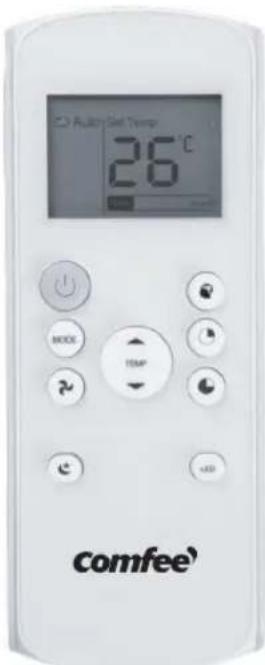

Remote Control	Yes, model RG57H3(B)/BGCEF-M, AAA batteries included

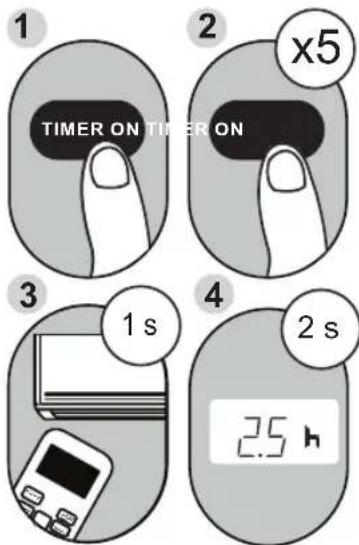

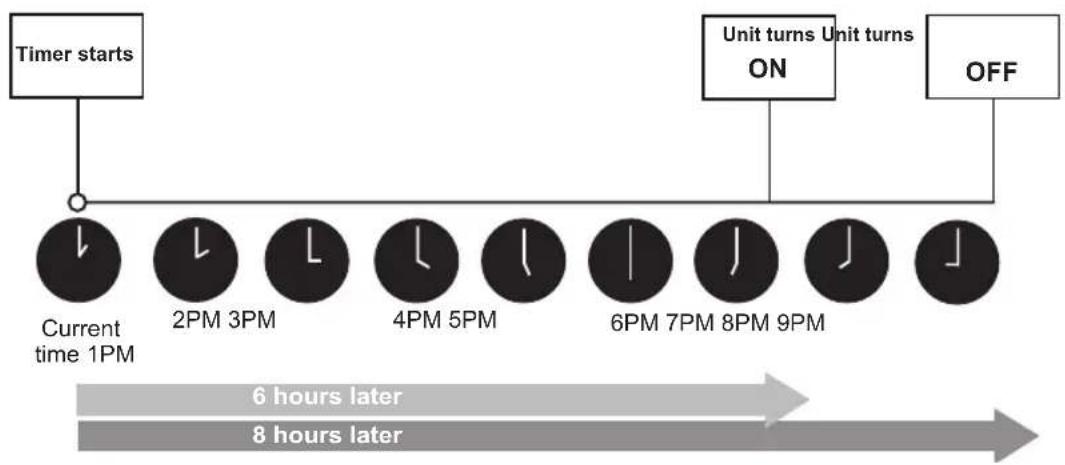

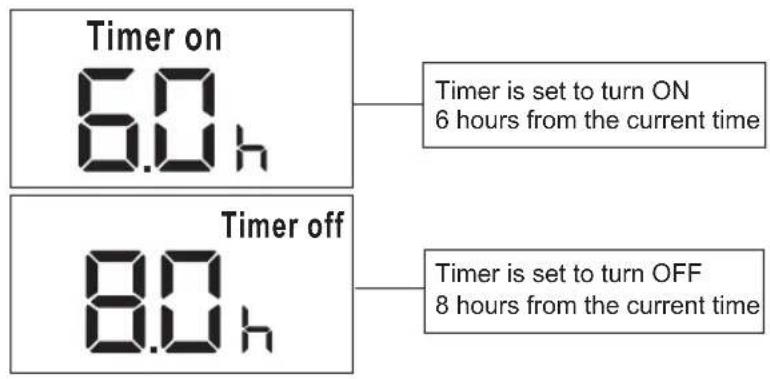

Timer	Programmable 24h (on/off)
Sleep mode	Yes, automatically adjusts temperature
Follow me function	Yes, via remote control
Auto restart	Yes, after power failure
Refrigerant	R32 (flammable)
Power supply	115 V ~ 60 Hz (standard grounded plug)
Power consumption	Varies by mode (see nameplate)
Exhaust hose length	1.5 m (can be extended up to 3 m)
Hose diameter	150 mm
Air filter	Washable, clean every 2 weeks
Water tank	With manual or continuous drain (hose provided)
Noise level	Not specified in the manual
Weight	Not specified in the manual
Dimensions (W x D x H)	Not specified in the manual

Frequently Asked Questions - CP05S3WBA1RCM COMFEE

What are the operating modes of the Comfee CP05S3WBA1RCM air conditioner?

The available modes are: Cooling, Fan, Dehumidification, and depending on the model, Heating. You can select the mode using the MODE button on the control panel or remote control.

Can the air conditioner be used without an exhaust hose?

In Fan and Dehumidification modes, the exhaust hose must be removed. In Cooling and Heating modes, the hose must be installed to vent hot air outside.

How to install the exhaust hose and window kit?

Assemble the hose with the adapters, insert it into the rear air outlet. Adjust the sealing pad to the width of the window and secure it. Place the hose adapter into the hole of the pad. Make sure the hose is not bent or obstructed.

What does the error code P1 on the display mean?

The code P1 indicates that the water tank is full. Turn off the unit, drain the water via the lower drain plug, then restart. If the error persists, contact technical support.

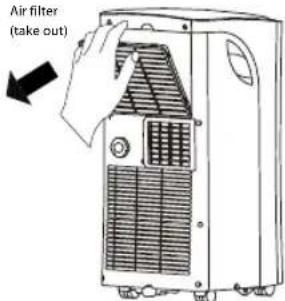

How to clean the air filter?

Turn off the power. Remove the filter at the back of the unit. Wash it with warm soapy water, rinse and dry thoroughly before reinstalling. Clean it every 2 weeks for optimal performance.

Can I use an extension cord with this air conditioner?

No, it is strictly forbidden to use an extension cord or modify the length of the power cord. Plug the unit directly into a properly grounded wall outlet.

How to set the temperature in Fahrenheit?

Press the Up and Down buttons on the control panel simultaneously for 3 seconds to toggle between Celsius and Fahrenheit.

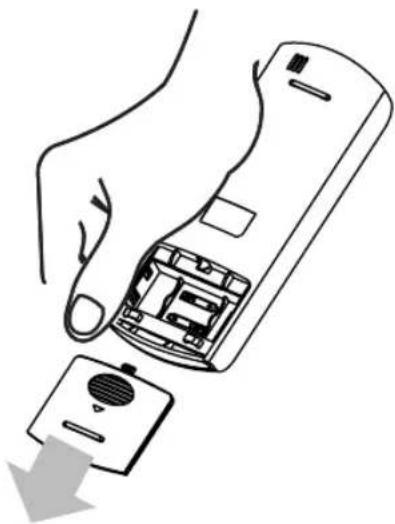

The remote control does not work, what to do?

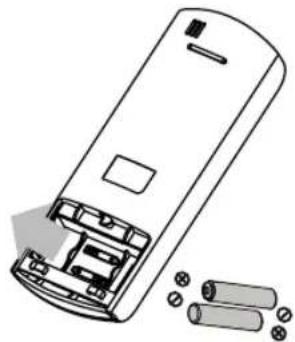

Check the batteries (two AAA): insert them correctly respecting the polarities. If the remote does not respond, replace the batteries. The maximum range is 8 meters. Make sure no obstacles block the receiver on the unit.

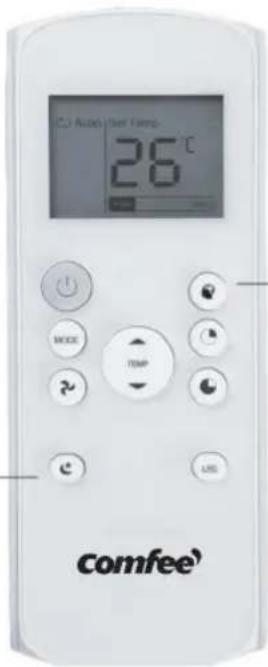

How to activate the Sleep function?

Press the SLEEP button on the remote control. The temperature will gradually increase by 1 to 2 °C during the night to save energy, then return to the set temperature after 7 hours. Available only in Cooling and Heating modes.

What to do if the air conditioner does not cool enough?

Check: the air filter (clean it), the exhaust hose (not blocked), the set temperature (must be lower than room temperature), and that windows/doors are closed. If the problem persists, the refrigerant level may be low – contact a technician.

USER MANUAL CP05S3WBA1RCM COMFEE

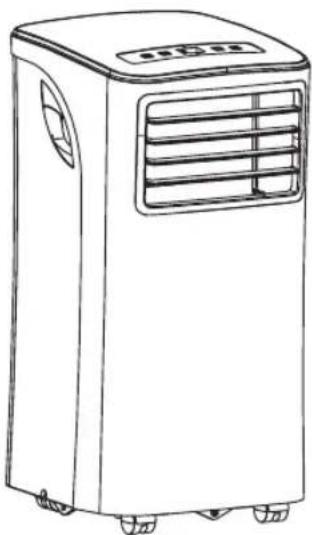

PORTABLE AIR CONDITIONER

model no. CP05S3WBA1RCM

Toll-free: 1-866-646-4332

IMPORTANT: Before using your air conditioner, please read this manual carefully and keep it for future reference.

Instruction Manual

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Safety Precautions 3

Installation Instructions 11

Operating Instructions 17

Maintenance 20

Troubleshooting Tips 21

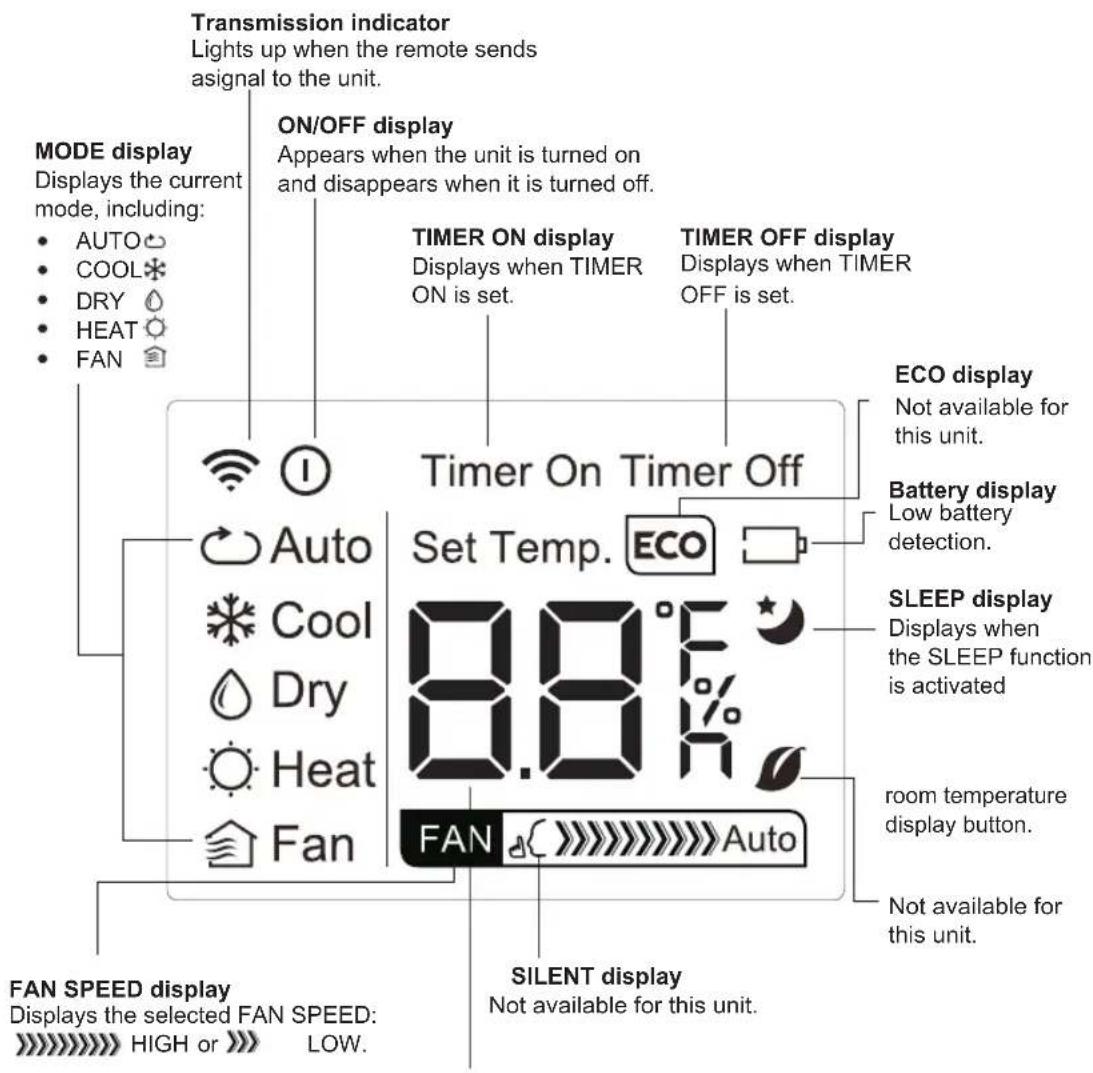

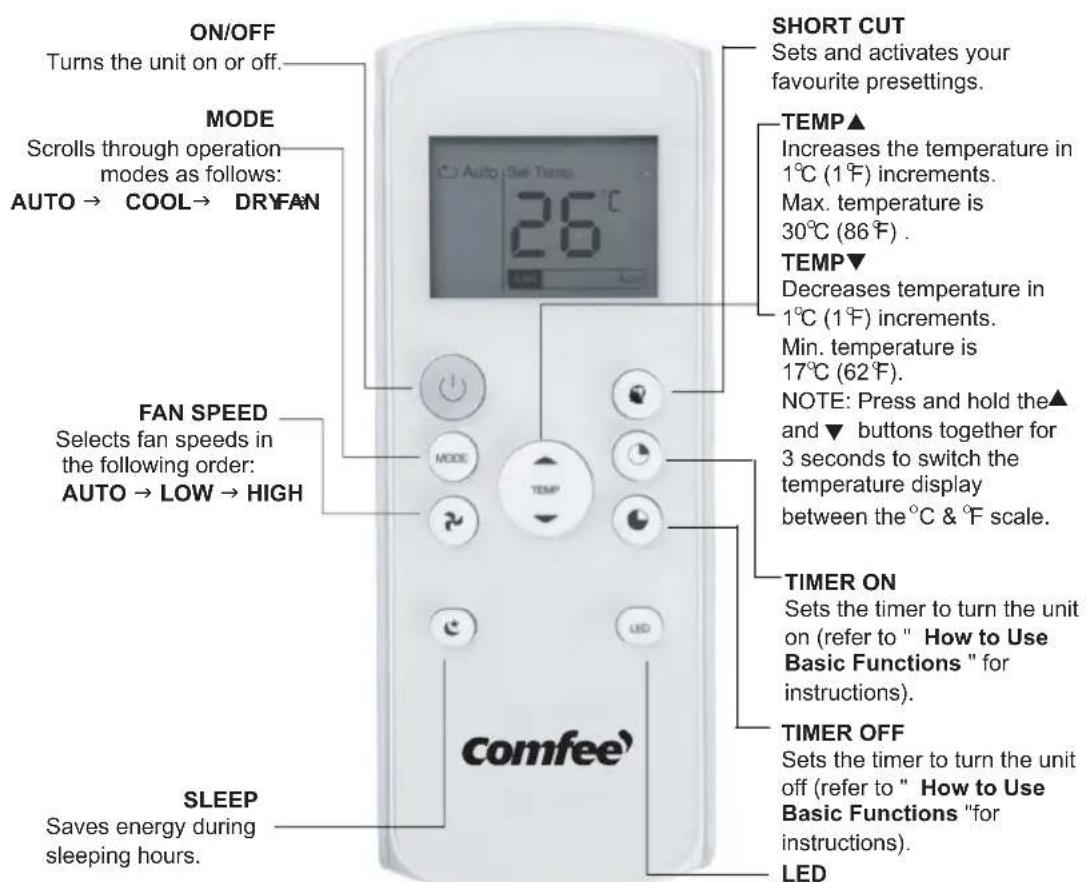

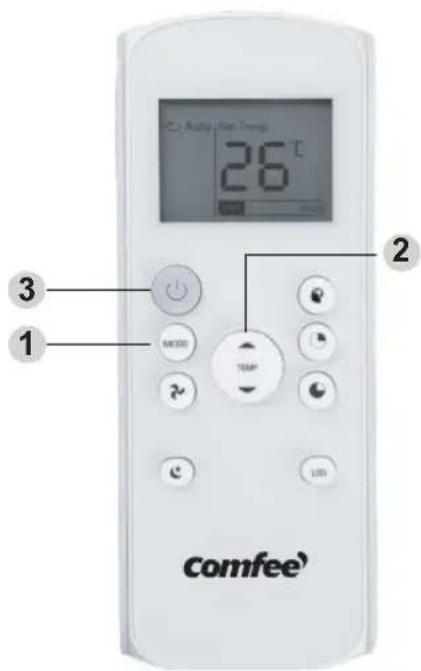

Remote Controller Illustration 22

Air Conditioner Limited Warranty 34

comfee

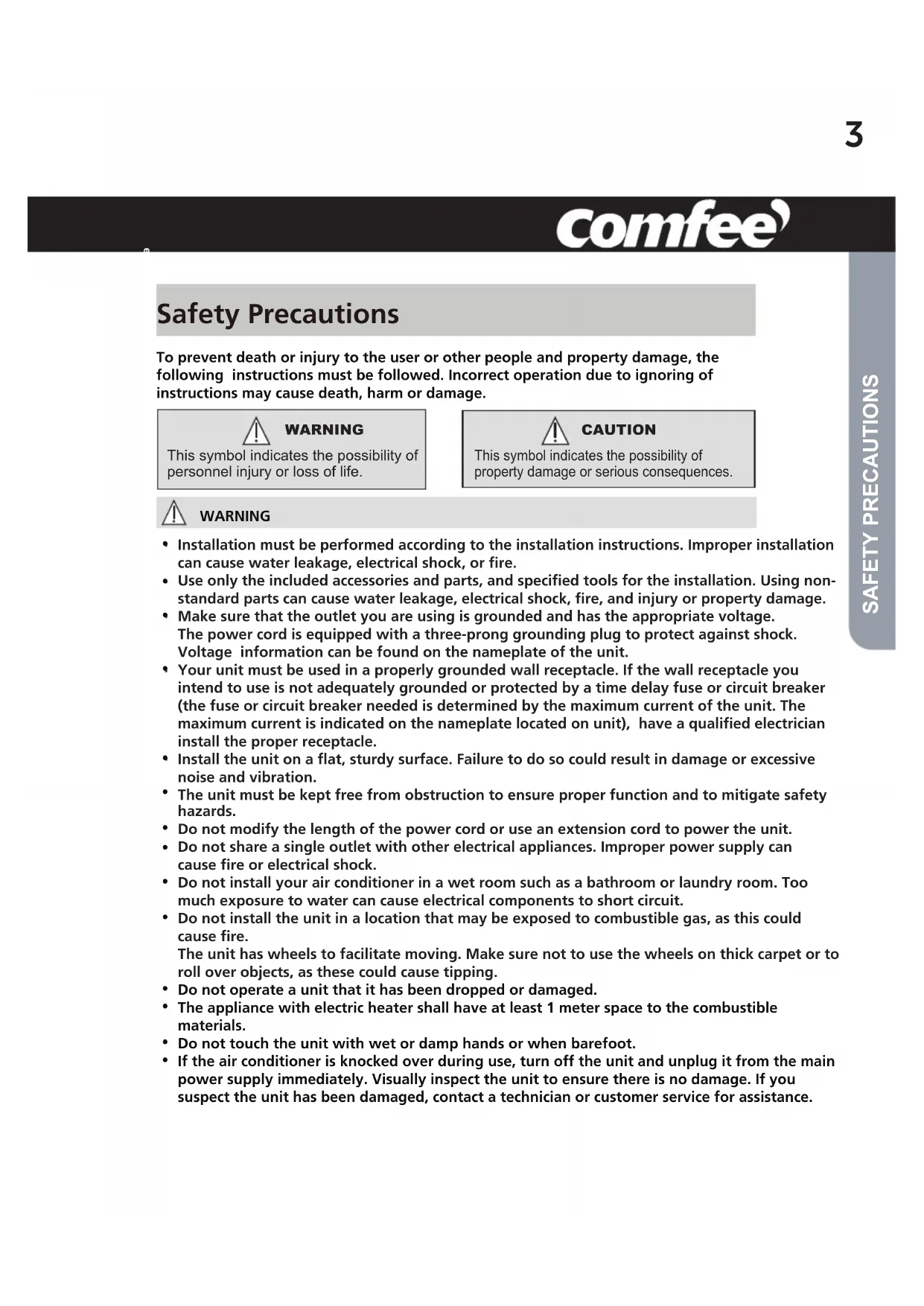

Safety Precautions

To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.

WARNING

This symbol indicates the possibility of personnel injury or loss of life.

CAUTION

This symbol indicates the possibility of property damage or serious consequences.

WARNING

• Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.
• Use only the included accessories and parts, and specified tools for the installation. Using non-standard parts can cause water leakage, electrical shock, fire, and injury or property damage.
• Make sure that the outlet you are using is grounded and has the appropriate voltage. The power cord is equipped with a three-prong grounding plug to protect against shock. Voltage information can be found on the nameplate of the unit.
• Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualified electrician install the proper receptacle.
• Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive noise and vibration.
• The unit must be kept free from obstruction to ensure proper function and to mitigate safety hazards.
• Do not modify the length of the power cord or use an extension cord to power the unit.
• Do not share a single outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.
• Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit.
• Do not install the unit in a location that may be exposed to combustible gas, as this could cause fire.

The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as these could cause tipping.

• Do not operate a unit that it has been dropped or damaged.
• The appliance with electric heater shall have at least 1 meter space to the combustible materials.
• Do not touch the unit with wet or damp hands or when barefoot.
• If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

• In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
• Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
• All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.
• The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
• When the water drainage function is not in use, keep the upper and the lower drain plug firmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent children from choking.

CAUTION

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Children must be supervised around the unit at all times.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
• Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or return to an authorized service facility for examination and/or repair.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• The appliance shall be installed in accordance with national wiring regulations.
• Contact the authorised service technician for repair or maintenance of this unit.
• Contact the authorised installer for installation of this unit.
• Do not cover or obstruct the inlet or outlet grilles.
• Do not use this product for functions other than those described in this instruction manual.
• Before cleaning, turn off the power and unplug the unit.
• Disconnect the power if strange sounds, smell, or smoke comes from it.
• Do not press the buttons on the control panel with anything other than your fingers.
• Do not operate or stop the unit by inserting or pulling out the power cord plug.

comfee

• Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol, etc.
• Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.
• Always contact a qualified person to carry out repairs. If the damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and not repaired.
• Hold the plug by the head of the power plug when taking it out.
• Turn off the product when not in use.

Note about Fluorinated Gasses

1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO2 equivalent in tonnes of the fluorinated greenhouse gas(on some models), please refer to the relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certified technician.
3. Product uninstallation and recycling must be performed by a certified technician.

WARNING for Using R32 Refrigerant

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

• Do not pierce or burn.

• Be aware that the refrigerants may not contain an odour.
• Appliance should be installed, operated and stored in a room with a floor area according to the amount of refrigerant to be charged. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself. When there are differences between the labile and the manual on the Min. room area description, the description on label shall prevail.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

• Compliance with national gas regulations shall be observed. Keep ventilation openings clear of obstruction.
• The appliance shall be stored so as to prevent mechanical damage from occurring.
• A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
  Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
• Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or hazard. Flammable Refrigerant R32 is used within air conditioner. When maintaining or disposing the air conditioner, the refrigerant (R32) shall be recovered properly, shall not discharge to air directly.
• No any open fire or device like switch which may generate spark/arcing shall be around air conditioner to avoid causing ignition of the flammable refrigerant used. Please follow the instruction carefully to store or maintain the air conditioner to prevent mechanical damage from occurring.
• Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction carefully to avoid any hazard. For speci-c information on the type of gas and the amount, please to the relevant label on the unit itself.

Caution: Risk of fire/ flammable materials

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

Explanation of symbols displayed on the unit(For the unit adopts R32 Refrigerant only):

WARNING This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

CAUTION This symbol shows that the operation manual should be read carefully.

CAUTION This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.

CAUTION This symbol shows that information is available such as the operating manual or installation manual.

1. Transport of equipment containing flammable refrigerants See transport regulations
2. Marking of equipment using signs See local regulations
   3.Disposal of equipment using flammable refrigerants See national regulations.
   4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions.
   5.Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.
6.Information on servicing
1)Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2)Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

3)General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4)Checking for presence of refrigerant

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5)Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

6)No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking signs shall be displayed.

7)Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8)Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

The ventilation machinery and outlets are operating adequately and are not obstructed;

If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9)Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

That there no live electrical components and wiring are exposed while charging, recovering or purging the system; That there is continuity of earth bonding.

7.Repairs to sealed components

1)During repairs to sealed components, all electrical supplies shall be disconnected from the equipment

comfee

being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2)Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

8.Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

9.Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

10.Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

11.Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

12. Removal and evacuation

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or

oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13.Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging is complete (if not already).

Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

14.Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant cylinders; All personal protective equipment is available and being used correctly; The recovery process is supervised at all times by a competent person; Recovery equipment and cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer's instructions. h) Do not overfill cylinders. (No more than 80% volume liquid charge). i) Do not exceed the maximum working pressure of the cylinder, even temporarily. j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

15.Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

16.Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before

comfee

recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Installation Instructions

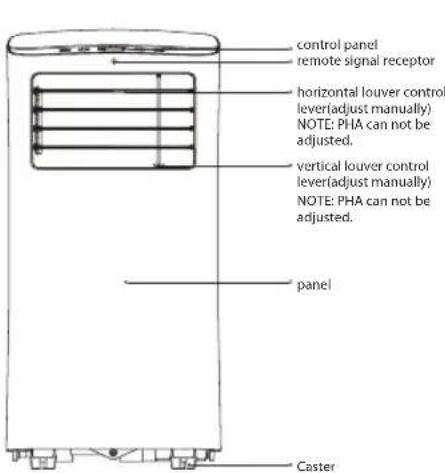

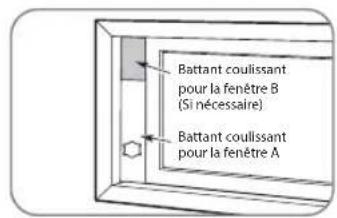

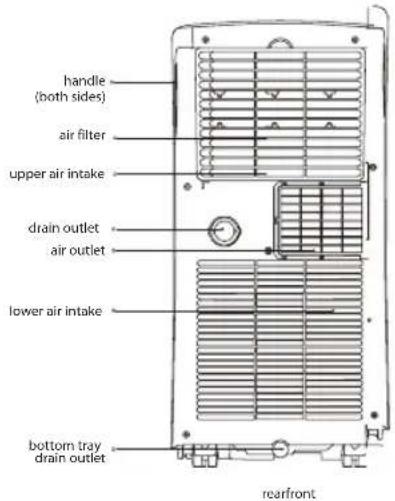

Preparation

NOTE:

All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller.

Design Notice

In order to ensure the optimal performance of our products, the design specifications of the unit and remote control are subject to change without prior notice.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Ambient Temperature Range For Unit Operating

MODE Temperature Range
Cool	17-35°C	(62-95°F)
Dry	13-35°C	(55-95°F)

Exhaust Hose Installation

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For COOL, HEAT (heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT (electrical heat type) mode must be removed exhaust hose.

Choosing The Right Location

Your installation location should meet the following requirements:

-Make sure that you install your unit on an even surface to minimize noise and vibration.
- The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.
- The unit should be located at least 50cm (19.7") from the nearest wall to ensure proper air conditioning. The horizontal louver blade should be at least 50cm (19.7") away from obstacles.
-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this could cause damage to the unit.

Recommend Installation

Energy Rating Information

The energy rating and noise information for this unit is based on the standard installation using an un-extended exhaust duct without window slider adaptor (as shown in the Installation section of this manual). At the same time, the unit must be operate on the COOL MODE and HIGH FAN SPEED by remote controller.

The unit with 3 meters extended exhaust duct is running by using 2 exhaust ducts(Diameter:150mm, Length:1.5m + Diameter: 130mm, Length: 1.5m). The Energy rating and noise information for unit with 3 meters extended exhaust duct is not assessed.(For some models)

NOTE:

We recommend that operating the unit at room temperature below 35^ . Since there is a risk that the unit with 3 meters extended exhaust duct would not work at room temperature above 35^ under some extreme conditions, such as the lower air intake be blocked for 50% .

How to Stay Cool with a New Portable Air Conditioner(For the models comply with the requirements of Department Of Energy in US)

Because of a new federal test procedure for Portable Air Conditioners, you may notice that the cooling capacity claims on portable air conditioner packaging are significantly lower than that of models produced prior to 2017. This is due to changes in the test procedure, not to the portable air conditioners themselves.

comfee

What should I look for first when purchasing a portable air conditioner?

The right air conditioner helps you cool a room efficiently. An undersized unit won't cool adequately while one that's too large will not remove enough humidity, leaving the air feeling damp. To find the proper air conditioner, determine the square footage of the room you want to cool by multiplying the room length by its width. You also need to know the air conditioner's BTU (British Thermal Unit) rating, which indicates the amount of heat it can remove from a room. A higher number means more cooling power for a larger room. (Be sure you are comparing only newer models to each other- older models may appear to have a higher capacity, but are actually the same). Be sure to "size up" if your portable air conditioner will be placed in a very sunny room, in a kitchen, or in a room with high ceilings. After you've found the right cooling capacity or your room, you can look at other features.

Why is the cooling capacity lower on newer models than on older units?

Federal regulations require manufacturers to calculate cooling capacity based on a specific test procedure, which was changed just this year. Models manufactured before 2017 were tested under a different procedure and cooling capacity is measured differently than in prior years' models. So, while the BTUs may be lower, the actual cooling capacity of the air conditioners has not changed.

What is SACC?

SACC is the representative value of Seasonally Adjusted Cooling Capacity, in Btu/h, as determined in accordance with the DOE test procedure at title 10 Code of Federal Regulations (CFR) 430, subpart B, appendix CC and applicable sampling plans.

Tools Needed

-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;

-Saw (optional, to shorten window adaptor for narrow windows)

Accessories

Shape	Désignation	Qty.
	Unit Adaptor	1 pc
	Exhaust Hose	1 pc
	Window Slider Adaptor	1 pc
	Bolt	1 pc
	Window Slider A	1 pc
	Window Slider B	1 pc
	Foam Seal A (Adhesive)	2 pc
	Foam Seal B (Adhesive)	2 pc
	Foam Seal C (Non-adhesive)	1 pc
	Security Bracket and 2 Screws	1 set
	Drain Hose	1 pc
	Remote Controller and Battery (only for remote control models)	1 set

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Window Installation Kit

Type window installation:

Step One: Preparing the Exhaust Hose assembly

Press the exhaust hose(or extended exhaust hose) into the window slider adaptor(or wall exhaust adaptor) and unit adaptor, clamp automatically by elastic buckles of the adaptors.

Step Two: Install the Exhaust hose assembly to the unit

Push the Exhaust hose into the airoutlet opening of the unit along the arrow direction.

Step Three: Preparing the Adjustable Window Slider

1. Choose the window sliders according the size of your window. Sometimes, it needs to be cut short to meet the window size, please take extra care to cut it properly.
2. Use bolts to fasten the window sliders once they are adjusted to the Proper length.

comfee

Installation

NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following two installation methods.

Type 1: Hung Window or Sliding Window Installation(For some models)

Or

1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown.

Or

1. Insert the window slider assembly into the window opening.

Or

1. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal between the glass and the window frame to prevent air and insects from getting into the room.

Or

1. If desired, install the security bracket with 2 screws as shown.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Or
5. Insert the window slider adaptor into the hole of the window slider.

NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm ) in order to the exhaust system works properly. All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.

comfee

Operating Instructions

Control Panel Features

NOTE: The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly different according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail.

MODE button

Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that goes from COOL, FAN, DRY, HEAT (on some models), and AUTO(on some models). The mode indicator light illuminates under the different mode setting.

NOTE: On above modes, the unit operates the auto fan speed automatically.

Up (+) and Down (-) buttons

Used to adjust (increasing/decreasing) temperature settings in 1^ / 2^ or 1^ increments in a range of 17^ / 62^ to 30^ / 88^ or 86^ . NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time for 3 seconds.

Power button

Power switch on/off.

LED display

Shows the set temperature while on cool,heat or auto mode. While on DRY and FAN modes, it shows the room temperature. Shows Error codes: E0-EEPROM error.

E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E3-Condenser temperature sensor error (on some models).

E4-Display panel communication error. EC-Refrigerant leakage detection malfunction(on some models).

Shows protection code:

P1-Bottom tray is full-Connect the drain hose and drain the collected water away. If protection repeats, call for service. NOTE: When one of the above malfunctions occurs, turn off the unit, and check for any obstructions. Restart the unit, if the malfunction is still present, turn off the unit and unplug the power cord. Contact the manufacturer or its service agents or a similar qualified person for service.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Operation Instructions

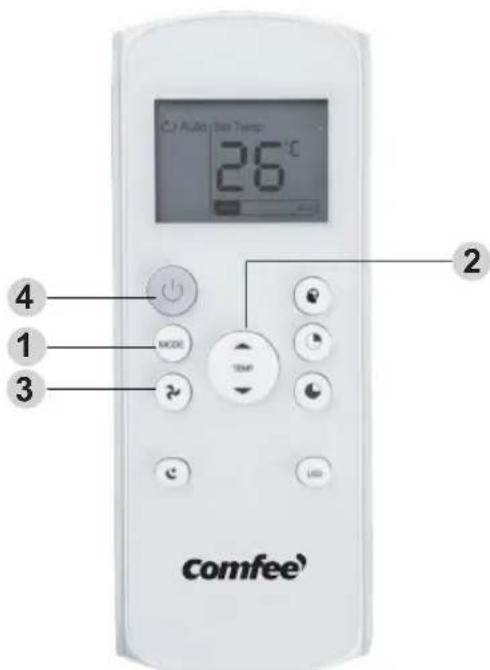

COOL operation

• Press the "MODE" button until the "COOL" indicator light comes on.
• Press the ADJUST buttons "+" or "-" to select your desired room temperature. The temperature can be set within a range of 17^ 30^ / 62^ 88^ (or 86^ ).
• Press the "FAN SPEED" button to choose the fanspeed.

DRY operation

• Press the "MODE" button until the "DRY" indicator light comes on.
  The fan speed or the temperature cannot be adjusted. The fan motor operates at LOW speed. NOTE:Keep windows and doors closed for the best dehumidifying effect. Do not put the duct to window.

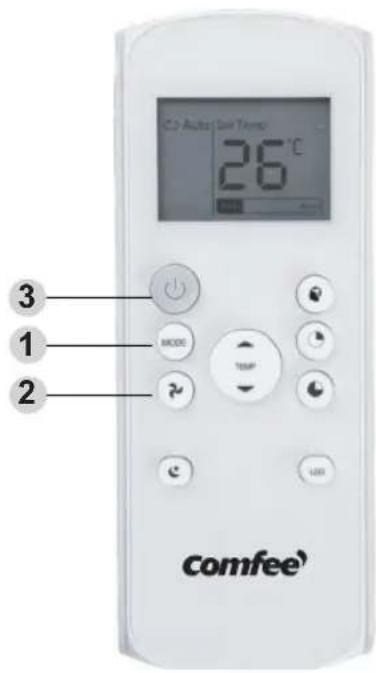

FAN operation

• Press the "MODE" button until the "FAN" indicator light comes on.
• Press the "FAN SPEED" button on the remote controller to choose the fan speed. The temperature can not be adjusted.
• Do not put the duct to window.

Other features

SLEEP/ECO operation

This feature can be activated from the remote control ONLY. To activate SLEEP feature, the set temperature will increase(cooling) or decrease(heating) by 1^ / 2^ (or 1^ ) in 30 minutes. The set temperature will then increase(cooling) or decrease(heating) by another 1^ / 2^ (or 1^ ) after an additional 30 minutes. This new temperature will be maintained for 7 hours before it

CONTMATnPas nBNTCMTATnPas n

Constant Fan button In cooling or Dry mode, press the button for 3 seconds to turn on or off the constant fan function. When the function is turned on, the constant fan light will illuminate, identifying the fan continuous run for cooling. When the function is turned off, the constant fan light will go out, identifying the fan cycle run with compressor stop.

returns to the originally selected temperature. This ends the Sleep mode and the unit will continue to operate as originally programmed.

NOTE: This feature is unavailable under FAN or DRY mode.

FOLLOW ME/TEMP SENSING feature

NOTE: This feature can be activated from the remote control ONLY. The remote control serves as a remote

comfee

thermostat allowing for the precise temperature control at its location. To activate the Follow Me/Temp Sensing feature, point the remote control towards the unit and press the Follow Me/Temp Sensing button. The remote control will send this signal to the air conditioner until press the Follow Me/Temp Sensing button again. If the unit does not receive the Follow Me/Temp Sensing signal during any 7 minutes interval, the unit will exit the Follow Me/Temp Sensing mode. NOTE: This feature is unavailable under FAN or DRY mode.

AUTO-RESTART

If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting automatically when the power resumes.

AIR FLOW DIRECTION ADJUSTMENT

Adjust the air flow direction manually:

The louver can be set to the desired position manually.
Do not place any heavy objects or other loads on the louver, doing so will cause damage to the unit.
- Ensure the louver is fully opened under heating operation.
- Keep the louver fully opened during operation.

WAIT 3 MINUTES BEFORE RESUMING OPERATION After the unit has stopped, it can not be restarted operation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

POWER MANAGEMENT feature(On some models) Under cooling operation, when the ambient temperature is lower than the setting temperature for a period of time, the unit will be automatically operate power management feature. The compressor and fan motor stop. When the ambient temperature is higher than the setting temperature, the unit will be automatically quit the power management feature. The compressor and (or) fan motor run.

WATER DRAINAGE

• During dehumidifying modes, remove the drain plug from the back of the unit, install the drain connector (5/8" universal female mender) with 3/4" hose Locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open

end of the hose directly over the drain area in your basement floor.

NOTE: Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the warter flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly. When the continuous drain hose is not used, ensure that the drain plug and knob are installed firmly to prevent leakage.

• When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows "P1". At this time the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate (this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the machine until the "P1" symbol disappears. If the error repeats, call for service.

NOTE: Be sure to reinstall the bottom drain plug firmly to revert leakage before using the unit.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Maintenance

Safety Precautions

Always unplug the unit before cleaning or servicing.
DO NOT use flammable liquids or chemicals to clean the unit.
DO NOT wash the unit under running water. Doing so causes electrical danger.
DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer.

Air Filter Cleaning

Remove the air filter

CAUTION

DO NOT operate the unit without filter because dirt and lint will clog it and reduce performance.

Maintenance Tips

• Be sure to clean the air filter every 2 weeks for optimal performance.
  The water collection tray should be drained immediately after P1 error occurs, and before storage to prevent mold.
  In households with animals, you will have to periodically wipe down the grill to prevent blocked airflow due to animal hair.

Unit Cleaning

Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth.

Store the unit when not in use

• Drain the unit's water collection tray according to the instructions in the following section.
• Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
• Turn off the appliance and unplug it.
• Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry filter before storing.
• Remove the batteries from the remote control.

NOTE: Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat can shorten the lifespan of the unit.

NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the unit.

comfee

Troubleshooting Tips

Problem Possible Causes Solution

Unit does not turn on when pressing ON/OFF button.	P1 Error Code.	The Water Collection Tray is full. Turn off the unit, drain the water from the Water Collection Tray and restart the unit.
	In COOL mode: room temperature is lower than the set temperature.	Reset the temperature.
	E0 EEPROM error.	Contact the manufacturer or its service agents or a similar qualified person for service.
Unit does not cool well.	The air filter is blocked with dust or animal hair.	Turn off the unit and clean the filter according to instructions.
	Exhaust hose is not connected or is blocked.	Turn off the unit, disconnect the hose, check for blockage and reconnect the hose.
	The unit is low on refrigerant.	Call a service technician to inspect the unit and top off refrigerant.
	Temperature setting is too high.	Decrease the set temperature.
	The windows and doors in the room are open.	Make sure all windows and doors are closed.
	The room area is too large.	Double-check the cooling area.
	There are heat sources inside the room.	Remove the heat sources if possible.
The unit is noisy and vibrates too much.	The ground is not level. Place the air filter blocked with dust or animal hair.	The unit on a flat, level surface.
		Turn off the unit and clean the filter according to instructions.
The unit makes a gurgling sound.	This sound is caused by the flow of refrigerant inside the unit.	This is normal.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Remote Controller Illustration

Remote Control Specifications

Model	RG57H3(B)/BGCEF-M
Rated voltage	3.0 V (dry batteries R03/LR03×2)
Signal receiving range	8 m
Environment	-5℃~60℃ (23℉~140 F) °

CAUTION:

INGESTION HAZARD - Contains small batteries, Keep out of reach of small children. If swallowed, seek immediate medical attention.

comfee

Function Buttons

Before using your new air conditioner, make sure to familiarize yourself with the remote controller. The following is a brief introduction to the remote controller. For instructions on how to operate your air conditioner, refer to the "How to Use the Basic Functions" section of this manual.

SHORT CUT

Sets and activates your favourite presettings.

-TEMP

Increases the temperature in 1^ (1^) increments. Max. temperature is 30^ (86^)

TEMP

Decreases temperature in 1^ (1^) increments. Min. temperature is 17^ (62^)

NOTE: Press and hold the and buttons together for 3 seconds to switch the temperature display between the ^ C & F scale.

TIMER ON

Sets the timer to turn the unit on (refer to " How to Use Basic Functions" for instructions).

TIMER OFF

Sets the timer to turn the unit off (refer to " How to Use Basic Functions "for instructions).

LED

Turns on/off indoor unit's LED display.

NOTE: If you are sensitive to light when you go to sleep, you can press the LED button to turn off the LED display on the unit. Press the button again to turn it back on.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Handling the Remote Controller

UNSURE ABOUT A FUNCTION

Refer to the "How to Use Basic Functions" and "How to Use Advanced Functions" sections of this manual for a detailed description of how to use your air conditioner.

SPECIAL NOTE

• Button designs on your unit may differ slightly from the example shown.
  If the unit does not have a particular function, pressing that function button on the remote controller will have no effect.
• If the function description in the OPERATOR'S MANUAL and "Remote Controller Illustration" is significantly different, the description in the OPERATOR'S MANUAL shall prevail.

Inserting and Replacing Batteries

Your air conditioning unit comes with two AAA batteries. Put the batteries in the remote controller before use.

1. Slide the back cover from the remote controller downward, to expose the battery compartment.
2. Insert the batteries, making sure to match up the (+) and (-) ends of the batteries with the symbols inside the battery compartment.
3. Slide the battery cover back into place.

BATTERY NOTES

For optimum product performance:

• Do not mix old and new batteries, or batteries of different makes.
• Do not leave batteries in the remote controller if not planning to use device for more than 2 months.

BATTERY DISPOSAL

Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries.

TIPS FOR USING THE REMOTE CONTROLLER

• The remote controller must be used within 8 meters of the unit.
  The unit will beep when the remote signal is received.
• Curtains, other materials, and direct sunlight can interfere with the infrared signal receiver.
• Remove batteries if the remote will not be used for more than 2 months.

comfee

Remote LED Screen Indicators

This display is blank when set to AUTO speed.

Temperature/Timer display

Displays the set temperature by default or timer setting when using TIMER ON/OFF functions:

• Temperature range: 17 - 30^ (62^ - 86^)
• Timer setting range: 0-24 hours.

This display is blank when operating in FAN mode.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

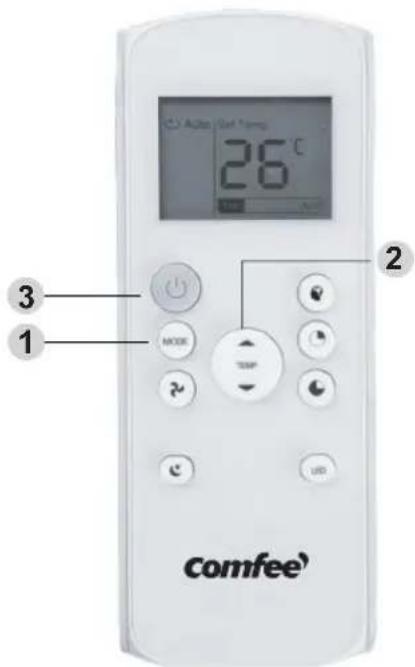

How to Use the Basic Functions

SETTING THE TEMPERATURE

The operating temperature range for units is 17 - 30^ (62^ - 86^) . You can increase or decrease the set temperature in ^ C (1^) increments.

AUTO Operation

In Auto mode, the unit will automatically select the COOL, FAN, or DRY mode based on the set temperature.

1. Press the MODE button to select Auto THE mode.
2. Set your desired temperature using the Temp or Temp button.
3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED cannot be set in Auto mode.

COOL Operation

1. Press the MODE button to select the COOL mode.
2. Set your desired temperature using the Temp or Temp button.
3. Press the FAN button to select the fan speed: AUTO, LOW or HIGH.
4. Press the ON/OFF button to start the unit.

comfee

How to Use the Basic Functions

DRY Operation (dehumidifying)

1. Press the MODE button to select the DRY mode.
2. Set your desired temperature using the Temp or Temp button.
3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED cannot be changed in DRY mode.

FAN Operation

1. Press the MODE button to select the FAN mode.
2. Press the FAN button to select the fan speed: AUTO, LOW, or HIGH.
3. Press the ON/OFF button to start the unit.

NOTE: The temperature cannot be set in FAN mode. As a result, your remote controller's LCD screen will not display the temperature.

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Setting the TIMER Function

Your air conditioning unit has two timer-related functions:

TIMER ON- sets the amount of time after which the unit will automatically turn on. TIMER OFF- sets the amount of time after which the unit will automatically turn off.

TIMER ON Function

The TIMER ON function allows you to set a period of time after which the unit will automatically turn on, for instance when you come home from work.

1. Press the TIMER ON button. By default, the last time period that you set and an "h" (indicating hours) will appear on the display. Note: This number indicates the amount of time after the current time that you want the unit to turn on. For example, if you set TIMER ON for 2 hours (2.0 h) will appear on the screen and the unit will turn on after 2 hours.
2. Press the TIMER ON button repeatedly to set the time when you want the unit to turn on.
3. Wait 2 seconds, then the TIMER ON function will be activated. Your remote controller digital display will then go back to the temperature display.

Example: Unit set to turn on after 2.5 hours.

comfee

TIMER OFF Function

The TIMEROFF function allows you to set a period of time after which the unit will automatically turn off for instance when you wake up.

1. Press the TIMER OFF button. By default, the last time period that you set and an "h" (indicating hours) will appear on the display.
   Note: This number indicates the amount of time after the current time that you want the unit to turn off. For example, if you set TIMER OFF for 2 hours (2.0 h) will appear on the screen and the unit will turn off after 2 hours.
2. Press the TIMER OFF button repeatedly to set the time when you want the unit to turn off.
3. Wait 2 seconds, then the TIMER OFF function will be activated. Your remote controller digital display will then go back to the temperature display.

Example: Unit set to turn off after 5 hours.

NOTE: When setting the TIMER ON or TIMER OFF functions up to 10 hours, the time will increase in 30-minute increments with each press. After 10 hours and up to 24 hours, it will increase in 1-hour increments. The timer will revert to zero after 24 hours. You can turn off either function by setting the timer to 0.0h.

Continue to press TIMER ON or TIMER OFF until the desired time is reached.

C

comfee

Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below).

Your remote display

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

How to Use the Advanced Functions

SLEEP Function

The SLEEP function is used to decrease energy use while you sleep (and don't need the same temperature settings to stay comfortable). This function can only be activated via remote control.

Note: The SLEEP function is not available in FAN or DRY mode.

SHORTCUT function

Used to restore the current settings or resume previous settings.
- Push this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).
- If pushing more than 2 seconds, the system will automatically restore the current operation settings including operating mode, setting temperature, fan speed level and sleep feature(if activated).

comfee

NOTE:

• Buttons design is based on a typical model and may be slightly different from the actual unit you purchased. In such case, actual unit buttons shall prevail.
  -All the functions described are accomplished by the unit. Inoperative features on the unit.
  -If the function description in the OPERATOR'S MANUAL and "Remote Controller Illustration" is significantly different, the description in the OPERATOR'S MANUAL shall prevail.
• The device complies with the local national regulations. In Canada, it complies with CAN ICES-3(B)/NMB-3(B). In the USA, it complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
  -This equipment has been tested and meets the limits for a Class-B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from the receiver to which it is connected.
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not approved by the compliance party may void the suer's authority to operate the equipment.

Air Conditioner Limited Warranty

Your product is protected by this Limited Warranty:

Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.

Warranty

One year full warranty from original purchase date.
Limited 2nd through 5th year sealed system warranty

Midea, through its authorized servicers will:

Pay all costs for repairing or replacing parts of this appliance which prove to be defective in materials or workmanship.
For limited 2nd through 5th year sealed system warranty, Midea will replace any part in the sealed refrigeration system (compressor, condenser, evaporator and tubing) which proves to be defective in materials or workmanship.

Consumer will be responsible for:

• Diagnostics, removal, transportation and reinstallation cost required because of service.
  Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES OF THE CONSUMER**

Midea replacement parts shall be used and will be warranted only for the period remaining on the original warranty.

NORMAL RESPONSIBILITIES OF THE CONSUMER**

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed

b

1. Proper use of the appliance in accordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and / or gas codes.
4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loosen connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after installation.

EXCLUSIONS

This warranty does not cover the following:

1) Failure caused by damage to the unit while in your possession (other than damage caused by defect or malfunction), by its improper installation, or by unreasonable use of the unit, including without limitation, failure to provide reasonable and necessary maintenance or to follow the written Installation and Operating Instructions.
2) Damages caused by services performed by persons other than authorized Midea servicers; use of parts other than Midea replacement parts; obtained from persons other than such Midea customer service; or external causes such as abuse, misuse, inadequate power supply or acts of God.
3) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness for particular use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered or cannot be readily determined.

Note: Some states do not allow the exclusion or limitation of incidental or consequential damages. So this limitation or exclusion may not apply to you.

IF YOU NEED SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment record.
The date on the bill establishes the warranty period, should service be required.
If service is performed, it is your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1. Contact Midea Consumer Services or an authorized Midea servicer at 1 866 646 4332
2. If there is a question as to where to obtain service, contact our consumer relations Department.

CLIMATISEUR PORTATIF

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Guide D'installation

Preparation

NOTE:

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Ou

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Operation VENTILATEUR

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

Maintenance

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332

model no. CP05S3WBA1RCM | contact us: 1866.646.4332
