CFOBB102C - Oven COMFEE - Free user manual and instructions

Product type	Toaster oven
Brand	Comfee
Model	CFOBB102C
Power supply	120 V ~ 60 Hz
Rated power	1200 W
Capacity	Approximately 10 liters (estimate)
Maximum temperature	450 °F (232 °C)
Cooking functions	Bake, Broil, Toast, Stay On
Timer	30 minutes with Stay On function
Rack positions	2 positions: high (broil) and low (bake and toast)
Included accessories	Baking rack, baking pan
Body material	Stainless steel (estimate)
Viewing window	Yes
Interior light	Not specified
Cleaning	Clean the rack and pan with warm soapy water; wipe the interior with a damp cloth
Safety	Automatic timer shut-off, polarized plug, short cord
Repairability	No user-serviceable parts; contact an authorized service center
Intended use	Household use only
Warranty	1 year from date of purchase

Frequently Asked Questions - CFOBB102C COMFEE

How to preheat the Comfee CFOBB102C oven?

Turn the temperature dial to the desired setting (e.g., 450 °F for baking). Set the timer to 5 minutes (MED position). The oven will turn off after 5 minutes, indicating the preheat is complete. Use oven mitts to handle hot accessories.

What is the difference between Bake, Broil, and Toast modes?

The Bake mode uses only the lower heating element for gentle cooking. The Broil mode uses only the upper element for browning or grilling. The Toast mode uses both elements that cycle on and off for even toasting.

How to clean the interior of the oven?

Unplug the appliance and let it cool completely. Wipe food residue with a damp sponge or cloth. Do not use abrasive cleaners or metal scouring pads. The rack and baking pan can be washed in warm soapy water.

What to do if the oven emits smoke during cooking?

A slight smoke on first use is normal (manufacturing residues). If smoke persists, the baking pan may be dirty. Clean it thoroughly. For broiling, trim excess fat from food before cooking to reduce smoke.

Can I use metal utensils in the oven?

Yes, the oven accepts metal and glass pans. However, never place food directly on the rack (except for toast). Always use the included baking pan.

How to set the timer for less than 5 minutes?

First turn the timer dial to 10 minutes (or 5 min on MED position), then turn back to the desired time. This allows a more precise setting.

What does the Stay On function mean?

The Stay On position keeps the oven running continuously until you manually turn the dial to OFF. Use it for long cooking (over 30 minutes) or to keep food warm.

Does the oven have an automatic shut-off?

Yes, when the timer reaches zero, the oven automatically shuts off with a beep. If you use the Stay On function, shut-off is manual.

Can I toast frozen bread?

Yes, frozen bread requires a longer toasting time. Use the Toast mode and adjust the browning level (Light, Med, Dark) to your taste. Monitor to avoid burning.

How to contact customer service?

For warranty assistance, contact Midea America (Canada) Corp. at 1-866-646-4332. Keep your original receipt as proof of purchase.

USER MANUAL CFOBB102C COMFEE

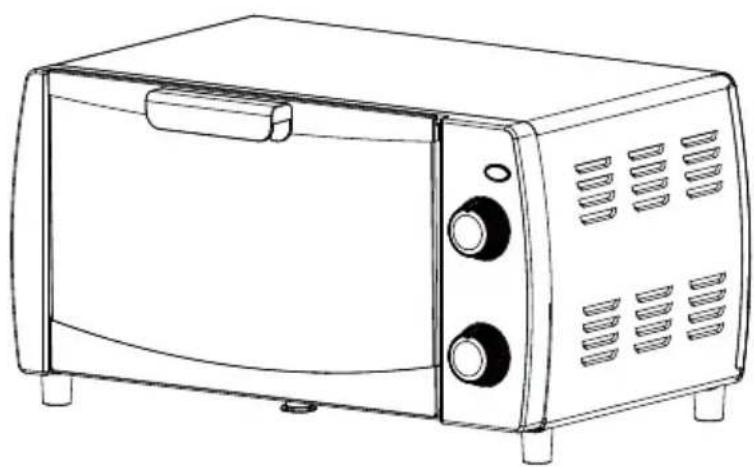

Line drawing of a microwave oven with two doors and control knobs (no text or symbols)

INSTRUCTION MANUAL

CFO-BB102C

DIRECTORY

IMPORTANT SAFEGUARDS ...... EN-2

OPERATING INSTRUCTIONS...... EN-6

CARE AND CLEANING ......EN-14

WARRANTY ...... EN-15

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

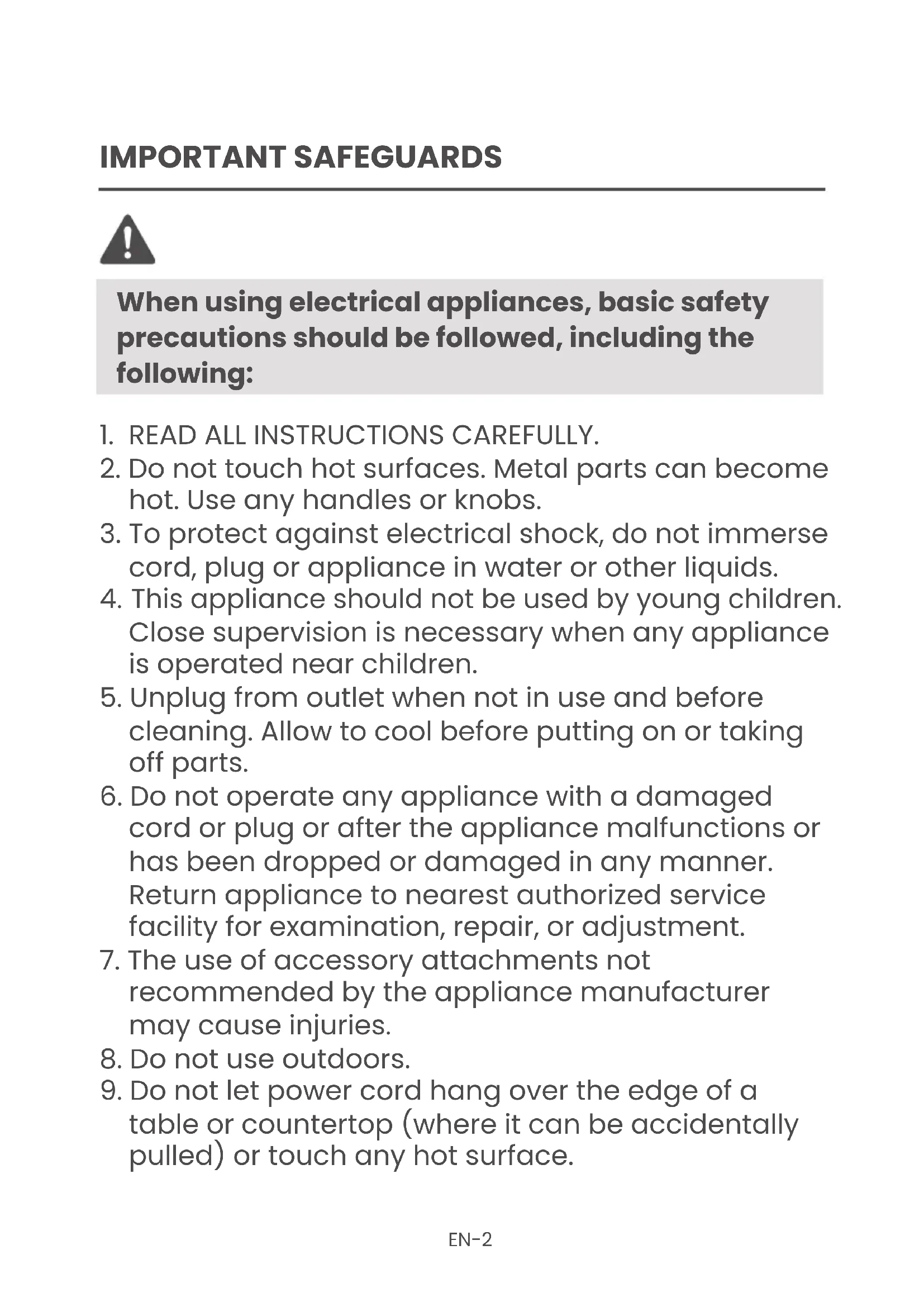

When using electrical appliances, basic safety precautions should be followed, including the following:

1. READ ALL INSTRUCTIONS CAREFULLY.
2. Do not touch hot surfaces. Metal parts can become hot. Use any handles or knobs.
3. To protect against electrical shock, do not immerse cord, plug or appliance in water or other liquids.
4. This appliance should not be used by young children. Close supervision is necessary when any appliance is operated near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.

9. Do not let power cord hang over the edge of a table or countertop (where it can be accidentally pulled) or touch any hot surface.

10. Do not place appliance on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. Use extreme caution when removing tray or disposing of hot grease.

12. To turn the oven OFF rotate the Temperature Control Knob counterclockwise to the OFF position and turn the Timer Knob to the OFF position. Then unplug from wall outlet.

13. Do not use this appliance for other than its intended use as outlined in this manual.

14. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.

15. Oversize foods or metal utensils must not be inserted into a toaster oven as they may create a fire or risk of electric shock.

16. A fire may occur if the toaster oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.

17. Extreme caution should be exercised when using containers constructed of other than metal or glass.

18. Do not store any materials, other than the manufacturers recommended accessories, in this oven when not in use.

19. Do not place any of the following materials in the oven: paper, cardboard, plastic, or any other material that may catch fire or melt.

20. Do not cover any part of the oven with metal foil. This will cause over- heating of the oven.

21. Do not pull, twist or otherwise abuse cord.

22. Never operate any appliance on top of a non-heat-resistant or flammable surface.

23. Never leave appliance unattended when in use.

24. This appliance is not intended for commercial or industrial use.

25. HOUSEHOLD USE ONLY.

SAVE THESE INSTRUCTIONS

This appliance is for HOUSEHOLD USE ONLY.

It may be plugged into an AC electrical outlet (ordinary household current). Do not use any other electrical outlet.

CORD PLUG

A short power supply cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit into the outlet, reverse the plug and try again. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

LINE CORD SAFETY TIPS

1. Never pull or yank on cord or the appliance.
2. To insert plug, grasp it firmly and guide it into outlet.

3. To disconnect appliance, grasp plug and remove it from outlet.

4. Before each use, inspect the line cord for cuts and/or abrasion marks. If any are found, this indicates that the appliance should be serviced and the line cord replaced.

5. Never wrap the cord tightly around the appliance, as this could place undue stress on the cord where it enters the appliance and cause it to fray and break.

Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a longer detachable power-supply cord or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE, OR IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.

Before you use this product for the first time, please take a few moments to read these instructions and keep them for reference. Pay particular attention to the Safety Instructions provided. Please review the product service and warranty statements.

PRODUCT MAY VARY SLIGHTLY FROM ILLUSTRATIONS

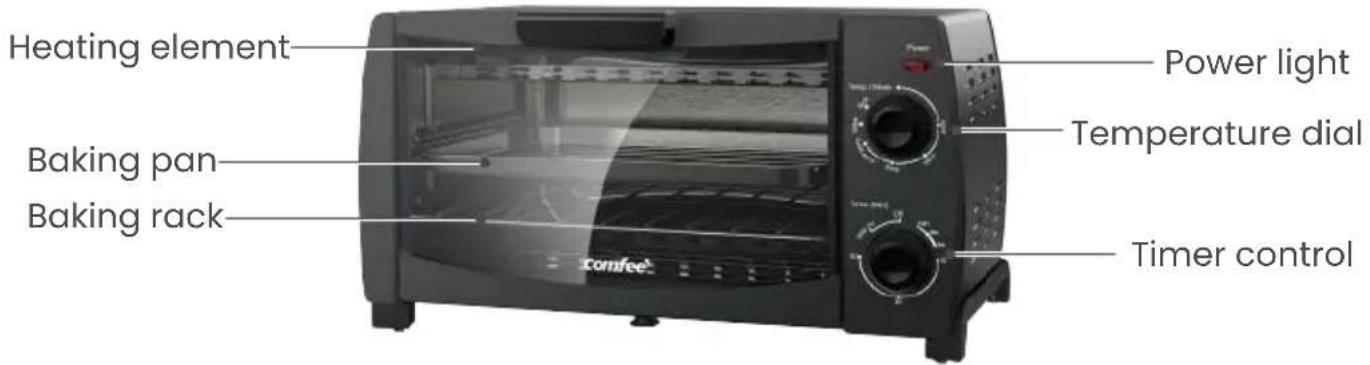

Heating element Baking pan Baking rack Power light Temperature dial Timer control

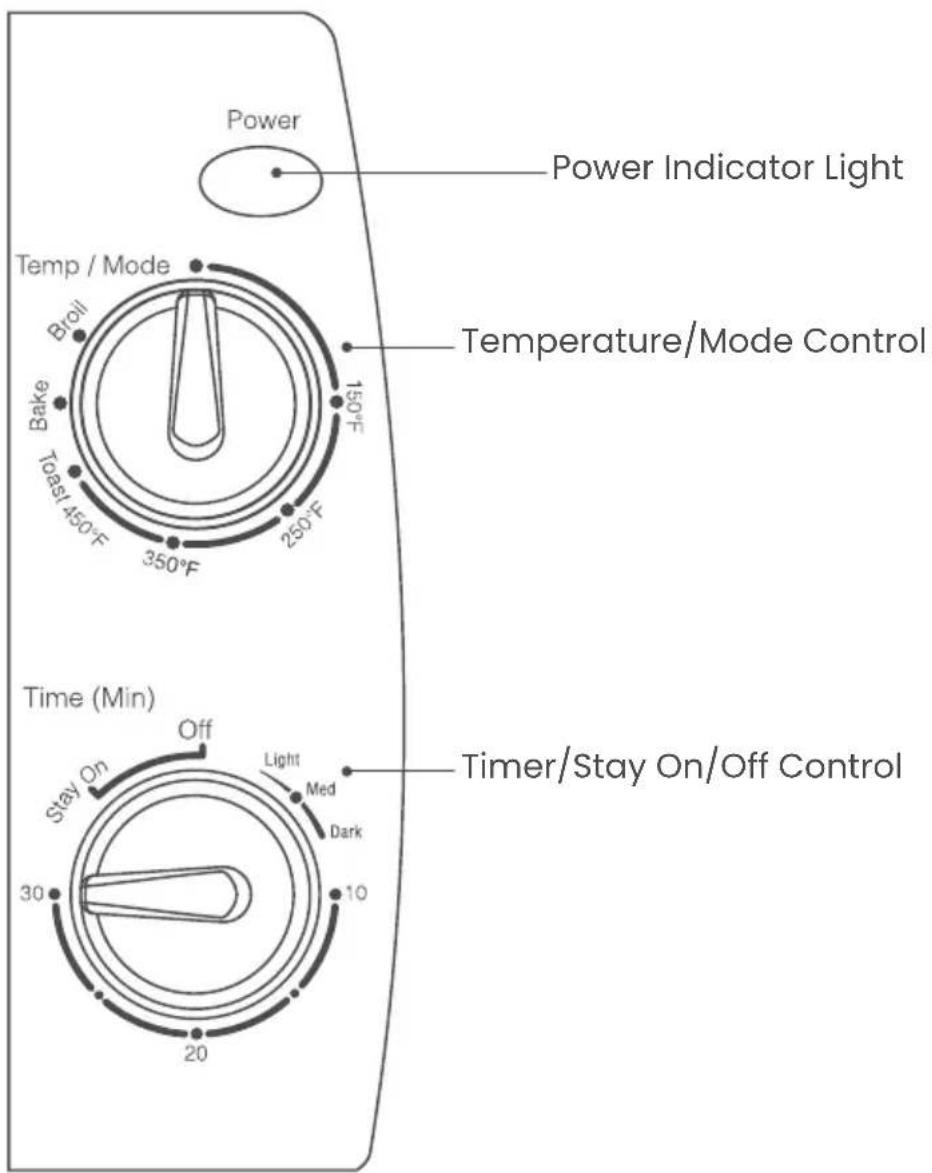

USING THE CONTROLS:

Power Power Indicator Light Temp / Mode Broll 150°F Temperature/Mode Control Bake 350°F Toast 450°F 250°F Time (Min) Off Stay On Light Med Dark Timer/Stay On/Off Control 30 10 20

The oven has a 30-minute timer with optional STAY ON feature, a Temperature/Mode control and a Power Indicator Light. Before attempting to operate the toaster oven, be sure to become familiar with the controls to ensure optimum performance.

Power Indicator Light:

The light will be illuminated when the oven is operating. The light will illuminate as soon as the timer is set or turned to the STAY ON position.

Timer:

The timer can be set by rotating the knob clockwise. When the timer is set the unit will be ON and operating. When the timer completes a cycle it will sound an audible bell and turn the unit OFF.

NOTE

When setting the timer to less than 5 minutes always rotate the Timer Knob past 10 minutes and then rotate back to the desired time. This will ensure a more accurate time setting.

To use the STAY ON feature, rotate the Timer Knob counterclockwise.

The oven will remain ON until the Timer Knob is manually rotated back to the OFF position.

Temperature/Mode:

The temperature of the oven cavity may be controlled up to 450^ F.

Rotate the Temperature Knob clockwise to the desired setting.

Both heating elements function when the unit is set from 150^ F to 450^ F setting.

On the Bake setting only the bottom element functions. The oven temperature is maintained at approximately 400^ F- 425^ F.

On the Broil setting only the top element functions. The oven temperature is maintained at approximately 425^ F- 450^ F.

Toast Mode:

This oven has a Toast setting on the Temperature Knob. Both elements will function on the Toast setting. The heating elements will cycle On and Off. See Toasting Instructions in the USING YOUR TOASTER OVEN section.

Technical line drawing of two structural frame components with mounting holes (no text or symbols)

Upper Position Lower Position

Baking rack positions:

This oven has two positions for the baking rack. The upper position should typically be used for broiling. The lower position is best suited for baking and toasting.

Exact positions are difficult to recommend due to personal preference. Experiment with different rack positions to suit individual taste.

NOTE

Unless toasting bread never place food directly on the baking rack. Always use baking pan.

Before use remove any packing materials and wipe the body of your toaster oven with a damp cloth. Remove baking rack and baking pan. Wash baking rack and pan in hot, soapy water, and dry thoroughly. Place oven on a flat counter or other stable surface. Position oven at least 3 inches away from wall or rear of counter. Make sure that nothing has been placed on top of the oven.

NOTE

Ensure that before plugging the toaster oven into the outlet, all controls are in the OFF position. Plug the cord into a 120 volt, 60 Hz AC outlet.

For the first time only, turn the Temperature Knob to 450^ F and the Timer Knob to 15 minutes. This will burn off any residue or oils still on the oven or elements.

NOTE

The oven may lightly smoke during this process. This is normal for a new oven and should not last more than 10-15 minutes.

DO NOT WRAP THE CORD AROUND THE MAIN BODY OF APPLIANCE DURING OR AFTER USE.

Toasting:

1. Place bread on the baking rack and close oven door.
2. Turn Temperature Knob to the Toast setting (just past 450^ F).
3. Select toast shade preference by turning the Timer Knob clockwise to desired toast setting (LIGHT, MED or DARK).

NOTE

When setting the timer to less than 5 minutes always rotate the Timer Knob past 5 minutes (Med) and then rotate back to the desired time. This will ensure an accurate time setting.

Never use the STAY ON position when toasting. The power light will be illuminated and both heating elements will operate while bread is toasting. When the timer has completed the cycle, a bell will sound and the unit will shut off. To stop the toasting cycle early, turn the Timer Knob counterclockwise to the OFF position.

Toasting Tips:

• Exact toasting settings are difficult to recommend due to personal preference. Experiment to suit individual taste.
• Results will vary depending on a particular type of bread's moisture, thickness and texture.
• Remember that thicker breads, toaster pastries and any foods containing fillings will require a longer toasting time.
• Remove bread promptly after toasting to avoid over-toasting by residual heat.
• Any pastry or foods containing fillings will be very hot. Always remove with caution.

Baking:

1. Set the Temperature Knob to the Bake setting.
2. Rotate Timer Knob clockwise to 5 minutes (Med) and allow oven to preheat.
3. While oven is preheating, place food on multipurpose pan. When timer bell sounds and oven has turned OFF, place the pan atop the baking rack inside the oven.

CAUTION

INSIDE OF OVEN WILL BE HOT. USE OVEN MITTS OR HOT PADS TO PREVENT BURNING.

1. Close oven door. For baking times of 30 minutes or less rotate the Timer Knob clockwise to the desired time. The power light will be illuminated. Only the bottom element will function during the Bake setting.

2. When timer bell sounds and unit is OFF, open door and remove food from oven.

3. For longer baking times, rotate the Timer Knob counterclockwise to the STAY ON setting. In the STAY ON setting the unit will remain ON and not shut OFF until the Timer Knob is manually rotated back to the OFF position.

NOTE

Always monitor food very carefully to avoid overcooking.

Broiling:

1. Place food to be broiled in the baking pan and set pan on top of baking rack inside the oven. NEVER place food directly on the baking rack. Close oven door.
2. Rotate the Temperature Knob clockwise to the Broil setting.
3. For items requiring a broiling time of 30 minutes or less rotate the Timer Knob clockwise to the desired time. The power light will be illuminated. Only the top element will function during broiling. When the timer has completed the cycle, a bell will sound and the unit will shut off.
4. For longer broiling times, rotate the Timer Knob counterclockwise to the STAY ON setting. In the STAY ON setting the unit will remain ON and not shut OFF until the Timer Knob is manually rotated back to the OFF position.
5. For even broiling, turn food over when it is about half cooked.

NOTE

Always monitor food very carefully when broiling to avoid overcooking.

USEFUL HINTS

1. Smoke may appear during broiling or baking. When broiling, it is always recommended to cut off excess fat on food before placing it in oven to minimize smoke. If oven smokes during baking, this usually means the banking pan is dirty and requires cleaning. See CARE AND CLEANING on page EN-14.
2. Some items may produce condensation on the oven door. This is normal and will quickly disappear.
3. Frozen foods and thick meat will take longer to cook.
4. To prevent heat loss, avoid opening the door during cooking unless absolutely necessary.
5. When toasting, remember that frozen bread or multiple slices will require a longer toasting time.
6. Except when toasting, NEVER place items directly on baking rack. Always use the multipurpose pan.
7. Remove all plastic and paper wrappings from food before cooking.
8. Always make sure there is adequate s pace between top of food being cooked and upper heating element.
9. When setting the timer to less than 5 minutes always rotate the Timer Knob past 5 minutes (Med) and then rotate back to the desired time. This will ensure an accurate time setting.

Use these oven temperatures and food suggestions as a guide. If using a packaged food, always follow the time and temperature recommendation on the package label. The exact cooking time and temperature will be effected by desired doneness, thickness of food, starting temperature, pan shape and material and other factors.

150°F to 250°F Warm previously baked breads

Keep pancakes, French toast, waffles warm

Keep main dishes warm for serving up to 1 hour later

350°F Cookies, refrigerated tubes or prepared dough

Cook 9 to 13 minutes

375°F Frozen toaster pastries

Place on baking tray, cook 3 to 4 minutes

Rolls, refrigerated tubes such as crescent or dinner rolls

Cook 11 to 13 minutes

400°F Biscuits, refrigerated tubes

Bake 8 to 11 minutes

Frozen dinner rolls

Bake 7 to 9 minutes

Pot Pie

Slit top crust, place on baking tray

Bake 30 to 35 minutes

450°F Potatoes

Oven Baked Potatoes

Preheat oven to 450°F.

Scrub 1 to 4 potatoes and pierce to allow steam to escape. Rub potatoes lightly with vegetable oil or butter. Place on pan. Cook for 60–75 minutes or until potatoes are done. To test for doneness, squeeze with an oven mitt.

Potatoes should give easily.

Optional Toppings: Slit hot oven baked potatoes and top with your choice of these toppings, just before serving.

Butter

Minced chives or other fresh herbs

Chopped, hot steamed broccoli

Prepared chili, heated

Diced, fully-cooked ham

Sour cream

Chopped green onions

Shredded Cheddar cheese

Crisp, crumbled bacon

Individual Pizzas Gone Wild

2 English Muffins, split and toasted
14 cup sun dried tomato pesto spread or presto
14 cup chopped, drained roasted red peppers
14 cup marinated artichoke hearts, drained and chopped
14 cup sliced wild mushrooms
1 tablespoon minced flat leaf parsley, basil or oregano
12 cup shredded pizza blend cheese

Preheat oven to 350°F.

Place toasted muffins, split side up, on baking pan. Spread pesto evenly over the top of each pizza. Top each with roasted red peppers, artichoke hearts, mushrooms and herbs.Sprinkle top with cheese. Cook 3 to 5 minutes or until hot and cheese is melted.

Makes 2 servings.

Garlic Cheese Bread

6 thick slices French or Italian bread, about 1-inch thick, toasted
14 cup butter, softened
14 cup shredded Parmesan cheese
14 cup shredded Mozzarella cheese
14 teaspoon garlic powder

Preheat oven to 450°F.

Arrange toasted bread in a single layer on baking pan.

Combine butter, cheese and garlic powder in a small mixing bowl. Stir to blend well.Spread butter – cheese mixture over top of each slice of bread.

Cook 2 to 4 minutes or until cheese mixture is hot and bubbly.

Makes 6 servings.

This appliance requires little maintenance. It has no user serviceable parts.

Do not try to repair it yourself. Refer to qualified personnel if servicing is needed.

TO CLEAN: Unplug unit and allow it to cool fully. After each use, when oven has cooled, clean food particles off with a damp sponge or cloth. Never immerse toaster oven in water or any other liquid.

Do not use abrasive cleaners, as they may damage unit.

For more thorough cleaning, wash rack and baking pan in hot, soapy water. Beforeeremoving rack or baking pan, make sure unit is unplugged and has cooled thoroughly.

This product carries a warranty stating that it will be free from defects in material and workmanship for a period of one year from the date of purchase. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep your original sales receipt.

IMPORTANT:

1. This warranty does not cover damages resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachments not provided with the product, loss of parts, or subjecting the appliance to any but the specified voltage. (Read directions carefully.)
2. This warranty is void if this product is ever used for other than private household purposes.
3. This warranty is void if this product is ever used outside of United State.

If service is required during the warranty period, properly pack your unit. We recommend using the original carton and packing materials. If additional assistance is needed, please contact customer assistance at:

Midea America (Canada) Corp.

Markham, ON L3R 8V2

1-866-646-4332

Midea America Corp expressly disclaims all responsibility for consequential damages or incidental losses caused by use of the appliance. Some states do not allow this exclusion or limitation of incidental or consequential losses so the foregoing disclaimer may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

The serial number can be found on the back cabinet. We suggest that you record the serial number of your unit in the space below for future reference.

Model Number:____

Serial Number:____

SAVE THIS FOR YOUR RECORDS

Made in China

Midea America (Canada) Corp.

Markham, ON L3R 8V2

1-866-646-4332

Comfee

FOUR GRILLE-PAIN

Line drawing of a microwave oven with two doors and control knobs (no text or symbols)

MANUEL D'UTILISATION

CFO-BB102C

CONTENU

MISES EN GARDE IMPORTANTES.... FR-2

INSTRUCTIONS D'UTILISATION.... FR-6

UTILISATION DE VOTRE FOUR GRILLE-PAIN....FR-9

SOIN ET NETTOYAGE FR-15

GARANTIE LIMITÉE D'UN AN ...... FR-16

Two identical line drawings of a structural frame with corner notches, shown from different angles (no text or symbols)
