TD7310 - Bottle warmer TEFAL - Free user manual and instructions

Product type	Baby bottle steam sterilizer
Brand	Tefal
Model	TD7310
Capacity	Up to 6 bottles (6 support rods)
Cycle time	Approximately 9 minutes
Required water volume	190 ml (6.33 fl oz)
Automatic shut-off	Yes
Sterilization temperature	≥ 95 °C (203 °F) for 15 min
Main material	Plastic (estimated)
Cleaning	Damp cloth; descaling with white vinegar (125 ml water + 125 ml vinegar, without heating)
Accessory maintenance	Grids and rods washable with soapy water (not dishwasher safe)
Safety	Do not immerse; hot surfaces; do not open during cycle; wait 4 min after cycle
Included accessories	Adjustable upper grid (3 heights), lower grid, 6 bottle support rods, lid
Repairability	Contact an authorized T-FAL center
Warranty	Standard (not specified)
Intended use	Household use only

Frequently Asked Questions - TD7310 TEFAL

How to use the sterilizer for the first time?

Unpack the appliance and clean the accessories. Place the lower grid in the tank, insert the support rods, then the upper grid at the desired height. Pour 190 ml of water into the reservoir. Plug in and turn the start button. The cycle starts automatically.

What amount of water should I put?

Use a bottle to pour exactly 190 ml (6.33 fl oz) of water into the tank reservoir. Never operate the appliance without water.

How long does a sterilization cycle last?

The cycle lasts approximately 9 minutes. The appliance stops automatically at the end of the cycle.

Can I sterilize other items besides bottles?

Yes, you can sterilize nipples, pacifiers, spoons, breast pumps, provided they withstand a temperature of at least 95 °C for 15 minutes. Clean them thoroughly first.

How to clean and descale the sterilizer?

Unplug and let cool for 10 min. Clean the tank and lid with a damp cloth. To descale, pour 125 ml of water and 125 ml of white vinegar into the tank, let sit for 30 min max, rinse and wipe. The grids and rods are washed with soapy water (not dishwasher safe).

What to do if the appliance does not heat?

Check that the appliance is properly plugged into a grounded outlet. Make sure the start button is turned. If the problem persists, contact an authorized T-FAL center for repair.

Is it safe to leave the appliance unattended?

No, never use the appliance unattended. It is important to supervise children to avoid any risk of burns.

How to adjust the height of the upper grid?

The upper grid has 3 notches for height adjustment. Adjust it according to the size of the bottles for optimal loading.

Can I open the lid during the cycle?

No, never open the appliance when in operation, you risk burning yourself. Wait at least 4 minutes after the end of the cycle before opening.

How to change spare parts?

Parts like grids and rods are removable. For any defective part, contact an authorized T-FAL center or consumer service.

USER MANUAL TD7310 TEFAL

Illustration of a Tfal air conditioner with a cartoon character and butterfly flying above (no text or symbols on the main subject)

www.t-fal.com www.disneybaby.com

Diagram of a mechanical device with a red lever and rotating components, enclosed in a circular boundary (no text or symbols)

fig. 1

fig. 2

Line drawing of a portable oven with multiple steamers inside, enclosed in a circular frame (no text or symbols)

fig. 3

fig. 4

Line drawing of a hand operating a washing machine inside a vehicle (no text or symbols)

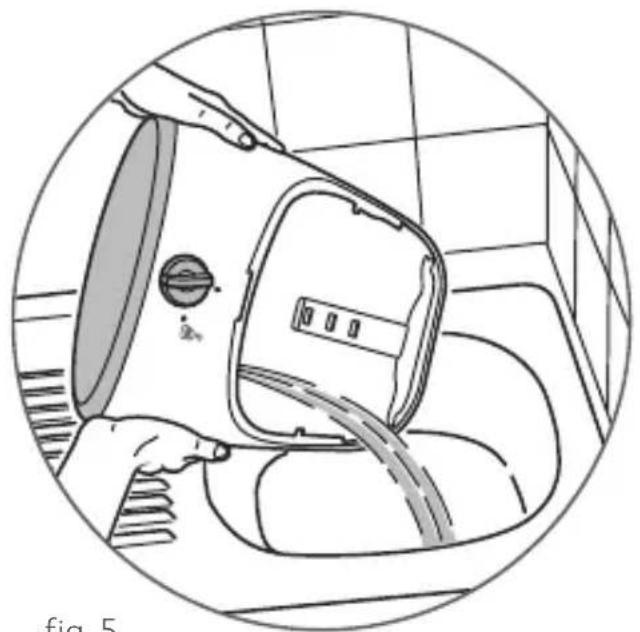

fig. 5

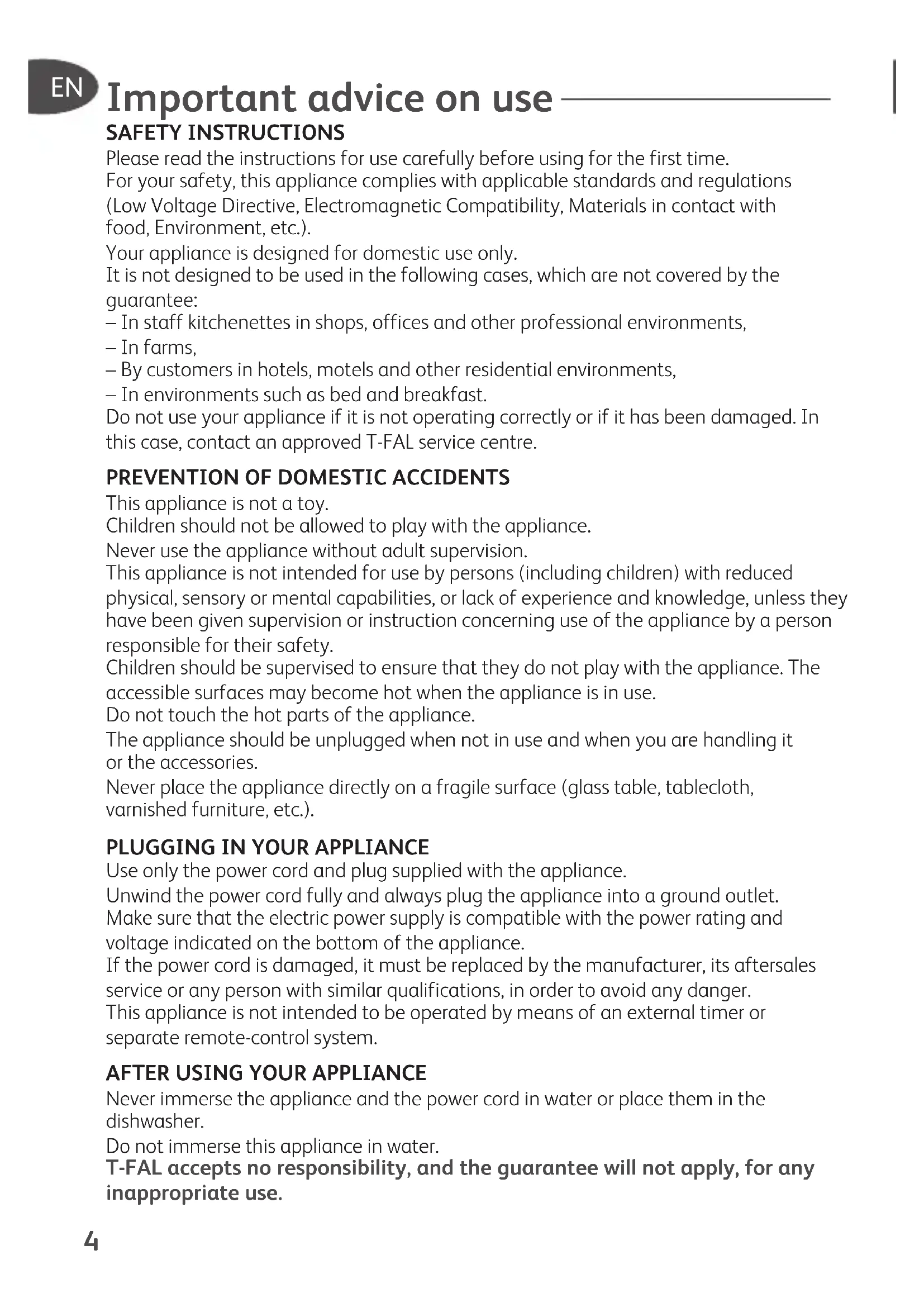

Important advice on use

SAFETY INSTRUCTIONS

Please read the instructions for use carefully before using for the first time.

For your safety, this appliance complies with applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).

Your appliance is designed for domestic use only.

It is not designed to be used in the following cases, which are not covered by the guarantee:

– In staff kitchenettes in shops, offices and other professional environments,

- In farms,

- By customers in hotels, motels and other residential environments,

– In environments such as bed and breakfast.

Do not use your appliance if it is not operating correctly or if it has been damaged. In this case, contact an approved T-FAL service centre.

PREVENTION OF DOMESTIC ACCIDENTS

This appliance is not a toy.

Children should not be allowed to play with the appliance.

Never use the appliance without adult supervision.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. The accessible surfaces may become hot when the appliance is in use.

Do not touch the hot parts of the appliance.

The appliance should be unplugged when not in use and when you are handling it or the accessories.

Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.).

PLUGGING IN YOUR APPLIANCE

Use only the power cord and plug supplied with the appliance.

Unwind the power cord fully and always plug the appliance into a ground outlet.

Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

If the power cord is damaged, it must be replaced by the manufacturer, its aftersales service or any person with similar qualifications, in order to avoid any danger.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

AFTER USING YOUR APPLIANCE

Never immerse the appliance and the power cord in water or place them in the dishwasher.

Do not immerse this appliance in water.

T-FAL accepts no responsibility, and the guarantee will not apply, for any inappropriate use.

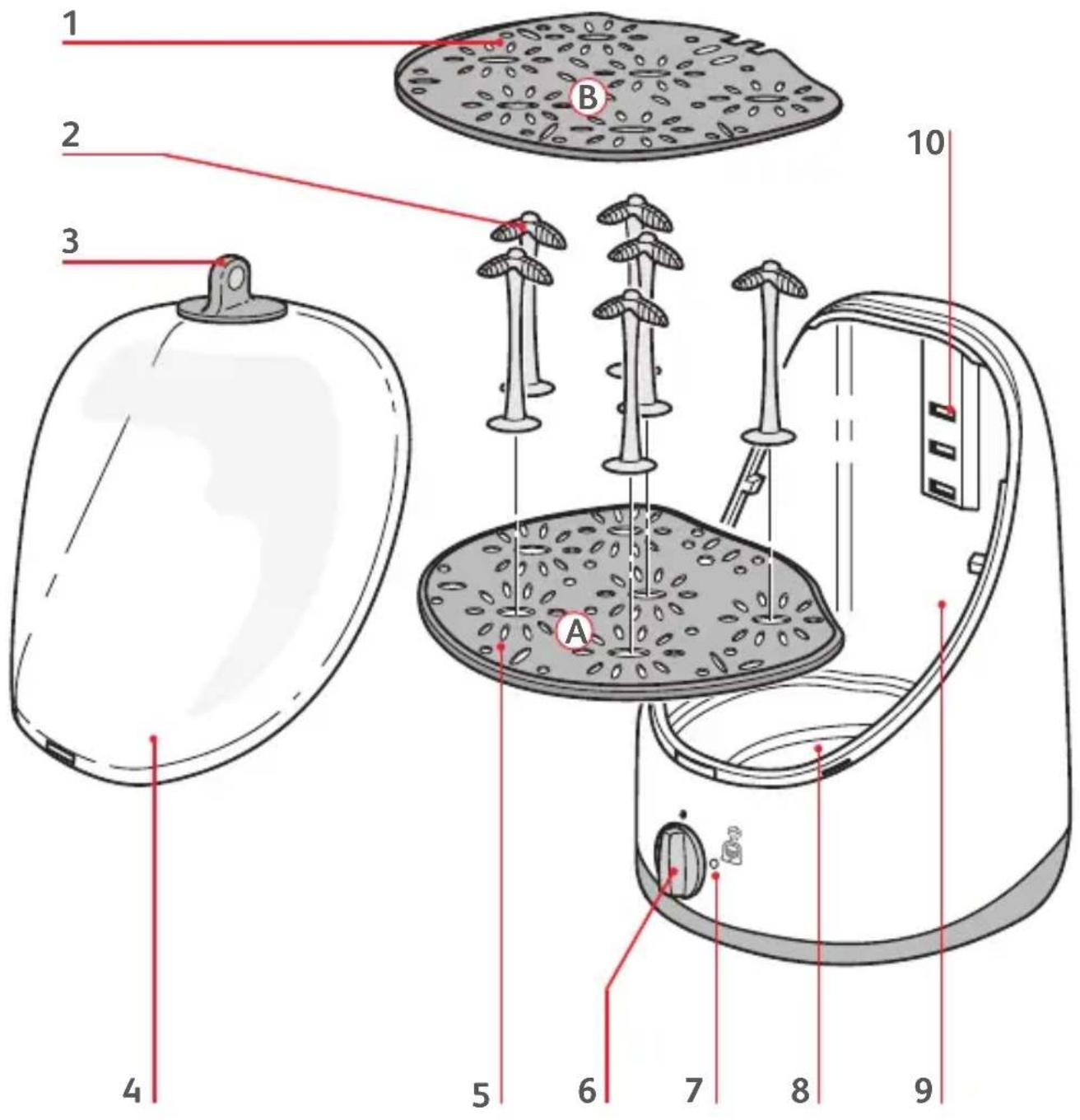

1. Height-adjustable removable upper support grid
2. Six removable bottle support rods
3. Lid grip button
4. Lid
5. Removable lower support grid
6. On/Off button
7. On indicator
8. Reservoir

9. Tank

10. Three height adjustment positions for the upper support grid

Precautions on use

The various drawings are intended only to illustrate the features of your appliance, and are not to be taken as strictly true to life.

Never plug in the appliance without water.

Never open the appliance whilst it is in operation, you run the risk of burning yourself.

Wait at least 4 minutes after the end of the sterilization cycle before opening the lid.

Feeding bottles, comforters and accessories, as well as any other utensils (dummies, spoons etc.) can be sterilised as long as they can stand a temperature of over 203°F / 95°C for a period of 15 minutes. Important: always make sure you clean them thoroughly before sterilising.

Caution: bottles, teats and caps will be hot after sterilisation.

Please allow at least 4 minutes after the end of the sterilisation cycle before opening the lid, so as to avoid any risk of burning yourself and to ensure complete sterilisation.

- Wait 15 minutes between 2 sterilizations in order for appliance to cool between cycles.

Using your appliance

Before using for the first time

Unpack the appliance and its accessories. Clean them.

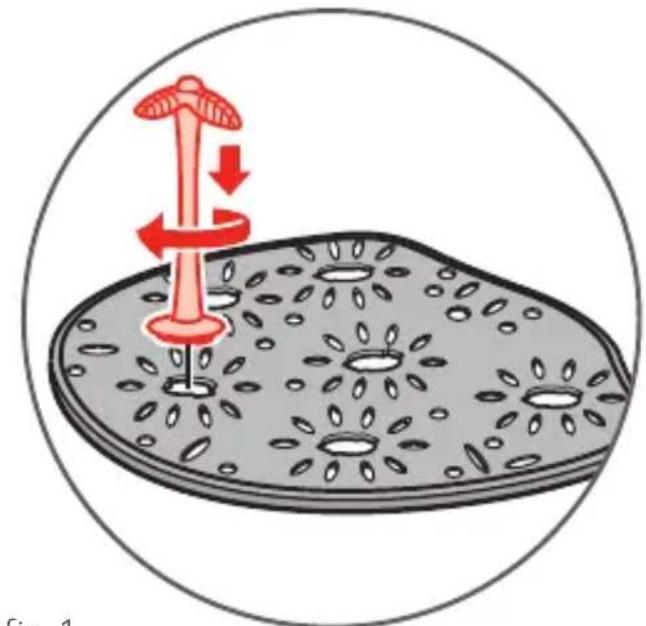

Place the lower grid A at the bottom of the tank. Put the bottle support rods in place (fig. 1).

Place the upper grid B (visible marker upwards) into one of the 3 notches provided for adjusting the height.

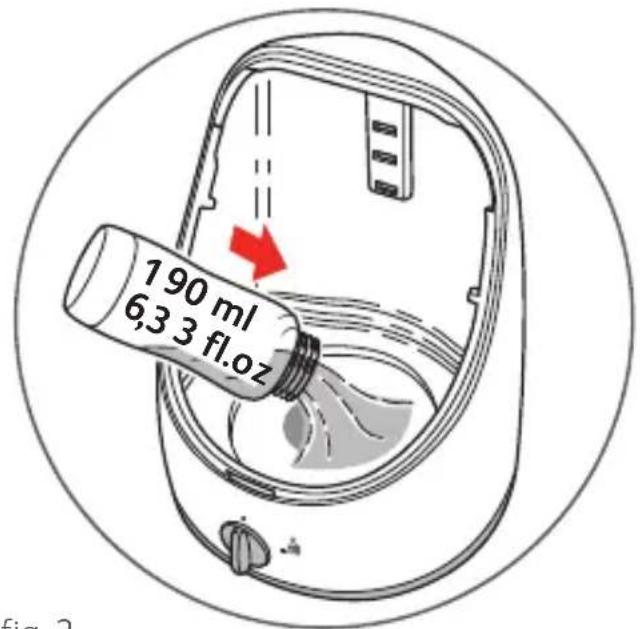

Using a bottle, pour 6,33 fl.oz / 190 ml of water into the tank's reservoir (fig. 2).

Caution, when the appliance is plugged in for the first time, it automatically starts to run a complete cycle.

On first use, a slight amount of smoke may be given off.

Operation

Using a bottle, pour 6,33fl. oz / 190 ml of water into the tank's reservoir (fig. 2) Comforters, accessories, feeding bottles must be perfectly clean. Load the bottles and accessories to be sterilised. Place the bottles upside down on each rod attached to the grid A as shown on p3.

Adjust the height of the grid (B) according to the size of the bottles.

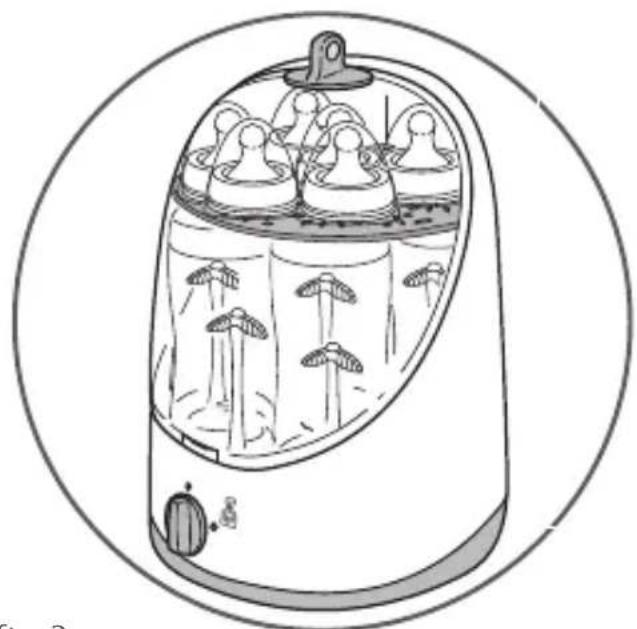

Place the teats without their ring and baby bottle caps onto the upper grid (see

loading diagram fig. 3).

Close the lid.

Turn the on/off button into position

The button returns automatically to its initial position and the on/off indicator lights up.

The sterilisation cycle starts up for approximately 9 minutes.

The appliance stops automatically at the end of the cycle.

Clean teats, accessories and bottles perfectly before placing them in the steam steriliser.

Other utensils, such as spoons, breast pumps, etc. can be sterilised provided that they can withstand a temperature of 203^ F / 95^ C for 15 minutes.

If the sterilising process is interrupted, you must start the cycle again: remove any remaining water, wait for 15 minutes then follow the instructions in the paragraph on how to use.

Servicing and descaling

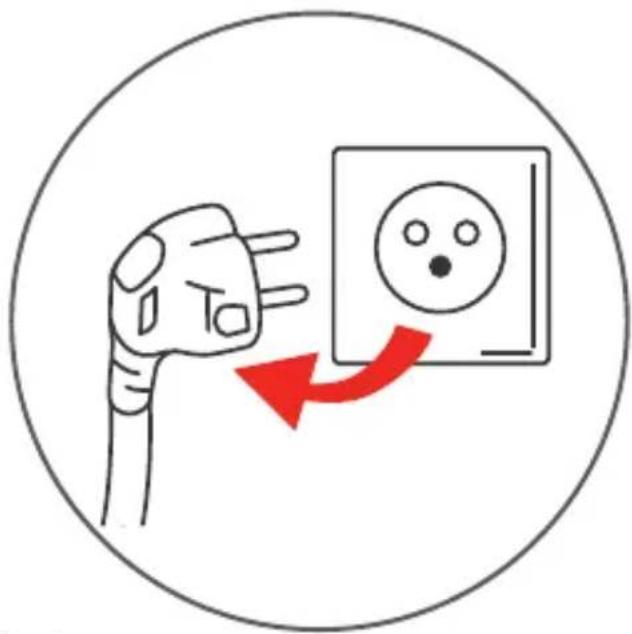

– Unplug the appliance and leave it to cool for 10 minutes.

– Clean the tank and the lid with a damp cloth.

Do not use abrasive products for cleaning or utensils likely to scratch the tank.

Wash the grilles and stems with soapy water.

- Using a bottle, pour 4,16 fl.oz / 125 ml of water and 4,16 fl.oz / 125 ml of white vinegar into the tank

Do not heat.

- Wait for 30 mins max. then rinse.

- Wipe with a damp rag.

Repeat the operation if necessary

De-scale your appliance regular (to avoid any risk of incomplete sterilisation).

Caution: Do not immerse the appliance in water.

The attachments are not dishwasher friendly.

For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Materials in contact with foodstuffs,

Environmental, etc,...directives.)

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

Recommendations importantes

CONSIGNES DE SECURITE

FR

Consumer Service and Accessories ordering 1-800.418.33.25

www.t-falbaby.ca
