Product Type	LED UHD 4K TV
Model	75UW341C
Screen Size	75 inches (diagonal)
Display Resolution	3840 x 2160 pixels (UHD 4K)
Backlight	LED
Reception System	DVB-S/S2, DVB-T/T2, DVB-C, PAL/SECAM B/G, D/K, I, SECAM L
Wireless Connectivity	Wi-Fi 802.11a/b/g/n/ac, Bluetooth
HDMI Ports	Multiple (including HDMI with Ultra HD Deep Colour)
USB Ports	USB 2.0 for multimedia playback
Antenna Input	RF 75 Ω (terrestrial, cable, satellite)
Audio Output	3.5mm headphone jack, built-in speakers
3D Function	Yes (LG 3D glasses optional)
VESA Wall Mount Standard	600 x 400 mm (M6 screws)
Power Supply	100-240 V, 50/60 Hz (mains)
Power Consumption	Variable depending on usage (ECO mode available)
Operating Temperature	0 °C to 40 °C
Operating Humidity	Less than 80%
Dimensions (without stand)	Approximately 1680 x 970 x 60 mm (estimate)
Weight (without stand)	Approximately 35 kg (estimate)
Cleaning and Maintenance	Soft dry cloth; do not use abrasive products
Safety	Wall mounting recommended, at least 10 cm ventilation space
Compatible Accessories (optional)	AG-F*** 3D glasses, Magic Remote AN-MR650, LSW640B wall mounts

Frequently Asked Questions - 75UW341C LG

The remote control does not work, what should I do?

Check the orientation of the remote toward the sensor on the TV, remove obstacles, and test the batteries (AAA 1.5V type). If the problem persists, replace the batteries.

The screen displays 'No Signal' or 'Invalid Format' on HDMI, how to resolve?

Turn the TV on/off with the remote, reconnect the HDMI cable, and restart the PC once the TV is on. Ensure the output resolution is compatible.

How to clean the TV screen?

Unplug the power cord. Use a soft dry cloth. Never spray water directly on the screen; wipe with a slightly damp cloth. Avoid abrasive products (alcohol, benzene).

Can I mount the TV on the wall? What are the VESA dimensions?

Yes, the VESA standard is 600 x 400 mm with M6 screws. Use a compatible wall mount (LG LSW640B recommended). Leave 10 cm space around for ventilation.

The TV turns off by itself after a few minutes, why?

Check the timer settings (Auto Off, Sleep Timer) in the menu. If no signal is detected for 15 minutes, the TV turns off automatically. Disable these options if necessary.

What types of devices can I connect via USB?

You can connect USB flash drives, external hard drives to play multimedia files (photos, music, videos). Supported formats include JPEG, MP3, AVI, MKV, MP4, etc. (see full manual).

How to activate 3D mode?

This model supports 3D. Use LG 3D glasses (optional). Depending on the source, 3D may be activated automatically or manually via the menu. For 3D content, follow on-screen instructions.

What is the best resolution for a PC connected via HDMI?

The optimal resolution is 3840 x 2160 (60 Hz) for Ultra HD Deep Colour mode. Ensure the HDMI cable is high-speed certified. For PCs, set the resolution in display settings.

How to reduce power consumption?

Use the ENERGY SAVING button on the remote to reduce brightness. Enable ECO mode in the energy saving settings. Avoid leaving the TV on standby for long periods.

What to do if liquid or an object enters the TV?

Immediately unplug the power cord and contact the LG service center. Do not attempt to repair yourself. Keep the TV away from water and moisture.

USER MANUAL 75UW341C LG

Safety and Reference

LED TV*

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
- Near any heat source such as stoves and other devices that produce heat
- Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

• The product has been impacted by shock
• The product has been damaged
• Foreign objects have entered the product
• The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Cartoon illustration of a computer monitor with a sad face emerging from its window, no text or symbols present.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.

Make sure the power cord is connected securely to the power plug on the TV. (Depending on model)

CAUTION

Simple line drawing of a smiling computer monitor on a hillside with wind turbines and clouds above (no text or symbols)

Install the product where no radio wave occurs.

Cartoon illustration of a smiling house with a wind turbine above it (no text or symbols)

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

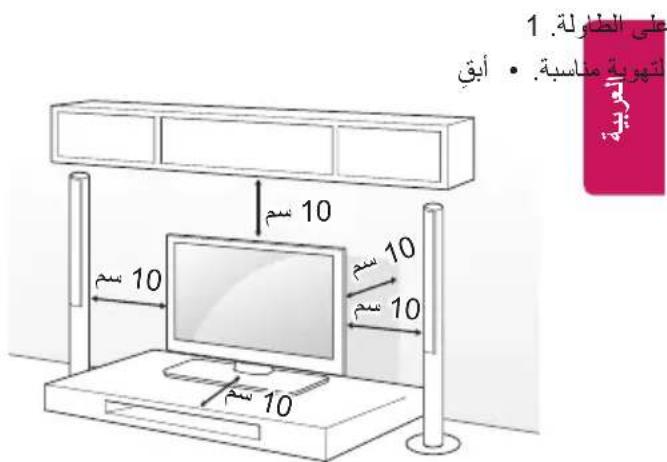

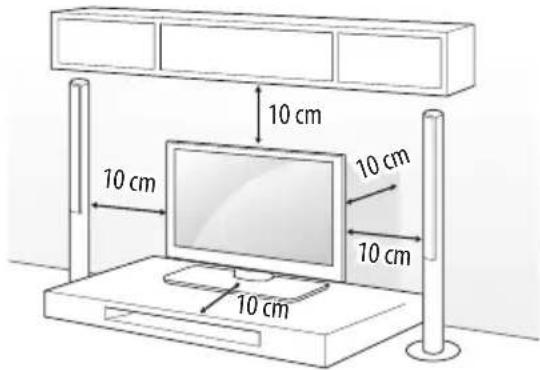

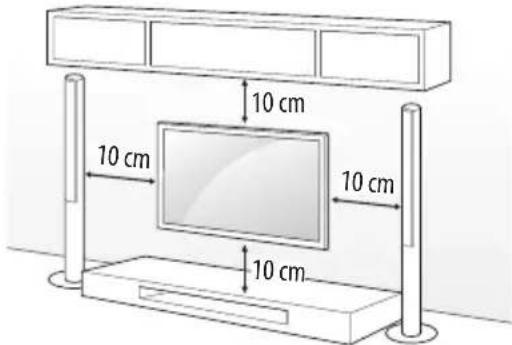

Please follow the installation instructions below to prevent the product from overheating.

• The distance between the product and the wall should be more than 10 cm.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
  • Do not install the product on a carpet or cushion.
  • Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an Authorized Service agent.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Viewing 3D imaging (Only 3D models)

CAUTION

- Children should be supervised by an adult when viewing 3D video. If a child experiences eye fatigue, headaches or blurred vision while watching 3D, they should take a break, before they resume watching 3D content.

- When viewing a 3D video, some may experience discomfort such as a headache, dizziness, fatigue, or blurred vision. In this case, stop watching the 3D video and take a rest.

- If you watch a 3D video for a long time, you may experience eye fatigue. In this case, stop watching the 3D video and take a rest.

- Only use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

- Do not use 3D glasses instead of your normal glasses, sunglasses, or protective goggles.

- Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

- Do not use 3D glasses while walking or moving around. It may cause an accident or injury.

• Be careful not to poke your eye with the frames of the 3D glasses.

- Do not watch 3D content if you have photosensitive seizures, epilepsy, or heart disease.

Preparing

NOTE

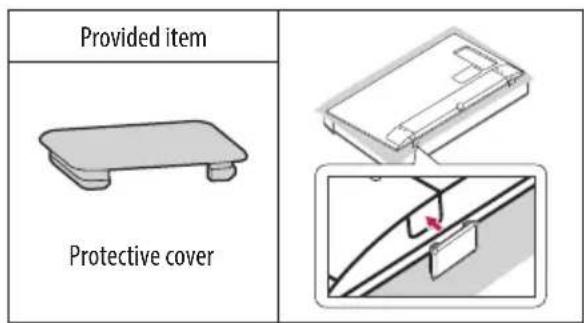

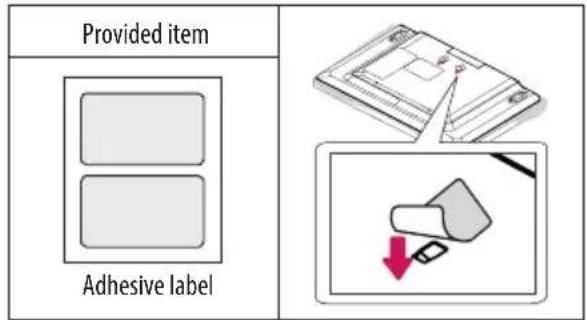

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.
  • Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
  • New features may be added to this TV in the future.
• The items supplied with your product may vary depending on the model.
  • Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

$$ ^ {*} A \leq 1 0 m m $$

$$ ^ {*} B \leq 1 8 m m $$

• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)
- High-Speed HDMI/™ cable (3 m or less)
- High-Speed HDMI/TM cable with Ethernet (3 m or less)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.

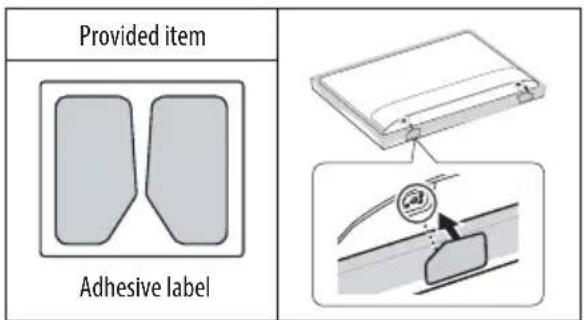

  • Some models have a thin film attached on to the screen and this must not be removed.

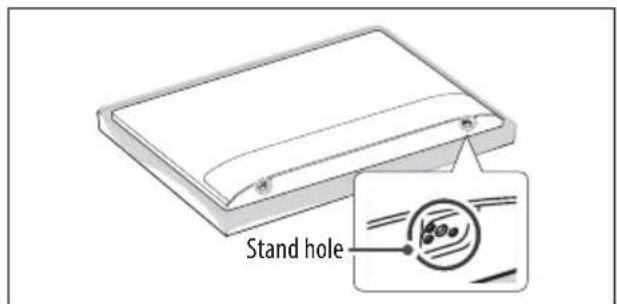

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
  • Make sure to wring any excess water or cleaner from the cloth.
  • Do not spray water or cleaner directly onto the TV screen.
  • Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen.
• When cleaning the product, be careful not to allow any liquid or foreign objects to enter the gap between the upper, left or right side of the panel and the guide panel. (Depending on model)

Diagram showing two methods of removing a container, with no text labels or symbols

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

(Depending on model)

LEC-003LED Clock	LEC-004LED Clock
AG-F***Cinema 3D Glasses	AN-MR650Magic Remote

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating a device with labeled parts and directional arrows, showing hand positioning and alignment instructions.

• When transporting a large TV, there should be at least 2 people.
- When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
• When handling the TV, be careful not to damage the protruding buttons.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

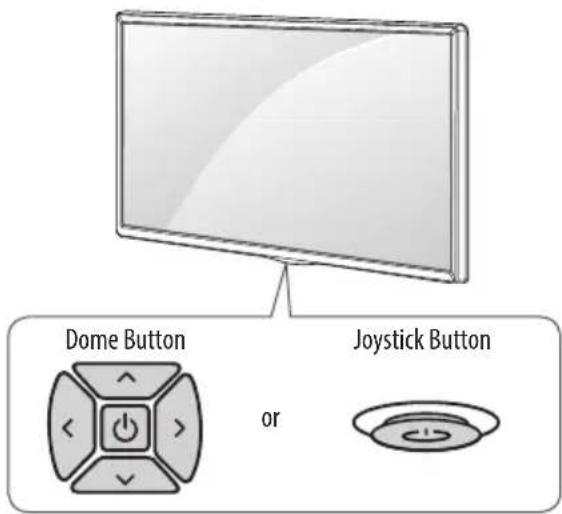

Using the button

(Depending on model)

You can simply operate the TV functions, pressing or moving the button.

Dome Button or Joystick Button

Basic functions

		Power On (Press)Power Off (Press and hold)1
		Volume Control
		Programmes Control

1 All running apps will close, and any recording in progress will stop.

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust the Menu items pressing or moving the buttons.

	Turns the power off.
	Clears on-screen displays and returns to TV viewing.
	Changes the input source.
	Accesses the settings menu.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

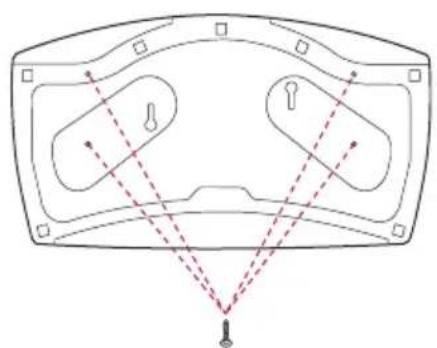

Attaching the TV to a desk

(This feature is not available for all models.)

The TV should be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.

A type)

Diagram of a vehicle's front view with dashed red lines indicating sensor or measurement points (no text or labels)

4-Screws

(Not supplied with TV)

Stand Desk

NOTE

- Screw : M5 x L (*L: Table depth + 8\~10 mm) ex) Table depth: 15 mm, Screw : M5 x L25

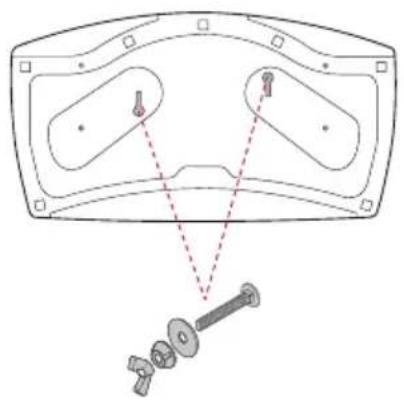

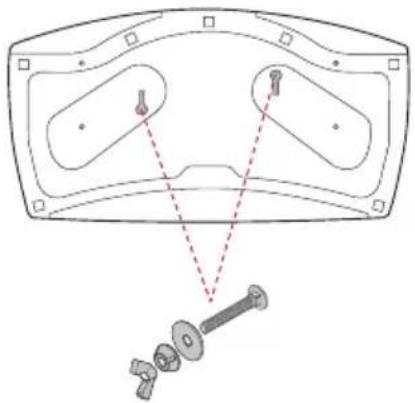

B type)

Technical diagram of a mechanical assembly with labeled parts and a close-up view of a bolted joint (no text or symbols present)

2-Screws for Stand Fixing,

2-Washers for Stand Fixing,

2-Nuts for Stand Fixing

(Supplied with TV)

Stand Desk

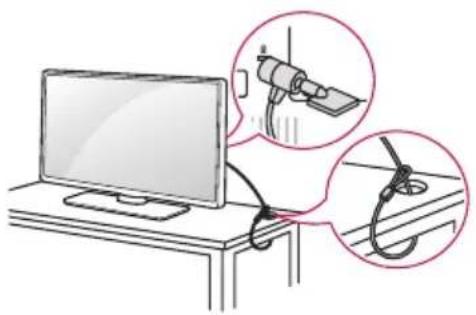

Using the kensington security system

(This feature is not available for all models.)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.

kensington.com. Connect the Kensington security system cable between the TV and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing cable clips (no text or symbols present)

Securing the TV to a wall

(This feature is not available for all models.)

Diagram showing electrical connections with labeled components and a monitor displaying an oval symbol above it.

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

• If there are bolts inserted at the eye-bolts position, remove the bolts first.
  2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Adjusting the angle of the TV to suit view

(This feature is not available for all models.)

Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20°20°

CAUTION

- When adjusting the angle of the product, watch out for your fingers.

- Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	43UW76**32/43LW64**43UW95**	49/55UW76**49/55UW96**
VESA (A x B) (mm)	200 x 200 300 x 300
Standard screw M6	M6
Number of screws 4	4
Wall mountbracket	LSW240BMSW240	LSW350BMSW240
Model 65UW96** 75UW34**
VESA (A x B) (mm)	300 x 300 600 x 400
Standard screw M6	M6
Number of screws 4	4
Wall mountbracket	LSW350B	LSW640B

A B

CAUTION

- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

NOTE

- When installing the wall mounting bracket, use the adhesive label or protective cover provided. The adhesive label or protective cover will protect the opening from accumulating dust and dirt. (Only when the label or cover is provided)

Provided item Adhesive label

Provided item Adhesive label

Provided item Protective cover

- When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model)

Stand hole

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.
• If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC's performance. (Depending on model)

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.
- If the image quality is poor, install a signal amplifier properly to improve the image quality.
- If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
- For a location that is not supported with ULTRA HD broadcasting, this TV cannot receive ULTRA HD broadcasts directly. (Depending on model)

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

CI module connection

(Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when Cl+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

USB connection

Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

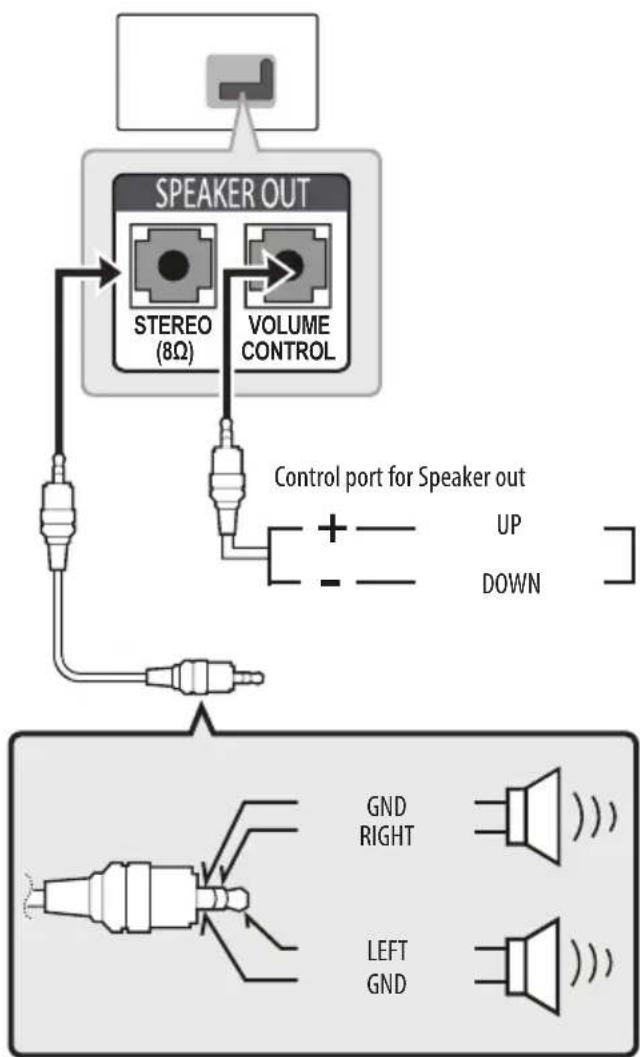

Speaker Output Setup

(Depending on model)

NOTE

• Use only with the 3 Pole 3.5 mm Stereo Jack.
- Do not connect your headphones or earphones to the port for connecting an external speaker.

Method of Volume control port

- Cable Spec.

Each Up / Down pin is pulled to 3.3V with CPU GPIO.

CPU detects transition from 3.3V to GND level for volume control.

Network Setup

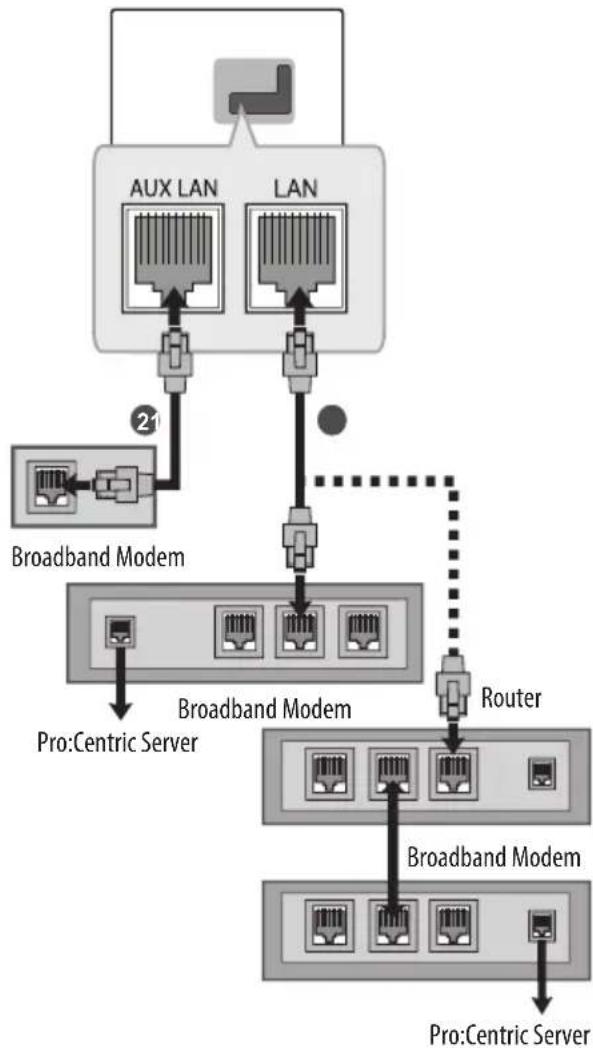

Wired network connection

(Depending on model)

This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication.

Connect the LAN port of the Modem or Router from Pro:Centric server to the LAN port on the TV.

1 Connect the LAN port of the Modem or Router to the LAN port on the TV.
2 Connect the LAN port of the PC to the AUX LAN port on the TV. (Depending on model)

CAUTION

• Do not connect a modular phone cable to the LAN port.
- Since there are various connection methods, please follow the specifications of your telecommunication carrier or internet service provider.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

- SMART → ⚙ → ⋮ → General - HDMI ULTRA HD Deep Colour

• On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)
• Off: Support 4K @ 50/60 Hz 8 bit (4:2:0)

If the device connected to Input Port also supports ULTRA HD Deep Colour, your picture may be clearer. However, if the device doesn't support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV's HDMI ULTRA HD Deep Colour setting to Off.

(This feature is available on certain models which are supported ULTRA HD Deep Colour only.)

Remote control

(Depending on model)

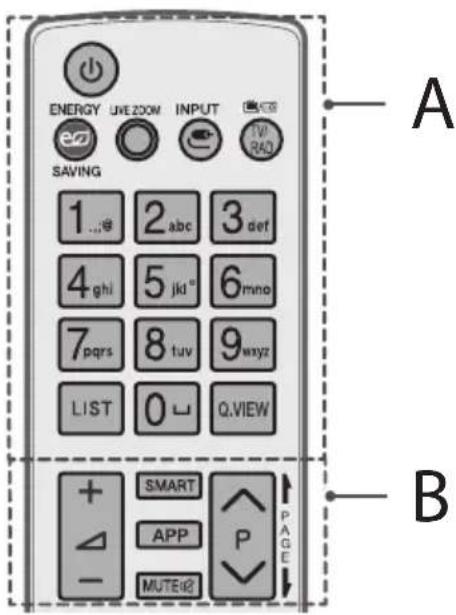

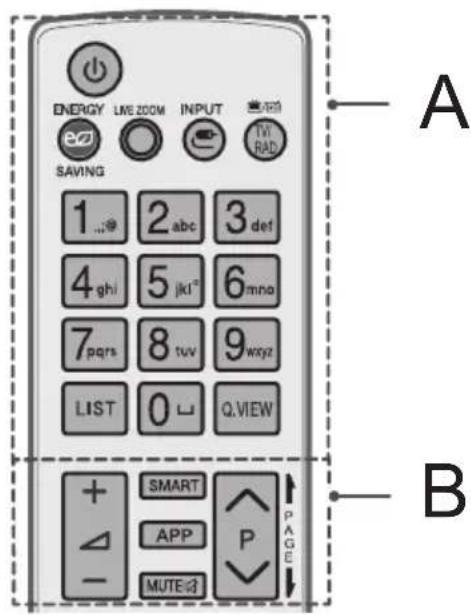

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the + and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

Make sure to point the remote control toward the remote control sensor on the TV.

ENERGY UVEZOOM INPUT TV RAD SAVING 1...@ 2 abc 3 def 4 ghi 5 jki° 6 mno 7 pqrs 8 tuv 9 wxyz LIST 0 Q.VIEW + SMART - APP P PAGE MUTE#2

A

(POWER) Turns the TV on or off.

e ENERGY SAVING lightness of the screen to reduce energy consumption.

○ LVEZOOMg in on the selected area, you can view it in full screen.

INPUTs the input source.

TV/RAD Selects Radio, TV and DTV programme.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

☐(Space) Opens an empty space on the screen keyboard.

Q.VIEW Returns to the previously viewed programme.

B

+△-Adjusts the volume level.

SMART Accesses the Home menu.

APP Shows the previous history.

MUTE Mutes all sounds.

^P Scrolls through the saved programmes.

PAGEoves to the previous or next screen.

GUIDE PORTAL INFO OK SETTINGS EXIT C D

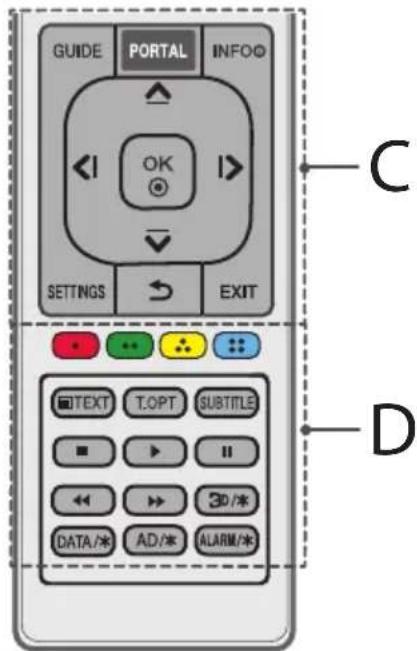

C

GUIDE Shows programme guide.

PORTAL Displays and removes hotel interactive menu.

INFO ① Views the information of the current programme and screen.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

SETTINGS Accesses the Quick Settings.

(BACK) Returns to the previous level.

EXIT Clears on-screen displays and return to TV viewing.

D

Coloured buttons These access special functions in some menus.

Teletext buttons (☐ TEXT / ☐ OPEse buttons are used for teletext.

SUBTITLE Recalls your preferred subtitle in digital mode.

Control buttons (■, ▶, □, ◀, ▶) Controls media contents.

3D/* Used for viewing 3D video. (depending on model)

DATA /*Selects the MHP TV menu source. (depending on model)

AD /*By pressing the AD button, audio descriptions function will be enabled. (depending on model)

ALARM /*Sets the alarm function. (depending on model)

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY. DIGITAL PLUS

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

dts-HD

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Open source software notice information

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

Troubleshooting

The software version can be updated for improvement in performance. Customer needs to ensure the compatibility of customer's equipment with LGE software. If needed, please consult with LGE and upload revised software version according to the guidance provided by LGE.

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed (to + to -).

No image display and no sound is produced.

• Check if the product is turned on.
- Check if the power cord is connected to a wall outlet.
- Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be interrupted.
• Check if the Auto Power Off (Depending on model) / Sleep Timer / Timer Power Off is activated in the Timers settings.
• If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.

• Turn the TV off/on using the remote control.
• Reconnect the HDMI cable.
- Restart the PC with the TV on.

Specifications

Wireless module specification

• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
• For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

(Only UW761*, UW961*, UW950*, UW341*)

Wireless module (LGSBWAC61) specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz	15.5 dBm
5150 to 5725 MHz	17.5 dBm
5725 to 5850 MHz (Not for EU)	8.0 dBm
Bluetooth
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz 10 dBm

* "IEEE802.11ac" is not available in all countries.

(Only LW641*)

Wireless module (LGSBW41) specifications
Wireless LAN (IEEE 802.11a/b/g/n)
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz	16 dBm
5150 to 5250 MHz	16 dBm
5725 to 5850 MHz (Not for EU)	11.5 dBm
Bluetooth
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz 10 dBm

CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature 0 °C to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C
	Storage Humidity Less than 85 %

(Depending on country)

	Digital TV Analogue TV
	Satellite Terrestrial Cable Terrestrial / Cable
Television system	DVB-S/S2*	DVB-TDVB-T2*	DVB-C	PAL/SECAM B/G, D/K, I, SECAM L
Channel coverage (Band)	950 ~ 2150 Mhz	VHFIII: 174 ~ 230 MhzUHFIV: 470 ~ 606 MhzUHFV: 606 ~ 862 MhzS Band II: 230 ~ 300 MhzS Band III: 300 ~ 470 Mhz	46 ~ 862 Mhz 46 ~ 862 Mhz
Maximum number of storable programmes	6,000 3,000
External antenna impedance	75 Ω

*Only DVB-T2/C/S2 support models.

HDMI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720 x 480	31.47	59.94
	31.50	60.00
720 x 576 31.25	50.00
1280 x 720	44.96	59.94
	45.00	60.00
	37.50	50.00
1920 x 1080	28.12	50.00
	33.72	59.94
	33.75	60.00
	26.97	23.97
	27.00	24.00
	33.71	29.97
	33.75	30.00
	56.25	50.00
	67.43	59.94
	67.50	60.00
3840 x 2160	53.95	23.98
	54.00	24.00
	56.25	25.00
	61.43	29.97
	67.50	30.00
	112.50	50.00
	135.00	59.94
	135.00	60.00
4096 x 2160	53.95	23.98
	54.00	24.00
	56.25	25.00
	61.43	29.97
	67.50	30.00
	112.50	50.00
	112.50	59.94
	135.00	60.00

1 : Only UW761*, UW961*, UW950*, UW341*

RGB-PC supported mode
(Only UW341*)

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350 31.468	70.09
720 x 400 31.469	70.08
640 x 480 31.469	59.94
800 x 600 37.879	60.31
1024 x 768 48.363	60.00
1152 x 864 54.348	60.053
1280 x 1024 63.981	60.020
1360 x 768 47.712	60.015
1920 x 1080	66.587 59.934
	67.50 60.00

HDMI-PC supported Mode

• PC audio is not supported
• Use HDMI IN 1 for PC mode (Depending on model)

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350 31.46	70.09
720 x 400 31.46	70.08
640 x 480 31.46	59.94
800 x 600 37.87	60.31
1024 x 768	48.36 60.00
1152 x 864	54.34 60.05
1280 x 1024 63.98	60.02
1360 x 768	47.71 60.01
1920 x 1080 67.50	60.00
3840 x 2160	67.50	30.00
	56.25	25.00
	54.00	24.00
4096 x 2160	53.95	23.97
	54.00	24.00

1 : Only UW761*, UW961*, UW950*, UW341*

NOTE

• The optimal display resolution

• 3840 X 2160 (Only UW761*, UW961*, UW950*, UW341*)
• 1920 x 1080 (Only LW641*)

Component port connecting information

Component ports on the TV	Y	P_B	P_R
Video output ports on DVD player	Y	P_B	P_R
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

Signal	Component
480i / 576i	0
480p / 576p	0
720p / 1080i	0
1080p	0(Only 50 Hz / 60 Hz)

3D supported mode (Only 3D models)

- Video, which is input as below media contents is switched into the 3D screen automatically. The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images. For models supporting Miracast / Intel® WiFi, you can set the 3D mode.

3D supported mode automatically
Input Signal		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
RF	1280 x 720 37	500 50		2D to 3D, Side by Side, Top & Bottom
	1920 x 1080 28	125 50
HDMI	640 x 480	31.47 / 31.50	59.94 / 60.00	Top & Bottom, Side by Side(Half),Side by Side (Full)
		62.94 / 63.00 Frame Packing, Line Alternative
	720 x 480	31.47 / 31.50	59.94 / 60.00	Top & Bottom, Side by Side (Half), Side by Side (Full)
		62.94 / 63.00 Frame Packing, Line Alternative
	720 x 576	15.63	50.00	Top & Bottom, Side by Side (Half),Side by Side (Full), Frame Packing
		31.25 Top & Bottom, Side by Side (Half), Side by Side (Full)
		62.50 Frame Packing, Line Alternative
	1280 x 720	37.50 50.00		Top & Bottom, Side by Side (Half), Side by Side (Full)
		44.96 / 45.00 59.94 / 60.00
		75.00 50.00		Frame Packing, Line Alternative
		89.91/90.00 59.94 / 60.00
	1920 x 1080	28.13 50.00		Top & Bottom, Side by Side (Half), Side by Side (Full)
		33.72 / 33.75 59.94 / 60.00
		56.25 50.00		Frame Packing
		67.43/67.50 59.94 / 60.00
		26.97 / 27.00 23.97 / 24.00		Top & Bottom, Side by Side (Half), Side by Side (Full)
		28.12 25.00
		33.72 / 33.75 29.98 / 30.00
		43.94 / 54.00 23.97 / 24.00		Frame Packing, Line Alternative
		56.25 25.00
		67.43 / 67.5	29.98 / 30.00
		56.25 50.00		Top & Bottom, Side by Side (Half)
		67.43 / 67.50 59.94 / 60.00
USB	1080p	33.75 30.00		Side by Side (Half), Top & Bottom, Side by Side (Full), Frame Sequential, MPO (Photo), JPS (Photo)
	2160p	67.50 30.00
3D supported mode manually
Input	Signal			Playable 3D video format
	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
HDMI-PC	1024 x 768 48.36		60.00	2D to 3D, Side by Side(half), Top & Bottom
	1920 x 1080 67.50
	3840 x 2160	54.00 24.00
		56.25 25.00
		67.50 30.00
	4096 x 2160 54.00	24.00
	Others --
HDMI	720 x 480 31.50	60.00		2D to 3D, Side by Side(Half), Top & Bottom
	720 x 576 31.25	50.00
	1280 x 720	45.00 60.00
		37.50 50.00
	1920 x 1080i	33.75 60.00
		28.13 50.00
	1920 x 1080p	27.00 24.00
		28.12 25.00
		33.75 30.00
		67.50 60.00
		56.25 50.00
	3840 x 2160 4096 x 2160	53.95 23.98
		54.00 24.00
		56.25 25.00
		61.43 29.97
		67.50 30.00
		112.50 50.00		2D to 3D, Top & Bottom(half), Side by Side(half) (8 bit, YCbCr 4:2:0)
		135.00 60.00

3D supported mode manually
Input	Signal			Playable 3D video format
	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
Component	1280 x 720	37.50 50.00		2D to 3D, Side by Side(half), Top & Bottom
		45.00 60.00
		44.96 59.94
	1920 x 1080i	33.75 60.00
		33.72 59.94
		28.12 50.00
	1920 x 1080p	67.50 60.00
		67.43 59.94
		27.00 24.00
		28.12 25.00
		56.25 50.00
		26.97 23.98
		33.75 30.00
		33.71 29.97
USB (Movie)	Under 704 x 480 -- 2D to 3D
	Over 704 x 480 under 1080p interlaced	-	-	2D to 3D, Side by Side(Half), Top & Bottom
	Over 704 x 480 under 1080p progressive	-50/60
		-Others
	Over 2160p - 24/25/30/50/60
USB (Photo)	Under 320 x 240 -- 2D to 3D
	Over 320 x 240 -- 2D to 3D, Side by Side(Half), Top & Bottom
Miracast/Intel®WiDi	1024 x 768p -		30/60	2D to 3D
	1280 x 720p -
	1920 x 1080p -
	Others --

Photo format

File Format	Format Resolution
.jpeg, .jpg, .jpe	JPEG	Minimum: 64 (W) x 64 (H)Maximum: 15,360 (W) x 8,640 (H) /Progressive Type: 1,920 (W) x 1,440 (H)
.png PNG		Minimum: 64 (W) x 64 (H)Maximum: 5,760 (W) x 5,760 (H)
.bmp BMP		Minimum: 64 (W) x 64 (H)Maximum: 1,920 (W) x 1,080 (H)
.jps JPS		Minimum: 64 (W) x 64 (H)Maximum: 15,360 (W) x 8,640 (H)
.mpo MPO

1 : Only 3D mode

Audio format

File Format	Item Info
.mp3	Bit rate 32 Kbps - 320 Kbps
	Sample freq. 16 kHz - 48 kHz
	Support MPEG1, MPEG2
	Channels Mono, stereo
.wav	Bit rate -
	Sample freq. 8 kHz ~ 48 kHz
	Support PCM
	Channels Mono, stereo
.ogg	Bit rate 64 Kbps ~ 320 Kbps
	Sample freq. 8 kHz - 48 kHz
	Support	Vorbis
	Channels Mono, stereo
.wma	Bit rate	128 Kbps ~ 320 Kbps
	Sample freq. 8 kHz ~ 48 kHz
	Support	WMA
	Channels	up to 6 ch

• The number of supported programmes may vary depending on the sample frequency.

Video codec

Extension	Codec
.asf.wmv	Video	VC-1 Advanced Profile (WMVA excluded), VC-1 Simple and Main Profiles
	Audio	WMA Standard (WMA v1/WMA Speech excluded)
.avi	Video	XViD(except 3 warp-point GMC), H.264/AVC, Motion Jpeg, MPEG-4
	Audio	MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM, DTS
.mp4.m4v.mov	Video	H.264/AVC, MPEG-4, HEVC
	Audio	Dolby Digital, Dolby Digital Plus, AAC, MPEG-1 Layer III (MP3)
.3gp.3g2	Video	H.264/AVC, MPEG-4
	Audio	AAC, AMR-NB, AMR-WB
.mkv	Video	MPEG-2, MPEG-4, H.264/AVC, VP8, VP9, HEVC
	Audio	Dolby Digital, Dolby Digital Plus, AAC, PCM, DTS, MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)
.ts.trp.tp.mts	Video	H.264/AVC, MPEG-2, HEVC
	Audio	MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, PCM
.mpg.mpeg.dat	Video MPEG-1, MPEG-2
	Audio	MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)
.vob	Video MPEG-1, MPEG-2
	Audio	Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
.mkv.mp4.ts	Video	H.264/AVC, H.265(HEVC)
	Audio	Dolby Digital, Dolby Digital Plus, AAC
	The optimal display resolution: 3840 x 2160.
.rm.rmvb	Video	RV30, RV40
	Audio	Realaudio6(cook), AAC LC, HE-AAC
	This feature is available in certain countries only.

1 : Only UW761*, UW961*, UW950*, UW341*

LG

Life's Good

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL ____

SERIAL

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a smiling computer monitor with antenna and wind turbines in the background (no text or symbols)

Cartoon illustration of a smiling house with a stick and wind lines above it (no text or symbols)

Cartoon illustration of a distressed computer monitor with arms and a sad face, next to an open window (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms extended, no text or symbols present

Illustration of hands using a tool to connect wires to an electrical socket (no text or symbols present)

®/TM - (3AmatarAoAqcl)

®/TM كبل - ) Ethernet ع

أمتار أو أقل

Diagram illustrating a device with labeled parts and directional arrows indicating movement or assembly.

• على الأقل.

• رضح في

الصورة التالية.

النقدم.

Technical diagram of a mechanical assembly with two circular components and a separate bolted component (no text or labels)

Illustration of a computer monitor connected to a cable with two magnified insets showing cable attachment (no text or symbols)

التشikit على الطولة

Diagram of a vehicle's rear window with dashed red lines indicating sensor or measurement points (no text or labels)

Diagram showing a computer monitor connected to a vertical line with two magnified views of the cable, one showing red and black symbols.
    note1[منFOUND التحكم لإioresج مكتبر الصوت : ≥2 ⋅ ≥1 ⋅ ≥2 ⋅ ≥3 ⋅ ≥4 ⋅ ≥5 ⋅ ≥6 ⋅ ≥7 ⋅ ≥8 ⋅ ≥9 ⋅ ≥10 ⋅ ≥11 ⋅ ≥12 ⋅ ≥13 ⋅ ≥14 ⋅ ≥15 ⋅ ≥16 ⋅ ≥17 ⋅ ≥18 ⋅ ≥19 ⋅ ≥20 ⋅ ≥21 ⋅ ≥22 ⋅ ≥23 ⋅ ≥24 ⋅ ≥25 ⋅ ≥26 ⋅ ≥27 ⋅ ≥28 ⋅ ≥29 ⋅ ≥30 ⋅ ≥31 ⋅ ≥32 ⋅ ≥33 ⋅ ≥34 ⋅ ≥35 ⋅ ≥36 ⋅ ≥37 ⋅ ≥38 ⋅ ≥39 ⋅ ≥40 ⋅ ≥41 ⋅ ≥42 ⋅ ≥43 ⋅ ≥44 ⋅ ≥45 ⋅ ≥46 ⋅ ≥47 ⋅ ≥48 ⋅ ≥49 ⋅ ≥50 ⋅ ≥51 ⋅ ≥52 ⋅ ≥53 ⋅ ≥54 ⋅ ≥55 ⋅ ≥56 ⋅ ≥57 ⋅ ≥58 ⋅ ≥59 ⋅ ≥60 ⋅ ≥61 ⋅ ≥62 ⋅ ≥63 ⋅ ≥64 ⋅ ≥65 ⋅ ≥66 ⋅ ≥67 ⋅ ≥68 ⋅ ≥69 ⋅ ≥70 ⋅ ≥71 ⋅ ≥72 ⋅ ≥73 ⋅ ≥74 ⋅ ≥75 ⋅ ≥76 ⋅ ≥77 ⋅ ≥78 ⋅ ≥79 ⋅ ≥80 ⋅ ≥81 ⋅ ≥82 ⋅ ≥83 ⋅ ≥84 ⋅ ≥85 ⋅ ≥86 ⋅ ≥87 ⋅ ≥88 ⋅ ≥89 ⋅ ≥90 ⋅ ≥91 ⋅ ≥92 ⋅ ≥93 ⋅ ≥94 ⋅ ≥95 ⋅ ≥96 ⋅ ≥97 ⋅ ≥98 ⋅ ≥99 ⋅ = 1

GUIDE PORTAL INFOΦ OK SETTINGS EXIT C D

ENERGY LME ZOOM INPUT APP SAVING TV RAD 1 ... 2 abc 3 def 4 ghi 5 jki 6 mno 7 pqrs 8 tvv 9 wxyz LIST 0 Q.VIEW + SMART P PAGE - APP MUTE

A

C

For DTS patents, see http://patents.dts.

• Room Manufactured under license from DTS (العربية) Timer Power Off Licensing Limited. DTS, DTS-HD, the Symbol,
• ال telefaxد & DTS or DTS, and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical device with springs and wires, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and a window, showing distress (no text or symbols)

Simple line drawing of a smiling computer monitor on a house with wind turbines and clouds above (no text or symbols)

Cartoon illustration of a smiling house with wind turbines, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the device itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram showing two methods of removing a liquid into a container, with no text labels or symbols.

Dokupuje se zvlášť

Diagram illustrating a folding or positioning process of a screen, with labeled steps and cross symbols indicating movement.

Technical line drawing of a mechanical component with dashed lines indicating alignment or projection (no text or symbols)

4 šrouby

Stojan Stül

POZNÁMKA

Technical diagram of a mechanical assembly with bolted components and alignment lines (no text or labels)

Stojan Stül

Illustration of a computer monitor connected to cable with two magnified insets showing cable installation (no text or symbols)

Diagram showing electrical connections with labeled components and wiring paths, including a monitor and two circular insets.

GUIDE PORTAL INFO OK SETTINGS EXIT C D

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical device with wires and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer monitor displaying a sad face, with no visible text or symbols.

Cartoon illustration of a computer monitor character with a sad expression, standing next to an open window (no text or symbols present)

Cartoon illustration of a smiling computer monitor with a smiling face, emitting exhaust smoke from a chimney (no text or symbols)

Cartoon illustration of a smiling house with a wind turbine above, no text or symbols present.

Cartoon illustration of a smiling computer monitor with arms and legs, pointing at it (no text or symbols present)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram showing two methods of removing a container, indicated by red prohibition signs.

Achat séparé

Diagram illustrating a device with labeled parts and hand gestures, showing how to change the screen.

Technical line drawing of a device casing with internal components and dashed red lines indicating alignment or measurement points (no text or symbols)

4 vis

Support Bureau

REMARQUE

Technical diagram showing a mechanical assembly with two circular components and a separate bolted component (no text or labels)

Support Bureau

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Diagram showing electrical connections with labeled components and wiring paths, including a monitor and two circular insets.

Orifices du support

Connexions (notifications)

GUIDE PORTAL INFO OK SETTINGS EXIT C D

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical device with springs and a lightning bolt (no text or symbols)

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face and open window (no text or symbols)

Simple line drawing of a smiling computer monitor on a house with wind turbines and clouds in the background (no text or symbols)

Cartoon illustration of a smiling house with wind lines and a chimney, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms extended, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a filtration or disinfection process with no symbols indicating removal or anti-disinfection.

Separat erhältlich

Diagram illustrating a folding or disassembly process with labeled steps and cross symbols indicating removal or repair states.

Diagram of a device's front view with two lenses and dashed lines indicating perspective or alignment (no text or symbols)

4 Schrauben

Technical diagram of a mechanical assembly with two oval components and a separate bolted component (no text or labels)

Illustration of a computer monitor connected to a cable with two magnified insets showing cable attachment (no text or symbols)

Diagram showing a computer monitor connected to a device with two circular insets highlighting internal components.

GUIDE PORTAL INFO OK SETTINGS EXIT C D

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical device with springs and a lightning bolt (no text or symbols)

Cartoon illustration of a computer monitor with a sad face emerging from its window, next to a closed door (no text or symbols present)

Simple line drawing of a smiling computer monitor on a house with wind turbines and clouds in the background (no text or symbols)

Cartoon illustration of a smiling house with wind lines and a chimney, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms extended, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram showing two methods of removing a substance: one with a hand holding a container, the other with a tool inserted into a container.

Diagram illustrating a device with labeled parts and hand gestures, showing how to change the screen.

10 εK 10 εK 10 εK 10 εK

Diagram of a device interior with two panels and dashed lines indicating light paths (no text or symbols)

4 βίδες

Technical diagram of a mechanical assembly with two oval components and a separate bolted component (no text or labels)

Illustration of a computer monitor connected to a cable with two magnified insets showing cable installation (no text or symbols)

Diagram showing a device connected to a screen with two circular insets highlighting mechanical components.

10 εK 10 εK 10 εK

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE DATA/* AD/* ALARM/*

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical assembly with springs and wires (no text or symbols)

Cartoon illustration of a child lying on the floor while looking at a computer monitor with a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face emerging from its window, symbolizing distress or overload (no text or symbols present)

Simple line drawing of a house with a smiling computer monitor and antenna, no text or symbols present.

Illustration of a smiling house with wind lines and a vertical pole, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms extended, showing a 12cm height indicator (no text or symbols on the monitor itself)

Illustration of hands connecting wires to an electrical socket (no text or symbols)

Diagram showing two methods of removing a tool into a container, with no text labels or symbols.

Acquisto separato

Diagram illustrating a device with labeled parts and directional arrows, showing hand positioning and movement steps.

Technical line drawing of a car front panel with dashed red lines indicating alignment or measurement points (no text or symbols)

4 viti

Technical line drawing of a mechanical component with mounting holes and a separate assembly detail (no text or symbols)

Illustration of a monitor connected to a cable with two magnified insets showing cable attachment (no text or symbols)

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical component with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a computer monitor with a sad face emerging from its screen, next to a window (no text or symbols present)

Simple line drawing of a smiling house with a computer monitor and cloud, no text or symbols present.

Cartoon illustration of a smiling computer monitor with arms extended, showing a 10cm radius indicator (no text or symbols on the device itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram showing two methods of removing a surface, with one method marked by a prohibition symbol.

Elementy do nabycia osobno

Diagram illustrating a device with labeled parts and hand gestures, showing how to change the screen.

Diagram of a device interior with two lenses and dashed lines indicating light paths (no text or symbols)

4 wkręty

Technical diagram of a mechanical assembly with two oval components and a separate screw assembly (no text or labels)

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Diagram showing a device connected to a monitor with two labeled components, one with red arrows indicating motion or force.

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE DATA/* AD/* ALARM/*

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

MANUAL DE INSTRUÇÕES

Illustration of a mechanical device with wires and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face emerging from its window, no text or symbols present.

Cartoon illustration of a smiling home with a computer monitor and clouds above, no text or symbols present.

Cartoon illustration of a smiling house with a pipe and wind lines, no text or symbols present.

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram showing two methods of removing a liquid into a container, with no text labels or symbols.

Diagram illustrating a device with labeled parts and hand gestures, showing how to change the screen.

Diagram of a medical device with internal components and dashed red lines indicating alignment or measurement points (no text or labels)

Technical diagram of a mechanical assembly with labeled parts and a close-up view of a bolt (no text or symbols present)

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols present)

Diagram showing a computer monitor connected to a device with two labeled components, one containing a plug and the other a key.

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE DATA/* AD/* ALARM/*

C

GUIDE Mostra o manual do programa.

PORTAL Apresenta e remove o menu interactivo do hotel.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical device with multiple legs and wires, emitting a lightning bolt (no text or symbols)

Cartoon illustration of a person lying on the floor looking at a computer monitor with a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face emerging from its window, no text or symbols present.

Cartoon illustration of a smiling computer monitor with arms and legs, pointing at a screen (no text or symbols)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram illustrating a device with a magnified view showing hand positioning and tool application steps

Technical line drawing of a mechanical component with dashed lines indicating alignment or projection (no text or symbols)

4 винта

Technical diagram of a mechanical component with two circular parts and a separate bolt assembly (no text or labels)

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Diagram showing a device connected to a monitor with two labeled components, likely illustrating a mechanical or electrical setup.

Diagram showing a device being cut off into a package, with a magnified view of the device's internal structure (no text or symbols present)

Diagram showing a mechanical assembly with a magnified detail of a component, likely illustrating a turning or mounting process.

Technical illustration showing a mechanical assembly with a bracket and a close-up of a component detail (no text or symbols)

GUIDE PORTAL INFO OK SETTINGS EXIT C D

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a person reacting to a computer screen displaying a sad face (no text or symbols present)

Cartoon illustration of a computer monitor with a sad face emerging from its window, no text or symbols present.

Cartoon illustration of a smiling house with a computer monitor and clouds above, no text or symbols present.

Cartoon illustration of a smiling house with a windmill above, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram showing two methods of removing a substance, with one method marked by a prohibition symbol.

Compra por separado

Diagram illustrating a cable or cable joint operation with labeled steps and cross symbols indicating movement direction.

Diagram of a vehicle's front view with dashed lines indicating sensor or measurement points (no text or labels)

4 tornillos

Technical diagram showing a mechanical assembly with labeled parts and a close-up of a bolted joint detail.

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols present)

Diagram showing electrical connections with labeled components and a monitor displaying an oval symbol above it.

GUIDE PORTAL INFO OK SETTINGS EXIT TEXT T.OPT SUBTITLE DATA/* AD/* ALARM/*

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

Cartoon illustration of a computer monitor with a sad face and flying smoke, symbolizing speed or urgency (no text or symbols present)

Illustration of a fuse or plug assembly with a lightning bolt indicating compression (no text or symbols)

Illustration of a hand using a coiled cable to connect a plug into a socket (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and open window (no text or symbols)

Two identical line drawings of a mechanical component with no visible text or symbols

Cartoon illustration of a smiling computer monitor with arms raised, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Safety warning illustration showing no protection symbols for a device, with one hand holding a tool and another without.

Ayrı satılan öğeler

Diagram illustrating how to press or attach a device, showing step-by-step states of hand positioning and alignment.

Diagram of a medical device with internal components and alignment lines (no text or symbols)

4 Vida

Ayaklik Sehpa

NOT

- Vida : M5 x L (*L: Masa derinliği + 8\~10 mm) örn.) Masa derinliği: 15 mm, Vida : M5 x L25

B tipi)

Technical diagram of a mechanical assembly with labeled components and dashed lines indicating alignment or measurement (no text or symbols present)

Ayaklik Sehpa

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols present)

Diagram showing electrical connections with labeled components and a monitor displaying a circular symbol above it.

GUIDE PORTAL INFO OK SETTINGS EXIT C D

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

LG Electronics Mlawa Sp. z o.o. (Ltd.)

LG Electronics 7 street

06-500 Mlawa, Poland

Tel.: [phone]

Fax: [phone]

LG Electronics Wroclaw Sp. z 0.0

UI. LG Electronics 1-2

Biskupice Podgorne

55-040 Kobierzyce, Poland

Tel: [phone]

Fax: [phone]

LG Electronics Inc.

77, Sanho-daero, Gumi-si, Gyeongsangbuk-do, 39381, Rep. of KOREA

Tel : [phone]

Fax: [phone]

Yetkili Servisler

Değerli Müşterimiz,

Illustration of a mechanical device with springs and a lightning bolt, no text or symbols present

Cartoon illustration of a computer monitor with a sad face emerging from its window (no text or symbols present)

Simple line drawing of a smiling computer monitor with wind turbines and clouds above (no text or symbols)

Cartoon illustration of a smiling house with wind lines above, no text or symbols present

Cartoon illustration of a smiling computer monitor with arms extended, showing a 10cm scale indicator (no text or symbols on the monitor itself)

Illustration of hands using a tool to connect wires to an electrical outlet (no text or symbols present)

Diagram showing two methods of removing a liquid, with one method marked by a prohibition symbol.

Diagram illustrating how to change a screen with hand gestures, showing correct and incorrect states of action.

Technical line drawing of a car front view with dashed red lines indicating perspective projection (no text or symbols)

4 ГВИНТИ

Technical diagram of a mechanical assembly with labeled parts and a dashed line indicating alignment or projection (no text or symbols present)

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Diagram showing a device with two circular insets highlighting internal components, likely illustrating a mechanical or electrical setup.

GUIDE PORTAL INFO# OK SETTINGS EXIT C D

C

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
