Million FS2610 - Iron TEFAL - Free user manual and instructions

Brand	TEFAL
Model	Million FS2610
Product type	Dry iron
Power supply	220-240 V ~ 50/60 Hz
Temperature adjustment	Yes, with thermostat and indicator
Temperature settings	Linen (Max), Cotton (•••), Wool (••), Silk and synthetics (•)
Indicator light	Yes, lights up during heating
Soleplate	Not specified (standard type)
Power cord	With cord winder on heel
Usage	Household, indoor only
Resting surface	Stable, on the heel
Safety	Do not immerse, do not touch hot soleplate, unplug after use
Soleplate care	Clean with a damp sponge when warm, no abrasive products
Weight	Approximately 1.2 kg (estimate)

Frequently Asked Questions - Million FS2610 TEFAL

How to adjust the ironing temperature?

Use the thermostat to select the position corresponding to the fabric: Linen (MAX), Cotton (•••), Wool (••), Silk and Synthetics (•). The indicator light turns on and then off when the soleplate is hot.

What to do if the soleplate is dirty or brown and stains the laundry?

This may be due to too high a temperature. Clean the warm soleplate with a damp sponge and use a lower temperature.

Can I use the iron on all types of fabrics?

Yes, by adjusting the temperature. For blended fibers, set to the most delicate fiber. Test first on a hidden area for delicate fabrics.

How to store the iron after use?

Unplug it, wait until it cools completely, wrap the cord around the heel, and store it upright on its heel to avoid damaging the soleplate.

Does the iron heat up quickly?

Yes, the iron heats up quickly. Start with low-temperature fabrics and finish with those requiring high temperature.

Is it normal for the indicator light to turn on and off during ironing?

Yes, it's normal. The thermostat maintains the temperature; the light turns on when the iron heats up and turns off when the temperature is reached.

Can I use the iron unattended?

No, never leave the iron plugged in unattended. Unplug it after each use and before cleaning.

How to clean the soleplate?

Clean the warm soleplate with a damp sponge. Never use aggressive or abrasive products, or a metal pad.

What to do if the power cord is damaged?

The cord must be immediately replaced by an Authorized Service Center to avoid any danger.

Is this appliance suitable for children?

Children under 8 years old must not use the iron unattended. Children aged 8 and above can use it if they have received safety instructions. Keep the iron and its cord out of reach of children under 8 years old.

USER MANUAL Million FS2610 TEFAL

Black and white image of a steam iron with handle and spout (no visible text or symbols)

1 2 3 4 5 6

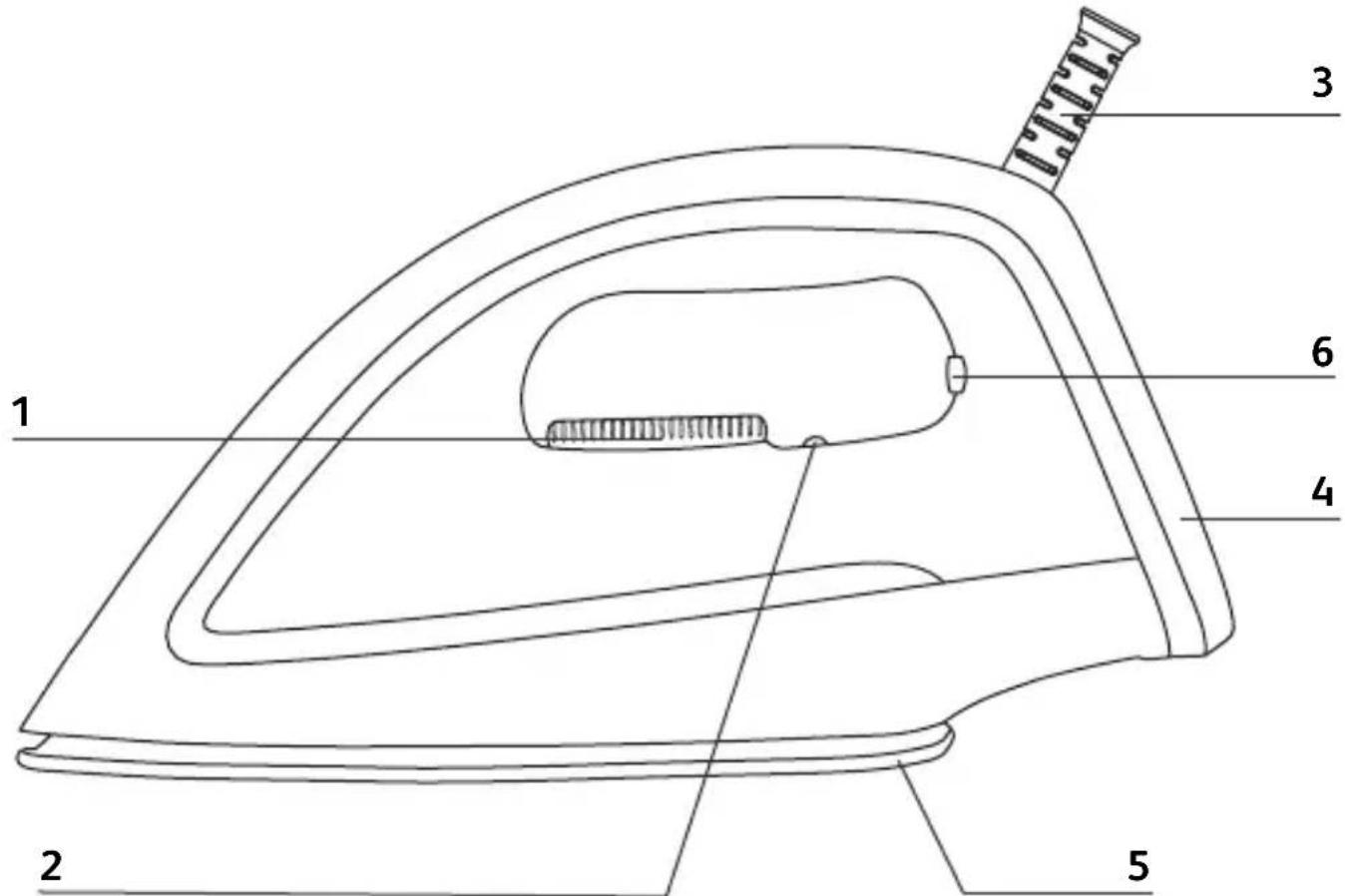

EN - Description

1- Temperature setting knob
2- Temeprature setting indicator
3- Power cord
4- Cord Windy Heel
5- Soleplate
6- Thermostat light

FR - Description

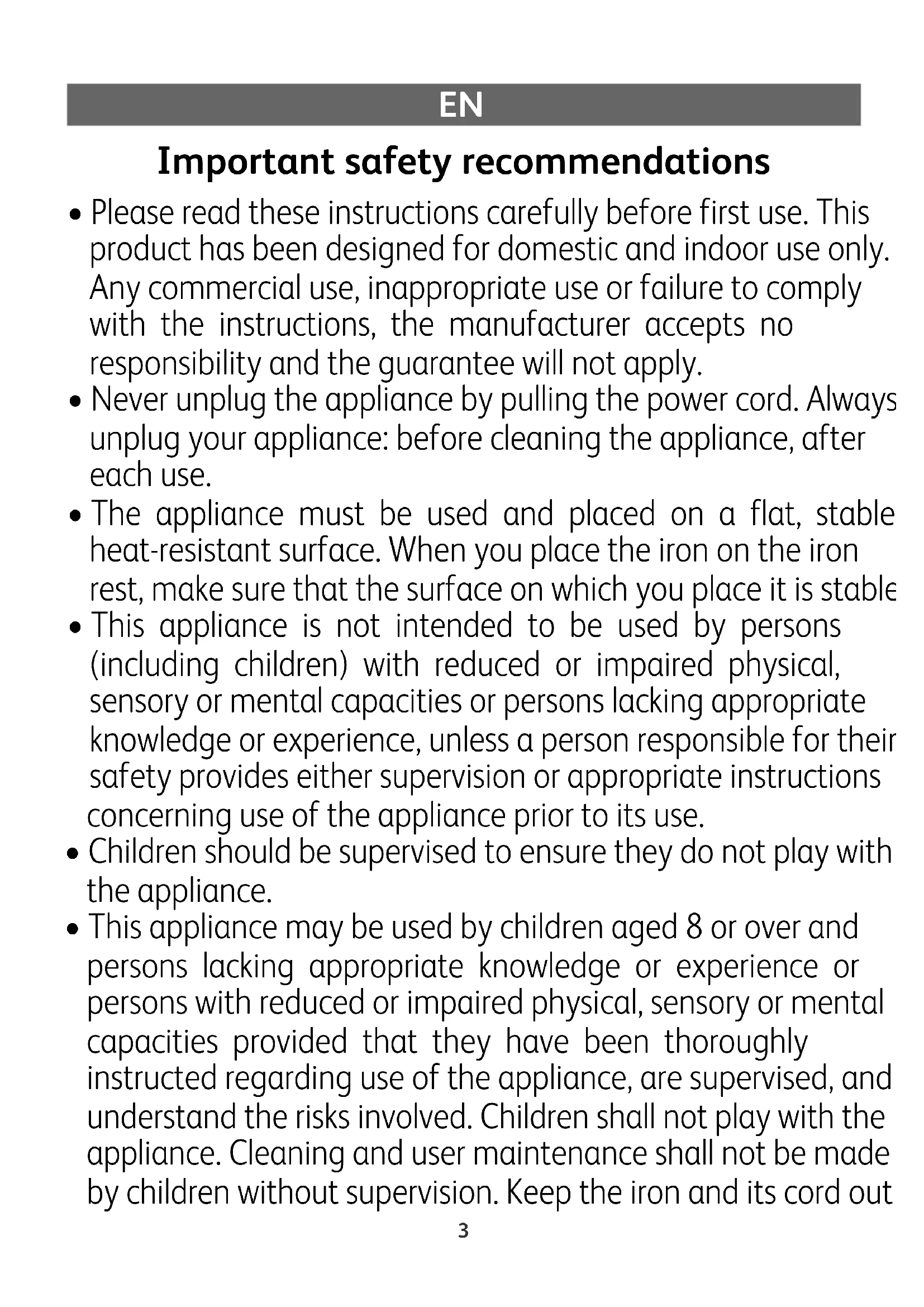

Important safety recommendations

- Please read these instructions carefully before first use. This product has been designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

- Never unplug the appliance by pulling the power cord. Always unplug your appliance: before cleaning the appliance, after each use.

- The appliance must be used and placed on a flat, stable heat-resistant surface. When you place the iron on the iron rest, make sure that the surface on which you place it is stable

- This appliance is not intended to be used by persons (including children) with reduced or impaired physical, sensory or mental capacities or persons lacking appropriate knowledge or experience, unless a person responsible for their safety provides either supervision or appropriate instructions concerning use of the appliance prior to its use.

- Children should be supervised to ensure they do not play with the appliance.

- This appliance may be used by children aged 8 or over and persons lacking appropriate knowledge or experience or persons with reduced or impaired physical, sensory or mental capacities provided that they have been thoroughly instructed regarding use of the appliance, are supervised, and understand the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the iron and its cord out

of reach of children less than 8 years of age when it energized or cooling down.

EN IS

- The surfaces of your appliance can reach very high temperatures when functioning, which may cause burns. Do not touch the hot surfaces of the appliance (accessible metal parts and plastic parts adjacent to the metallic parts).

• Never leave the appliance unattended when it is connected to the mains. Before storing the appliance, once it is unplugged, please wait until it has cooled down (around 1 hour).
• The appliance must not be used if it has been dropped, if it has any visible damage, if it functions abnormally in any way. Do not attempt to dismantle your appliance: have it examined at an Approved Service Centre to avoid any danger.

• Check the electrical power for sign of wear or damage prior to use. If the electrical power cord is damaged, it must be replaced at an Approved Service Centre to avoid any danger.

• When you place the iron on its heel, ensure that the surface on which it is placed is stable.

• For your safety, this appliance conforms to all applicable regulations (Low Voltage Directive, Electromagnetic Compatibility, Environment, etc).
• Your iron is an electrical appliance: it must be used under normal conditions of use. It is designed for domestic use only.
  • Always plug your iron:
• into a mains circuit with voltage between 220 V and 240 V,
• into an earthed electrical socket.
  Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. If you are using a mains extension lead, ensure that it is correctly rated (10A) with an earth, and is fully extended.
• Completely unwind the power cord before plugging into an earthed socket.
• The soleplate of your iron can reach extremely high temperatures, and can cause burns: do not touch them. Never touch the electrical power cords with the soleplate of the iron.
• Never immerse your iron in water or any other liquid. Never place it under a running tap.

Before first use

When you first use the iron, some smoke or a harmless odour may be produced. This will not affect the use of the iron and will disappear quickly.

PLEASE RETAIN THIS INSTRUCTION

BOOKLET FOR FUTURE REFERENCE

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

Use

Adjust the temperature

- Select the temperature (see table below) setting the thermostat facing the indicator.

FABRIC	POSITION OF THERMOSTAT CURSOR
LINEN	MAX
COTTON	...
WOOL	...
SILKSYNTHETIC(Polyester, Acetate, Acrylic, Nylon)	•

• The thermostat light comes on. It will go out when the soleplate is hot enough.
• Your iron heats up quickly: so begin by ironing fabrics that are ironed at low temperatures first, then go on to those requiring a higher temperature.
• When ironing fabrics with mixed fibres, set the ironing temperature for the most delicate fibre. For delicate fabrics we recommend testing the fabric first on an inconspicious place eg (inside the hem).

It is normal for the indicator light to switch on and off during ironing.

If you turn down the thermostat, wait until the thermostat light comes back on before beginning to iron again.

Storage and Maintenance

Store your iron

• Unplug the iron.
• Wait until the soleplate cools down and Wind the cord around the heel of the iron.
• Store the cold iron on its heel.

Always set your iron on its heel, in order to avoid damage or scratching to the soleplate. Caution: placing your iron flat onto a metallic surface might damage or scratch the soleplate.

Cleaning the soleplate

• Unplug the iron, and when the soleplate is just warm, wipe it with a soft cloth.
  Never use abrasive or aggressive products.

Problems with your iron?

PROBLEM POSSIBLE CAUSES SOLUTIONS
The soleplate is dirty or brown and may soil clothes.	The temperature is too high. Clean the soleplate as indicated in the user guide Use a lower temperature.
The soleplate is scratched or damaged. You have positioned your iron flat on the metallic iron support.You have cleaned your soleplate with an abrasive cloth or steel wool.	Always place your iron in the support base Clean the soleplate as indicated in the user guide.
