Product type	Iron
Brand	Tefal
Model	Easy Spray 30 FS4530
Power supply	220-240 V ~ 50/60 Hz
Power	2400 W (estimated)
Water tank capacity	270 ml (estimated)
Weight	1.5 kg (estimated)
Soleplate	Stainless steel soleplate (estimated)
Temperature setting	Thermostat with positions: Synthetic/Silk, Wool, Cotton, Linen
Steam function	Not specified (no steam mentioned, only spray)
Spray function	Yes, with built-in pump and removable tank
Thermostat indicator light	Indicator light showing heating
Power cord length	2 m (estimated)
Cord winder	Built-in heel cord winder
Anti-scale system	Not specified
Auto shut-off	Not specified
Recommended water type	Untreated tap water
Maintenance and cleaning	Warm soleplate: damp sponge; do not use abrasive products
Safety	Do not immerse; use a grounded outlet; replace cable by an approved service center
Spare parts and repairability	Parts available from Tefal authorized service centers
Use	Household use only

Frequently Asked Questions - Easy Spray 30 FS4530 TEFAL

How to set the temperature on my Tefal Easy Spray 30 iron?

Turn the thermostat dial to align the mark with the desired fabric: Synthetic/Silk (●), Wool (●●), Cotton (●●●), Linen (MAX). The indicator light turns on and off when the soleplate has reached the temperature.

What to do if my iron's spray does not project water?

Check that the tank is sufficiently filled and that you are using untreated tap water (no scented or softened water). If the problem persists, fill the tank completely.

Why is my iron leaking?

The leak may be due to filling the tank while it was still inserted in the iron, or overfilling. Always fill the tank outside the iron and do not exceed the MAX level.

How to clean the soleplate of my Tefal iron?

Clean the soleplate warm with a damp sponge. Never use harsh or abrasive products to avoid damaging it.

Can I use hard water in my iron?

Yes, untreated tap water is recommended. Avoid scented, softened water or water containing additives, as they may clog the appliance.

How to store my Tefal Easy Spray 30 iron?

Unplug the iron, eject the spray and empty the tank. Let it cool completely, wind the cord around the heel and place the iron on its heel to protect the soleplate.

What to do if the spray does not eject?

Press firmly on the spray ejection button located on top of the iron. Make sure the button is fully pressed.

My iron does not heat up, what to check?

Check that the thermostat is set to a position other than 'off' (off symbol). Make sure the outlet is working and the cord is not damaged. If the problem persists, contact an authorized service center.

The thermostat indicator light stays on continuously, is this normal?

Yes, it is normal. The indicator light turns on when the iron heats up and turns off when the temperature is reached. It may turn on again to maintain the temperature, especially if you lower the setting.

What types of water not to use in this iron?

Do not use scented, softened water or water containing additives (such as descaling agents). Use only untreated tap water to avoid premature aging.

USER MANUAL Easy Spray 30 FS4530 TEFAL

Black and white photo of a Tefal iron iron with visible steam iron (no text or symbols on the iron itself)

Easy Spray

Technical diagram of a steam iron with numbered parts for identification

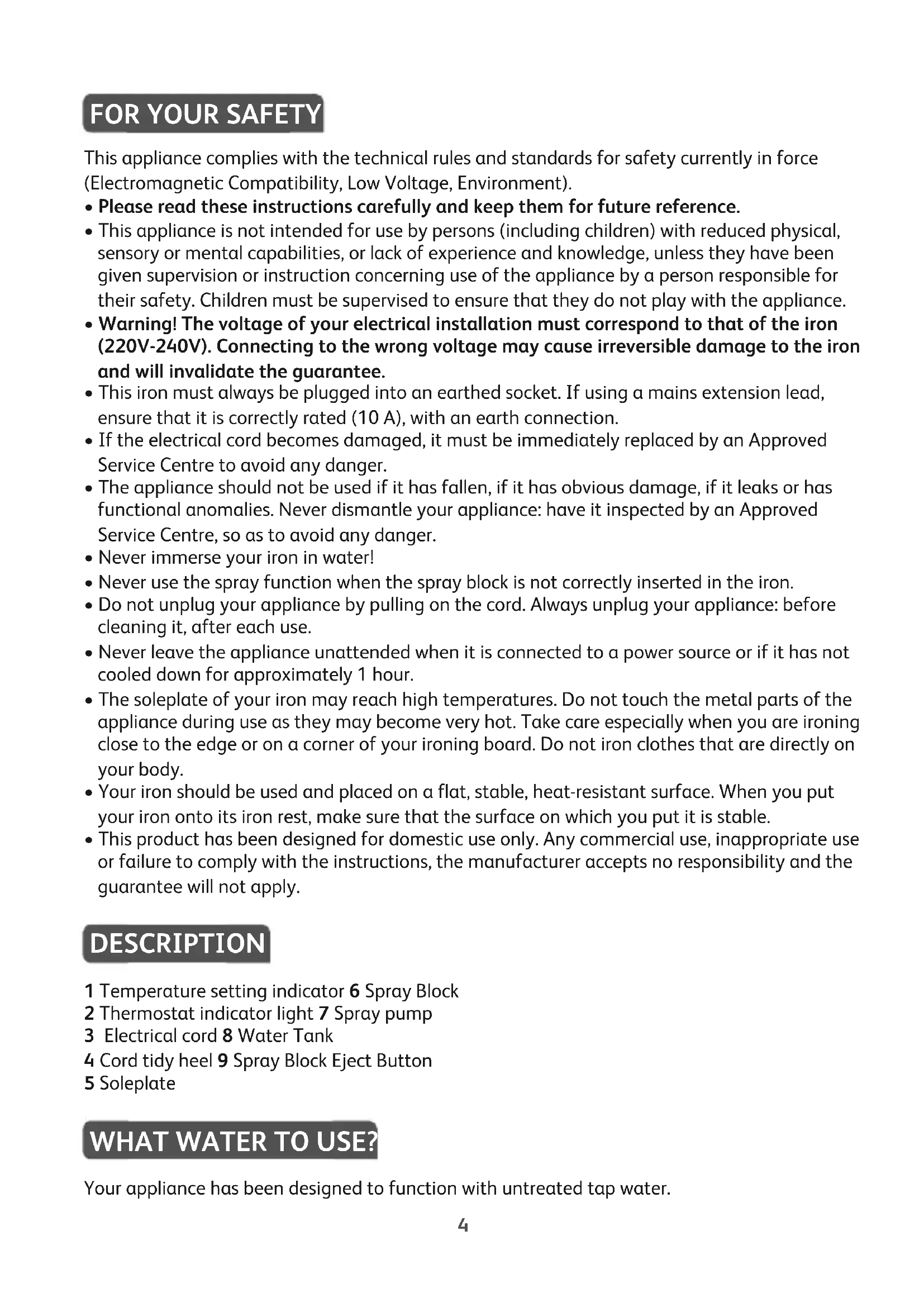

FOR YOUR SAFETY

This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environment).

- Please read these instructions carefully and keep them for future reference.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

- Warning! The voltage of your electrical installation must correspond to that of the iron (220V-240V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.

- This iron must always be plugged into an earthed socket. If using a mains extension lead, ensure that it is correctly rated (10 A), with an earth connection.

- If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger.

- The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or has functional anomalies. Never dismantle your appliance: have it inspected by an Approved Service Centre, so as to avoid any danger.

- Never immerse your iron in water!

- Never use the spray function when the spray block is not correctly inserted in the iron.

- Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before cleaning it, after each use.

- Never leave the appliance unattended when it is connected to a power source or if it has not cooled down for approximately 1 hour.

- The soleplate of your iron may reach high temperatures. Do not touch the metal parts of the appliance during use as they may become very hot. Take care especially when you are ironing close to the edge or on a corner of your ironing board. Do not iron clothes that are directly on your body.

- Your iron should be used and placed on a flat, stable, heat-resistant surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.

- This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

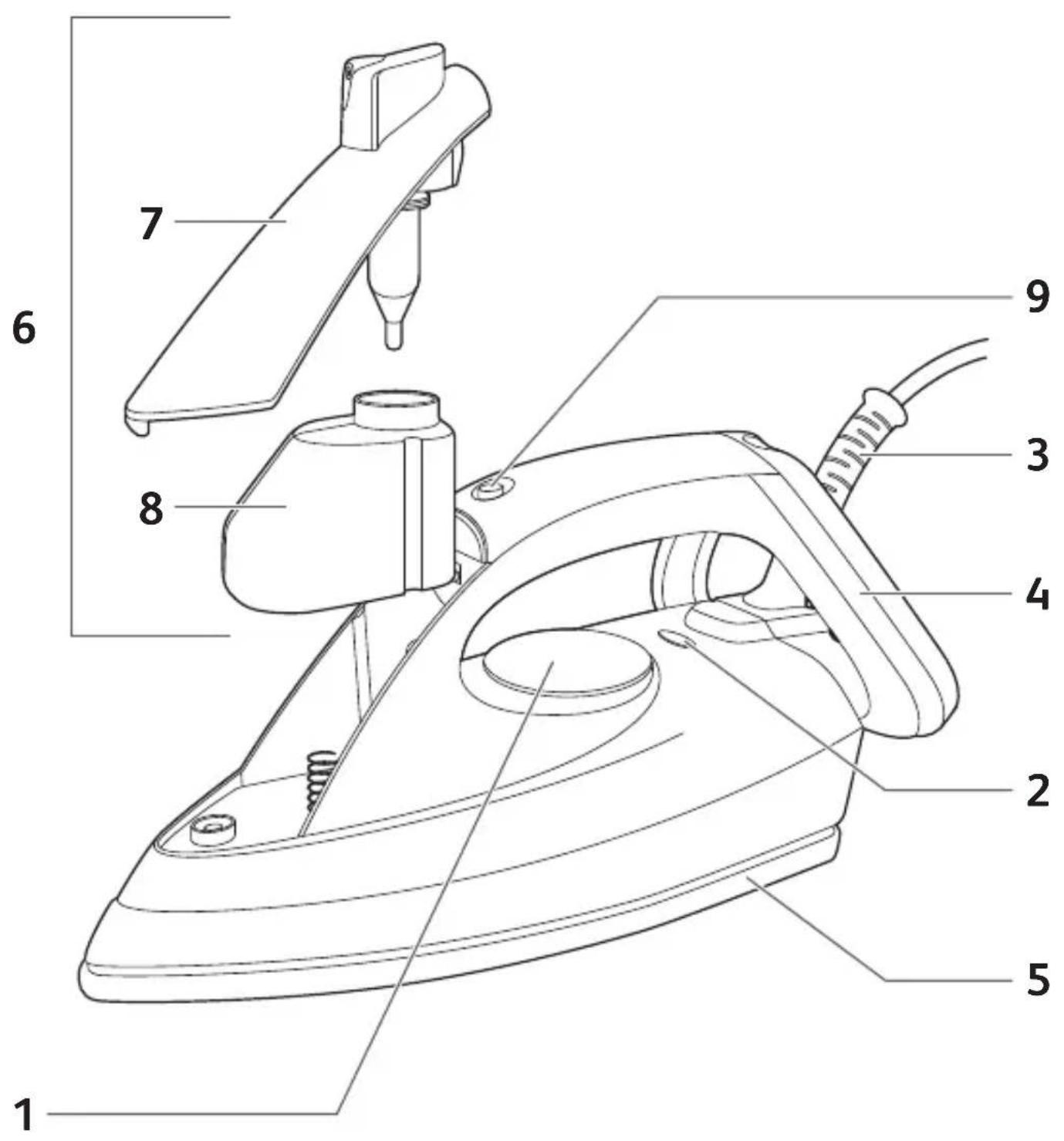

DESCRIPTION

1 Temperature setting indicator 6 Spray Block

2 Thermostat indicator light 7 Spray pump

3 Electrical cord 8 Water Tank

4 Cord tidy heel 9 Spray Block Eject Button

5 Soleplate

WHAT WATER TO USE?

Your appliance has been designed to function with untreated tap water.

TYPES OF WATER NOT TO USE?

The types of water listed below contain mineral elements that can cause premature wear of the appliance: scented or softened water and water with additives should not be used in your Tefal iron.

USE

Adjust the temperature

- Select the temperature (see table below) setting the thermostat facing the indicator.

Fabric Position of Thermostat Cursor
SilkSynthetic (Polyester, Acelate, Acrylic, Nylon)	●
Wool	●●
Cotton	●●●
Linen MAX

• The thermostat light comes on. It will go out when the soleplate is hot enough.
• Your iron heats up quickly: so begin by ironing fabrics that are ironed at low temperatures first, then go on to those requiring a higher temperature.
• When ironing fabrics with mixed fibres, set the ironing temperature for the most delicate fibre. For delicate fabrics we recommend testing the fabric first on an inconspicuous place eg (inside the hem).

It is normal for the indicator light to switch on and off during ironing.

If you turn down the thermostat, wait until the thermostat light comes back on before beginning to iron again.

STORAGE AND MAINTENANCE

Store your iron

• Unplug the iron.
• Eject the spray block and empty the water tank.
• Wait until the soleplate cools down and wind the cord around the heel of the iron.
• Store the cold iron on its heel.

Always set your iron on its heel, in order to avoid damage or scratching to the soleplate. Caution: placing your iron flat onto a metallic surface might damage or scratch the soleplate.

Cleaning the soleplate

- Unplug the iron, and when the soleplate is just warm, wipe it with a soft cloth. Never use abrasive or aggressive products.

A PROBLEM WITH YOUR IRON

Problem Cause Solution
The spray does not spray. The	water tank is not filled enough.You have used water with additives.	Fill up the water tank.Use tap water.
The spray block does not eject.	Spray block eject button is not pushed enough.	Ensure you push the spray block eject button correctly.
The iron leaks. You have filled	the watertank while it was still inserted in the iron, and have spilt some on the side.Water tank is overfilled.	Fill the water tank out of this iron.Do not exceed the MAX level.

ENVIRONMENT PROTECTION FIRST!

①Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.
