Product type	Ceiling light for terrariums
Brand	Ferplast
Model	Exploralight
Available power	15W, 18W, 30W (double tube)
Lamp type	T8 fluorescent (2 tubes)
Supply voltage	230-240 V ~ 50 Hz
Dimensions (15W)	50 x 21 x 7 cm
Dimensions (18W)	65 x 21 x 7 cm
Dimensions (30W)	96 x 21 x 7 cm
Recommended terrarium (15W)	50/60 cm
Recommended terrarium (18W)	80/80 H cm
Recommended terrarium (30W)	110/110 H cm
Ballast	Electronic
Reflector	Parabolic
Housing material	Painted metal (non-toxic moisture-resistant paint)
Included accessories	2 metal brackets, 4 suction cups, 1 anti-glare blade
Main functions	Optimal terrarium lighting, UV compatible, energy saving, extended lamp life
Safety	Electronic protection at end of lamp life, automatic disconnection; use with residual current circuit breaker ≤30 mA
Maintenance	Annual lamp replacement; exterior cleaning with damp cloth after disconnecting
Warranty	Manufacturer's warranty on manufacturing defects (lamps excluded)
Use	Indoor only
Installation	Fixation by suction cups above the terrarium

Frequently Asked Questions - Exploralight Ferplast

How to install the Exploralight ceiling light?

Mount the 2 brackets by sliding them along the lower guides, attach the 4 suction cups. Place the anti-glare blade (if you have a Ferplast EXPLORA terrarium). Fix the ceiling light above the terrarium with the suction cups: the front suction cups on the glass, the rear ones on the sheet without openings.

What type of lamp to use?

The Exploralight ceiling light accepts T8 fluorescent tubes of power 15W, 18W or 30W depending on the model. Use lamps suitable for terrarium lighting, including UVA-UVB lamps.

Can I use UV lamps?

Yes, it is recommended to place the UVA-UVB lamp at the back of the ceiling light so that the rays pass through the rear slots. The front glass could filter out beneficial UV.

How to replace a lamp?

Unplug the device. Unscrew the two sealing rings from the sockets. Turn the lamp a quarter turn to align the pins with the slot, then remove it. Insert the new lamp by turning it a quarter turn until it clicks. Tighten the rings.

What to do if the power cord is damaged?

A damaged cord requires complete replacement of the device. Do not attempt to repair it yourself for safety reasons.

What is the lifespan of the lamps?

It is recommended to replace the lamps at least once a year to maintain an optimal emission spectrum. The exact lifespan depends on the lamp type and usage.

How to clean the ceiling light?

Unplug the device. Clean the outside with a damp cloth. Do not immerse in water. Make sure the rings are tightly closed to maintain sealing.

Does the warranty cover the lamps?

No, the Ferplast warranty only covers manufacturing defects of the ceiling light and its components. Lamps are excluded from the warranty.

What terrariums are suitable for the ceiling light?

The recommended dimensions are: 50/60 cm for the 15W model, 80/80 H cm for the 18W, and 110/110 H cm for the 30W. It is designed for Ferplast EXPLORA terrariums, but can adapt to others.

Why is my ceiling light not turning on?

Check that the lamps are properly inserted and turned a quarter turn. Make sure the power is connected and the residual current circuit breaker has not tripped. If the problem persists, contact a qualified installer.

USER MANUAL Exploralight Ferplast

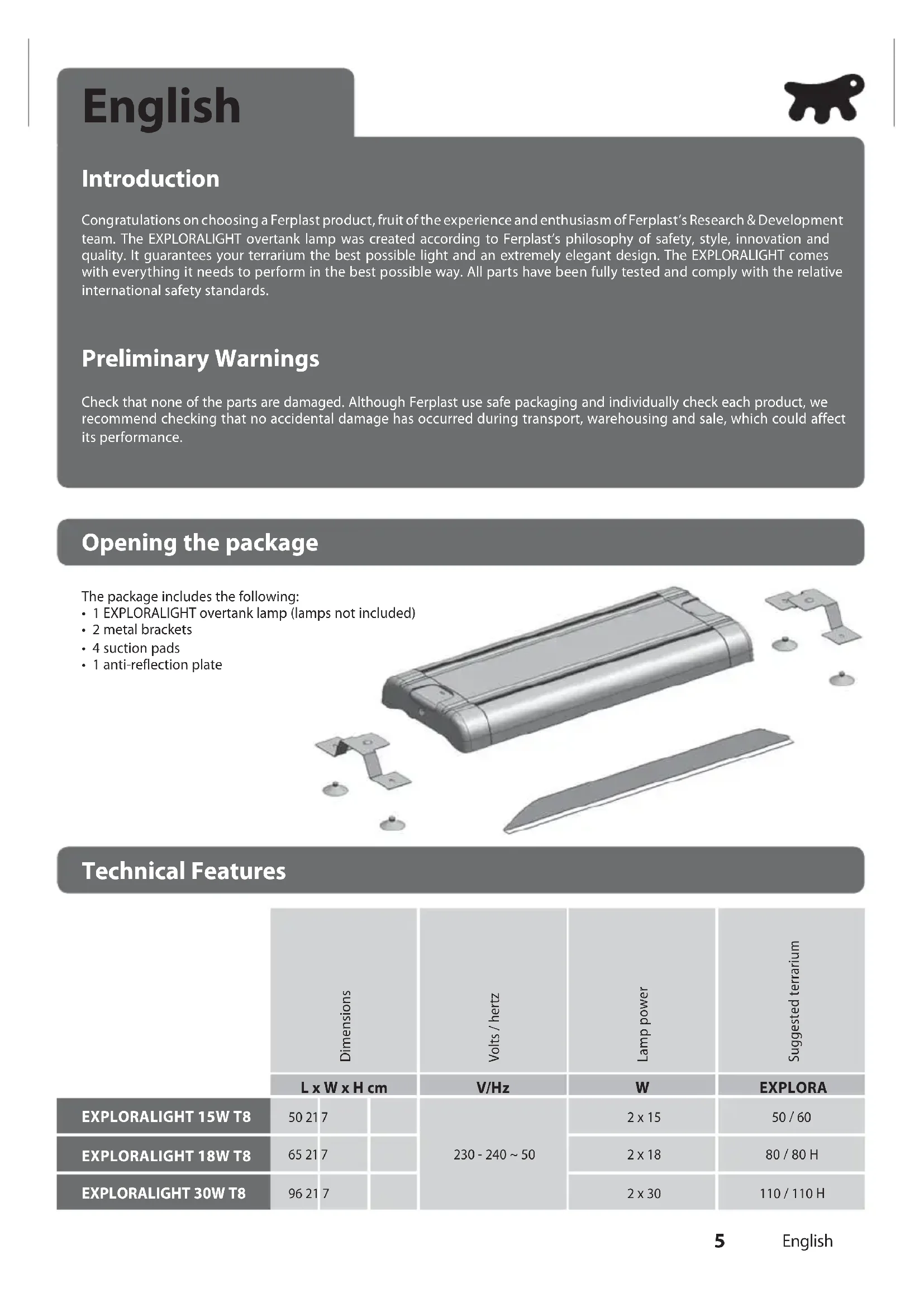

English Overtank lamp for terrariums 5

Black rectangular electronic device with four legs and a handle, shown against a white background (no text or symbols visible)

Italiano

Premessa

3D cutaway view of a mechanical component with exploded view and mounting bracket (no text or symbols)

Installazione

3D model of a rectangular electronic component with attached mounting brackets and mounting holes (no text or symbols visible)

Mechanical component with two circular components and mounting brackets (no visible text or symbols)

Architectural detail showing a roof structure with a screw and mounting bracket (no text or symbols)

3D CAD model of a mechanical assembly with a cylindrical component inserted into a base plate (no visible text or symbols)

EXPLORALIGHT: plafoniera per terrari

Manutenzione

Diagram of a mechanical shaft with multiple end caps and two curved ends, showing directional arrows (no text or labels)

Garanzia

Congratulations on choosing a Ferplast product, fruit of the experience and enthusiasm of Ferplast's Research & Development team. The EXPLORALIGHT overtank lamp was created according to Ferplast's philosophy of safety, style, innovation and quality. It guarantees your terrarium the best possible light and an extremely elegant design. The EXPLORALIGHT comes with everything it needs to perform in the best possible way. All parts have been fully tested and comply with the relative international safety standards.

Preliminary Warnings

Check that none of the parts are damaged. Although Ferplast use safe packaging and individually check each product, we recommend checking that no accidental damage has occurred during transport, warehousing and sale, which could affect its performance.

Opening the package

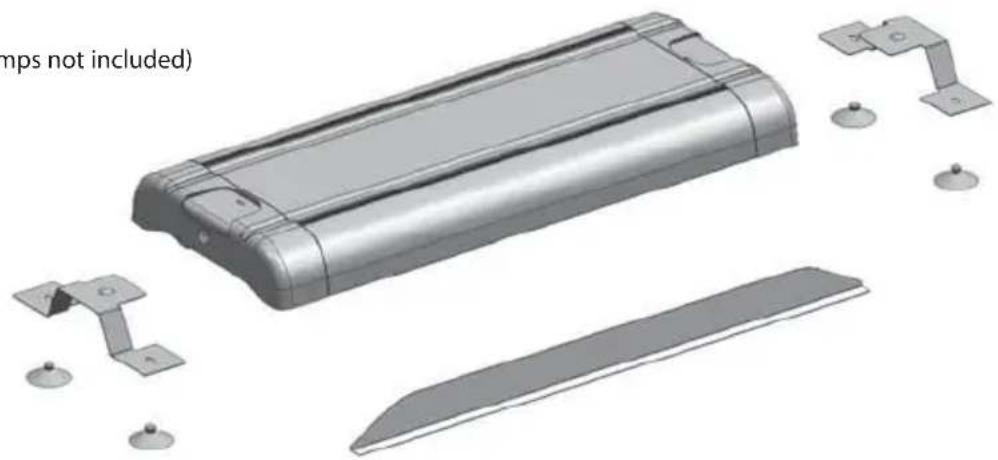

The package includes the following:

• 1 EXPLORALIGHT overtank lamp (lamps not included)
- 2 metal brackets
- 4 suction pads
• 1 anti-reflection plate

3D cutaway view of a mechanical component with exploded view and mounting bracket (no text or symbols)

Technical Features

	Dimensions			Volts / hertz	Lamp power	Suggested terrarium
	L x W x H cm			V/Hz	W	EXPLORA
EXPLORALIGHT 15W T8	50 21 7			230 - 240 ~ 50	2 x 15	50 / 60
EXPLORALIGHT 18W T8	65 21 7				2 x 18	80 / 80 H
EXPLORALIGHT 30W T8	96 21 7				2 x 30	110 / 110 H

EXPLORALIGHT: overtank lamp for terrariums

Preliminary Operations

For your safety, please read the instructions below carefully before performing maintenance operations of any kind.

- Check that the voltage requirements of appliance correspond to the power supply voltage.

• This product is intended for indoor use.

- Ensure that your home is protected by a differential safety switch with a tripping current of no more than 30mA.

- Do not connect the product to the power supply before completing all installation operations.

- Disconnect the electrical appliance from the power supply before performing maintenance operations of any kind.

- Connect the plug to the power supply, leaving a loop in the cable below the socket to prevent drops of water from reaching the power supply (Fig. 1).

- Remember that water and dust protection levels are ensured only if the lamps have been inserted and the ring nuts have been perfectly tightened.

- If the power supply cable is damaged, the entire appliance must be replaced.

- Any extraordinary maintenance must be performed by qualified personnel.

Important:

- "Qualified personnel" means a qualified technician registered in the Roll of Installers.

- "Extraordinary maintenance" means any kind of maintenance not included in the section "Maintenance".

Features

Brackets

EXPLORALIGHT overtank lamps come with 2 painted metal brackets (non-toxic moisture-resistant paint) complete with suction pads for installing the device above the terrarium (Fig. 2).

Electronic power supply

The electronic power supply, with fluorescent lamps and parabolic reflector dish, ensures sufficient light in the terrarium and maximum safety and simplicity of use and maintenance.

• Energy saving in accordance with the 2000/55 Europe Directive on use of appliances consumption.

- Increased durability of the lamps.

- More stable light: more similar to sunlight (absence of typical flickering of traditional lighting).

- Greater quality of lighting, which remains constant almost up to the end of lamp life.

- Lower temperatures: the electronic power supply disperses little heat.

- Increased safety: when the lamp is at the end of its life, a sophisticated electronic protection system removes the electrical current and places the appliance in safety conditions.

• Lighter in weight: electronic power supplies weigh much less.

3D mechanical component diagram showing a cylindrical assembly with labeled point C (no text or symbols beyond label)

Installation

- Remove the overtank lamp from the packaging and connect the 2 brackets so that they run along the guides in the lower part of the overtank lamp itself, then attach the 4 suction pads.

3D model of a rectangular electronic component with attached mounting brackets and mounting holes (no text or symbols visible)

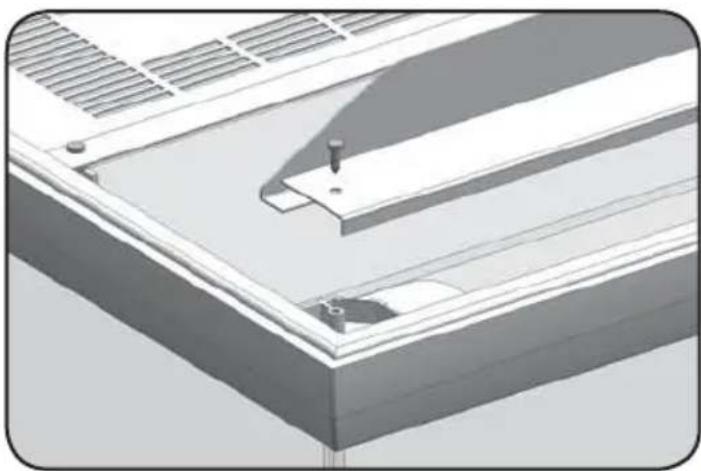

- Fix the anti-reflection plate above the Ferplast EXPLORA terrarium, having loosened the 2 frontal screws.

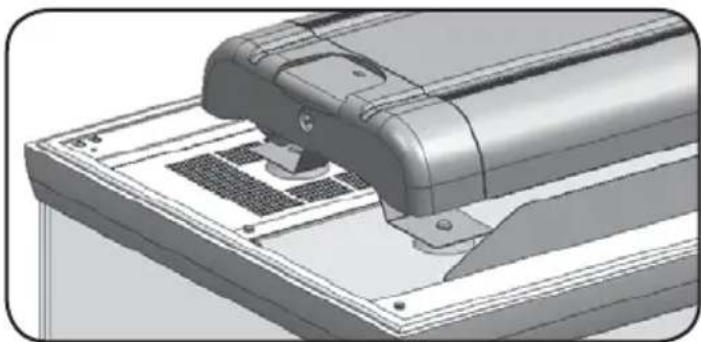

- Position the overtank lamp above the terrarium using the special suction pads, so that the 2 frontal suction pads are attached to the glass while the rear ones are positioned in the area of the metal sheet at the back where slots have been specially provided.

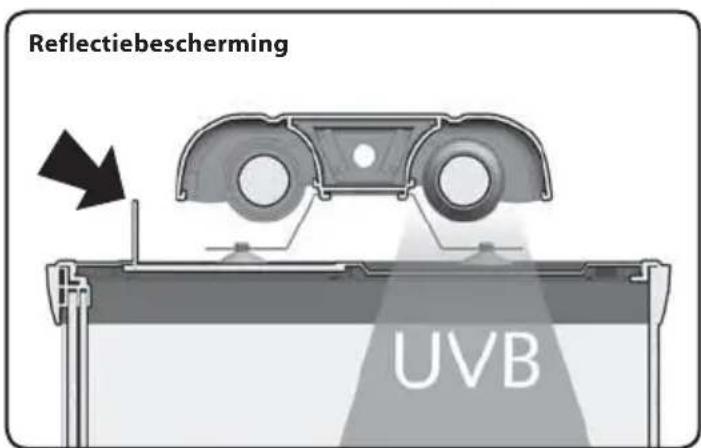

- If you are using a fluorescent UVA-UVB lamp, we recommend that you position it at the back so that the light passes directly into the terrarium through the rear slots (otherwise the glass could filter out the benefits of the UV rays).

Mechanical component with two circular components and mounting brackets (no visible text or symbols)

Architectural detail showing a roof structure with a screw and mounting bracket (no text or symbols)

3D CAD model of a mechanical assembly with a cylindrical component inserted into a base plate (no visible text or symbols)

EXPLORALIGHT: overtank lamp for terrariums

Maintenance

Once installed, EXPLORALIGHT over tank lamps do not require any special maintenance except for replacing the lamps at least once a year in order to maintain an optimal light spectrum.

To replace a lamp (Fig. 3):

• remove the plug from the power supply socket;
• unscrew the two watertight ring nuts from the lamp holder;
• remove the lamp by turning it one quarter of a turn so that neither of the pins is aligned with the slot in the lamp holder;
  • similarly, insert the new lamp by turning it one quarter of a turn (you will hear a click);
  • carefully tighten the ring nuts.

Guarantee

Ferplast guarantees the EXPLORALIGHT overtank lamp and all its parts and accessories within the limits set out in this clause and by the current legal provisions. The guarantee only covers manufacturing defects and includes free repair or replacement. The guarantee does not cover damage and/or defects caused by negligence, wear and tear, use other than according to the instructions and warnings in this booklet, accidents, tampering, incorrect use, faulty or unqualified repairs or purchase not proven by a receipt. The guarantee does not cover lamps.

Within the European Union the barred rubbish container symbol indicates that the product, at the end of its lifecycle, needs to be sent to separate collection point for electrical and electronic waste and cannot be disposed of together with domestic solid waste.

To ensure correct product disposal, please dispose of this product in compliance with the law provisions of the country where the product is found.

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Français

Prémisse

3D cutaway view of a mechanical component with exploded view and mounting bracket (no text or symbols)

3D rendering of a mechanical device with a labeled component (c) and no visible text or symbols

Installation

3D model of a rectangular electronic component with attached mounting brackets and mounting holes (no text or symbols visible)

Mechanical component with two circular components and mounting brackets (no visible text or symbols)

Architectural detail showing a roof structure with a screw and mounting bracket (no text or symbols)

3D mechanical assembly diagram showing a component with mounting holes and a base plate (no text or symbols)

3D model of a device with cutaway view showing internal components and part assembly (no text or symbols)

3D model of a rectangular electronic component with attached mounting brackets and mounting holes (no text or symbols visible)

Mechanical component with two circular components and mounting brackets (no visible text or symbols)

Architectural detail showing a roof structure with a screw and mounting bracket (no text or symbols)

3D CAD model of a mechanical assembly with mounting bracket and internal components (no visible text or symbols)

3D cutaway view of a battery pack with metal components and mounting base (no text or symbols)

Technische gegevens

	Afmetingen			Volts / hertz	Lampsterke	Aanbevolen aterrarium
	L x W x H cm			V/Hz	W	EXPLORA
EXPLORALIGHT 15W T8	50 21 7			230 - 240 ~ 50	2 x 15	50 / 60
EXPLORALIGHT 18W T8	65 21 7				2 x 18	80 / 80 H
EXPLORALIGHT 30W T8	96 21 7				2 x 30	110 / 110 H

3D mechanical component diagram showing a cylindrical housing with mounting base and labeled point C (no text or symbols beyond label)

Installatie

3D model of a rectangular electronic component with attached mounting brackets and mounting holes (no text or symbols visible)

Mechanical component with two circular components and mounting brackets (no visible text or symbols)

Architectural detail showing a roof structure with a screw and mounting bracket (no text or symbols)

3D CAD model of a mechanical assembly with mounting bracket and internal components (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels

Español

Premisa

3D cutaway view of a device showing internal components and parts (no text or symbols)

3D mechanical component diagram showing a cylindrical housing with mounting base and labeled point C (no text or symbols beyond label)

Instalación

3D model of a rectangular electronic component with attached mounting brackets and mounting holes (no text or symbols visible)

Mechanical component with two circular components and mounting brackets (no visible text or symbols)

Architectural detail showing a roof structure with a screw and mounting bracket (no text or symbols)

3D CAD model of a mechanical assembly with a cylindrical component inserted into a base plate (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels
