Brand	Emerio
Model	FN114501.1
Product Type	Pedestal Fan
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	50 W (46.7 W in normal operation)
Maximum Airflow	58.85 m³/min
Sound Power Level	64.69 dB(A)
Maximum Air Velocity	3.24 m/s
Speed Settings	3 speeds (low, medium, high)
Oscillation	Yes, push button up/down
Head Tilt	0° to 10° backward
Height Adjustment	Yes, telescopic tube
Main Material	Plastic
Protective Grille	Yes, front and rear grille
Child Safety	Use possible from 8 years under supervision
Cleaning	Damp cloth, do not immerse, vacuum dust
Warranty	2 years
Ecodesign Standard	EU Regulation No 206/2012 and 2016/2282
Country of Manufacture	China (assumed)
Weight	Approx. 3.5 kg (estimated)

Frequently Asked Questions - FN114501.1 Emerio

How to assemble the fan?

Screw the support column onto the base using the washer and locking screw. Insert the height adjustment tube and tighten the knob. Attach the fan head onto the tube by aligning and tightening the locking knob.

How to adjust the fan height?

Loosen the height adjustment knob, pull the tube to the desired height, then retighten the knob.

How to make the fan oscillate?

Push the oscillation button down to activate oscillation, up to stop it.

How to clean the fan?

Unplug the appliance. Use a damp cloth to clean the exterior. Vacuum dust from the grilles with a brush or vacuum cleaner. Never immerse the appliance in water.

What to do if the fan does not work?

Check that the plug is connected and the speed switch is set to I, II or III. If the problem persists, contact after-sales service. Do not attempt to repair yourself.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not use outdoors or in damp places.

How to store the fan in off-season?

Unplug it, clean it, and store it in a dry place, out of reach of children, preferably in its original packaging.

What is the warranty on this fan?

Emerio offers a 2-year warranty from the date of purchase, subject to presentation of the receipt. The warranty does not cover damage due to improper use.

Is the fan noisy?

The maximum sound level is 64.69 dB(A), which is moderate noise comparable to a standard fan.

Can I tilt the fan head?

Yes, loosen the tilt adjustment knob and screw, tilt the head between 0° and 10° backward, then retighten.

USER MANUAL FN114501.1 Emerio

Black outdoor fan with radial blades and a stand (no text or symbols visible)

Stand fan (EN)

Stand Ventilator (DE)

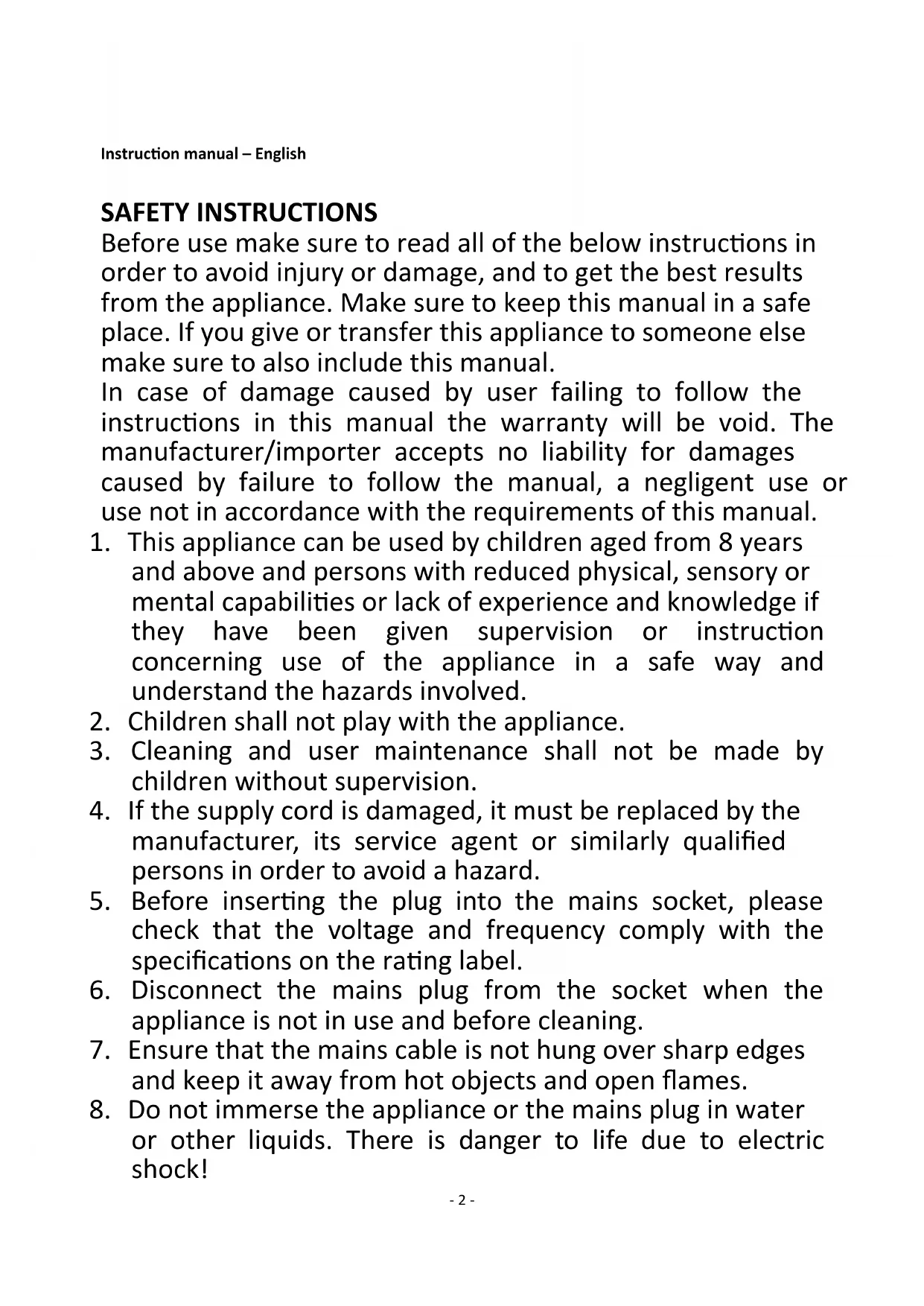

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Keep the appliance away from damp, and protect from splashes.
18. Use the appliance on a flat, dry and heat resistance surface.
19. Do not store or operate the appliance in the open air.
20. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
21. Never put fingers or any other objects through the fan guards when the fan is running.
22. Never operate the product without the fan guards in place, as serious personal injury may result.
23. The appliance must be assembled completely before use.
24. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
25. Do not point the air flow at people for a long time.
26. Ensure that the fan is switched off from the supply mains before removing the guard.

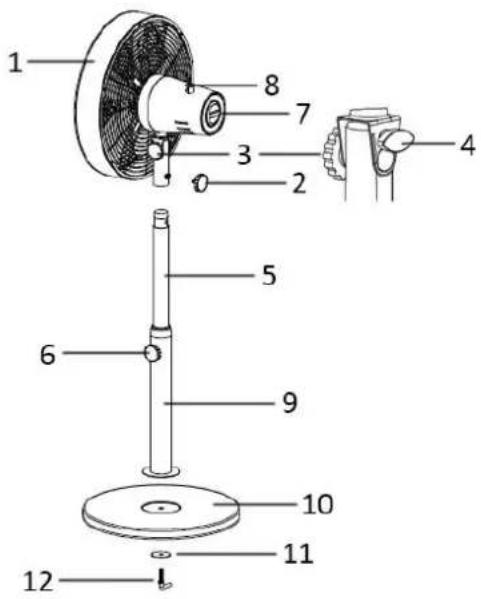

PARTS DESCRIPTION

1. Fan head
2. Locking knob
3. Knob for adjusting tilt of fan head
4. Screw for fixing tilt of fan head
5. Height adjustment pipe
6. Height adjustment knob
7. Speed control switch
8. Oscillation knob
9. Standing shaft
10. Standing base
11. Washer
12. Base locking screw

ASSEMBLING INSTRUCTIONS

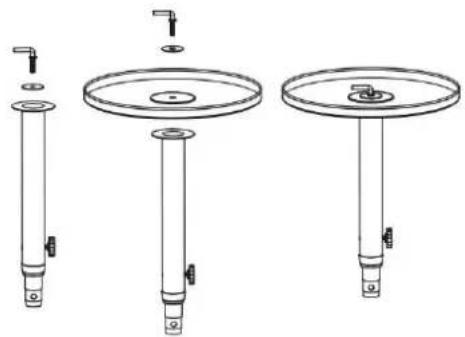

1. Screw off the washer (11) and base locking screw (12) from the standing shaft (9). Attach the standing shaft onto the standing base (10). Place the washer and base locking screw. Rotate the base locking screw to fix the standing shaft firmly.

Technical line drawing of three cylindrical mechanical components with mounting holes and fittings (no text or symbols)

1. Loosen the height adjustment knob (6) and pull out the height adjustment pipe (5). Tighten the height adjustment knob.

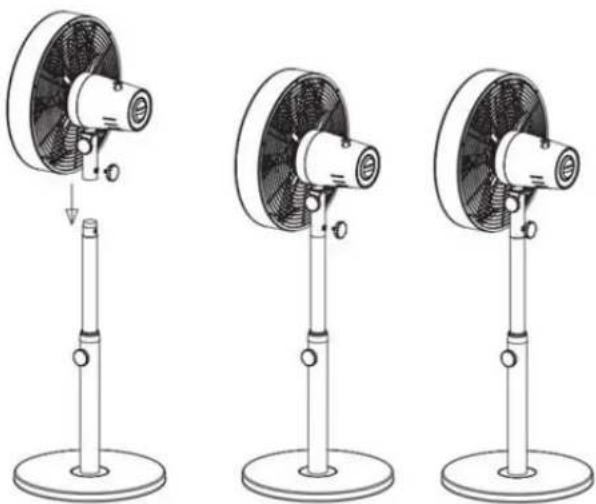

2. Loosen the locking knob (2) on the bottom of the fan head (1). Align and place the fan head onto the top of the height adjustment pipe. Tighten the locking knob to fix the fan head on the top.

Three identical line drawings of a desktop fan with a vertical post and base, showing different fan positions (no text or symbols)

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull up the oscillation knob.
3. Tilting Angle: The fan head can lean slightly backwards in a tilt angle from 0^ to 10^ (See below drawings for reference.). Just loosen anticlockwise the knob for adjusting tilt of fan head (3) and the screw for fixing tilt of fan head (4), push the fan guard and make the fan head lean back to your desired angle within the tilt range, then tighten clockwise the knob for adjusting tilt of fan head (3) and the screw for fixing tilt of fan head (4).

Line drawing of a vertical stand-mounted device with a circular base and mounted components (no text or symbols)

Tilting angle - 0°

Line drawing of a vertical stand with a flat top and a circular base, no text or symbols present

Tilting angle - 10°

1. The fan is switched on by turning the speed control switch, i.e. O = OFF, I = low Speed, II = medium Speed, III = high speed.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 50W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction

manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

EMERIO Switzerland AG

Industriestrasse 47

6300 Zug

Switzerland

ERP information (EN)

Supplier: EMERIO Switzerland AG

Industriestrasse 47

6300 Zug

Switzerland

Declare that the product detailed below:

Information requirements

The mentioned information to identify the FN-114501.1[Stand fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	58,85	m^3/min
Fan power input	P	46,7	W
Service value	SV	1,26	(m^3/min)/W
Standby power consumption	P_SB	—	W
Fan sound power level	L_WA	64,69	dB(A)
Maximum air velocity	C	3,24	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	EMERIO Switzerland AGIndustriestrasse 476300 ZugSwitzerland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
