Brand	Emerio
Model	FN111537.1
Product type	Table fan
Power supply	220-240 V ~ 50 Hz, 20 W
Power consumption (P)	18.12 W
Standby power consumption (PSB)	0.00 W
Number of speeds	2 (low and high)
Oscillation	Yes, with oscillation button
Maximum air flow (F)	13.50 m³/min
Maximum air speed (c)	1.94 m/s
Sound power level (LWA)	52.70 dB(A)
Service value (SV)	0.75 (m³/min)/W
Protection grilles	Front and rear
Assembly	Requires assembly (grilles, blade, base)
Maintenance	Clean with a damp cloth after unplugging
Child safety	Use by children from 8 years under supervision
Warranty	2 years
Customer service	Emerio Deutschland GmbH, [e-mail], [phone]
Recycling	Do not dispose of with household waste (Directive 2012/19/EU)
Standards	EU No 206/2012, IEC 60879, EN 50564, EN 60704

Frequently Asked Questions - FN111537.1 Emerio

How to assemble the Emerio FN111537.1 fan?

Unscrew the fixing ring, place the rear protection grille on the shaft, screw the ring, then place the blade and finally the front grille. Close the clips and secure with the provided screw.

How to use the fan's oscillation?

To activate oscillation, press the oscillation button on the base. To stop it, pull the button upwards.

How to clean the fan?

Turn off and unplug the appliance. Use a damp cloth to clean the exterior. Never immerse the appliance in water. Clean the grilles with a dry brush or vacuum cleaner.

What speeds are available?

The fan offers 2 speeds: low (position 1) and high (position 2). Stop at position 0. Press only one button at a time.

Can the fan be used by children?

Yes, from 8 years under supervision. Children must not play with the appliance. Cleaning and maintenance must not be done by children without supervision.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Do not use the appliance with a damaged cord.

What is the power consumption of the fan?

The operating consumption is 18.12 W (power P). Standby consumption is 0.00 W. The appliance operates on 220-240 V ~ 50 Hz.

How to adjust the fan angle?

This model does not allow manual angle adjustment. Oscillation allows air to be distributed over a wide area. For angle adjustment, gently tilt the head if possible (not specified in the manual).

Is the fan noisy?

The sound power level is 52.70 dB(A), which corresponds to moderate noise, comparable to normal conversation.

Where to find after-sales service?

Customer service is provided by Emerio Deutschland GmbH: email [e-mail], phone [phone]. Address: Höfferweg 14, 51519 Odenthal, Germany.

USER MANUAL FN111537.1 Emerio

Black electric fan with three blades and mesh grille, no visible text or symbols on the fan body

Desk fan (EN)

Instruction manual – English ...... - 2 -

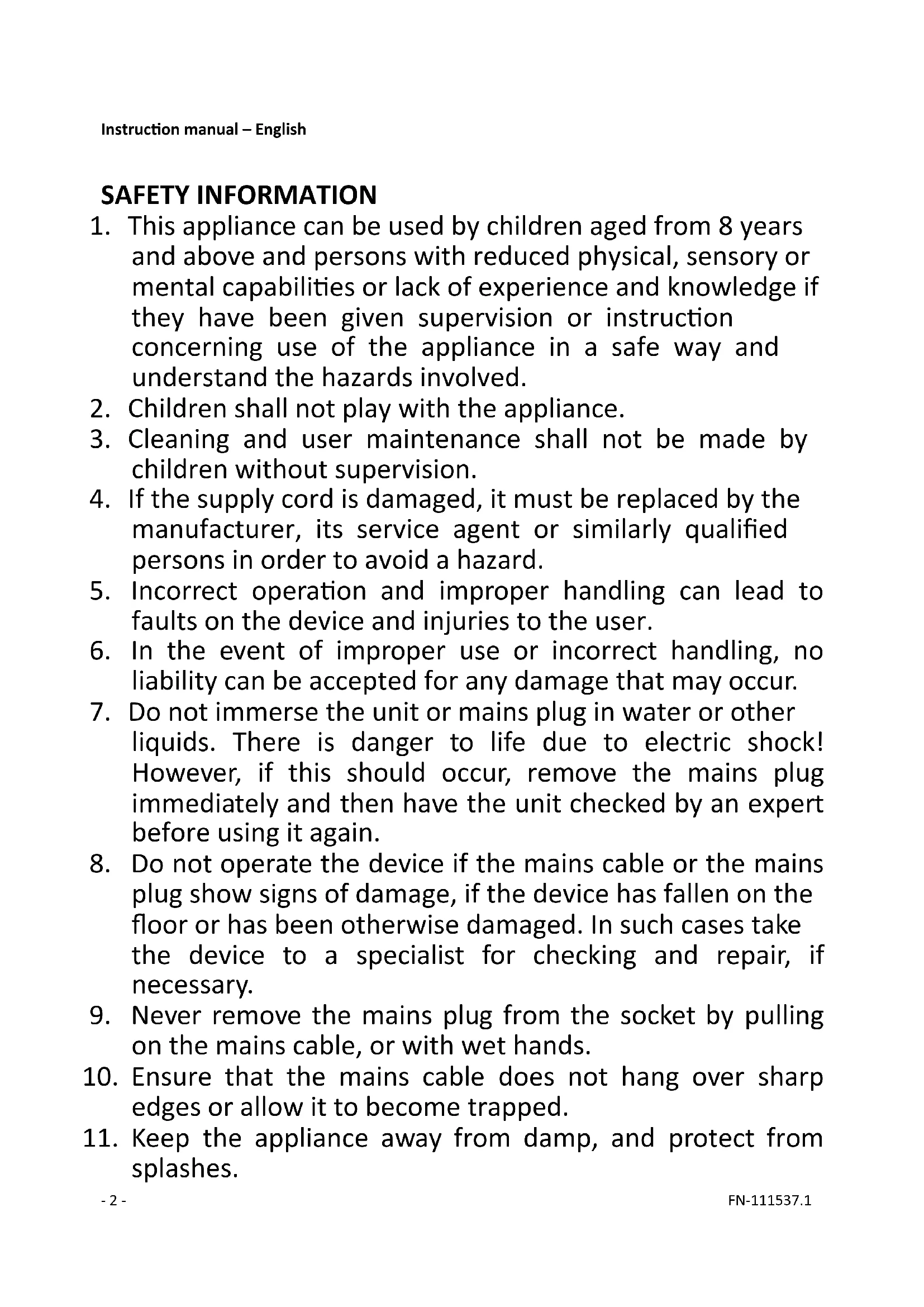

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.
9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistance surface.
15. Never leave the device in unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

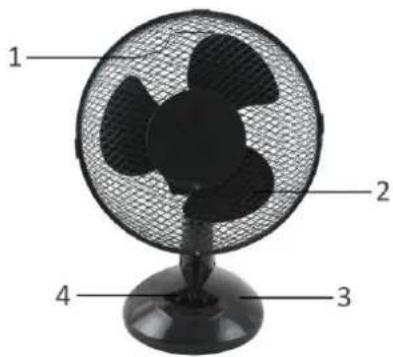

PARTS DESCRIPTION

1. Front fan guard
2. Fan blade
3. Base
4. Speed buttons

ASSEMBLING INSTRUCTION

1. Unscrew the grill retaining ring from the motor shaft.
2. Put the rear fan guard on the motor shaft and screw together with the grille retaining ring.
3. Put the fan blade on the motor shaft.
4. Put on the front fan guard and then close the clips and using the appropriate screw to secure the grille together.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: to make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull-up the oscillation knob.
3. The fan is switched on using the push buttons on the base, i.e. 0: Off, 1 = Low speed, 2 = High speed

CAUTION: Press only one of the speed control button at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Supply voltage: 220-240V \~ 50Hz

Power consumption: 20W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	13.50 m^3/min
Fan power input (P)	18.12 W
Service value (SV)	0.75 ( m^3/min )/W
Measurement standard for service value	(EU) No 206/2012IEC 60879:1986EN 50564:2011EN 60704-2-7:1998EN 60704-1: 2010
Standby power consumption ( P_SB )	0.00 W
Fan sound power level ( L_WA )	52.70 dB(A)
Maximum air velocity (c)	1.94 meters/sec
Contact details for obtaining more information	Emerio Deutschland GmbHHöfferweg 1451519 OdenthalGermany

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Höfferweg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]
