FN110139.5 - Fan Emerio - Free user manual and instructions

Brand	Emerio
Model	FN110139.5
Product type	Table fan
Power supply	220-240 V ~ 50 Hz
Power consumption	35 W
Standby consumption	0.0 W
Maximum air flow	35.0 m³/min
Service value	1.03 (m³/min)/W
Sound pressure level	58.0 dB(A)
Maximum air speed	2.55 m/s
Number of speeds	3 (I, II, III)
Oscillation	Yes, manual control
Tilt	Adjustable and lockable
Protection grilles	Front and rear
Safety	Use by children from 8 years
Cleaning	Damp cloth, vacuum on grilles
Warranty	2 years
Weight (estimated)	2.5 kg
Dimensions (estimated)	40 x 30 x 50 cm

Frequently Asked Questions - FN110139.5 Emerio

How to assemble the fan?

Follow the order: assemble the base by inserting the pole into the base, secure with the ring and screw. Then attach the motor head to the pole. Mount the rear grille with 4 screws, insert the blades and fix them. Finally, clip the front grille and screw it.

How to clean the fan?

Unplug the appliance before cleaning. Use a damp cloth for the exterior. For the grilles, use a vacuum cleaner or a dry brush. Never immerse the appliance in water.

How to activate oscillation?

To oscillate the head, push the oscillation button (mark 10) downwards. To stop, push it upwards.

How to adjust the tilt?

Loosen the head fixing screws, tilt the fan to the desired angle, then tighten the screws to lock the position.

What speeds are available?

The speed button offers 4 positions: 0 = off, I = low, II = medium, III = high.

What to do if the fan does not turn on?

Check that the cord is plugged in and the socket works. Make sure the speed button is not on 0. If the problem persists, contact after-sales service.

Is the fan safe for children?

Yes, from 8 years under supervision. Never let children play with the appliance. Ensure long hair does not get caught in the blades.

What is the warranty?

Emerio offers a 2-year warranty from the date of purchase. Keep the receipt. The warranty does not cover damage due to misuse or repair by an unauthorized third party.

The fan makes noise, is that normal?

The maximum sound level is 58 dB(A), which is normal for a table fan. If the noise is excessive, check that the blades are properly fixed and the rear grille is correctly screwed.

How to store the fan?

Unplug it, clean it, then store it in a dry place away from dust, preferably in its original packaging out of reach of children.

USER MANUAL FN110139.5 Emerio

Exterior view of a four-blade electric fan with visible blades and mounting base (no text or symbols)

Desk fan (EN)

Instruction manual – English ...... - 2 -

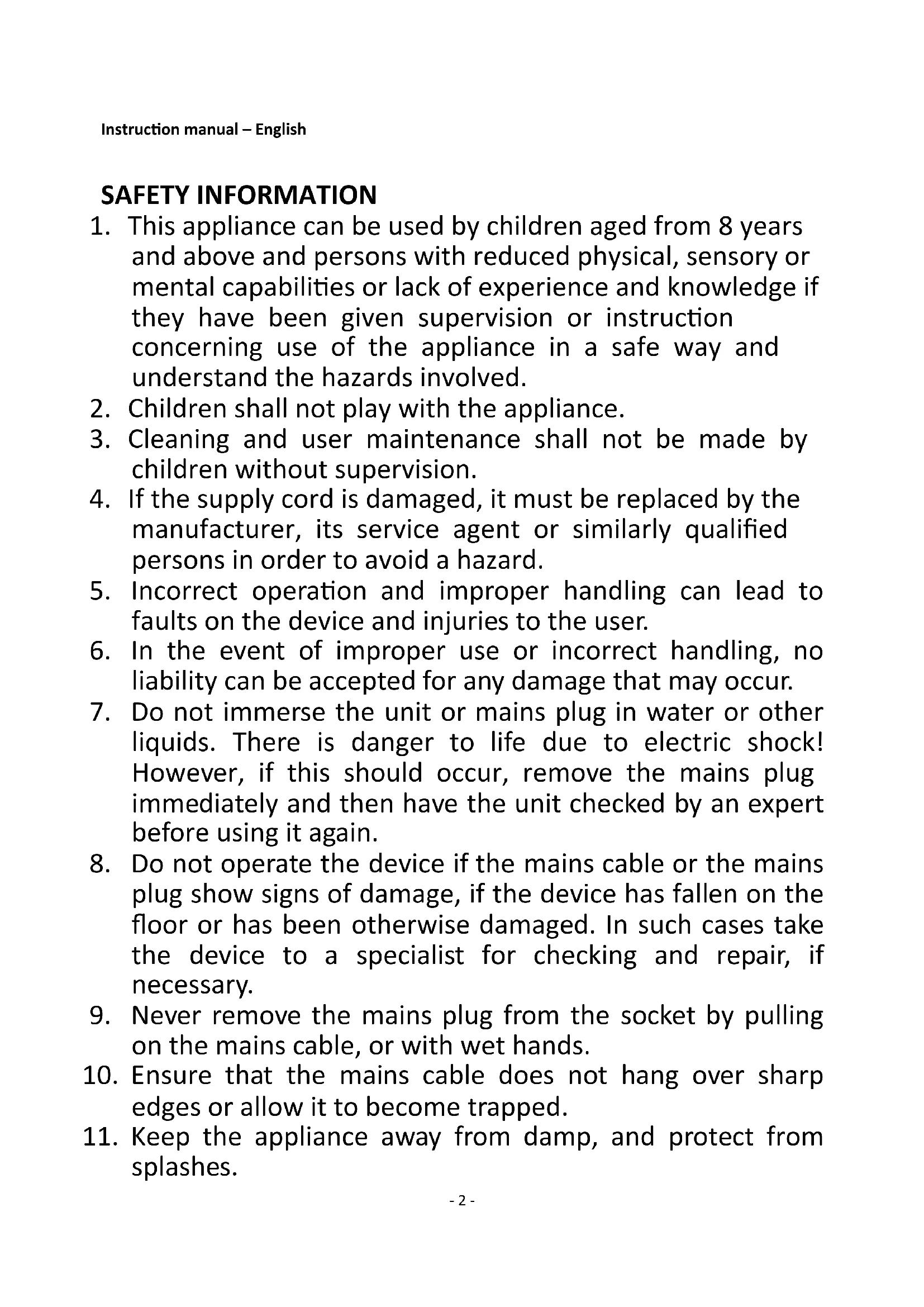

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.

6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.

8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistance surface.
15. Never leave the device unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

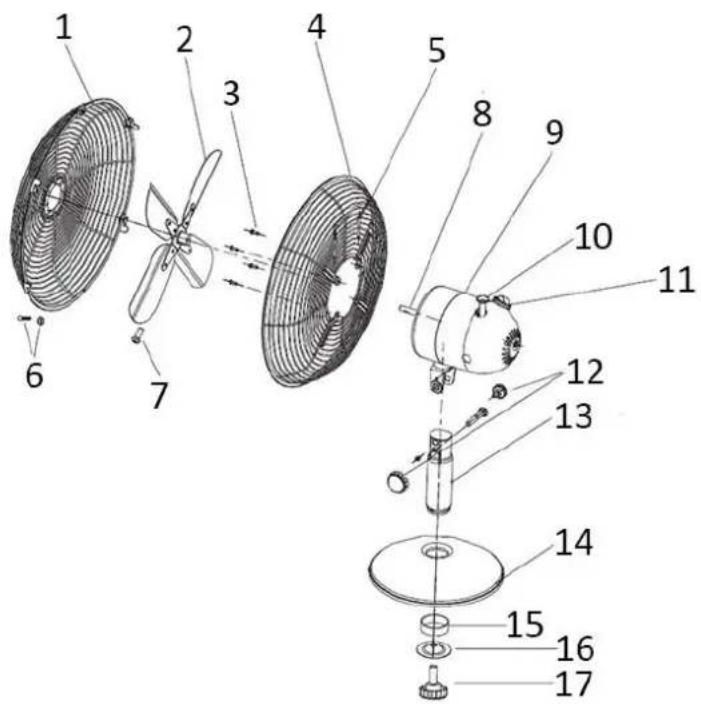

PARTS DESCRIPTION

1. Front guard
2. Blade
3. Fixation screws for rear guard
4. Rear guard
5. Handle
6. Grill locking screw
7. Blade fastening screw
8. Motor shaft
9. Motor unit
10. Oscillation knob
11. Speed control switch
12. Connecting screw and nut
13. Standing shaft
14. Standing base
15. Ring
16. Fastener
17. Base locking screw

ASSEMBLY INSTRUCTIONS

** Please assemble correctly by the following order when using.

1. The stand assembly

Take off the ring (15), fastener (16) and base locking screw (17) from the standing shaft (13).
- Insert the standing shaft into the center hole of standing base (14). Place the ring, fasterner and base locking screw in sequence to the bottom of standing base. Fix the connection of standing shaft by tightening the fastener and base locking screw.

1. Fan head assembly

- Place the Motor unit (9) on the top of standing shaft. Use the connecting screw and nut (12) to tighten the connection, fixing the fan head onto the pipe.

1. Rear guard assembly

- Fit the rear guard (4) onto motor with the handle on the top. Tighten the rear guard with 4 fixation screws (3).

1. Fan blade assembly

• Install fan blade (2) onto motor shaft (6) and use the blade fastening screw (7) to fix the blade.

1. Front guard assembly

2. Put the hook of the front guard (1) onto the top of rear guard.

3. Attach front guard to rear guard, close clips and use the grill locking screw (6) to secure the two grilles together.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob (10). To stop the fan head from oscillating, pull up the oscillation Knob.
3. Tilting Angles: you can adjust the fan to the preferred elevation. Fix the elevation by tightening the connecting screws.
4. The fan is switched on by turning the speed control switch on the motor unit, i.e. 0 = OFF, I = low speed, II = medium speed, III = high speed.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 35W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	35,0 m^3/min
Fan power input (P)	33,9 W
Service value (SV)	1,03 ( m^3/min )/W
Measurement standard for service value	IEC 60879: 1986 (corr.1992)
Standby power consumption (PSB)	0,0 W
Fan sound power level (LWA)	58,0 dB(A)
Maximum air velocity (c)	2,55 meters/sec
Contact details for obtaining more information	Emerio Holland B.V.Zomervaart 1A2033 DA HaarlemThe Netherlands

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts

is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19/EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]
