Brand	Emerio
Model	FN114894.2
Product type	Pedestal fan
Power supply	220-240 V ~ 50-60 Hz
Power consumption	45 W
Number of speeds	3 (low, medium, high)
Timer	1 to 10 hours
Oscillation	Yes
Remote control	Yes, with CR2025 battery
Tilt angle	Manually adjustable
Adjustable height	Yes, via telescopic tube
Blade material	Plastic
Protective grille	Front and rear, with fixing ring
Cleaning	Damp cloth, unplug before
Child safety	Use by children 8+ under supervision
Warranty	2 years
Country of origin	Germany (distributor brand)

Frequently Asked Questions - FN114894.2 Emerio

How to assemble the fan?

Attach the pole to the base with the washer and fixing screw. Adjust the height by loosening the fixing set. Mount the fan housing onto the tube, then install the rear grille, the blade (aligning the slot with the pin), tighten the blade screw counterclockwise, and attach the front grille with the fixing ring.

How to use the remote control?

First remove the plastic protective tab from the CR2025 battery. The remote control keys are the same as the control panel: on/off, speed, timer and oscillation.

How to adjust the fan speed?

Press the speed button to cycle through the three speeds: low, medium and high. The corresponding icon appears on the display.

How to use the timer?

Press the timer button to set the duration from 1 to 10 hours. Each press increases by one hour. Once the duration is set, the fan will turn off automatically. To cancel, set to 10 hours and press again.

How to activate oscillation?

Press the oscillation button (○ symbol). The fan head will oscillate and the corresponding icon will appear on the display. Press again to deactivate.

How to clean the fan?

Unplug the appliance. Use a damp cloth to clean the exterior surfaces. For the grilles, use a dry brush or vacuum cleaner. Never immerse the appliance in water.

What to do if the fan does not turn on?

Check that the plug is properly inserted and the outlet is powered. Ensure the cord is not damaged. If the problem persists, contact customer service.

Can the fan be left running unattended?

No, it is not recommended to leave the appliance unattended while operating, especially in the presence of children or pets.

How to replace the remote control battery?

Remove the battery compartment on the back of the remote and replace with a new CR2025 battery, respecting polarity. Do not dispose of the old battery with household waste.

The fan is making noise, what to do?

Check that the blade rotates freely and is not obstructed. Ensure the fixing screws are tightened. If the noise persists, turn off the appliance and contact customer service.

USER MANUAL FN114894.2 Emerio

Black and white photo of a 15-inch outdoor fan with three blades, mounted on a stand (no visible text or symbols)

Stand fan (EN)

Stand Ventilator (DE)

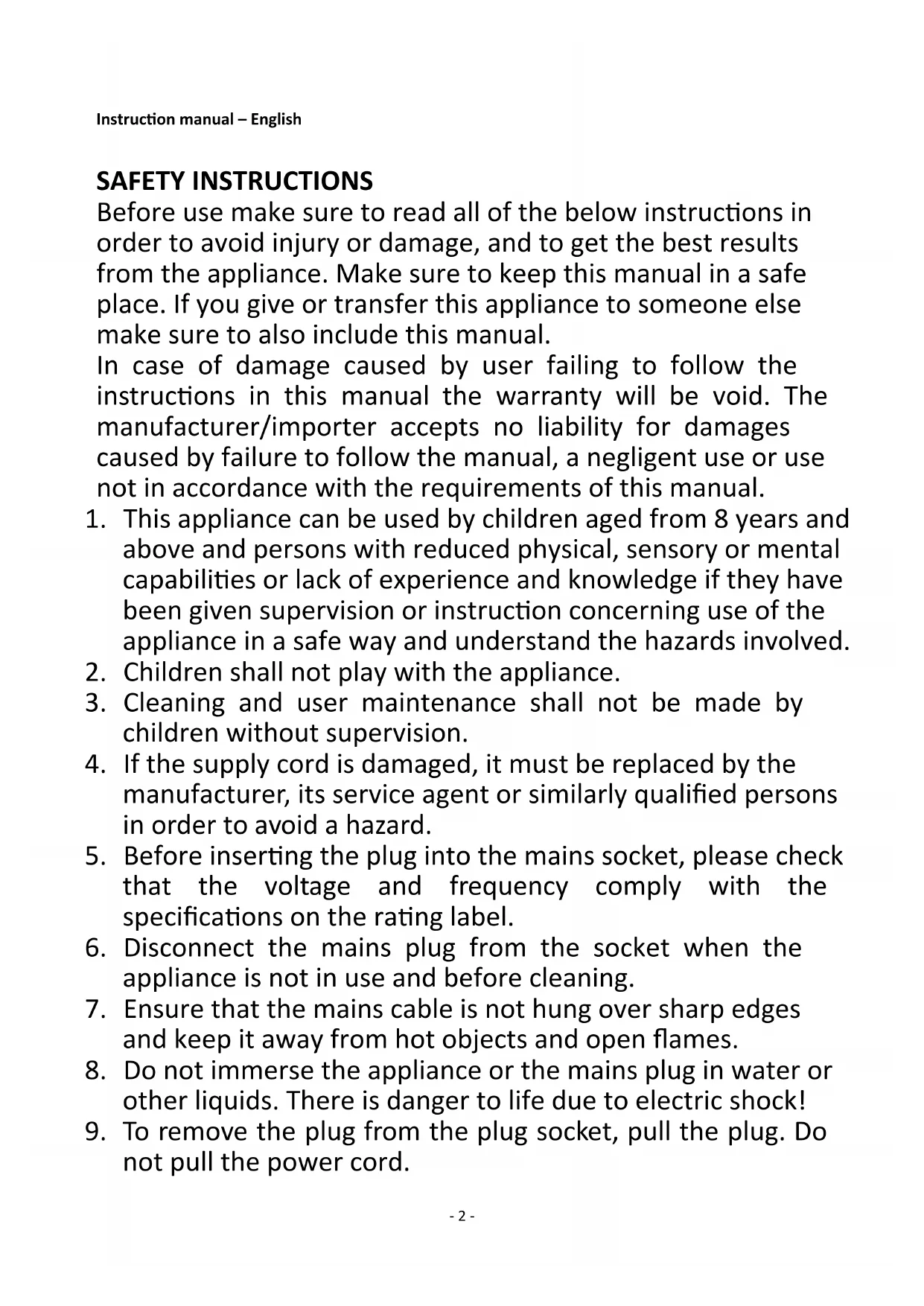

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Keep the appliance away from damp, and protect from splashes.
18. Use the appliance on a flat, dry and heat resistant surface.
19. Do not store or operate the appliance in the open air.
20. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
21. Never put fingers or any other objects through the fan guards when the fan is running.
22. Never operate the product without the fan guards in place, as serious personal injury may result.
23. The appliance must be assembled completely before use.
24. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
25. Do not point the air flow at people for a long time.
26. Ensure that the fan is switched off from the supply mains before removing the guard.

PARTS DESCRIPTION

1. Clamping ring

2. Front guard

3. Blade fastening screw

4. Fan blade

5. Guard fastening screw

6. Rear guard

7. Motor shaft

8. Shaft pin

9. Indication screen

10. Control panel

11. Fastening screw

12. Height adjustment pipe

13. Fasten set

14. Standing shaft

15. Standing base

16. Washer

17. Base locking screw

18. Remote control

Control panel illustration

a) “”: On/off button
b) “”: speed button
c) “”: Timer button
d) “○”: Swing button

Remote control

This unit has a remote control. One piece of CR2025 battery will be provided with the remote control. Before starting to use the remote control, remove the plastic protection from the battery. If you want to change the battery, please refer to the instruction behind the remote control. If it is not in use for a long time, please take the battery out of the remote control. The functions of the remote control buttons are the same as the functions of the buttons on the control panel.

ASSEMBLING INSTRUCTIONS

1. Attach the standing shaft onto the standing base. Place the washer and base locking screw. Rotate the base locking screw to fix the standing shaft firmly.
2. Loosen the fasten set and pull out the height adjustment pipe. Tighten the fasten set.
3. Link the fan main body and the height adjustment pipe together by the fastening screw and then fix them.
4. Remove the blade fastening screw and guard fastening screw from the motor shaft spindle.
5. Fit the rear guard by positioning with the location pins. Secure the guard onto the motor body with the guard fastening screw.

6. Place the fan blade onto the motor shaft by matching the slot with the shaft pin. Fix the blade by tightening the blade fastening screw in a counter-clockwise direction. Check that the fan blade can rotate freely by turning it with your hand.

7. Put the front guard against the rear guard and fix with the clamping ring. Make sure the clamping ring is set properly at the rim of the fan guards. Tighten the screw on the clamping ring.

OPERATION

Plug the power cord into a suitable socket. A beep sound is sent out to indicate the power is connected.

1. Press on/off button to start the fan.

2. Press the speed button to select a desired wind speed. There are three settings indicated by logos on the indication screen ("♣" = low speed; "♣" = medium speed; "♣" = high speed).

3. TIMER: Press the timer button to set after how many hours the fan will be automatically shut off. You can set from 1 hour to 10 hours. When the set time becomes 10 hours ( ^1 H, 2H, 3H, 4H indication screen), press the timer button again, you can cancel the timer. When the selected hours have passed, the fan will be shut off automatically.

4. Oscillation: Press the swing button to control the oscillation function on or off. When the fan head is oscillating, the logo “” will appear on the indication screen.

5. Tilting angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 45W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE OR

IN FIRE OR SHORT CIRCUIT.

POCO Service AG

Industriestraße 17

59192 Bergkamen

Germany
