FN111557.2 - Fan Emerio - Free user manual and instructions

Brand	Emerio
Model	FN111557.2
Product type	Pedestal fan
Supply voltage	220-240 V ~ 50 Hz
Power consumption	50 W
Standby consumption	0.00 W
Maximum airflow	58.48 m³/min
Service value (SV)	1.54 (m³/min)/W
Sound power level	53.51 dB(A)
Maximum air speed	2.09 m/s
Number of speeds	3 (low, medium, high)
Oscillation	Yes, with oscillation button
Adjustable height	Yes, via adjustment tube
Protective grilles	Front and rear included
Main material	Plastic
Cleaning	Damp cloth, do not immerse
Warranty	2 years
Recycling	European Directive 2012/19/EU
Country of origin	Not specified

Frequently Asked Questions - FN111557.2 Emerio

How to assemble the Emerio FN111557.2 fan?

Follow the steps: mount the base by screwing the horizontal shaft onto the base plate, insert the adjustment tube, fix the main body, then install the rear grille, the propeller, and the front grille by tightening the corresponding nuts. See the manual for details.

How to clean the fan?

Turn off and unplug the appliance. Use a damp cloth to wipe the exterior, and a dry brush or vacuum cleaner for the grilles. Never immerse the appliance in water.

Does the fan oscillate?

Yes, to activate oscillation, press the oscillation button. To stop it, pull the button upward.

What speeds are available?

Three speeds: 1 (low), 2 (medium), and 3 (high). Press only one button at a time to avoid damaging the housing.

Can the fan be used by children?

Yes, from 8 years old under supervision. Children must not play with the appliance. Cleaning must not be performed by unsupervised children.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any hazard.

What is the product warranty?

Emerio offers a 2-year warranty from the date of purchase, subject to proper use and presentation of the receipt.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Use local collection points or contact the retailer for recycling in accordance with Directive 2012/19/EU.

Does the appliance emit a lot of noise?

The sound level is 53.51 dB(A), which is comparable to a normal conversation.

Can I use the fan without the protective grilles?

No, never use the product without the grilles. This may cause serious injury.

USER MANUAL FN111557.2 Emerio

White outdoor fan with mesh grille and four arms, mounted on a stand (no text or symbols visible)

Stand fan (EN)

Stand Ventilator (DE)

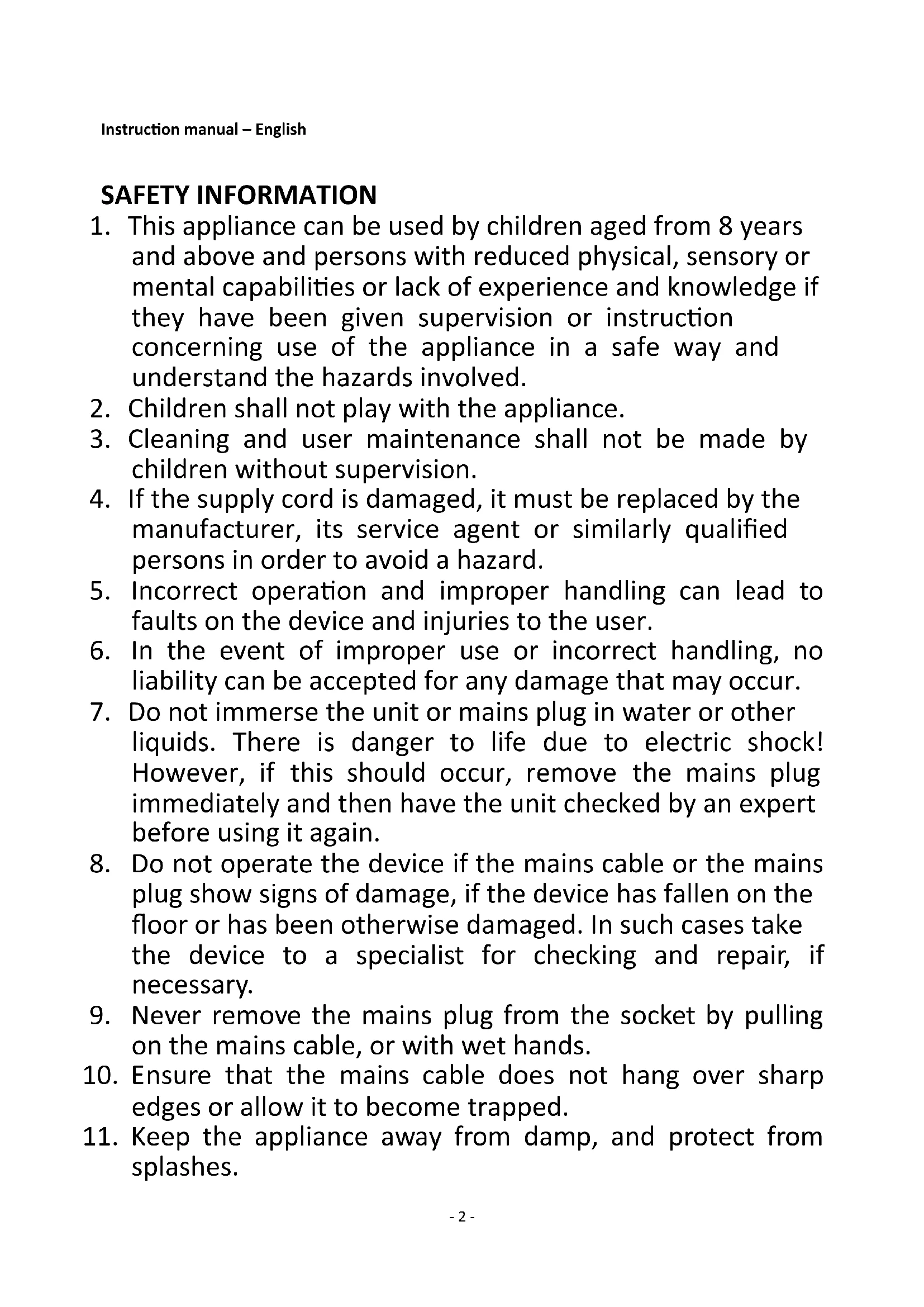

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.

6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.

8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistance surface.
15. Never leave the device in unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

PARTS DESCRIPTION

1. Front guard
2. Guard screw
3. Guard clips
4. Blade fastening screw
5. Blade
6. Guard fastening screw
7. Rear guard
8. Motor shaft
9. Rear shell
10. Oscillation button
11. Speed switch
12. Fastening screw
13. Height adjustment pipe
14. Fasten set
15. Standing shaft
16. Standing base

ASSEMBLING INSTRUCTIONS

** Please assemble correctly by the following orders when using.

1. Assemble the stand

2. Put the standing shaft on the standing base.

3. Screw the standing shaft on the standing base.

4. The whole assembly

5. Pull the height adjustment pipe out and tighten the fasten set.

6. Link the fan main body and the height adjustment pipe together by the fastening screw and then fix them.

7. Rear grille assembly

8. Screw the guard fastening screw and the blade fastening screw out.

9. Fix the rear guard onto the two pillars of the motor front shell.

10. Screw the guard fastening screw tightly in clockwise direction.

11. The assembly of fan blade

12. Insert fan blade onto shaft ensuring blade fits properly onto clip on shaft.

13. Tighten blade fastening screw onto shaft. Note: Blade fastening screw should be tightened in anti-clockwise.

14. Front grille assembly

15. Put the hook of the front grille on the top of rear grille.

16. Attach front grille to rear grille and then close clips and using the guard screw to secure grille together.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull-up the oscillation knob.
3. The fan is switched on by using the push buttons on the control panel, i.e. 0: Off, 1 = Low Speed, 2 = Medium speed, 3 = High speed.

CAUTION: Press only one of the speed control button at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V\~50Hz

Power consumption: 50W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	58.48 m^3/min
Fan power input (P)	37.95 W
Service value (SV)	1.54 ( m^3/min )/W
Measurement standard for service value	(EU) No 206/2012IEC 60879: 1986EN 50564: 2011EN 60704-2-7: 1998EN 60704-1: 2010
Standby power consumption ( P_SB )	0.00 W
Fan sound power level (LWA)	53.51 dB(A)
Maximum air velocity (c)	2.09 meters/sec
Contact details for obtaining more information	LIPO Einrichtungsmärkte AGAm Bruggrain 1CH-4153 Reinach BL

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.
