FN110477.2 - Fan Emerio - Free user manual and instructions

Product type	Pedestal fan
Brand	Emerio
Model	FN110477.2
Power supply	220-240 V ~ 50 Hz
Power consumption	50 W
Maximum air flow	69.95 m³/min
Fan power consumption	53.65 W
Service value	1.30 (m³/min)/W
Standby power consumption	0.00 W
Sound power level	63.7 dB(A)
Maximum air speed	2.99 m/s
Number of speeds	3 (low, medium, high)
Oscillation function	Yes, via push button
Adjustable tilt	Yes, manually
Protective grille	Yes, front and rear
Assembly required	Yes, base and tubes
Cleaning	Damp cloth, do not immerse
Warranty	2 years

Frequently Asked Questions - FN110477.2 Emerio

How to assemble the fan?

Insert the lower tube into the base aligning the bulge with the slot, secure with 4 screws. Then insert the upper tube into the lower tube turning clockwise to tighten. Mount the fan head by fixing the rear grille, blade, and front grille according to the detailed instructions in the manual.

How to clean the fan?

Turn off and unplug the appliance. Use a damp cloth to clean the exterior. Never immerse the appliance in water. Clean the air vents with a dry brush or vacuum cleaner to prevent dust accumulation.

How to oscillate the fan head?

To activate oscillation, push the oscillation button down. To stop it, push the button up. Oscillation allows air to be distributed in different directions.

How to adjust the fan speed?

The speed control buttons are marked 0 (off), 1 (low speed), 2 (medium speed), and 3 (high speed). Press only one button at a time to avoid damaging the control box.

Is the fan safe for children and pets?

The appliance can be used by children over 8 years old under supervision. Children should not play with the appliance. Ensure the protective grilles are in place and long hair cannot get caught in the fan.

What to do if the fan makes an abnormal noise?

Check that the blade rotates freely and no object obstructs the grilles. Ensure all screws are tight. If the noise persists, contact customer service.

What is the power consumption of the fan?

The power consumption is 50 W in normal operation. In standby, consumption is 0.00 W, which is very low.

How to adjust the fan tilt?

Push on the fan grille to adjust the desired tilt angle. You can direct the airflow upward or downward as needed.

What to do in case of malfunction?

Unplug the appliance immediately. Do not attempt to repair it yourself. Contact Emerio customer service at [e-mail] or by phone at [phone].

Can the fan be used outdoors?

No, the appliance is designed for indoor use only. Do not use it outdoors and protect it from moisture and splashes to avoid any risk of electric shock.

USER MANUAL FN110477.2 Emerio

Black outdoor fan with radial blades and a black stand (no text or symbols visible)

Stand fan (EN)

Stand Ventilator (DE)

Instruction manual – English ...... - 2 -

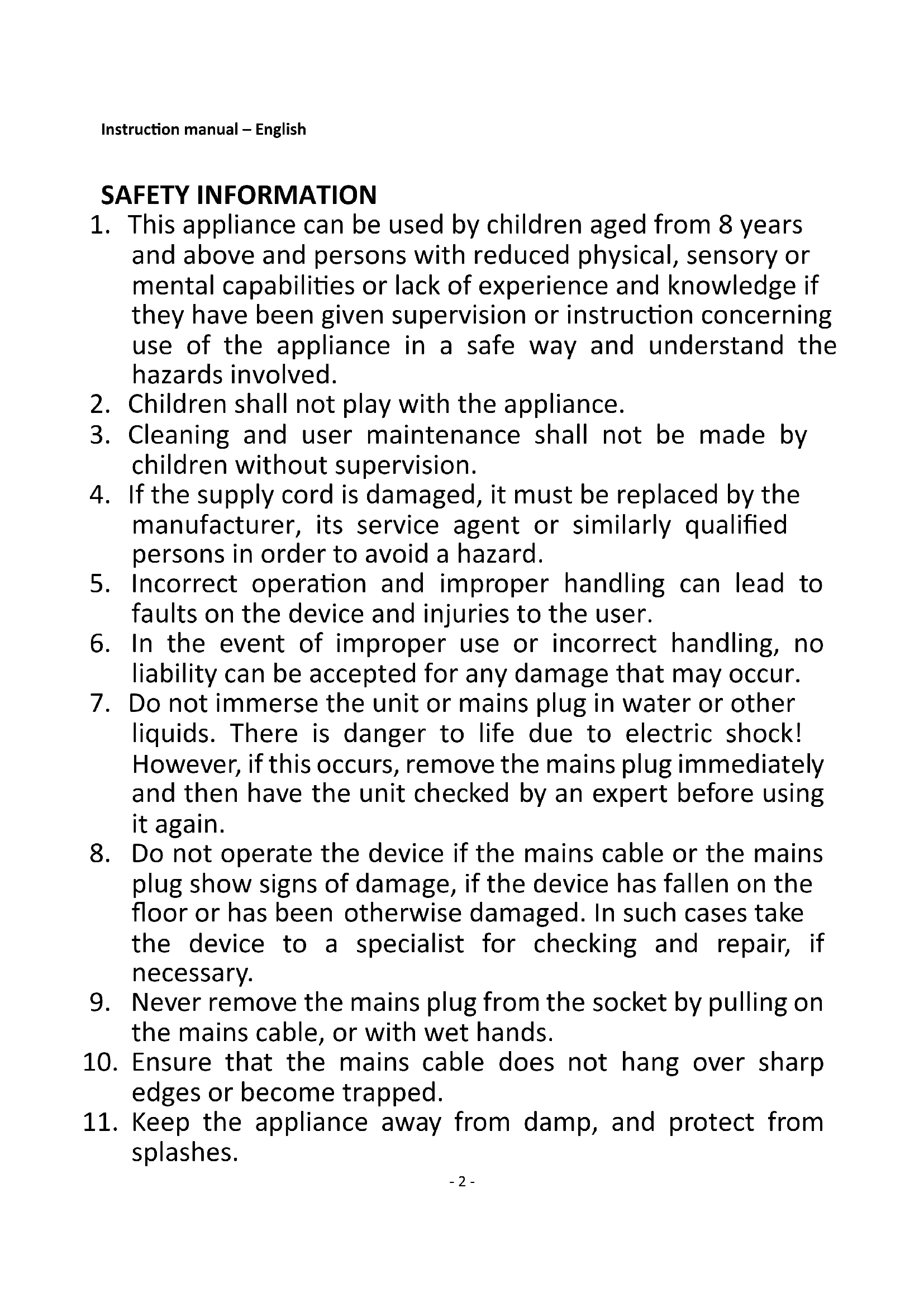

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.

6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.

8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.

9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

10. Ensure that the mains cable does not hang over sharp edges or become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistant surface.
15. Never leave the device unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

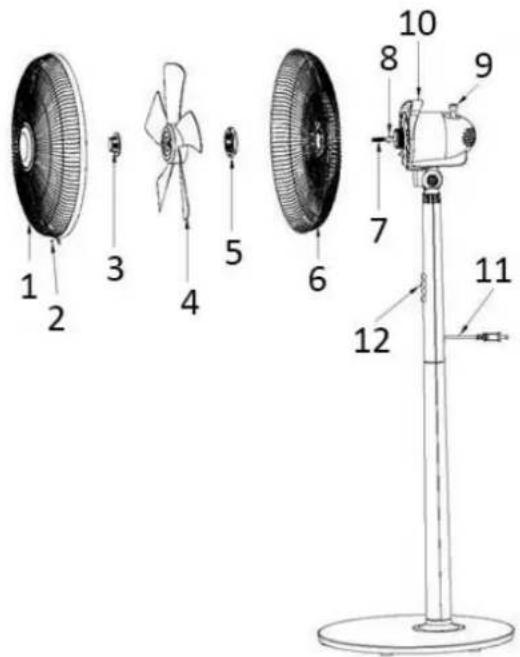

PARTS DESCRIPTION

17 14 18 16 15 i i i'

13

Technical diagram of a fan with numbered parts and labeled parts for identification

1. Front guard
2. Guard securing clip
3. Blade fastening screw
4. Blade
5. Guard fastening screw
6. Rear guard
7. Motor shaft
8. Shaft pin

9. Oscillation knob

10. Handle

11. Power cord
12. Speed control buttons
13. Upper standing shaft
14. Lower standing shaft
15. Screws
16. Standing base
17. Bulge
18. Space

ASSEMBLING INSTRUCTIONS

Base and Standing Shaft Assembly

1. Insert the lower standing shaft (14) into the hole of standing base (16), keeping the bulge (17) of standing shaft aligned with the space (18) of the base hole. Use four screws to fix the lower standing shaft.
2. Insert the upper standing shaft (13) into the lower standing shaft (14), turning the upper standing shaft (13) clockwise to tighten the connection of two shafts.

The Whole Assembly

1. Remove the blade fastening screw (3) and guard fastening screw (5) from the motor shaft (7) spindle.
2. Fit the rear guard (6) by positioning with the location pins. Secure the guard onto the motor body with the guard fastening screw (5).
3. Place the fan blade (4) onto the motor shaft by matching the slot with the shaft pin (8). Fix the blade by tightening the blade fastening screw (3) in a counter-clockwise direction. Check that the fan blade can rotate freely by turning it with your hand.
4. Loosen the clip screw on the guard securing clip (2) and open the guard securing clip. Position the top clip of front guard (1) onto the uppermost part of the rear guard (6). Press the rim of front guard onto the rear guard. Close the bottom clip and tighten the screw.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob (9). To stop the fan head from oscillating, pull up the oscillation knob.
3. The fan is switched on and off by pressing the speed control buttons, i.e. 0 = Off, 1 = Low air flow speed, 2 = Medium air flow speed, 3 = High air flow speed.
4. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CAUTION: Press only one of the speed control button at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 50W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	69.95 m^3/min
Fan power input (P)	53.65 W
Service value (SV)	1.30 ( m^3/min )/W
Measurement standard for service value	IEC 60879: 1986 (corr.1992)
Standby power consumption (PSB)	0.00 W
Fan sound power level (LWA)	63.7 dB(A)
Maximum air velocity (c)	2.99 meters/sec
Contact details for obtaining more information	Emerio Deutschland GmbHHöfferweg 1451519 OdenthalGermany

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we

hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19/EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Höfferweg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]

Technical diagram of a fan assembly with numbered parts for identification

Technical diagram of a fan assembly with numbered parts for identification

1. Prednji štitnik
2. Sigurnosna spojnica štitnika
3. Vijak za pričvršćivanje krilca
4. Krilce
5. Vijak za pričvršćivanje štitnika
6. Stražnji štitnik
7. Osovina motora
8. Klin osovine

9. Gumb za oscilaciju

10. Ručka

11. Strujni kabel
12. Gumbi za regulaciju brzine
13. Gornja cijev
14. Donja cijev
15. Vijci
16. Postolje
17. Izbočina
18. Prostor

UPUTE ZA SASTAVLJANJE

Technical diagram of a fan assembly with numbered parts for identification
