DF128115.1 - Deep fryer Emerio - Free user manual and instructions

Product Type	Electric Deep Fryer
Brand	Emerio
Model	DF128115.1
Power Supply	230 V ~ 50-60 Hz
Power	1600 W
Tank Capacity	Min and max levels indicated on the tank
Thermostat	Adjustable with automatic shut-off at selected temperature
Indicator Lights	Power indicator and heating indicator
Frying Basket	With foldable handle and lock button
Lid	Removable, with viewing window and anti-odor filter
Filter	Removable inside the lid
Overheat Protection	Yes, automatic shut-off if the appliance is turned on without oil
Cleaning	Tank and basket dishwasher-safe; lid and exterior hand-washable
Spare Parts	Filter, basket, removable tank available via after-sales service
Warranty	2 years
Usage	Domestic

Frequently Asked Questions - DF128115.1 Emerio

How to clean the Emerio DF128115.1 deep fryer?

Clean the exterior with a damp cloth. The tank and basket are dishwasher-safe. The lid can be removed and cleaned with warm soapy water. Never immerse the electrical parts. Dry thoroughly before reuse.

What to do if oil overflows from the fryer?

This can happen if you mix different types of oils or fats. Never mix oils. If this occurs, turn off the appliance, let it cool down and clean thoroughly. Respect the min and max levels.

Can I use olive oil in this fryer?

Yes, you can use olive oil, but ensure not to exceed the smoke point. The adjustable thermostat allows temperature adaptation. Avoid mixing different oils.

How to replace the oil in the fryer?

Wait until the oil and appliance have completely cooled down. Replace oil regularly (after 10 frying cycles or if it becomes dark). Do not mix old and new oil. Dispose of used oil according to local regulations.

What to do if the fryer does not heat up?

Check that the plug is properly connected and the power indicator is on. Ensure the thermostat is set to a temperature. If overheat protection was activated (turned on without oil), unplug and let it cool down completely before reuse.

Can I wash the frying basket in the dishwasher?

Yes, the basket and removable tank are dishwasher-safe. The handle can also be cleaned with soapy water. Dry well before reassembling.

How to unlock the basket handle?

To deploy the handle, push the handle button down to unlock, then lift it until it locks. To fold it back, push the button again and lower it.

What is the heating indicator for?

The heating indicator lights up when the heating element is on. It goes off when the set temperature is reached. It turns on again automatically if the temperature drops.

How to open the fryer lid?

Press the lid release button on the handle. The lid opens. To remove it completely, lift it when it forms a right angle with the housing.

Can I leave oil in the fryer after use?

Yes, once cooled, you can leave the oil in the tank with the basket inside and close the lid. Store the fryer in a dark, dry place. Replace oil regularly.

USER MANUAL DF128115.1 Emerio

Exterior view of a black and white kitchen electric fryer with open lid (no text or symbols visible)

Deep fryer (EN)

Friteuse (DE)

Friteuse (FR)

Friteuse (NL)

Smażarka (PL)

Content – Inhalt – Teneur – Inhoud – Treść

Instruction manual – English....- 2 -

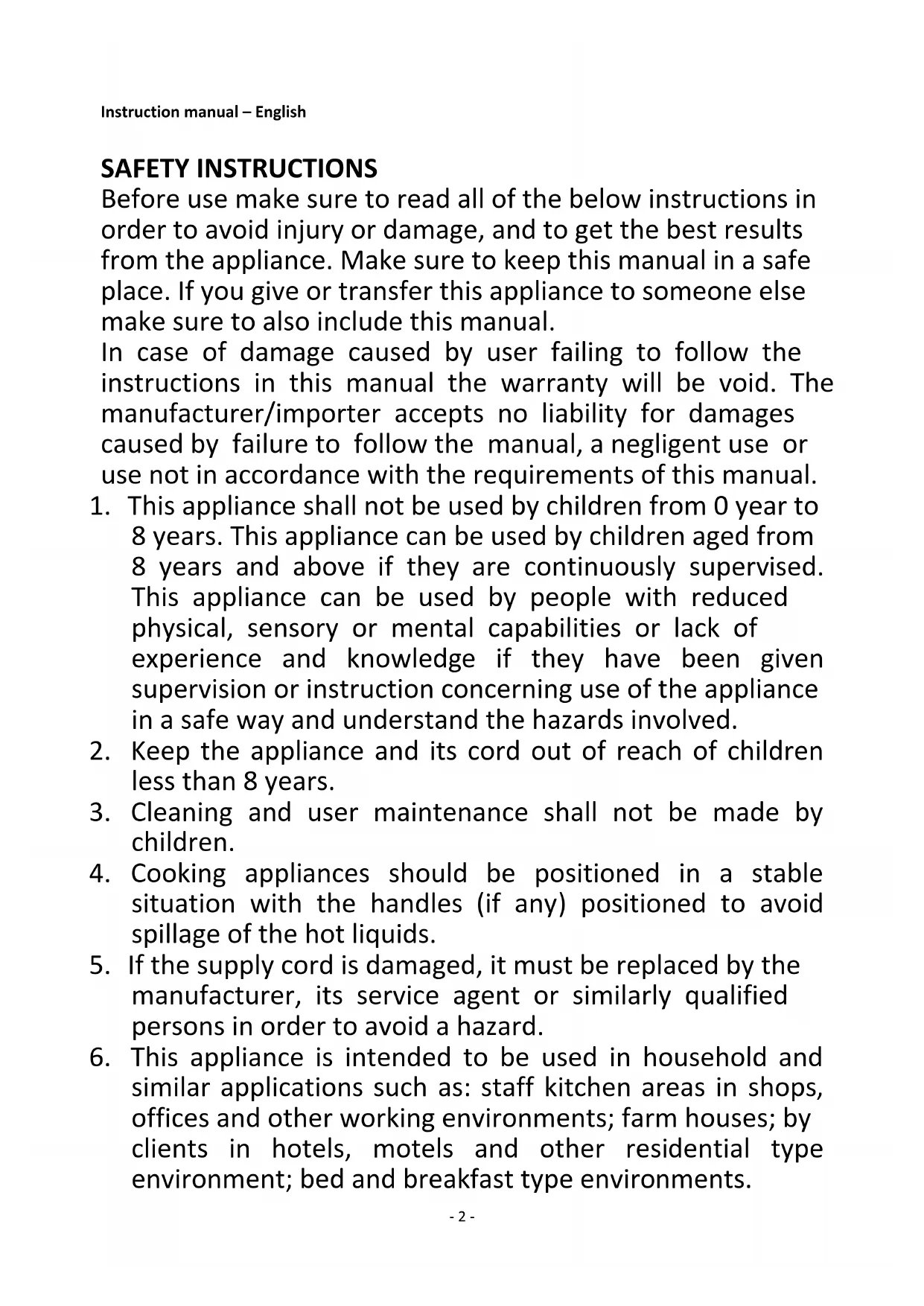

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Keep the appliance and its cord out of reach of children less than 8 years.

3. Cleaning and user maintenance shall not be made by children.

4. Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

7. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

8. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance on a stable, level surface from which it cannot fall off.

23. Clean the product itself with a slightly damp cloth.

24. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug it self, not the lead).

25. Do not move the device when the fat is liquid/hot.

26. Please always use the frying basket for deep-frying.

27. Warning: Never mix fats and oils, as the deep fat fryer could spill over, even the mixing of various types of oil and fat with one another is dangerous.

28. If the deep fat fryer should catch fire, do not under any circumstances attempt to extinguish the flames with water, instead, replace the lid and suffocate the flames with a damp cloth.

29. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

30.

Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

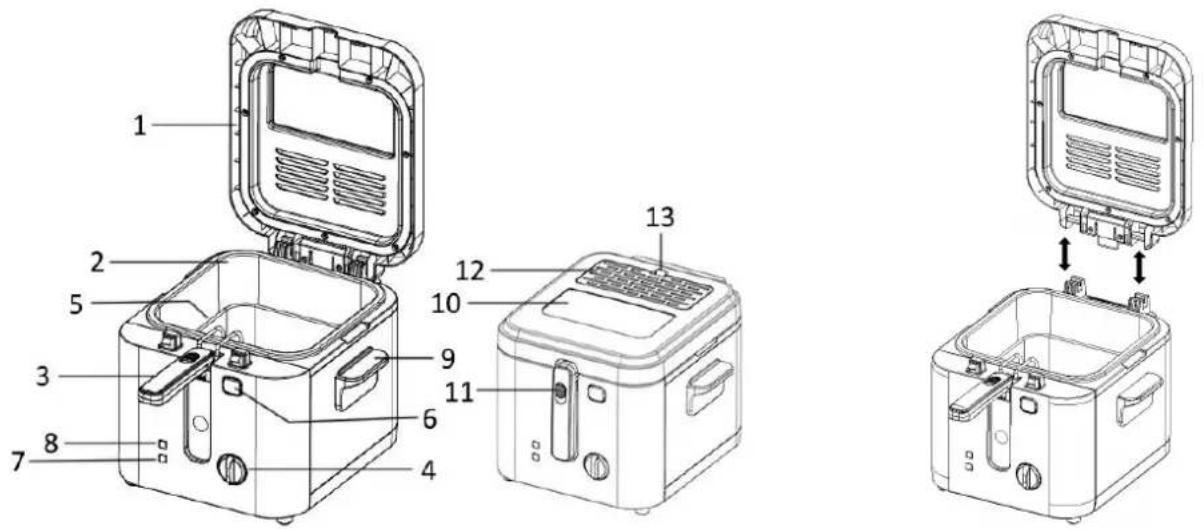

PARTS DESCRIPTION

1. Lid
2. Oil tank
3. Frying basket handle
4. Adjustable thermostat
5. Frying basket
6. Lid opening button
7. Power light
8. Heating light
9. Carrying handle (on both sides)
10. View window
11. Handle button
12. Filter (with a cover)
13. Filter cover tab

NOTE:

• You can take off the lid from the appliance simply by lifting the lid upwards when the lid forms a right angle with the main housing.
• There is a removable filter inside the lid to filter the water vapor. Pull up the filter cover by its tab, and the filter can be taken out for cleaning. Remember to assemble the filter and filter cover back before next use.

BEFORE USE

First read all instructions before use and retain for later reference. Only plug this appliance into an earthed socket.

Before first use, remove the packing materials. Then, wash the accessories in warm water. Dry them well before use. Make sure that the electrical parts remain dry. The deep fryer is equipped with an adjustable thermostat and indicator lights.

1. Never switch on the deep fryer without oil or fat, as this could damage the machine. Also, do not place any other liquids such as water or other substances in the tank.
2. Place the deep fryer on a dry, stable surface.
3. Since the deep fryer becomes hot during use, make sure that it is not too close to other objects.
4. Press the lid opening button to open the lid. Unfold the handle of the frying basket upwards until it's fixed to lock position (You will hear a "click" sound). Remove the frying basket from the appliance.

5. Fill the deep fryer with the desired amount of oil or fat. Make sure that it is filled not less than minimum level and not higher than the maximum level as indicated on the inside of the appliance. For best results, we recommend that you do not mix different kinds of oil together.

6. Replace the frying basket and press the button on the handle downwards to unlock the handle to its original place. Close the lid.

7. Connect the power plug to a suitable outlet; the power light will illuminate.
8. Set the thermostat to the required temperature setting; the heating light will illuminate. Consult the temperature table in this instruction manual.
9. The heating light will go out when the temperature you have selected has been reached. Always wait until the selected temperature has been reached. To keep the oil at the selected temperature, the thermostat repeatedly goes on and off, and the heating light as well.
10. Open the lid. Unfold the handle of the frying basket upwards until it's fixed to lock position.
11. Place the food to be deep-fried into the basket. For the best result, put dry food into the basket.
12. Close the lid and you can check the process from the view window.
13. Open the lid and raise the basket again when the frying time has elapsed.
14. After frying let the product drip dry, never shake the basket.
15. Set the thermostat to the beginning position “•”.
16. Remove the plug from the outlet.
17. Rinse the handle and the basket after use, and dry thoroughly.
18. Once the deep fryer has completely cooled off, you can replace the basket in the appliance and store it. Store the deep fryer, with the lid closed, in a dark, dry place. In this way, you can leave the oil and the basket in the deep fryer when storing.

FRYING TABLE

The frying time in this chart is a guide and should be adjusted to suit the different quantities or thickness of the food and to suit your own taste.

FOOD	TEMPERATURE (°Q)	TIME (Minute)	WEIGHT (g)
Mushrooms	160	4 to 6	250-400
Fish	160	6 to 7	250-400
Chicken drumsticks	160	6 to 8	300-400
Scampi	170	5 to 6	250-400
Meat	180	3 to 5	300-400
Frozen chips	180	7 to 8	350-400

TO REPLACE THE OIL

Make sure that the deep fryer and the oil have totally cooled off before replacing the oil. Replace the oil regularly. This is definitely necessary if the oil becomes dark or takes on a different odour. In any case, replace the oil after every 10 times' usage. Replace the oil completely; do not mix old and new oil. Discarded oil is a burden to the environment. Do not throw it in the normal rubbish bin, but follow the guidelines of the municipal waste collector in your area.

CLEANING AND MAINTENANCE

1. Clean the deep fryer on both the inside and outside regularly.
2. Clean the outside of the deep fryer with a damp cloth and dry with a soft, clean cloth.
3. Never use abrasive cleaners or sponges.
4. The basket and the handle can be cleaned in warm, soapy water. Dry well before using again.
5. The lid can be pulled up from the appliance for cleaning. The removable lid and the frying basket are dishwasher safe.
6. When replacing the oil you can also clean the inside of the deep fryer. Empty the deep fryer and first clean the inside with a paper towel and then with a cloth dipped in soapy water. Then wipe with a damp cloth and allow them to dry thoroughly.
7. All components, with the exception of the electrical parts, may be cleaned in warm soapy water. Dry thoroughly before use.

TIPS

1. Always place the deep fryer on a stable surface and keep all flammable materials away.

2. Make sure that the deep fryer is not near or on a switched-on hot plate.

3. Before you use the deep fryer it must be filled with the required amount of oil or fat.

4. Never use the deep fryer without oil or fat because this could damage the unit.
5. Never move the deep fryer during use. The oil becomes very hot and you can get burned. Wait to move the deep fryer until the oil has cooled down.
6. Never immerse the unit in water.
7. Never leave the deep fryer unattended while in use. Always ensure the safety of children if they are near the deep fryer.
8. If the deep fryer and/or cord are damaged, they must be repaired by a professional service department.
9. Do not try to repair the unit by yourself, neither to replace a damaged cord. This requires special tools.
10. Be sure not to damage the heating element. (Do not bend or dent.)

THERMOSTAT

The adjustable thermostat will switch off the deep fryer automatically. This can happen if temperature setting of the deep fryer is reached. If the adjustable thermostat switches off the deep fryer, please do not mind it. It will be ready for work again automatically when temperature is lower than your setting temperature.

Overheating Protection

If you should accidentally switch on your deep fryer when there is no oil or fat in it, the overheating protection is automatically turned on. The appliance is no longer ready to be used. Unplug the deep fryer and allow the deep fryer and all parts to cool down completely.

TECHNICAL DATA

Operating voltage: 230V \~ 50-60Hz

Power: 1600W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio B.V.

Zomervaart 1A, 2033 DA Haarlem, The Netherlands
