BG111860.3 - Grill plate Emerio - Free user manual and instructions

Product type	Electric grill plate
Brand	Emerio
Model	BG111860.3
Voltage	220-240 V ~ 50/60 Hz
Power	1600 W
Water capacity	0.4 L (min) - 0.9 L (max)
Functions	Grilling, keep warm
Plate material	Non-stick
Cooking type	Direct contact with heating plate
Usage	Indoor and outdoor (domestic)
Assembly	Requires assembly of legs, handles, windscreen and stand
Included accessories	Grill plate, heating element with control box, windscreen, upper grid, stand, drip tray, metal tube, legs, handles
Safety	Safety switch (control unit engaged), do not use without water, do not cover
Cleaning	Heating element and control box: dry cloth; other parts: warm water and mild detergent; do not immerse heating element
Warranty	2 years
Country of origin	Not specified
Color	Black / silver (estimated)

Frequently Asked Questions - BG111860.3 Emerio

How to use the grill plate for the first time?

Remove all packaging, clean the appliance with a damp cloth, then heat empty for 5 minutes on MAX setting to burn off manufacturing residues. Allow to cool before first use.

How much water should be put in the main housing?

Fill with cold water between the minimum level (0.4 L) and maximum level (0.9 L). Do not exceed the MAX level. Water evaporates during use, check and add if necessary.

Can I use aluminum foil or aluminum pans on the grill plate?

No, it is strictly forbidden to use aluminum foil, aluminum pans or any other heat-resistant material on the plate. This could cause overheating and damage the appliance.

How to clean the heating element and control box?

Never immerse the heating element or control box in water. Clean them with a clean dry cloth. Make sure they are completely dry before reusing the appliance.

What to do if the appliance does not turn on?

Check that the control unit is properly engaged in the main housing (the safety switch must be activated). Make sure the housing is filled with water between MIN and MAX. If the problem persists, contact customer service.

Can I use charcoal or solid fuels?

No, this appliance is electric and must never be used with charcoal, solid or liquid fuels. This presents a risk of fire and damage.

How to assemble the grill plate stand?

Connect the short rod to the long rod. Attach one short post and one long post to the rods with a wing nut and an M5 screw. Repeat for the other three sides. Insert end caps. Place the main housing on top and install the grid on the shelves.

Is the appliance suitable for outdoor use?

Yes, the barbecue is designed for domestic indoor and outdoor use. Ensure it is placed on a flat, rigid surface, sheltered from wind and away from any flammable material.

What is the warranty period?

The warranty is 2 years from the date of purchase, subject to presentation of the receipt. It does not cover damage due to improper use or repairs by unauthorized third parties.

How to avoid grease splatter during cooking?

Use the provided windscreen to reduce splatters. Be careful not to overload the plate and not to use sharp utensils that could damage the non-stick coating. Clean the drip tray regularly.

USER MANUAL BG111860.3 Emerio

Black outdoor grill with a grater and side table, no visible text or symbols

Barbecue-Grill (EN)

Barbecue-Grill (DE)

Barbecue (FR)

Barbecue (IT)

Content – Inhalt – Teneur – Contenuto

Instruction manual – English ...... - 2 -

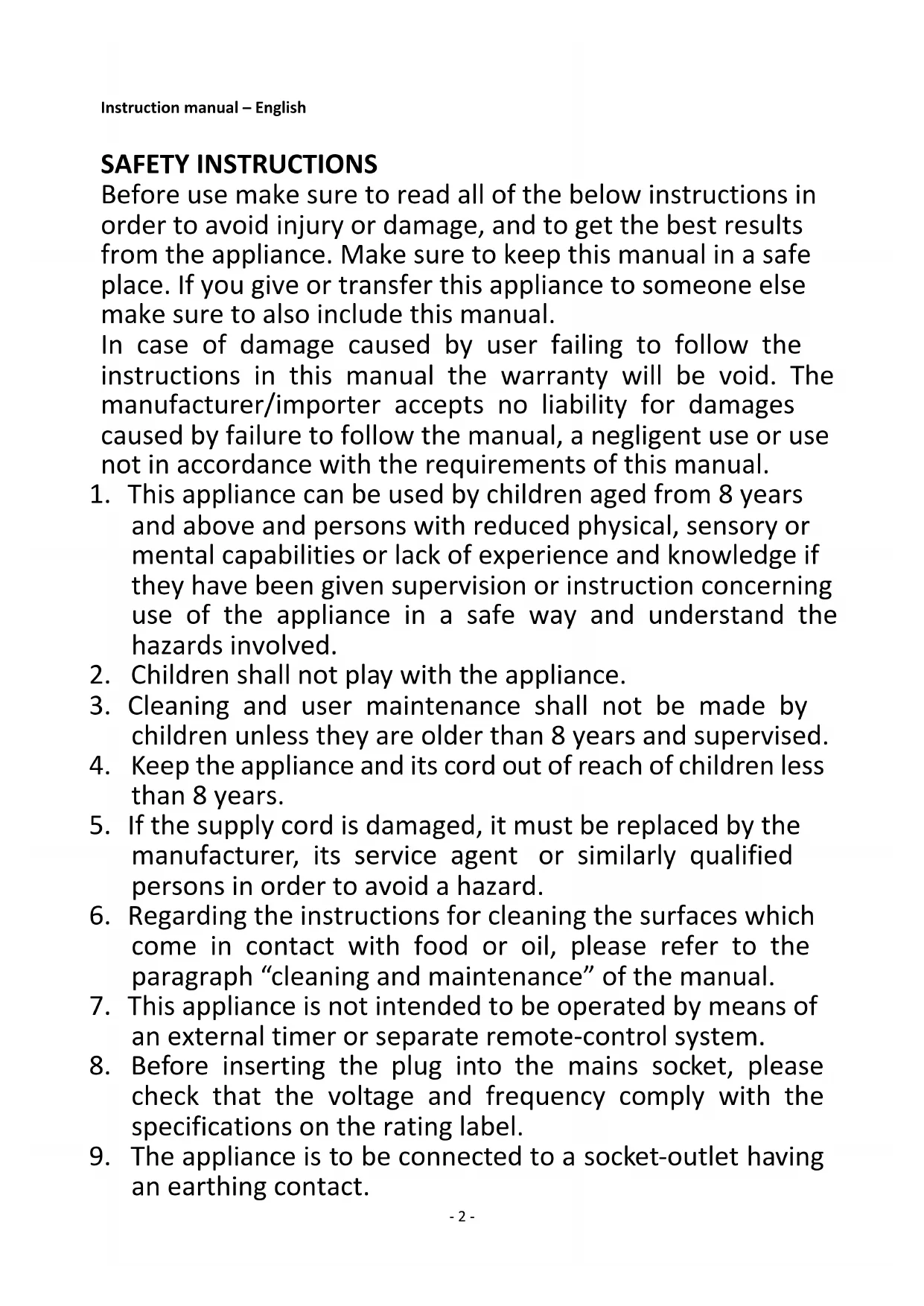

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

9. The appliance is to be connected to a socket-outlet having an earthing contact.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

12. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

13. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

14. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

15. Never leave the appliance unattended during use.

16. Do not use the appliance for other than intended use.

17. Do not wind the cord around the appliance and do not bend it.

18. WARNING: Charcoal or similar combustible fuels must not be used with this appliance.

19. Danger! Nominal voltage is still present in the appliance as long as the appliance is connected to the mains socket.

20. Switch off the appliance before disconnect from the mains.

21. Before use, the appliance must be placed on a firm, flat surface and at least 50 cm away from the nearest wall or any flammable objects.

22. Attention! The appliance is become very hot! It must cool down completely, before its surface can be touched. Removing and cleaning of the barbecue grill, the control unit and the drip tray may only be done after the appliance has cooled down completely.

23. Burn hazard! Be careful when handling hot oil and fat. Beware of spitting oil and hot steam!

24. Do not move the appliance during use.

25. Due to safety reasons, if the control unit is removed from the body of the appliance, the barbecue must not be switched on.

26. When using the appliance, be careful not to position it next to a wall or corner, and ensure that no inflammable materials are stored near it.

27. Always fill the main body with water before you switch on the appliance. The water helps to cool down the main body, reduces the build-up of smoke, and also facilitates cleaning.
28. Water level inside the main body:

WATER

MAX 0.9L

MIN 0.4L

The maximum water capacity is 0.9L and the minimum water capacity is 0.4L. Do not add water that overflows the main body.

1. Before the appliance is used, always check that the heating element is correctly fitted in the body and safely locked. Do not connect the appliance to mains power until the body has been filled with water.

2. Always remove the plug from the mains supply socket in the case of any malfunction, before cleaning and maintenance and after use.

3. Before carrying, transporting or storing the appliance, ensure that is has sufficiently cooled down. Pour out any remaining water after use.

4. This appliance is designed for household use only and not for commercial applications.

5. The appliance must not be stored outdoors, or in any other location where it might be subjected to extremes of temperature or high humidity.

6. WARNING: Never put the heating element, control box and the plug into water.

7. WARNING: Silver paper must not be used with this appliance.

8. WARNING: In order to avoid overheating, this appliance shall not be covered by any solid or flexible material such as an aluminum tray, aluminum foil or trays made of other heat resistant material. The use of such items or materials on the grill plate would impair the safety of your product and could lead to serious damage.

9. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Caution: do not, under any circumstances, cover the grill plate with aluminous foil, barbecue dishes or other items, as the resulting build-up of heat could cause irreparable damage to the grill.

2. Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.

3. In order to comply with safety regulations and to avoid hazards, all repairs of electrical appliances must only be performed by qualified personnel. Substantial dangers for the user can appear from inappropriate repairs. Never attempt to repair the appliance yourself.

4. Barbecues are portable appliances, which are household use and outdoor use.

5. The appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

6. The supply cord should be regularly examined for signs of damage and the appliance is not to be used if the cord is damaged.

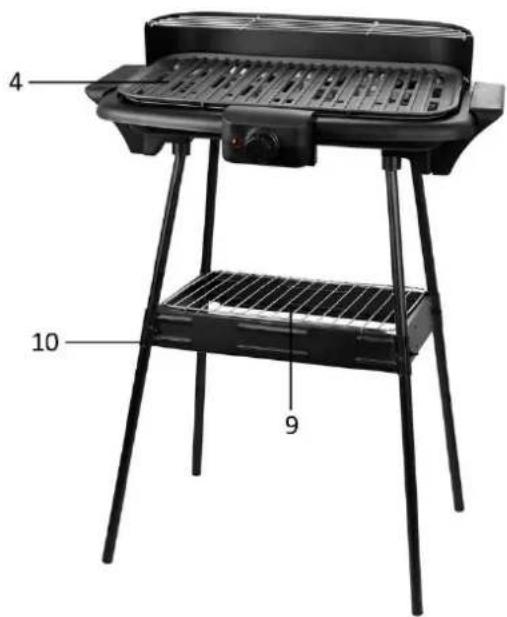

PARTS DESCRIPTION

Labeled diagram of a two-walled grater with numbered parts for identification.

1. Main body
2. Drip tray
3. Straight metal pipe
4. Grill plate
5. Heating element with control box
6. Control knob
7. Indicator light
8. Wind shield
9. Wire rack
10. Stand with shelves
11. Feet (4 pcs.)
12. Handle (on both sides)
13. Upper grill

BEFORE FIRST USE

• Remove all packaging.
  • Clean the appliance, as described in Cleaning and Maintenance.
• Switch the barbecue on for 5 minutes without food on it before first use, so that possible production residues are removed. During that time, a smell might occur but this is not a defect of the appliance.

ASSEMBLY

Fig 1
Fig 1

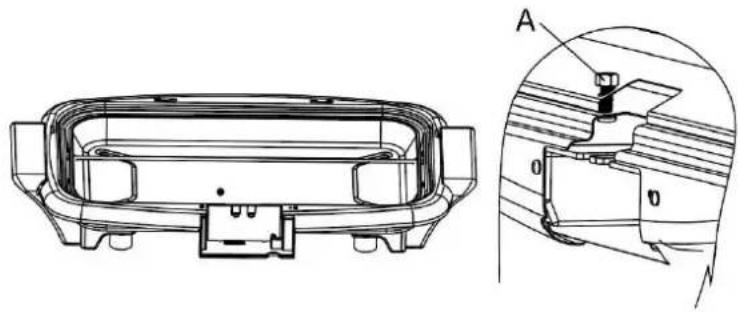

Technical line drawing of a car interior frame with structural components (no text or symbols)

Fig 2

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

Fig 3

B C

Fig 4

Technical line drawing of a portable electric stove or condenser unit (no text or symbols)

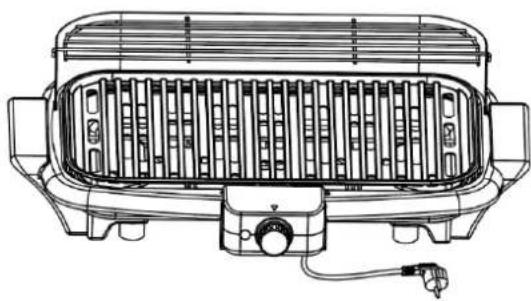

Fig 5

Technical line drawing of a portable electric heater with heat exchangers and a power outlet (no text or symbols)

Fig 6

Close-up of metallic cylindrical objects with two upward-pointing arrows, no visible text or symbols

Fig 6

Technical line drawing of a portable electric heater with heat exchangers and a pressure gauge (no text or symbols)

Fig 7

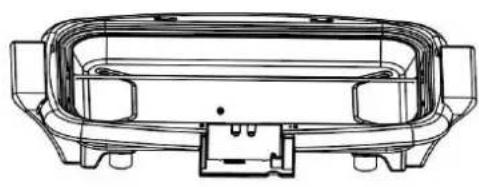

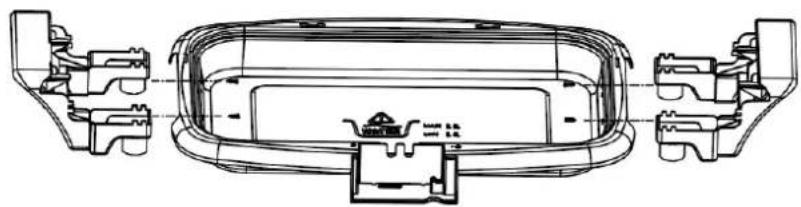

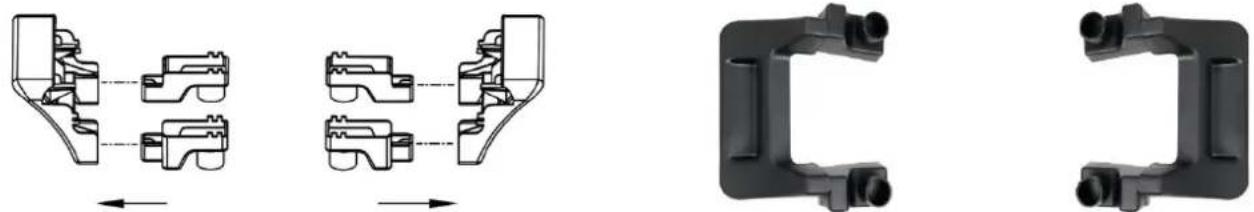

1. Insert the 4 pieces plastic feet into the handles. Make sure that the protruding part of all plastic feet are in outside direction.

2. Install the handles onto the main body. Align the two screw holes on each handle and on each side of the main body. Insert the ST2.9 screws into the holes. Tighten the screws to fix the handles and the main body firmly.

Fill the main body with cold water. The maximum water capacity is 0.9L and the minimum water capacity is 0.4L. Do not add water that overflows the main body.

During use the water in the main body will evaporate and should be refilled. Otherwise, the product will get too hot.

Note: Make sure you do not drip water on to the element.

1. Place the drip tray onto the main body. Have the straight metal pipe through the two holes of the drip tray and the main body on the left and right sides. Be sure the long screw on the main body through the hole of the drip tray to make it sit properly. Screw the provided M4 nut (A) onto the long screw to fix the drip tray.

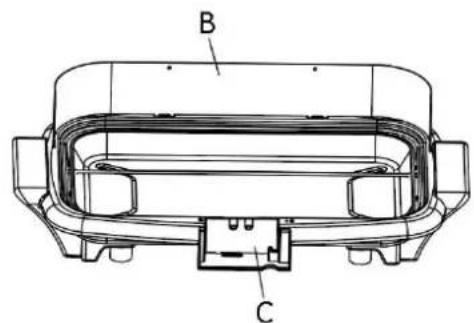

2. Install the wind shield (B) onto the main body.

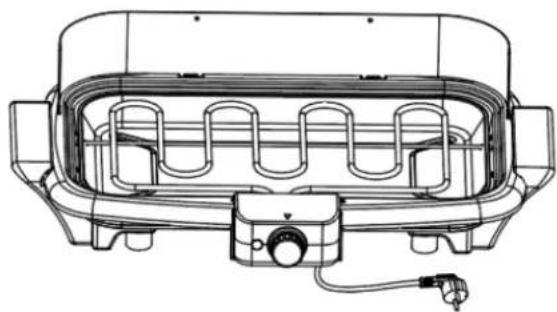

3. Place the heating element with the control box on to the main body. Make sure the control box contacts well with the plastic base (C in fig.4) installed on the main body, so that the safety switch is activated. Otherwise, the appliance cannot be switched on.

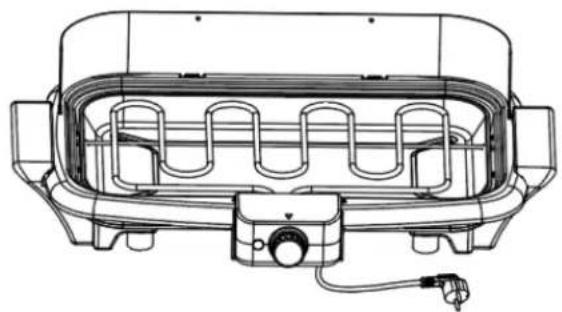

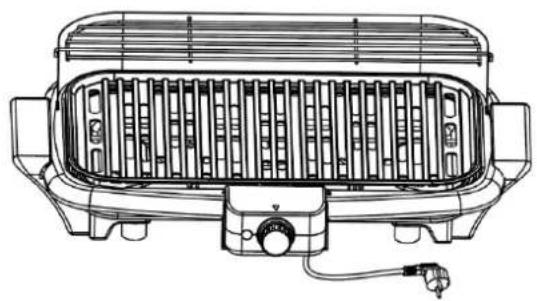

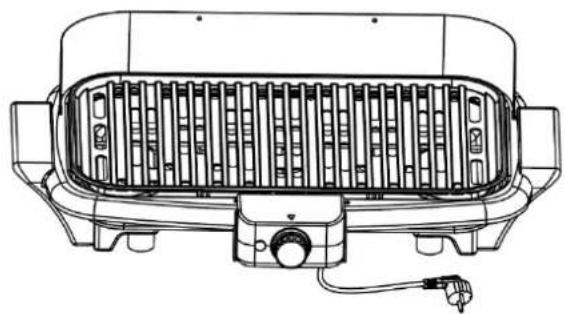

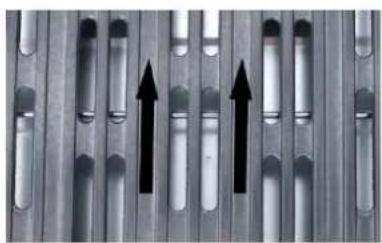

4. Place the grill plate on to the main body. Make sure the arrows on the grill plate face towards the direction of the wind shield, so that the heating element could be covered by the grill plate to avoid the oil dripping on to the element.
5. Place the upper grill onto the wind shield.

Stand assembly:

Technical diagram showing eight sequential steps of a grill setup with labeled components A1 to A8, including structural changes and assembly.

1. Connect the short pipe (A1) with the long pipe (A2). Make sure they are fixed firmly.
2. Attach the short metal shelf (A3) and the long metal shelf (A4) onto the pipe. Fix with the butterfly nut (A5) and the M5 screw (A6).
3. Assemble the other 3 pieces of stands as above process. Insert fittings (A7) into the pipe openings.
4. Place the main body on top of the stand. Place the wire rack (A8) onto the shelves.

OPERATION

- Connect the power plug into a suitable outlet.

- Turn the control knob to the "MAX" position, the indicator light will illuminate to indicate the heating element is heating up.

- After approximately 5-10 minutes, the heating element reaches the suitable temperature. Please place your food on the grill plate for grilling. During use, you can turn the control knob back to choose your desired position. Deep frozen food should be defrosted completely before barbecuing.

The grill can also be used to keep the food warm: turn the control knob to a lower position, the heating element will be switched on and off alternatively, and thus the food can be kept warm.

• To grill food evenly, it should be turned several times during the barbecue. The barbecuing time depends on the food to be grilled.
• Caution! To avoid a heat accumulation, do not place aluminum foil or other barbecue accessories on the barbecue grill.
• During use the water in the main body will evaporate and should be refilled. Otherwise, the product will get too hot.

Note: Make sure you do not drip water on to the element.

- To switch off the appliance, turn the control knob to "MIN" position and unplug the power cord from outlet.

- The grill plate, the heating element and the control unit and other parts must be removed only after the appliance has cooled down completely.

CLEANING AND MAINTENANCE

• Before cleaning, unplug and allow the appliance to cool down.
- Never immerse the heating element and the control box into water or other liquid. Clean them with a clean dry cloth only. Never switch the heating element on when it is not placed onto the appliance.
- The other barbecue components can be cleaned with warm water and mild detergent.
- Let the appliance dry completely before it is reconnected to the supply.
- Use no sharp or abrasive cleaning agents.
- Do not put any parts in a dishwasher for cleaning.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 1600W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Labeled diagram of a two-walled cooktop appliance with numbered parts for identification.
