USER MANUAL 3 Mix 5500 Plus KRUPS

White KRUPS 3-MIX 5500 blender with a metal hand mixer, shown against a neutral gray background (no text or symbols on the device body)

*selon modèle - depending on model - je nach modell - afhankelijk van het model

Diagram of a mechanical or electrical component with two vertical rods and circular arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing clothes with a showerhead and pipe, no text or symbols present

Illustration of a hand mixer in a container with a downward arrow indicating motion (no text or symbols)

Close-up of a car handle with a black arrow pointing to a component, no visible text or symbols

Diagram showing a mechanical component with an arrow pointing to a grid-patterned structure inside a container (no text or symbols)

Illustration of a Kroup's blender with a small side panel and a directional arrow indicating movement (no text or symbols)

Diagram showing a crossed-out electrical circuit board with a bulb and grid, no text or symbols present

Diagram showing a cross-shaped partitioning of a wall-mounted fixture with two fixtures, no text or symbols present.

Illustration of a kitchen setup with a bed, a cup, and a gas stove (no text or symbols)

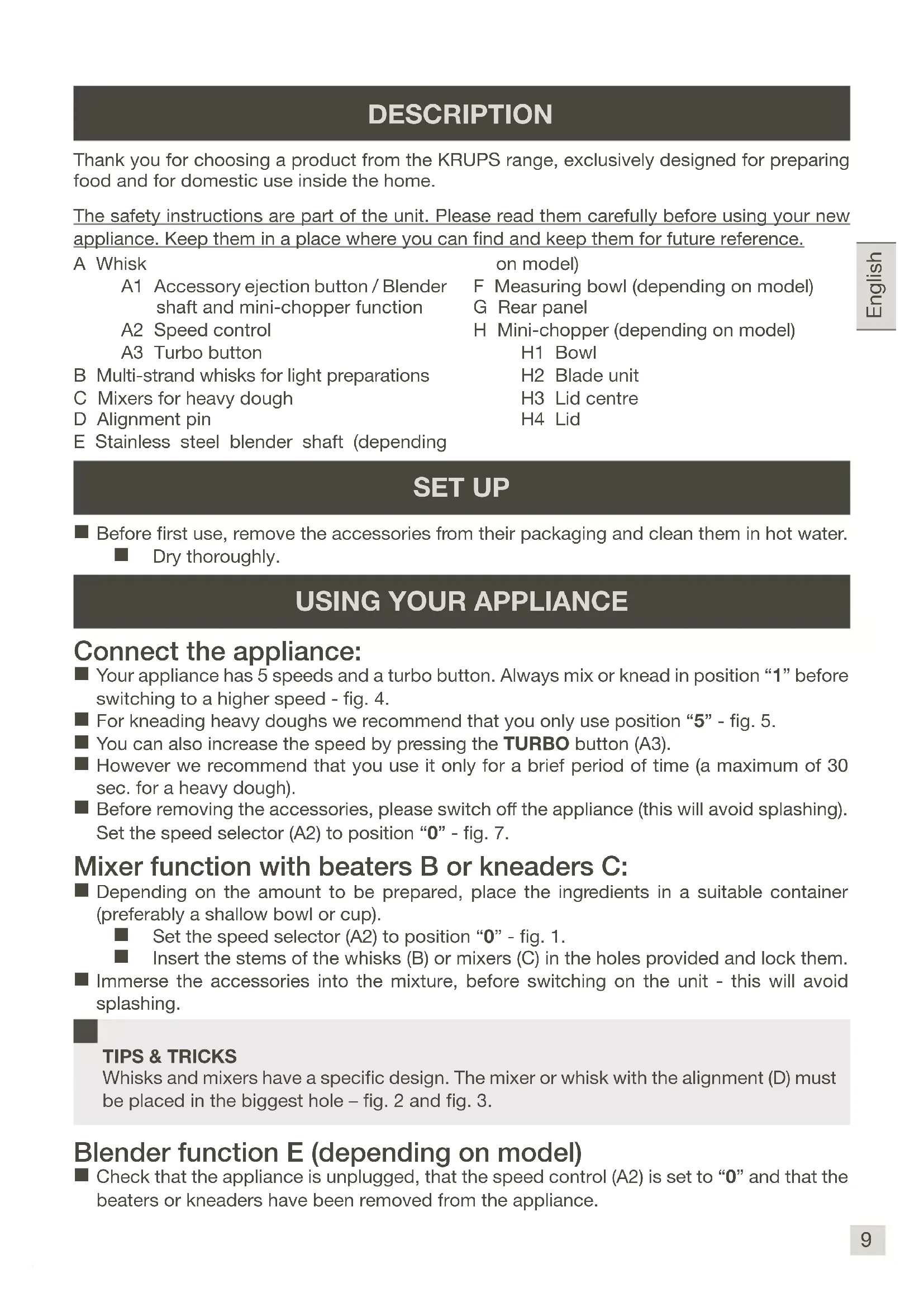

DESCRIPTION

Thank you for choosing a product from the KRUPS range, exclusively designed for preparing food and for domestic use inside the home.

The safety instructions are part of the unit. Please read them carefully before using your new appliance. Keep them in a place where you can find and keep them for future reference.

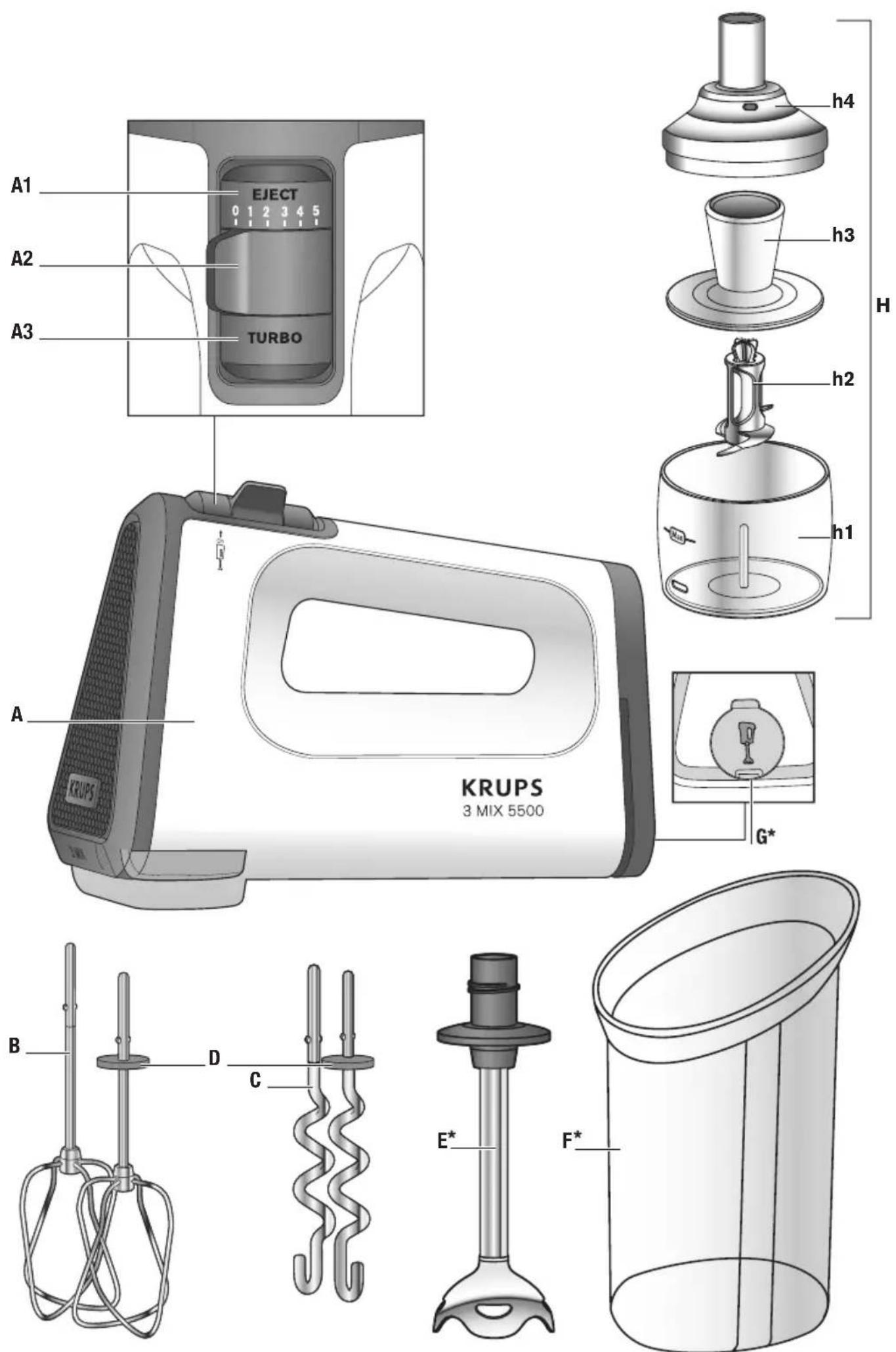

A Whisk

A1 Accessory ejection button / Blender shaft and mini-chopper function

A2 Speed control

A3 Turbo button

B Multi-strand whisks for light preparations

C Mixers for heavy dough

D Alignment pin

E Stainless steel blender shaft (depending

on model)

F Measuring bowl (depending on model)

G Rear panel

H Mini-chopper (depending on model)

H1 Bowl

H2 Blade unit

H3 Lid centre

H4 Lid

SET UP

■ Before first use, remove the accessories from their packaging and clean them in hot water.

Dry thoroughly.

USING YOUR APPLIANCE

Connect the appliance:

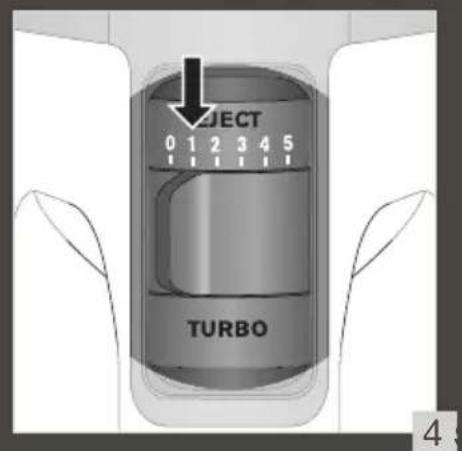

• Your appliance has 5 speeds and a turbo button. Always mix or knead in position “1” before switching to a higher speed - fig. 4.
  For kneading heavy doughs we recommend that you only use position "5" - fig. 5.

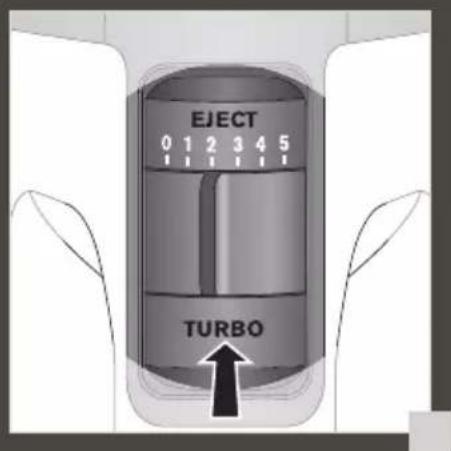

  ■ You can also increase the speed by pressing the TURBO button (A3).
  However we recommend that you use it only for a brief period of time (a maximum of 30 sec. for a heavy dough).

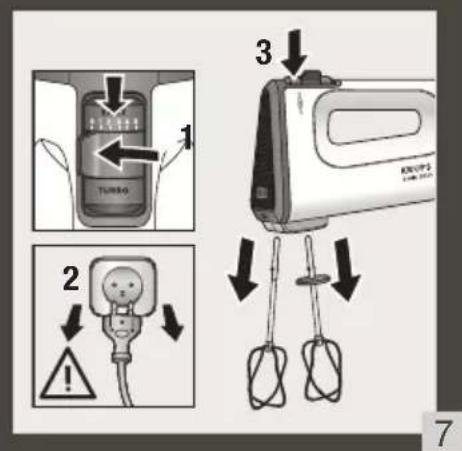

  Before removing the accessories, please switch off the appliance (this will avoid splashing). Set the speed selector (A2) to position "0" - fig. 7.

Mixer function with beaters B or kneaders C:

■ Depending on the amount to be prepared, place the ingredients in a suitable container (preferably a shallow bowl or cup).

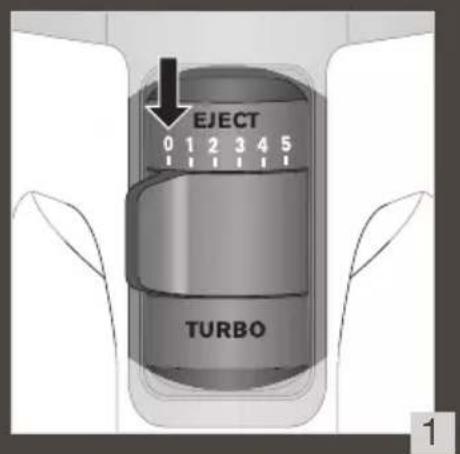

- Set the speed selector (A2) to position "0" - fig. 1.
■ Insert the stems of the whisks (B) or mixers (C) in the holes provided and lock them.
- Immerse the accessories into the mixture, before switching on the unit - this will avoid splashing.

TIPS & TRICKS

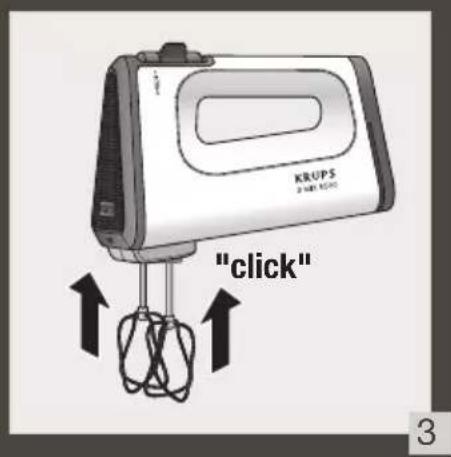

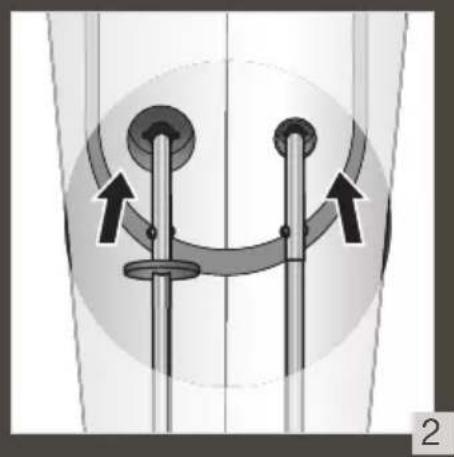

Whisks and mixers have a specific design. The mixer or whisk with the alignment (D) must be placed in the biggest hole – fig. 2 and fig. 3.

Blender function E (depending on model)

Check that the appliance is unplugged, that the speed control (A2) is set to "0" and that the beaters or kneaders have been removed from the appliance.

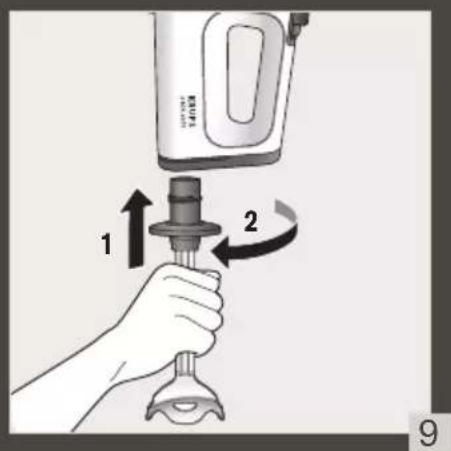

■ Lift the panel at the back of the appliance and screw the blender shaft (E) anti-clockwise without forcing it until you hear a click (fig.8). If you feel resistance when screwing in, this means that the shaft is not correctly aligned. You should remove it completely and screw it in again correctly.

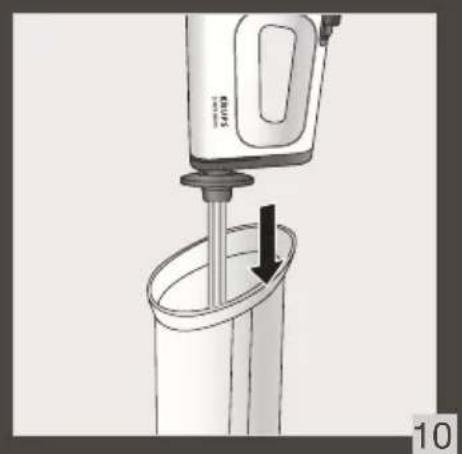

■ Connect the appliance: Dip the blender shaft into the preparation before starting the appliance to avoid splashing (Fig.11). Start using the Eject button (A1) (Fig.11). Stop the appliance before removing the blender shaft from the preparation (to avoid splashing).

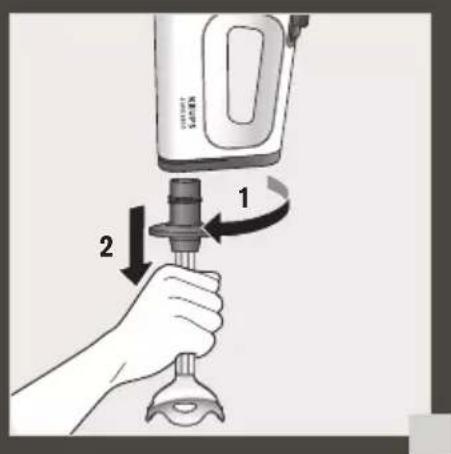

■ Removing the blender shaft: Stop the appliance by selecting "0", disconnect it and unscrew the blender shaft (E) by turning clockwise (Fig.12).
- Do not use the blender shaft: In a container on a heat source. Do not use it empty or with ice cubes, to chop raw meat, dried fruit (almonds, hazelnuts, etc.).

Mini-chopper function 150ml H (depending on model)

Check that the appliance is unplugged, that the speed control (A2) is set to "0" and that the beaters or kneaders have been removed from the appliance.

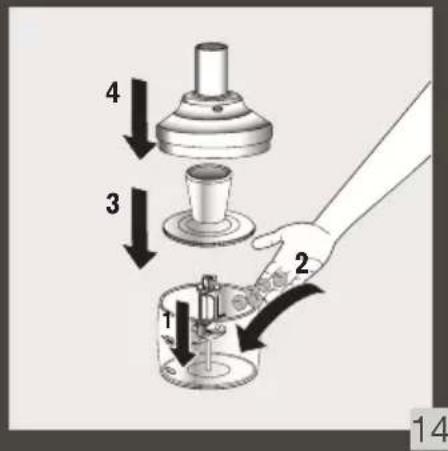

■ Assembly : place the blade unit (H2) on the bowl (H1) (fig. 14).

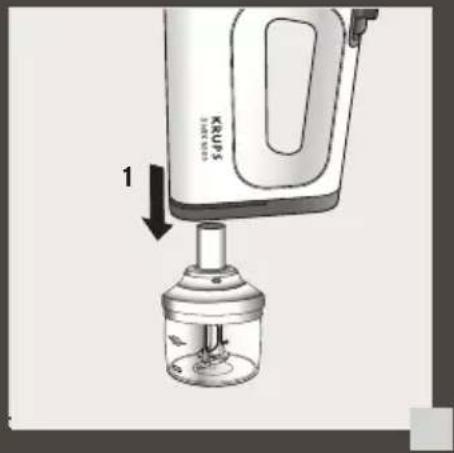

■ Use : Place the food in the bowl (H1) then fit the lid centre (H3), then the lid (H4). Connect the motor unit to the mini chopper (H) (fig. 15) and press the Start or Turbo button (A1) (fig. 11). After use, remove the food.

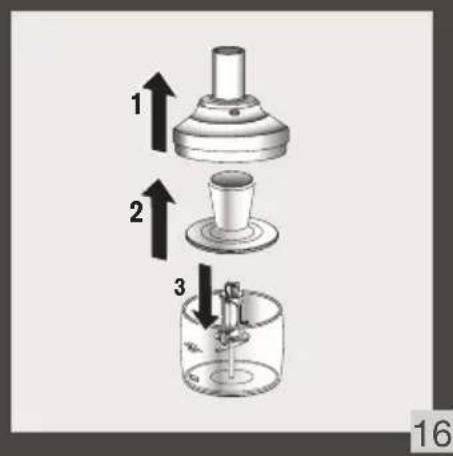

Dismantling : Be careful not to touch the sharp blades when dismantling the appliance. Remove the motor unit, then the lid (H4) and then the lid centre (H3). Remove the blade unit (H2) taking it by its plastic part as it is extremely sharp. Do not use this appliance for over 10 seconds if it is empty.

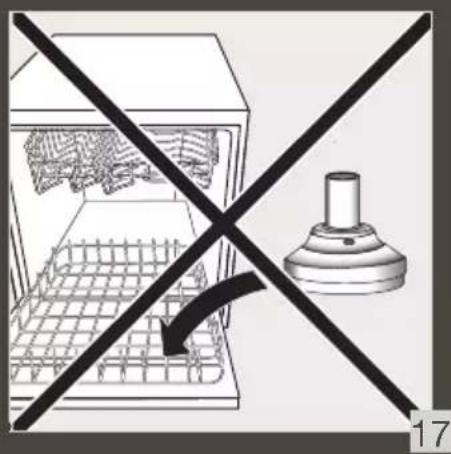

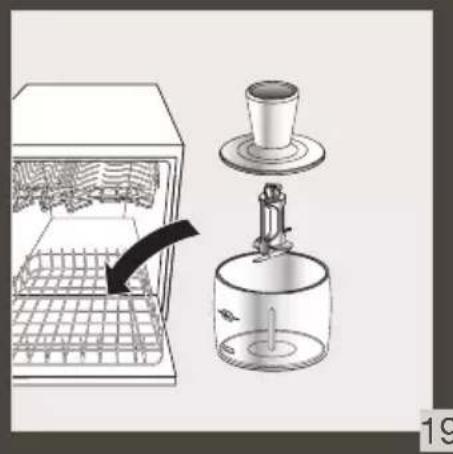

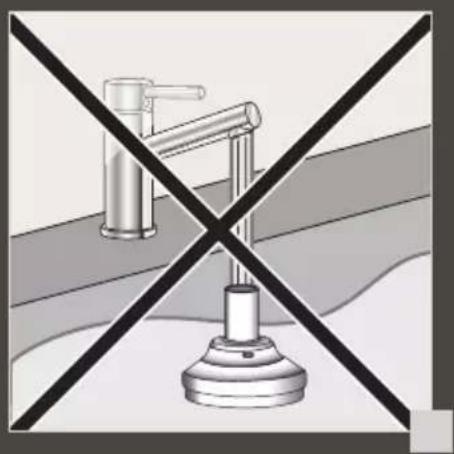

- Cleaning: the blades are very sharp. Always unplug the appliance before cleaning it. Never put the mini chopper lid in the dishwasher. (H4) (fig. 17). Never immerse these parts in water or place them under running water. Clean them with a damp sponge. (fig. 18). The other parts of the mini chopper (H1, H2 and H3) are dishwasher friendly (fig. 19). You may wash the body, the blades and the blade holder with a moist sponge and some washing-up liquid.

Unplug the unit

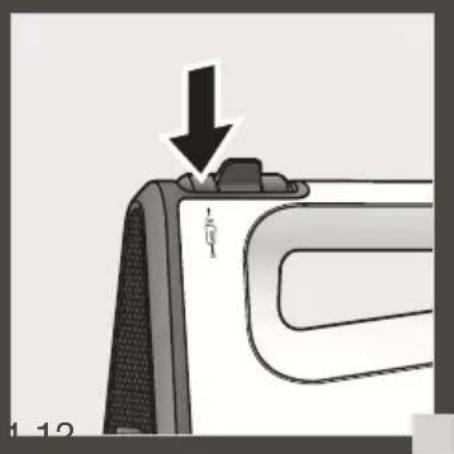

■ Then press the accessory eject button (A1) to release the whisks or mixers.

RECIPES

RECIPES ACCESSORIES INGREDIENTS SPEED TIME
Whipped cream	Whisks	250 g of full fat UHT cream (minimum 30% fat content)	1 min. 30 sec. at minimum speed then 1 min. 30 sec at maximum speed	3 min.
Egg whites Whisks		4 egg whites + 1 pinch of salt	Maximum speed 3 m	n.
Bread dough	Mixers	500 g strong white bread flour, 300 ml lukewarm water, 10 g salt, 10 g fast action dried yeast	Gradually increase the speed for 2 min., then at maximum speed for 2 min. 50 sec.	4 min. 50 sec.
Vegetable soup	Blender shaft	160g of cooked vegetables (potatoes, carrots and leeks), 240g of stock, freshly ground black Pepper	Eject	55 sec with at least 1 min break. Do not operate more than 5 times.
Carrot and cumin soup	Blender shaft	160 g carrots (cut into 15 x 15 mm cubes), 240 ml water, 1 teaspoon ground cumin, salt and freshly ground black pepper	Eject	55 sec with at least 1 min break. Do not operate more than 5 times.
Apricots purée	Mini-chopper	200g dried apricots 150g creamed honey	Eject 3 s.

CLEANING

■ Unplug the unit.
■ You must remove the whisks or mixers or rear panel prior to cleaning - fig. 7.

• Clean the whisks and mixers immediately after use to prevent egg mixture or oil residues drying on them.
• You can clean the whisks and mixers with a sponge and washing up liquid. They can be put in the dishwasher.

■ Only clean the body of the appliance with a damp sponge and dry thoroughly.
■ Never wash the appliance in the dishwasher.
- Do not use abrasive sponges or objects containing metal parts.

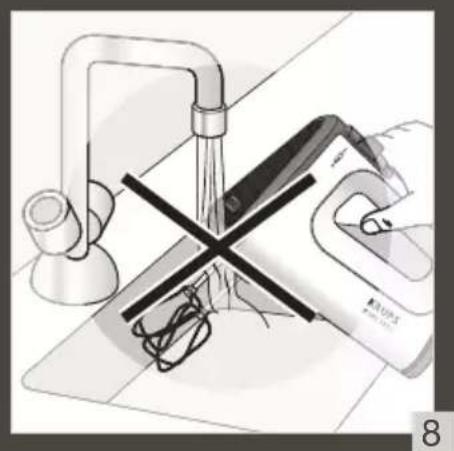

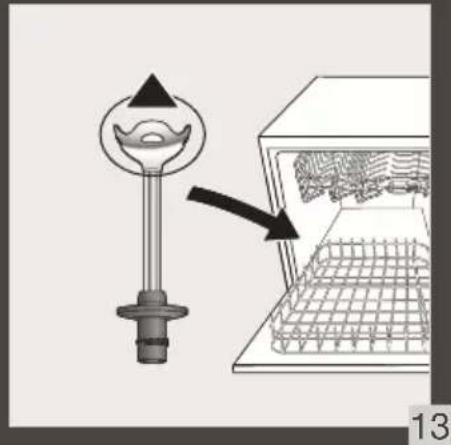

■ Never immerse the body of the appliance in water - fig. 8, 13, 17, 18, 19.

IF THERE IS A PROBLEM

Problem Cause Solution
My appliance does not switch on.	Your appliance is not connected.	Check the connection and voltage of your appliance.
The turbo function does not work.	You have already reached the maximum speed with the speed controller (A2).	The turbo allows for maximum speed directly without the speed controller (A2) .
I cannot attach my whisk (B) and mixer (C) accessories.	Poor positioning.	■ Respect the assembly direction- fig. 2.■ Invert the position of the accessories.
The whipped cream does not bind together and become stiff.	■ The cream is not cold enough.■ The whisks are not sufficiently immersed in the mixture.■ The container is not adapted to the quantity of ingredients.	■ Always use chilled cream: place the cream in the refrigerator for at least 2 hours before use.■ Tip: place the container in the freezer for 1 hour.■ Make sure the preparation covers at least half of the whisks. Tip: use whole cream with at least 30% fat.
The unit overheats.	The quantities of ingredients are too large and do not respect the amounts set out in the manual.	Adjust the amounts of ingredients according to recipes listed in the recipe table.
The blender shaft (E) doesn’t work.	Your appliance is not connected or incorrect button pressed.	Check the connection or press the Blender shaft function (A1).

Does your appliance still not work? Please contact an authorised service centre (see list in the service booklet).
