Product Type	Dynamic harmonica microphone
Brand	Hohner
Model	Harp Blaster HB52
Category	Microphone
Capsule Type	Dynamic
Voice Coil	Copper
Magnet	Neodymium
Frequency Response	22 - 16,000 Hz
Sensitivity	17.8 mV/Pa (-35 dBV)
Electrical Impedance	45 kohms
Connectivity	3-pin male XLR connector
Diameter	50 mm (1.97 in)
Length	78 mm (3.07 in)
Weight	205 g (7.23 oz)
Housing Material	Chrome-plated zinc alloy, all-metal
Manufacturing	Handmade
Adjustable Volume	Yes, Bourns® potentiometer with chrome knurled knob
Lockable Connector	Yes, XLR locking mechanism
Cleaning	Microfiber cloth included
Safety	Follow local safety standards, device grounded
Warranty	3 years after online registration

Frequently Asked Questions - Harp Blaster HB52 Hohner

How to adjust the volume on the Harp Blaster HB52?

The microphone features a Bourns® potentiometer with a chrome knurled knob. Turn it to adjust the volume. If you prefer a fixed volume, you can disable the control internally (see manual).

What type of cable to use with this microphone?

The Harp Blaster HB52 uses a 3-pin male XLR output. Use a female XLR cable to your amp or mixer. The connector locks to avoid accidental disconnection.

How to clean the microphone?

Use the included microfiber cloth to wipe the housing. Avoid immersion in water or harsh solvents. The grille can be gently dusted.

Is the microphone compatible with all harmonicas?

Yes, the Harp Blaster is designed for all types of harmonicas, including diatonic and chromatic harmonicas. Its ergonomic design ensures comfortable handling.

How to register for the extended 3-year warranty?

Go to http://www.seelectronics.com/registration and register your product online. You will receive confirmation of the extended 3-year warranty.

Is the microphone shock-resistant?

Yes, the chrome-plated zinc alloy housing is extremely robust. It has been tested to withstand drops and heavy stage use. According to the manufacturer, it can even drive nails!

Can I use this microphone with a generator or amp?

Yes, it works with any standard audio equipment that has a microphone input with phantom power (not required because it's dynamic) or a standard XLR input. Ensure the equipment is grounded for safety.

How to disable the internal volume control?

Open the housing (after unplugging the microphone) and locate the potentiometer. According to the manual, it can be disabled internally, but this requires intervention. Contact a technician if necessary.

What is the frequency response of the Harp Blaster HB52?

The frequency response is 22 Hz to 16,000 Hz, with a curve tailored for harmonica: accentuated presence in the midrange (500 Hz, 2 kHz) for a piercing and warm sound.

What to do if the microphone produces no sound?

Check the XLR connections, cable, and amplifier input. Test with another cable. If the problem persists, the volume potentiometer may be at fault; contact your dealer for authorized service.

USER MANUAL Harp Blaster HB52 Hohner

Vintage-style microphone with black and white design, no visible text or symbols

Harp Blaster HB52

User Manual

Thank you

Thank you for choosing the HOHNER / sE Harp Blaster HB52 microphone! This manual includes details and specifications that we hope will assist you in getting the most out of your Harp Blaster. Please take a few minutes to read through it.

We take pride in the attention to detail under which our products are crafted, therefore the entirety of manufacturing is done by hand in our own facilities. We sincerely hope you'll enjoy the sound of this mic as much as we've enjoyed designing and building it for you.

Happy Jamming,

The HOHNER / sE Team

Brief Description

It's no secret that today's harmonica microphones are sonically and physically lacking in comparison to their vintage counterparts. We set out to change that: Introducing the Harp Blaster HB52, an exciting collaboration between HOHNER and sE Electronics.

Instead of looking at competing products to sculpt the Harp Blaster's sound, we took our inspiration from a select group of professional players. The goal was to create an exceptional mic ideally suited to their needs, engineered to uncompromising standards, combining fantastic sound quality with optimal ease of use and maximum durability. After all, if a microphone can become a seamless extension of the artist's emotive output – rather than a distraction or an obstacle – the music can flow unhindered and achieve maximum sonority and expression. Together, HOHNER and sE chased down this ideal, creating a state-

of-the-art product that will satisfy the most discerning harmonica player.

The Harp Blaster HB52 is a serious modern microphone using highest quality components. Handcrafted completely out of metal, it boasts a specially designed dynamic element for the authentic vintage sound, a thick die cast body with zinc alloy parts and chrome detailing. Not only will it withstand the uniquely brutal conditions a harp mic can face on a nightly basis; it will do so while enabling vastly superior tone in comparison to other harmonica microphones.

What's in the box

Your packaging should contain the follow items. If anything is missing, please contact your HOHNER / sE Electronics dealer and let them know.

• Harp Blaster HB52 microphone

- Leatherette pouch

• HOHNER / sE logo sticker

- Microfiber cloth

Tips for practical use

The Harp Blaster HB52 was designed with input from professional harp players to ensure that it's comfortable to hold, cup, and use for long periods of time. The mic features a volume control utilizing a Bourns ^ potentiometer and a knurled chrome knob, making it slip-proof and reliable. If you'd prefer not to have a volume control, it can be disabled internally.

We opted to use an XLR jack, as opposed to an attached cable or a 1/4" jack, to avoid a common Achilles' heel among harmonica microphones. An attached cable can easily suffer a broken solder joint, transforming the mic into a paperweight until it can be repaired. An XLR jack provides better connectivity, that won't become noisy or fussy over time like a 1/4" jack, and its

internal locking mechanism adds extra signal security – in case the cable gets tugged, snagged, or stepped on. However, the locking mechanism of the HB52's XLR jack is also easily disabled, if that's your preference.

As mentioned earlier, this microphone is not delicate. In the throes of performing, you can drop it, kick it, and/or drive nails with it. It is built to be a roadworthy tool. Just do us a favor and don't submerge it in boiling water, or anything similarly ridiculous. Barring that, it should last a lifetime!

Safety and maintenance

Risk of damage

Please make sure that the piece of equipment to which your microphone will be connected fulfils the safety regulations enforced in your country and is fitted with a ground lead.

Technical Specifications

Capsule	Dynamic
Voice coil	Copper
Magnet	Neodymium
Frequency range	22 - 16,000 Hz
Sensitivity	17.8 mV/Pa (-35 dBV)
Electrical impedance	45 kohms
Connectivity	3-pin male XLR connector
Diameter	50 mm (1.97 in.)
Length	78 mm (3.07 in.)
Weight	205 g (7.23 oz)

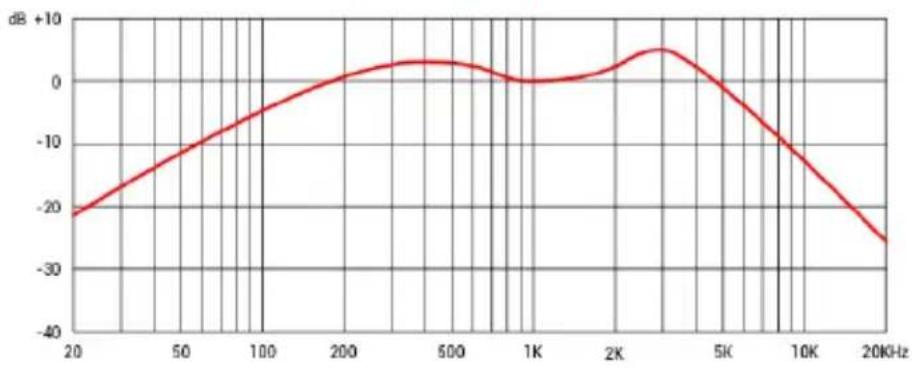

Frequency Response

Support

In the event that you experience any problems or have any questions regarding your HOHNER / sE product, please contact your dealer first for the fastest and most direct service. If authorized service is required, it will be arranged by that dealer:

http://www.seelectronics.com/dealers

If you are still having difficulties with support or assistance, please do not hesitate to contact us directly: http://www.seelectronics.com/contact-us

Lastly, please remember to register your new gear with HOHNER / sE to extend your warranty to a full three years: http://www.seelectronics.com/registration

sE Electronics International, Inc.

448 Ignacio Blvd, STE 411

Novato, CA 94949, USA

sE Electronics

Our international distributors & sales representatives: http://www.seelectronics.com/contact-us

This product conforms to the standards listed in the Declaration of Conformity. Please contact us if you want to order a free copy of the Declaration of Conformity. Technical data subject to change without notice.

Danke

Beschädigungsgefahr

sE Electronics International, Inc.

448 Ignacio Blvd, STE 411

Novato, CA 94949, USA

sE Electronics

Unsere internationalen Distributoren und Handelsvertreter: http://www.seelectronics.com/contact-us

技术规格

损坏风险

http://www.seelectronics.com/registration

sE Electronics International, Inc.

448 Ignacio Blvd, STE 411

Novato, CA 94949, USA

sE Electronics

- Custodia in similpelle

sE Electronics International, Inc.

448 Ignacio Blvd, STE 411

Novato, CA 94949, USA

sE Electronics

• Microphone Harp Blaster HB52

• Autocollant HOHNER / sE

Risque de dommages

sE Electronics International, Inc.

448 Ignacio Blvd, STE 411

Novato, CA 94949, USA

sE Electronics

Riesgo de daños

sE Electronics International, Inc.

448 Ignacio Blvd, STE 411

Novato, CA 94949, USA

sE Electronics

Риск Повреждения

sE Electronics International, Inc.

448 Ignacio Blvd, STE 411

Novato, CA 94949, USA

sE Electronics

Thank you for purchasing a HOHNER / sE product! You are automatically entitled to a two-year warranty, but can extend this to a full three years with registration. To register your new equipment and to read the full warranty details, please go here:

http://www.seelectronics.com/registration

Most Sincerely,

The HOHNER / sE Team
