Product Type	Sand filter for above-ground pool
Brand	Bestway
Model	Hydrium 561FQ
Filter Diameter	270 mm
Filtration Area	0.059 m²
Maximum Operating Pressure	0.42 bar (6 PSI)
Recommended Operating Pressure	< 0.25 bar (3.5 PSI)
Maximum Water Temperature	35 °C
Filter Media Type	Silica sand #20 (0.45-0.85 mm) or Flowclear™ polyspheres
Sand Capacity	Approximately 8.5 kg
Power Supply	230 V ~ 50 Hz (grounded plug)
Electrical Protection	Residual current device (RCD) ≤ 30 mA required
Minimum Distance from Pool	2 m for the filter, 3.5 m for the plug
Multi-port Valve	6 positions: Filter, Closed, Backwash, Rinse, Drain, Circulation
Assembled Filter Weight	Greater than 18 kg
Floor Mounting	Recommended via mounting holes Ø8 mm, center distance 285 mm
Sand Maintenance	Backwash when pressure exceeds 0.25 bar, or monthly
Strainer Cleaning	Periodic, unscrew the lid and remove debris
Safety	Do not use when people are in the water; unplug before maintenance
Spare Parts and Repairability	Use only Bestway approved parts; consult bestwaycorp.com/support

Frequently Asked Questions - Hydrium 561FQ BESTWAY

What type of sand should I use for the filter?

Use silica sand #20 (0.45-0.85 mm) or Flowclear™ polyspheres. Sand is not included.

How to install the sand filter?

Place the filter on a solid, level surface, at least 2 meters from the edge of the pool. Secure it to the ground using mounting holes (Ø8 mm, center distance 285 mm) to prevent tipping.

What is the normal operating pressure?

The recommended operating pressure is below 0.25 bar (3.5 PSI). If it exceeds 0.25 bar, perform a backwash.

How to perform a backwash?

Turn off the pump, set the valve to Backwash, turn on for 3 to 5 minutes until the discharged water is clear, then switch to Rinse position for 1 minute. Finally, return to Filter position.

Can I use extension cords?

No, use of extension cords is prohibited. Plug the filter directly into a grounded outlet protected by an RCD ≤ 30 mA.

What to do if sand ends up in the pool?

Check that the sand is indeed #20 (0.45-0.85 mm). Make sure the sand level is between MAX and MIN marks and that the skimmer is not damaged. Change the valve position only when the pump is off.

How to winterize the sand filter?

Backwash, completely drain the pool, disconnect hoses, remove all sand, dry all components, and store the filter in a dry, frost-free place.

How often should I clean the strainer?

Clean the strainer periodically depending on usage. A clogged strainer reduces performance. Unplug the unit, set the valve to Closed, unscrew the lid, empty the strainer, and reassemble.

What are the electrical safety distances?

The wall electrical outlet must be more than 4 m from the pool and the filter plug at least 3.5 m from the pool.

Where to find spare parts or support?

Visit bestwaycorp.com/support for FAQs, manuals, videos, and spare parts. Use only Bestway approved parts.

USER MANUAL Hydrium 561FQ BESTWAY

bestwaycorp.com/support

58515 Hmax 1.5 m

OWNER'S MANUAL

bestwaycorp.com/support

Visit the Bestway YouTube channel YouTube

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

OWNER'S MANUAL

58515 Hmax 1.5 m Sand Filter

YouTube

Visit the Bestway YouTube channel

SAFETY INSTRUCTIONS

WARNING

IMPORTANT SAFETY INSTRUCTIONS - READ AND FOLLOW ALL SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

• The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• The power source on the wall of building should keep more than 4 m away from pool.
• The appliance must be supplied by earthed power source.
• RISK OF ELECTRIC SHOCK - The pump cannot be using while people are inside the pool. Forbid the access of the pool in case of damage of the sand filter.
  • DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
• To reduce the risk of electric shock, replace damaged cord immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Extension cords can't be used.

• Risk of electric shock. Using the sand filter with an unmatched electrical supply is dangerous and will permanently damage the sand filter.

• Do not remove the grounding prong or modify the plug in anyway. Do not use adaptor plugs. Consult a qualified electrician for any questions relating to validity of your plugs or grounding.

• Handle the sand filter with care. Do not pull or carry the sand filter by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the sand filter.
• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product.
• Don't plug or unplug the appliance if hand is wet.
  • Always unplug the appliance:
• On raining days
• Before cleaning or other maintenance
• Leave it unattended on holidays
• When the appliance will be not used for long time, such as in the winter, the pool set should be disassembled and stored indoor.
• CAUTION: Read the instruction before using the appliance and installation/reassembly every time.
• Safekeeping the instruction. For reconstruction the pool set every time, please always refer to the instructions.
• If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com
• Electric installations should follow national wiring rules. Consult a qualified electrician for any questions.
  CAUTION: This sand filter is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.
• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock.

NOTES:

- Place the sand filter on solid, level ground. Ensure the sand filter is at least 2 meters away from poolside. Keep distance as far as possible. - Pay attention to position pool and sand filter so adequate ventilation, drainage, and access for maintenance is available. Never place the sand filter in an area that may accumulate water, or on a walking path with lots of foot traffic.

- It is necessary to have the plug accessible after installation of the pool. The plug of the sand filter shall be at least 3.5 m away from the pool.

- Atmospheric conditions may affect the performance and life span of the sand filter; take adequate precautions to protect the sand filter from unnecessary wear and tear that may occur during periods of cold or hot weather and/or exposure to sun.

- Please examine and verify all sand filter components are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.

- It is imperative to change as soon as possible all deteriorated parts. Only use parts approved by the manufacturer.

- Do not allow children or adults to lean or sit on the apparatus.

- Do not add chemicals to the sand filter.

- When chemical products are used to clean the pool water, it is recommended to respect a minimum filtration time to preserve the health of swimmers which depends on compliance of

health regulation.

- Only the media provided or specified by the manufacturer is to be used with product installation.

- It is essential to check that the suction openings are not obstructed.

- It is advisable to stop the filtration during maintenance operations on the filtration system.

- Regularly monitor the filter clogging level.

- A weekly check is recommended for backwashing or cleaning. Minimum daily filtration operating time of 8 hours is recommended to ensure clear pool water.

- It is essential to change any damaged element or set of elements as soon as possible. Use only parts approved by person responsible for placing the product on the market.

- All filters and filter media shall be inspected regularly to ensure that there is not a build-up of detritus thus preventing good filtration. The disposal of any used filter media should also be in accordance with applicable regulations/legislation.

- Mind all the safety requirements and recommendations described in the manual. In case of doubt on the pump or any circulation devices, contact a qualified installer, or the manufacturer/importer/distributor. The water circulation installation shall comply with the European as well as national/local regulations, especially when dealing with electrical issues. Any change of valve position, pump size, grille size can cause a change of the flow and the suction velocity can be increased.

- This product is not intended for commercial use. PLEASE READ THE INSTRUCTION MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. SAVE THESE INSTRUCTIONS

DISPOSAL

Electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SPECIFICATIONS

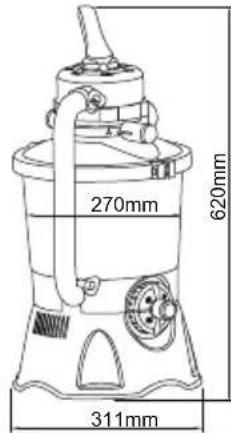

	Filter Diameter	270 mm
	Effective Filter Area:	0.059 m^2 (0.635 ft^2)
	Max. Operating Pressure:	0.42 Bar(6 PSI)
	Working sand filter pressure:	<0.25 Bar(3.5 PSI)
	Max. Water Temperature:	35°C
	Sand:	Not included
	Sand Size:	#20 silica sand,0.45-0.85 mm
	Sand Capacity:	Approximately 8.5 kg

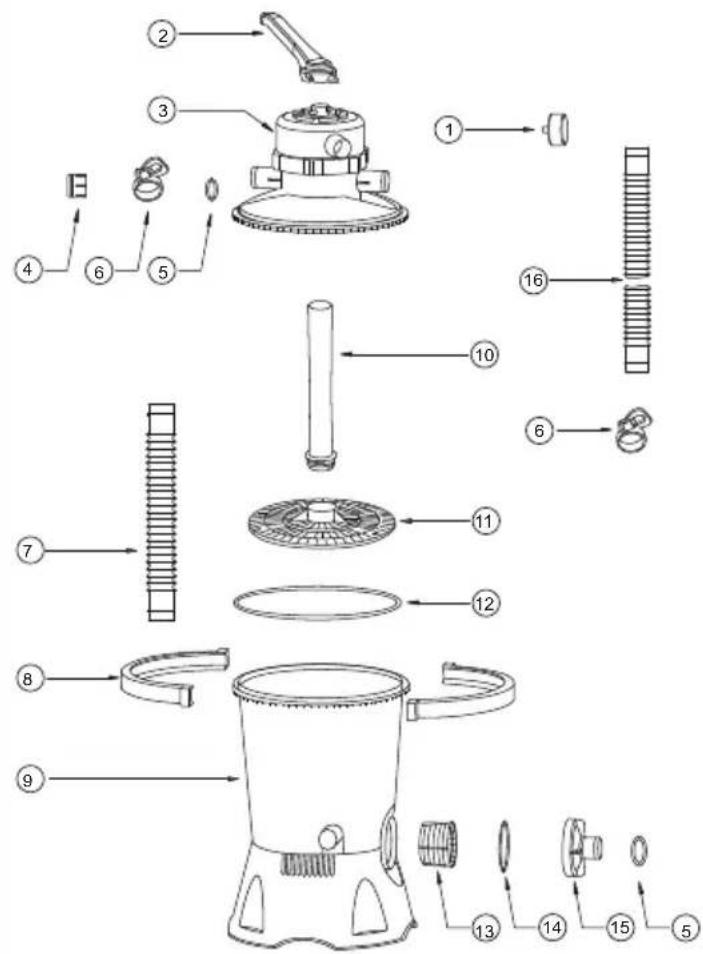

PARTS REFERENCE OVERVIEW

Before assembling the sand filter, take a few minutes to become familiar with all the sand filter parts.

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

NO.	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

ASSEMBLY

(You will need a screwdriver.)

1. Carefully remove all components from the package and check to ensure nothing is damaged. If equipment is damaged, immediately notify the retailer from where the equipment was purchased.
2. The sand filter should be placed on solid, level ground, preferably a concrete slab. Position the sand filter so the Ports and Control Valve are accessible for operation, servicing and winterizing.

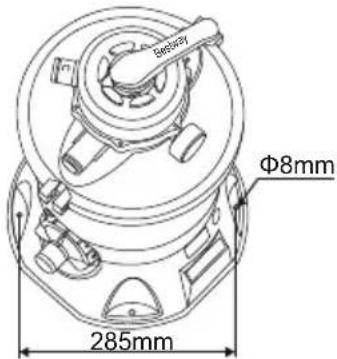

3. EN60335-2-41 TEST standard requires the sand filter to be vertically fixed on ground or a certain pedestal made of wood or concrete before use to prevent the sand filter from accidentally falling. Fully assembled sand filter will exceed 18 kg. The mounting holes should be 8 mm in diameter and spaced 285 mm apart. Use two bolts and nuts with a maximum of 8 mm in diameter to fasten the sand filter to the pedestal.

285mm Φ8mm

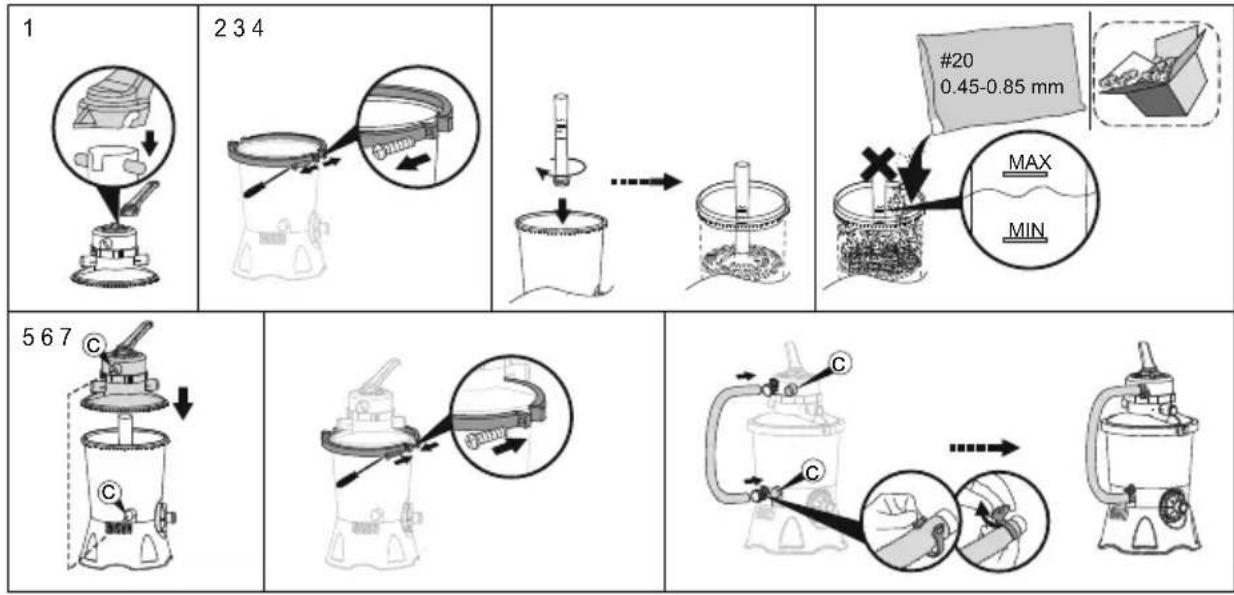

LOAD POOL-GRADE FILTER SAND/FLOWCLEAR™ POLYSPHERE.

NOTE: Use only special pool-grade filter sand, free of all limestone or clay: #20

Silica sand 0.45-0.85 mm, approximately one 8.5 kg bag should suffice. If you do

not use the recommended size filter sand, filtering performance will be reduced and the sand filter may damaged, thereby voiding warranty.

NOTE: To avoid damaging the Skimmer when adding sand, pour some water into the Bottom Tank to submerse the Skimmer on the Collector Hub.

NOTE: Sand/Flowclear™ Polysphere not included.

NOTE: Use 28 g (0.06 lbs) Flowclear™ Polysphere to replace 1 kg (2.20 lbs) sand.

1 2 3 4 #20 0.45-0.85 mm MAX MIN 5 6 7 C C C C

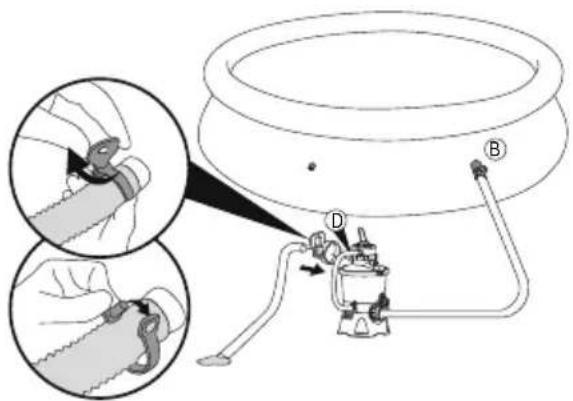

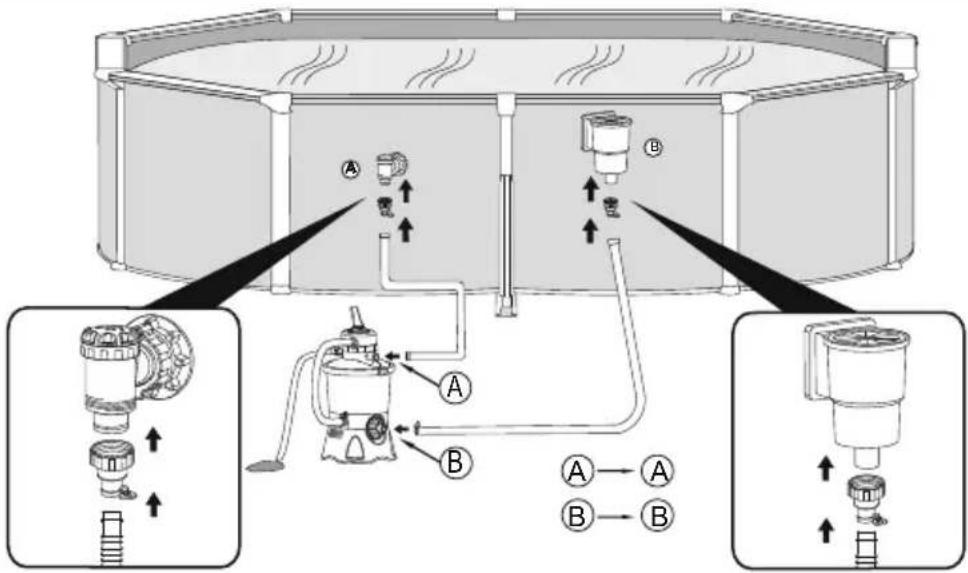

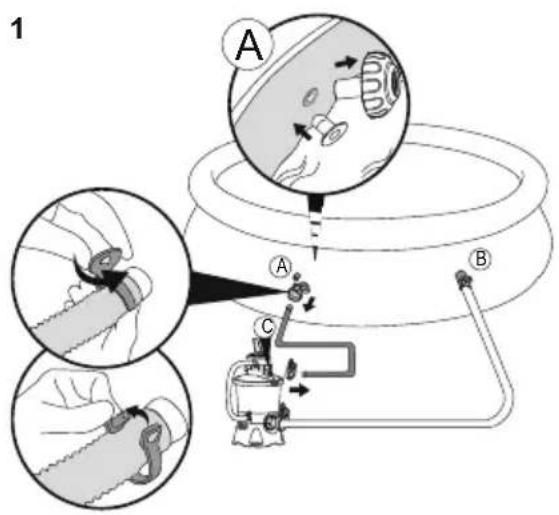

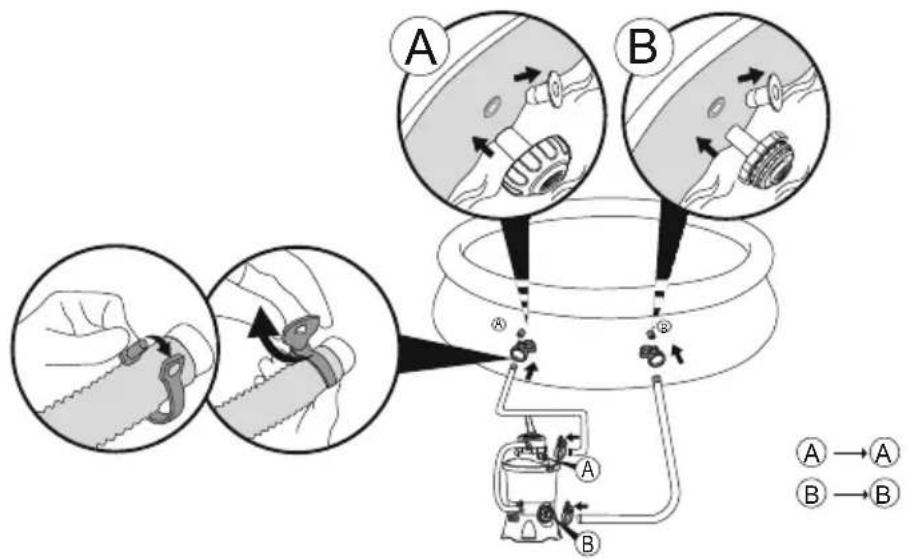

CONNECT TO THE POOL

V1

Diagram illustrating a mechanical device with labeled parts A and B, showing hand positioning and adjustment mechanism.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or flow.

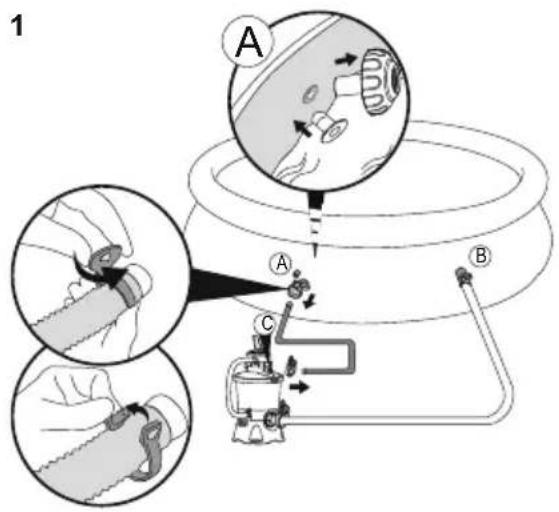

LOWERING OR DRAINING POOL WATER

1 A A B C

2

Diagram showing a mechanical device with labeled parts A, B, and D, including a close-up of hands operating the component.

STOP

Before switching on, please read the manual carefully.

OPERATION

CONTROL VALVE OVERVIEW

WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the Control Valve function. Changing valve positions while the pump is running can damage the Control Valve, which may cause personal injury or property damage.

How to Use the Control Valve:

Press down on the Control Valve handle and rotate to desired function.

CONTROL VALVE FUNCTIONS

The Control valve is used to select 6 different filter functions: Filter, Closed, Backwash, Rinse, Drain and Circulate.

Circular mechanical component diagram with labeled points A, C, D (no text or symbols beyond labels)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Filter: This function is used to filter pool water and should be positioned here 99% of the time. Water is pumped through the sand filter, where it is cleaned and returned to the pool.

returned to the pool. A C B

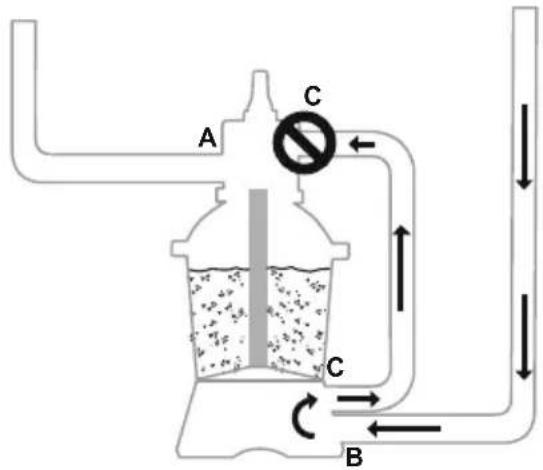

Closed: This function stops water flowing between the sand filter and the pool.

A C B

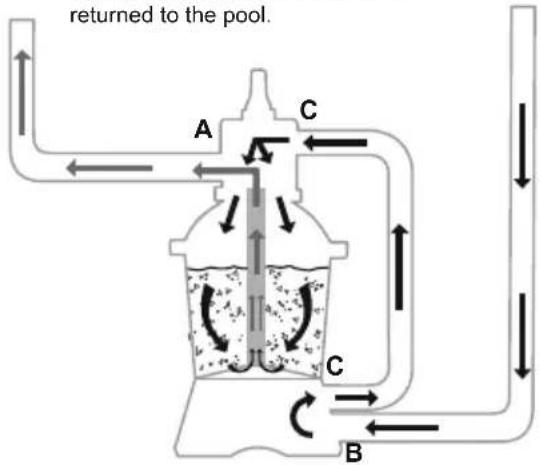

Backwash: This function is used to clean the sand bed; water is pumped down through the Collector Hub, upwards through the sand bed, and deposited out of Port D.

deposited out of Port D. A C D C B

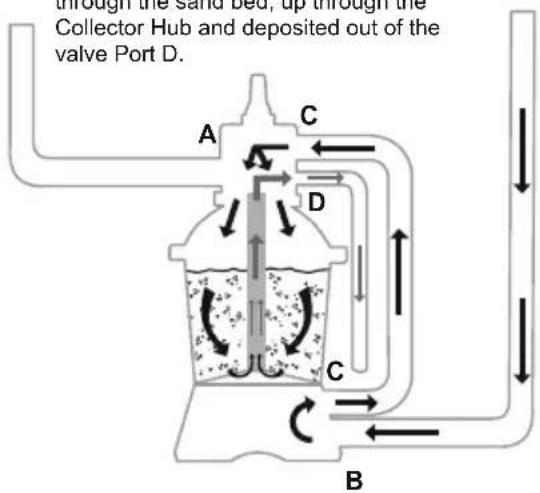

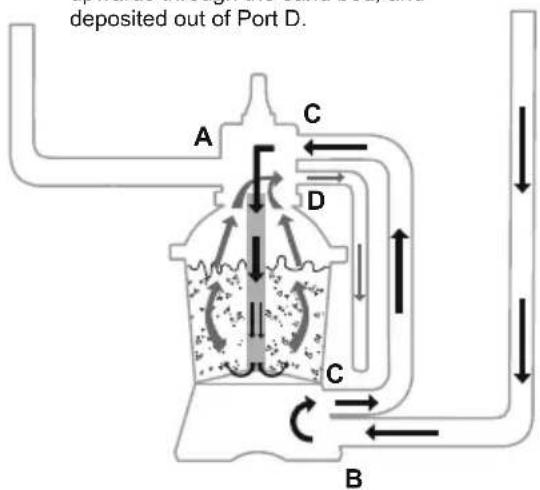

Rinse: This function for initial startup, cleaning, and sand bed leveling after Backwash; water is pumped downwards through the sand bed, up through the Collector Hub and deposited out of the valve Port D.

through the sand bed, up through the Collector Hub and deposited out of the valve Port D. A C D C B

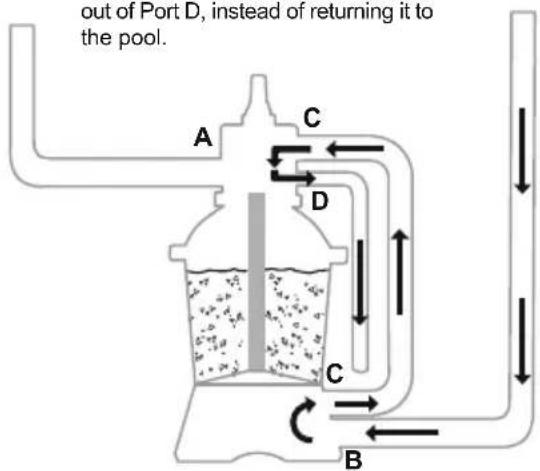

Drain: This function drains water from the pool; another filter bypass setting, water is pumped and deposited out of Port D, instead of returning it to the pool.

out of Port D, instead of returning it to the pool. A C D C B

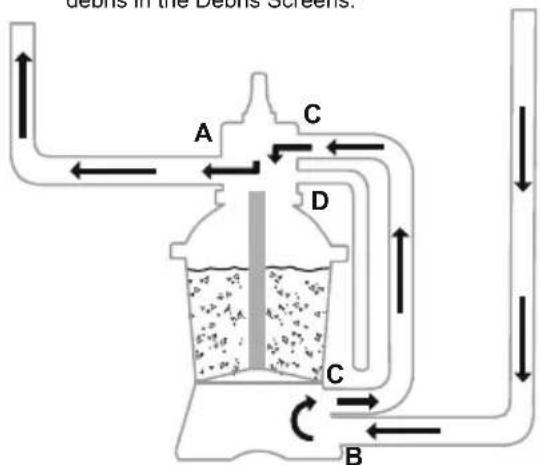

Circulate: This function circulates pool water bypassing the sand filter; use this function if the filter is broken to collect debris in the Debris Screens.

Double in the Double Screen. A C D C B

NOTE:

• Be sure all provisions for wastewater disposal meet applicable local, state or national codes. Do not discharge water where it will cause flooding or damage.
• When the Control Valve is set to the Backwash, Rinse, or Drain position, water will discharge from Port D on the Control Valve.
• Do not switch on or operate the sand filter with the Control Valve set to the Closed function or it will seriously damage the sand filter.
• Do not set the Control Valve between two functions, or it will lead to leaking.

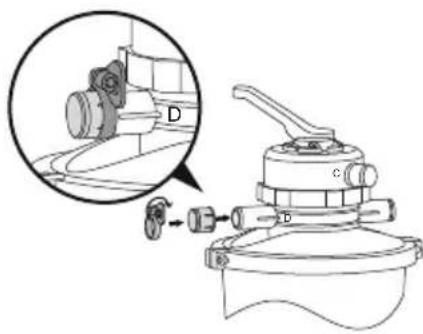

• To avoid water leakage, insert the Port D Cap onto the Control Valve Port D before operating the sand filter.

Technical diagram showing a valve assembly with labeled parts D and C, including a magnified inset view of the component.

AIR RELEASE

Press down the control valve handle and wait until the water flow from Port D to release the air.

NOTE: It is important to repeat this operation every time you start the pump after winterizing, maintenance and backwashing the sand bed.

FIRST TIME USE INSTRUCTIONS

Backwash and Rinsing must be performed to prepare the pump for its first use and to wash the sand.

CAUTION: DO NOT DRY RUN THE SAND FILTER

1. Press down on the Control Valve handle and rotate to the Backwash function.
2. Plug in and run the sand filter for 3-5 minutes, or until the water runs clear.
3. Switch off the sand filter and set the Control Valve to the Rinse function.
4. Switch on the sand filter and run the sand filter for 1 min. This circulates water backwards through the sand filter and drains water out Port D.
5. Switch off the sand filter. Set the Control Valve to the Closed function.
6. Top up pool water if required.

IMPORTANT: This procedure removes water from the pool, which you'll need to replace. Switch off the sand filter immediately if water levels near the pool's Inlet and Outlet valves.

RinsingBackwash

1. Now the sand filter is ready for use. Set the Control Valve to the Filter function.

NOTE: To prevent the risk of electrical shock dry any excess water from yourself and the sand filter.

1. Switch on the sand filter to run it.

NOTE: The sand filter has now started its filtering cycle. Check that water is returning to the pool and take note of the filter pressure on Pressure Gauge. Generally, the recommended sand filter pressure is less than 0.25 Bar (3.5 PSI) when it is running.

0.8 1 0.4 5 10 15 20 23 1.6 psi bar

SAND FILTER MAINTENANCE

CAUTION: You must ensure the sand filter is switched off and unplugged before any maintenance begins or severe risk of injury or death exists.

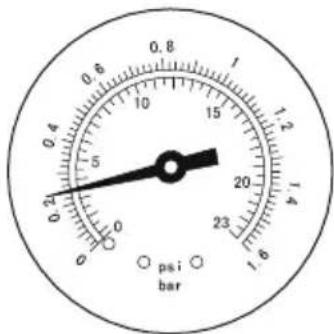

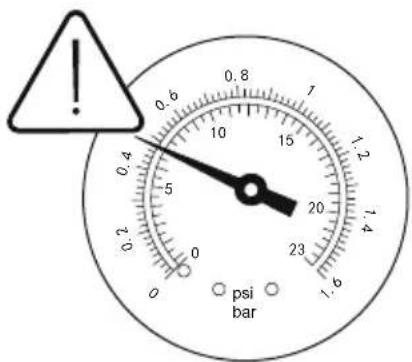

As dirt builds up in the sand filter, the pressure reading on Pressure Gauge will increase. When the Pressure Gauge is 0.25 Bar (3.5 PSI) or higher, or water flow to the pool is too low, it is time to clean the sand. To clean the sand bed, follow all instructions outlined previously in: Backwash and Rinsing.

0.6 0.8 1 15 1.2 0.4 5 20 23 1.6 0 psi bar

NOTE: Pressure gauge is for maintenance purpose only, and the pressure gauge value is just for reference, it should not be used as a precision instrument.

NOTE: We recommend you clean the sand bed once a month or less regularly depending on how often the pool is used. Do not clean the sand too frequently.

CLEANING THE STRAINER

1. Switch off the sand filter and set the Control Valve to the Closed function.
2. Replace the Debris Screens with Stopper Plugs to prevent water from escaping.
3. Remove the Strainer Cover by unscrewing it.
4. Take out the Strainer, remove any debris.
5. Put the Strainer back into position. Ensure the hole in the strainer is aligned.
6. Ensure the Seal Ring is in place. Secure the Strainer Cover back.
7. Remove the Stopper Plugs and insert the Debris Screens.

NOTE: The Strainer must be emptied and cleaned periodically. A dirty or blocked strainer will reduce the performance of the sand filter.

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

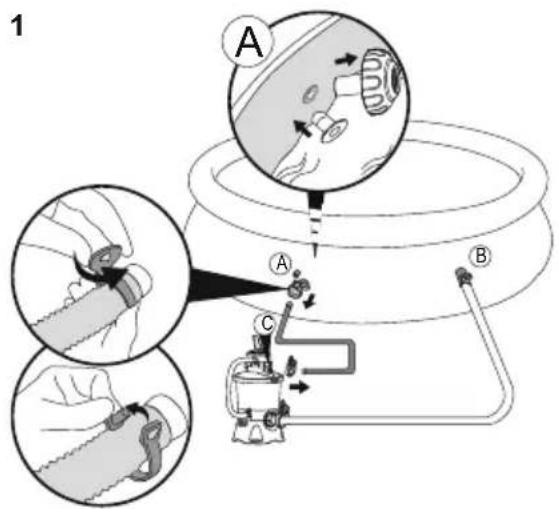

LOWERING OR DRAINING POOL WATER

1. Switch off the sand filter and set Control Valve to the Drain function.
2. Detach the Hose from the pool's Port A and sand filter Port A and attach to Port D.
   NOTE: Remember to replace the Debris Screen with Stopper Plug to prevent water from escaping.
3. Switch on the sand filter to run the filter and remove the pool water.
   WARNING: DO NOT DRY RUN THE SAND FILTER.

STORAGE

In areas that have freezing winter temperatures, pool equipment must be winterized to protect against damage. Allowing water to freeze will damage the sand filter and void warranty.

1. Backwash the sand filter.
2. Drain the pool according to the pool owner's manual.
3. Disconnect the two Hoses from the pool and the sand filter.
4. Completely pour the sand out of the tank and dry all components.
5. Store the sand filter in a dry location out of child's reach.

TROUBLESHOOTING

Problems Probable	Causes Solutions
Sand is flowing to the pool	- Sand is too small- Move the control valve from the backwash to the filter function without stop the sand filter- The level of the sand is too high- The skimmer is broken	- Recommend 0.45 mm to 0.85 mm #20 silica sand- Stop the sand filter every time set the control valve- Check if the level of the sand is between the marked “MAX” and “MIN” on the collector hub- Replace the skimmer
No water flow	- Stopper plugs were not removed- Air was not released- The control valve is set to Closed- The strainer is blocked- Sand filter broken	- Remove the stopper plugs and insert the debris screens- Release the air- Set to filter function- Clean the strainer- Call for service
Excessive filter pressure	- Dirty filter- Calcified sand bed- Insufficient backwashing- The pressure gauge is broken	- Backwash- Inspect sand and change if necessary- Backwash until water runs clear- Replace the pressure gauge
Control Valve leaks from the port D	- Control Valve is set between two functions- The gasket is broken	- Set to one function- Replace the gasket
Connectors leak	- O-ring on the hose connection is broken- Loose Hoses	- Replace the O-ring- Tighten them

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

N.°	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

MONTAGEM

Φ8mm 285mm

COLOQUE A AREIA DE FILTRO PARA PISCINA/POLI ESFERAS FLOWCLEAR™.

Diagram illustrating mechanical assembly steps with labeled components A and B, showing hand-cranked tool path and valve mechanism.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands operating a component.

PARE

Circular mechanical component diagram with labeled points A, C, D (no text or symbols beyond labels)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Technical diagram of a valve assembly with labeled parts D and C, showing a close-up view of the component.

LIBERTAÇÃO DO AR

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

N°	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

MONTAJE

Reservoir Φ8mm 285mm

CARGUE EL FILTRO DE PISCINA DE ARENA/BOLAS FILTRANTES FLOWCLEAR™ POLYSPHERE.

Diagram illustrating a mechanical device with labeled parts A and B, showing hand positioning and adjustment steps.

V2

1

A

A

B

A

B

A

B

2

A

B

B

D

C

ALTO

Technical diagram of a valve assembly with labeled parts D and C, showing a close-up view of the component.

SALIDA DE AIRE

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

VACIAR O REDUCIR EL NIVEL DE AGUA DE LA PISCINA

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

NR.	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

MONTAGE

285mm Φ8mm

VERWENDEN SIE NUR FILTERSAND/FLOWCLEAR™ POLYSPHERE™ FÜR DIE SANDFILTERANLAGE.

Diagram illustrating a mechanical device with labeled parts A and B, showing hand-cranked joint movements and assembly steps.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or flow.

POOLWASSER ABSENKEN ODER ABLASSEN

1 A A B C

2

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands operating a component.

Circular mechanical component diagram with labeled points A, C, D (no text or symbols beyond labels)

Diagram of a mechanical device with rotating arrows indicating rotational motion (no text or symbols)

Technical diagram of a valve assembly with labeled parts and a magnified inset showing a mechanical component detail.

ABLASSEN DER LUFT

Diagram of a mechanical component with arrows indicating motion or assembly (no text or symbols)

POOLWASSER ABSENKEN ODER ABLASSEN

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

NRO.	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

KOKOAMINEN

Reservoir Φ8mm 285mm

LISÄÄ UIMA-ALTAASEEN KELPAAVAA SUODATINHIEKKAA TAI FLOWCLEAR™ POLYSPHEREA.

Diagram illustrating a mechanical assembly with labeled parts A and B, showing directional changes in a component.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

ALTAAN VEDEN MÄÄRÄN VÄHENTÄMINEN TAI ALTAAN TYHJENTÄMINEN

1 A A B C

2

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands operating a component.

SEIS

SÄÄTÖVENTTIILIN TOIMINNOT

Circular mechanical component diagram with labeled points A, C, D (no text or symbols beyond labels)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Technical diagram showing a valve assembly with labeled parts D and C, including a magnified inset view of the component.

ILMANPOISTO

Diagram showing a mechanical component with arrows indicating motion, no text or symbols present

ALTAAN VEDEN MÄÄRÄN VÄHENTÄMINEN TAI ALTAAN TYHJENTÄMINEN

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

NR.	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

MONTEREN

285mm Φ8mm

LAAD ZWEMBADKWALITEIT FILTERZAND/FLOWCLEAR™ POLYSPHERE.

Diagram illustrating a mechanical device with labeled parts A and B, showing hand-cranked mechanisms and directional arrows.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

ZWEMBADWATER DOEN ZAKKEN OF AFVOEREN

1 A A C B

2

Diagram showing mechanical assembly with labeled parts D and B, including hand tool insertion and valve mechanism

STOP

Circular mechanical component diagram with labeled points A, C, D (no text or symbols beyond labels)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Technical diagram of a valve assembly with labeled components and a magnified inset showing a valve mechanism.

ONTLUCHTING

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

ZWEMBADWATER DOEN ZAKKEN OF AFVOEREN

WAARSCHUWING: LAAT DE ZANDFILTER NIET DROOG WERKEN

OPSLAG

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

N.	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

MONTAGGIO

285mm Φ8mm

CARICARE LA SABBIA PER FILTRI PISCINE\SFERE IN FIBRA DI POLIETILENE FLOWCLEAR™

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

RIDUZIONE O SCARICO DELL'ACQUA DELLA PISCINA

1 A A C B

2

Diagram showing mechanical assembly with labeled parts A, B, and D, including a close-up of hands using a tool.

STOP

A D C ↓ →

Technical diagram of a valve assembly with labeled parts and a magnified inset showing a component detail view.

RILASCIO DELL'ARIA

Diagram of a mechanical component with arrows indicating motion or assembly (no text or symbols)

RIDUZIONE O SCARICO DELL'ACQUA DELLA PISCINA

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

N°	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

MONTAGE

Reservoir Φ8mm 285mm

REMPLISSEZ DE SABLE DE FILTRATION DE QUALITÉ POUR PISCINE/POLYSPHÈRES FLOWCLEAR™.

Diagram illustrating a mechanical device with labeled parts A and B, showing hand positioning and adjustment steps.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

DIMINUTION OU VIDANGE DE L'EAU DE LA PISCINE

1 A A B C

2

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands operating a component.

STOP

Circular mechanical component diagram with labeled points A, C, D (no text or symbols beyond labels)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Technical diagram of a valve assembly with labeled parts and a magnified inset showing a mechanical component detail.

ÉVACUATION DE L'AIR

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

DIMINUTION OU VIDANGE DE L'EAU DE LA PISCINE

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

APIΘ.	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

ΣΥΝΑΡΜΟΛΟΓΗΣΗ

285mm Φ8mm

Diagram illustrating mechanical assembly steps with labeled components A and B, showing hand-cranked tool path and valve mechanism.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands operating a component.

Technical diagram showing a circular component with labeled sections A, C, D and a mechanical component with rotational arrows indicating rotation.

Technical diagram showing a valve assembly with labeled parts D and C, including a magnified inset view of the component.

ΑΠΕΛΕΥΘΕΡΩΣΗ ΑΕΡΑ

Diagram showing a mechanical component with arrows indicating motion or assembly (no text or symbols)

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

No	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

СБОРКА

285mm Φ8mm

ЗАГРУЗИТЕ ПЕСОК, ПРЕДНАЗНАЧЕННЫЙ СПЕЦИАЛЬНО ДЛЯ БАССЕЙНОВ, ИЛИ FLOWCLEAR™ POLYSPHERE.

Diagram illustrating a mechanical device with labeled parts A and B, showing hand-cranked joint movements and assembly steps.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands using a tool to adjust or install a component.

Diagram showing a mechanical component with labeled parts A, C, D and a rotating mechanism below.

Technical diagram of a valve assembly with labeled parts and a magnified inset showing a mechanical component detail.

ВЫПУСКАНИЕ ВОЗДУХА

Diagram showing a mechanical component with arrows indicating motion or transformation (no text or symbols)

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

nr	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

SKŁADANIE

285mm Φ8mm

NAPEŁNIĆ PIASKIEM PRZEZNACZONYM DO FILTRÓW BASENOWYCH/MATERIAŁEM FLOWCLEAR™ POLYSPHERE.

Diagram illustrating mechanical assembly steps with labeled components A and B, showing tool path and component placement.

V2

Technical diagram of a cylindrical tank with labeled components and directional arrows indicating flow or movement.

OBNIŻANIE LUB SPUSZCZANIE WODY W BASENIE

1 A A B C

2

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands operating a component.

STOP

Diagram showing a mechanical assembly with labeled components A, C, D and a rotating tool mechanism below.

Technical diagram of a valve assembly with labeled parts and a magnified inset showing a mechanical component detail.

WYPUSZCZANIE POWIETRZA

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

OBNIŻANIE LUB SPUSZCZANIE WODY W BASENIE

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

SZÁM	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

ÖSSZESZERELÉS

Beckway Φ8mm 285mm

TÖLTSÖN BE MEDENCEI MINŐSÉGÜ SZÚRŐHOMOKOT/FLOWCLEAR™ POLYSPHERE TERMÉKET.

Diagram illustrating a mechanical device with labeled parts A and B, showing hand positioning and adjustment steps.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

A MEDENCEVÍZ SZINTJÉNEK LEJJEBB ENGEDÉSE, ILLETVE A MEDENCEVÍZ LEERESZTÉSE

1 A A B C

2

Diagram showing mechanical assembly with labeled parts D and B, including a close-up of hands using a tool to adjust or install a component.

Circular mechanical component diagram with labeled points A, C, D (no text or symbols beyond labels)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Technical diagram of a valve assembly with labeled parts and a magnified inset showing a mechanical component detail.

LÉGTELENÍTÉS

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

A MEDENCEVÍZ SZINTJÉNEK LEJJEBB ENGEDÉSE, ILLETVE A MEDENCEVÍZ LEERESZTÉSE

Exploded diagram of a cleaning or cleaning device with numbered parts for identification

A

x2 x2 x1 x1

NR.	A	B
1	x1	x1
2	x1	x1
3	x1	x1
4	x1	x1
5	x5	x5
6	x7	x5
7	x1	x1
8	x2	x2
9	x1	x1
10	x1	x1
11	x1	x1
12	x1	x1
13	x1	x1
14	x1	x1
15	x1	x1
16	x2	x2
17-1	x1	x0
17-2	x1	x0

MONTERING

285mm Φ8mm

FYLL PÅ MED POOLFILTERSAND/FLOWCLEAR™ POLYSPHERE.

Diagram illustrating a mechanical assembly with labeled parts A and B, showing directional changes in a component.

V2

Technical diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

MINSKNING ELLER TÖMNING AV POOLVATTNET

1 A A B C

2

Diagram showing a mechanical device with labeled parts (A, B, C, D) and a magnified inset of hands adjusting parts.

STOPP

Technical diagram showing a circular component with labeled sections A, C, D and a mechanical component with rotational arrows indicating rotation.

Technical diagram showing a valve assembly with labeled parts D and C, including a magnified inset view of the component.

ATT SLÄPPA UT LUFTEN

Diagram of a mechanical component with arrows indicating assembly or transformation (no text or symbols)

MINSKNING ELLER TÖMNING AV POOLVATTNET

For support please visit us at:

bestwaycorp.com/support

©2022 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

Trademarks used in some countries under license from/

Manufactured, distributed and represented in the European Union by/

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com
