Oh my Cake QB1108 - Food Processor TEFAL - Free user manual and instructions

Product type	Stand mixer
Brand	TEFAL
Model	Oh my Cake QB1108
Bowl capacity	Approximately 4 litres
Bowl material	Stainless steel
Number of speeds	5 speeds + Pulse function
Included accessories	Multi-wire whisks, dough hooks, whisk and dough hook attachments
Recommended use	Whisks for light preparations (meringue, mayonnaise, pancake batter); dough hooks for heavy doughs (bread dough, pizza)
Power supply	Mains
Weight	Approximately 3.5 kg
Dimensions (L x W x H)	Approximately 30 x 20 x 35 cm
Cleaning	Bowl and accessories dishwasher safe; wipe appliance with a damp cloth
Safety	Multi-function head lock, accessory ejection button, unplug before cleaning
Warranty	2 years (according to applicable legislation)

Frequently Asked Questions - Oh my Cake QB1108 TEFAL

How to use the Pulse function on the Oh my Cake QB1108?

Press button A3 in successive pulses for better control of preparations.

What accessories are included with the TEFAL Oh my Cake QB1108?

The stand mixer comes with multi-wire whisks, dough hooks and a whisk and dough hook attachment.

Can I wash the bowl and accessories in the dishwasher?

Yes, the stainless steel bowl (F) and accessories (B, C) are dishwasher safe. Dry them well before storing.

How to attach and remove the whisks or dough hooks?

Insert the shafts into the slots provided (Fig.2). To remove them, press the ejection button A1.

What to do if the stand mixer does not start?

Check the power connection, the multi-function head lock (button A4) and that the speed selector (A2) is in a position other than 0.

What is the maximum bread dough capacity?

For bread dough, use up to 500g of flour with 300ml of water. Do not exceed 5 minutes of kneading at speed 5.

Can the appliance be used for liquid preparations?

Yes, the whisks are suitable for sauces, creams and mayonnaises. Respect the maximum quantities (e.g., 2 egg yolks for mayonnaise).

How to clean the body of the stand mixer?

Never immerse the appliance (A) in water. Wipe it with a dry or barely damp cloth.

Are there important safety instructions?

Tie up long hair, remove jewelry and use the appliance on a stable surface. Unplug it before any cleaning.

Where to find after-sales service for the TEFAL Oh my Cake QB1108?

Check the list of approved centers provided with your manual or contact TEFAL customer service.

USER MANUAL Oh my Cake QB1108 TEFAL

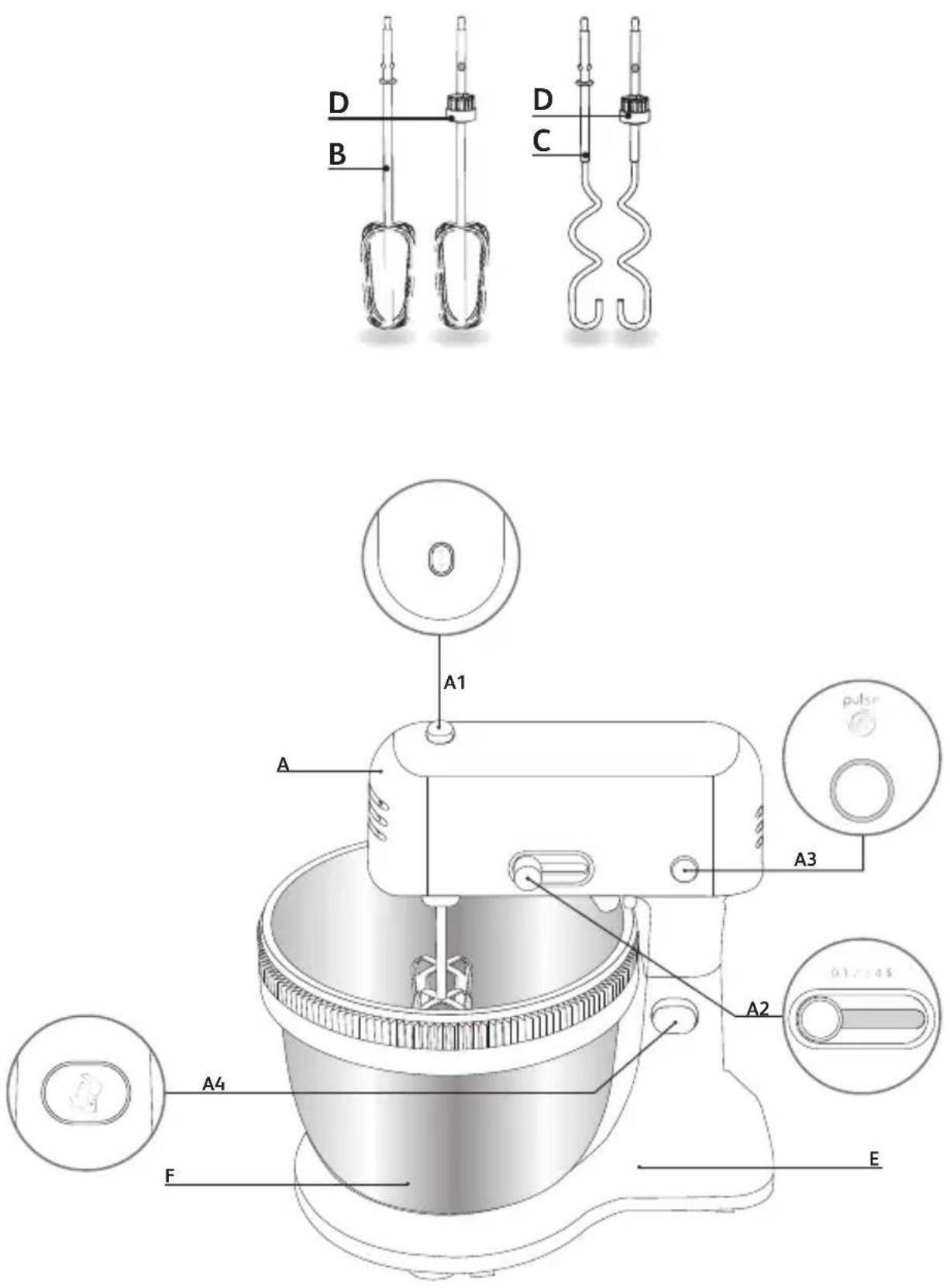

Line drawing of a kitchen mixer with meshing and control panel (no text or symbols)

D B D C A1 A A3 pulse 0.125 x 0.5 A4 F A2 E

2

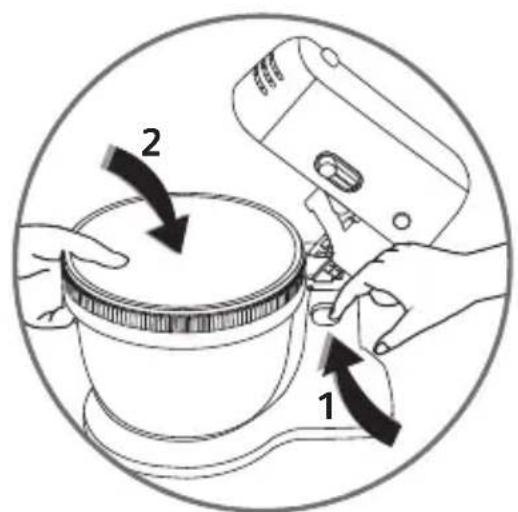

Diagram showing two hands operating a kitchen appliance with labeled parts 1 and 2, illustrating a step in the process.

Fig. 1

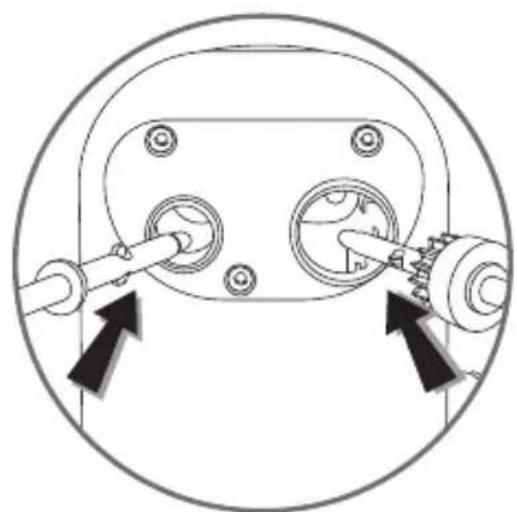

Diagram of a mechanical device with two circular components and directional arrows indicating movement or force (no text or symbols)

Fig. 2

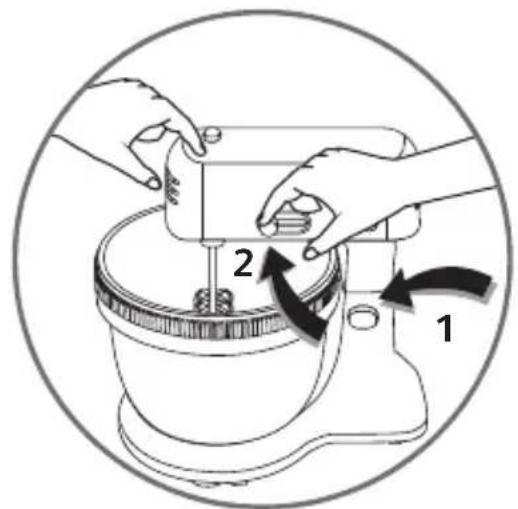

Diagram showing hands operating a mixing bowl with labeled parts 1 and 2, indicating a step in the process.

Fig. 3

BG

Creative Commons recycling symbol and prohibition icon with Chinese character 'i'

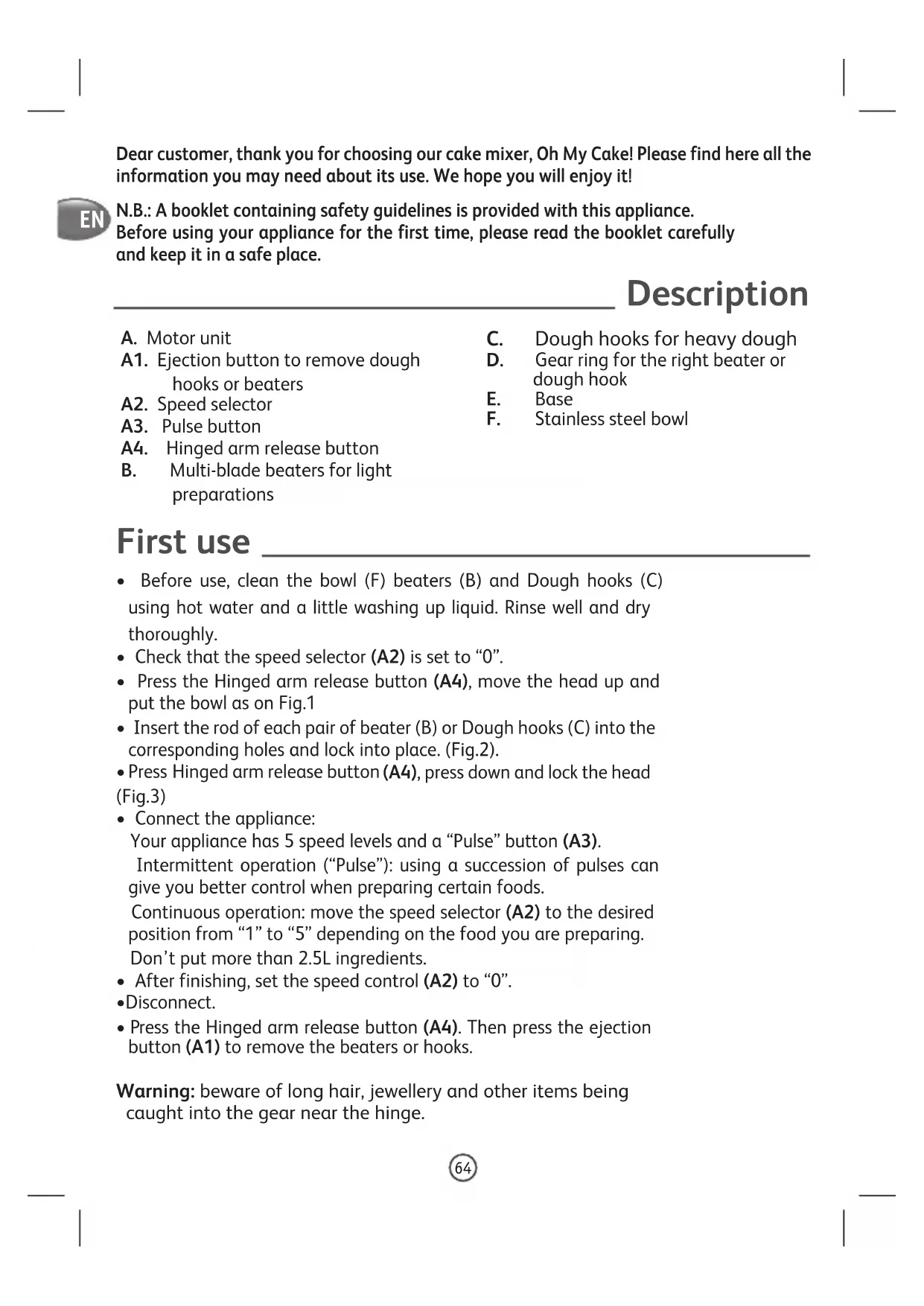

Dear customer, thank you for choosing our cake mixer, Oh My Cake! Please find here all the information you may need about its use. We hope you will enjoy it!

N.B.: A booklet containing safety guidelines is provided with this appliance. Before using your appliance for the first time, please read the booklet carefully and keep it in a safe place.

Description

A. Motor unit

A1. Ejection button to remove dough hooks or beaters

A2. Speed selector

A3. Pulse button

A4. Hinged arm release button

B. Multi-blade beaters for light preparations

C. Dough hooks for heavy dough

D. Gear ring for the right beater or dough hook

E. Base

F. Stainless steel bowl

First use

• Before use, clean the bowl (F) beaters (B) and Dough hooks (C) using hot water and a little washing up liquid. Rinse well and dry thoroughly.
• Check that the speed selector (A2) is set to "0".
• Press the Hinged arm release button (A4), move the head up and put the bowl as on Fig.1
• Insert the rod of each pair of beater (B) or Dough hooks (C) into the corresponding holes and lock into place. (Fig.2).
• Press Hinged arm release button (A4), press down and lock the head (Fig.3)
• Connect the appliance: Your appliance has 5 speed levels and a “Pulse” button (A3).

Intermittent operation (“Pulse”): using a succession of pulses can give you better control when preparing certain foods.

Continuous operation: move the speed selector (A2) to the desired position from "1" to "5" depending on the food you are preparing.

Don't put more than 2.5L ingredients.

• After finishing, set the speed control (A2) to "0".
• Disconnect.
• Press the Hinged arm release button (A4). Then press the ejection button (A1) to remove the beaters or hooks.

Warning: beware of long hair, jewellery and other items being caught into the gear near the hinge.

Quantities and preparation times

Beaters (B) for: sauces, beaten egg whites, creams, mayonnaise, sponge mixtures and light batters (e.g. pancake batters).

	Max. quantity Max. time Speed
Egg whites	6 egg whites	4 min. 5
Mayonnaise	2 yolks, 1 tablespoon of mustard, 200g of vegetal oil	3 min.	1 for 30 s.Then 5
Cake	300g of flour, 300g of sugar, 300g of softened butter, 6 eggs	9 min. 1 to 5
Bread Coating(add before cooking your bread)	410g honey, 30g spread maltose, 30g flour	20 seconds 5 + “pulse”

Dough hooks (C) for: all types of heavy and thick dough such as bread dough, pizza dough, shortcrust pastry, etc.

	Max. quantity Max. time Speed
Bread dough	500g of flour, 300ml of water, 8g of dry yeast	5 min. 5

Storage

Do not store your appliance in a humid environment.

Cleaning

• Make sure that the appliance is unplugged.
• You can clean the bowl (F), beaters (B) and Dough hooks (C) under the tap with a sponge and washing up liquid or they can be put into the dishwasher.
• Never immerse the appliance (A) in water. Wipe with a dry cloth or wet brush.

What to do if your appliance does not work?

Check:

That it is plugged in correctly.

That the accessories are correctly locked.

The position of the speed selector (A2): turn it to position “0” and then select the desired speed again.

Your appliance still does not work? Contact an approved service centre (see list in last page of this booklet).

End-of-life electrical or electronic products

The packaging is comprised exclusively of materials that present no danger for the environment and which may therefore be disposed of in accordance with the recycling measures in force in your area. For disposing of the appliance itself, please contact the appropriate service of your local authority.

Think of the environment first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.
