USER MANUAL Mecha Spherical RK2421 TEFAL

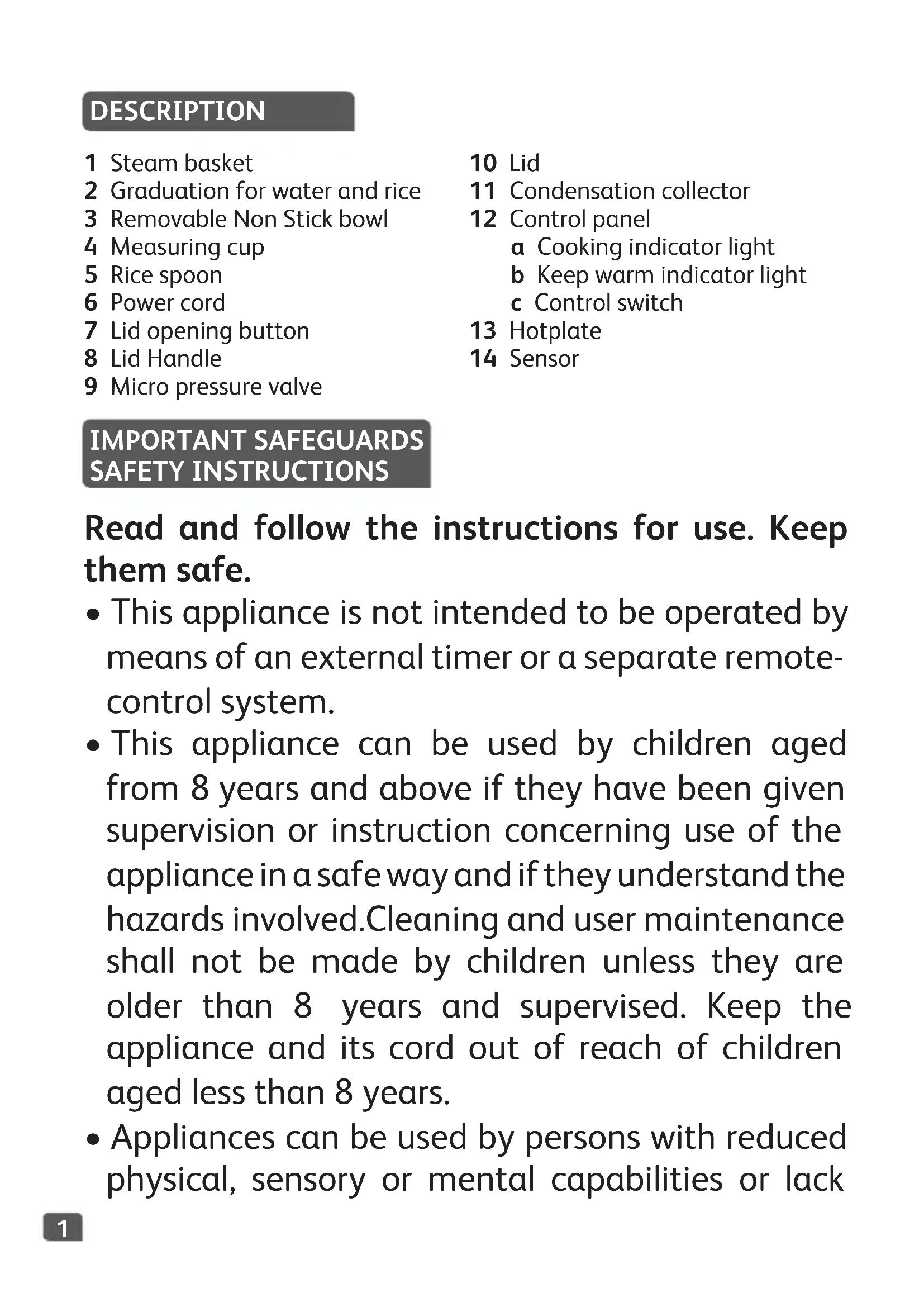

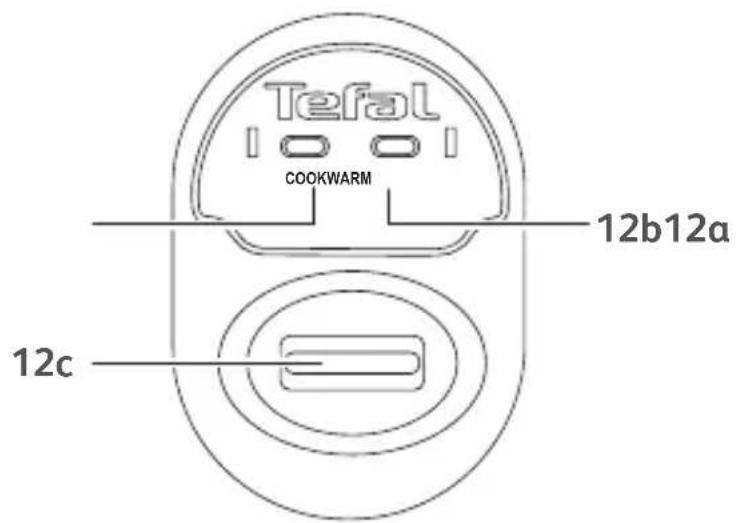

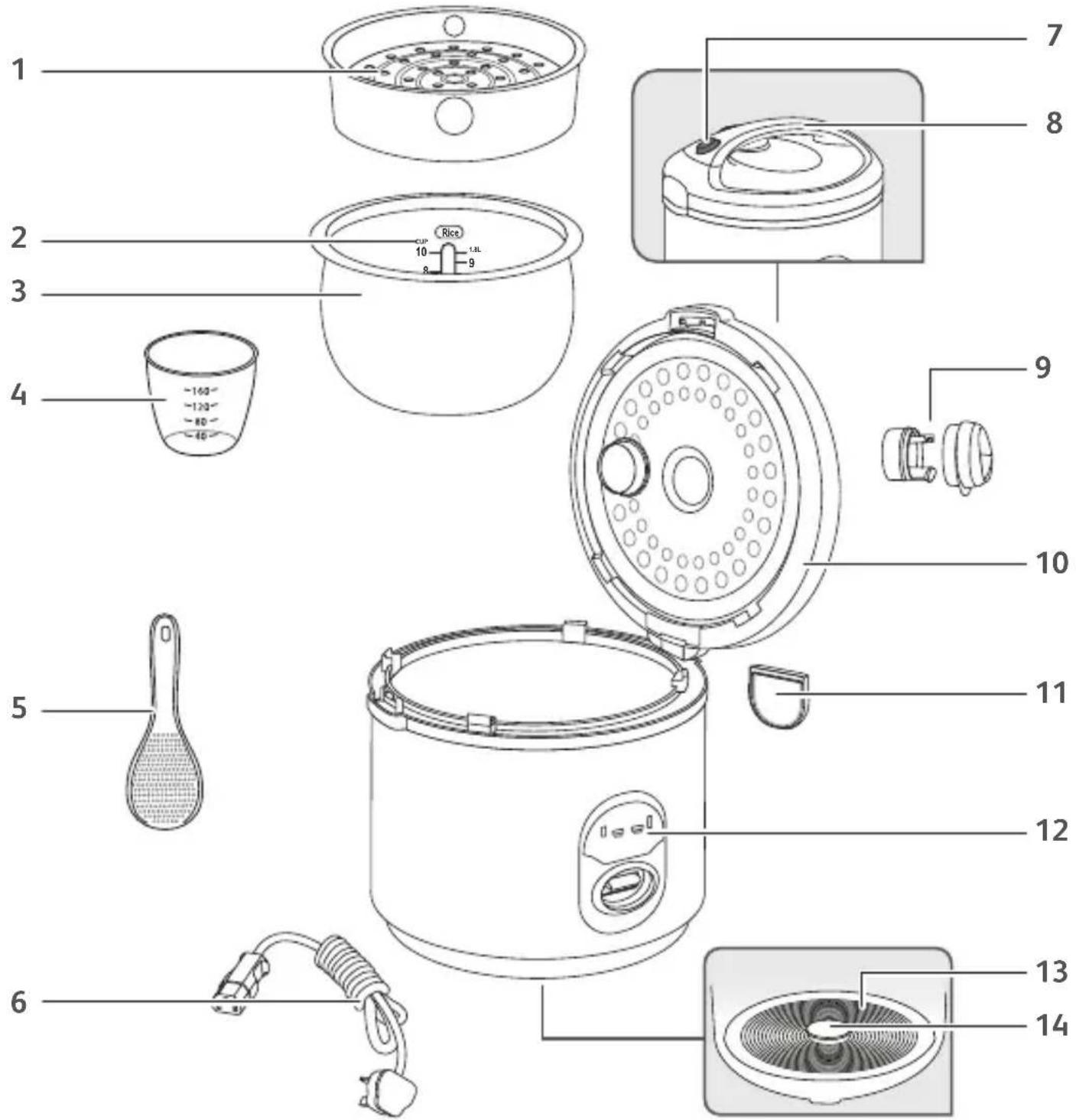

COOK COOK1 1 Steam basket 2 Graduation for water and rice 3 Removable Non Stick bowl 4 Measuring cup 5 Rice spoon 6 Power cord 7 Lid opening button 8 Lid Handle 9 Micro pressure valve 10 Lid 11 Condensation collector 12 Control panel a Cooking indicator light b Keep warm indicator light c Control switch 13 Hotplate 14 Sensor DESCRIPTION IMPORTANT SAFEGUARDS SAFETY INSTRUCTIONS Read and follow the instructions for use. Keep them safe.

• This appliance is not intended to be operated by means of an external timer or a separate remote- control system.

• This appliance can be used by children aged from 8years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and its cord out of reach of children aged less than 8years.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack2

of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• As this appliance is for household use only, it is not intended for use in the following applications and the guarantee will not apply for: – Staff kitchen areas in shops, offices and other working environments – Farm houses – By clients in hotels, motels and other residential type environments – Bed and breakfast type environments

• If your appliance is fitted with fixed power cord: a if the power supply cord is damage, it must be replaced by the manufacturer, the manufacturer’s after-sales service department3 or similarly qualified person in order to avoid any danger.

• The appliance must not be immersed in water or any other liquid.

• Use a damp cloth or sponge with washing up liquid to clean the accessories and parts in contact with food. Rinse with a damp cloth or sponge. Dry carefully.

• If the symbol is marked on the appliance, this symbol means “Caution: surfaces may become hot during use”.

• Caution: the surface of heating element is subject to residual heat after use.

• Caution: risk of injury due to improper use of the appliance.

• Caution: if your appliance has a removable power cord, do not spill liquid on the connector.

• Always unplug the appliance: – immediately after use – when moving it – prior to any cleaning or maintenance – if it fails to function correctly

• Burns can occur by touching the hot surface of the appliance, the hot water, steam or the food.

• During cooking, the appliance gives out heat and steam. Keep face and hands away.4

• Do not obstruct the steam outlet.

• For any problems or queries please contact our Customer Relations Team or consult our web site.

• The appliance can be used up to an altitude of 2000m.

• For your safety, this appliance complies with the safety regulations and directives in effect at the time of manufacture (Low-voltage Directive, Electromagnetic Compatibility, Food Contact Materials Regulations, Environment…).

• Check that the power supply voltage corresponds to that shown on the appliance (alternating current).

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved service centre.

CONNECTING TO THE POWER SUPPLY

• Do not use the appliance if: –the appliance or the cord is damaged –the appliance has fallen or shows visible damage or does not work properly –In the event of the above, the appliance must be sent to an approved Service Centre. Do not take the appliance apart yourself

• Do not leave the cord hanging

• Always plug the appliance into an earthed socket.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has an earthed plug and is suited to the power of the appliance.

• Do not unplug the appliance by pulling on the cord.5 USING

• Use a flat, stable, heat-resistant work surface away from any water splashes.

• Do not allow the base of the appliance to come into contact with water

• Never try to operate the appliance when the pot is empty or without the pot.

• The cooking function/knob must be allowed to operate freely. Do not prevent or obstruct the function from automatically changing to the keep warm function.

• Do not remove the pot while the appliance is working.

• Do not put the appliance directly onto a hot surface, or any other source of heat or flame, as it will cause a failure or danger.

• The pot and the heating plate should be in direct contact. Ensure that no food or liquid is inserted between the pot and heating plate.

• Do not place the appliance near a heat source or in a hot oven, as serious damage could result.

• Do not put any food or water into the appliance until the pot is in place.

• Respect the levels indicated in the recipes.

• Should any part of your appliance catch fire, do not attempt to put it out with water. To smother the flames use a damp teatowel.

• Any intervention should only be made by a service centre with original spare parts.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

PROTECT THE ENVIRONMENT

• Your appliance has been designed to run for many years. However, when you decide to replace it, remember to think about how you can contribute to protecting the environment.

• Before discarding your appliance you should remove the battery from the timer and dispose of it at a local civic waste collection centre (according to model). Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.6

Unpack the appliance

• Remove the appliance from the packaging and unpack all the accessories and printed documents.

• Open the lid by pressing the opening button located on the handle - fig. 1.

• Install the spoon support: insert the plastic hook of the support in the hole located under product ring, and slide it downwards - fig. 5. Read the instructions and carefully follow the operating method.

• Remove the spherical pot and the micro pressure valve.

• Clean the pot and the micro pressure valve with a sponge and washing- up liquid. Wipe the outside of the appliance and the metal parts of the lid with a damp cloth.

• Make sure the micro pressure valve is correctly placed in position - fig. 2.

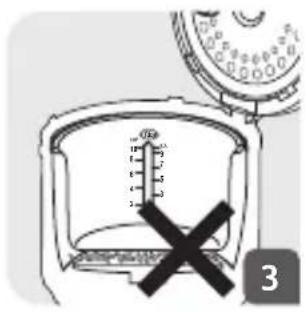

• Carefully wipe the outside of the bowl (especially the bottom). Make sure that there are no foreign residues or liquid underneath the bowl and on the hotplate - fig. 3.

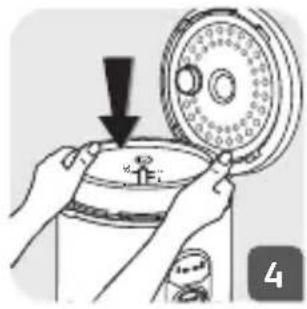

• Place the bowl into the appliance - fig. 4, making sure that it is correctly positioned.

• Slightly rotate the bowl in both directions, so as to ensure good contact between the bottom of the bowl and the hotplate.

• Check that the condensation collector is correctly placed in position, if not, please install it by pushing firmly into the groove - fig. 5.

• Close and lock the lid.

• Plug in the appliance.

• Do not switch on the appliance until all of the above stages have been completed.

• Do not start the appliance with an empty cooking bowl.

• Do not touch the heating plate when the product is plugged in. Never place your hand on the steam vent during cooking, as there is a danger of burns. Never use the lid handle to transport the product when it is full. Only use the inner pot provided with the appliance. Do not pour water or put ingredients in the appliance without the bowl inside.

USING YOUR RICE COOKER7

• The graduated markings on the inside of the bowl are given in liters and cups, these are used for measuring the amount of water when cooking rice - fig. 6.

• The plastic cup provided with your appliance is for measuring rice and the table states the quantity of rice required for the number of servings. 1 level measuring cup of rice weighs about 150 g.

• The table below gives a guide to cooking different kinds of rice. For best results, we recommend using ordinary rice rather than ‘easy cook’ type of rice which tends to give a stickier rice and may adhere to the base. With other types of rice, such as brown or wild rice, the quantities of water need adjustment check the table below.

• To cook only 1 cup of white rice (serves 2 small or 1 large portion) because there isn’t the mark of 1 cup in the cooking pot, you should use 1 measuring cup of white rice and then add 1 1/2 measuring cup of water. With some types of rice it is normal for a little rice to stick on the base when cooking 1 cup of rice. To cook other quantity of white rice, refer to cooking guide below.

• The maximum quantity of water + rice should not exceed the 5.5 or 10 cup mark (depending on model) inside the bowl (depending on model) - fig. 6. Depending on the type of rice, quantities of water may need adjustment. See the table below.

MEASURING RICE AND WATER

COOKING GUIDE FOR WHITE RICE -10 CUPS Measuring cups of white rice Weight of white rice Water level in the bowl ( + the rice) Serves Approximative cooking time* 2 300 g 2 cup mark 3per.-4per. 20-26mins 4 600 g 4 cup mark 5per.-6per. 29-34mins 6 900 g 6 cup mark 8per.-10per. 37-43mins 8 1200 g 8 cup mark 13per.-14per. 40-46mins 10 1500 g 10 cup mark 16per.-18per. 45-51mins Rinse the rice thoroughly before cooking.

• The rice cooker will automatically determine the exact cooking time depending on the quantity of water and rice placed in the bowl.8

• Place the appliance on a flat, stable, heat-resistant work surface away from water splashes and any other sources of heat.

• Pour the required quantity of rice into the bowl using the measuring cup provided. Then fill with cold water up to the corresponding “CUP” mark printed in the bowl (See cooking guide above).

• Close the lid. RICE COOKING The rice cooker itself determines the exact cooking time depending on the quantity of water and ingredients placed in the bowl (see cooking table above for a guide to timing). When all of the water has been absorbed by the rice, the appliance stops the cooking process automatically and enters into the “KEEP WARM” mode (the green “KEEP WARM” indicator light comes on). Note: Always add the rice first otherwise you will have too much water.

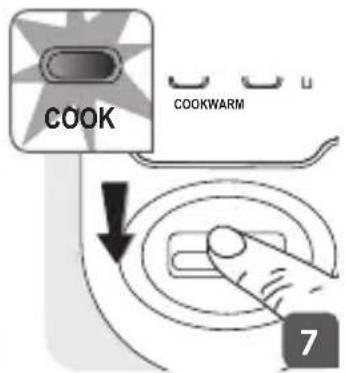

• Press downwards on the control switch, the cooking indicator illuminates showing that cooking has begun - fig. 7.

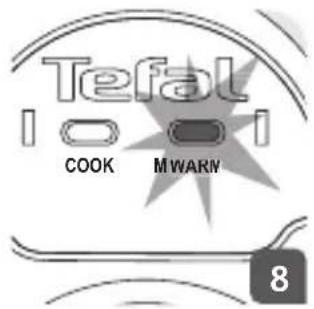

• When cooking finished, it will turn to keep warm automatically, the “KEEP WARM” indicator light is on - fig. 8.

• After each use empty and clean the condensation collector. Some recommendations for best results when cooking rice

• Measure the rice and rinse it thoroughly under running water in a sieve for a long time (except for risotto rice which should not be rinsed). Then place the rice in the bowl together with the corresponding quantity of water.

• Make sure that the rice is well distributed in the bowl to allow even cooking.

• Add salt to water: depending on personal taste.

• Water may be substituted with stock. If using stock, there is risk of rice browning in the bowl.

• Do not open the lid during cooking as steam will escape and this will affect the cooking time and the taste.

• On completion of cooking, the “KEEP WARM” indicator light is on, stir the rice and then leave it in the rice cooker for a few minutes longer in order to get perfect rice with separate grains.9 Measuring the ingredients

• The maximum quantity of water in the bowl should not exceed the maximum CUP mark shown in “CUP” on the bowl - fig. 6. Exceeding this level may cause overflow during use.

• The water level should be lower than the steam basket. STEAM COOKING (FOR VEGETABLES, FISH, ETC.) Preparation

• Pour water into the bowl, never exceed the maximum CUP mark.

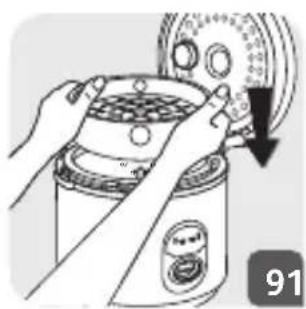

• Place the steam basket in the bowl - fig. 9.

• Add the ingredients in the steam basket. To steam cook

• Press downwards on the control switch, the cooking indicator illuminates showing that cooking has begun - fig. 7.

• You can end the steam cooking mode by turning the control switch to its top position. The green “KEEP WARM” indicator light comes on and the appliance turns to keep warm function.

• When there is no more water in the cooking pot, it will turn to keep warm automatically, the “KEEP WARM” indicator light is on - fig. 8. On completion of cooking, the appliance enters automatically to the “KEEP WARM” function. The control switch comes up to its top position and the green “KEEP WARM” indicator light comes on. The food is thus kept warm until ready to serve. Be aware that long hours of keep warm may affect the quality of the rice. To switch off this function, unplug the appliance - fig. 10.

Never remove the bowl after cooking without protective oven gloves.

• Serve the food using the plastic spoon supplied with the appliance and close the lid.

• Don’t forget to unplug the appliance after keep warm.

• The condensation collector should be emptied and cleaned after each use.

• To remove the collector, press on each side of the plastic cover and remove - fig. 11.

• To put the collector back, push firmly into the groove.

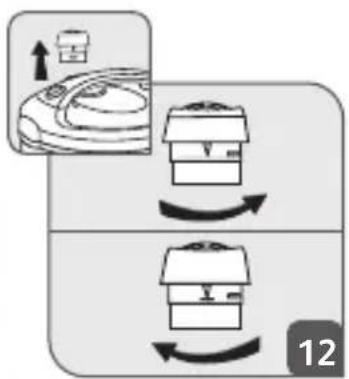

• To clean the micro-pressure valve, remove it from the lid andopen it by rotating in the direction of “open” - fig. 12

• After cleaning it, wipe dry. Rotate the micro-pressure valve in the direction of “close” until you heard “click”, then put it back in the lid of the rice cooker.

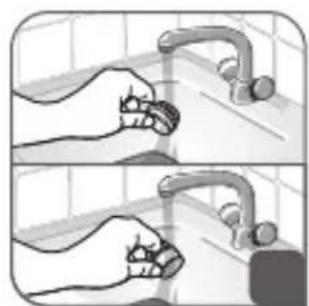

• Use hot water, washing up liquid and a sponge to clean the bowl - fig. 13, the condensation collector - fig. 14, the micro pressure valve - fig. 15, the spoons and the cup. Scouring - powders and metal sponges are not recommended.

• If food has stuck to the bottom, allow the bowl to soak for a while before washing it.

• Dry the bowl carefully.

• Do not immerse the appliance in water, nor pour water into it.

CLEANING AND MAINTENANCE

Taking care of the spherical bowl

• To keep the coating quality of the bowl for as long as possible, it is recommended not to cut food in it.

• Use plastic or wooden utensils and not metal ones when stirring or serving food to avoid damaging the bowl surface.

• To avoid any risk of corrosion, do not pour vinegar into the bowl.

• The colour of the bowl surface may change after using for the first time or after long period of use. This change in colour is due to the action of steam and water and does not have any effect on the use of the Rice Cooker, nor is it dangerous for your health. It is perfectly safe to continue using it.11 Malfunction description Causes Solution Appliance lights are off and is not heating.Rice cooker not plugged in.Ensure the appliance is plugged in correctly.Appliance lights are off and is heating.Problem with the lights on the appliance, or the lights are damagedSend to authorised service center for repair.Cooking Indicator light off, keep warm indicator on.Control switch is not in the cooking position.Turn the control dial to the cooking position.Steam leakage during use.Lid is not closed correctly. Open and close again the lid.Micropressure valve not well positioned or incomplete.Stop the cooking (unplug the product) and check the valve is complete (2 parts locked together) and well positioned.Lid or micropressure valve gasket is damaged.Send to authorized service center for repair.Rice half cooked or overcooked.Too much or not enough water compared to rice quantity.Refer to IFU for water quantity.Automatic keep warm fails (appliance stays in cooking function).Send to authorised service center for repair.Water leakage on the table.Condensation collector missing or condensation collector overflow.Empty the condensation collector and ensure it is positioned correctly.

TECHNICAL TROUBLESHOOTING GUIDE

Caution: if inner bowl is deformed, do not use it anymore and get a replacement bowl from the authorised service center. Cleaning and care of the other parts of the appliance

• Unplug the appliance before cleaning.

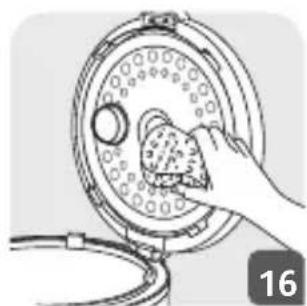

• Clean the outside of the Rice Cooker, the inside of the lid - fig.16 and the cord with a damp cloth and wipe dry. Do not use abrasive products.

• Do not use water to clean the interior of the appliance body as it could damage the heat sensor.12

: www.tefal.com This product is repairable by TEFAL/T-FAL*, during and after the guarantee period. Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the TEFAL/T-FAL internet site www.tefal.comThe Guarantee** TEFAL/T-FAL guarantees this product against any manufacturing defect in materials or workmanship during the guarantee period within those countries*** as stated in the attached country list, starting from the initial date of purchase or delivery date. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At TEFAL/T-FAL’s choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. TEFAL/T-FAL’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.Conditions & Exclusions TEFAL/T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The product can be taken directly in person or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a TEFAL/T-FAL authorised service centre. Full address details for each country’s authorised service centres are listed on TEFAL/T-FAL website (www.tefal.com) or by calling the appropriate consumer Service centre set out in the attached country list. In order to offer the best possible after-sales service and constantly improve customer satisfaction, TEFAL/T-FAL may send a satisfaction survey to all customers who have had their product repaired or exchanged in a TEFAL/T-FAL authorised service centre. This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow TEFAL/T-FAL instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: – using the wrong type of water or consumable – ingress of water, dust or insects into the product (excluding appliances with features specifically designed for insects) – damage as a result of lightning or power surges – accidents including fire, flood, etc – professional or commercial use – mechanical damages, overloading – scaling (any de-scaling must be carried out according to the instructions for use) – damage to any glass or porcelain ware in the product – damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification Consumer Statutory Rights This international TEFAL/T-FAL guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. ***Where a product purchased in a listed country and then used in another listed country, the international TEFAL/T-FAL guarantee duration is the period for the country of usage, even if the product was purchased in a listed country with a longer guarantee duration. The repair process may require a longer time if the product is not locally sold by TEFAL/T-FAL in the country of usage. If the product is not repairable in the new country of usage, the international TEFAL/T-FAL guarantee is limited to a replacement by a similar or alternative product at similar cost, where possible. *TEFAL household appliances appear under the T-FAL brand in some territories like America and Japan. TEFAL/T-FAL are registered trademarks of Groupe SEB.Please keep this document for your reference should you wish to make a claim under the guarantee.**For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. **For India only: Your Tefal product is guaranteed for 2 years. The guarantee covers exclusively the repair of a defective product, but at TEFAL’s choice, a replacement product may be provided instead of repairing a defective product. It is mandatory that the consumer, to have his product repaired, has to log a service request on the dedicated Smartphone application TEFAL SERVICE APP or by calling TEFAL Consumer Care Center at 1860-200-1232, Opening hours Mon-Sat 09 AM to 06 PM. Products returned by Post will not be covered by the guarantee. As a proof of purchase consumer needs to provide both this stamped guarantee card and tax invoice.13 TEFAL/T-FAL TEFAL/T-FAL
