Product Type	Safe with electronic lock and fingerprint reader
Brand	Burg Wächter
Model	MT Karat
Power Supply	4 AA (LR6) 1.5 V alkaline batteries (non-rechargeable)
Number of administrator codes	1
Number of user codes	9 maximum
Number of storable fingerprints	20 maximum
Factory code	1-2-3-4-5-6 (must be changed)
Opening	6-digit PIN code, fingerprint, code + fingerprint combination, or triple code
Lockout time	5 minutes after 15 incorrect entries (code or fingerprint)
Display	LCD screen with multilingual menu (12 languages)
Main functions	Code and fingerprint management, time/date setting, delay (0-99 min), automatic summer/winter switching, event history (up to 2000 entries), firmware update, database reorganization
Event history	2000 entries (viewable on screen or exportable to microSD card)
History storage	On FAT-32 formatted microSD card or direct display
Firmware update	Via microSD card (FAT-32 format)
Fingerprint sensor	Capacitive swipe (slide finger from top to bottom)
Certifications	ECB class A, EN 1300:2018
Maintenance	Clean the keypad with a microfiber cloth
Battery replacement	Remove 2 Torx T8 screws under the electronics, replace the 4 AA batteries, screw back
Warranty	2 years, excluding batteries and damage due to improper handling
Disposal	Do not dispose of with household waste; take to a recycling center

Frequently Asked Questions - MT Karat Burg Wächter

How to change the factory code?

Open the door, activate the keypad, press Func to access the main menu. Select Code change, then Administrator. Enter the old code (factory: 1-2-3-4-5-6), then the new 6-digit code twice. Confirm with On. Always perform this operation with the door open.

How to open the safe with the fingerprint?

Activate the keypad with the On button. Swipe your registered finger from top to bottom in the middle of the sensor. The screen shows Please turn the handle. Turn the safe handle to open.

What to do if the code is forgotten or lost?

The administrator code cannot be recovered. If you have lost the administrator code, contact Burg Wächter customer service. It is essential to keep the code in a safe place and change it on first use.

How to replace the batteries?

When the battery indicator is low, remove the two Torx T8 screws under the lock electronics. Slide out the battery cover. Replace the 4 used batteries with new AA 1.5 V alkaline batteries, observing polarity. Replace the cover and screw it back.

Why does the safe lock for 5 minutes?

After 15 consecutive incorrect PIN code attempts or unknown fingerprints, the electronics block all access for 5 minutes. A countdown is displayed. Even a valid code will not work during this period.

How to add a new user?

Open the door, go to the Administrator > User > Create > Create Code or Create Fingerprint. Enter the administrator code, then set the code or register the fingerprint. You can also assign a combination (code+fingerprint or multiple codes).

How to set the date and time?

Go to Administrator > Timer functions > Time entry or Date entry. Enter the administrator code, then enter the time (24h format) or date (DD/MM/YY) with the numeric keypad. Confirm with On.

How to delete a user?

Go to Administrator > User > Delete. Enter the administrator code, select the user to delete with keys 1/2, confirm with On. The user will no longer have access but remains in the history.

What to do if the fingerprint reader does not recognize my finger?

Clean your finger and the sensor with a dry cloth. Swipe the finger slowly, straight, and with even pressure. Avoid fingers that are too dry or moist. If the problem persists, re-register the fingerprint via Create Fingerprint.

How to export the event history?

Insert a FAT-32 formatted microSD card into the slot. Go to Administrator > Processes > Save. Enter the administrator code. The data will be saved to the card. You can also view the history via Display.

USER MANUAL MT Karat Burg Wächter

BUNG VACETER [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100

USER.0002 CD

Kombination: [-]

FUNC: M

Multifunction key which adapts to perform several functions, including: Go back one menu level, delete a entered character, show the Main menu. The display shows the current function of the key (see section 3).

D "On/Enter" key

The "On/Enter" key starts the system or selects the current menu item.

E "1" key

The key can be used to scroll up if there are several menu options. If this is possible, the display shows this (see section 3).

E "2" key

The key can be used to scroll down if there are several menu options. If this is possible, the display shows this (see section 3).

G Fingerprint sensor

Fingerprints can be stored via the fingerprint sensor and used to open the safe.

Dear customer,

Thank you for choosing a safe with a BURG-WÄCHTER SecuTronic lock. This electronic lock is certified according to ECB Class A. You have purchased a product that meets extremely high security requirements and was developed and produced according to current technical standards. This lock is certified according to EN 1300: 2018. (Classification of high-security locks according to their resistance to unauthorised opening).

Important: Please read the entire instruction manual before programming and keep this manual safe so that you can revisit it at a later date.

We hope you enjoy your new BURG-WÄCHTER safe. Your Burg-Wächter KG

General information

Activation

The electronics are switched on using the or key on the keyboard. This then lights up. At the same time, the display shows the BURG WÄCHTER logo for a moment before the input graphic for the pin code or fingerprint appears.

Languages

The menu navigation in the display is available in twelve languages and can be set via the "Languages" menu. Please refer to chapter "Menu Language" for a detailed explanation.

Blocking times

To protect against tampering, the lock electronics block access to the safe for five minutes if an incorrect pin code or an incorrect fingerprint has been entered fifteen times in succession. During this blocking time, the remaining time on the display runs countdown. It is not possible to open the safe during this period, even with a valid user or administrator code.

Increasing burglary protection

Please take care to ensure codes do not fall into the wrong hands. Therefore, store the codes in a safe location so that they can only be accessed by authorised persons. In the event you lose a code, the lock must be set to a new code. • The factory code must be changed as soon as the lock is commissioned • Codes that are easy to guess (e.g. 1, -2, -3, -4, -5, -6) must not be used • Personal data (e.g. birthdays) or other data that may be guessed with knowledge of the code owner must not be used as a code • After changing the code, the lock must be checked several times with the safety door opened

Attention: All changes to the administrator code, the factory code and the user code must be carried out with the safe door open! After changing a code, the lock must be operated several times with the new code with the safe door open.

Input options

Number keys:

The numbers "1" - "0" are used for input e.g. when entering the code.

"Func" key:

Multifunction key which adapts to perform several functions, including; Go back one menu level,

delete a entered character, show the Main menu. The display shows the current function of the key.

"On/Enter" key:

The "On/Enter" button starts the system or selects the current menu item.

Keys "1" and "2":

In menus, you can scroll up and down using these keys.

If this is possible, the display shows this with the corresponding arrows.

Fingerprint sensor:

Fingerprints can be stored via the fingerprint sensor or used to open the safe

Display

A Specifies whether you can use the ^19 key to cancel the last entry (◀) or switch to the main menu (M).
B (2:▼) appears when you can scroll down using the "2" key.
C (1:▲) appears when you can scroll up using the "1" key.
D (■) indicates the battery level.
E (♂/♀) Indicates whether the locking mechanism has released the lock and the safe can be opened.

Opening

Opening with PIN code

- Switch on the lock using the On key.

- Enter the 6-digit PIN code (factory setting "1-2-3-4-5-6").

• "Please turn the knob" appears in the display

Opening with fingerprint (Convenient opening)

- Switch on the lock using the on key.

- Move a programmed finger from the top to bottom centrally over

the sensor.

• "Please turn the knob!" appears in the display

- Turn the knob.

Opening with access combinations

- Switch on the lock using the Dn key.

- Move a programmed finger from the top to bottom centrally over the sensor.

- If an additional authorisation request (code or fingerprint) has been set up, the message "entirent authorisation" will appear on the display. Enter the requested additional authorisation (code or fingerprint).

- If a threefold authorisation request (3 PIN codes) has been set up, the message "Enter next authorisation" will appear on the display. Enter the 6-digit PIN code.

- "Please turn the knob!" appears in the display

- Turn the knob.

Menu structure

Setting up the menu structure

• Change code
• Language
• Administrator

Create
Create code
Create fingerprint

Assign
Assign code
Assign fingerprint

Delete

Time functions

Set time
Set date
Automatic ST/WT
Delay time

Programming

Database update
Firmware update
Reorganise

Processes

Display
Save

Setup

Register
FP reset
Generate AES key

- Info

System Info
System check

Description of the menu functions

Code Change menu

Change the administrator code and the user codes. We would like to point out that, for security reasons, the factory set administrator code must be changed to an individually set code.

• Switch on the lock using the on key.
• Then press Func.
• The "Main menu" appears.
- Confirm with
- You can use the keys 1 or 2 to scroll until the administrator/user is displayed and you wish to change the code for.
+ Confirm with on
• Enter the old or factory code that was previously valid using the keypad and press ^46 .
- Enter the new code using the keypad and confirm with ^6e .
- Repeat your entry and confirm it again with On. - "Code change completed" is displayed after a correct entry.
+ Press any key.
Note: When a safe lock is first started up, additional information on the current date and time are requested;
• Enter the day (2 digits)
• Enter the month (2 digits)
• Enter the year (2 digits)
• Enter the hour (2 digits)
• Enter the minutes (2 digits)

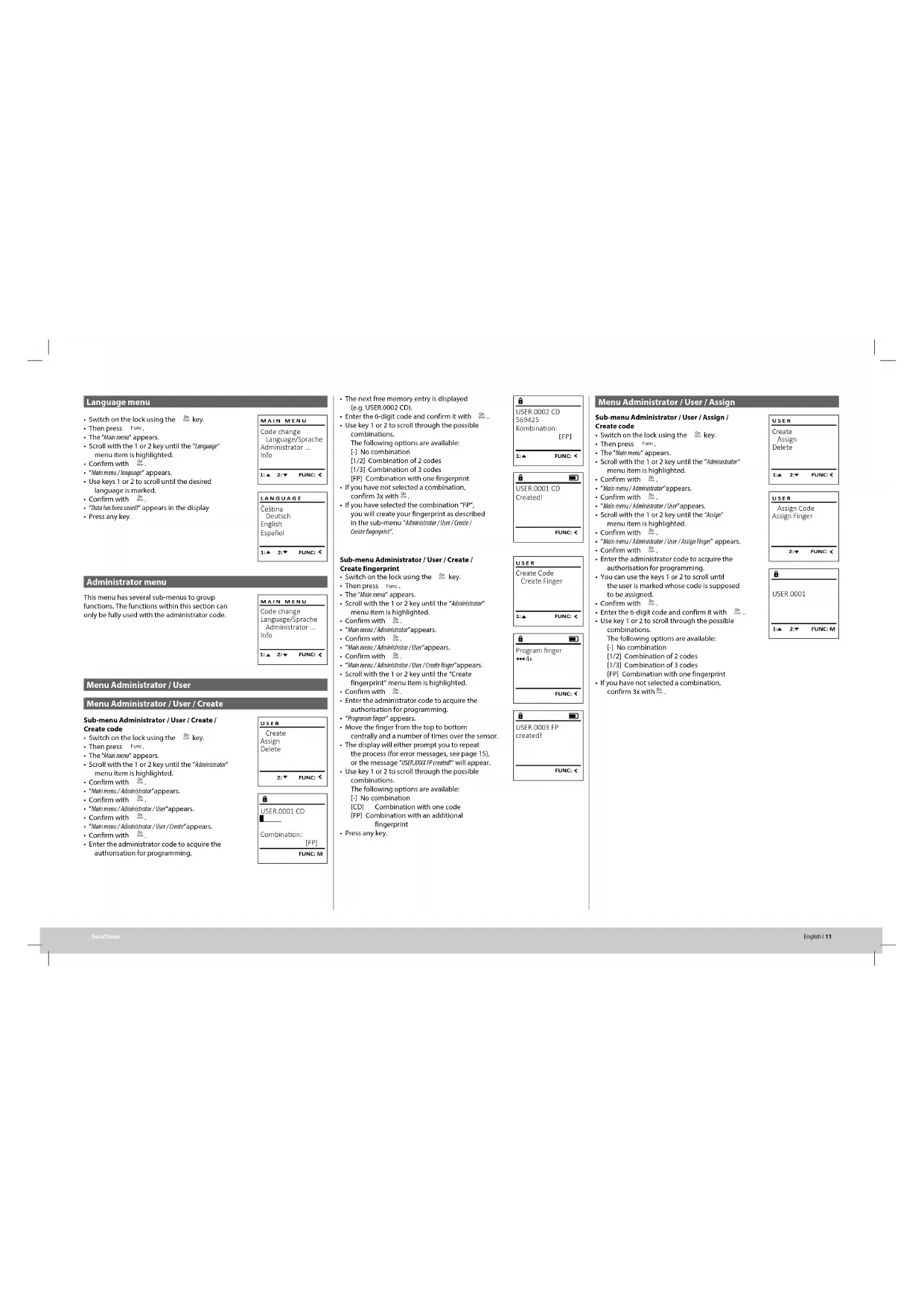

Language menu

Switch on the lock using thekey.

Then pressFunc.

The "Mat menu" appears.

Scroll with the 1 or 2 key until the "Language" menu item is highlighted.

Confirm with.

"Mat menu/language" appears.

Use keys 1 or 2 to scroll until the desired language is marked.

Confirm with.

"Data has been saved" appears in the display

Press any key.

MAIN MENU

Code changeLanguage/SpracheAdministrator...Info

1:▲ 2:▼ FUNC: <

LANGUAGE

ČoštinaDeutschEnglishEspañol

1:▲ 2:▼ FUNC: <

Administrator menu

This menu has several sub-menus to group functions. The functions within this section can only be fully used with the administrator code.

MAIN MENU

Code changeLanguage/SpracheAdministrator ...Info

1:▲ 2:▼ FUNC: <

Menu Administrator / User
Menu Administrator / User / Create

Sub-menu Administrator / User / Create /Create code

Switch on the lock using thekey.

Then press, Func.

The "Menu menu" appears.

Scroll with the 1 or 2 key until the "Administratemanu item is highlighted.

Confirm with.

"Main menu / Administrator" appears.

Confirm with.

"Main menu / Administrator / User" appears.

Confirm with.

"Main menu / Administrator / User / Create" appears.

Confirm with.

Enter the administrator code to acquire theauthorisation for programming.

USERCreateAssignDelete

2:▼ FUNC: <

USER.0001 CDCombination:[FP]FUNC:M

• The next free memory entry is displayed (e.g. USER.0002 CD).
• Enter the 6-digit code and confirm it with
• Use key 1 or 2 to scroll through the possible combinations.
  The following options are available:
  [1] No combination
  [1/2] Combination of 3-order
  [1/2] Combination of 2 orders
  [175] Combination of 3 codes
  [FP] Combination With one fingerprint
• If you have not selected a combination, confirm 3x with On.
• If you have selected the combination "FP", you will create your fingerprint as described in the sub-menu "Administrator/User/Create/Create fingerprint".

Sub-menu Administrator / User / Create / Create fingerprint

• Switch on the lock using the key.
• Then press Furlc.
  • The "Mowmen" appears.
• Scroll with the 1 or 2 key until the "Administrator"
  menu item is highlighted
  Confiary with
• Commi with
  • 2017/12/20
• Confirm with
  • "Main menu / Administrator / User" appears.
• Confirm with

• "Main menu /Administrator /User /Create frame" appears

- Scroll with the 1 or 2 key until the "Create

financprint* many items is highlighted

- Confirm with 0+

- Enter the administrator code to acquire the authorisation for programming.

• "Колготин Апера" appears.
- Move the finger from the top to bottom
centrally and a number of times over the sensor.
• The display will either prompt you to repeat
the process (for error messages, see page 15), or the message "USERXXXFP created" will appear.

- Use key 1 or 2 to scroll through the possible combinations.

The following options are available:

[1] No combination

[CD]. Combination with one code

[58] Combination with an additional

fingerprint

- Press any key.

USER.L0002 CD569425Kombination:[FP]
1:▲	FUNC: <
USER.L0003 CDCreated:
	FUNC: <

USER
Create CodeCreate Finger
1:▲	FUNC: <

Program finger

44

FUNC: <

USER,0003 FPcreated!

FUNC: <

Menu Administrator / User / Assign
Sub-menu Administrator / User / Assign / Create code

• Switch on the lock using the On key.
• Then press Eurs
• The "Houses" appears
• Send with the 1 on 2 key until the Administrator?
  • Scroll with the 1 of 2 key on
  menu item is hi
• Confirm with
  • Main menu / Administrator appears.
• Confirm with
• "Make menu /Administrator /the" appears.
• Scroll with the 1 or 2 key until the "assam"
  many item is highlighted
  Conform with On
  • Confirm with
• Main menu / Administrator / user / Assign Finger appears.
• Confirm with
  • Enter the administrator code to acquire the
  authorisation for programming.
• You can use the keys 1 or 2 to scroll until
  the user is marked whose code is supposed
  to be assigned
  to be assigned.
• Confirm with
• Enter the 6-digit code and confirm it with
• Use key 1 or 2 to scroll through the possible
  combinations.
  The following options are available:
  [-] No combination
  [1/2]. Combination of 2 codes
  [1/2] Combination of 3 orders
  [175] Combination of 3 codes
  [FF] Combination with one fingerprint
• If you have not selected a combination, confirm 3x with ^2n .

USER

Create Assign Delete

1:2 2:7 FUNC: <

USER

Assign Code Assign Finger

2:7 FUNC: <

#
USER.0001
1:▲	2:▼	FUNC: M

Sub-menu Administrator / User / Assign / Assign fingerprint

- Switch on the lock using the key.

- Then press Func.

• The "Mota men" appears.

- Scroll with the 1 or 2 key until the menu

item "Administrator" is highlighted

- Confirm with 2

• "Mein may / Administer's" appears

- Tally/Mich/Almanburg Confirm with

- Confirm with

• "Main menu / Administrative / user" appears.

- Scroll with the 1 or 2 key until the "4k8n"

menu item is highlighted.

- Confirm with On

- Scroll with the 1 or 2 key until the

"Active Five" menu item is highlighted

- Confirm with

- Confirm with

- Enter the administrator code to acquire

the authorisation for programming.

- "Main menu / Administrator / User / Assign Finger" appears.

- You can use the keys 1 or 2 to scroll until

the user is marked whose fingerprint is

supposed to be assigned.

- Confirm with

"Create hospital" and

• Obles Mepini appears.

- Move the finger from the top to bottom

centrally and a number of times over the sensor.

• The display will either prompt you to repeat the

process (for error messages, see page 15), or the message "USER.XOG FP created!" will appear.

- Use key 1 or 2 to scroll through the possible

combinations.

The following options are available:

[-] No combination

[CD]. Combination with one code

[50] Combination with an additional

[FP] Combination fingerprint

• Press any key

USER

Create Assign Delete

1:▲ 2:▼ FUNC: <

USER
Assign Code Assign Finger
1:▲	FUNC: <

USER.0003 FPcreated!

FUNC: <

Menu Administrator / User / Delete

Deleted users no longer have access to the safe. However, these remain in the history.

Sub-menu Administrator / User / Delete

- Switch on the lock using the key.

- Then press Fam.

• The "Main menu" appears.

- Scroll with the 1 or 2 key until the menu

item "administer" is highlighted.

- Confirm with 0

- Confirm with

• Maternal, Administrative

- Confirm with 98.

- "Main menu / Administrator / User" appears.

- Confirm with

- "Main menu /Administrator /User /Delete" appears.

- Scroll with the 1 or 2 key until the menu

item "Oke" is highlighted

Item back is ring Comfort with 0%

- Confirm with - Enter the administrator code to acquire the authorisation for programming.

- You can use the keys 1 or 2 to scroll until the

user is marked whose code is supposed to

be deleted

- Confirm with 0

- Committances

• 2010 has been absent appears.

- Press any key.

USER

Create

Delete

1:▲

FUNC: <

USER.0001 CD

1:▲

2:▼

FUNC: M

Dataset has

been delete

FUNC: <

Menu Administrator / Time functions

Time and date can be set, as well as whether the system should automatically switch between Central European Summer/Winter Time. The delay time prevents quick opening in the event of

a robbery

a TUBDERY.

ADMIN
UserTimer functionsProgrammingProcesses
1:▲	2:▼	FUNC: <

Menu Administrator / Time functions / Set time

• Switch on the lock using the On key.
• Then press 1ycc.
  • The "Mainway" appears.
  • Scroll with the 1 or 2 key until the menu
• Scroll with the 1 of 2 key under the menu item "Ministrator" is highlighted.
  Kent Nominaler is highlighted.
  • Confirm with
  • "Main menu/Administrator" appears.
• Scroll with the 1 or 2 key until the menu
  item "Amerfunctions" is highlighted.
  • Confirm with On
  • "Administrator/Time entry" appears.
• Confirm with 0
• Enter the administs
  • Enter the administrator code to acquire
  the authorisation for programming.
  • The time (24-hour format) can be set via
  the keypad
• Confirm with On
  • "Data has been saved" appears.
  • Press any key.

TIMER FUN ...
Time entryDate entryAutom. ST/WTDelay time
2:▼	FUNC: <

Time entryH.M 0.00

FUNC: M

Menu Administrator / Time functions / Set date Menu Adminis

• Switch on the lock using the On key.
• Then press Func.
• The "Bolamew" appears.
• Scroll with the 1 or 2 key until the menu
  Item "Administrator" is highlighted.
• Confirm with On
  • "Main menu / Administrator" appears.
• Scroll with the 1 or 2 key until the menu
  item "Time functions" is highlighted
• Confirm with 0+
  • "Power functions" appears.
• Scroll with the 1 or 2 key until the "Date entry"
  menu item is highlighted
• Confirm with
• Enter the administrator code to acquire the
  authorisation for programming.
  • The date can be set via the keynac
• The date can be set via the keypad.
• Confirm with 08
  • Plata has been saved?
  • Excessive benign cases appears.
• Press any key.

TIMER FUN ...

Time entryDate entryAutom. ST/WTDelay time

1:▲ 2:▼ FUNC: <

Date entryD.M.Y ■0.00.00

FUNC: M

Menu Administrator / Time functions / Autom. ST/WT

Automatic update between Central European

Summer/Winter Time.

• Switch on the lock using the 12 key.
• Then press func.
  • The "Main menu" appears.
• Scroll with the 1 or 2 key until the menu
  item "Administrator" is highlighted.
• Confirm with
• "Administrator" appears.
• Scroll with the 1 or 2 key until the menu
  item "Time functions" is highlighted
• Confirm with
• "Base functions" appears.
• Scroll with the 1 or 2 key until the
• menu item "Autom. S1/W?" is highlighted
• Confirm with
• Enter the administrator code to acquire the
  authorisation for programming.
  • The automatic time changeover can be
  switched on or off via key 1 or 2.
• Confirm with
• "Data has been saved" appears.
• Press any key.

TIMER FUN ...

Time entry

Date entry

Autom. ST/WT

Delay time

1:▲ 2:▼ FUNC: <

Autom. ST/WT

ON|

1:▲ FUNC: M

tor / Delay time

The delay time sets up a required waiting time before a function is performed and can consequently prevent quick opening in the event of a robbery. After the delay time has elapsed, a valid and fully authorised entry must be repeated in order to gain access.

• Switch on the lock using the 0_low key.
• The press Fun:
• The "Main new" appears.
• Scroll with the 1 or 2 key until the menu
  item "Administrator" is highlighted.
• Confirm with

• "Administrator" appears.

• Scroll with the 1 or 2 key until the menu item
  "Time functions" is highlighted.

• Confirm with
• "true functions" appears.
• Scroll with the 1 or 2 key until the
• menu item "delay time" is highlighted.
• Confirm with
• Enter the administrator code to acquire the authorization for recommending. Where a delay
  authorisation for programming. Where a delay time has already been set it must first be up
  time has already been set, it must first be run through.
• The delay time (0-
• The delay time (2.55 minutes) can be set via the keyboard
• Confirm with
  • "Data has been saved" appears.
• Press any key.

TIMER FUN ...
Time entryDate entryAutom. ST/WTDelay time
1:▲	FUNC: <
Delay time[00] min

Menu Administrator / Programming

A firmware update installs the latest software version. Reorganise sorts the database.

ADMIN
User
Timer functions
Programming
Processes
1:▲	2:▼	FUNC: <

Menu Administrator / Programming / Databaseupdate

This function is not enabled at present.

PROGRAMMING
Databaseupdate
Firmwareupdate
Restructure
2:▼	FUNC: <

Menu Administrator / Programming / Firmware update

• Please ensure that the batteries are full before updating the firmware.
• Please copy the new firmware version to a FAT-32 formatted microSD card and insert it
  into the microSD card slot.
• Switch on the lock using the On key.
  • The press Fund.
  • The "Main menu" appears.
• Scroll with the 1 or 2 key until the menu
  item "Administrator" is highlighted.
• Confirm with
• "Administrator" appears
• Scroll with the 1 or 2 key until the
  "Programming" menu item is highlighted.
  • Confirm with
• Programming appears.
• Scroll with the 1 or 2 key until the menu
  item "Hanswespade" is highlighted.
• Confirm with
• Enter the administrator code to acquire the
  authorisation for programming
  • The message "Custom current original manufacturer
  An intricate version using Enter" appears.
• Confirm with . Thereafter there is no
  need to do anything further in the process.
  • The message does not mention power appears.
  • The message on the display disappears for some time.
• When the update is complete, the message
  "Firstwareruptile completed" appears.

PROGRAMMING

Databaseupdate

Firmwareupdate

Restructure

1:▲

2:▼

FUNC:

Confirm current original firmware version with Enter!

FUNC: M

Firmwareupdate completed!

FUNC: <

Menu Administrator / Programming / Reorganise

Reorganisation must be carried out cyclically in order to optimise the user database and restructure the user data records.

• Switch on the lock using the On key.
  • The press func.
  • The "Main menu" appears.
• Scroll with the 1 or 2 key until the menu
  item "Administrator" is highlighted.
• Confirm with
  • "Administrator" appears.
• Scroll with the 1 or 2 key until the
  "Programming" menu item is highlighted.
• Confirm with
• "Programming" appears.
• Scroll with the 1 or 2 key until the menu
  item "Risinching" is highlighted.
• Confirm with
• Enter the administrator code to acquire the authorization for programming
  the authorisation for programming.
  • description of progress appears.

PROGRAMMING
DatabaseupdateFirmwareupdateRestructure
1:▲	FUNC: <

Restructuringin progress!

Menu Administrator / Processes

It is possible to store the history on an inserted microSD card or to output it directly on the display.

ADMIN

User

Timer functions

Programming

Processes

Menu Administrator / Setup

The system must be registered for communication within the device. FP-reset removes all fingerprints.

ADMIN
User
Restructure
Processes
Install
1:▲	FUNC: <

Menu Administrator / Setup /Generate AES key

This function is not enabled at present.

MAIN MENU
Code changeLanguage/SpracheAdministrator ...Info
1:▲	FUNC: <

Menu Administrator / Processes / Displays

• Switch on the lock using the key.
• The press Furl
  • The 'Main menu' appears.
• Scroll with the 1 or 2 key until the menu
  item "Administrator" is highlighted.
• Confirm with
  • "Administrator" appears.
• Scroll with the 1 or 2 key until the menu
  Item "Processes" is highlighted.
• Confirm with
• Enter the administrator code to acquire
  the authorisation for programming.
• Scroll with the 1 or 2 key through the
  data records.
• Confirm with

Processes
Display
Save
2:▼	FUNC: <

#

Administrator

Code entry

1:▲ 2:▼ FUNC:M

Menu Administrator / Setup / Install

In the event of a complete system failure, the electronic control panel may have to be registered again with the locking mechanism.

• Switch on the lock using the B key.
• The press Func.
• The "Main menu" appears.
• Scroll with the 1 or 2 key until the menu item
  "Administrator" is highlighted.
• Confirm with
  • "Administrator" appears.
• Scroll with the 1 or 2 key until the menu item
  "Setup" is highlighted.
• Confirm with
• Confirm "install" with
• Enter the administrator code to acquire the
  authorisation for programming.
• "Dataset has been stored" appears in the display
• Press any key.

SETUP
InstallFP ResetGenerate AES-Key
2:▼	FUNC: <
Dataset has been stored

In this menu, you can have several pieces of information of the system displayed.

Menu info / System info

• Switch on the lock using the on key.
• The press Func.
  • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu
  item "000" is highlighted.
• Confirm with
• "info" appears
• Confirm with On
• Enter the administrator code to acquire
  the authorisation for programming.
  • The system information is displayed.
• Scroll with key 1 or 2 to view the information.
• Use the time key to return.

MAIN MENU
Code changeLanguage/SpracheAdministrator ...Info
1:▲	FUNC: <

Info
LE-V1.0
SN:20.0A.00.00
2:▼	FUNC: M

Menu Administrator / Processes / Save

• Please insert a FAT-32 formatted microSD card into the microSD card slot.
• Switch on the lock using the key.
  • The press 19c.
  • The "Main menu" appears.
• Scroll with the 1 or 2 key until the menu
  item "Administrator" is highlighted.
• Confirm with Dr.
  • "Administrator" appears.
• Scroll with the 1 or 2 key until the menu
  Item "Processes" is highlighted.
• Confirm with On
  • "haases" appears.
• Scroll with the 1 or 2 key until the menu
  item "say" is highlighted.
• Confirm with
• Enter the administrator code to acquire the authorisation for programming.
  • "Please me" appears.
• "Dataset has been stored!" appears.
• Press any key.

Processes
DisplaySave
1:▲	FUNC: <

Please wait!

Dataset has been stored!

FUNC: <

Menu Administrator / Setup / FP-reset

• Switch on the lock using the 0 -key.
• The press Func.
• The "Mish menu" appears.
• Scroll with the 1 or 2 key until the menu
  item "Administrator" is highlighted.
• Confirm with
  • Administrator appears.
• Scroll with the 1 or 2 key until the menu
  item "Setup" is highlighted.
• Confirm with
• Scroll with the 1 or 2 key until the menu
  item "P-Rest" is highlighted.
• Confirm with
• Enter the administrator code to acquire
  the authorisation for programming.
  • "Delete auto with ENIkey" appears.
• Confirm with
  • "Meuse Wall" appears.

- Press any key.

SETUP
InstallFP-ResetGenerate AES-Key
2:▼	FUNC: <
Delete data with ENTER key
FUNC: <

Info / system check menu

• Switch on the lock using the On key.
  • The press
  • The "Mainwear" appears.
• Scroll with the 1 or 2 key until the menu item
  "info" is highlighted.
  • Confirm with
  • "info" appears
• Scroll with the 1 or 2 key until the menu item
  "Systemcheck" is highlighted.
• Confirm with
• Enter the administrator code to acquire the
  authorisation for programming.
  • The system check information is displayed
  • Scroll with key 1 or 2 to view the information.
• Use the time key to return.

INFO
System infoSystemcheck
1:▲	2:▼	FUNC: <
8
EE✓ ADC 5.43V✓ Flash✓ touch con..
2:▼		FUNC: M

Error messages

The illustration below describes the error messages on the display when a fingerprint is created is or when the safe is opened.

Error message Solution

Too fast! Please repeat	Move your finger slowly across the sensor.
Too tilted! Please repeat	Move your finger flat across the sensor.
Too short! Please repeat	Move your finger across the sensor so that more area of your fingerprint can be read.
Position in the middle and repeat!	Position your finger in the middle of the sensor.
Wrong code! Enter a valid code.
No admittance! An unsaved fingerprint has been used. Repeat with a fingerprint that has already been created.

Technical details

Number of administrator codes:	1
Number of user codes: 9 (max.)
Number of fingerprint codes:	20 (max.)
Blocking times: After an incorrect code/FP is entered 15x, 5 minutes
Power supply: 4x AA MIGNON LR6 ALKALINE
Date/time:	√
Updatable (firmware):	√
History number: 2,000

Battery replacement

You can see the battery status at any time using the battery level indicator at the top right of the display. If the battery capacity is running low, a corresponding message appears on the display: When this notice appears, change the batteries as soon as possible.

Remove the two screws on the underside of the lock electronics. This will require a Torx T B screw-driver. This is included in the scope of delivery.

Let the cover slide out together with the batteries.

Remove the old batteries and dispose of them according to the disposal instructions on page 15. Replace the batteries with four new 1.5 V AA Mignon batteries and according to the correct polarity. For this purpose, illustrations are shown on the battery holder. Please use branded batteries and no rechargeable batteries.

Push the cover and batteries back into the locking electronics and screw them tight.

Warranty

BURG-WACHTER products comply with the technical standards at the time of production and adhere to our own quality standards. The guarantee only covers defects which can be proved to have resulted from production or material defects at the time of purchase. The warranty ends after two years, further claims are excluded. Defects and damage caused by e.g. transport, incorrect operation, improper use, wear etc. are excluded from the warranty. The batteries are not included in the guarantee. A short description of any defects identified must be made in writing and the device returned to the place it was purchased, together with the original packaging. After the device has been tested, and within a appropriate period of time, the guarantor will decide whether or not to repair or exchange the item.

Attention:

In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code be presented to your dealer together with the original documentation.

For returns, all undamaged device parts must furthermore be in the factory setting due to your right of revocation. Failure to comply with this will invalidate the warranty.

Disposal of the device

Dear customer.

please help us avoid unnecessary waste. Should you intend to dispose of this device at any time, please remember that many components of this device contain valuable materials that can be recycled.

Please be aware that electrical and electronic equipment and batteries marked in this way must not be disposed of with house hold waste but collected separately. Please obtain information on the collecting points for electrical waste from the responsible authority of your city/municipality.

BURG-WÄCHTER KG hereby declares that this device complies with the Directives 2014/30/EU, (EMC) and 2011/65/EU (RoHS).

The complete text of the EU Declaration of Conformity is available at the following Internet address: www.burg.biz

Safety recommendation

Please clean the keyboard operating surface periodically with a microfibre cloth (e.g. glasses cleaning cloth for spectacles) to remove any fingerprints on the keyboard surface.

Printing and typesetting errors as well as technical changes reserved.

tr Mode d'emploi

Montage

A B C D E F G BURG WACHTER 1 2345 67890 on drin drin drin drin drin drin drin

A Écran

B Touchesnumériques

USER
Create
Assign
Delete
2:▼	FUNC: <

USER.0001 CD

Combination: [FP]

FUNC: M

Program finger

4

FUNC: <

USER.0003 FPcreated!

FUNC: <

USER

Create Assign Delete

1:★ 2:▼ FUNC: <

USER

Assign Code Assign Finger

2:▼ FUNC: <

USB:1.0001
1:▲	2:▼	FUNC: M

USER

Create Assign Delete

1:▲ 2:▼ FUNC: <

USER
Assign Code Assign Finger
1:▲	FUNC: <

USER.0003 FPcreated!

FUNC: <

TIMER FUN ...

Time entry

Date entry

Autumn. ST/WT

Delay time

1:▲ 2:▼ FUNC: <

Autom. ST/WT[ON]
1:▲	FUNC: M

ADMIN

User

Timer functions

Programming

Processes

1:▲ 2:▼ FUNC: <

ase de données

PROGRAMMING
Databaseupdate Firmwareupdate Restructure
2:▼	FUNC: <

Confirm current original firmware version with Enter)

Restructuring in progress!

ADMIN

User

Timer functions

Programming

Processes

Dataset has been stored!

FUNC: <

Menu Administrateur/Installation

ADMIN
User
Restructure
Processes
Install
1:▲	FUNC: <

Menu Administrateur/Installation/Enregistrer

Dataset has been stored

FUNC: <

Delete data with ENTER key

FUNC: <

Menu Administrateur/Installation/Générer cryptage AES.

Info
UE-V1.0
SNE-20.0A.00.00
2:▼	FUNC: M

USER
Create
Assign
Delete
2:▼	FUNC: <

USER.0001 CD

Combination: [FP]

FUNC: M

USER

Create Assign Delete

1:▲ 2:▼ FUNC: <

USER

Assign Code Assign Finger

2:▼ FUNC: <

B
USER:0001
1:▲	2:▼	FUNC:M

USER

Create Assign Delete

1:▲ 2:▼ FUNC: <

USER
Assign Code Assign Finger
1:▲	FUNC: <

USER.0003 FPcreated!

FUNC: <

- Bevesag met "one" - On hot display was ahimt "Rate has been deleted"

- Op net display verschijnt - booms betrosecto /Record gwaist)

Dataset has been deleted!

FUNC: <

ADMIN
User Timer functions Programming Processes
1:▲	2:▼	FUNC: <

ADMIN
User
Timer: functions
Programming
Processes
1:▲	2:▼	FUNC: <

Menu Administrator / Programming / Database-update

Confirm current original firmware version with Enterl

FUNC: M

Firmwareupdate

complete!

FUNC:

PROGRAMMING

Databaseupdate

Firmwareupdate

Restructure

1:▲

FUNC:

Restructuring

in progress

Menu Administrator / Handelingen

ADMIN

User

Timer functions

Programming

Processes

1:▲ 2:▼ FUNC: <

Menu Administrator / Setup

ADMIN
User
Restructure
Processes
Install
1:▲	FUNC: <

Menu Administrator / Handelingen / Weergeven

SETUP
InstallFP ResetGenerate AES-Key
2:▼	FUNC: <
Dataset has been stored

Menu Administrator / Handelingen / Opslaan

Processes
DisplaySave:
1:	FUNC:
Please wait!
Dataset has been stored!
FUNC:

Menu Administrator / Setup / FP-reset
