USER MANUAL Pulse Chipolino

Black and white photo of a Pulsor tricycle with a head cover and wheels (no text or symbols visible)

ChipoliNo

продуктов номер / item number / cikkszám/ número de artículo / codice articolo / artikelnummer / numéro d'article / broj proizvoda / αριθμός προϊόντος / numărul produsului / número de produto / productnummer / číslo produktu / 3πησεγχήση θδηση:

TRKPL022xxx / 0099

ФИГУРИ / FIGURES / ÁBRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ФІГОYPEΣ / FIGURILE / FIGURAS / FIGUREN / OBRÁZKY / gradesyn Dog

Labeled photo of 14 fitness equipment items including swim caps, balance gloves, and exercise equipment

White bicycle with a black arrow indicating motion, shown in grayscale (no text or symbols)

Cap Pin click 2-1 2-2

plastic head screw

Button Button 345

Person assembling a white tricycle with wheels and a vertical post (no text or symbols visible)

Two-panel image showing a hand holding a bicycle with attached sensors, labeled 'a' and 'b', no visible text or symbols.

Close-up of a hand adjusting a small electronic device with a black arrow pointing to the component (no visible text or symbols)

Close-up of a baby stroller with a baby seat, no visible text or symbols

a b c 8

Person using a bicycle seatbelt device to adjust the seatbelt (no text or symbols visible)

ФИГУРИ / FIGURES / ÁBRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ФІГОYPEΣ / FIGURILE / FIGURAS / FIGUREN / OBRÁZKY / gradesyn Dog

b pin a "click" 10 11 12

screw

Black and white photo of a two-story tricycle with canopy and wheels (no text or symbols visible)

1. unfolding 2. folding 1 2

1 - Press the button 2 - Rotate

Button

Close-up of a bicycle's wheel and suspension bracket (no visible text or symbols)

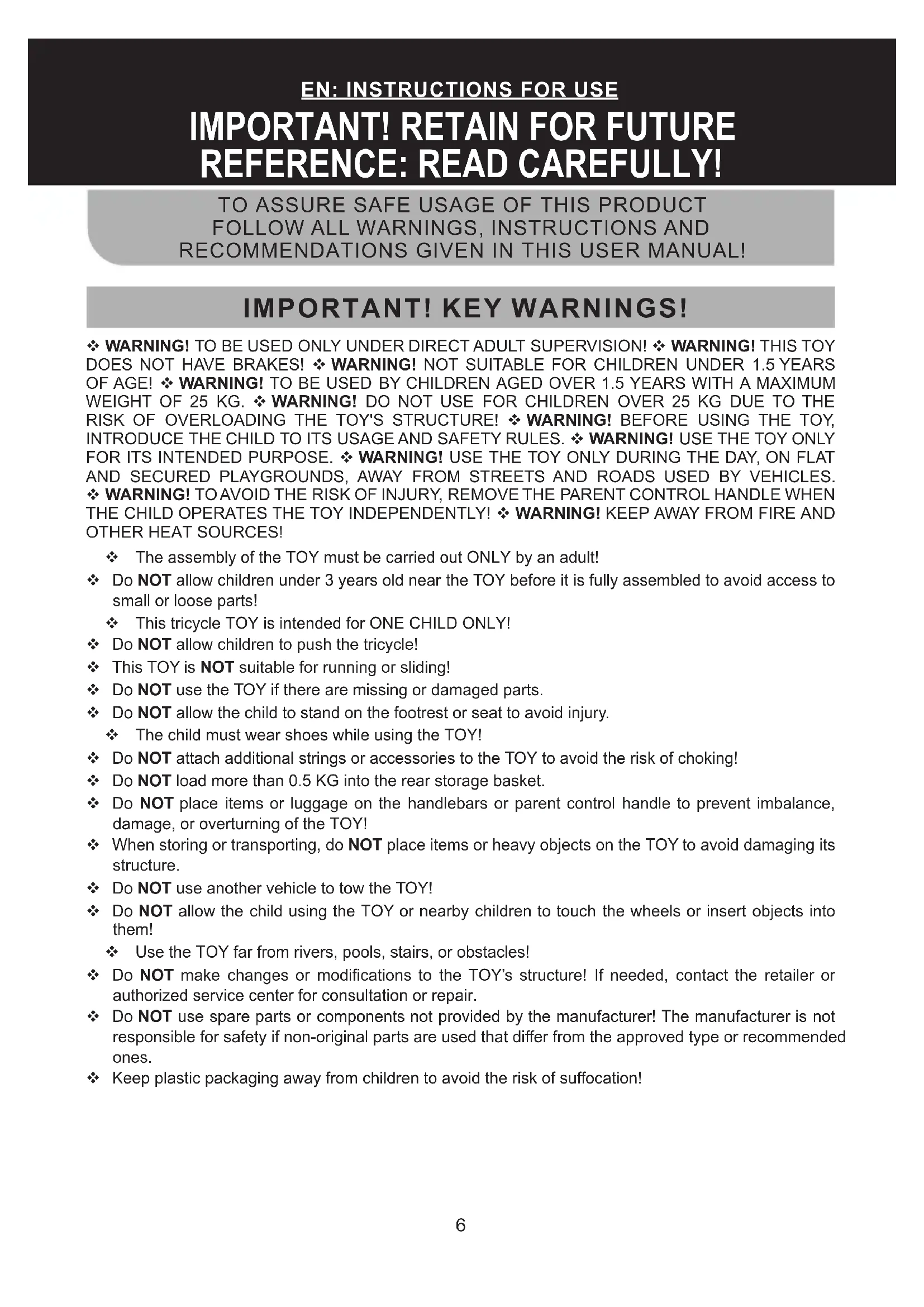

ВАЖНО! ЗАПАЗЕТЕ ЗА БЪДЕЩА СПРАВКА: ПРОЧЕТЕТЕ ВНИМАТЕЛНО!

TO ASSURE SAFE USAGE OF THIS PRODUCT

FOLLOW ALL WARNINGS, INSTRUCTIONS AND

RECOMMENDATIONS GIVEN IN THIS USER MANUAL!

IMPORTANT! KEY WARNINGS!

✿ WARNING! TO BE USED ONLY UNDER DIRECT ADULT SUPERVISION! ✦ WARNING! THIS TOY DOES NOT HAVE BRAKES! ✦ WARNING! NOT SUITABLE FOR CHILDREN UNDER 1.5 YEARS OF AGE! ✦ WARNING! TO BE USED BY CHILDREN AGED OVER 1.5 YEARS WITH A MAXIMUM WEIGHT OF 25 KG. ✦ WARNING! DO NOT USE FOR CHILDREN OVER 25 KG DUE TO THE RISK OF OVERLOADING THE TOY'S STRUCTURE! ✦ WARNING! BEFORE USING THE TOY, INTRODUCE THE CHILD TO ITS USAGE AND SAFETY RULES. ✦ WARNING! USE THE TOY ONLY FOR ITS INTENDED PURPOSE. ✦ WARNING! USE THE TOY ONLY DURING THE DAY, ON FLAT AND SECURED PLAYGROUNDS, AWAY FROM STREETS AND ROADS USED BY VEHICLES. ✦ WARNING! TO AVOID THE RISK OF INJURY, REMOVE THE PARENT CONTROL HANDLE WHEN THE CHILD OPERATES THE TOY INDEPENDENTLY! ✦ WARNING! KEEP AWAY FROM FIRE AND OTHER HEAT SOURCES!

The assembly of the TOY must be carried out ONLY by an adult!

Do NOT allow children under 3 years old near the TOY before it is fully assembled to avoid access to small or loose parts!

This tricycle TOY is intended for ONE CHILD ONLY!

Do NOT allow children to push the tricycle!
This TOY is NOT suitable for running or sliding!
Do NOT use the TOY if there are missing or damaged parts.
Do NOT allow the child to stand on the footrest or seat to avoid injury.

The child must wear shoes while using the TOY!

Do NOT attach additional strings or accessories to the TOY to avoid the risk of choking!
Do NOT load more than 0.5 KG into the rear storage basket.
Do NOT place items or luggage on the handlebars or parent control handle to prevent imbalance, damage, or overturning of the TOY!
When storing or transporting, do NOT place items or heavy objects on the TOY to avoid damaging its structure.
Do NOT use another vehicle to tow the TOY!
Do NOT allow the child using the TOY or nearby children to touch the wheels or insert objects into them!

Use the TOY far from rivers, pools, stairs, or obstacles!

Do NOT make changes or modifications to the TOY's structure! If needed, contact the retailer or authorized service center for consultation or repair.
Do NOT use spare parts or components not provided by the manufacturer! The manufacturer is not responsible for safety if non-original parts are used that differ from the approved type or recommended ones.
- Keep plastic packaging away from children to avoid the risk of suffocation!

PRODUCT FEATURES

This is a functional TOY designed to develop your child's initial skills in handling and coordinating hand and foot movements while independently operating a tricycle or bicycle.

WARNING! Remove the parent control handle only when you are completely certain that the child can ride and operate the tricycle without assistance.

The TOY is suitable for children aged over 1.5 years and weighing up to 25 kg.
When the child operates the TOY, it is propelled using the pedals.
When the TOY is pushed by an adult, the child places their feet on the footrest.
Safety bar, removable footrest, adjustable canopy, and storage basket included.

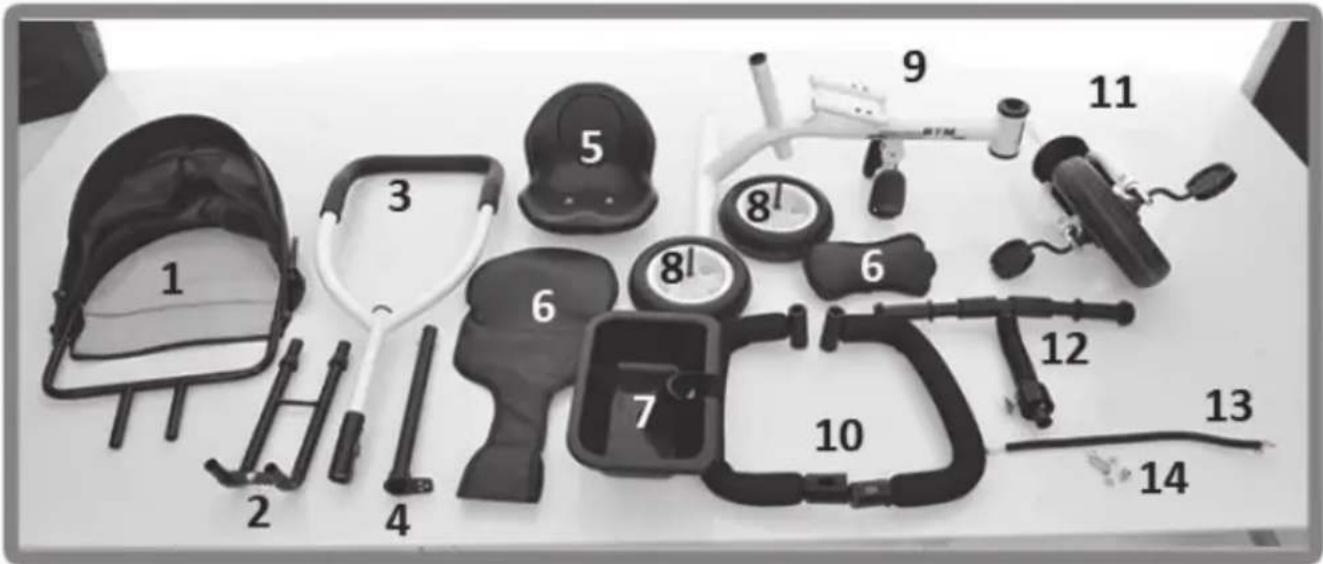

MAIN PARTS

1. Canopy
2. Seat support
3. Upper part of the parent control handle
4. Lower part of the parent control handle
5. Seat
6. Seat cover and head cushion
7. Storage basket
8. Rear wheels
9. Frame
10. Safety bar
11. Fork with front wheel and mudguard
12. Handlebar
13. Steering rod
14. Fastening elements

Please check that all the described parts are included in the packaging. Some parts may already be pre-assembled by the manufacturer.

ASSEMBLY AND INSTALLATION INSTRUCTIONS

IMPORTANT! Follow the assembly instructions and sequence provided in the manual text and illustrations precisely.

WARNING! CHECK THE SECURITY OF EACH FIXING AFTER EVERY OPERATION!

WARNING! Tighten screws well but avoid over-tightening. Loose screws may cause parts to disassemble and result in injuries.

Required tools: wrench and screwdriver (not included).

ASSEMBLY STEPS

1. INSTALLING THE FORK (WITH FRONT WHEEL AND MUDGUARD) TO THE FRAME TUBE

Insert the fork tube through the front frame tube opening.

2. INSTALLING THE HANDLEBAR

2-1 - Attach the handlebar to the fork tube. Press the pin and insert until you hear a "click," locking the handlebar. Cover the pin with the cap.

2-2 - Tighten the plastic-headed screw.

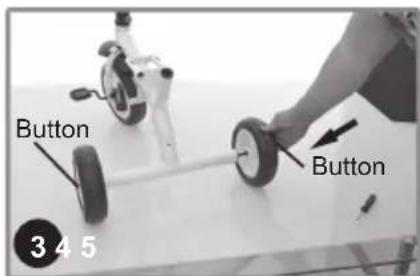

3. INSTALLING THE REAR WHEELS

Insert the rear axle into the frame hole. Press the button in the center of the wheel and push it until it stops. Release the button to secure the wheel.

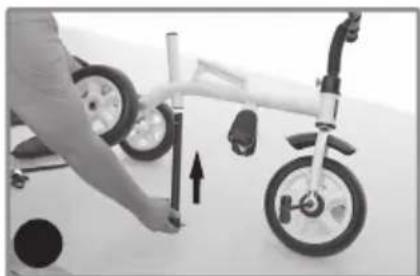

4. INSTALLING THE LOWER PART OF THE PARENT CONTROL HANDLE

Insert the lower handle through the frame's central tube.

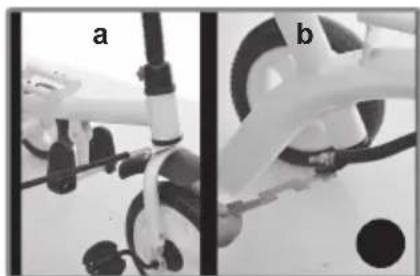

5. INSTALLING THE STEERING ROD

5a - Insert the curved end of the steering rod into the corresponding fork opening.
5b - Attach the other end of the rod to the plate on the lower part of the parent control handle. Secure it with a nut using a wrench.

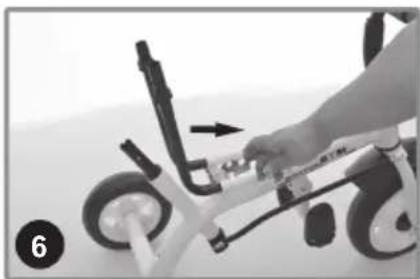

6. INSTALLING THE SEAT SUPPORT

Attach the seat support to the frame as shown in the illustration. Secure with a screw.

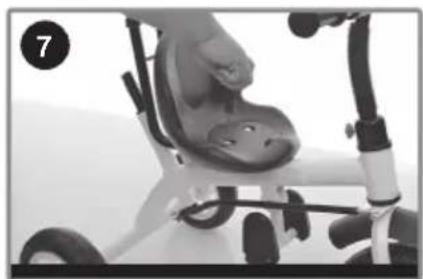

7. INSTALLING THE SEAT

Place the seat on the frame and secure it with screws.

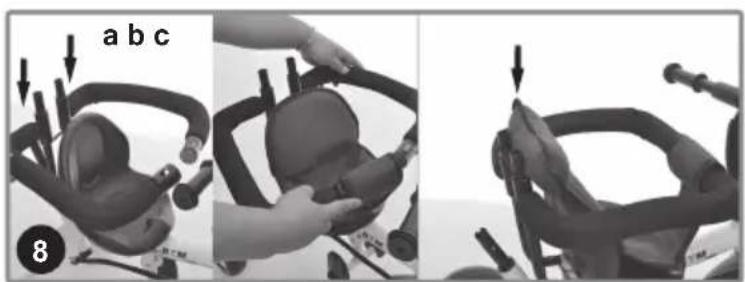

8. INSTALLING THE SAFETY BAR

8a - Insert each arm of the safety bar into the seat support tubes as shown.
8b - Place the seat cover on the seat, thread through one arm, and fasten the arms.
8c - Attach the head cushion to the seat support tubes.

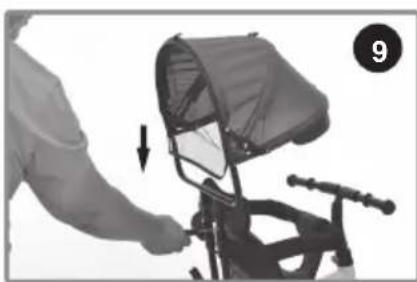

9. INSTALLING THE CANOPY

Insert the canopy tubes into the seat support tubes and secure them with screws.

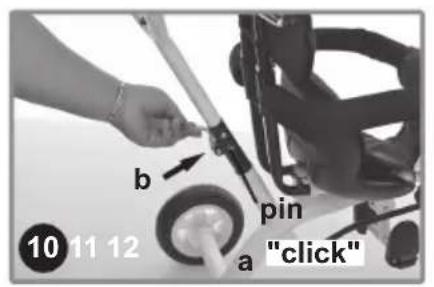

10. INSTALLING THE UPPER PART OF THE PARENT CONTROL HANDLE

10a - Press the pin and insert the upper part of the handle into the lower part's tube. You should hear a "click", and the pin will pop out.

10b - Push the red lever upward to secure the handle.

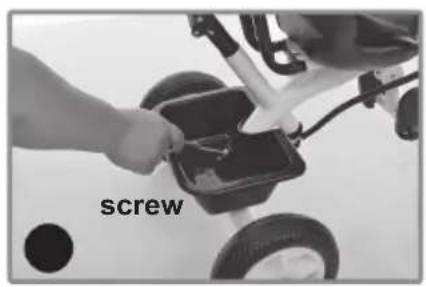

11. INSTALLING THE STORAGE BASKET

Attach the basket to the rear of the frame and secure it with a screw.

12. COMPLETED TRICYCLE

FUNCTIONS

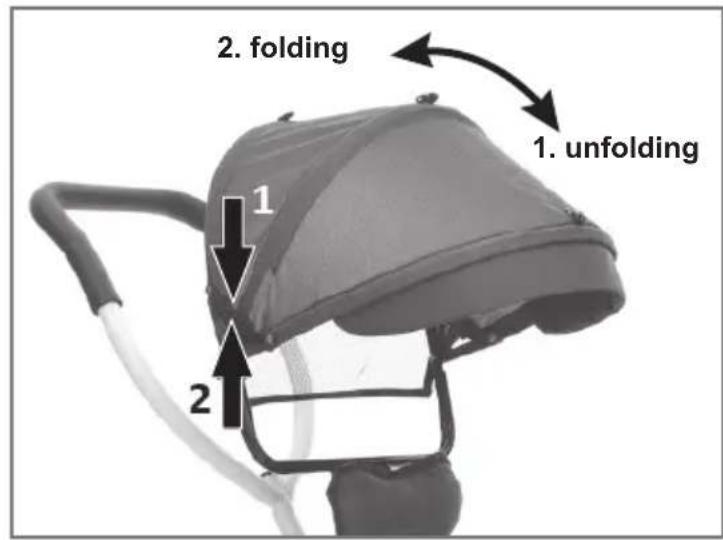

DEPLOYING AND FOLDING THE SUNSHADE

To deploy (1), gently pull. To fold (2), push inward.

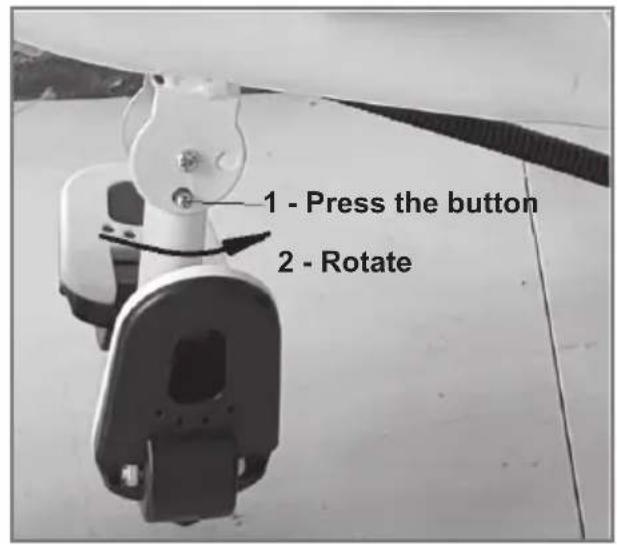

FOLDING THE FOOTRESTS

Push each footrest upward by hand. Press the button and rotate the mechanism toward the frame until the button clicks through the upper hole.

IMPORTANT! Use the footrests when pushing the tricycle, and fold them inward when the child is pedaling independently.

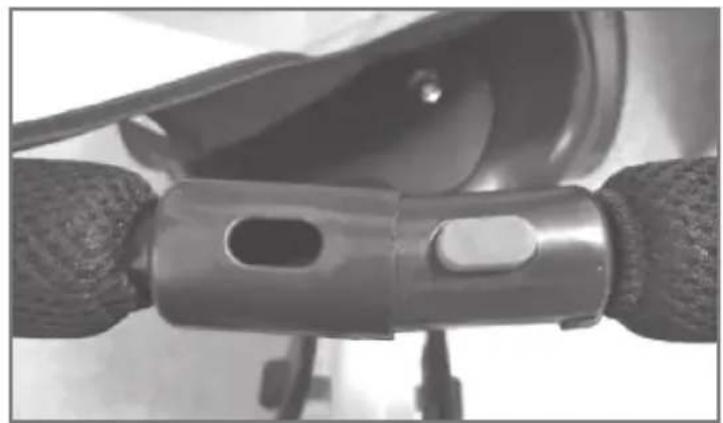

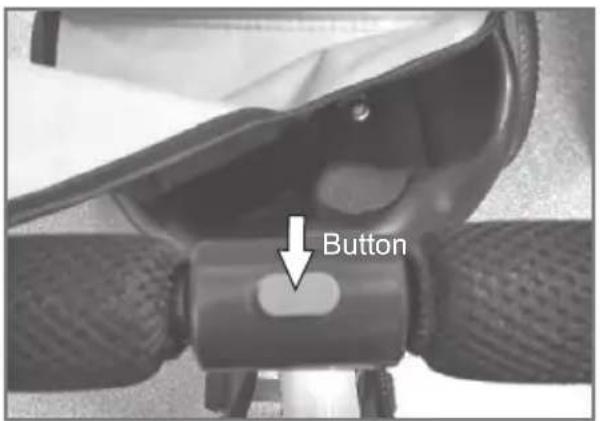

OPENING AND CLOSING THE SAFETY BAR

Press the button to open the bar.

CONTROLLING THE TRICYCLE WITH THE PARENTAL CONTROL HANDLE

CHILD-OPERATED MODE (AFTER REMOVING THE HANDLE AND SUNSHADE).

MAINTENANCE AND CARE INSTRUCTIONS

Periodically check the condition of individual parts.
Do not wash the TOY with water. Clean it with a soft cloth dampened with water or a mild liquid detergent.
Avoid cleaning with abrasive substances, ammonia, bleach, or alcohol.
◆ Regularly lubricate the moving mechanisms.
- Avoid using the TOY on sandy surfaces.
Do not store the TOY in areas with excessive heat or near heat sources to prevent deformation.
- Store the TOY in a clean, dry place. Protect it from environmental elements such as direct sunlight, rain, humidity, or sudden temperature changes.
Always dry the TOY and allow it to fully dry before storage or reuse. Mold may develop if the product is stored while wet.
For issues related to normal use, consult an authorized service center for advice or repair.

Materials used: plastic, metal, textile, and padding (100% polyester).
