VEILIGHEIDSVOORSCHRIFTEN

LEES ALLE INSTRUCTIES VOORAFGAAND AAN HET GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VEILIGHEIDSVOORSCHRIFTEN

5

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 VEILIGHEIDSVOORSCHRIFTEN

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VEILIGHEIDSVOORSCHRIFTEN

7

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 VEILIGHEIDSVOORSCHRIFTEN

ZORG VOOR HET MILIEU

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

- Minimum lading: 1/3 van de volle lading.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 INSTALLATIE

INSTALLATIE

Technical diagram of a mechanical device with numbered components and an inset close-up view labeled 6-7.

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALLATIE

Technical line drawing of two mechanical components: a circular component with internal grooves and a hexagonal bolt (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

14 INSTALLATIE

⚠ WAARSCHUWING

Diagram showing a device with labeled components and directional arrows indicating movement or assembly.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a joint or valve mechanism.

OPMERKING

Two diagrams showing a mechanical lever mechanism with rotational arrows, no text or symbols present

OPMERKING

Simple diagram of a mechanical or electrical component with a labeled point '1' and two circular features at the base (no text or symbols beyond the label)

Mechanical diagram showing a bolt and nut assembly with a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a card with a triangular ruler, no text or symbols present

Technical diagram showing three different pipe fitting configurations with numbered annotations indicating assembly steps.

Illustration of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 INSTALLATIE

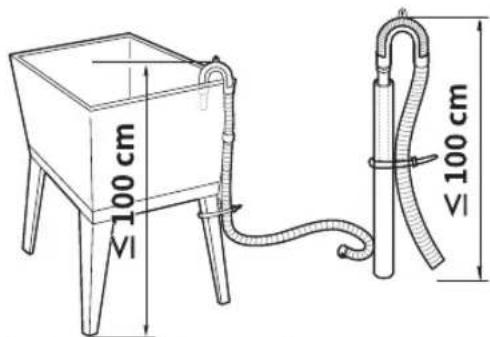

OPMERKING

Illustration showing a hand holding a tool near a device, with an inset magnified view of the tool interacting with a box (no text or symbols present)

≤100 cm ≤145 cm ≤100 cm ≤105 cm

100 cm VI 100 cm VI

Pure electrical circuit lines without any symbols

nl_main.book.book Page 19 Wednesday, August 26, 2020 1:45 PM

INSTALLATIE

19

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

NEDERLANDS

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 GEBRUIK

GEBRUIK

Gebruiksoverzicht

Cross-sectional diagram of a biological structure inside a circular container, showing internal tissue and a marked region (no text or labels)

3 Sluit de deur.

LET OP

Medical illustration showing a hand operating a car with a close-up of the car's interior (no text or symbols present)

Line drawing of a refrigerator interior with no text or symbols

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 GEBRUIK

Bedieningspaneel

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

OPMERKING

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 GEBRUIK

OPMERKING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Programmatabel

Wasprogramma

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 GEBRUIK

Programma Intensief Voorwas
TurboWash 59
Mix
Easy Care
Anti-Allergie
Extra verzorging Stoom
Fijne Was
Hand/Wol Was
Sportkleding
Snel 14min.
Donsdeken

Selecteerbare maximale centrifugeer-snelheid

Programma	Draaisnelheid
	Standaard Beschikbaar
Katoen	1400 tpm Alle
Eco 40-60	1400 tpm Alle
TurboWash 59	1200 tpm 400 tot 1400 tpm
Mix	1000 tpm Alle
Easy Care	1400 tpm Alle
Anti-Allergie	1400 tpm Alle
Extra verzorging Stoom	1000 tpm Tot 1000 tpm
Fijne Was	800 tpm Tot 800 tpm
Hand/Wol Was	800 tpm Tot 800 tpm
Sportkleding	800 tpm Tot 800 tpm
Snel 14min.	400 tpm Alle
Donsdeken	1000 tpm Tot 1	1000 tpm

OPMERKING

Pure electrical circuit lines without any symbols

GEBRUIK

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

OPMERKING

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 GEBRUIK

OPMERKING

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

SMART FUNCTIONS

LG ThinQ applicatie

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

40 SMART FUNCTIONS

Diagram showing hand pointing at a double-headed arrow symbol, with an arrow indicating direction and a separate arrow symbol.

Diagram showing a hand pointing at a Wi-Fi icon with signal waves, followed by a Wi-Fi symbol to indicate wireless connectivity.

OPMERKING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 SMART FUNCTIONS

LG Electronics European Shared Service Centre B.V.

Illustration of hands cleaning a circular object with arrows indicating direction (no text or symbols)

WAARSCHUWING

Diagram showing a cable being inserted into a wire with an arrow indicating direction (no text or symbols)

Illustration of a tool being cut with scissors, showing motion and movement (no text or symbols)

Illustration of a hand holding a folder with a scroll, showing a hand holding a pen and a black arrow indicating rotation (no text or symbols)

Diagram illustrating food preparation steps with labeled components and a magnified view of raw food items

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

48 PROBLEEMOPLOSSING

PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

50 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

52 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

54 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

56 PROBLEEMOPLOSSING

Wi-Fi

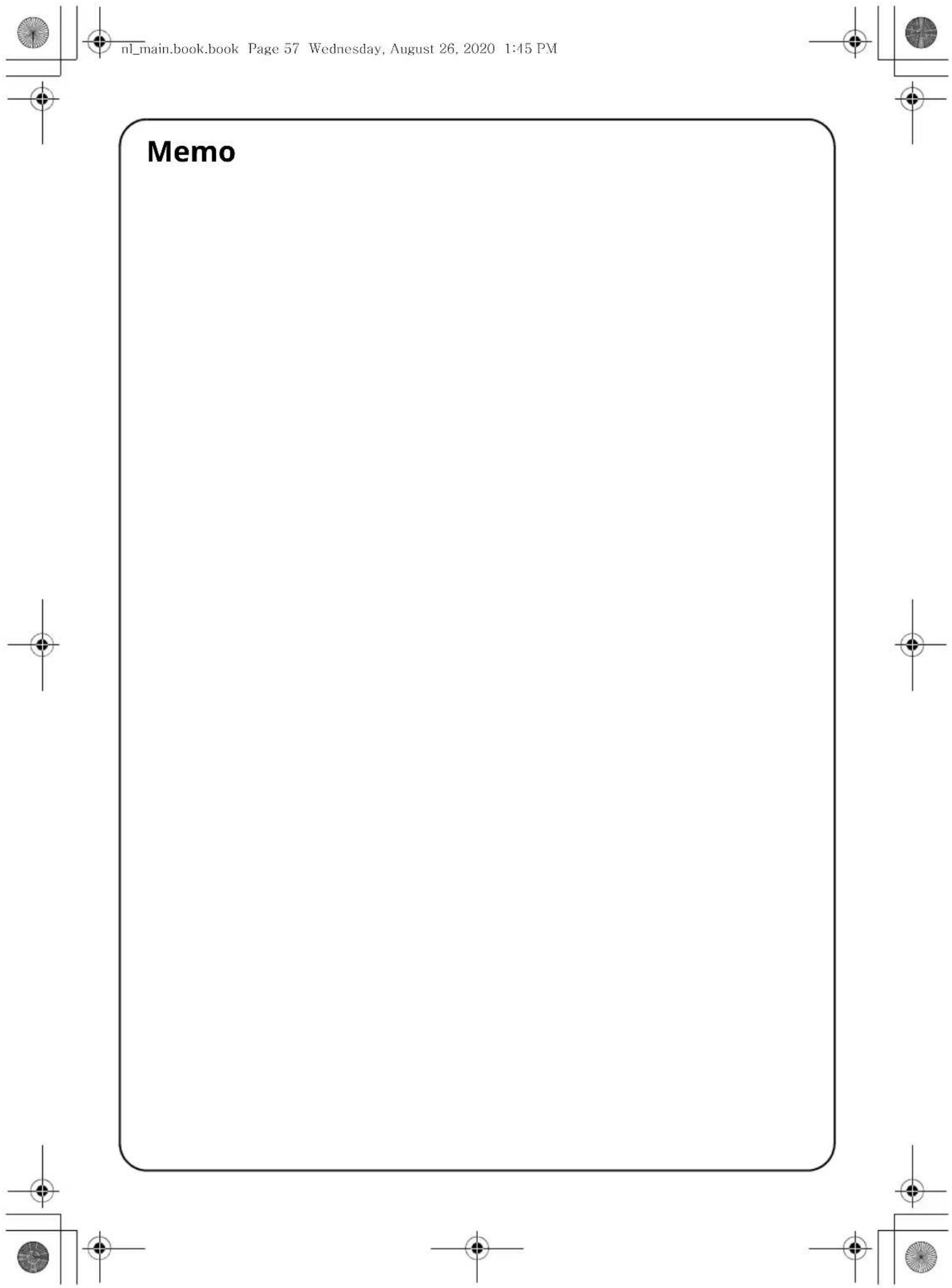

nl_main.book.book Page 57 Wednesday, August 26, 2020 1:45 PM Memo

nl_main.book.book Page 57 Wednesday, August 26, 2020 1:45 PM Memo

nl_main.book.book Page 57 Wednesday, August 26, 2020 1:45 PM Memo

nl_main.book.book Page 57 Wednesday, August 26, 2020 1:45 PM Memo

MANUEL DU PROPRIÉTAIRE

LAVE-LINGE

Smart Diagnosis (Diagnostic intelligent)......44

MAINTENANCE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

LISEZ TOUTES LES INSTRUCTIONS AVANT UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 CONSIGNES DE SÉCURITÉ

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

7

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 CONSIGNES DE SÉCURITÉ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

9

- Charge minimale: 1/3 charge.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 CONSIGNES DE SÉCURITÉ

Technical diagram of a washing machine with numbered components and an inset close-up view

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALLATION

Accessoires

Technical line drawing of two mechanical components: a circular component with internal grooves and a hexagonal bolt (no text or symbols)

Diagram showing a device component with labeled parts and directional arrows indicating movement or assembly.

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing the joint detail.

REMARQUE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 INSTALLATION

Two diagrams showing a mechanical lever mechanism with rotational arrows indicating motion (no text or symbols)

REMARQUE

Simple diagram of a mechanical or electrical component with a labeled point (1) and curved base, no text or symbols present.

Mechanical diagram showing a bolt and nut assembly with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a folded paper or sheet with a numbered label (1) on the page, no text or symbols present.

Technical diagram showing two mechanical assembly steps with labeled component 1

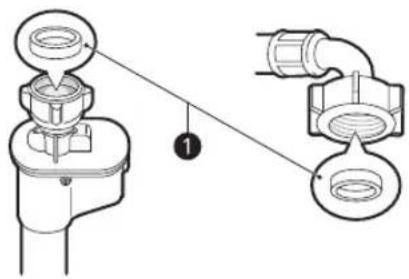

Technical diagram showing a mechanical assembly with labeled component 1 and a close-up of a pipe fitting.

Illustration of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or symbols)

REMARQUE

Illustration showing a person using a handheld device to measure a device, with magnified view of the device (no text or symbols present)

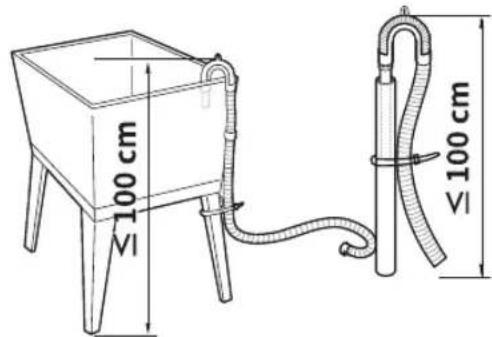

≤100 cm ≤145 cm ≤100 cm ≤105 cm

FRANÇAIS

100 cm MI 100 cm VI

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

20 UTILISATION

UTILISATION

Diagram showing a cross symbol inside a circular structure, possibly indicating a medical or surgical procedure (no text or labels present)

3 Fermer la porte.

ATTENTION

Medical illustration showing a hand holding a device near the lower left and a close-up of the device inside the upper right (no text or symbols)

Line drawing of a refrigerator interior with shelves and legs (no text or symbols)

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 UTILISATION

Panneau de commande

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram illustrating a mechanical or electrical setup with labeled components including a key, switch, and a component with a magnified view.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 UTILISATION

REMARQUE

Technical diagram of a sewing machine with numbered parts labeled 1, 2, and 3

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

©

30 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 UTILISATION

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

fr_main.book.book Page 40 Wednesday, August 26, 2020 1:52 PM

40 UTILISATION

Application LG ThinQ

Smart Diagnosis (Diagnostic intelligent)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 FONCTIONS SMART

Diagram showing hand pointing at a circular button with an upward arrow, followed by a rightward arrow icon.

Diagram showing a hand pointing at a Wi-Fi icon with signal waves, followed by an arrow to a Wi-Fi symbol.

REMARQUE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Installation de l'application LG ThinQ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

44 FONCTIONS SMART

Smart Diagnosis (Diagnostic intelligent)

LG Electronics European Shared Service Centre B.V.

Illustration of hands cleaning a circular object with a lid and brush (no text or symbols)

AVERTISSEMENT

Diagram showing a cable being inserted into a plug with a curved arrow indicating rotation (no text or symbols)

Illustration of a tool being cut with scissors, showing motion and movement (no text or symbols)

Illustration of a hand holding a folder with a scroll, showing a hand holding a folder and a scroll (no text or symbols present)

Diagram illustrating food preparation steps with labeled arrows and a magnified view of raw food items

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

54 DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

56 DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

58 DÉPANNAGE

Odeur

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Wi-Fi

fr_main.book.book Page 51 Wednesday, September 23, 2020 9:36 AM Note

fr_main.book.book Page 51 Wednesday, September 23, 2020 9:36 AM Note

fr_main.book.book Page 51 Wednesday, September 23, 2020 9:36 AM Note

fr_main.book.book Page 51 Wednesday, September 23, 2020 9:36 AM Note

el_main.book.book Page 65 Wednesday, August 26, 2020 8:39 AM

LG

Life's Good
